Old 12-21-2013, 12:30 AM   #501
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

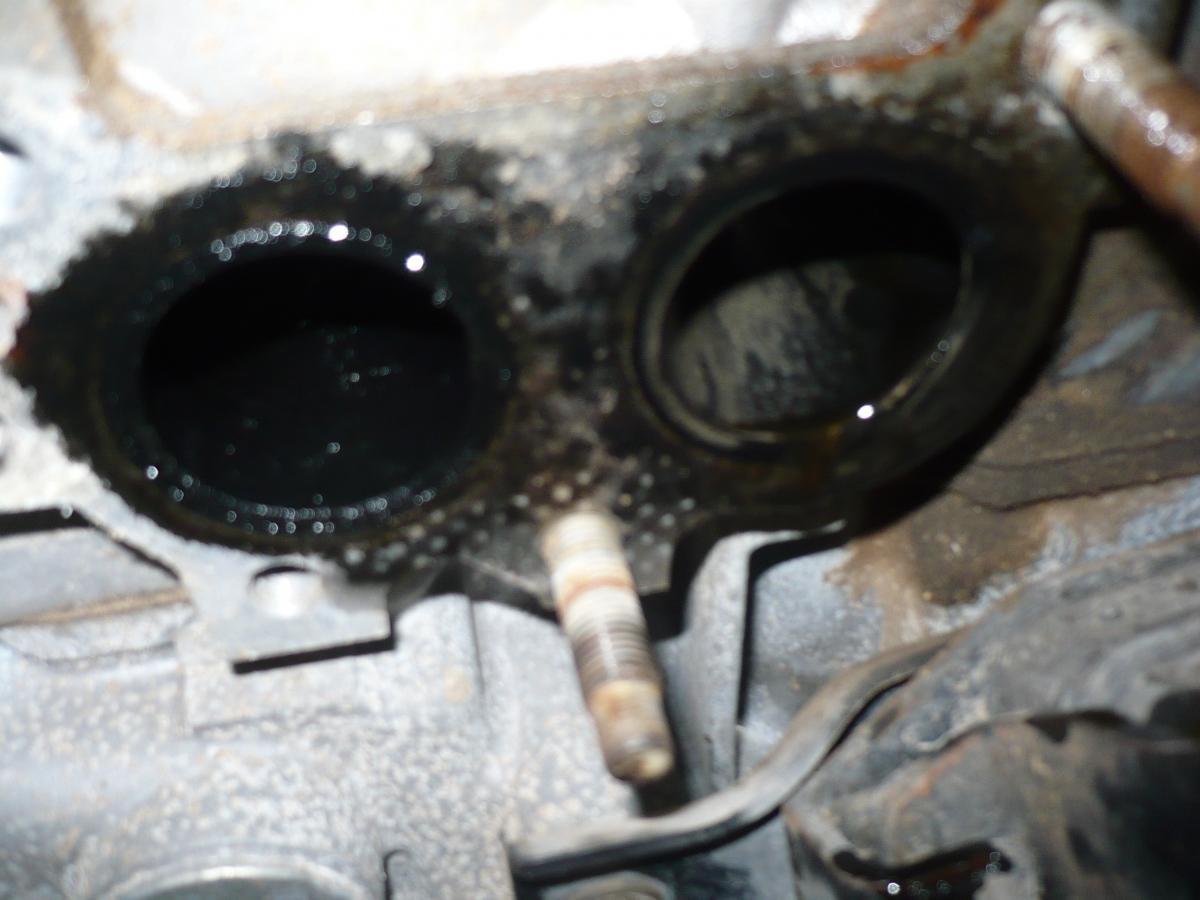

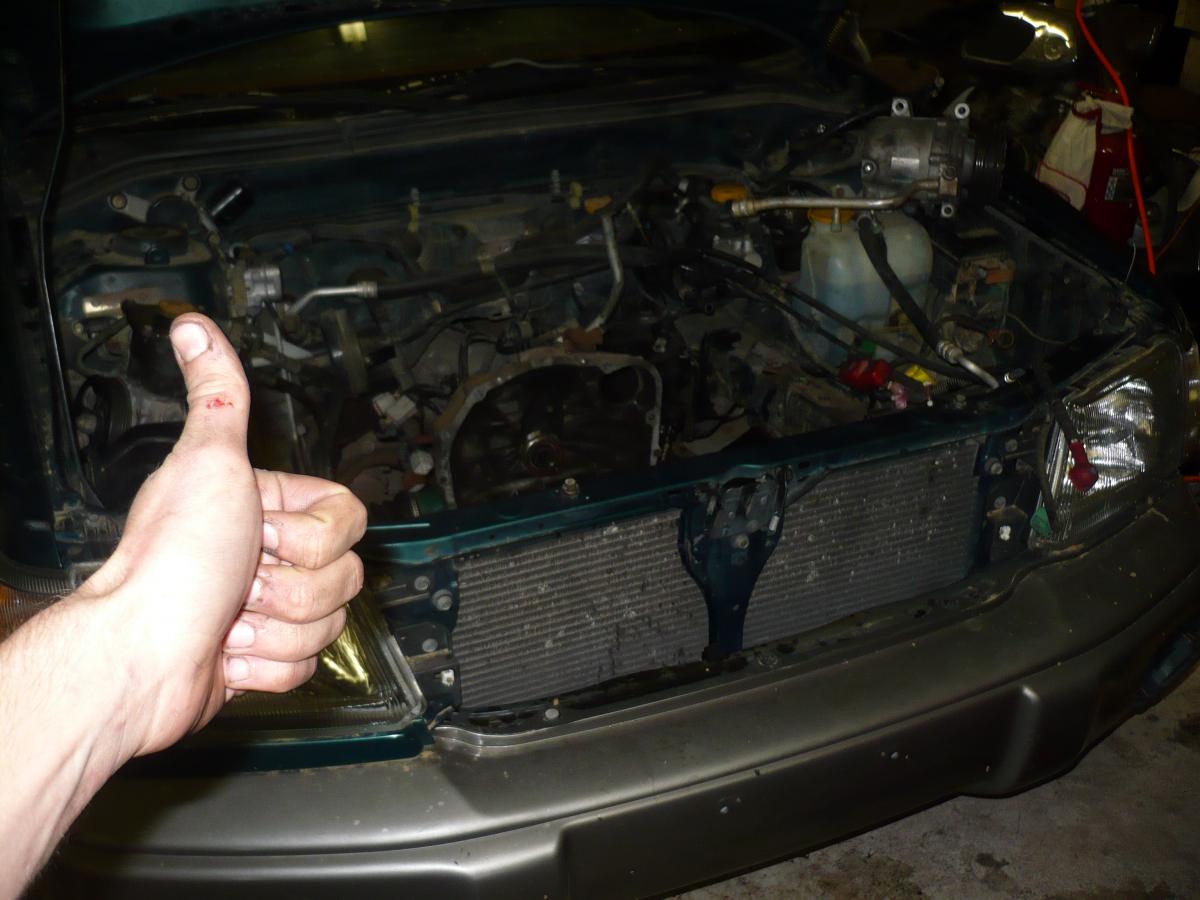

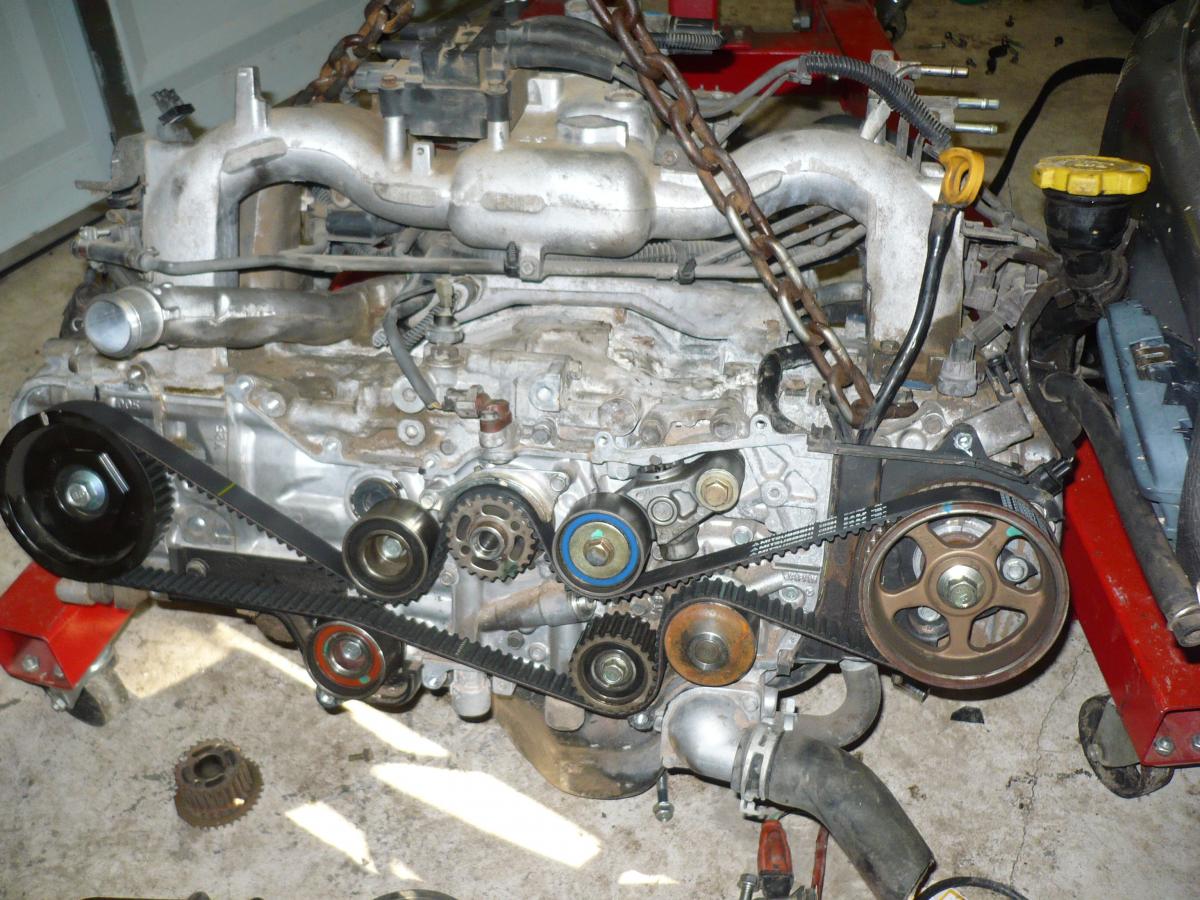

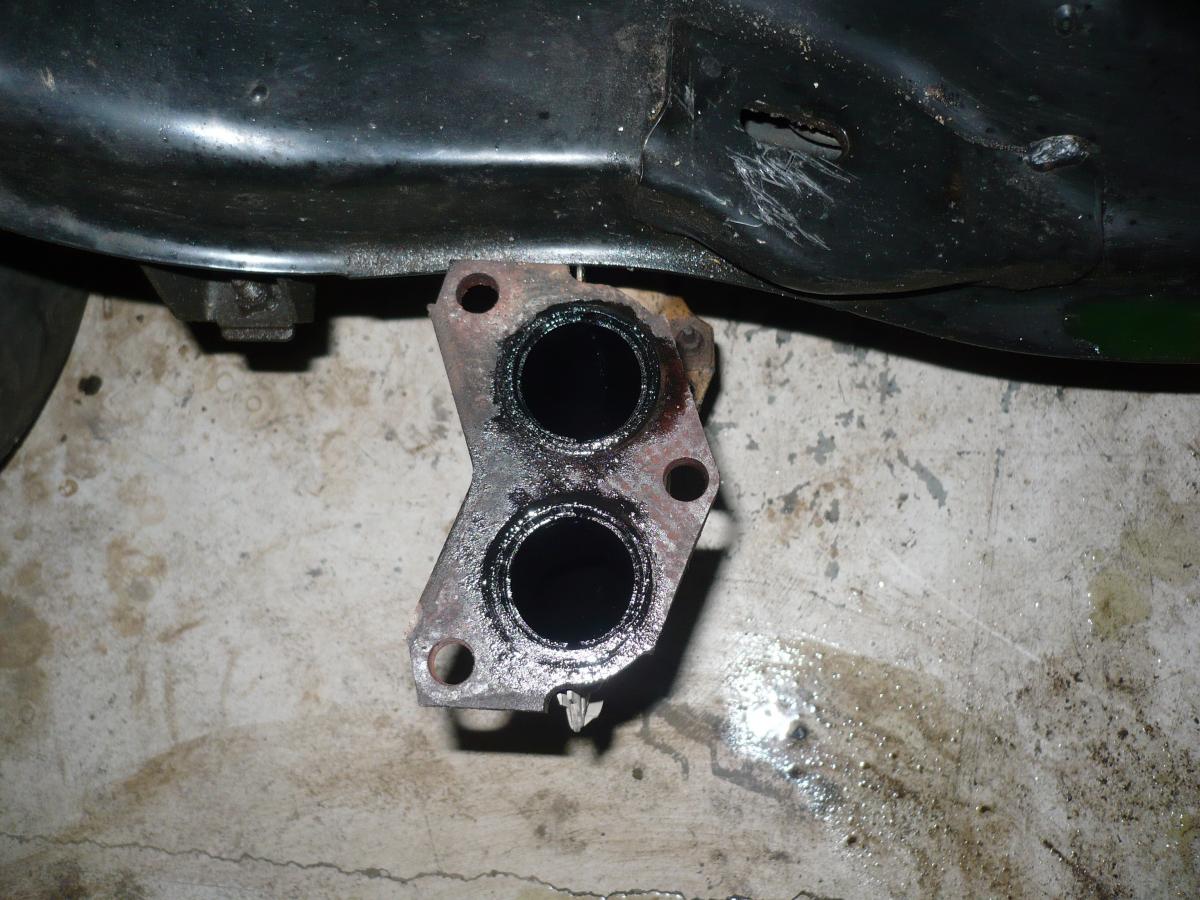

Double posting in my own thread. Anyways that's my fail so far in subaru land.
Attached Thumbnails
Fireindc's attempt to build a decent miata.  (the search for more torque).-jto3d29.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-ohlu8gd.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-t0lmpve.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-ixsxxdq.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-k6w6pc4.jpg

Fireindc's attempt to build a decent miata.  (the search for more torque).-4rbmlhl.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-ionf3mg.jpg
Fireindc is offline   Reply With Quote
Old 12-21-2013, 01:49 AM   #502
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

That doesn't look like a newer 2.5, did you run the vin?
18psi is offline   Reply With Quote
Old 12-21-2013, 02:04 AM   #503
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by 18psi View Post
That doesn't look like a newer 2.5, did you run the vin?
It was, at least judging from the accessories. It had a drive by wire throttle body and a much beefier intake manifold on it, but i swapped everything over to what came on the foz. (some sensors, crank gear with different triggers, and the dr. side cam gear because it was different.).
Fireindc is offline   Reply With Quote
Old 12-21-2013, 12:47 PM   #504
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Most people do leakdown testing at TDC. This assumes that cylinder condition on the entire stroke is the same as cylinder condition at TDC -- which is often an incorrect assumption.

Best to do both leakdown and compression testing. During a compression test, you monitor the pressure built by traversing the entire stroke.

$$0.02.
hornetball is offline   Reply With Quote
Old 12-21-2013, 12:58 PM   #505
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by hornetball View Post
Most people do leakdown testing at TDC. This assumes that cylinder condition on the entire stroke is the same as cylinder condition at TDC -- which is often an incorrect assumption.

Best to do both leakdown and compression testing. During a compression test, you monitor the pressure built by traversing the entire stroke.

$$0.02.
Thanks for the insight. And for the record, i did do both leakdown and compression tests.

Leakdown resulted in good even readings, less than 15% across the board.

Compression test resulted in:

drivers side bank = 130psi (both within 5 psi of each other.
pass side bank = 160psi (both within 5 psi of each other)

This is part of why i suspected a HG initially, because the drop in PSI on the entire bank made me suspicious. Not so sure anymore! We shall see, off to go snowboard for now though.
Fireindc is offline   Reply With Quote
Old 12-21-2013, 03:12 PM   #506
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Fireindc View Post
Leakdown resulted in good even readings, less than 15% across the board.

Compression test resulted in:

drivers side bank = 130psi (both within 5 psi of each other.
pass side bank = 160psi (both within 5 psi of each other)

This is part of why i suspected a HG initially, because the drop in PSI on the entire bank made me suspicious. Not so sure anymore!
This is a classic indication that something is up with the cylinders/rings. The leakdown result shows that the head/head gasket is fundamentally sound and the rings are holding compression at TDC. The compression result shows that something is wrong with the cylinders/rings on the passenger side bank as the entire stroke is traversed -- and whatever it is affects both cylinders -- which is kind of wierd -- maybe the block is cracked between the two? In for teardown pics!

Quote:
Originally Posted by Fireindc View Post
We shall see, off to go snowboard for now though.
Damn you and your snow and your mountains. Jealous.
hornetball is offline   Reply With Quote
Old 12-26-2013, 08:34 PM   #507
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Okay guys, sorry.. no pictures. But bear with me here, this is the synopsis.

So far, even just pulling the valve covers this is internally the cleanest motor I've ever disassembled. I got the heads off and they are in great condition, pistons look good from the top with minimal carbon, cylinders don't have a scratch on any of them and the hone looks brand new.

Also, the head-gaskets are fine. This is all good news, but it leaves me wondering WTF the problem is. I guess the next step is going to be to pull the pistons (which you have to do before splitting the cases anyways) and look further. I know the motor sat, so maybe I'm dealing with a stuck oil control ring.

I'm thinking about re-ringing it and leaving the bottom end. This motor clearly is around the 60k claimed miles, and I'd really like to slap it back together and run it seeing how nice it is internally. I'll get pictures tomorrow!
Fireindc is offline   Reply With Quote
Old 12-26-2013, 09:07 PM   #508
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

When do we get back to our regular scheduled programming?
Erat is online now   Reply With Quote
Old 12-26-2013, 09:23 PM   #509
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,681
Total Cats: 1,561
Default

Quote:
Originally Posted by Erat View Post
When do we get back to our regular scheduled programming?
Plas Juan.
sixshooter is online now   Reply With Quote
Old 12-26-2013, 09:25 PM   #510
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by Erat View Post
When do we get back to our regular scheduled programming?
Once I get this subaru out of the garage, so hopefully within the next month.
Fireindc is offline   Reply With Quote
Old 12-26-2013, 09:31 PM   #511
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

Sounds good. and don't split the halves unless you absolutely positively have to.
18psi is offline   Reply With Quote
Old 12-26-2013, 09:42 PM   #512
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by 18psi View Post
Sounds good. and don't split the halves unless you absolutely positively have to.
This was my thought, there should be no need to split the cases for a quick re-ring since the bores look so good.

Plus i'd like to get this thing up and running asap so I can focus on the BP.
Fireindc is offline   Reply With Quote
Old 12-27-2013, 05:42 PM   #513
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

True no point spending more money on it then you have to. Once you find the issue slap it back together and get that waste gate on your Miata so I can see what my car will be doing in a few months!
Jeffbucc is offline   Reply With Quote
Old 12-27-2013, 05:58 PM   #514
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

he already found the issue
18psi is offline   Reply With Quote
Old 12-27-2013, 06:09 PM   #515
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

LOL, yeah man. I'm completely ashamed but I'll own up to it. I'm a n00baru.

So, I basically hooked up the subaru PCV system backwards. I hooked up the valve cover breather directly to the intake manifold. SO i believe it was acting like a straw, sucking tons of oil from the valve covers and dumping it in the intake.

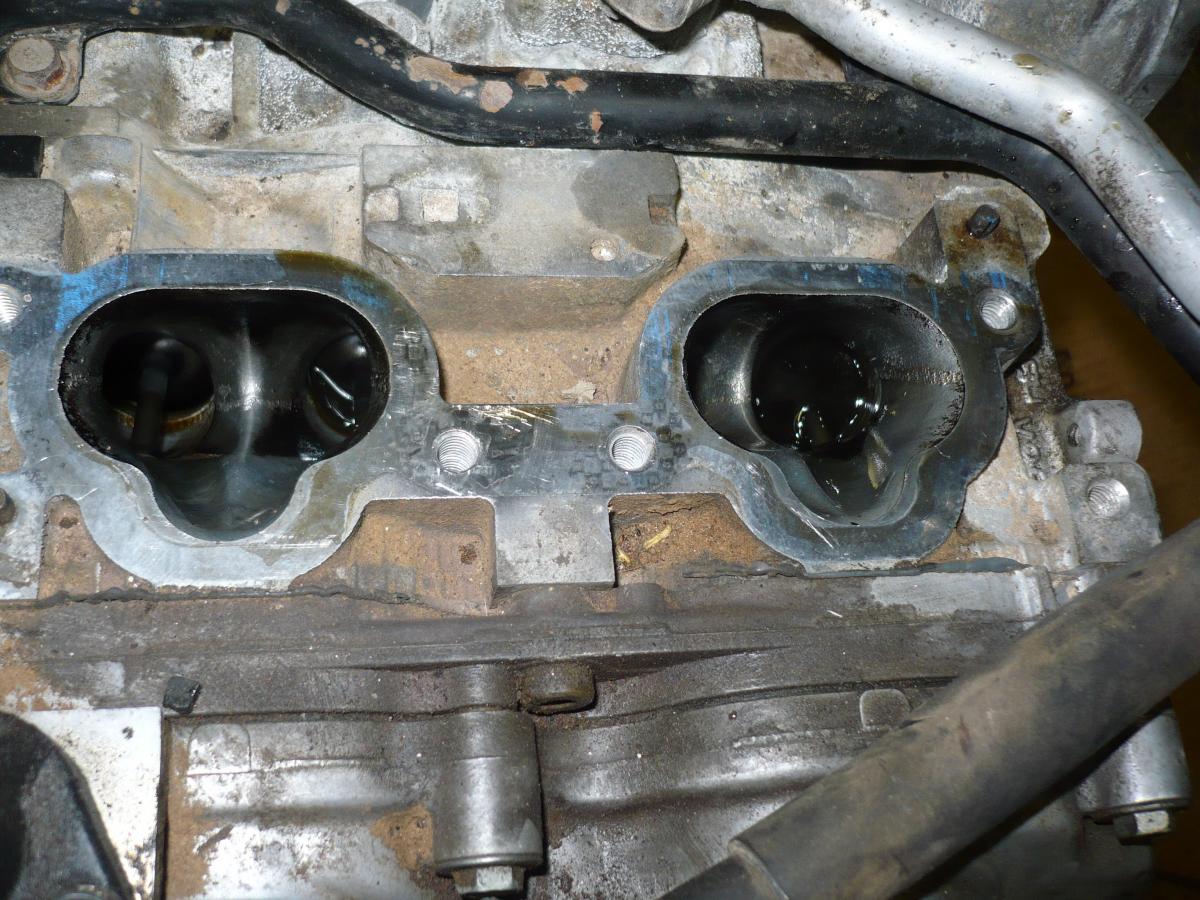

This explains why the airbox itself was clean, yet there was oil literally pooling on the intake valves.

Apparently this isn't a miata. Sideways valve covers, wtf?!

Last edited by Fireindc; 12-27-2013 at 06:23 PM.
Fireindc is offline   Reply With Quote
Old 12-27-2013, 06:19 PM   #516
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

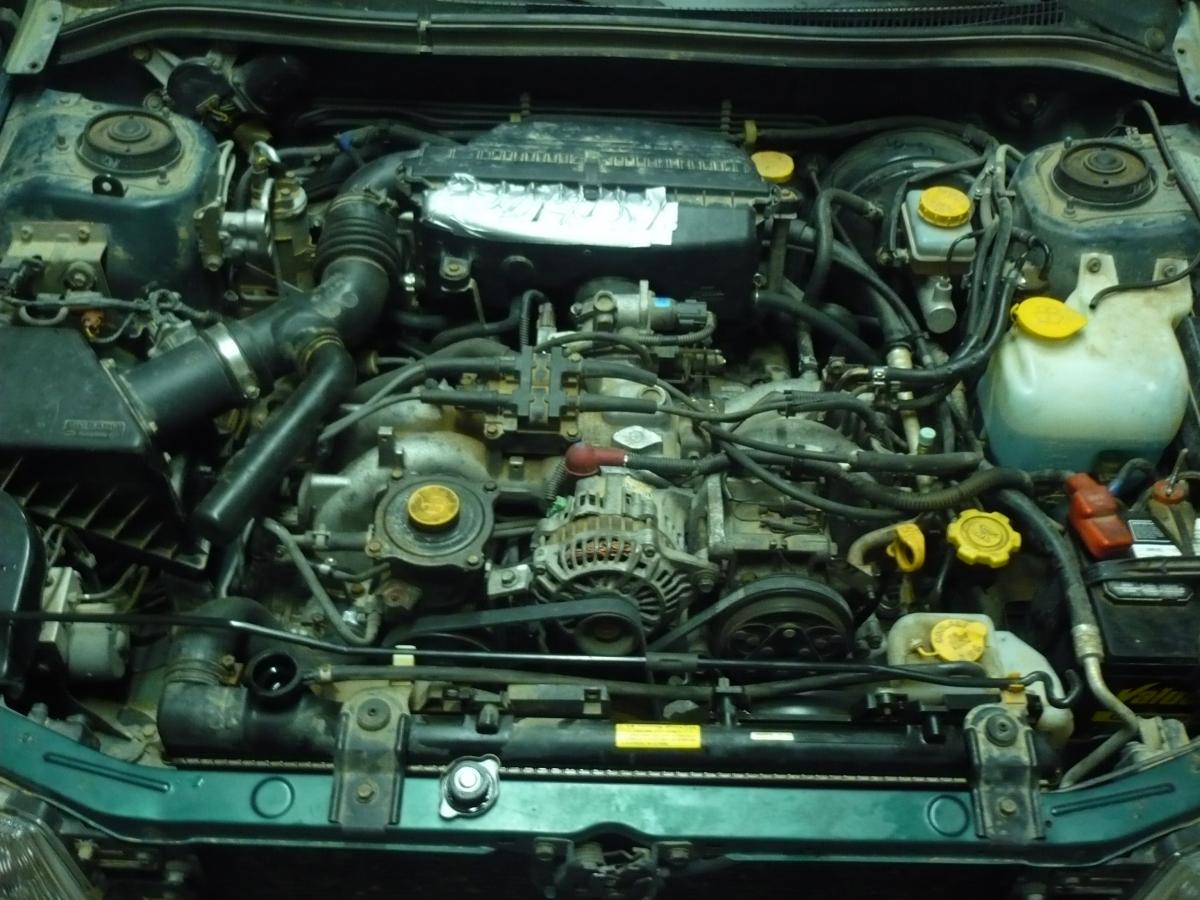

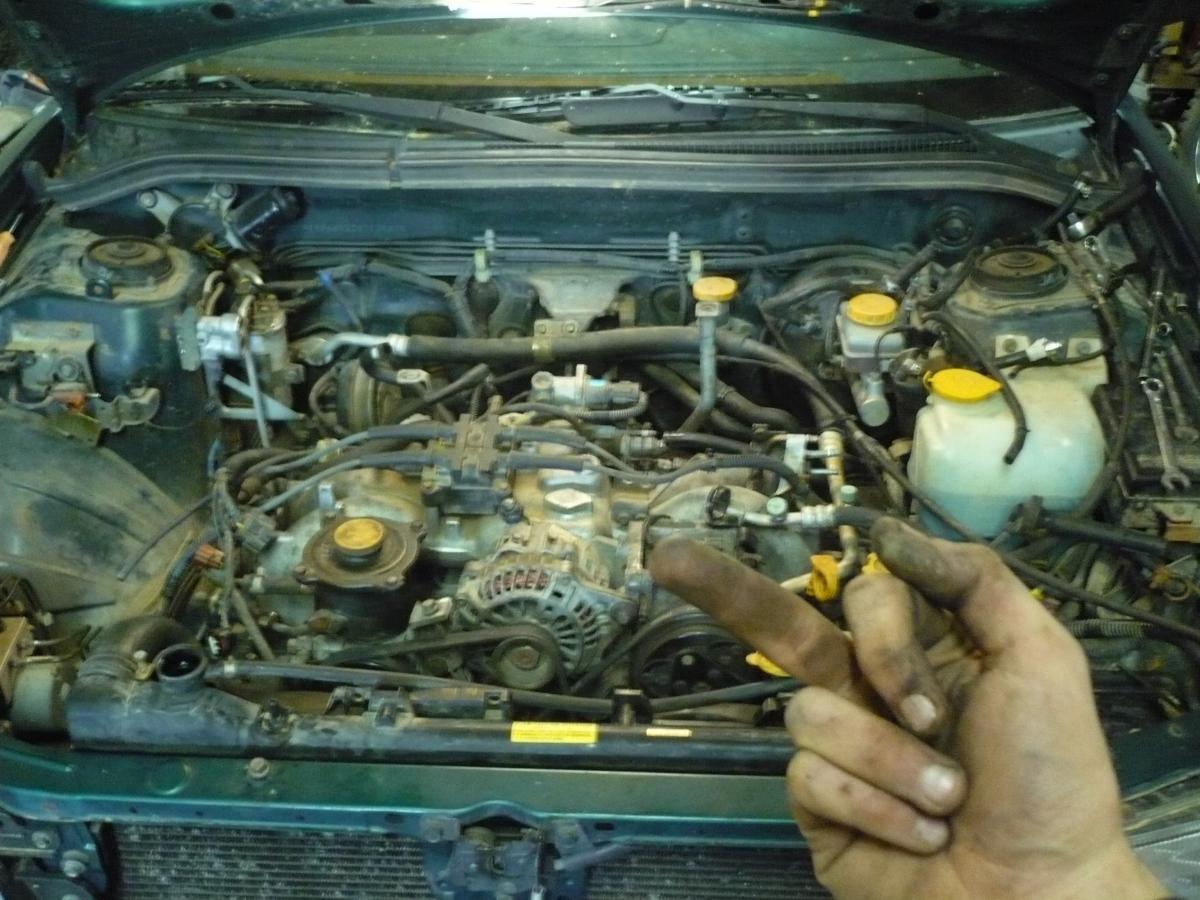

Please notice the "fail" behind the coilpack there running to the pas side head.

Did not figure this out until i pulled the motor apart to find pristine internals, THEN of course i second guess my pcv routing.
Attached Thumbnails
Fireindc's attempt to build a decent miata.  (the search for more torque).-ohlu8gd.jpg
Fireindc is offline   Reply With Quote
Old 12-27-2013, 06:23 PM   #517
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Checked this thread for the first time in a week. See a subaru motor.

I'm so confused.
viperormiata is offline   Reply With Quote
Old 12-27-2013, 06:27 PM   #518
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Wait... there's a different time to find out stupid mistakes other than when you have the entire car torn totally apart?
concealer404 is offline   Reply With Quote
Old 12-27-2013, 06:33 PM   #519
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I just got lucky...fucked..to be able to find them that way!
Jeffbucc is offline   Reply With Quote
Old 12-27-2013, 06:36 PM   #520
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by concealer404 View Post
Wait... there's a different time to find out stupid mistakes other than when you have the entire car torn totally apart?
I guess it's never a bad time to do headgaskets on a subaru
Fireindc is offline   Reply With Quote
