Yeah, it works great! Let me know what you need and i can build it as this one... i am just building one for the sake of building it at the moment... i didnt want to commit to any outside projects with my car not done and with me building a B20 Vtec for my daily civic.

I will have one made up with a more steep ramp too for shorter collectors on tighter manifold designs.

For the most part my manifolds will be 1.25" runners as they are good for up to 500whp.
shlammed is offline   Reply With Quote
Old 07-19-2011, 02:40 PM   #282
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Going to my shop tonight (5:30-10) to hopefully finish finish the wiring and get the entire exhaust built and finished.

Saturday night (7pm-3am) i hope to get the car to a place where it will start.


trying to remind myself of things that need to be changed on the AEM ems to get running...

1. control engine fans
2. add crank sensor
3. change settings for cam sensor
4. VVT something...
5. IAT cal/wiring
6. calibrate TPS
7. Idle air control settings - can someone verify 02 IAC setting is the same 94-05?


For the time i am running stock coil packs and batch fire fuel like i was last year to keep things basic. should retain the same injector and ignition phasing if i am correct...

I will switch to LS1 coils or the toyota COPS later on.... i have toyota cops but i dont know that i like them.



I hope to goodness i can have it started saturday night... that would REALLY motivate me to keep going with it
shlammed is offline   Reply With Quote
Old 07-19-2011, 10:12 PM   #283
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Can someone with a 1.6 miata check the colors of the wires for iac ASAP?
Trying to wire right now!
shlammed is offline   Reply With Quote
Old 07-19-2011, 11:21 PM   #284
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

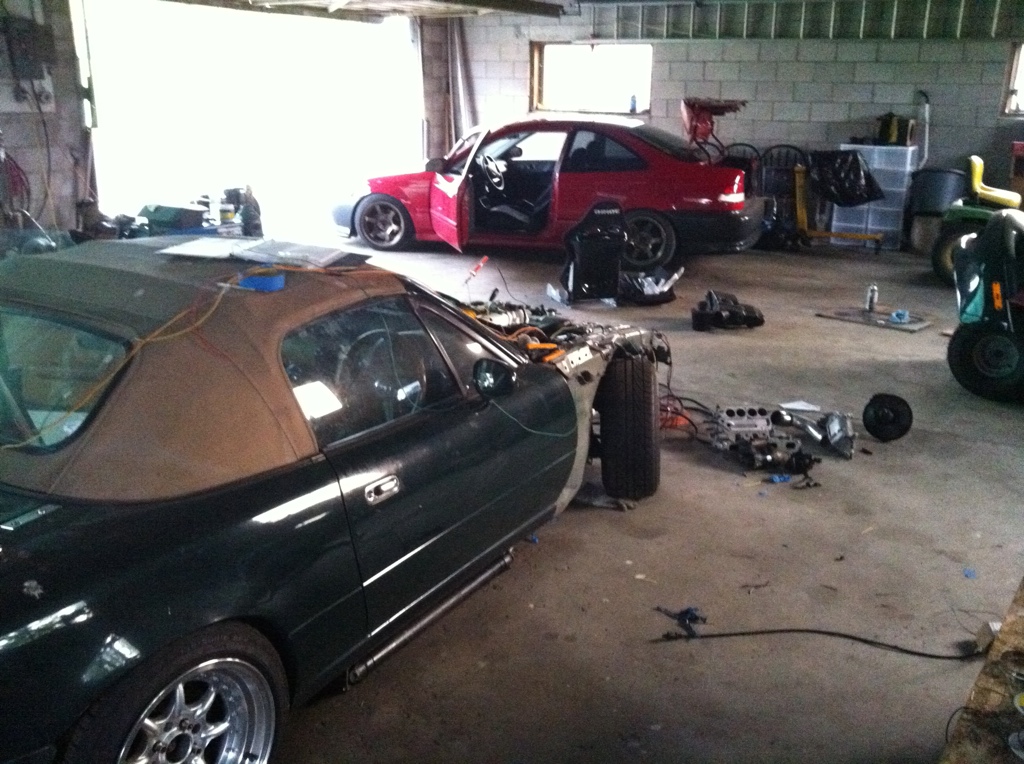

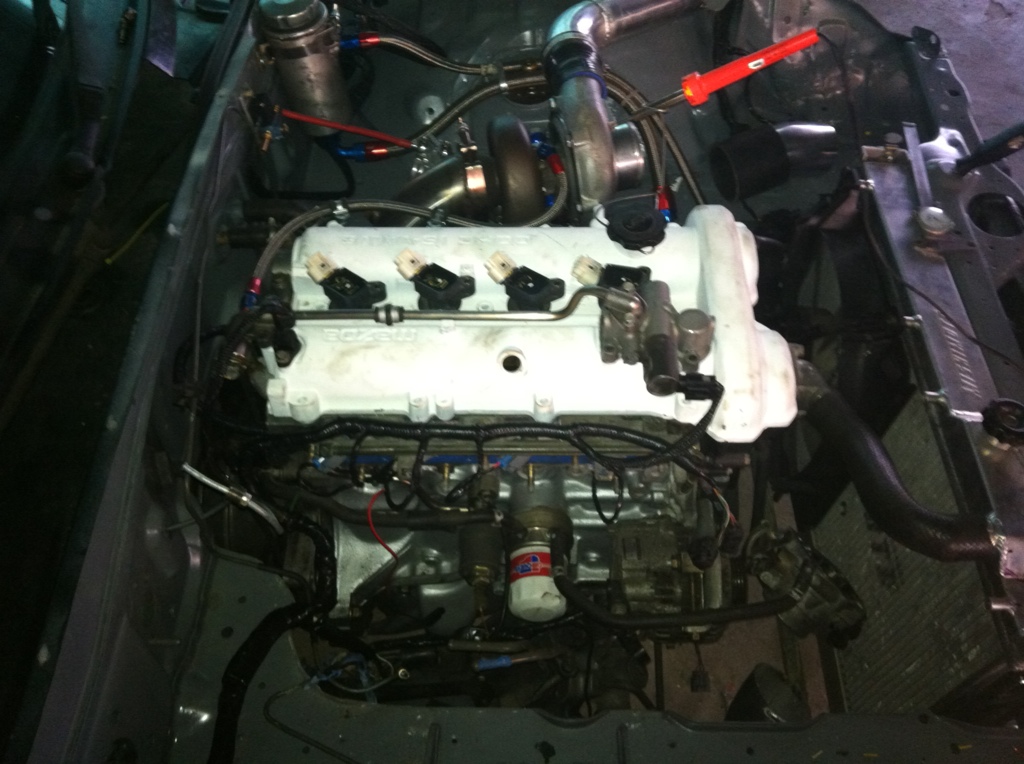

Where i am at.

Can someone with a 1.6 miata check the colors of the wires for iac solinoid?



Attached Thumbnails
Half Bottle of JD and a 12mm wrench-98c3ef63.jpg   Half Bottle of JD and a 12mm wrench-3860020c.jpg
shlammed is offline   Reply With Quote
Old 07-20-2011, 07:54 AM   #285
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Still need those wire colors? What in particular do you need if so?
astroboy is offline   Reply With Quote
Old 07-20-2011, 09:38 AM   #286
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I do need them.

I just need to know what the colors are coming out of the idle air control soiloid. I have the FSM wiring diagram printed off but the ECU with motor sensors doesnt have it on it.


Looking at how i did the wiring this year im not 100% pleased with the outcome. Mainly being that if it didnt plug in i just ran new wires to the ECU ( about half dozen).

If the car runs fine and continues to do so until the winter, that will be one of the only changes over this winter season besides a full brake line tuck and forged pistons/rods
shlammed is offline   Reply With Quote
Old 07-20-2011, 09:48 AM   #287
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

if you have the FSM, then you have the wire colors...

It's Blue/Orange on the ECU side at pin 2W. and 12v is White/Red - shared with the CAS & injectors
Braineack is offline   Reply With Quote
Old 07-20-2011, 09:59 AM   #288
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Thanks.

I don't have a cas anymore though.
shlammed is offline   Reply With Quote
Old 07-24-2011, 12:19 AM   #289
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Spent some time working on this again today.


Managed to hack the mild steel exhaust that i built up last year to rape it of my stainless cat and muffler. It was pretty rusty after just a year. Rebuilding it with 304 stainless steel with a 3A finish (sanitary-polished in and out)

Continued work in the engine bay and am 90% done the stuff in there for this season...
Just need to bolt a few things up...

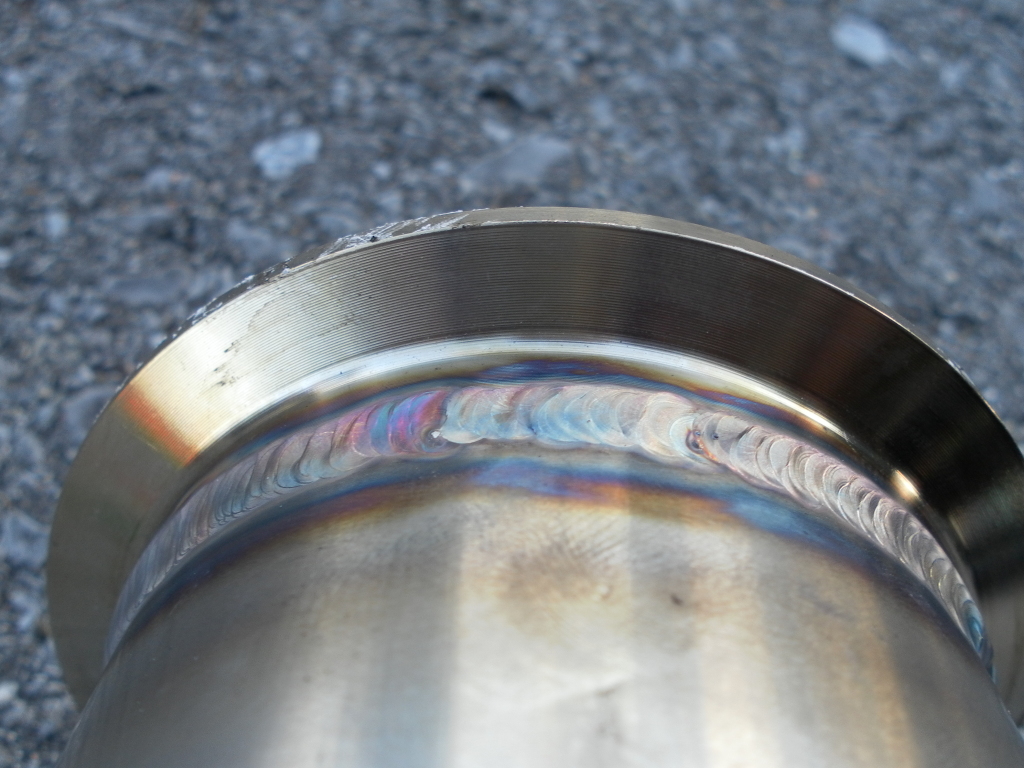

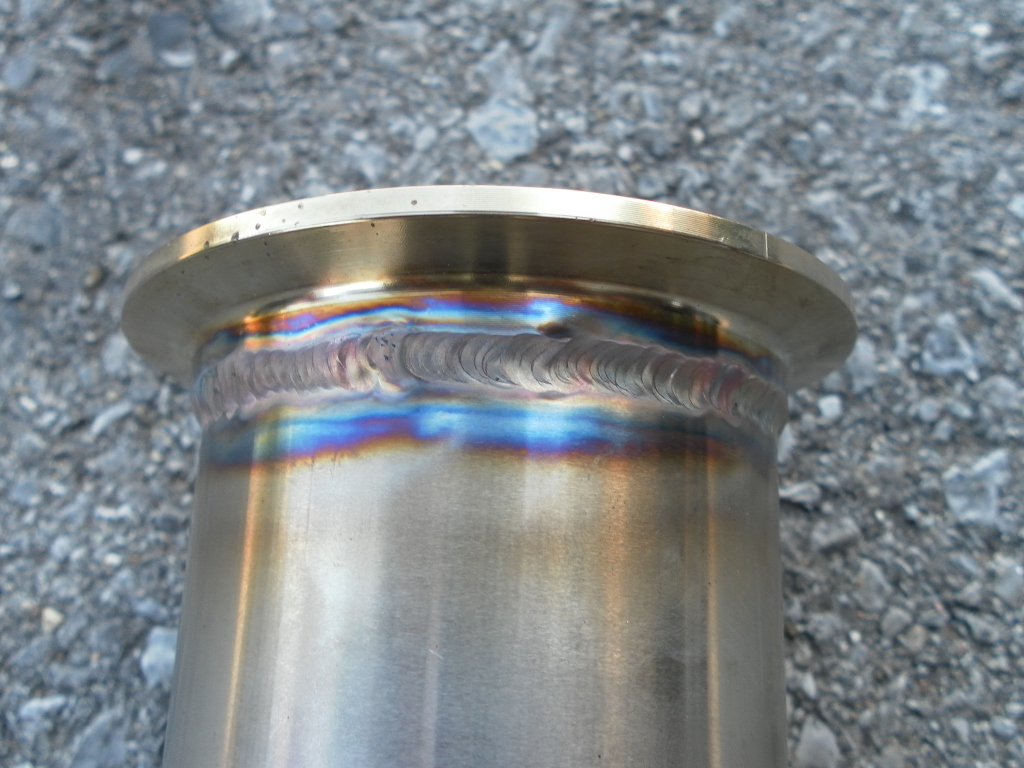

Here is a recent pic of a vband flange weld since I have dialed in my fab setup!

Attached Thumbnails
Half Bottle of JD and a 12mm wrench-003-1.jpg   Half Bottle of JD and a 12mm wrench-005.jpg
shlammed is offline   Reply With Quote
Old 07-24-2011, 07:49 AM   #290
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

THAT!

is a good looking weld.
astroboy is offline   Reply With Quote
Old 07-24-2011, 11:01 AM   #291
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

That's looking professional. I'm gonna have to bring my B5 to you for some exhaust work too!
dgmorr is offline   Reply With Quote
Old 07-24-2011, 11:47 AM   #292
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Thanks!

I have the settings dialed in now! Just need to keep at it to keep getting better and better
shlammed is offline   Reply With Quote
Old 07-26-2011, 03:13 PM   #293
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

wow nice weld!
mighty mouse is offline   Reply With Quote
Old 07-26-2011, 03:22 PM   #294
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Thanks!

I feel comfortable enough now to make a few jigs for 4 different types of manifolds for the community.

-Bottom mount, ac+ps
-bottom mount with no restrictions
-top mount-with AC+ps
-top mount- no restrictions

Currently i am waiting for the flanges to build a bottom mount with AC/PS. The prototype will be done shortly
Using stainless flanges because we all want something to keep looking as good as our cars do. They will be thick so they dont warp.
shlammed is offline   Reply With Quote
Old 07-27-2011, 11:06 PM   #295
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Put in the battery today

seems everything is right from the parameter window. Stoked!

Question: i didnt have my fuel lines hooked up and i had my fuel pump switch off... but if i hit start on the key it would still pump regardless of the switch off... is this normal? Notables: AFM delete with the pins in the diagnostic box jumpered with a switch in it.
shlammed is offline   Reply With Quote
Old 07-28-2011, 12:08 AM   #296
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

If you need stainless exhaust head flanges i have 1/2 inch 304 flanges for sale. pm me or check out my website if interested. Also, what kind of back purge setup are you running?
wittyworks is offline   Reply With Quote
Old 08-04-2011, 02:37 PM   #297
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by mighty mouse View Post
I remember way back you were looking for some firewall plugs. I found a set that works! I ordered them from this guy on ebay: http://cgi.ebay.com/ebaymotors/ws/eB...IF%3AUS%3A1123

They took close to a month to arrive, but they fit perfect.
mightymouse!

The listing isnt there... do you remember the vendors name?
shlammed is offline   Reply With Quote
Old 08-04-2011, 03:19 PM   #298
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by shlammed View Post
mightymouse!

The listing isnt there... do you remember the vendors name?
crap! I'll dig it up and let you know
mighty mouse is offline   Reply With Quote
Old 08-04-2011, 03:43 PM   #299
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Thanks!

I hope to finish refinishing some bedroom furniture so i can get to the shop and finish wiring... change some sensor parameters and see if the car will sync on the AEm...

if it does... i have about 2h of other work to do before i attempt to start it! :O
shlammed is offline   Reply With Quote
Old 08-05-2011, 12:03 AM   #300
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I got them from this guy:

http://cgi.ebay.com/ebaymotors/UNIVE...Q5fAccessories

I don't see the size you need listed, but I'm sure if you just send him an email he can get it to you as it's in the picture on that ad.
mighty mouse is offline   Reply With Quote
