Old 12-26-2010, 10:01 PM   #81
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I didn't notice what circuit it was on. It was on the injector subharness though so is it a dampner for them?
shlammed is offline   Reply With Quote
Old 01-02-2011, 06:36 PM   #82
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Only got a little done today.



Put the engine on the stand and pulled the manifolds to paint it up.

Also started to modify my valve cover to fit the new coils. The valve cover needs to not only milled for the coils but a space needs to be welded back in once it's done.











Pics!!!

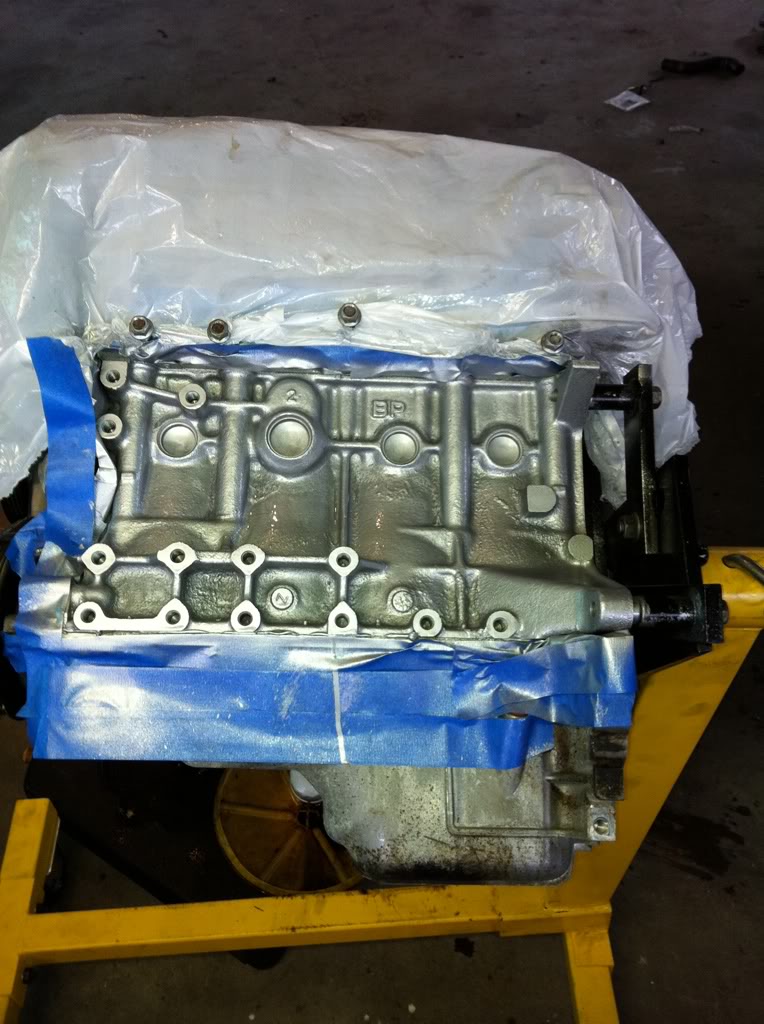

Name:  2e911f1d.jpg
Views: 4
Size:  128.3 KB

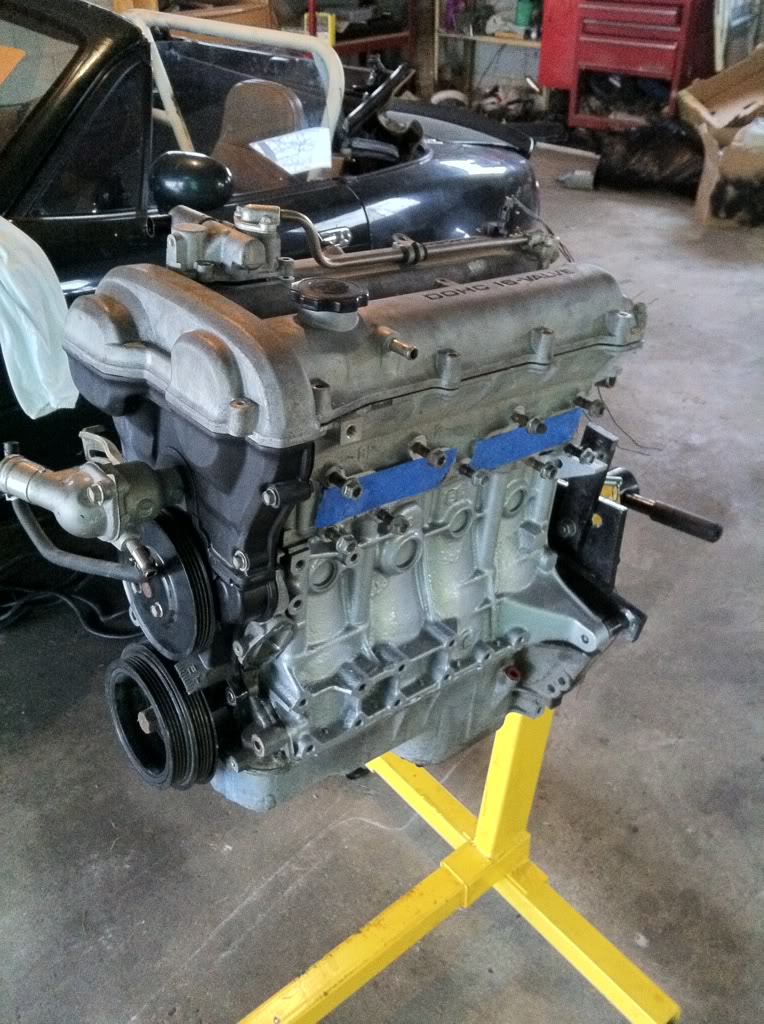

Name:  6cc3af23.jpg
Views: 4
Size:  168.4 KB
shlammed is offline   Reply With Quote
Old 01-02-2011, 07:25 PM   #83
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Block looks good. Is it getting machined (or has it been already)?

More pics of the bay progress!
astroboy is offline   Reply With Quote
Old 01-02-2011, 08:00 PM   #84
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

it is stock right now and i am going to be running it like that on low boost for a bit until i get some decent supporting mods (6 speed and bigger brakes....im still on 1.6 brakes :S )


no progress with the bay, but i will be ordering parts this week from summit once the payment on my mastercard goes through.
shlammed is offline   Reply With Quote
Old 01-02-2011, 08:14 PM   #85
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

What are these going into?

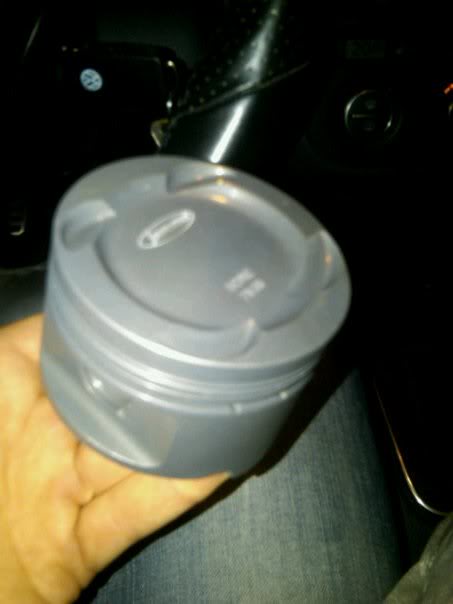

Name:  pistons.jpg
Views: 4
Size:  22.9 KB
astroboy is offline   Reply With Quote
Old 01-02-2011, 08:16 PM   #86
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

they were for my 1.6 setup which i am parting.
i will be building this engine eventually with stock (10.0:1) compression pistons custom made for boost and some weisco K1 rods or similar.


the pistons have been sold since then.
all i have remaining from that setup that i am selling is the turbo manifold, the long nose conversion and the block.
shlammed is offline   Reply With Quote
Old 01-02-2011, 10:44 PM   #87
Senior Member

Join Date: Aug 2010
Location: San Luis Obispo, CA
Posts: 505
Total Cats: 0
Default

Looking good so far!
scottyd is offline   Reply With Quote
Old 01-17-2011, 05:51 PM   #88
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Finished the bay.

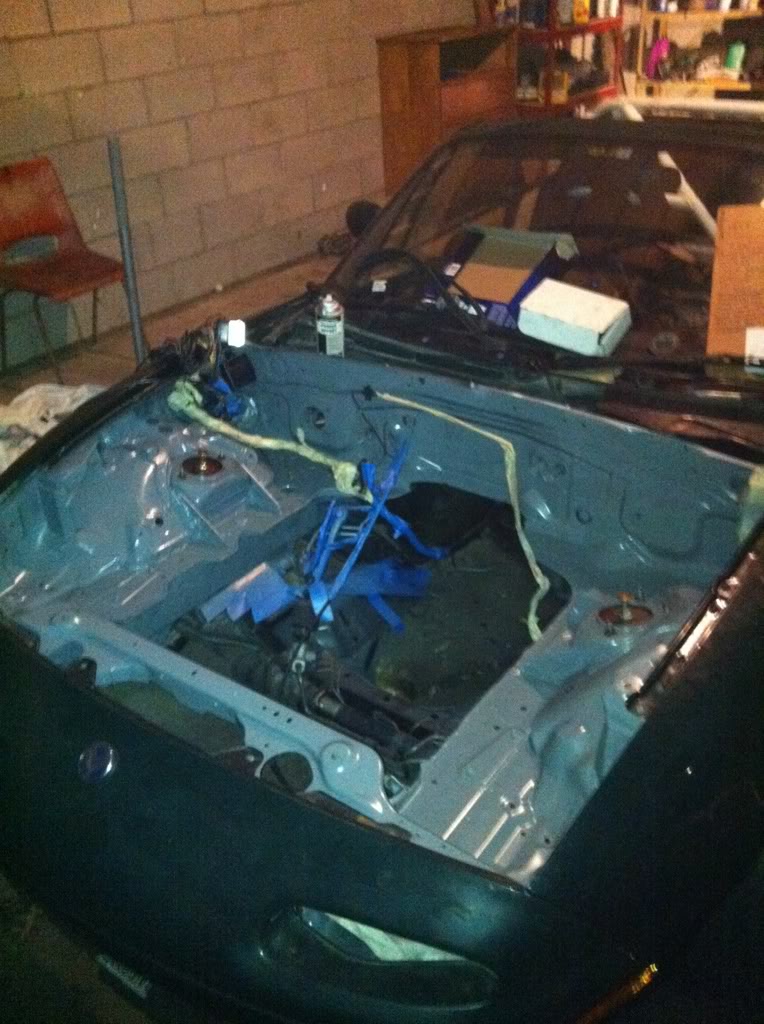

Name:  5f36c014.jpg
Views: 4
Size:  130.9 KB

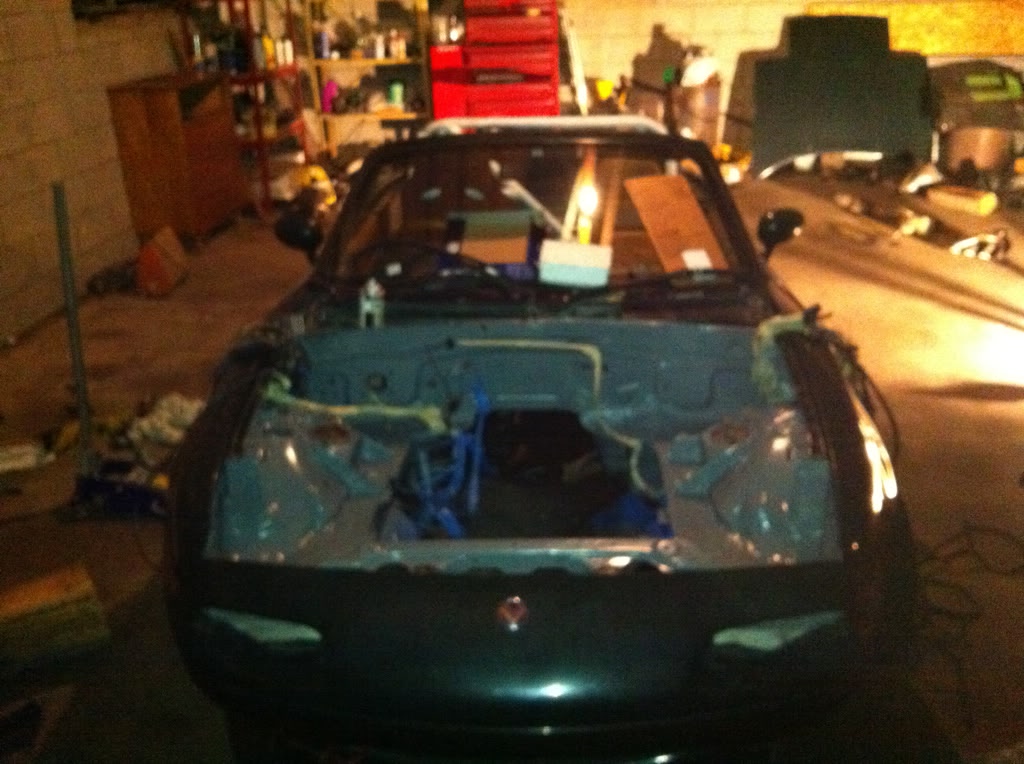

Name:  09599e27.jpg
Views: 4
Size:  122.2 KB

Also painted all of my accessory brackets and things to keep it clean (either aluminum or black.... no light blue or red or something rice)

Turbo manifold **** is also in, so once the turbo manifold is in i can get moving on that....
much needed shitty carpet pic:

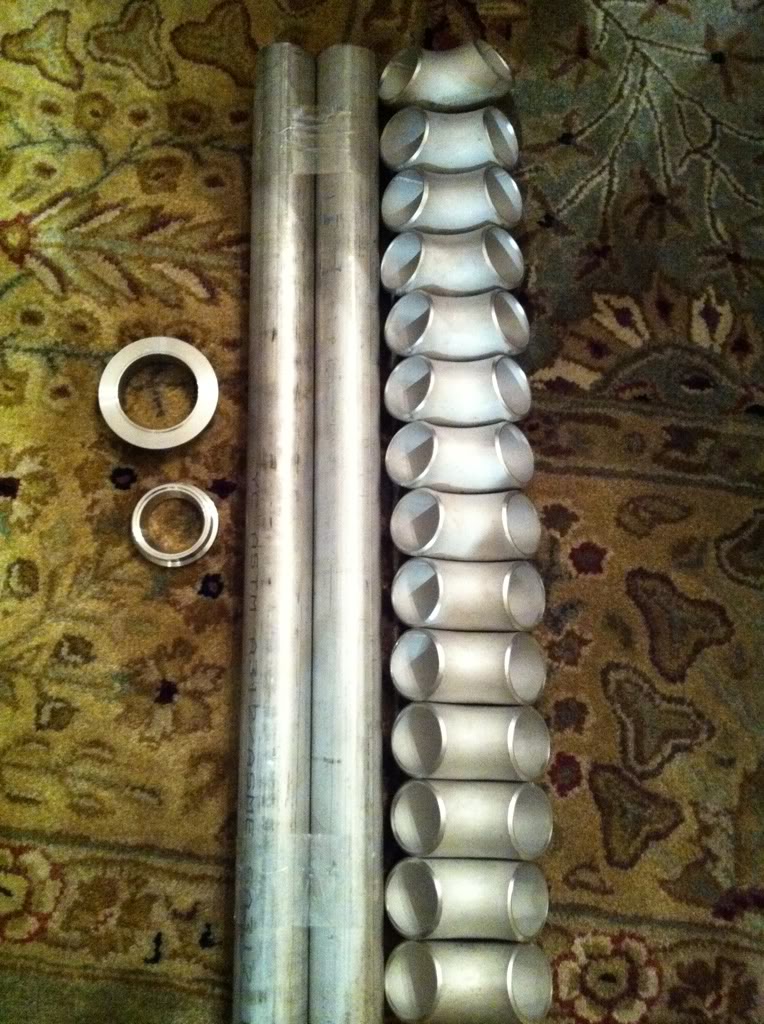

Name:  d2981c93.jpg
Views: 4
Size:  167.5 KB
shlammed is offline   Reply With Quote
Old 01-17-2011, 06:16 PM   #89
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Looks good, is that battleship gray or some variant of it? What design are you going with for the manifold?
astroboy is offline   Reply With Quote
Old 01-17-2011, 06:39 PM   #90
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Just an epoxy grey.

Going with a top mount ramhorn.
shlammed is offline   Reply With Quote
Old 01-17-2011, 09:28 PM   #91
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Want to make two while you're at it?
Faeflora is offline   Reply With Quote
Old 01-17-2011, 10:58 PM   #92
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

it's coming out really nice, can't wait to see parts start going back in
mighty mouse is offline   Reply With Quote
Old 01-17-2011, 11:33 PM   #93
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Did you do anything to the old seam sealer before you painted like remove the old stuff and put in new stuff or just paint over the old seam sealer?
astroboy is offline   Reply With Quote
Old 01-17-2011, 11:40 PM   #94
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Fae. Pm me. I am starting up a service.

Astro. I just scraped most of it off with a flat screwdriver, but I didn't put much effort into it.
shlammed is offline   Reply With Quote
Old 01-17-2011, 11:48 PM   #95
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

You didn't put any new stuff down, just scraped the visible old stuff off?
astroboy is offline   Reply With Quote
Old 01-18-2011, 01:12 AM   #96
Junior Member
iTrader: (2)

Join Date: Jul 2009
Location: langley BC
Posts: 134
Total Cats: 0
Default

subin for more pics...
sasquatch is offline   Reply With Quote
Old 01-18-2011, 01:54 AM   #97
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Going with a top mount ramhorn.[/QUOTE]

looks like you bought enough materials to build 3.
Gotpsi? is offline   Reply With Quote
Old 01-18-2011, 09:39 AM   #98
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Look at any top mount ramhorn.

There is 3-4 bends in each runner depending on design. (270 degrees total from the head flange) i have 14 bends.

I did buy more straight pipe than i needed to though. 4 feet. The collector fab will take ~6" of pipe after all of the trimming and such per runner =2 feet.

Gotpsi? do you fab those as well?
shlammed is offline   Reply With Quote
Old 01-18-2011, 10:52 AM   #99
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Yes I do and I was more referring to the strait pipe and not the elbows, you are right about the ram horns they take a lot.
Gotpsi? is offline   Reply With Quote
Old 01-18-2011, 01:32 PM   #100
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

cool, thanks.... i checked your website to see your ramhorns but i didnt see any.

i decided to buy more than i needed just in case. i found a supplier online who can supply me with this pipe and elbows for a good price and the metal is canadian so its not some china junk with messed metalurgy.
shlammed is offline   Reply With Quote
