Old 03-31-2011, 07:39 PM   #201
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Do you plan to test the stock IM and then this one separately?
dgmorr is offline   Reply With Quote
Old 03-31-2011, 07:40 PM   #202
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Prob not.

Would require two tunes and two cold pipes.

Not willing to pay for that right now.
shlammed is offline   Reply With Quote
Old 04-01-2011, 12:28 AM   #203
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I think if you did and showed there are significant gains with your manifold you would be able to sell maaaany more units than without.

Have you settled on a runner length yet?
astroboy is offline   Reply With Quote
Old 04-01-2011, 03:18 PM   #204
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

You dont need both dynos, an intake will prove its self with its torque and HP curves not dropping off like the stocker as long as its done correctly. He will have a much healthier setup, its really just math. Every intake I have built has been one off, not one of them the same so I never bothered to dyno them and everyone is very happy with their gains, with no report of any loss in low end torque thus far. Good luck man keep the pics coming.
Gotpsi? is offline   Reply With Quote
Old 04-06-2011, 09:26 AM   #205
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

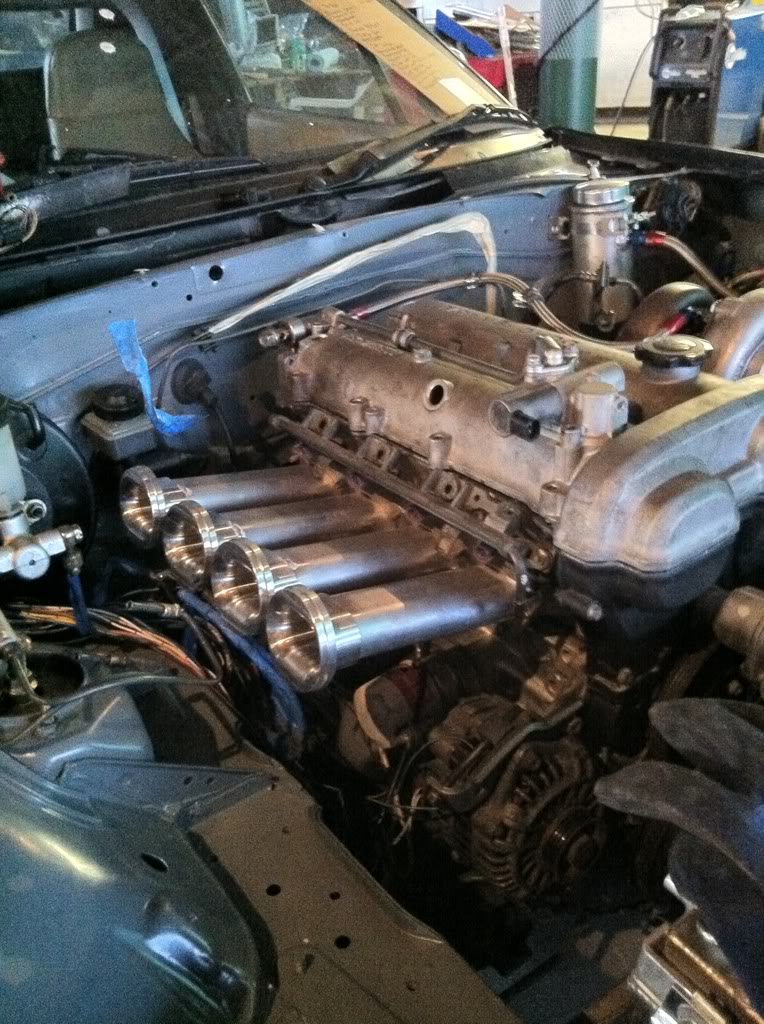

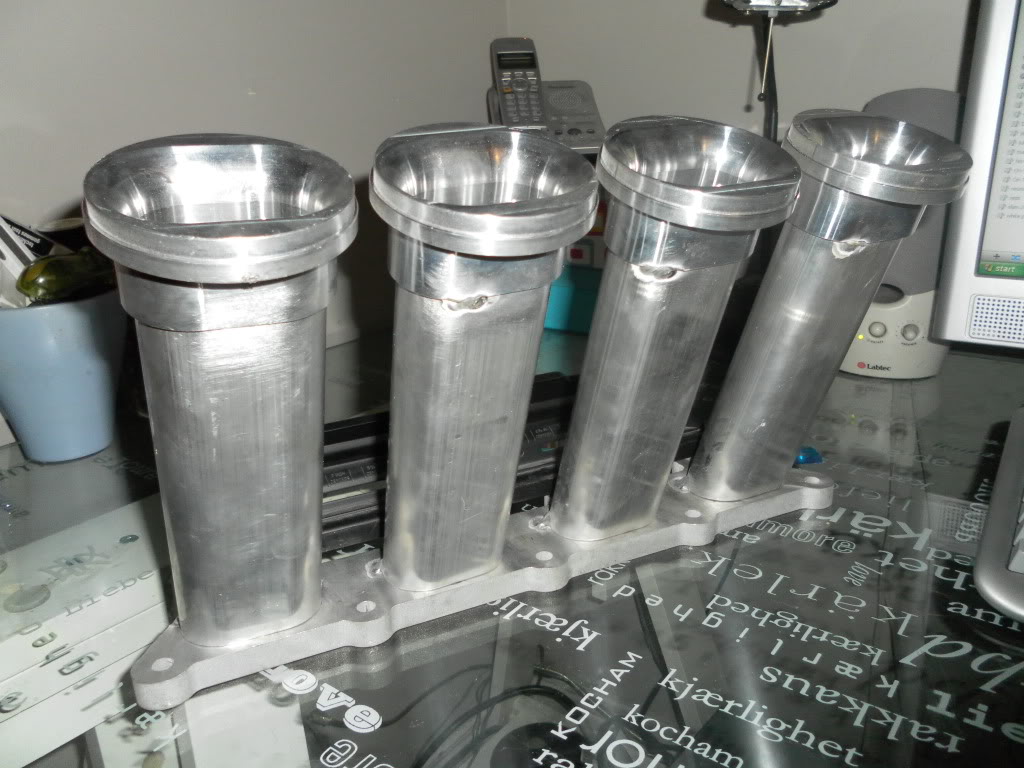

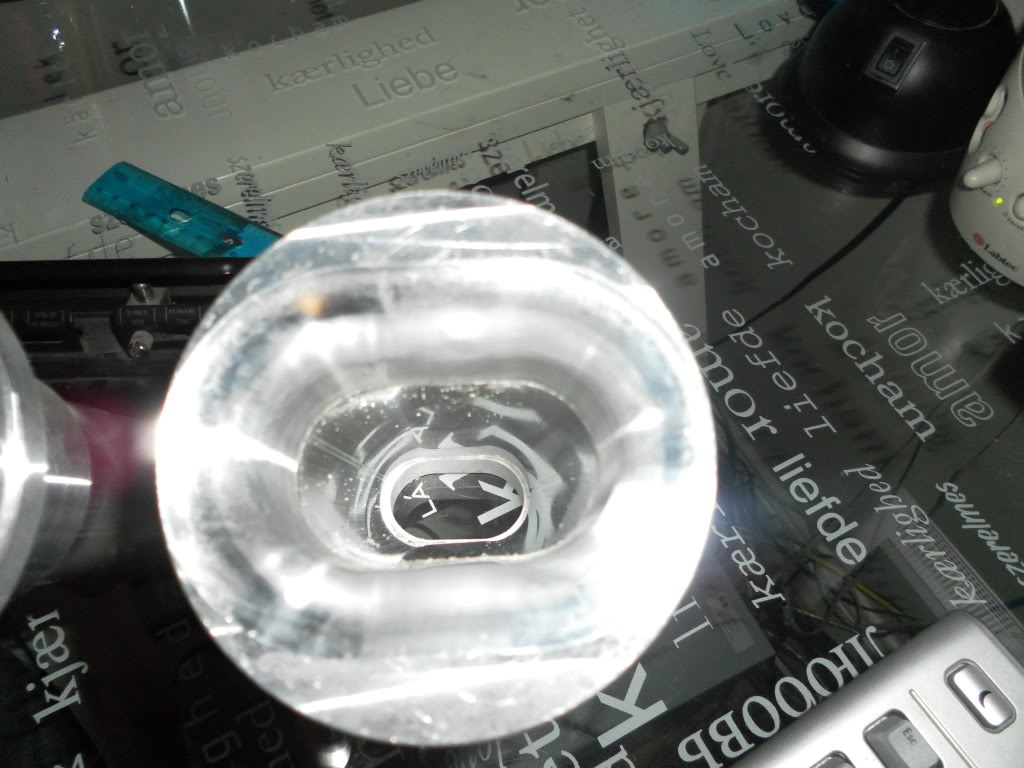

damn.... 7" runners seem long!
Name:  SAM_0545.jpg
Views: 2
Size:  121.1 KB
Name:  decda1e6.jpg
Views: 2
Size:  180.1 KB
Name:  SAM_0547.jpg
Views: 2
Size:  96.3 KB
Name:  SAM_0548.jpg
Views: 2
Size:  58.2 KB

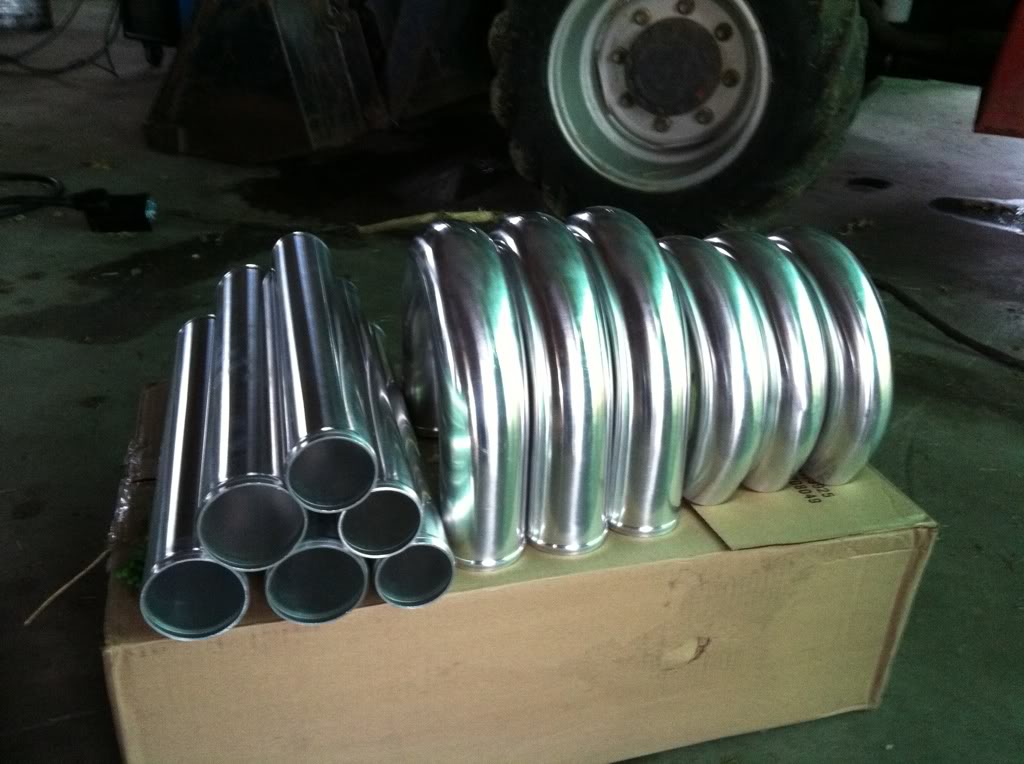

Also picked up the intercooler pipes.... 3" cold, 2.5" hot.

Name:  60022032.jpg
Views: 2
Size:  94.7 KB
shlammed is offline   Reply With Quote
Old 04-06-2011, 06:41 PM   #206
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

You're not going to have issues with the fuel lines and other hardware on that side? Looks awful close to me...
Der_Idiot is offline   Reply With Quote
Old 04-06-2011, 06:44 PM   #207
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default



it fits.

but this is why I designed mine with 45 bends.
Braineack is offline   Reply With Quote
Old 04-06-2011, 06:49 PM   #208
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

wont clear my brake propo valve... will have to redo that line.

Fuel lines are a joke. just bend them with a proper tool.

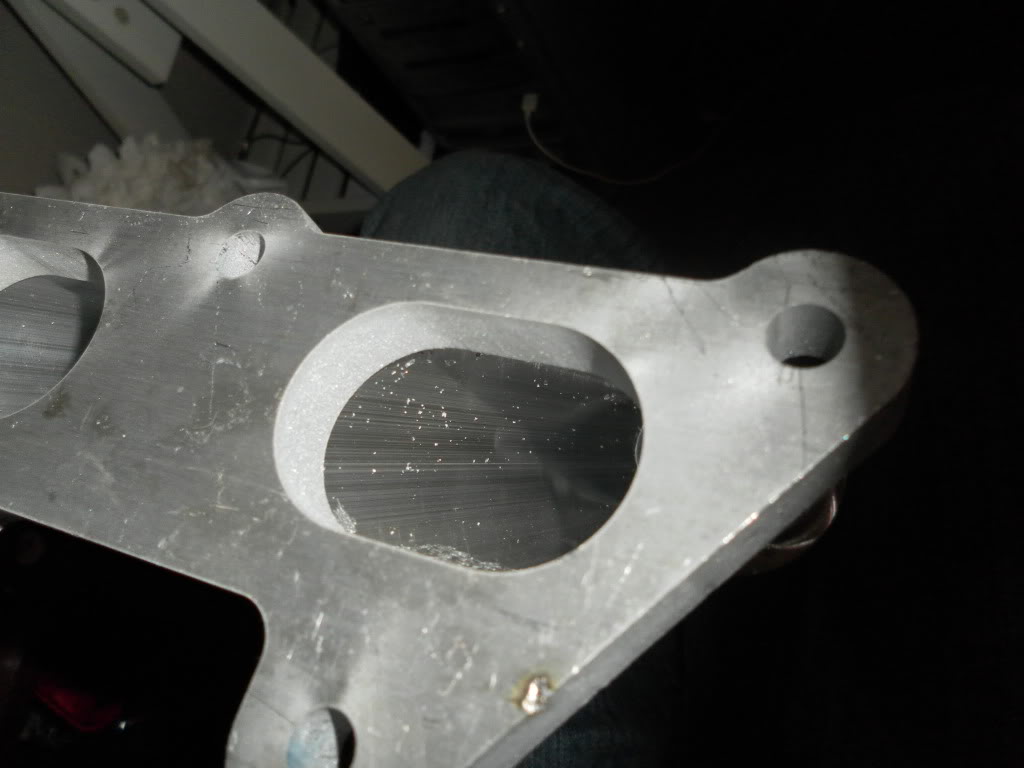

As far as the 45's.... mine is setup with a ~15-20 degree cut (didnt measure angle) at the head flange... and as you can see in the picture there is very minimal porting of the head flange needed.

This allows my runners to not be right in the frame rail like they would if they came straight off the head.
shlammed is offline   Reply With Quote
Old 04-06-2011, 07:16 PM   #209
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

I didnt notice the RHD...

that's 7" from tip to tip, including flange and trumpets?

IIRC the pictured is 9"
Braineack is offline   Reply With Quote
Old 04-06-2011, 07:25 PM   #210
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

that 7" doesnt include the head flange and half of the trumpet within the calcs and it is very very close to that irl. I am ~0.02 off of my design calculations.

This car should have AMAZING power from 3000/3500-redline (7500rpm) depending how fast the turbo comes on. below that i will still always be making more than peak HP of a stock miata.
shlammed is offline   Reply With Quote
Old 04-09-2011, 02:48 AM   #211
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Your taking your measurements from the valve right? not just the length of the runner tube. If not your calculations are wrong, just fyi. You should me measuring velocity stack or trumpet + runner + flange + head runner length center line to valve.
Gotpsi? is offline   Reply With Quote
Old 04-18-2011, 10:54 PM   #212
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

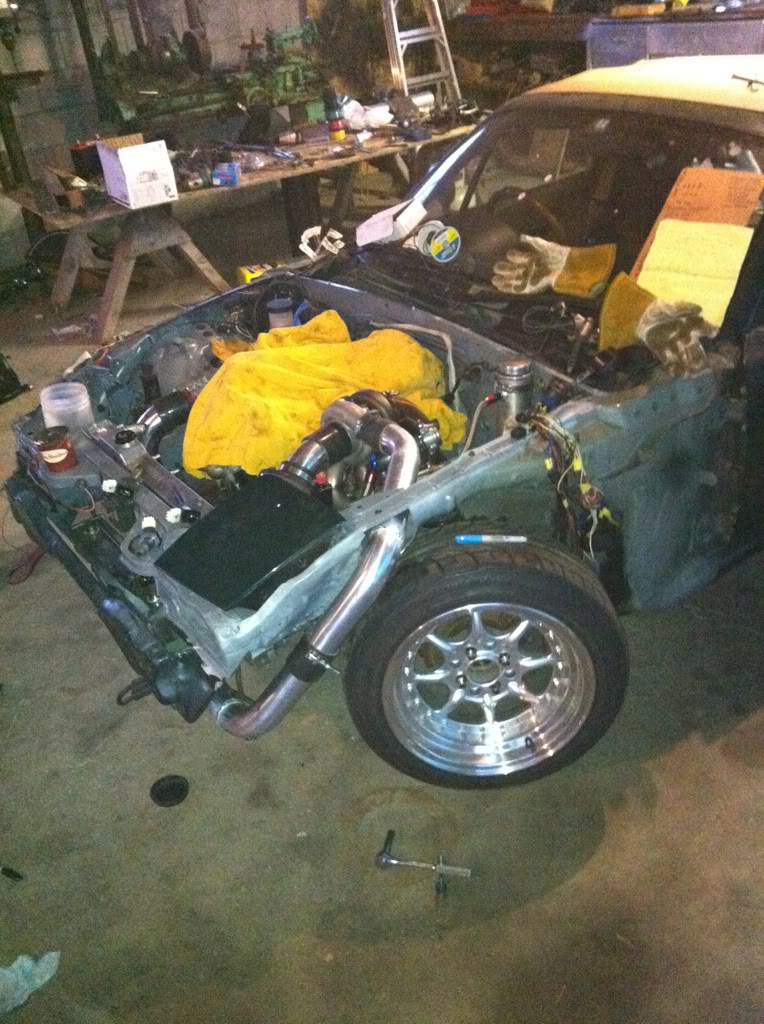

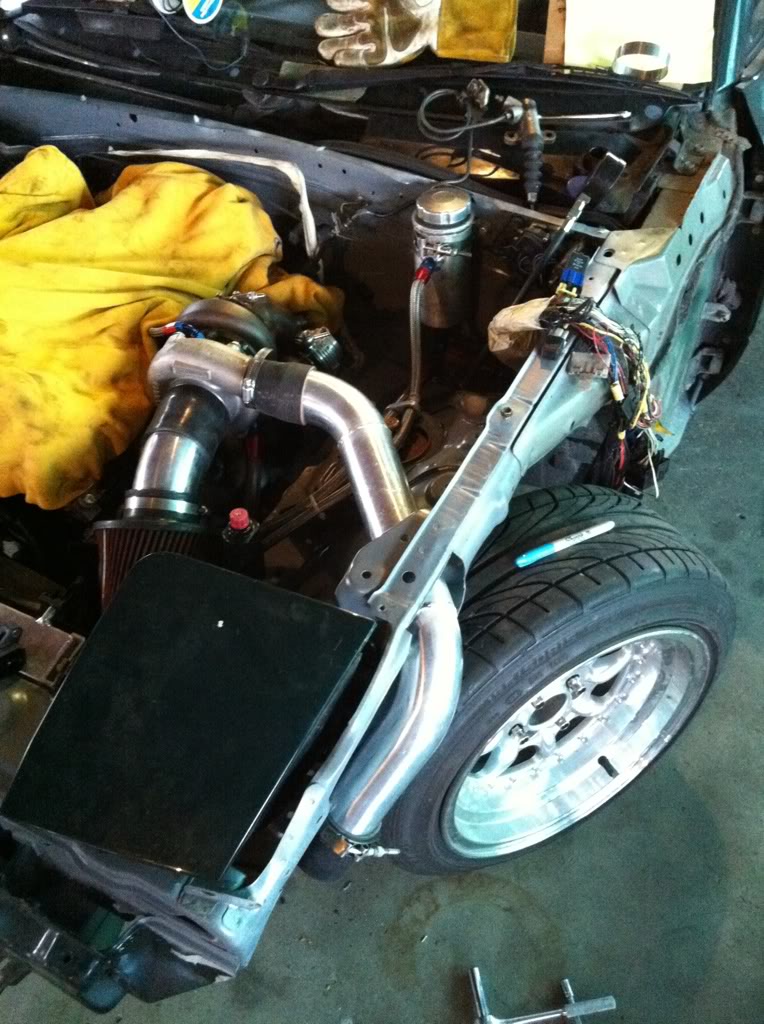

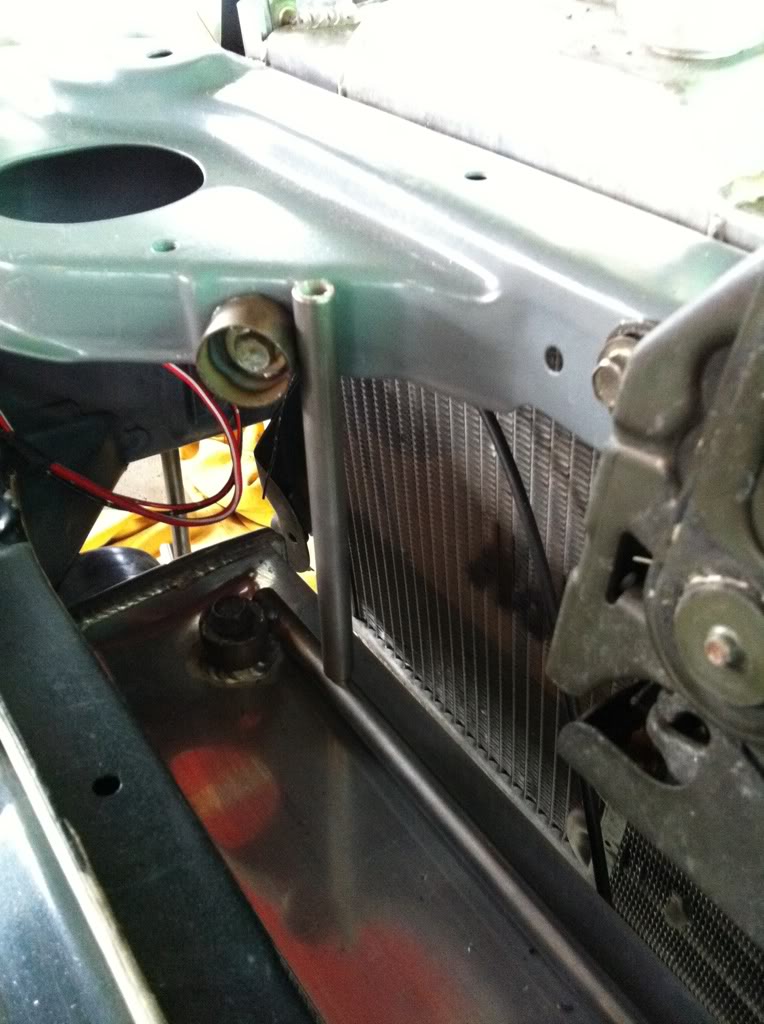

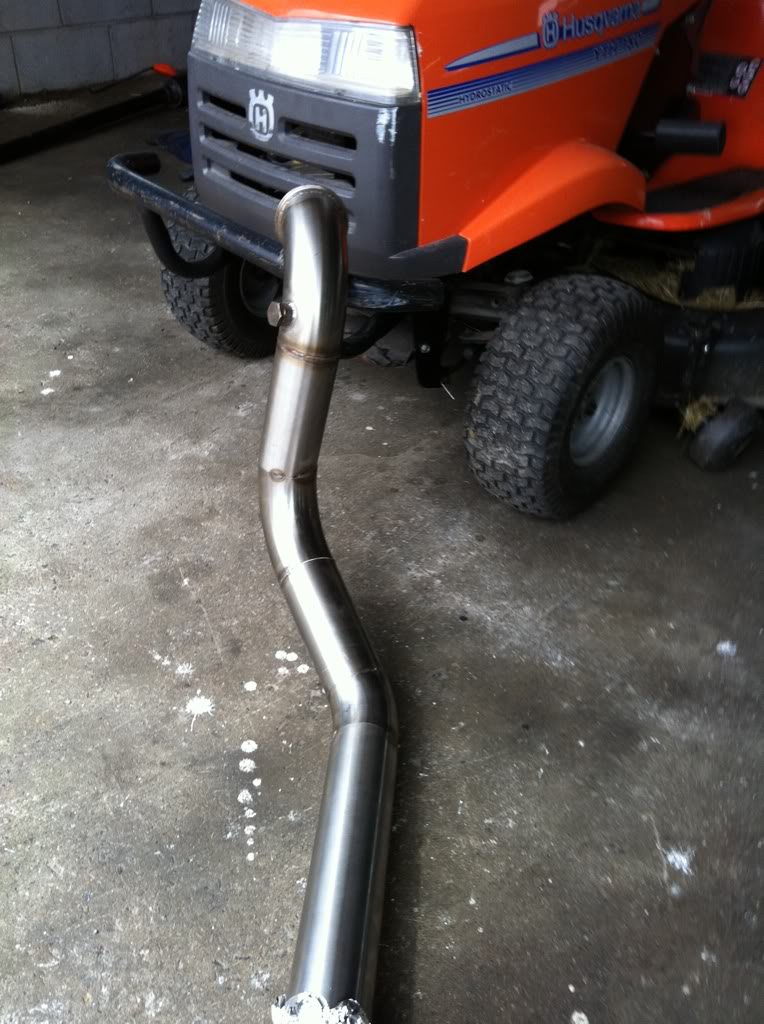

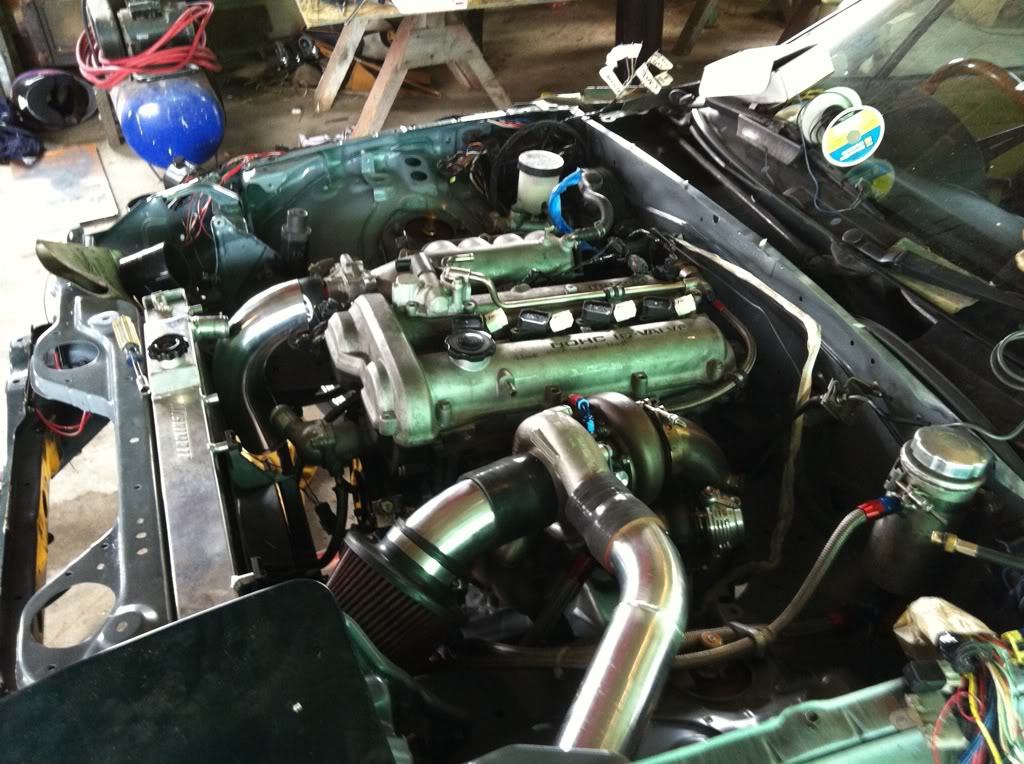

Work son!

Name:  d6581f43.jpg
Views: 2
Size:  148.5 KB
Name:  98184418.jpg
Views: 2
Size:  163.6 KB
Name:  4ea36576.jpg
Views: 2
Size:  124.4 KB
Name:  df71d1b0.jpg
Views: 2
Size:  148.3 KB
Name:  ec02e744.jpg
Views: 2
Size:  103.8 KB
shlammed is offline   Reply With Quote
Old 04-18-2011, 10:59 PM   #213
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Your welds? Nice very nice
Faeflora is offline   Reply With Quote
Old 04-18-2011, 11:34 PM   #214
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Looking good, any reason you are routing your intercooler piping like that? Do you have P/S or A/C still?
jtothawhat is offline   Reply With Quote
Old 04-19-2011, 09:36 AM   #215
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

thanks!

Yes, my welds. Yes power steering. limits the space to be had between the frame rail. so being that my last year setup was similar, the spot was already cut for this.

There should be no huge restriction within the charge piping now and i should be able to get north of 350 on pump when i install the pistons and rods.
shlammed is offline   Reply With Quote
Old 04-19-2011, 04:56 PM   #216
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

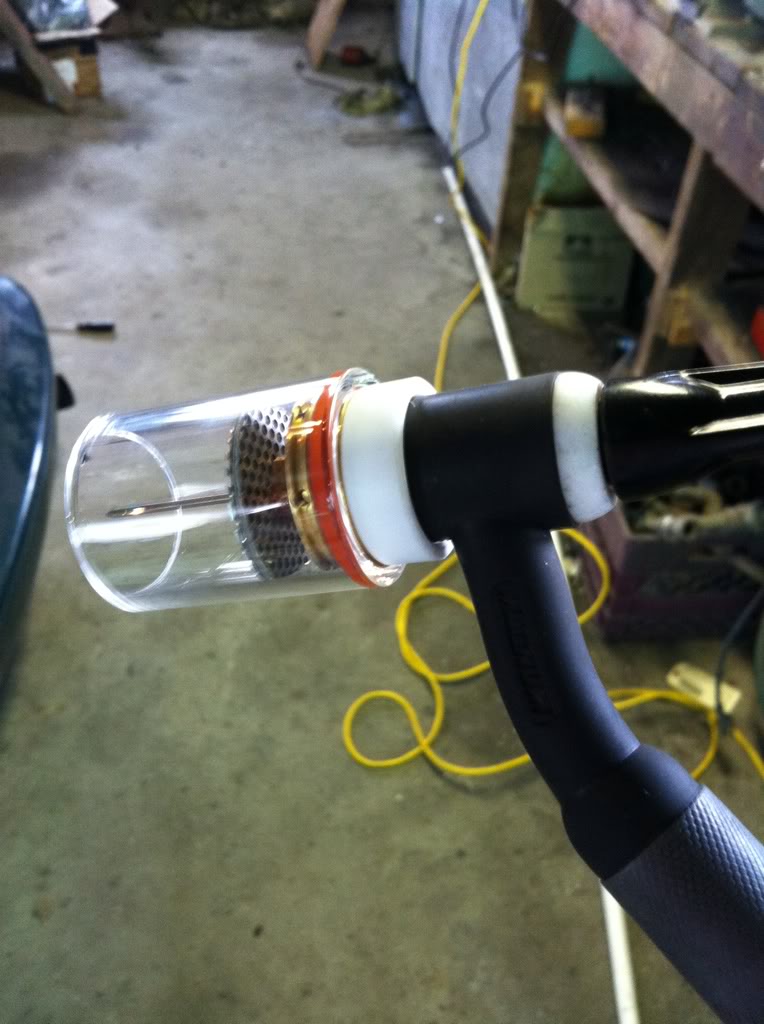

Im also excited for this new gas lense kit.... allows me to get no brown haze off the stainless weld and keep the filler in the sheilding (and still see it)!

Name:  7a2ab749.jpg
Views: 2
Size:  87.0 KB
shlammed is offline   Reply With Quote
Old 04-19-2011, 05:20 PM   #217
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

More good looking welds, and an interesting routing of the charge pipe. For some reason I keep thinking bad things will happen to it but it is highly unlikely.

How are you handling the ewg exhaust, screamer pipe?
astroboy is offline   Reply With Quote
Old 04-19-2011, 05:27 PM   #218
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

bad things will happen how so?

i ran it like that all of last year! I will be building a mount for it to keep it from vibrating though.

EWG is going to be plumbed down to a slash cut at the bottom of the subframe.
shlammed is offline   Reply With Quote
Old 04-19-2011, 07:28 PM   #219
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Quote:
Originally Posted by shlammed View Post
bad things will happen how so?

I am not saying that anything will happen but the way it is routed makes my brain think of catastrophe.
astroboy is offline   Reply With Quote
Old 04-19-2011, 08:18 PM   #220
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Under normal operating or in an accident?

The metal that I cut out was as thick as the front fender. Hand bendable.
shlammed is offline   Reply With Quote
