Old 03-21-2011, 04:19 PM   #161
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

**** the color, do that motor.
Braineack is offline   Reply With Quote
Old 03-21-2011, 04:20 PM   #162
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

twin turbo VQ?
shlammed is offline   Reply With Quote
Old 03-21-2011, 04:29 PM   #163
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by shlammed View Post
Being done my friend.

The valve cover needs to be modded after machining being that the center section between cyl 1 and 2 need to be filled with new metal due to the milling.

Do you think -10 or -12 would be best on the valve cover?

Also port out the hole that connects the center baffle to the driver's side baffle and weld the pcv shut.

I have a -12 male bung but just keep in mind that the fittings are pretty big. You can see pics in my build thread. Note that from what I found there are also no off-the-shelf catch cans with -12 bungs. Only up to -10. That said you can custom order a can with any bungs and breather vents you want for cheaper than ebay from petersonfluidsys.com

Personally I think bigger is better. Again though, -12 hose does not have the same bend radius as smaller hose and it takes up more space.
Faeflora is offline   Reply With Quote
Old 03-21-2011, 04:38 PM   #164
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Fae, im not worried, I do my own fabrication and -12 catch can is only 15 minutes away.

I will just bore the 3/4" npt fittings out of my current can and weld on a -12an fitting to the atpturbo vband catchcan that i currently have.


In regards to the size, the elbow fittings post a fairly large restriction on the size of the through-way. I think the theory behind it is HVLP.. high volume low pressure.. to allow you to not suck oil through the holes. Factory turbo engines for example a 1jz uses 1" hose (or similar) factory (-16AN)
shlammed is offline   Reply With Quote
Old 03-21-2011, 06:40 PM   #165
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Audi 2.7tt...modded to some extent.
dgmorr is offline   Reply With Quote
Old 03-21-2011, 07:06 PM   #166
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by shlammed View Post
Fae, im not worried, I do my own fabrication and -12 catch can is only 15 minutes away.

I will just bore the 3/4" npt fittings out of my current can and weld on a -12an fitting to the atpturbo vband catchcan that i currently have.


In regards to the size, the elbow fittings post a fairly large restriction on the size of the through-way. I think the theory behind it is HVLP.. high volume low pressure.. to allow you to not suck oil through the holes. Factory turbo engines for example a 1jz uses 1" hose (or similar) factory (-16AN)
Yah I think that the HVLP has worked for me- I don't see clouds of smoke under WOT behind me at all and I am running a slashcut (vent to exhaust)
Faeflora is offline   Reply With Quote
Old 03-21-2011, 07:18 PM   #167
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

ordered pipe to make intercooler charge piping.

2.5" hot, 3" cold. all aluminum.

Also ordered the 1/8 NPT bung for IAT sensor. Debating running it on the Intercooler or adjacent to the intercooler on the cold pipe.
shlammed is offline   Reply With Quote
Old 03-21-2011, 07:35 PM   #168
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What IAT sensor does AEM use?
Faeflora is offline   Reply With Quote
Old 03-21-2011, 08:58 PM   #169
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Any sensor.

It has calibration for most sensors but if you know the curve for your sensor you plug in the voltage or resistance wtv it is for it's relative temperature.
shlammed is offline   Reply With Quote
Old 03-22-2011, 11:43 AM   #170
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Ordered velocity stacks and runner material. Need to get the intake manifold flange ordered and i need to get some material for the plenum.

Im going to be using the stock 2002 throttle body still.

runners are going to be ~7-8" long and the plenum volume i need to calculate... i think the rule is 1.5x the engine capacity on a boosted engine? aka 2.7 liters. So it I make it 2.5 liters i will maintain some throttle response as the 150% is on the high side of the limits.
shlammed is offline   Reply With Quote
Old 03-22-2011, 11:56 PM   #171
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Subscribed.

Awesome build so far. Can't wait to see the IM. Are you using a Ross extrusion or will you be making the plenum from scratch?
ARTech is offline   Reply With Quote
Old 03-23-2011, 12:09 AM   #172
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Plenum is from scratch.

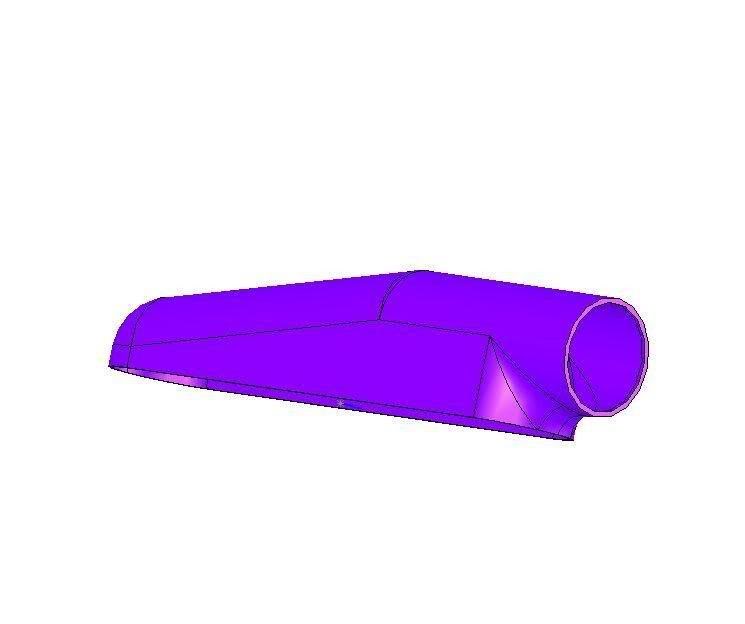

This is a design I am working off of.
Name:  902d82d1.jpg
Views: 4
Size:  16.4 KB

The runner and velocity stacks are Ross parts. Their oval sized type works best with the miata port having overlaid the runner onto the port in cad.

I'm just not sure where to get the quarter dome from locally, so it might be pie cut pipe
shlammed is offline   Reply With Quote
Old 03-23-2011, 01:28 AM   #173
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Looks good. Pie cuts are a pain, especially on aluminum. I'd just order a cap or hemisphere from these guys:

https://www.shopwagner.com/nxc/nxcli.nsf

They're cheap.
ARTech is offline   Reply With Quote
Old 03-23-2011, 01:52 AM   #174
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Also use a bend in the center, hard edges = bad. Also what size tubing are you using and what plenum volume are you shooting for?
Gotpsi? is offline   Reply With Quote
Old 03-23-2011, 10:25 AM   #175
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

tubing for the plenum? to be determined by the shape of the plenum to optimize at 2.5 Liters.

should be using something like 3.25" id 0.080 wall pipe cut lengthwise for the top. I was planning on using a flat floor with the Ross velocity stacks flush in there. see the plenum design above.

The inside of the manifold would look something like this if i have my way...
shlammed is offline   Reply With Quote
Old 03-24-2011, 02:05 PM   #176
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

CNC'd aluminum is so sexy

sub'd for goodness.

-Zach
thasac is offline   Reply With Quote
Old 03-24-2011, 05:31 PM   #177
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

.080" is too thin for an intake. Use .125" at least. As for the velocity stacks, they flow better raised off the floor. I'd try that if you can. I'm not sure if the Ross stacks allow for that. I'm using horns from velocity of sound for mine.

Last thing, this design seems easier to build and is very similar to the one you linked:

ARTech is offline   Reply With Quote
Old 03-24-2011, 05:56 PM   #178
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

That design does look easier.
Thanks ARTech.


The large radius bend in 0.125" may be hard to source... but it makes sense.

For the time being, im not overly worried about the stacks raising off the floor because of the shape the ross ones are it would take quite a bit of work to raise them properly.


Once i build mine, I am going to blueprint what I made and offer these as a complete bolt on intake for BP miatas. (with modification needed to cold pipe)

-Matt
shlammed is offline   Reply With Quote
Old 03-24-2011, 06:01 PM   #179
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Sign me up on that list...pending price.
dgmorr is offline   Reply With Quote
Old 03-24-2011, 08:06 PM   #180
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

[QUOTE=ARTech;705836].080" is too thin for an intake. Use .125" at least. As for the velocity stacks, they flow better raised off the floor. I'd try that if you can. I'm not sure if the Ross stacks allow for that. I'm using horns from velocity of sound for mine.

The ross ones have sharp ridges that have to be rounded down to use when raised I used them once and have move to another source for that reason.
Gotpsi? is offline   Reply With Quote
