Old 09-16-2010, 07:56 PM   #21
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Looking at supertech valve spring kits and there are 3 kits out there
a single spring kit with 58lbs of seat pressure, a dual spring kit with a seat pressure of 49lbs and a dual spring kit with a seat pressure of 70 lbs.

the coil bind lift is highest on the light dual spring kit, followed by the hard dual spring and then the single spring kit.

if i plan to hit 8,500 (or even 9,000) is one of these spring kits better than the other?

i am going to be running kelford 264 cams with 9mm of lift, so the lift is not going to be a factor here.
shlammed is offline   Reply With Quote
Old 09-24-2010, 01:02 PM   #22
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Wirelessly posted



99% complete CAD drawing of the 1.6 intake flange...

Edit... that shows up really small on a computer apparently...
shlammed is offline   Reply With Quote
Old 09-24-2010, 09:14 PM   #23
Junior Member

Join Date: Apr 2009
Location: San Antonio
Posts: 71
Total Cats: 0
Default

I have a friend that has one made for the 1.6L I can take a few picture's.

Maybe give you few ideas on how you can get one custom made for your 1.6.

I'll be waiting for Dec. perhaps next year to get a custom made IM for my 1.6.
Lime is offline   Reply With Quote
Old 09-24-2010, 11:17 PM   #24
Junior Member

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

Quote:
Originally Posted by shlammed View Post
at the moment i have it apart and its off for the winter now and im debating a build or an sr swap...
sr == sr20det ?
jasonb is offline   Reply With Quote
Old 09-28-2010, 04:20 PM   #25
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

yes, im still considering it... but not as seriously anymore.
shlammed is offline   Reply With Quote
Old 09-28-2010, 04:40 PM   #26
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Nice turbonator.
hustler is offline   Reply With Quote
Old 09-29-2010, 02:58 PM   #27
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Thanks bro.

Ps... Intake manifold flange CAD drawing is finished. Im going to send it out to be machined later this week.

If anyone is interested I can probably have more made up.
shlammed is offline   Reply With Quote
Old 09-29-2010, 06:47 PM   #28
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default


word up...

im debating making a modular runner intake manifold so i can tune runner length on the dyno REAL world.


This will also mean i can have different runners for autoX to get some torque or i can have different runners for drag/drift... word up
shlammed is offline   Reply With Quote
Old 10-03-2010, 10:06 AM   #29
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

What do you do for etesting? PM me if it's top secret
dgmorr is offline   Reply With Quote
Old 10-03-2010, 02:44 PM   #30
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

the car is jdm import.. its "grey market"

i have higher etest standards than a hotrod status car.
shlammed is offline   Reply With Quote
Old 10-11-2010, 12:05 PM   #31
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

tore the engine down this weekend... i found my low compression issue...

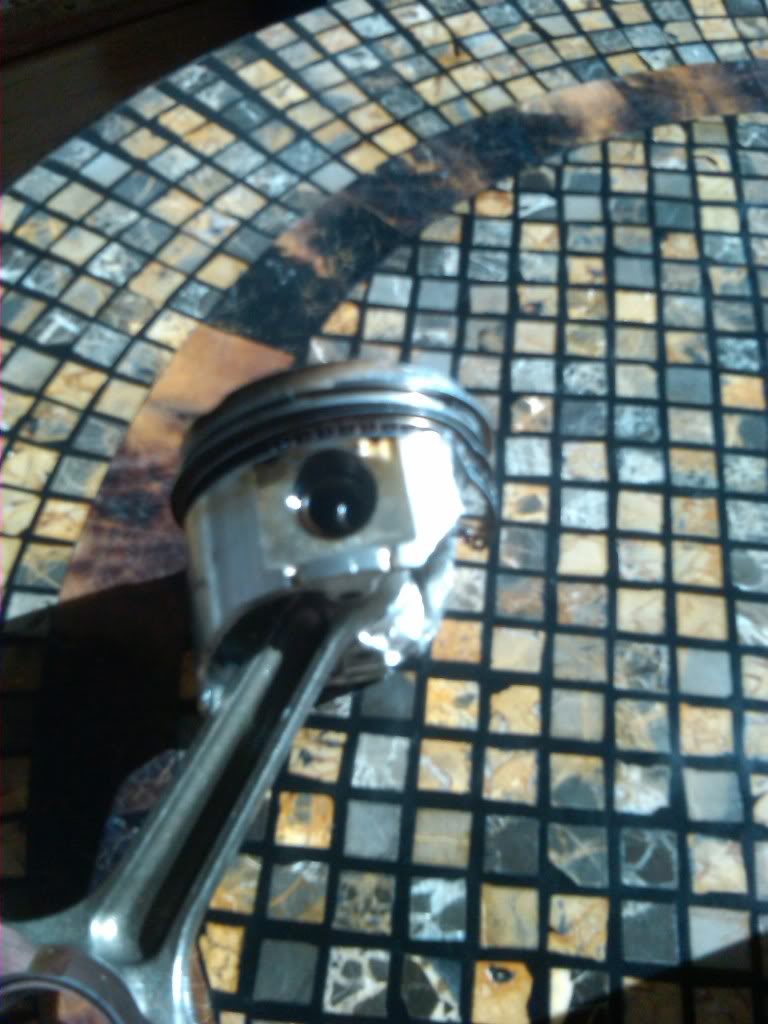

Name:  piston.jpg
Views: 9
Size:  93.6 KB

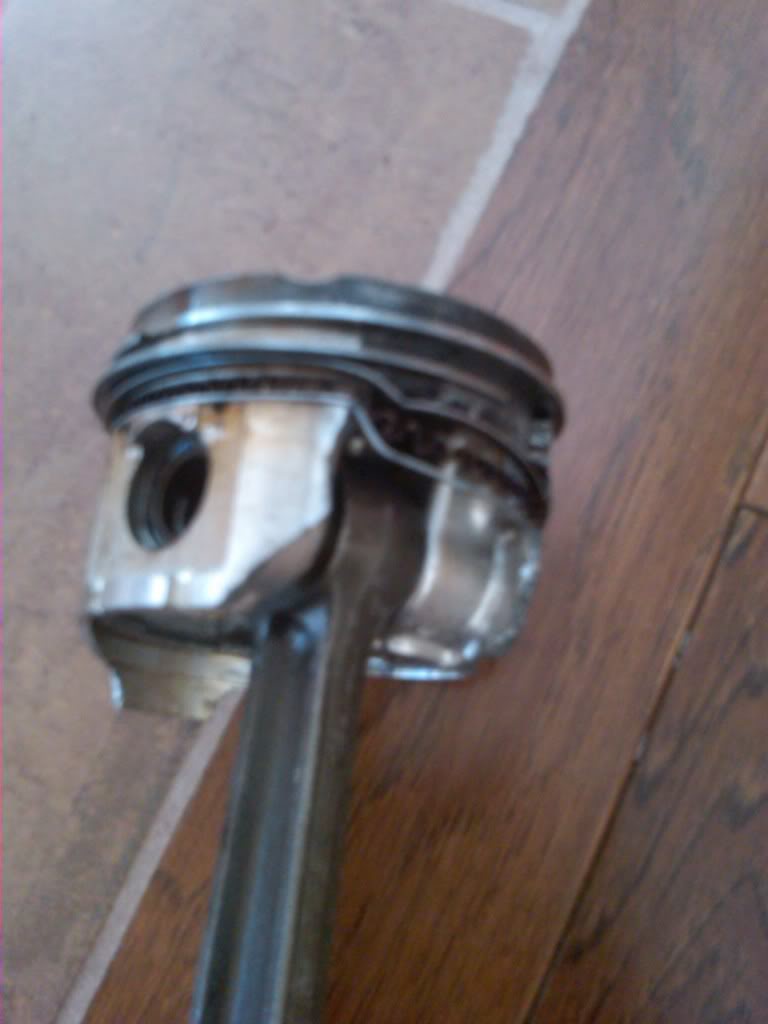

Name:  piston2.jpg
Views: 10
Size:  47.0 KB

this is cylinder #4... cylinder #2 also had a peice of missing ringland between the upper and intermidiate compression rings.

I am picking up a set of supertech pistons from Tyson87 and some eagle rods, ACL race bearings and some ARP main studs and then heading to the machine shop.

Try to keep the engine build cheap but make #350 will be fun.

Edit: also i checked the crank endplay and was running around 0.010" which iirc Sav mentioned is a tad much for a long lasting miata engine.

Last edited by shlammed; 10-11-2010 at 01:26 PM.
shlammed is offline   Reply With Quote
Old 10-12-2010, 12:50 AM   #32
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Have you thought about using a Honda intake manifold on your 1.6l? I'd take a look at the d-series manifold. At the very least, go buy a D-series intake manifold gasket and see what it looks like compared to the 1.6l miata motor. A skunk2 manifold for 150-250 bucks and weld the miata flange on, worst case scenario, would work great, as it does for the 1.8l I would bet.
chance91 is offline   Reply With Quote
Old 10-12-2010, 01:26 AM   #33
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I have considered it, but im not interested in it.

The honda intake manifold on the miata engine thus far has yeilded "ok" results, but i want to see what a proper manifold will do with a large turbo setup.
shlammed is offline   Reply With Quote
Old 10-14-2010, 05:15 AM   #34
Junior Member
iTrader: (1)

Join Date: Jan 2009
Posts: 107
Total Cats: 0
Default

Can't wait to see this all put together!
TheMcCoy14 is offline   Reply With Quote
Old 10-14-2010, 03:06 PM   #35
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Water lines?

Where do you guys with the factory water port on the block run the opposing hose to?

i feel like my water line being connected at the lower rad hose block and the factory water port on the side of the block isnt that effective in circulating and im redoing the coolant lines.

With my DIY reroute I will not have the upper water neck and would prefer not to have a hose going to it.
shlammed is offline   Reply With Quote
Old 10-14-2010, 03:11 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

why not, one is before and one is after water pump.
Braineack is offline   Reply With Quote
Old 10-14-2010, 04:15 PM   #37
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

just because you could hear gurgling in the turbo coolant lines when i stopped and turned the car off sometimes.
shlammed is offline   Reply With Quote
Old 10-15-2010, 02:54 PM   #38
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I have been using my build thread as a useless questions thread too... so how about this

I am going to be assembling my engine and i want to know if there is a difference between a rod stretch indicator and a traditional dial guage with base.... is it just a guage that is accurate to 0.00001"?

most other things i am 100% competent at doing...
shlammed is offline   Reply With Quote
Old 10-16-2010, 12:24 AM   #39
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

The rod stretch gauge is just a dial gauge with a fixture. Both are typically measured by thousandths
chpmnsws6 is offline   Reply With Quote
Old 10-21-2010, 12:34 AM   #40
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I have a special addition to my engine build.... should help me out with my goals...

Name:  secret.jpg
Views: 8
Size:  46.4 KB

just need to measure them with a micrometer to make sure that they will work for me...
shlammed is offline   Reply With Quote
