Old 10-27-2010, 07:44 PM   #41
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

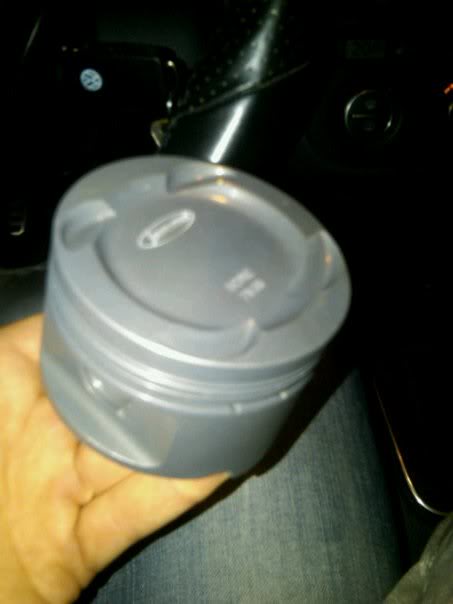

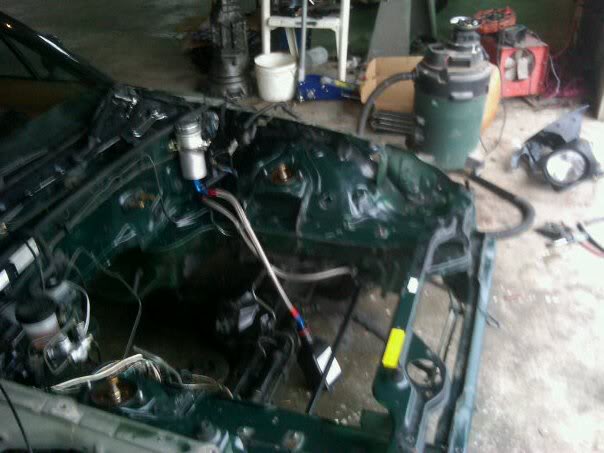

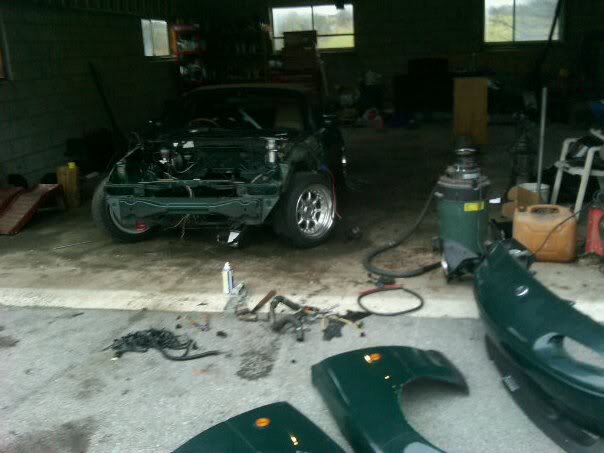

started to tuck some wiring out of the way that i hacked together this spring and i got my pistons in from Tyson....

Name:  pistons.jpg
Views: 8
Size:  22.9 KB
Name:  teardown.jpg
Views: 8
Size:  40.2 KB
Name:  tuck1.jpg
Views: 8
Size:  45.4 KB
shlammed is offline   Reply With Quote
Old 11-01-2010, 07:33 PM   #42
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

so i took the miata lifters out this weekend and measured to the skyline lifters.

The skyline lifters are 32mm OD and the miata ones are seemingly smaller (have the numbers written down in my VW) but if memory serves right they are 29.1mm OD.

i will be talking to Bill Wilner of MiataRoadster to get some mazda comp lifters now that these dont fit :(

Also i just received my COPS from gospeed81 and im cleaning those up tonight so i can build my sequential COP harness.
shlammed is offline   Reply With Quote
Old 11-08-2010, 10:20 PM   #43
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

someone tell me if i am insane or not....

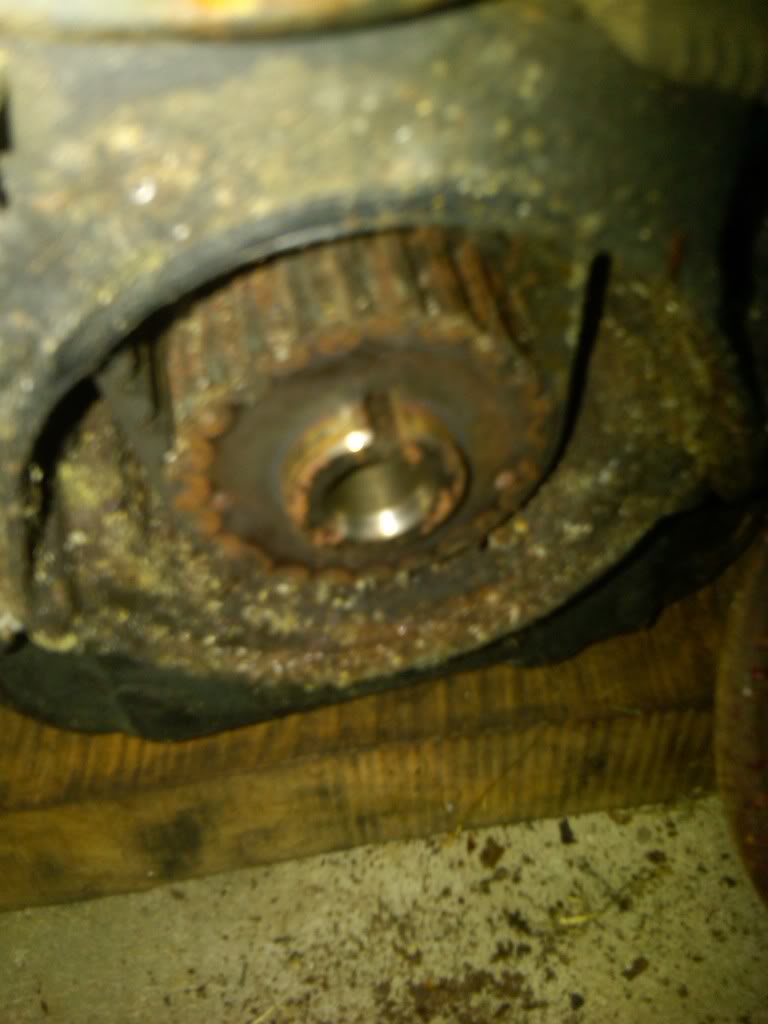

IS THIS A LONG NOSE CRANK?

I think its not, but i have a pic to show that makes me think that im crazy...
Name:  crank.jpg
Views: 9
Size:  58.3 KB


ok now here is the pic thats making me second guess my thoughts... a 2001 VVT engine from ebay....

Last edited by shlammed; 11-08-2010 at 10:41 PM.
shlammed is offline   Reply With Quote
Old 11-08-2010, 11:23 PM   #44
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Do you have a pulley that fits the crank? If it has 4 big slots, it's a short nose. If it has 8 smaller slots, it's a long nose. I don't think the short nose crank pulley will fit the long nose, so if you have a pulley that goes on, it'll be the right one.
curly is offline   Reply With Quote
Old 11-08-2010, 11:31 PM   #45
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by curly View Post
Do you have a pulley that fits the crank? If it has 4 big slots, it's a short nose. If it has 8 smaller slots, it's a long nose. I don't think the short nose crank pulley will fit the long nose, so if you have a pulley that goes on, it'll be the right one.
I think you're right seeing as they're different part numbers.

-Zach
thasac is offline   Reply With Quote
Old 11-13-2010, 06:24 PM   #46
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

did some stuff at the shop today...

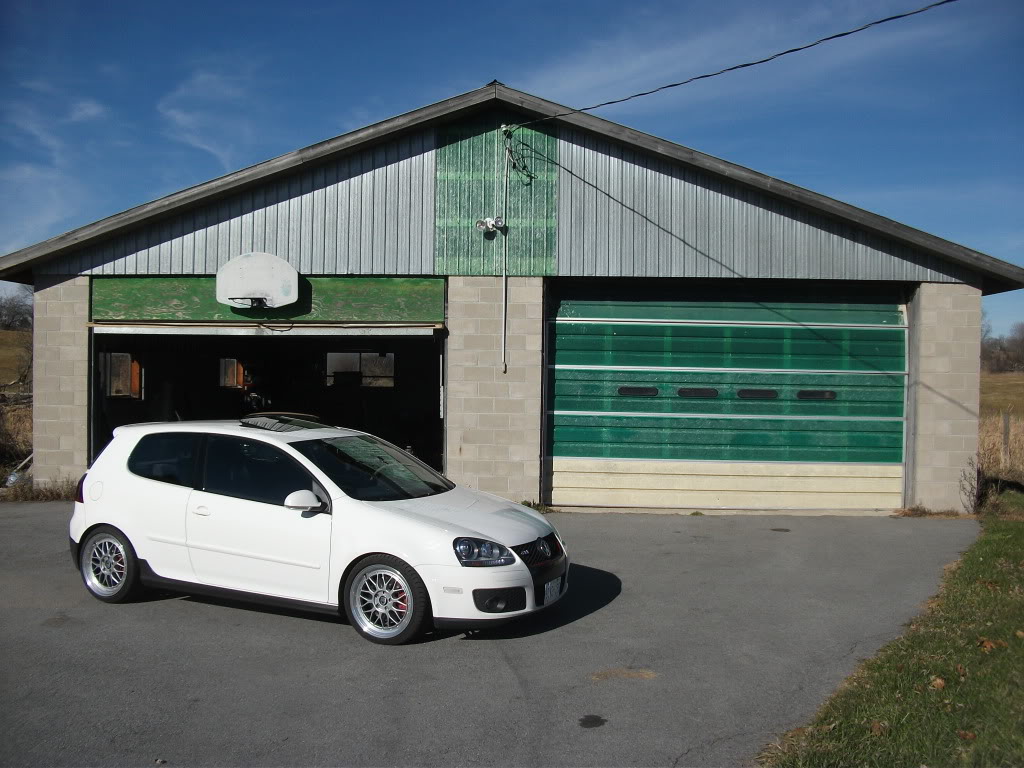

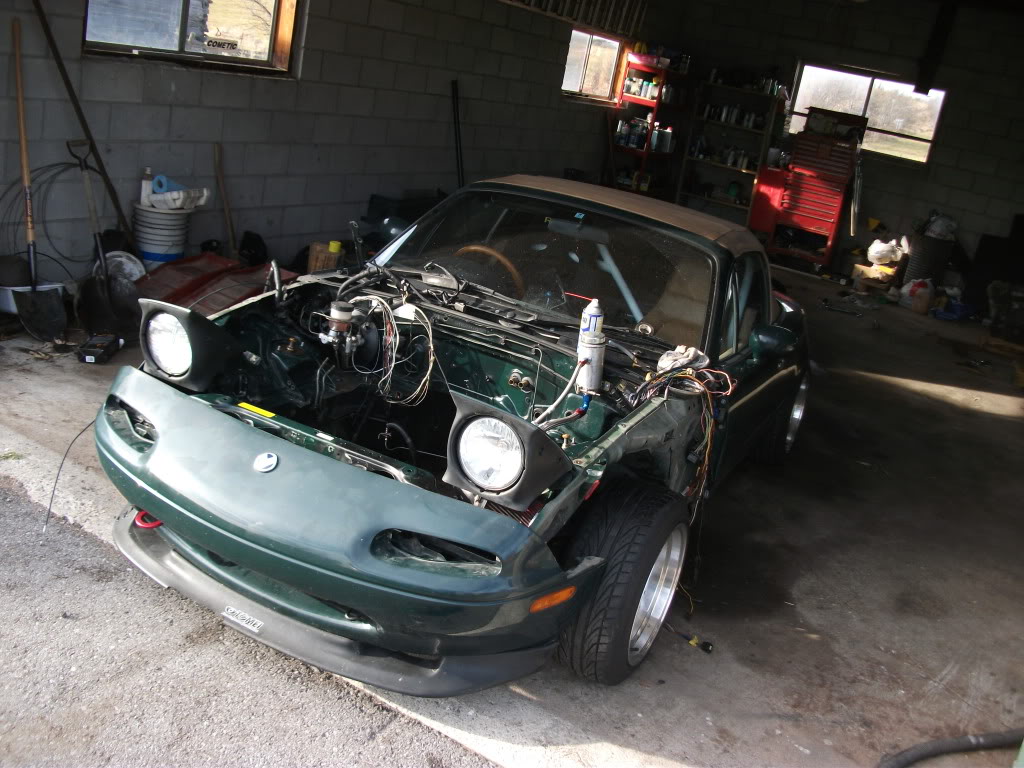

this is the shop for those who commented before
Name:  DSCF0007.jpg
Views: 8
Size:  159.9 KB

my crank pully... with the info above it is a long nose...



but when you look up close... it doesnt look like it would be a long nose...

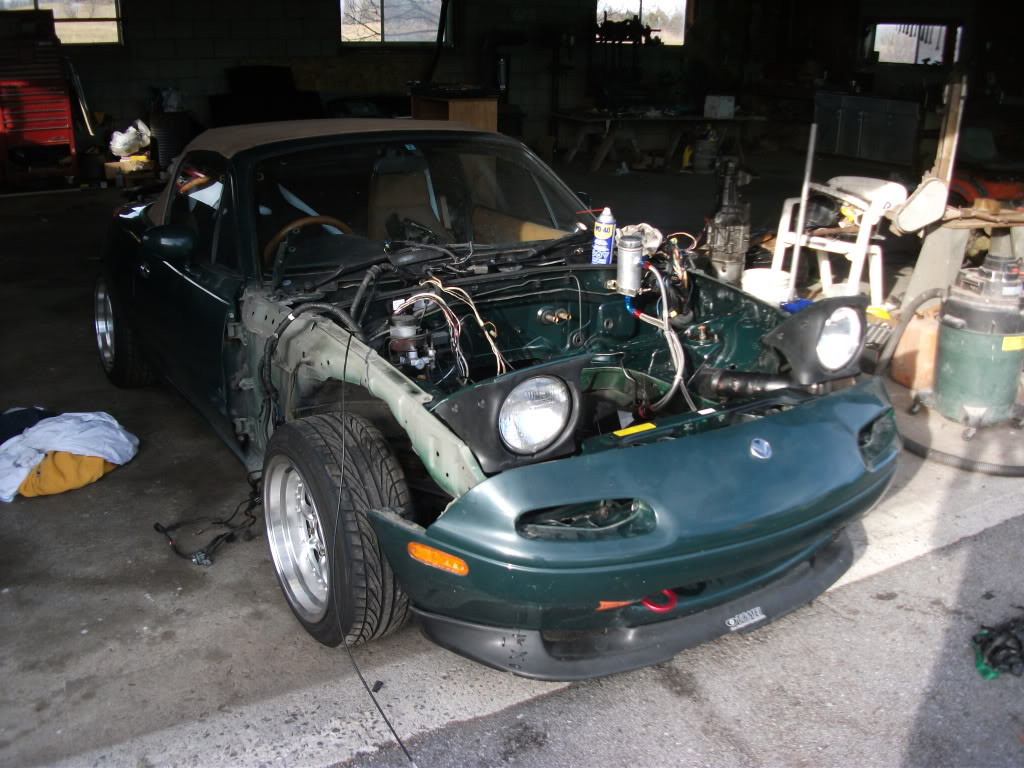

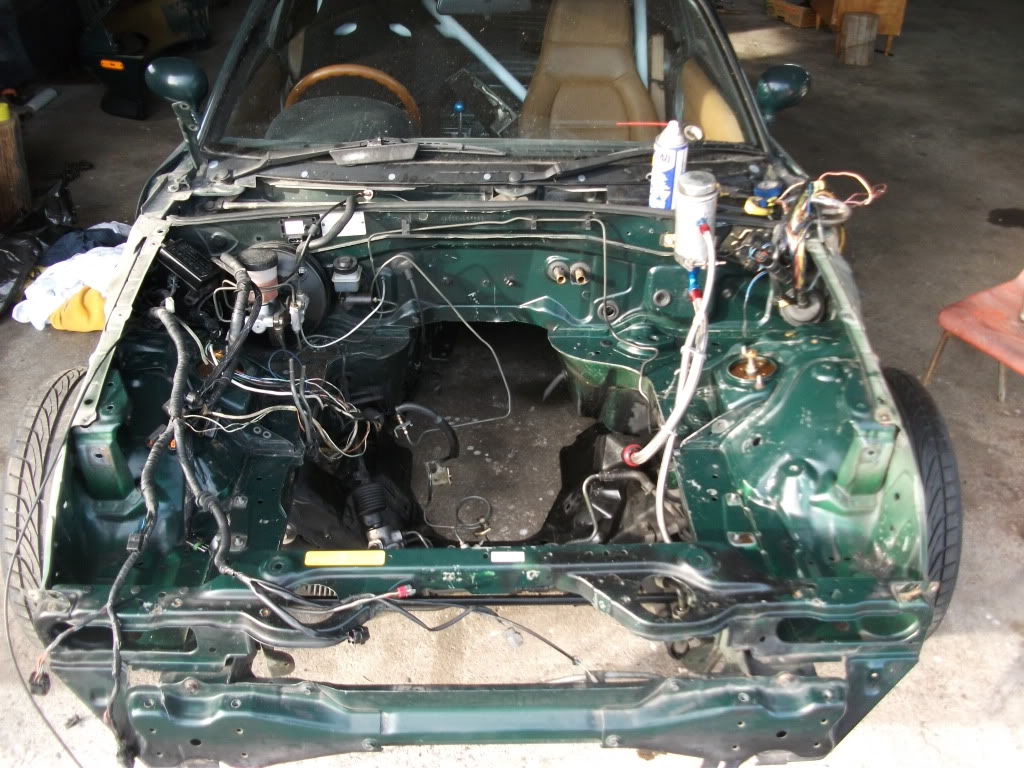

wire tuck and shaved bay in the works
Name:  DSCF0030.jpg
Views: 8
Size:  191.5 KB
Name:  DSCF0026.jpg
Views: 8
Size:  213.2 KB

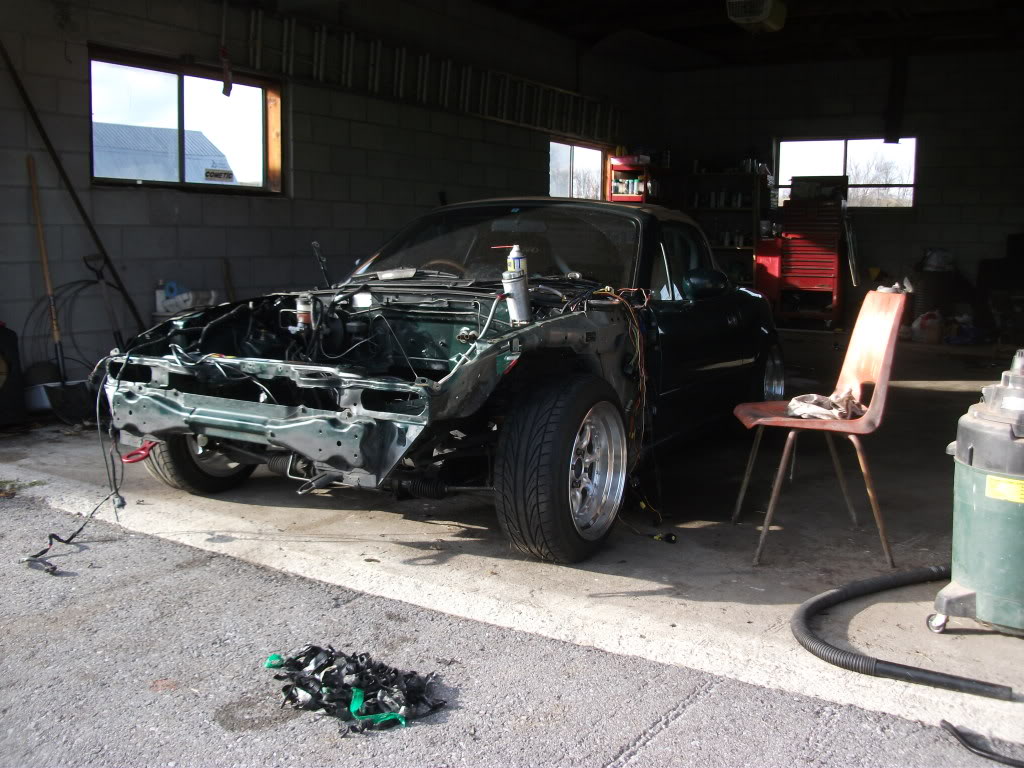

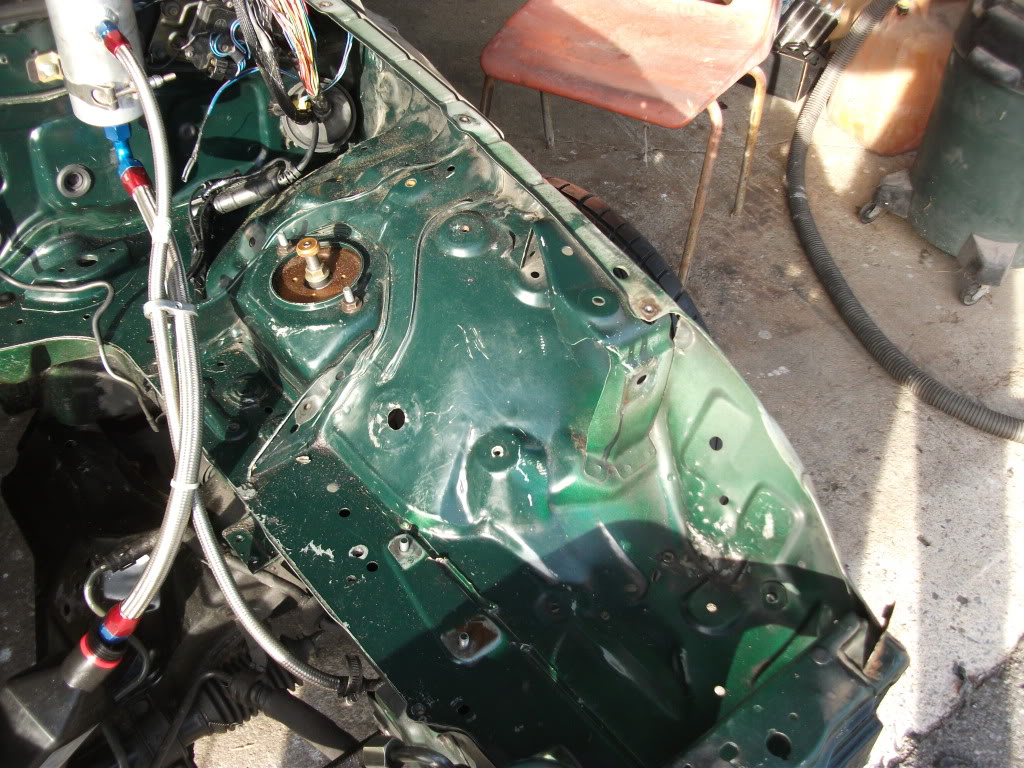

im not going to use filler on this bay shave... my last bay i did that to went to crap when i had to bfh the fender for wheel clearence track side...

Name:  DSCF0028.jpg
Views: 8
Size:  171.4 KB
Name:  DSCF0031.jpg
Views: 8
Size:  169.6 KB
Name:  DSCF0033.jpg
Views: 8
Size:  164.8 KB

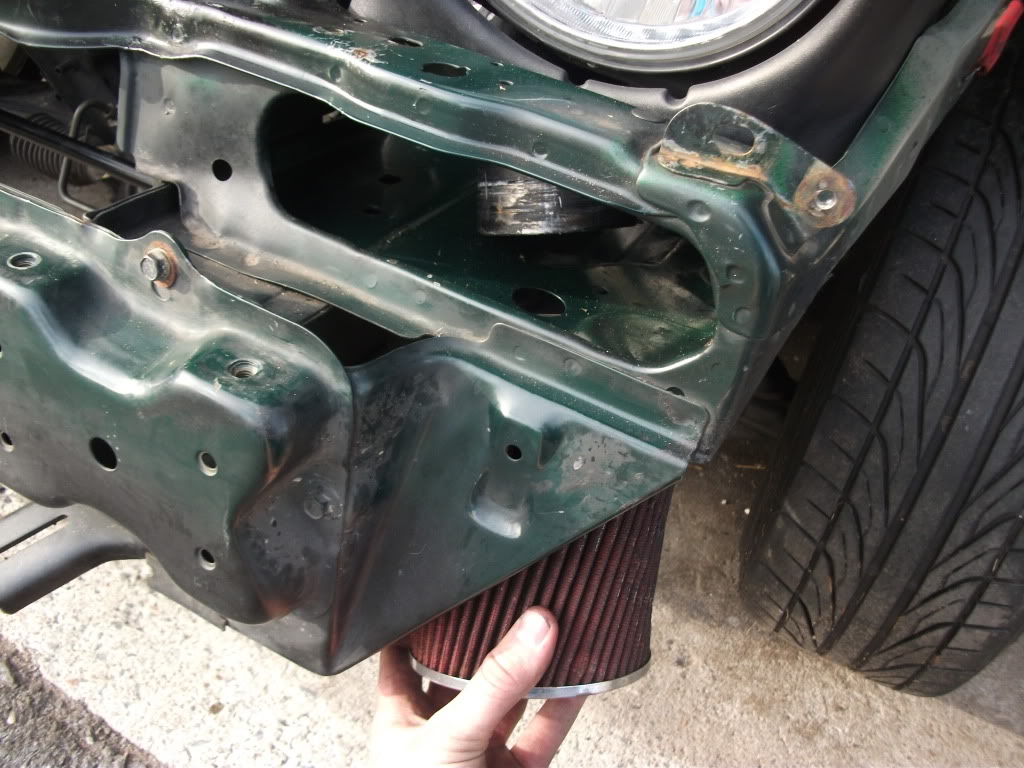

new filter location i will be using...
Name:  DSCF0035.jpg
Views: 8
Size:  158.0 KB

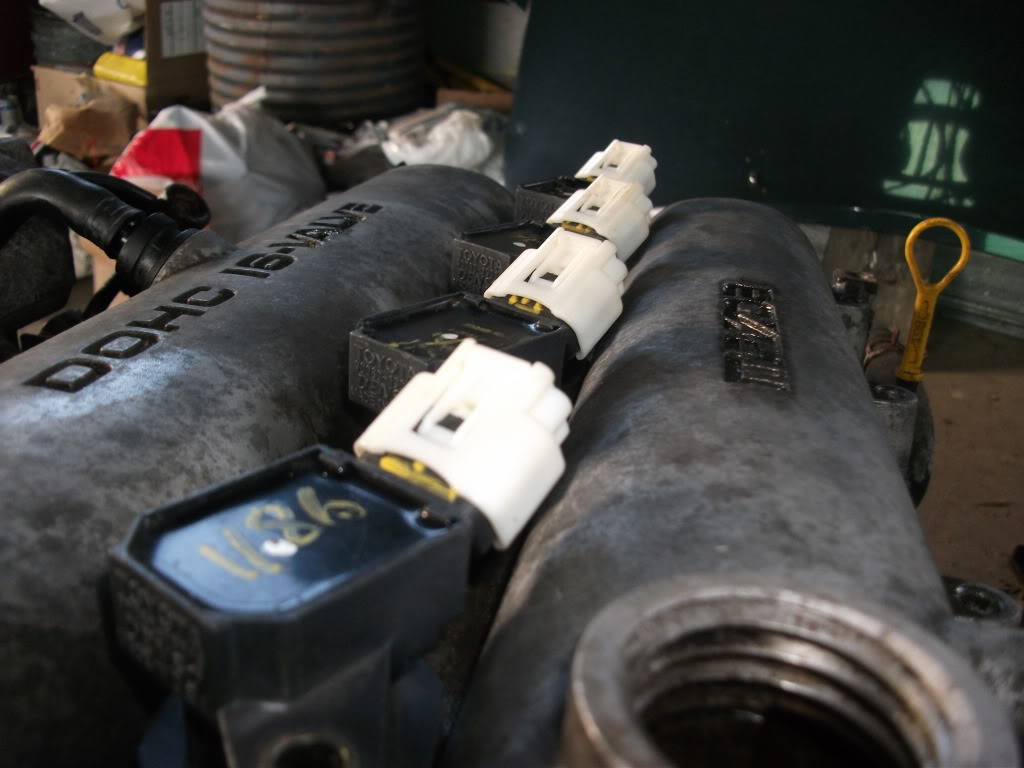

toyota coils which i will be wiring in sequential...
Name:  DSCF0045.jpg
Views: 8
Size:  103.3 KB
shlammed is offline   Reply With Quote
Old 11-13-2010, 07:53 PM   #47
Newb

Join Date: Nov 2010
Posts: 16
Total Cats: 0
Default

thats a nice steering wheel
atenzany62 is offline   Reply With Quote
Old 11-13-2010, 08:54 PM   #48
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

if you want it, make an offer...

i wouldnt mind swapping for a leather wheel
shlammed is offline   Reply With Quote
Old 11-13-2010, 10:06 PM   #49
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

your steering wheel is on the wrong side...
Hot_Wheels is offline   Reply With Quote
Old 11-13-2010, 11:11 PM   #50
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

How much did you get that engine for?
dgmorr is offline   Reply With Quote
Old 11-13-2010, 11:19 PM   #51
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

500us + ship...from quebec
shlammed is offline   Reply With Quote
Old 11-13-2010, 11:33 PM   #52
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

That's pretty good. Was this a salvage yard or a one off thing? Mind PM'ing me his ebay page if you have it?
dgmorr is offline   Reply With Quote
Old 11-14-2010, 03:50 PM   #53
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default



Can anyone verify that my above picture is long nose. It looks short to be a long nose.
shlammed is offline   Reply With Quote
Old 11-16-2010, 11:25 AM   #54
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

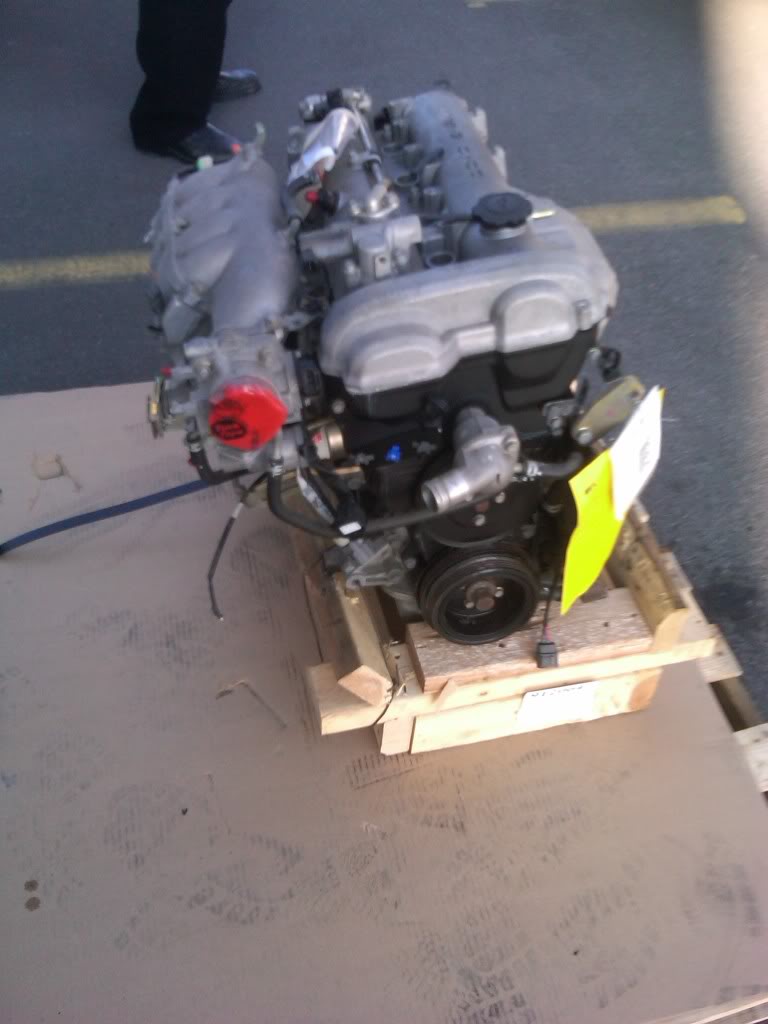

Madafukkas... Vevies Tee just arrived...
I am excited.

Name:  utf-8BSU1HMDAxOTQtMjAxMDExMTYtMDk0MC5qcGc.jpg
Views: 9
Size:  62.2 KB
shlammed is offline   Reply With Quote
Old 11-24-2010, 03:31 PM   #55
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

nerding it up at lunch.... EGR delete plates to be sent out for VVT intake manifold.



shlammed is offline   Reply With Quote
Old 11-26-2010, 12:28 AM   #56
Junior Member

Join Date: Aug 2010
Location: SoCal
Posts: 94
Total Cats: 0
Default

Isn't it getting really cold up there now?
dwood11 is offline   Reply With Quote
Old 11-26-2010, 08:53 AM   #57
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

it was 1 degree celcius this morning and its the warmest day of the week (33F)

it will be cold... i need to get the engine in so i can tow it all to my heated shop. (which is further from me...)
shlammed is offline   Reply With Quote
Old 11-29-2010, 11:53 AM   #58
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Name:  00ac46de.jpg
Views: 8
Size:  98.5 KB

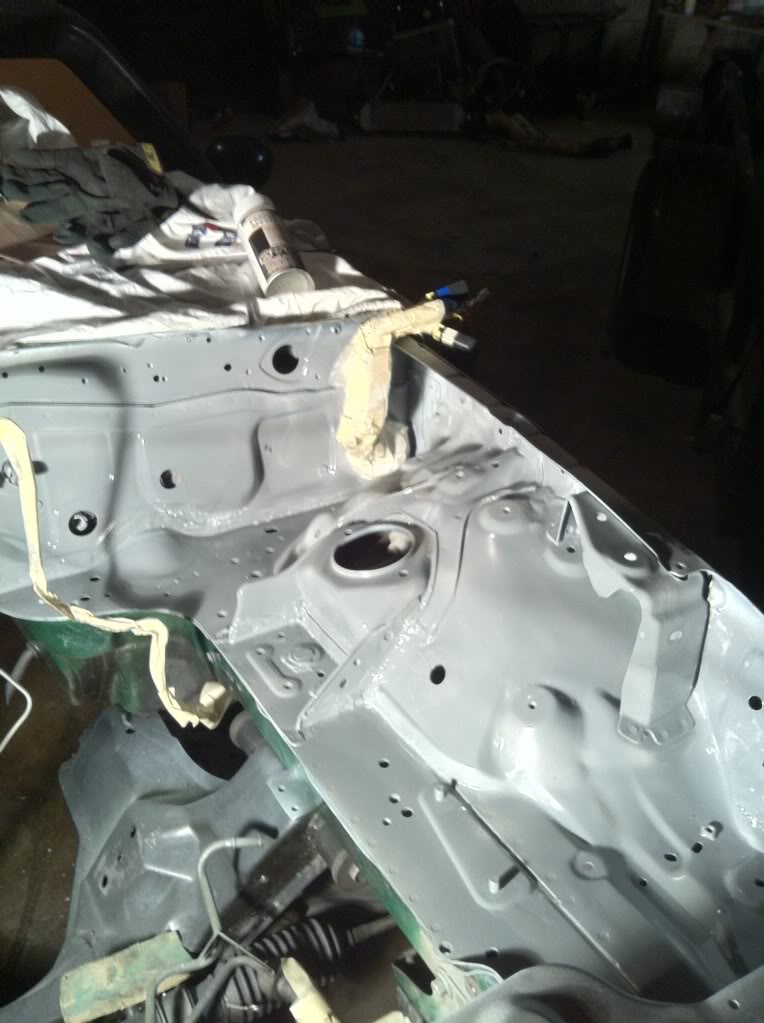

Hollaaaaa...light grey, easy to spot leaks... unlike dark green.

Engine should be in soon, when i get engine mounts.

still have to do the frame rails and the other side of the engine bay....
shlammed is offline   Reply With Quote
Old 11-29-2010, 03:04 PM   #59
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Does anyone know where i could find a 1" rubber plug to plug the firewall where my AC lines used to be?
shlammed is offline   Reply With Quote
Old 11-29-2010, 03:07 PM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

any auto parts store should have grommets...even like ACE hardware.
Braineack is offline   Reply With Quote
