Old 08-31-2012, 12:58 PM   #181
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

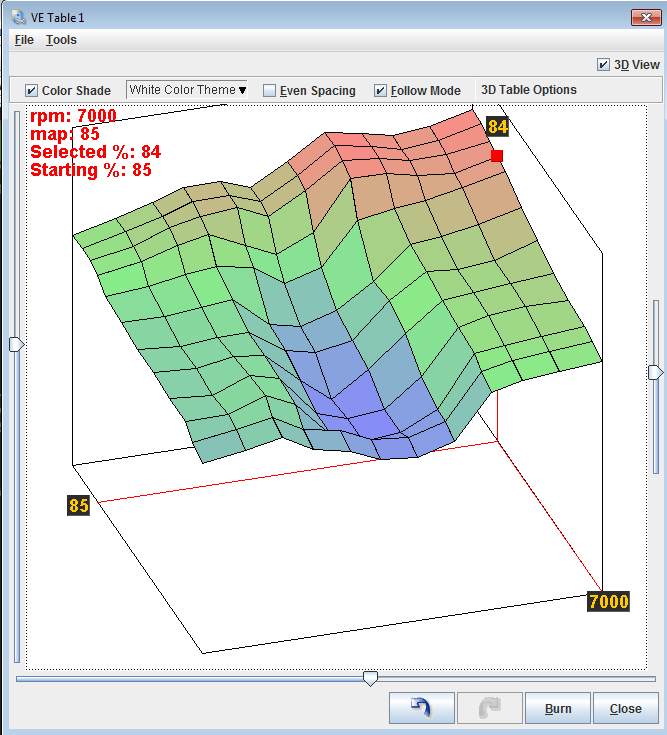

This fuel table is creeping me out. This hits the targets. Is this just a crazy cam or something? I guessing that advancing the cam a few degrees will level-out at 4000rpm.
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-creepy-fuel-table-creepy.png
hustler is offline   Reply With Quote
Old 08-31-2012, 01:11 PM   #182
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Looks similar to mine, just not as sever.



I'd expect if the boosted rows were removed, it would look more the same.
Braineack is offline   Reply With Quote
Old 08-31-2012, 01:15 PM   #183
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

4k dip "should" go away if you get the intake tube close to the correct length.
Leafy is offline   Reply With Quote
Old 08-31-2012, 01:17 PM   #184
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

It looks like my VE map when VVT is disconnected.
Reverant is offline   Reply With Quote
Old 08-31-2012, 01:27 PM   #185
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,343
Default

Quote:
Originally Posted by Leafy View Post
4k dip "should" go away if you get the intake tube close to the correct length.
Or at least be reduced, yes. The dip is normal for an N/A BP. More pronounced with a square top that adds more above 4k than the USDM manifold.
emilio700 is offline   Reply With Quote
Old 08-31-2012, 01:43 PM   #186
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

I will be in DFW tonight and can bring you that adjustable cam gear that John was supposed to take with the motor. I don't know when you leave for Nawlin.
rharris19 is offline   Reply With Quote
Old 08-31-2012, 02:11 PM   #187
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This just in:
My begi spacer leaks at the sensor. Shoot me in the face, please.
hustler is offline   Reply With Quote
Old 08-31-2012, 02:11 PM   #188
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by rharris19 View Post
I will be in DFW tonight and can bring you that adjustable cam gear that John was supposed to take with the motor. I don't know when you leave for Nawlin.
YES YES YES!!!

Call me about an hour out.
hustler is offline   Reply With Quote
Old 08-31-2012, 02:13 PM   #189
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Leafy View Post
4k dip "should" go away if you get the intake tube close to the correct length.
Want to save me some "trial and error" time and just tell me how many degrees to advance? If you do this, I promise to e-thug you to a degree of which you've never seen. E-thuggery is a gift.
hustler is offline   Reply With Quote
Old 08-31-2012, 03:57 PM   #190
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 08-31-2012, 04:03 PM   #191
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Sniper really refers to their licenses as bullets? Lol, wow.
Leafy is offline   Reply With Quote
Old 08-31-2012, 04:05 PM   #192
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Tuning Done Right: Through email.
Braineack is offline   Reply With Quote
Old 08-31-2012, 04:15 PM   #193
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

tuning done right:

Quote:
Just looked at youtr log

DO NOT GO WOT ANY MORE!.

CALL ME PLEASE
Braineack is offline   Reply With Quote
Old 08-31-2012, 04:38 PM   #194
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Get this ------ **** out of my god damned thread.
hustler is offline   Reply With Quote
Old 08-31-2012, 04:50 PM   #195
Junior Member
iTrader: (4)

Join Date: Oct 2009
Location: College Station, TX
Posts: 281
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
palmtree is offline   Reply With Quote
Old 08-31-2012, 06:11 PM   #196
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Any ball-park estimates on how much to advance that intake cam? I'm all about saving myself time with board knowledge. I'm also exhausted and sweaty from re-dressing the threads on that BEGi spacer.
hustler is offline   Reply With Quote
Old 08-31-2012, 08:22 PM   #197
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,343
Default

Quote:
Originally Posted by hustler View Post
Any ball-park estimates on how much to advance that intake cam? I'm all about saving myself time with board knowledge. I'm also exhausted and sweaty from re-dressing the threads on that BEGi spacer.
No more than 2* crank. Usually 1* crank (2*cam) is enough.
emilio700 is offline   Reply With Quote
Old 08-31-2012, 11:08 PM   #198
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

God damn, I am struggling to get this car road tuned, I blame the computer. I may just order an Enhanced MS2 and live in debt.

Look at this ------ log...same VE table, and it's different every time, the car still bogs, add spark and it bogs, take away spark and it bogs. I never hear det, but something is not right. Plugs are gapped down to .030", I don't know wtf is going on. How do you tune a car? lol
Attached Files
File Type: msl 2012-08-31_20.43.35.msl (350.3 KB, 67 views)
hustler is offline   Reply With Quote
Old 08-31-2012, 11:12 PM   #199
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

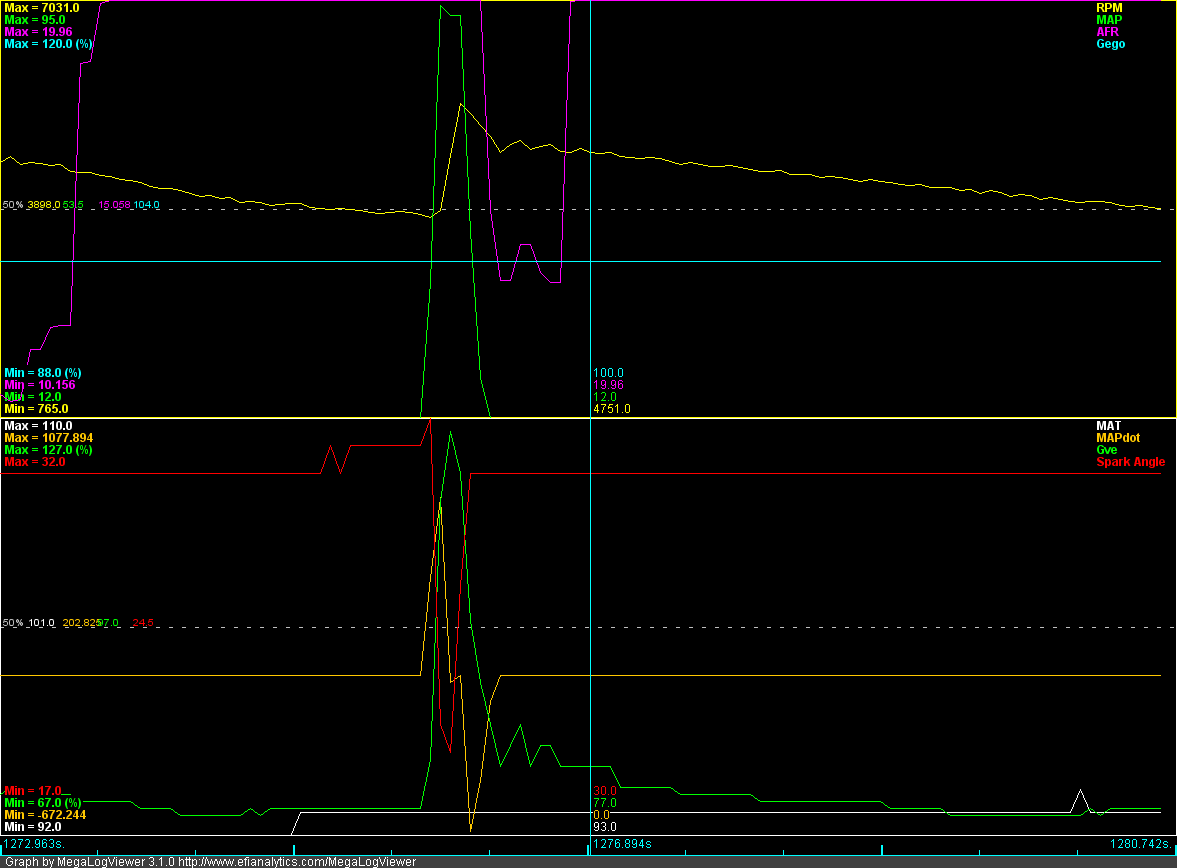

lol @ ultra-fast revving:
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-lol-crank.png
hustler is offline   Reply With Quote
Old 09-01-2012, 10:46 AM   #200
Newb

Join Date: Apr 2010
Location: Irving, TX
Posts: 33
Total Cats: 1
Default

The front pack SM's were running 1:31's all weekend when NASA ran there in June. Mid pack was 1:33-1:34.

I ran a 1:36:1 in TTE and both the PTE Miatas put up 1:36:5's.

The new rules allowances for SM would have them point out in PTD/TTD this year.

I think you're a bit nuts calling a 1:27, but if you're ok with sporting the tampon on your dash for another year when you don't hit it, I'm ok with that.

But, on a high note, I've got 4 of those shitty red CARB gas cans to haul fuel to the track - you can use them if you promise never to bring them back.
ckearns is offline   Reply With Quote
