Default My turbo MX-5

I’ve been here four years and seen all kinds of failing. So here it is. My turn to success… on failing

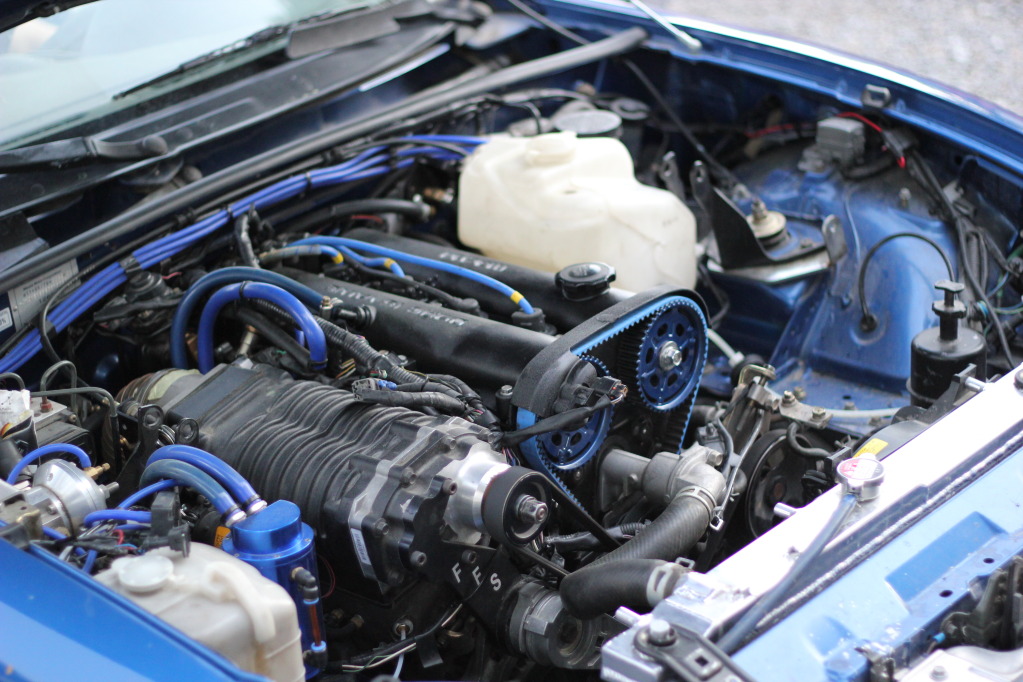

Here was the starting point. 230whp coldside setup. Had to sell it for the turbo parts (Yeah I know. It could have been awesome to try some kind a twincharge setup)


Bore & hone. ARP bolts, ACL bearings, the usual...


SGI rods with 84mm 9.5:1 Supertechs


oil return

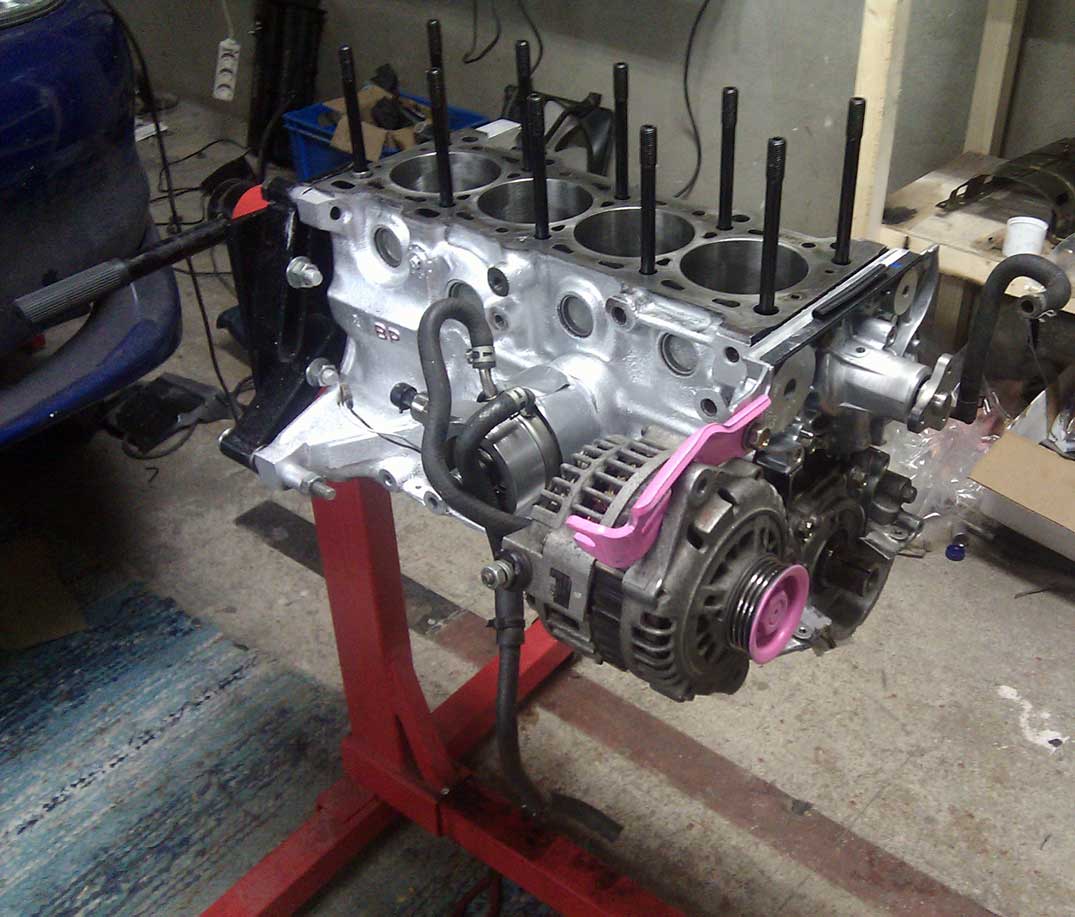

Engine back in.

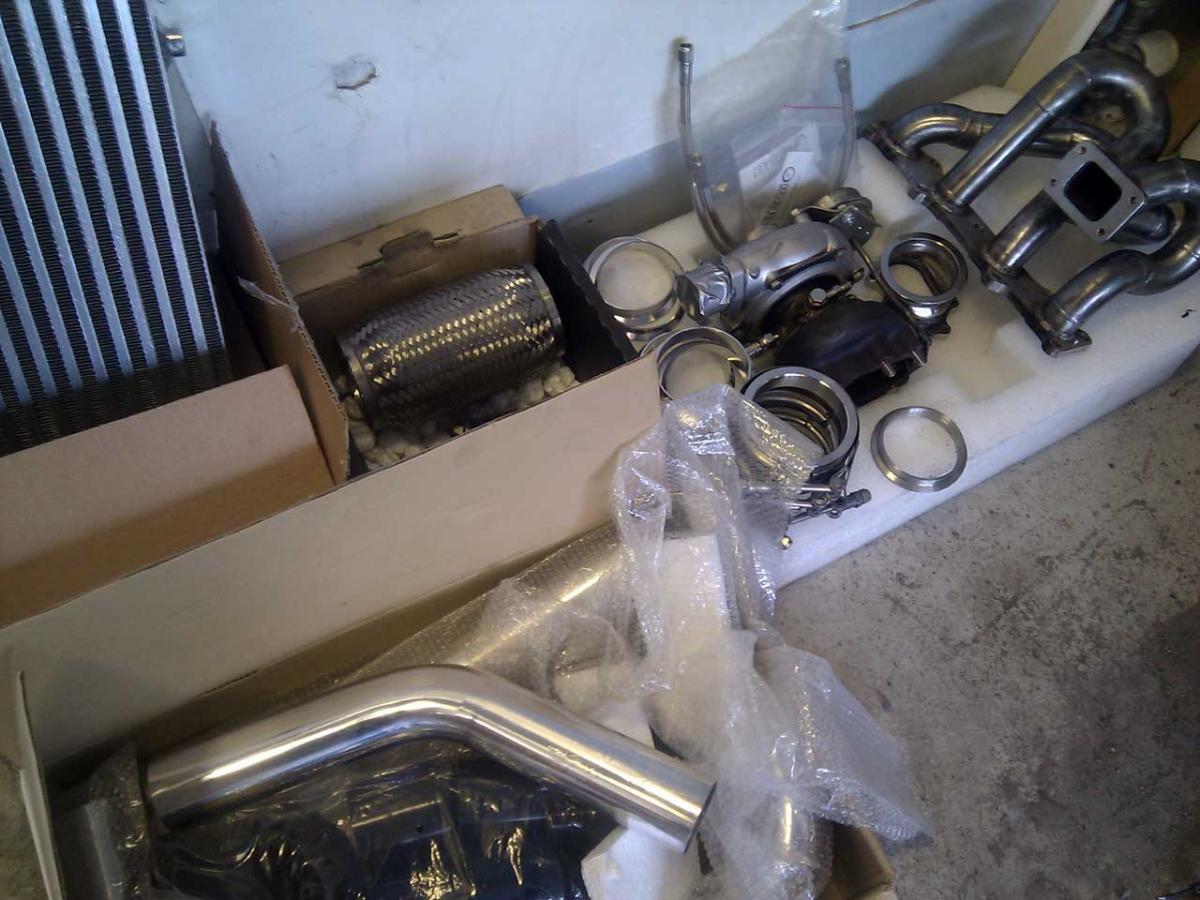

ebay IC stuff. Garrett GT2560r from Nissan S15 Silvia and ARTech Ramhorn Top Mount manifold




looks nice


Waterpump neck didn’t fit with that ARTech manifold so I had to modify that a little


now it fits


Then we made a downpipe. 3.5” of course


heat wrapped it and then to the oven


Everything ready here


...aand all ready here as well.


Yes its 3.5" from downpipe to the end


And here we are.




One self made turbo setup Took me 5 months to finish
Attached Thumbnails
My turbo MX-5-img_5915.jpg   My turbo MX-5-lmelkeiv.jpg   My turbo MX-5-turbohilut.jpg

Last edited by muoto; 05-20-2012 at 05:33 PM.
muoto is offline   Reply With Quote
Old 05-19-2012, 10:18 PM   #2
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

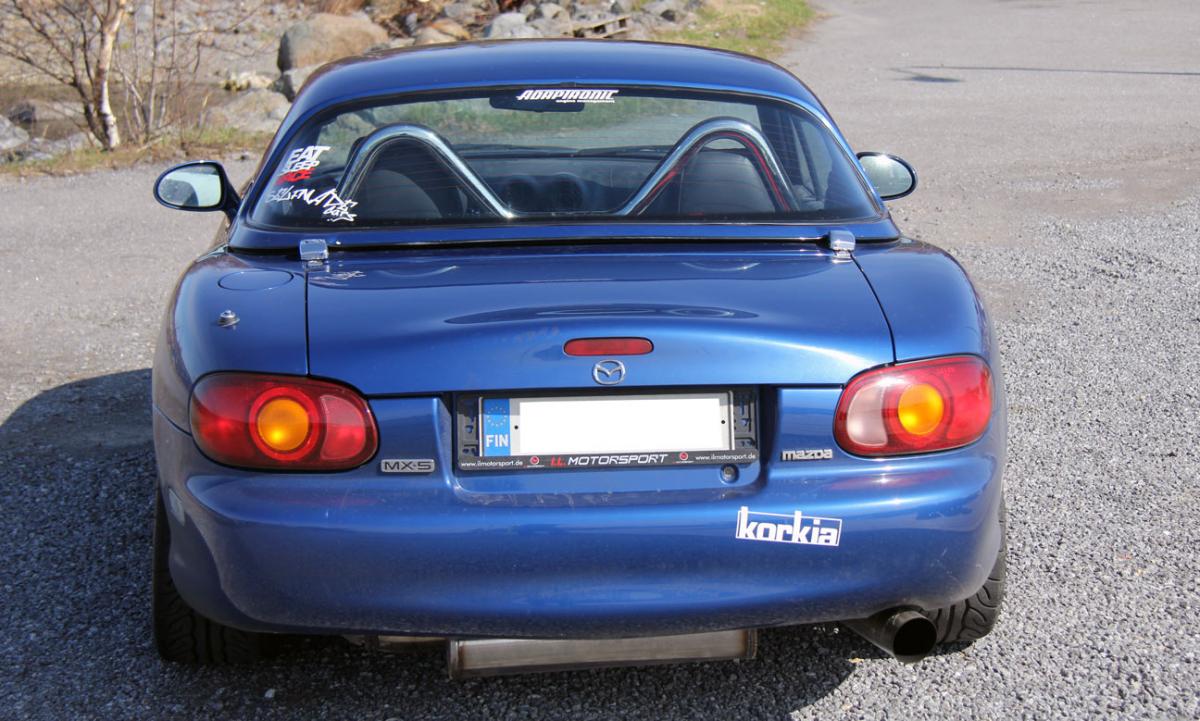

car specs:
Supertech 9.5:1 84mm forged pistons
SGI forged rods with ARP bolts
ARP head bolts
ACL Race bearings
Adaptronic E420c ECU +stock ecu to handle alternator
Toyota Corolla COP coils

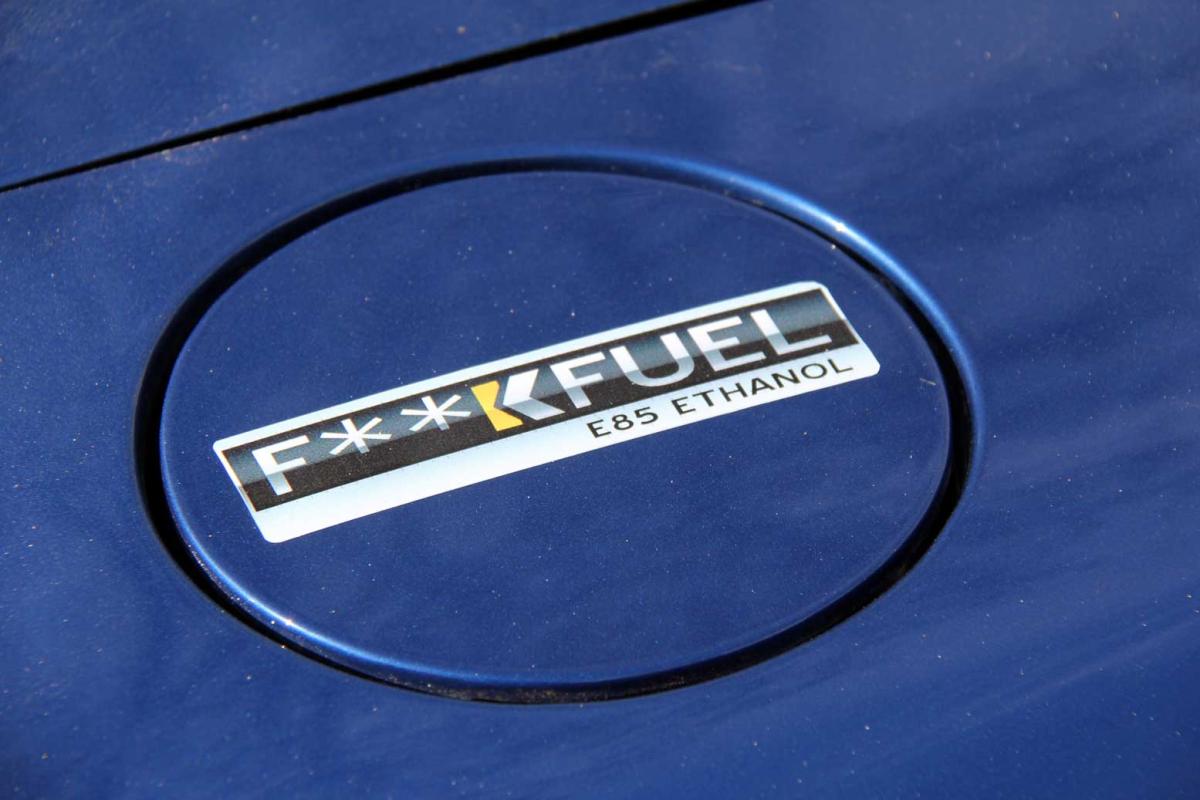

DeatschWerks 800cc injectors and Walbro 190 pump. I'm only using 85% bioethanol
FM Level 1 clutch. 318 ft/lb
I.L.Motorsport 50mm radiator

GT2560r from S15 Silvia
ARTech™ Ramhorn Top Mount turbo manifold
full 3.5" exhaust with bigass Magnaflow muffler
Toyosport 550x225x64mm IC
AEM EBC boost solenoid

BCRacing coilovers
16x7 Rota Subzero wheels with Yokohama ADVAN Neova AD08 215/45 tires
Attached Thumbnails
My turbo MX-5-img_4633pieni.jpg   My turbo MX-5-img_4642pieni.jpg   My turbo MX-5-img_4606pieni.jpg

Last edited by muoto; 05-19-2012 at 10:30 PM.
muoto is offline   Reply With Quote
Old 05-19-2012, 10:19 PM   #3
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

- reserved -
muoto is offline   Reply With Quote
Old 05-19-2012, 10:59 PM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

How is it that you have so much time invested in your engine, but still rock a "style bar"?
thirdgen is offline   Reply With Quote
Old 05-19-2012, 11:08 PM   #5
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

I know i'm working on it! M2 Hard Dog rollbar maybe...

and who gives a fu*k about style bar when car sounds like this:
http://www.youtube.com/watch?feature...&v=BsvoPtve4jM

Last edited by muoto; 05-20-2012 at 08:05 AM.
muoto is offline   Reply With Quote
Old 05-19-2012, 11:14 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

very nice work. looks like we have another fabricator on here.
18psi is offline   Reply With Quote
Old 05-20-2012, 08:25 AM   #7
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
very nice work. looks like we have another fabricator on here.
Thank you but I’m not really a fabricator. All credits go to a guy named Mikael Norrgård. He’s the one who made that downpipe and exhaust.

And 18psi thanks for the IC hotside pipe routing. I copied it from your old build thread.
muoto is offline   Reply With Quote
Old 05-20-2012, 09:58 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Braineack is offline   Reply With Quote
Old 05-20-2012, 12:02 PM   #9
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Very nice setup, from the front plate mount to the 3.5" tip.

Where did you get the material for the heat shields?
Miater is offline   Reply With Quote
Old 05-20-2012, 12:31 PM   #10
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Miater View Post
Where did you get the material for the heat shields?
it's just some random stainles steel sheet that we cut to fit
muoto is offline   Reply With Quote
Old 05-20-2012, 12:58 PM   #11
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Nice work muoto. +1 for the pink dip stick!
Can you post a sound clip for the exhaust?
sturovo is offline   Reply With Quote
Old 05-20-2012, 01:09 PM   #12
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by sturovo View Post
Nice work muoto. +1 for the pink dip stick!
Can you post a sound clip for the exhaust?
idle:

1-2-3 gears WOT:




I need pink miataturbo.net sticker!!!!!
muoto is offline   Reply With Quote
Old 05-21-2012, 05:18 PM   #13
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

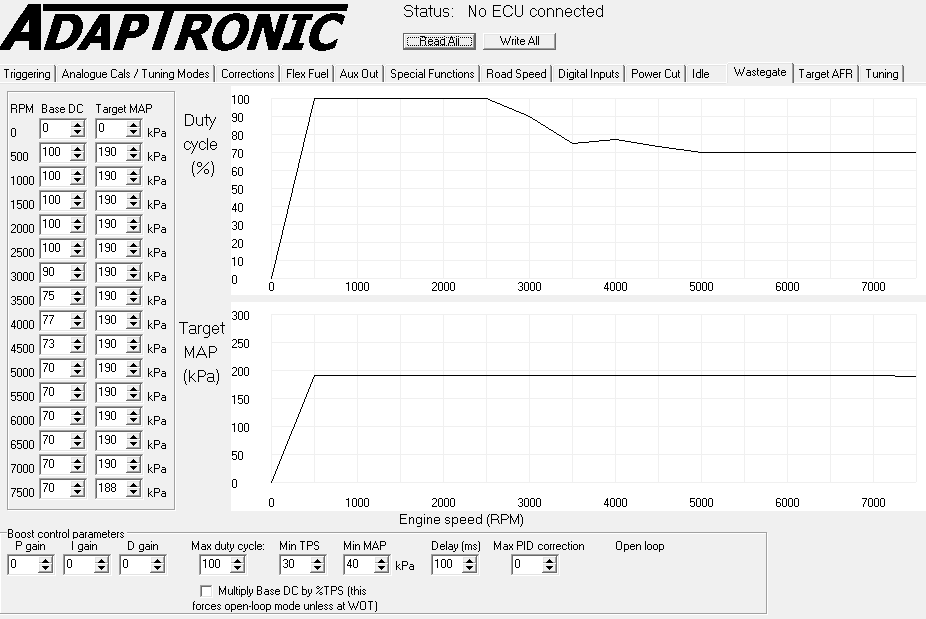

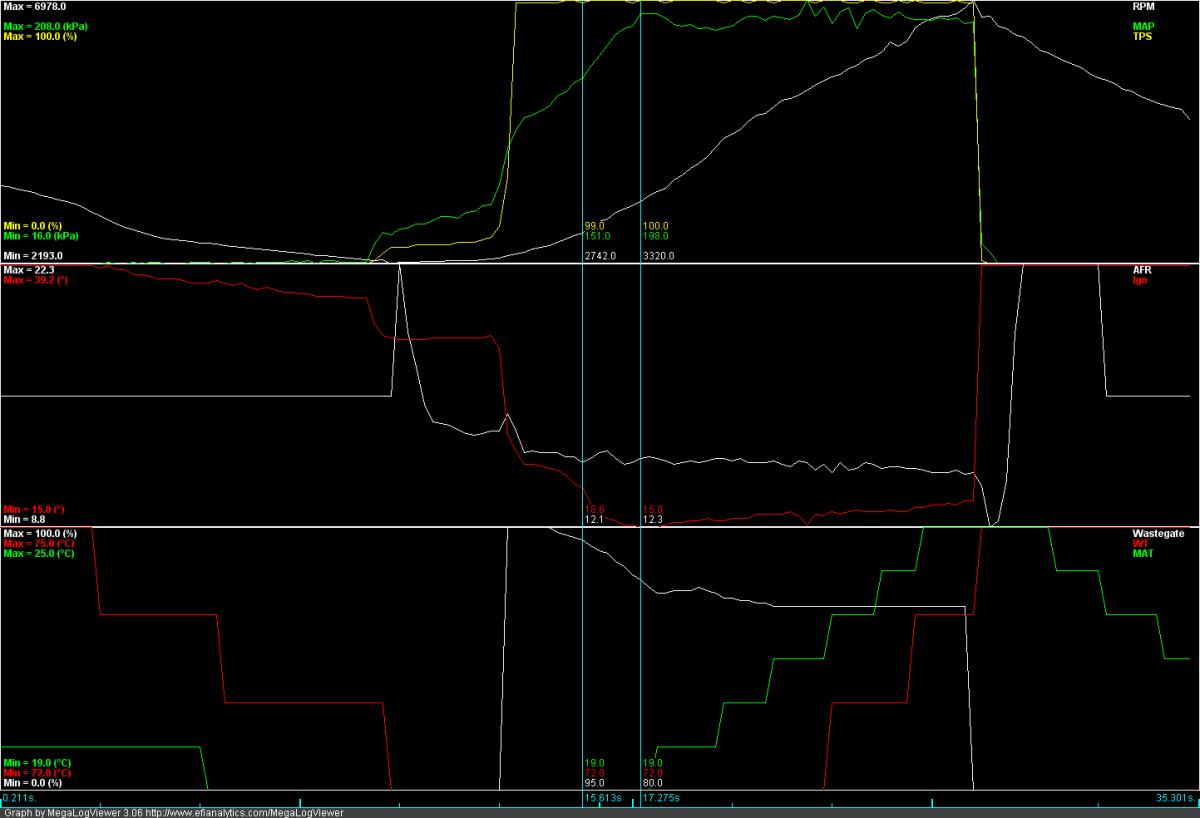

I got my EBC working today. Now it's spooling ok.




150kPa(7,25psi) @ 2700rpm
200kPa(14,5psi) @ 3300rpm

Ign.timing is still super safe as you may notice. 17deg BTDC at redline.
Attached Thumbnails
My turbo MX-5-wastegatecontrol.png   My turbo MX-5-spool_2105.jpg
muoto is offline   Reply With Quote
Old 05-22-2012, 04:45 PM   #14
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by muoto View Post
that sounds cool!
sturovo is offline   Reply With Quote
Old 05-22-2012, 04:58 PM   #15
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

that's some nice spool, but then again, it's a GT2560 with a 3.5" exhaust
soviet is offline   Reply With Quote
Old 05-22-2012, 05:23 PM   #16
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by soviet View Post
that's some nice spool, but then again, it's a GT2560 with a 3.5" exhaust
Spool seems to be almost as good, if not the same as GT2560 setups with short tubular manifold. I’m really happy with it. EFR 6258 is going in when I get money for it. That is the reason I have 3” v-band flange in the downpipe.

Last edited by muoto; 05-22-2012 at 08:07 PM.
muoto is offline   Reply With Quote
Old 05-22-2012, 06:37 PM   #17
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Quote:
Originally Posted by muoto View Post
spool seems to be almost as good, if not the same as gt2560 setups with short tubular manifold. I’m really happy with it. Efr 6258 is going in when i get money for it. That is the reason i have 3” v-band flange in in the downpipe.
fawk yeah!!
soviet is offline   Reply With Quote
Old 05-23-2012, 02:14 AM   #18
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Umm, more vids! That thing sounds incredible.
Fireindc is offline   Reply With Quote
Old 05-23-2012, 02:56 AM   #19
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

More videos is coming when I get to track

In the meantime, few random pictures:

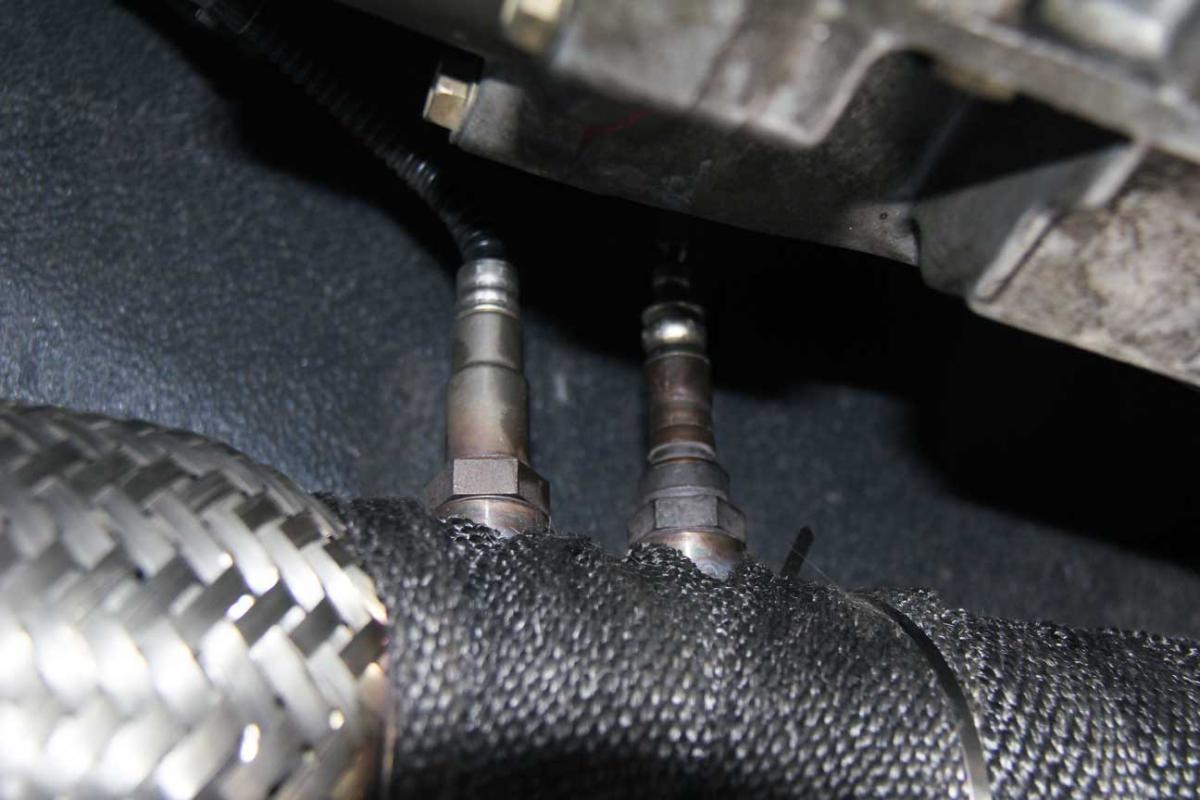

I have one extra o2 port so I put my stock narrowband sensor there. Adaptronic read both at the same time

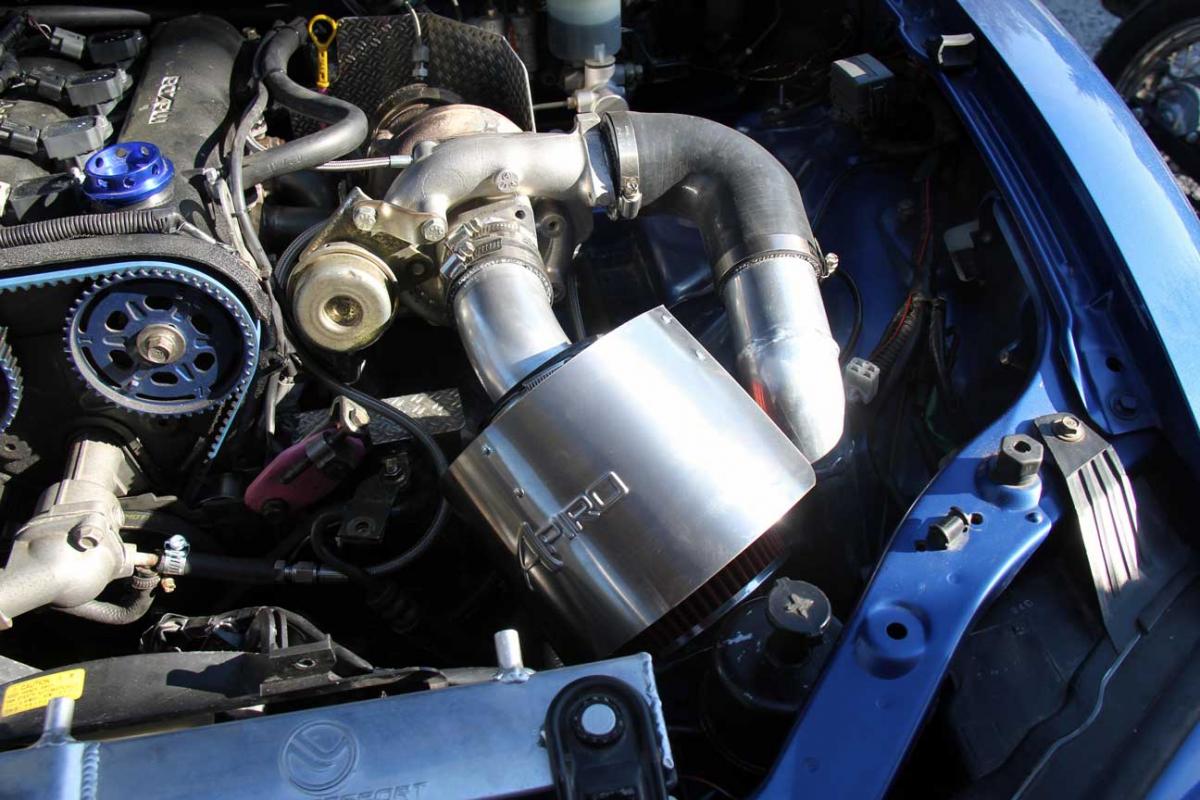

Heat shield for my air filter. I hope that it’s going to block most of the hot air coming from radiator.


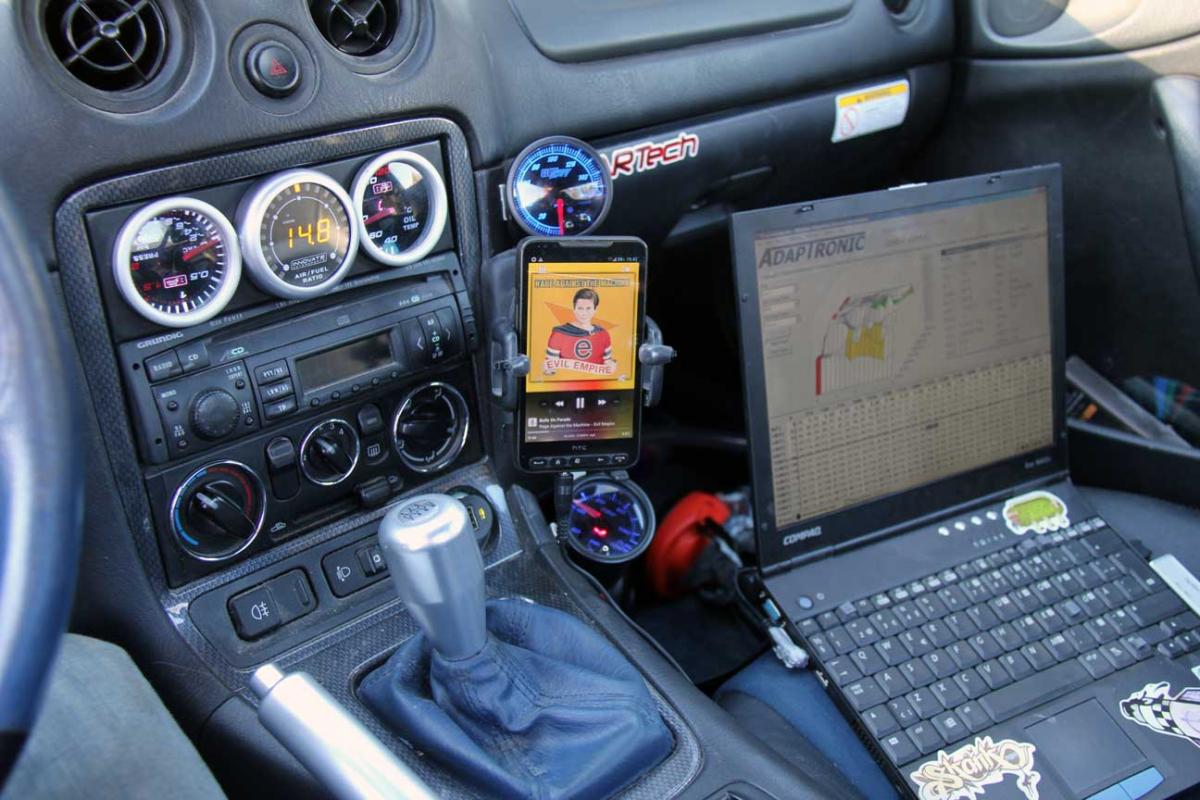

I changed my fuel&ign maps from 500cell resolution to 250cells. Idle is now hundred times better

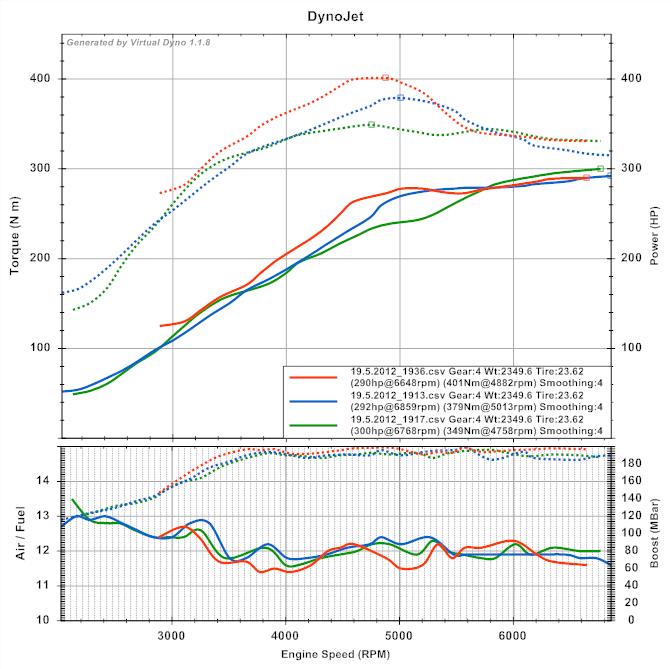

I tend to test my ecu changes with VirtualDyno program to see if there are any gains. Cool little program. Thread about program here: https://www.miataturbo.net/ecus-tuning-54/virtual-dyno-59374/
Attached Thumbnails
My turbo MX-5-pimg_4789.jpg   My turbo MX-5-img_4868.jpg   My turbo MX-5-img_4871.jpg   My turbo MX-5-img_4875.jpg   My turbo MX-5-graff3.jpg

muoto is offline   Reply With Quote
Old 06-03-2012, 12:50 PM   #20
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

Do like, waiting to test drive it.
