Old 02-03-2013, 01:23 PM   #101
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by sixshooter View Post
You want to shield the dipstick from the turbine housing, exhaust manifold, and downpipe. Ask me about having to remove my engine because of tiny bits of melted dipstick in my oil.
E85

I donít have any problems with exhaust heat.
muoto is offline   Reply With Quote
Old 02-08-2013, 09:24 AM   #102
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

muoto is offline   Reply With Quote
Old 02-21-2013, 03:57 AM   #103
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

weekly update

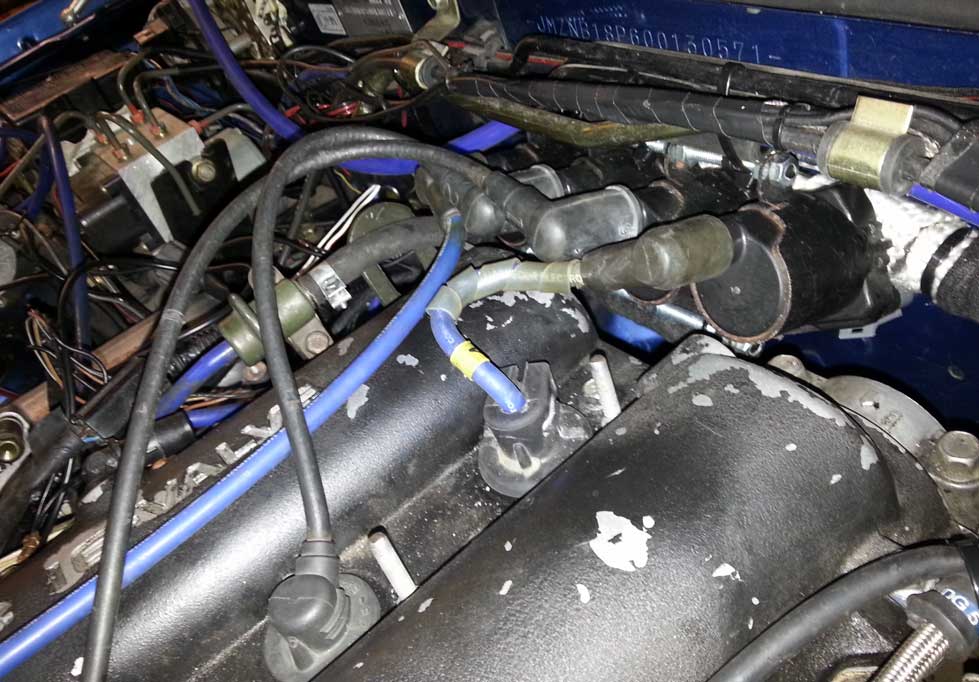

LSx coils sitting behind the valve cover. It's a temporary place until I found better place for them. They are holding still though

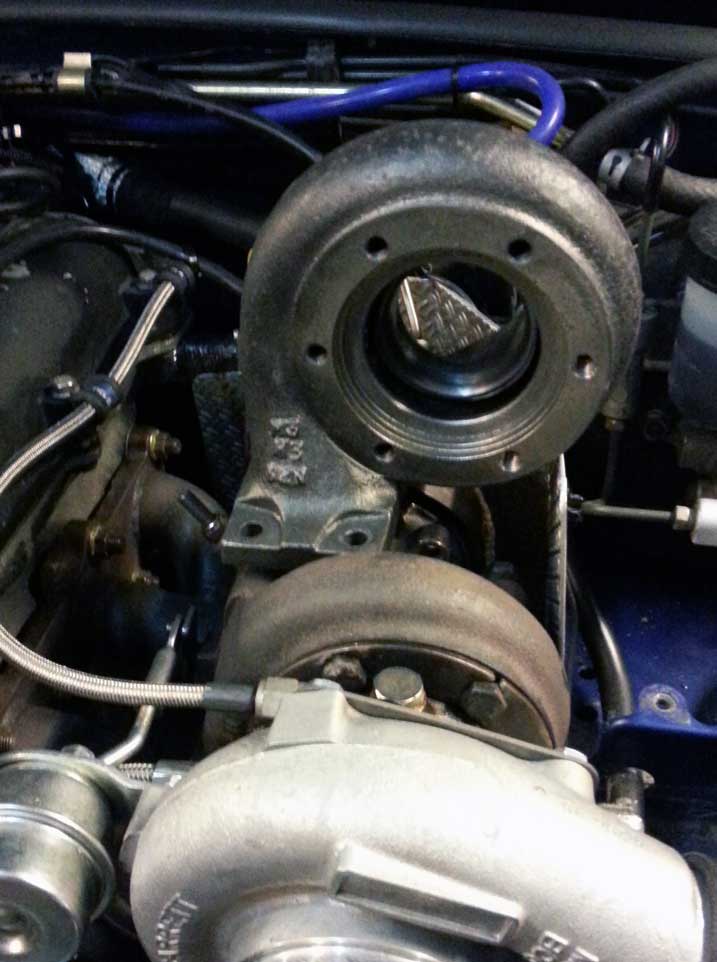

Spare .86 A/R turbine housing

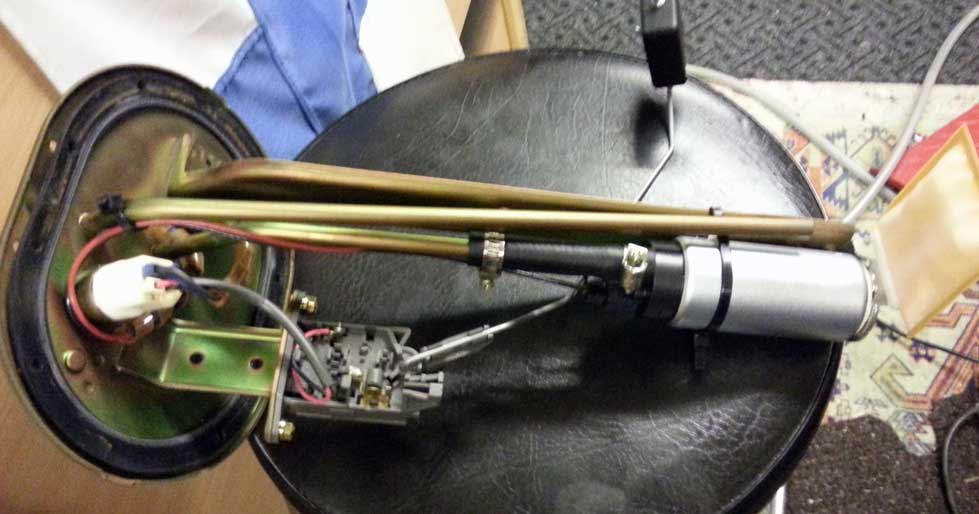

DW300 fuel pump

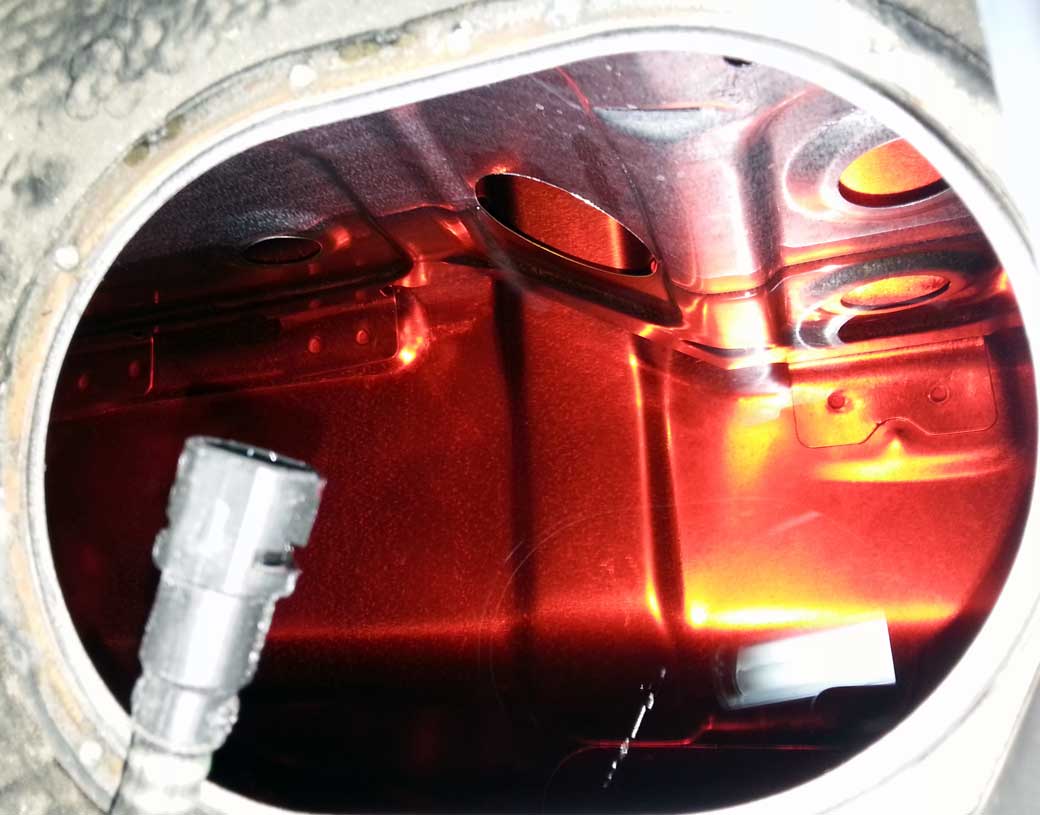

And tank full of sweet E85


This is going in next
Attached Thumbnails
My turbo MX-5-2013-02-13-19.36.27.jpg   My turbo MX-5-2013-02-18-18.45.jpg   My turbo MX-5-2013-02-20-19.22.jpg   My turbo MX-5-2013-02-20-18.34.13.jpg   My turbo MX-5-2013-02-18-18.47.13-1.jpg


Last edited by muoto; 02-22-2013 at 07:05 AM.
muoto is offline   Reply With Quote
Old 03-09-2013, 08:55 AM   #104
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

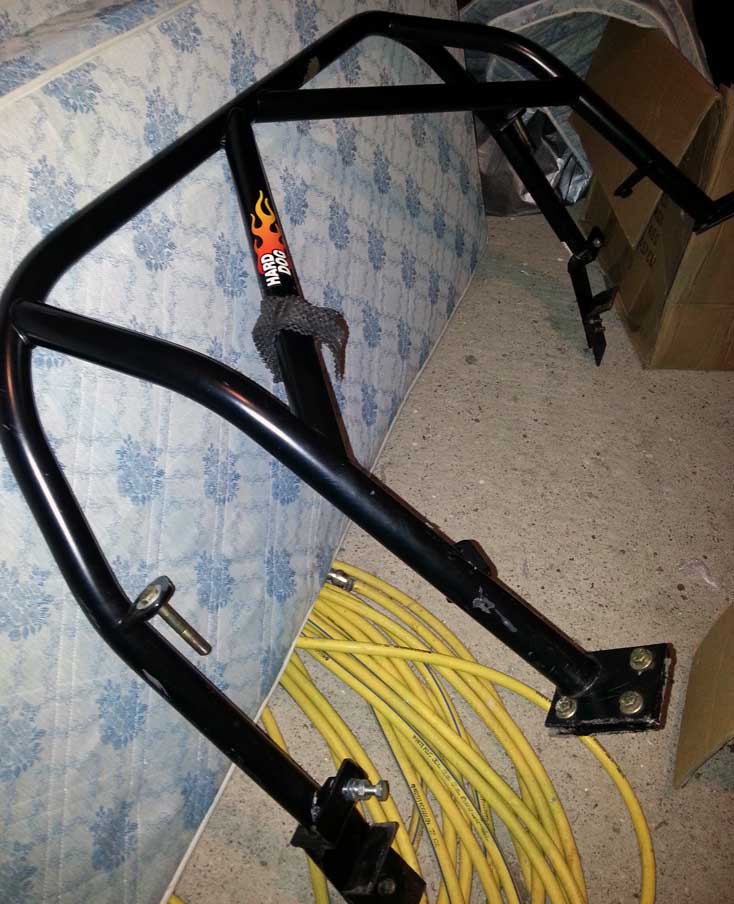

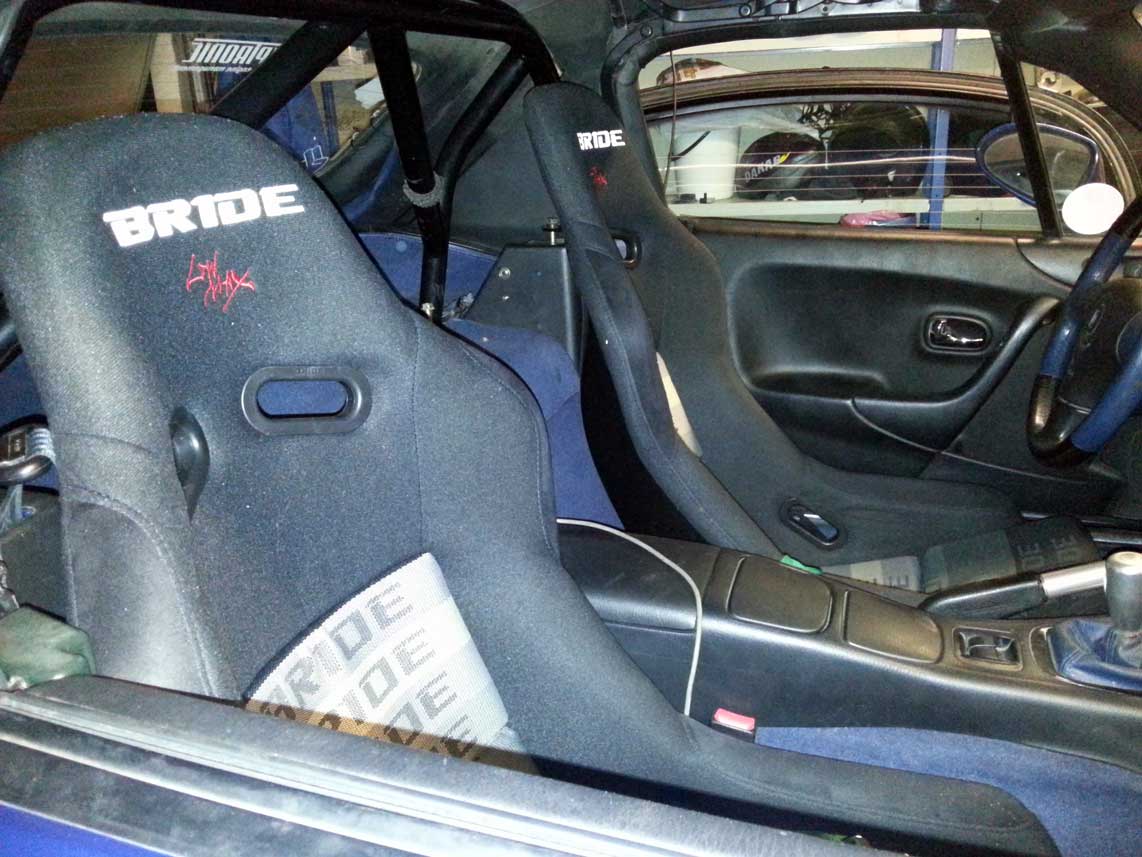

Seats and rollcage are in

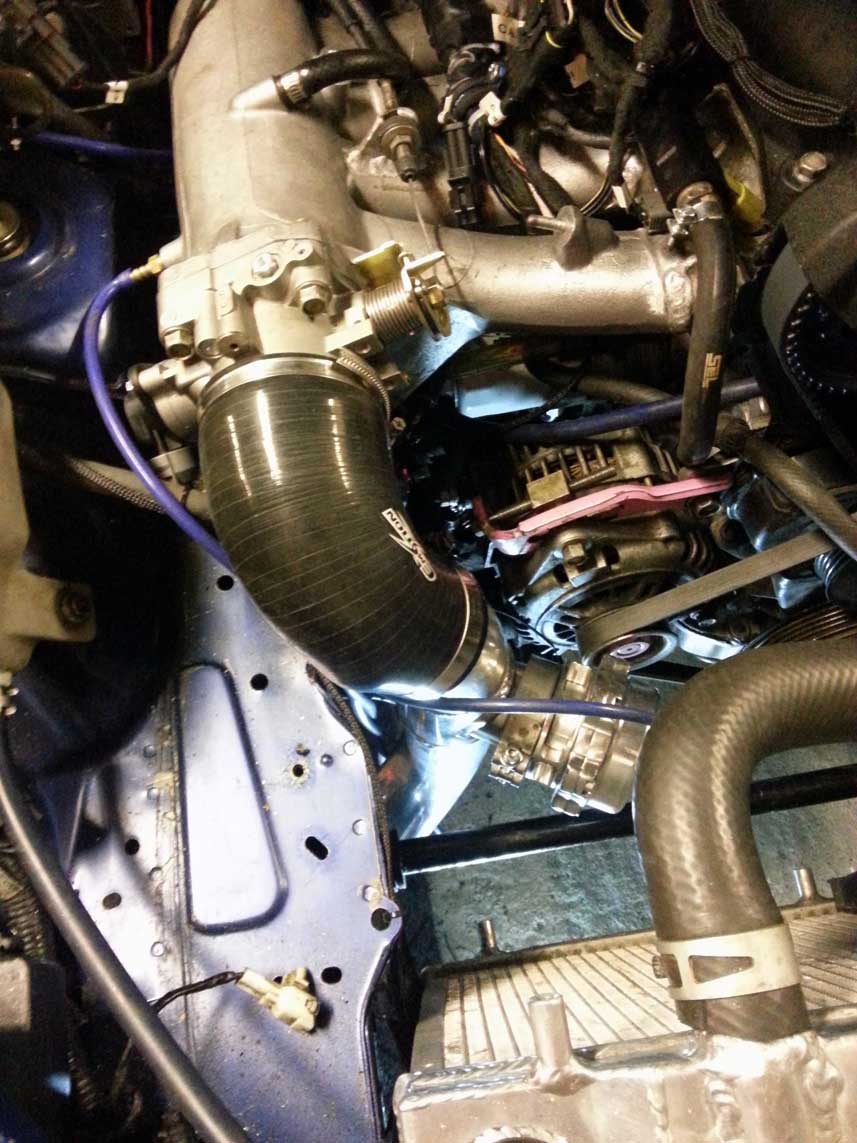

Also made a new IC pipe for the honduhh intake manifold

Attached Thumbnails
My turbo MX-5-2013-03-07-21.29.jpg   My turbo MX-5-2013-03-01-21.11.33.jpg   My turbo MX-5-2013-03-04-21.45.jpg
muoto is offline   Reply With Quote
Old 03-09-2013, 12:00 PM   #105
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Good stuff muoto.
The engine sounds sportier in the video... did it change significantly with the new intake?
What is the outside diameter of the roll bar tubing?
sturovo is offline   Reply With Quote
Old 03-11-2013, 10:13 AM   #106
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by sturovo View Post
Good stuff muoto.
The engine sounds sportier in the video... did it change significantly with the new intake?
What is the outside diameter of the roll bar tubing?
I guess 70mm TB made the biggest difference in the sound. I still have to take the IM off at some point and make the IAC idle hoses bigger. It now has 6mm hoses and they wonít flow enough

IIRC; HD M2 roll bar is 1.5" diam x .120" wall (or 38mm x 3mm wall for us)

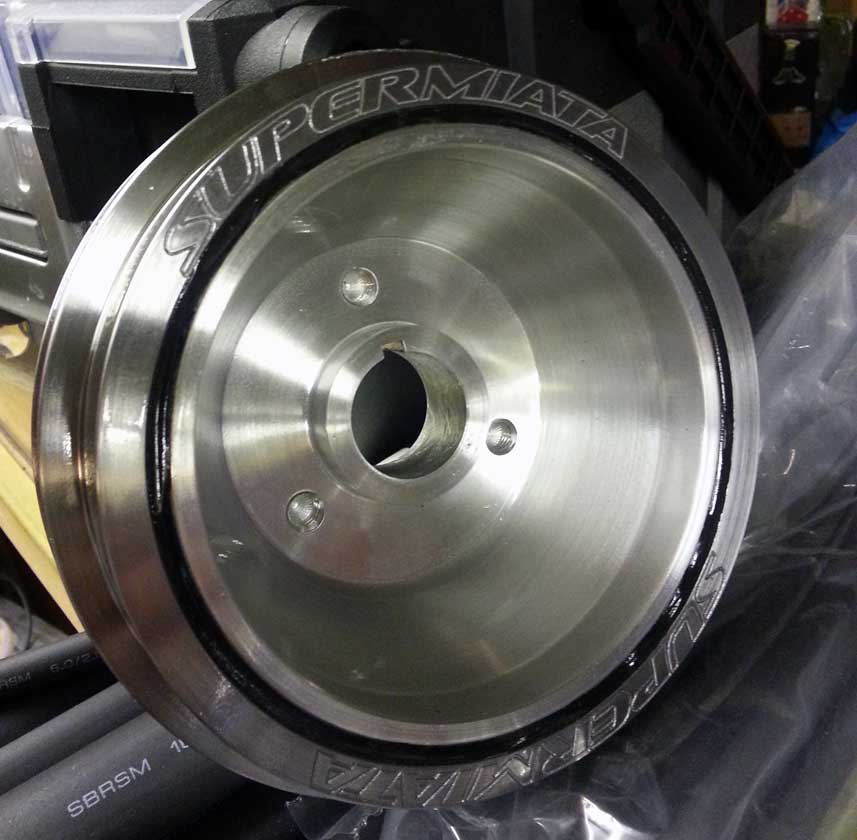

Also this is going in when I figure out how to configure 36-1 trigger setup in Adaptronic
Attached Thumbnails
My turbo MX-5-20130308_184759.jpg
muoto is offline   Reply With Quote
Old 03-15-2013, 03:12 AM   #107
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post

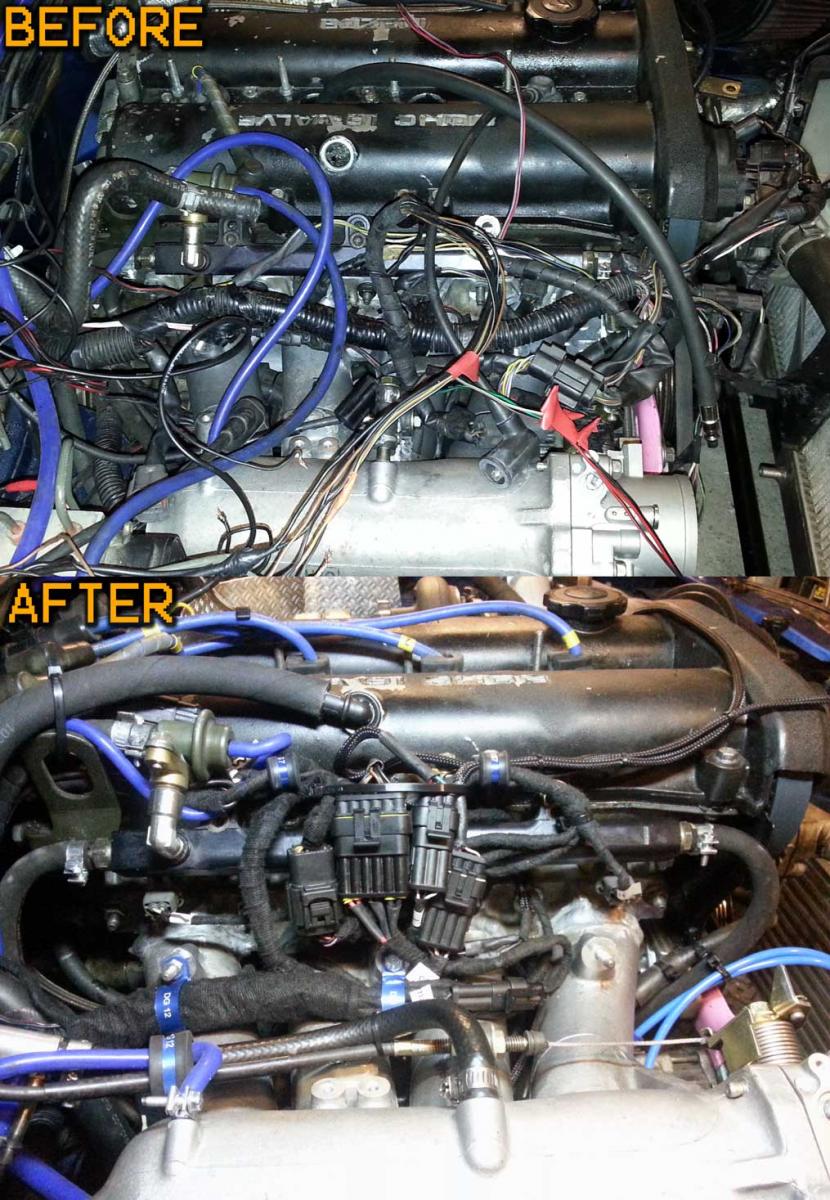

Wiring looks downright scary. Clean that up.
bada bing bada boom

Attached Thumbnails
My turbo MX-5-befaft.jpg
muoto is offline   Reply With Quote
Old 03-19-2013, 05:12 AM   #108
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

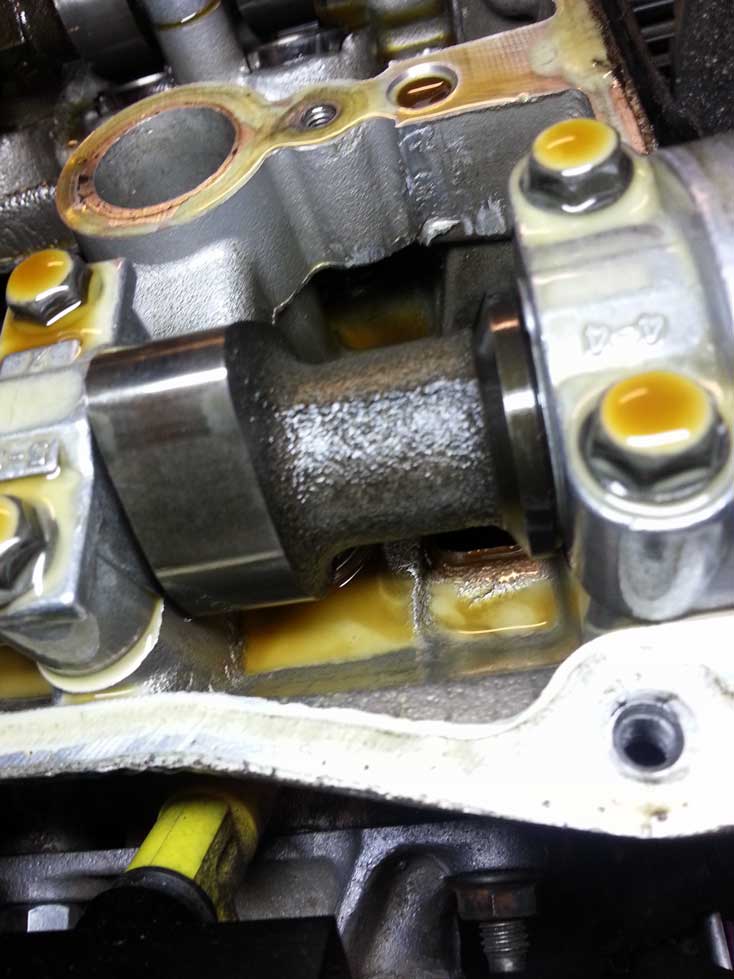

Oh noes...

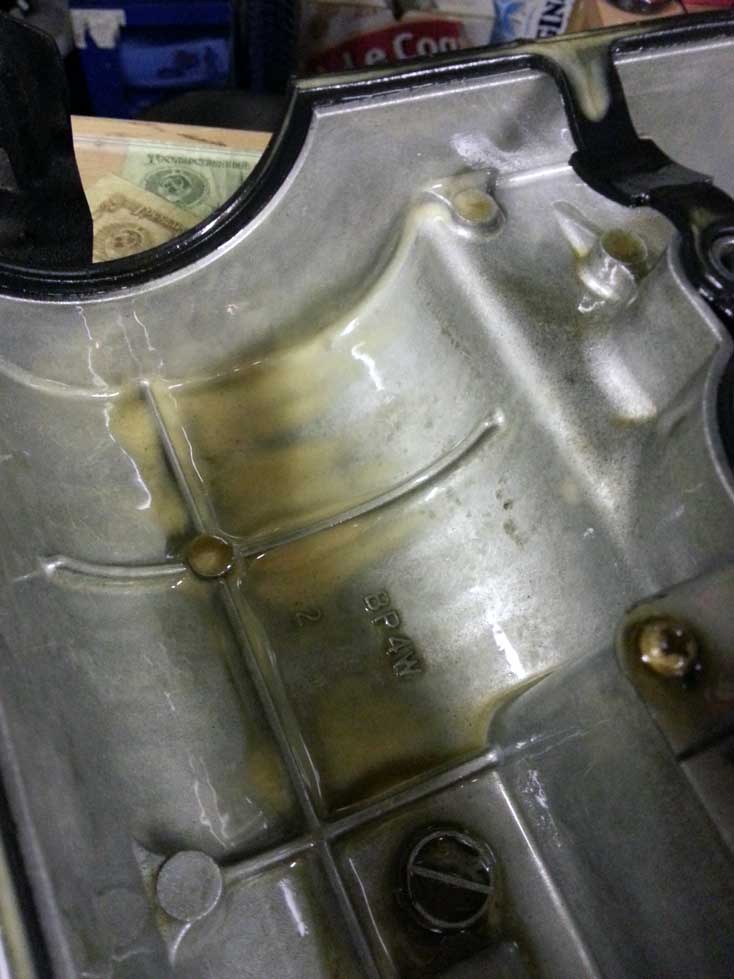

What is this creamy thing doing in my valve cover and cylinder head :(

Time to do a compression&leakdown test:

cyl#1 = 203psi. leak-down = 4%
cyl#2 = 193psi. leak-down = 16%
cyl#3 = 196psi. leak-down = 10%
cyl#4 = 209psi. leak-down = 5%

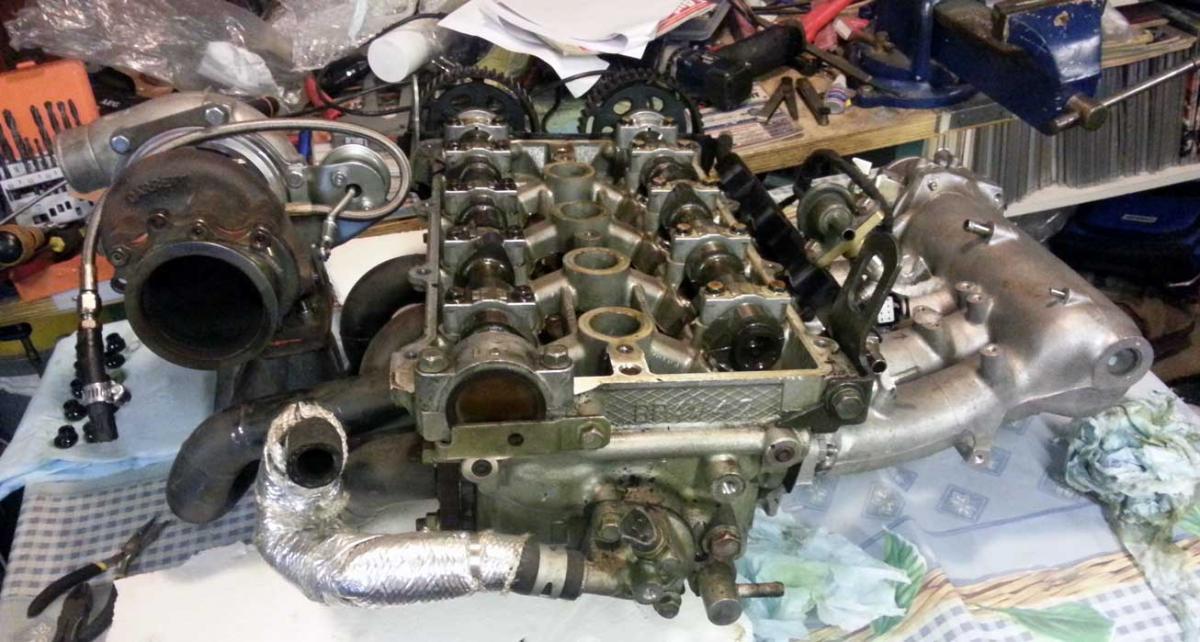

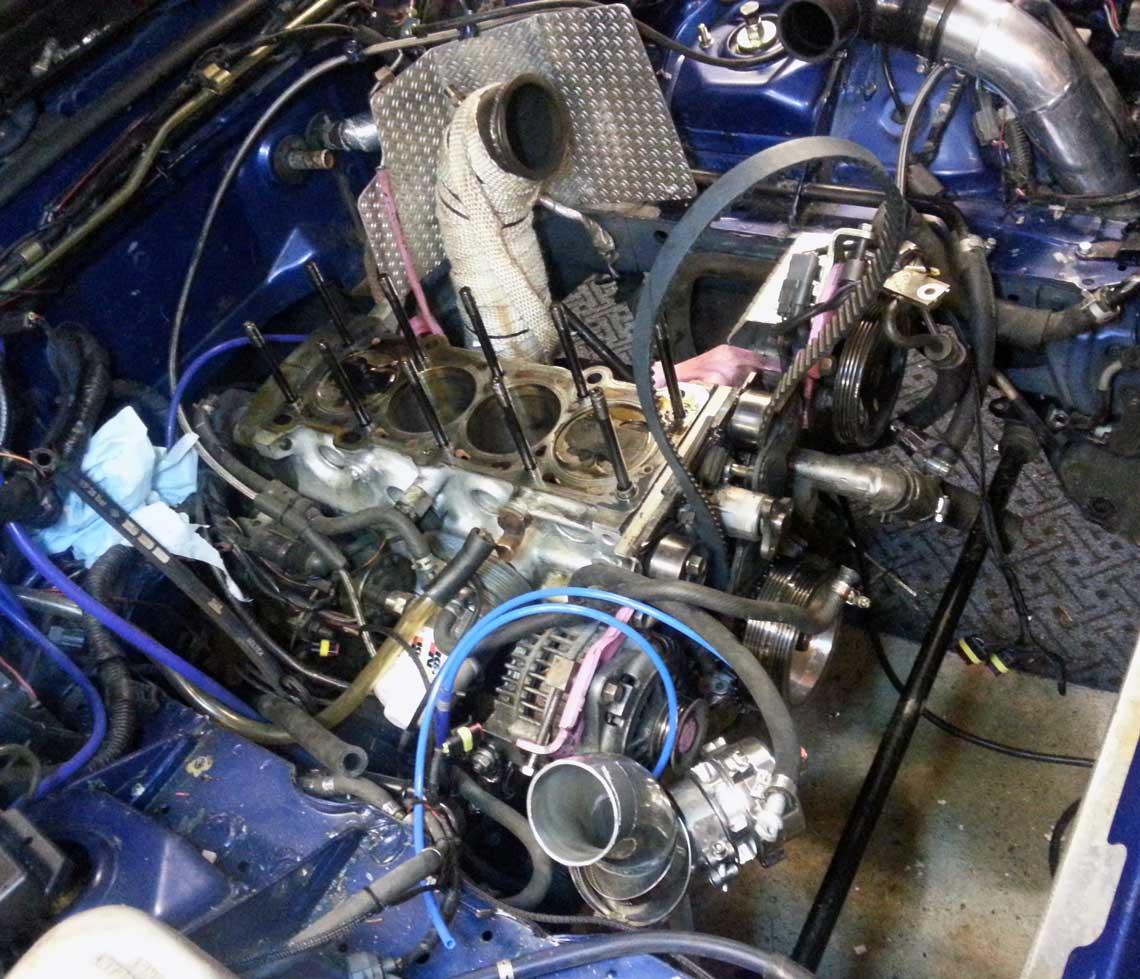

Nice. Head is warped ..again.. (I did loose a water hose last summer and it overheated)





...and there we are now...
Attached Thumbnails
My turbo MX-5-20130316_203531.jpg   My turbo MX-5-20130316_203545.jpg   My turbo MX-5-2013-03-17-19.32.37.jpg   My turbo MX-5-2013-03-17-20.11.jpg
muoto is offline   Reply With Quote
Old 04-13-2013, 02:53 AM   #109
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Car is running again


2871 is kicking much more aggressively than old 2560. I havenít play with the EBC yet but spooling isnít much behind 2560

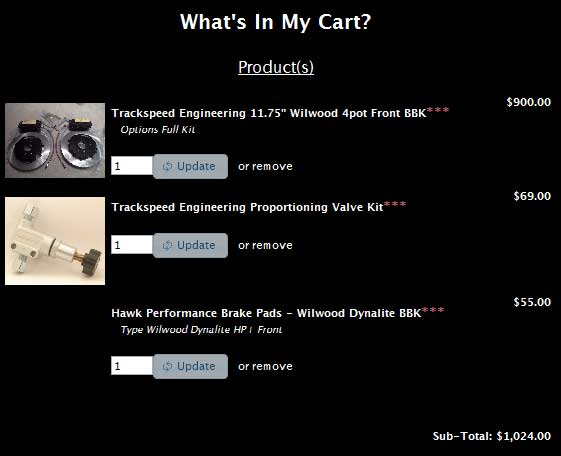

Last thing on my list is brakes. I think Iíll go with the TSE BBK
Attached Thumbnails
My turbo MX-5-tsetilaus.jpg
muoto is offline   Reply With Quote
Old 04-13-2013, 03:02 AM   #110
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

sounds great and looks like its a handful now on the road

'grats man
18psi is offline   Reply With Quote
Old 04-13-2013, 03:16 AM   #111
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Thanks man.

With the large exhaust, boost creep seems to be a constant headache. It’s same with the 2871's internal WG, even if I zip tie the wastegate lid open boost still creeps to 15psi towards the redline. It makes the road tuning little bit difficult as I have to concentrate so much to traction.

Last edited by muoto; 04-13-2013 at 03:32 AM.
muoto is offline   Reply With Quote
Old 04-14-2013, 06:06 PM   #112
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

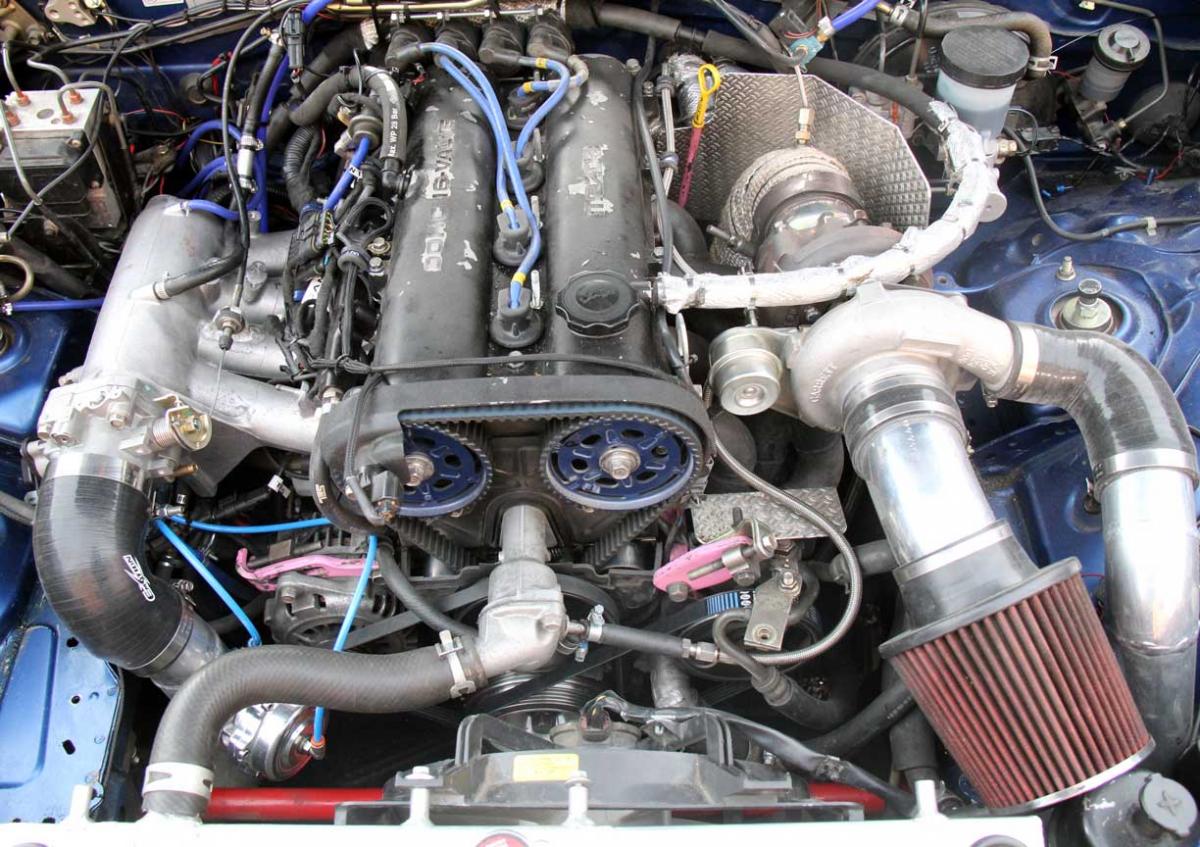

Attached Thumbnails
My turbo MX-5-img_6242.jpg   My turbo MX-5-rimg_6186.jpg   My turbo MX-5-img_6223.jpg
muoto is offline   Reply With Quote
Old 04-14-2013, 06:20 PM   #113
Junior Member

Join Date: Oct 2012
Posts: 83
Total Cats: 0
Default

For my wastegate creep I took the flapper off and ported the flapper port as much as I could making the inside of the port have a beveled edge took all my creep away. I was very happy with the results!
My92 is offline   Reply With Quote
Old 04-14-2013, 06:27 PM   #114
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

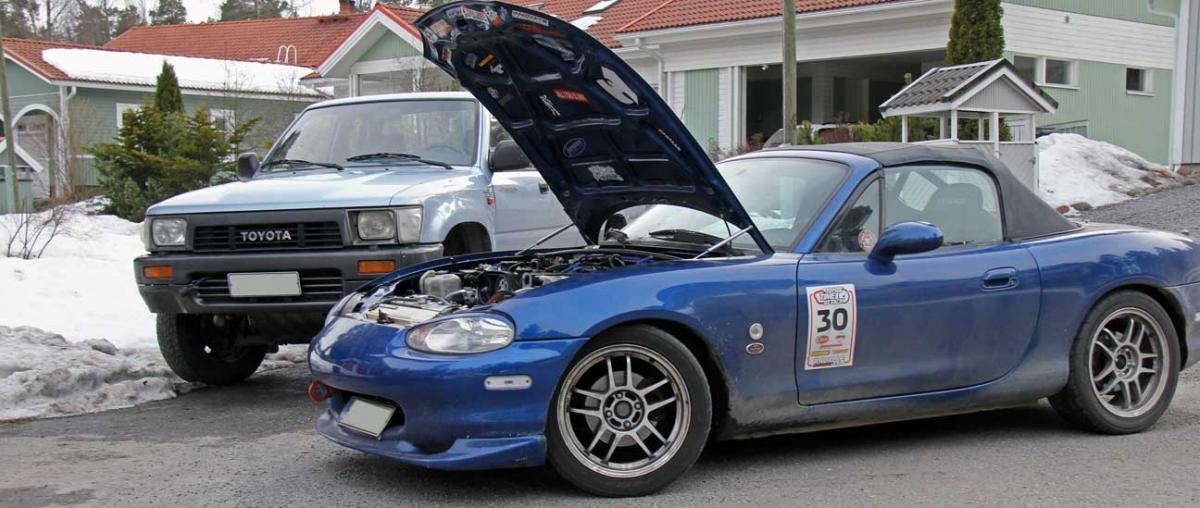

Interesting gas struts, where are they from?
(hilux is cool)
sturovo is offline   Reply With Quote
Old 04-14-2013, 06:43 PM   #115
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by My92 View Post
For my wastegate creep I took the flapper off and ported the flapper port as much as I could making the inside of the port have a beveled edge took all my creep away. I was very happy with the results!
Well I have bigger .86 exhaust housing just in case if that smaller begins to feel slow I’m probably going to port that


Quote:
Originally Posted by sturovo View Post
Interesting gas struts, where are they from?
(hilux is cool)
They are from ilmotorsport.de.

Hilix is cool It’s a shame that it’s just so damn slow. I need to put turbo on it
muoto is offline   Reply With Quote
Old 04-18-2013, 06:18 AM   #116
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

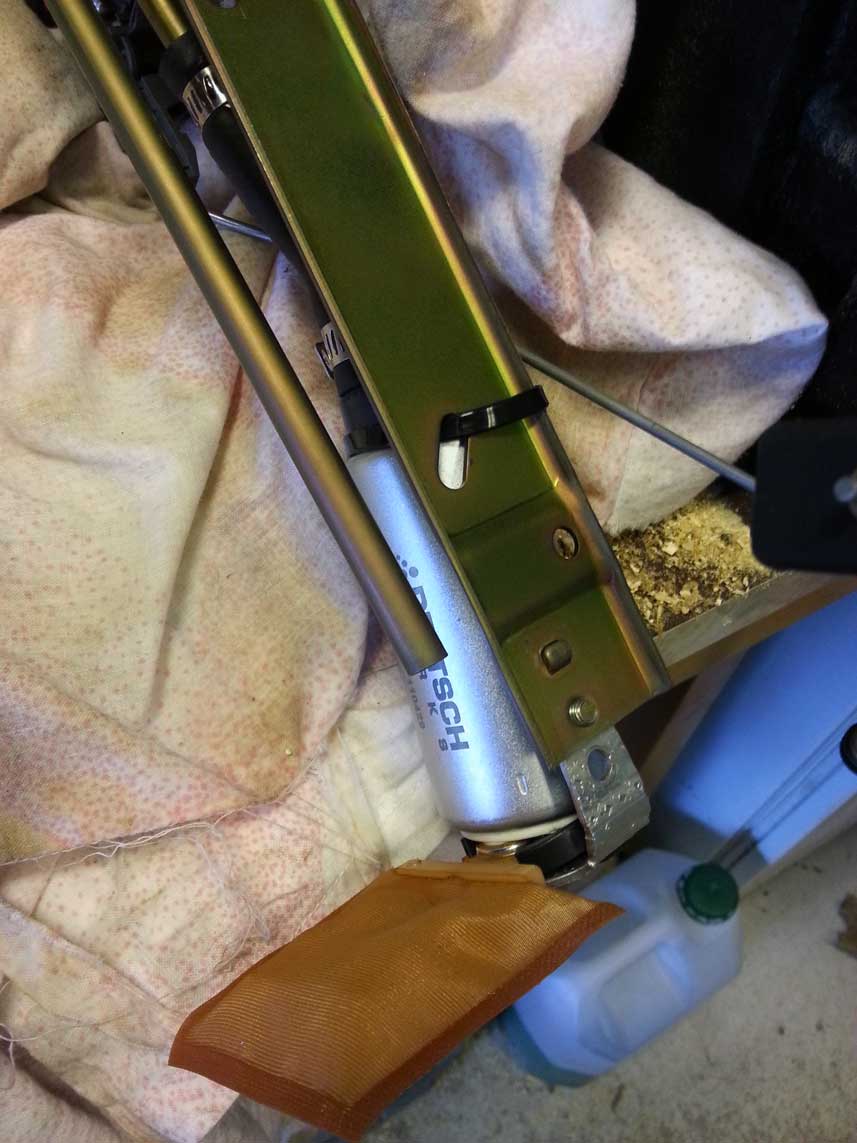

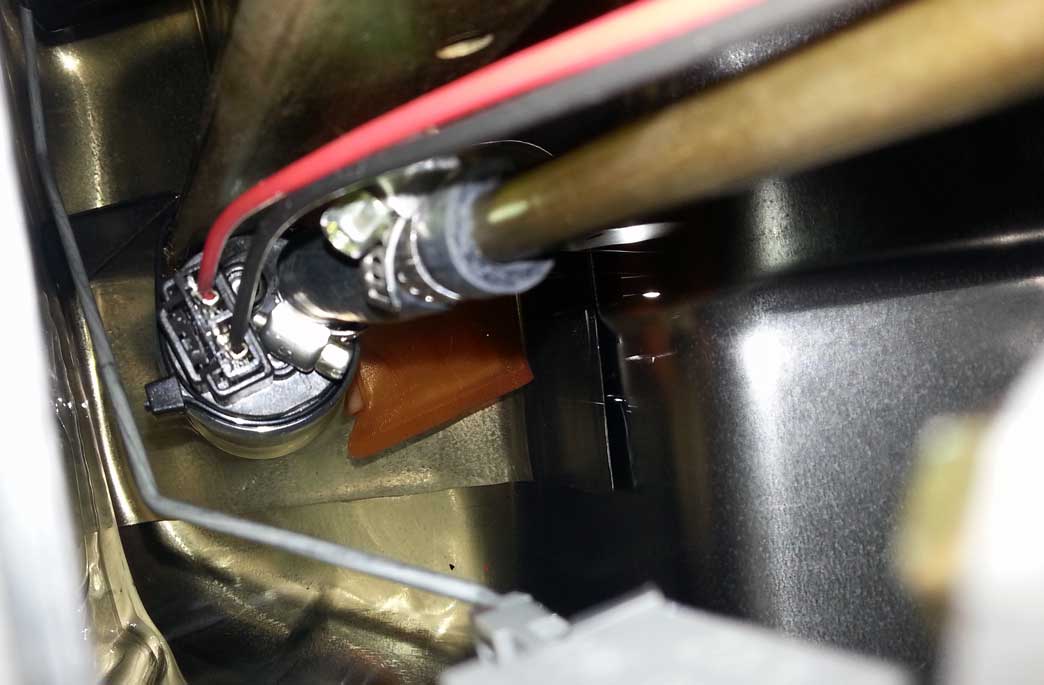

I ran into a problem that every time I turn left and accelerate, car suddenly died. It was easy to guess where the problem were...


...and how to fix it. I had accidentally installed my DW300 pump in wrong way. Now it sits an inch lower and filter toward the bottom

Attached Thumbnails
My turbo MX-5-2013-04-17-19.11.jpg   My turbo MX-5-2013-04-17-19.13.jpg
muoto is offline   Reply With Quote
Old 04-24-2013, 09:40 AM   #117
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

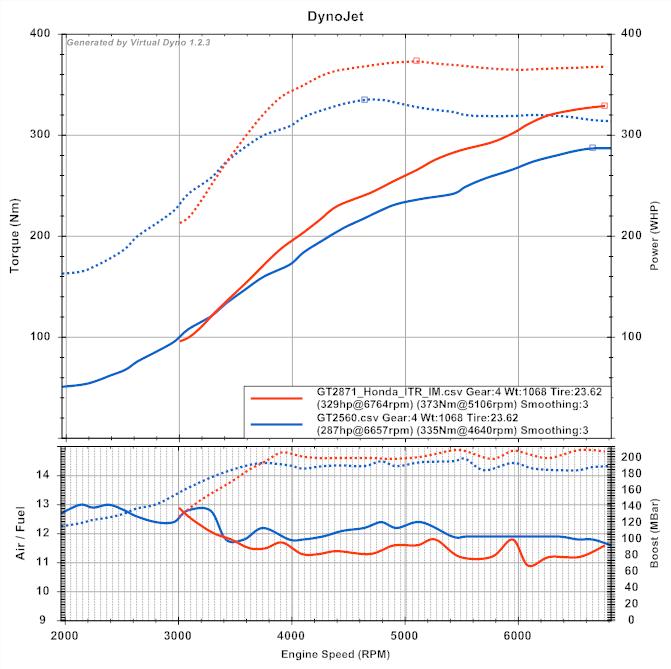

Looks promising

Keep in mind that last year when I did that 287whp virtual dyno run, I went to the DynoDynamics after that. Real DynoDynamics dynamometer gave me 284whp so there's a very small error margin. Both runs had been taken in the same road, same gear, same tires, and same VirtualDyno profile

Although VirtualDyno isn’t a real dyno it is still a good result, 330whp with only 15psi. Seems that the Honda IM is flowing well
Attached Thumbnails
My turbo MX-5-dynovertailu.jpg
muoto is offline   Reply With Quote
Old 04-24-2013, 09:52 AM   #118
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

Attached Thumbnails
My turbo MX-5-churchilldv.jpg
samulis is offline   Reply With Quote
Old 04-30-2013, 03:16 AM   #119
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

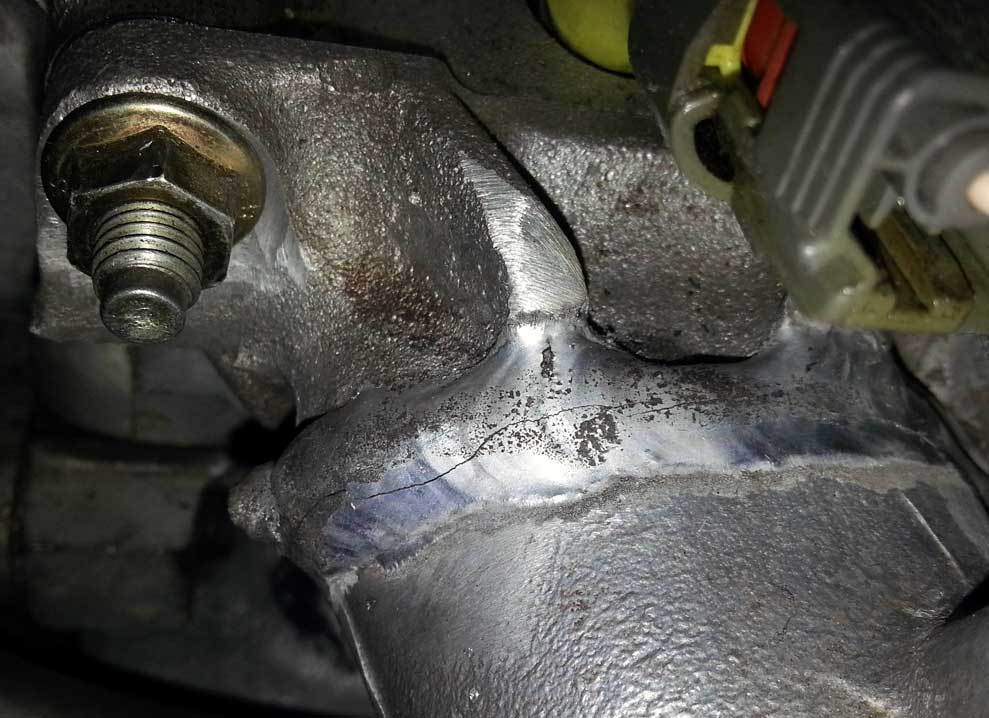

well...****...

Guess I have to brace/support that long Honda IM
Attached Thumbnails
My turbo MX-5-20130429_190931.jpg
muoto is offline   Reply With Quote
Old 04-30-2013, 04:06 AM   #120
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

why not weld aluminum "ribs" in the middle of each runner?
Pen2_the_penguin is offline   Reply With Quote
