Old 04-30-2013, 04:22 AM   #121
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Great idea. Thanks
muoto is offline   Reply With Quote
Old 04-30-2013, 09:08 AM   #122
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Quote:
Originally Posted by muoto View Post
[IMG]https://www.miataturbo.net/attachment.php?attachmentid=75175&dateline=1367302 580[IMG]
well...****...

Guess I have to brace/support that long Honda IM
That's weird cause no one else reported cracking and there are quite a few people using these now.

Maybe you didn't weld it properly?
18psi is offline   Reply With Quote
Old 04-30-2013, 09:18 AM   #123
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
That's weird cause no one else reported cracking and there are quite a few people using these now.

Maybe you didn't weld it properly?
It can also be so

Fortunately itís not a big deal to remove it and make it better
muoto is offline   Reply With Quote
Old 05-16-2013, 08:47 AM   #124
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Name:  IMG_3552_zps7ca31104.jpg
Views: 30
Size:  379.4 KB

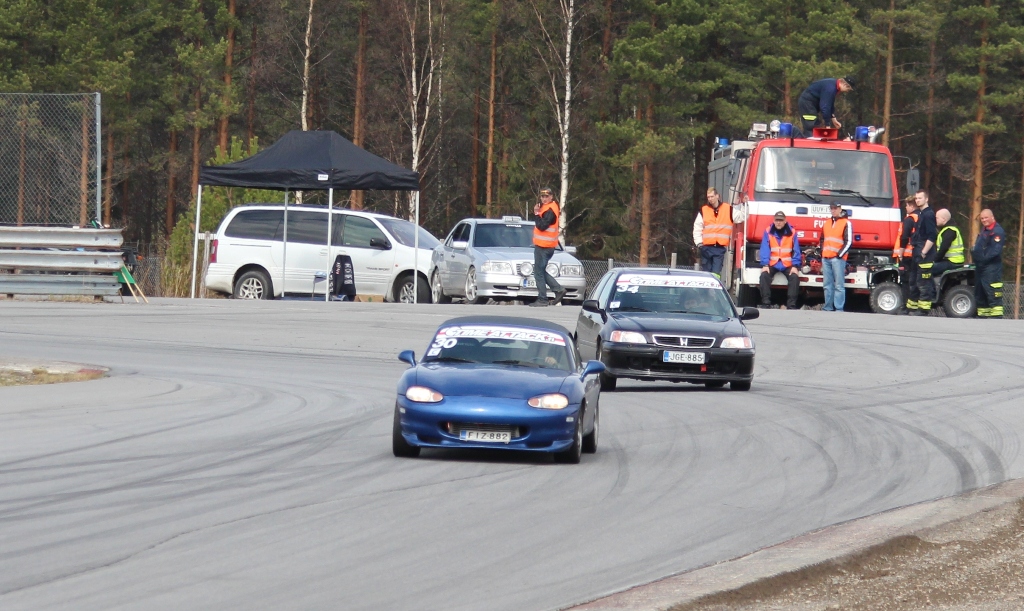

First race went as I guessed. Nothing work


Brakes went first. I get max 2 laps and after that it was just praying in every corner that they work. TSE 11.75Ē BBK are on the way soon as TSE have time to send it..



And then the intake manifold cracked again :(

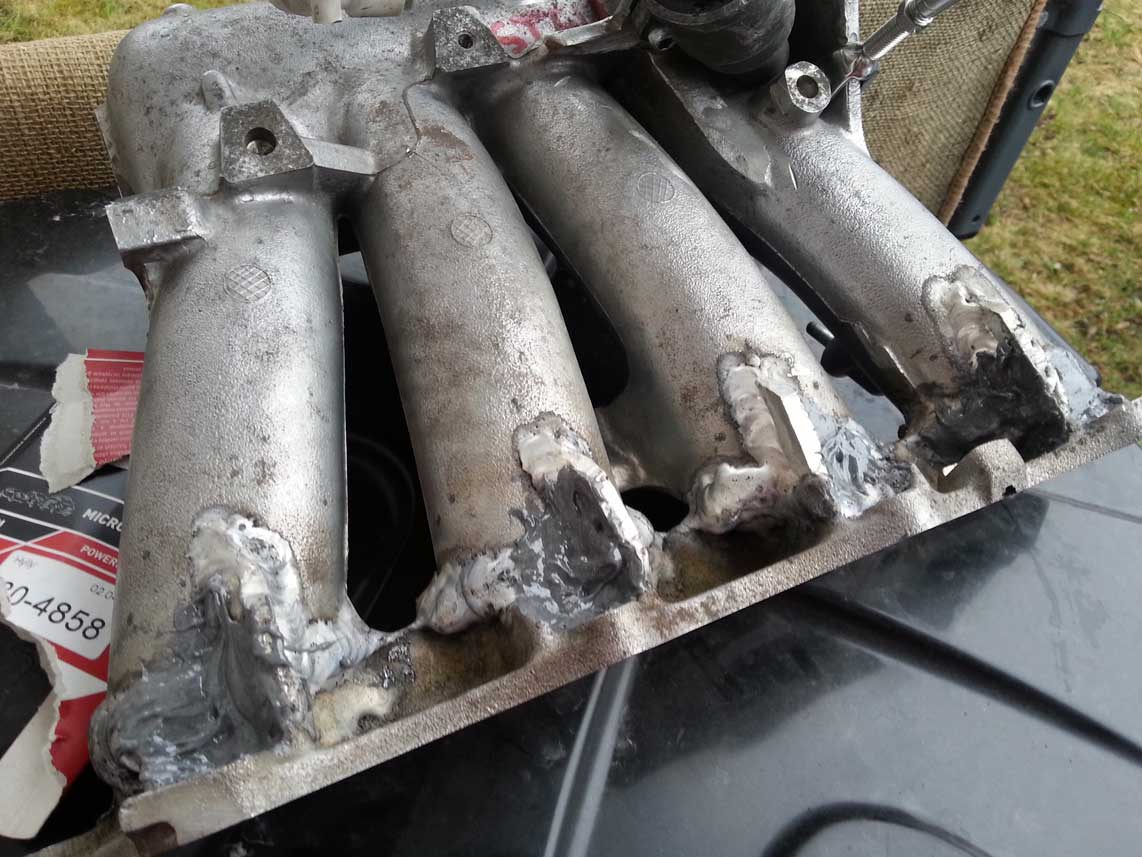

It seems that my support brace and ďrunner ribsĒ didnít work. Thereís have to be something wrong with the welding it self...
Attached Thumbnails
My turbo MX-5-img_3552_zps7ca31104.jpg   My turbo MX-5-2013-05-12-14.56.jpg   My turbo MX-5-2013-05-09-17.32.jpg
muoto is offline   Reply With Quote
Old 05-16-2013, 10:02 AM   #125
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Bummer about the issues. :(
timk is offline   Reply With Quote
Old 05-16-2013, 01:09 PM   #126
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

Damn, what is going on with that intake manifold...

Sorry to hear about your troubles, man.
viperormiata is online now   Reply With Quote
Old 05-16-2013, 01:15 PM   #127
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

looks like sloppy/contaminated welds and possibly not fully penetrating

but I'm nowhere near a pro welder so I'll let others chime in.

all I know is that others don't have this problem, and most of them track their cars regularly
18psi is offline   Reply With Quote
Old 05-16-2013, 01:53 PM   #128
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
looks like sloppy/contaminated welds and possibly not fully penetrating
+1
this
muoto is offline   Reply With Quote
Old 05-16-2013, 02:05 PM   #129
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by muoto View Post



And then the intake manifold cracked again :(

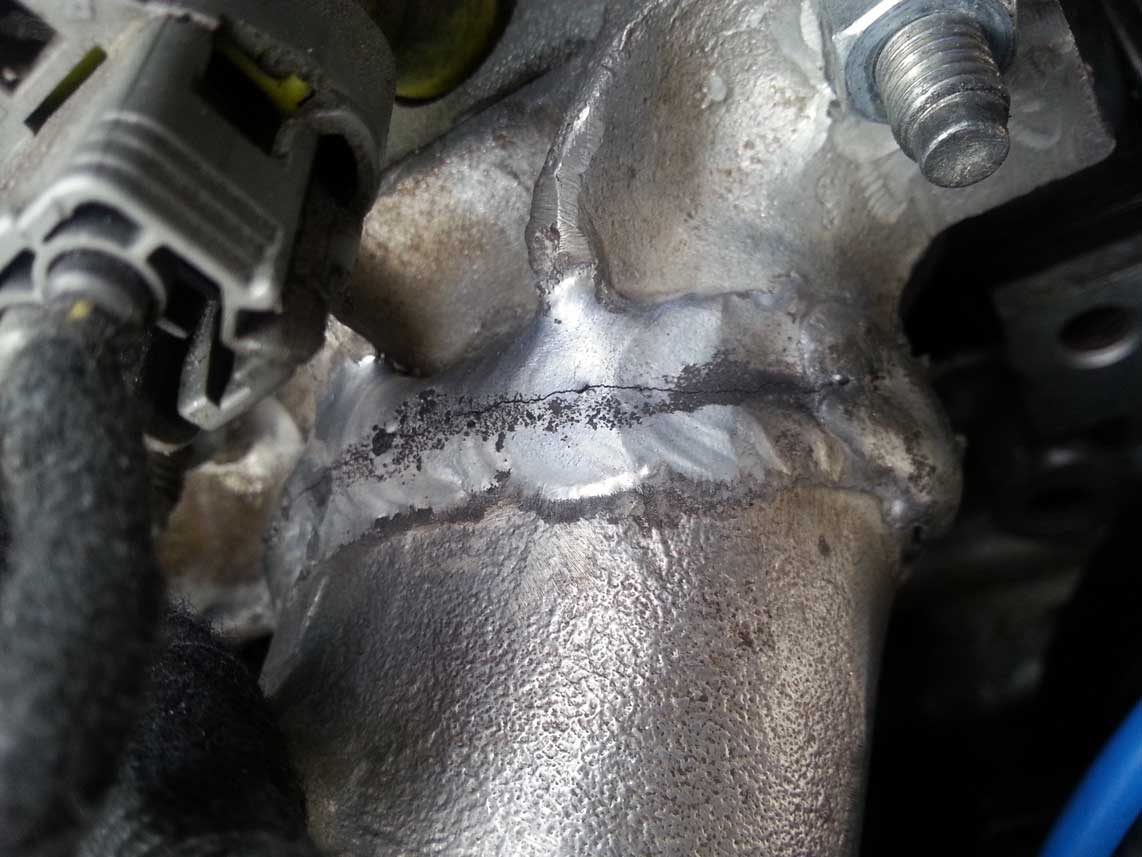

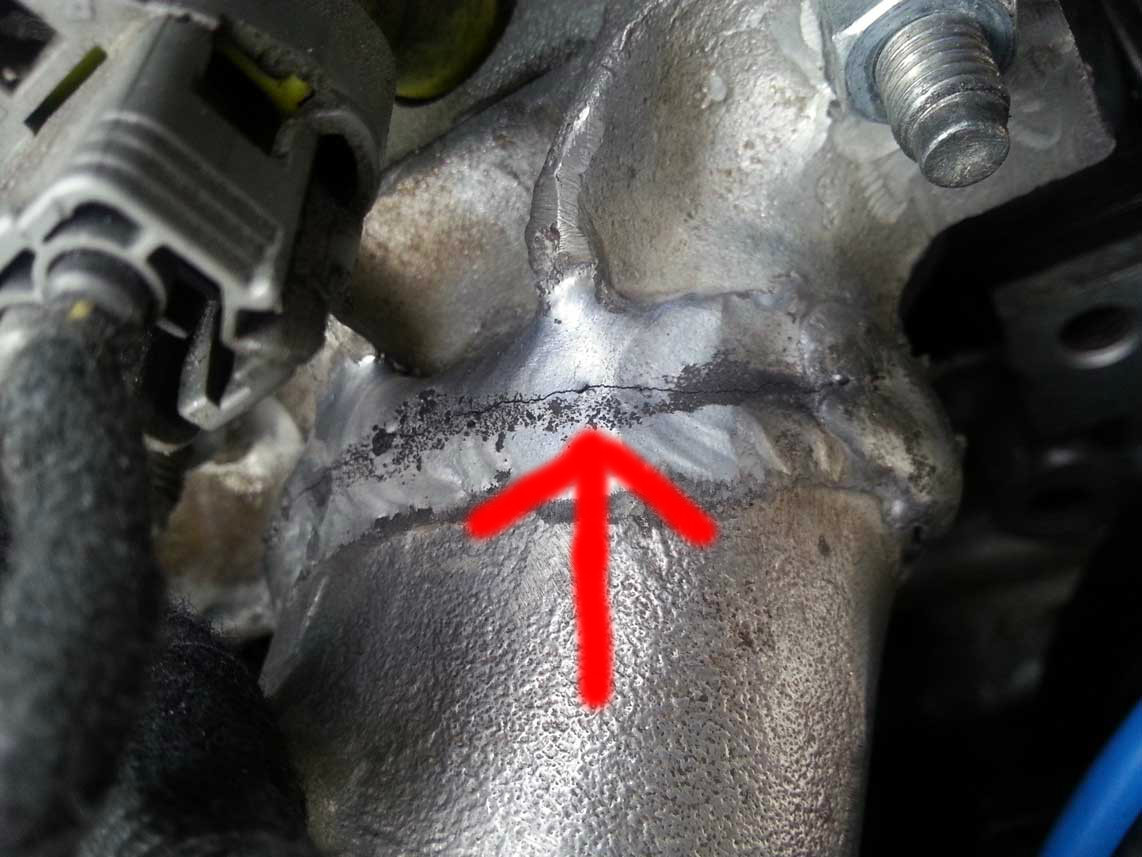

Is it just the image or does it look like the crack runs right through a crater? That might be your problem.
Attached Thumbnails
My turbo MX-5-2013-05-12-14.56.jpg   My turbo MX-5-yiflk7h.jpg
thenuge26 is offline   Reply With Quote
Old 05-16-2013, 02:23 PM   #130
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by thenuge26 View Post
Is it just the image or does it look like the crack runs right through a crater? That might be your problem.
Same fine crack runs in every runner. What is weird is that in every runner itís started on the top. One welder said that it does this when it has weak weld seam
muoto is offline   Reply With Quote
Old 05-16-2013, 02:35 PM   #131
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I'm a super noob when it comes to welding, but my instructor told me that the crater that forms when you don't feed enough when letting off the current is a major weak point when welding aluminum. I'm not sure that's what that is, but if it is that could be your cause.
thenuge26 is offline   Reply With Quote
Old 05-16-2013, 05:04 PM   #132
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

When you welded, did you bevel the edges to help penetration? Because if its not a stress fracture but a vibration/heat/weak weld fracture that its starting to seem like a fresh cut, file grind, beveled and reweld with some super cleaning might do the trick.
Pen2_the_penguin is offline   Reply With Quote
Old 05-16-2013, 08:51 PM   #133
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Congrats on the build - I'd also consider the intercooler pipe setup. Think about how little stress is actually on those welds... That manifold can not weigh that much. Try some Vibrant hump hoses and make sure there is plenty of room to flex.. Also what engine mounts are you running? Might be quite a bit of play when you're in boost, especially between shifts.
FAB is offline   Reply With Quote
Old 05-17-2013, 02:23 PM   #134
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by FAB9Tuning View Post
I'd also consider the intercooler pipe setup. Think about how little stress is actually on those welds... That manifold can not weigh that much. Try some Vibrant hump hoses and make sure there is plenty of room to flex.. Also what engine mounts are you running? Might be quite a bit of play when you're in boost, especially between shifts.
I have two silicone hoses in my cold side piping. They flex enough. My engine mounts are Mazda comp. mounts they move the engine about 2-3 inch side to side. Thereís no hitting marks in the intake manifold
muoto is offline   Reply With Quote
Old 05-28-2013, 02:32 PM   #135
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

IM is fixed again. Next time it cracks I’m getting OEM flat-top and build SS intake manifold next winter (like hf-mx5t here: https://www.miataturbo.net/build-thr...e3/#post548391).

new wheels (sorry 'bout the dirty car)

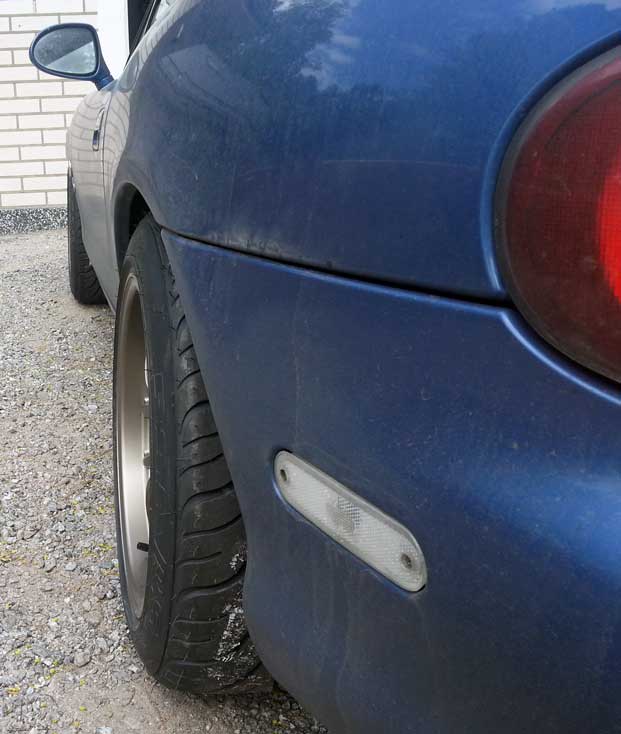

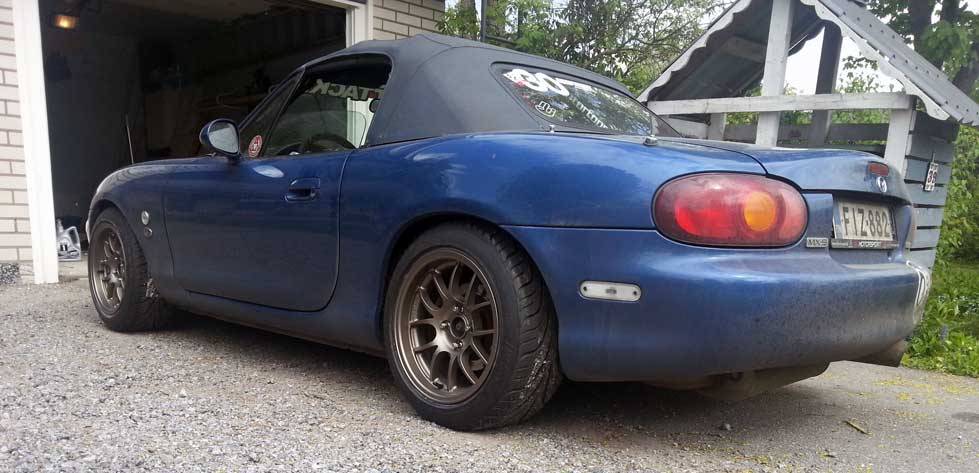

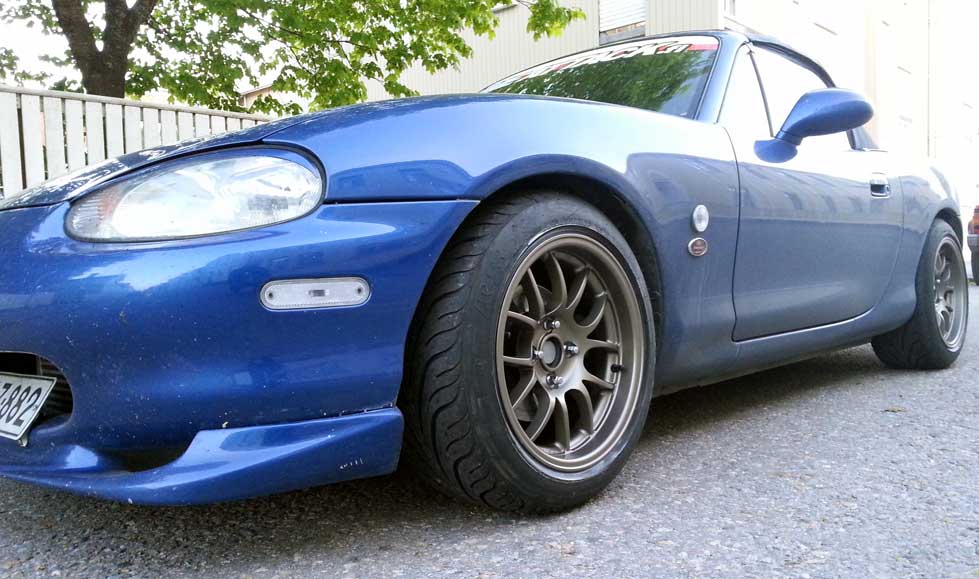

6UL 15x9 with 205/50 Federal 595 RSR

plus I made some quick wheel alignments
FR camber -2. Toe 0.0
FL camber -2,1 Toe 0.0
RR camber -1.6. Toe ~1mm
RL camber -1.6 Toe ~1mm


Attached Thumbnails
My turbo MX-5-20130528_122819.jpg   My turbo MX-5-20130527_223912.jpg   My turbo MX-5-20130528_122854.jpg   My turbo MX-5-20130528_122819.jpg   My turbo MX-5-20130527_223912.jpg

My turbo MX-5-20130528_122854.jpg

Last edited by muoto; 05-29-2013 at 12:38 PM.
muoto is offline   Reply With Quote
Old 05-28-2013, 11:36 PM   #136
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Dat bov noise. The ricer in me wants to block off the bpv on the efr and run one of those. The racer in me remembers that the efr bpv sounded almost exactly like that when I ran the car with the hood off on the test drive.

Sucks about the honda mani. It looks like a classic weld fatigue fail from a stray crater or cold crack. At least it wasnt a WWII ship that broke in half just as it was leaving port on its maiden voyage from the same issue. I think if you just cleaned it up more you'd be fine. BUT with the contamination on it already I dont think the current one will hold up if it gets rewelded. Because that **** is a pain in the *** to clean up.
Leafy is offline   Reply With Quote
Old 05-29-2013, 08:22 AM   #137
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
Dat bov noise. The ricer in me wants to block off the bpv on the efr and run one of those. The racer in me remembers that the efr bpv sounded almost exactly like that when I ran the car with the hood off on the test drive.

Sucks about the honda mani. It looks like a classic weld fatigue fail from a stray crater or cold crack. At least it wasnt a WWII ship that broke in half just as it was leaving port on its maiden voyage from the same issue. I think if you just cleaned it up more you'd be fine. BUT with the contamination on it already I dont think the current one will hold up if it gets rewelded. Because that **** is a pain in the *** to clean up.
Thank god that bov is a lot quieter now with the bigger turbo. Last year with the GT2560 it sounded like I was driving car from the F&F movie. Epic fail

I donít think thereís any wrong with the welding itself. Itís just that the Honda mani and miata flange is totally different aluminum casting. Itís really hard to get that stuff stuck to the Miata alum casting. It just ďrepelsĒ the welding material. Trust me, we have tried everything and my buddy is Łber pro welder

I was consider making my own flange to the Honda mani but then I read from the ďHonda IMĒ thread that someone has broken flange off from the Begi alum IM manifold as well soÖ I guess itís safe to say that only real proven solution is SS



On a different matter, my TSE BBK package has arrived to my sea container in Houston. Now itís just waiting it to travel 5165 miles to me.
Attached Thumbnails
My turbo MX-5-p5280073.jpg
muoto is offline   Reply With Quote
Old 05-29-2013, 08:34 AM   #138
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

It got quieter? In the video with the camera behind the rear wheel the bov like echos.
Leafy is offline   Reply With Quote
Old 05-29-2013, 08:48 AM   #139
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
It got quieter? In the video with the camera behind the rear wheel the bov like echos.

What I meant to say is that in normal street driving itís not spooling so much. And thus, bov stays quiet
muoto is offline   Reply With Quote
Old 05-29-2013, 02:50 PM   #140
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

why not do what many others did and make an intake mani out of aluminum tubing?
Pen2_the_penguin is offline   Reply With Quote
