Old 06-06-2012, 07:47 PM   #21
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

one boring dyno video:

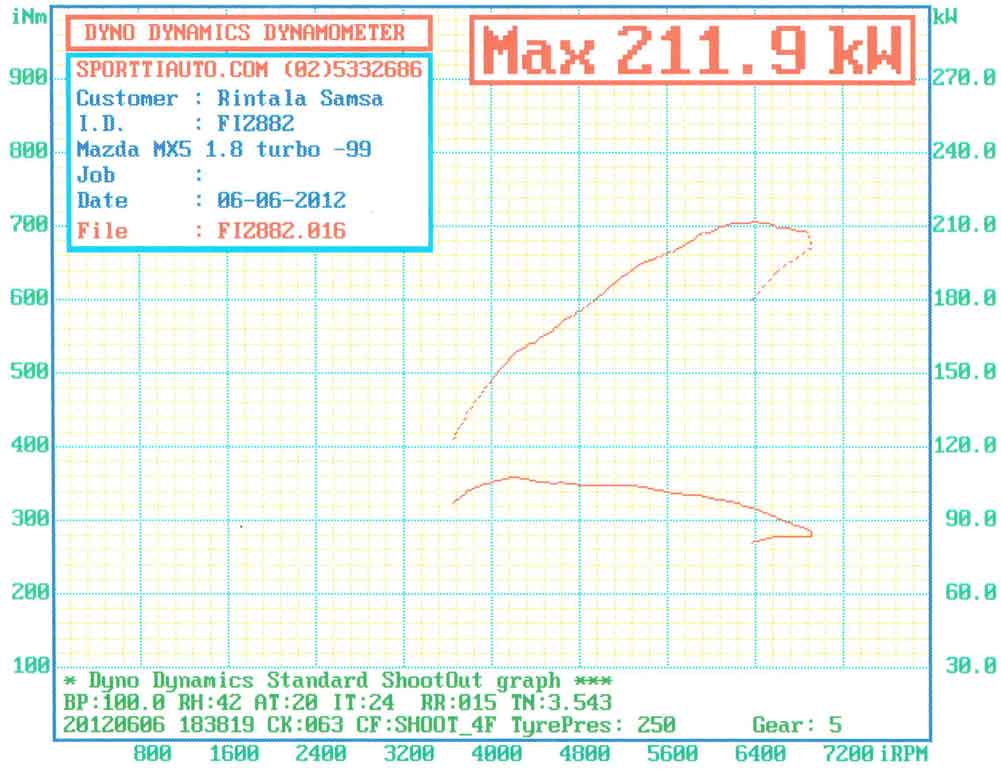

and one odd looking dyno graph:

Before someone comments it. Those are newton meters and kilowatts

So it’s: 284whp @6400rpm
peak torque: 265lbs around 4300rpm
boost was only 14.5PSI
there was something wrong with the wastegate signal hose and I didn’t get more boost. Wastegate was fully closed (in Adaptronic EBC wastegate settings) but still it didn’t boost more. edit: turns out my wastegate lid was leaking
Attached Thumbnails
My turbo MX-5-dynoatwheels.jpg   My turbo MX-5-dynoatwheels.jpg

Last edited by muoto; 06-18-2012 at 08:50 PM.
muoto is offline   Reply With Quote
Old 06-10-2012, 05:58 PM   #22
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

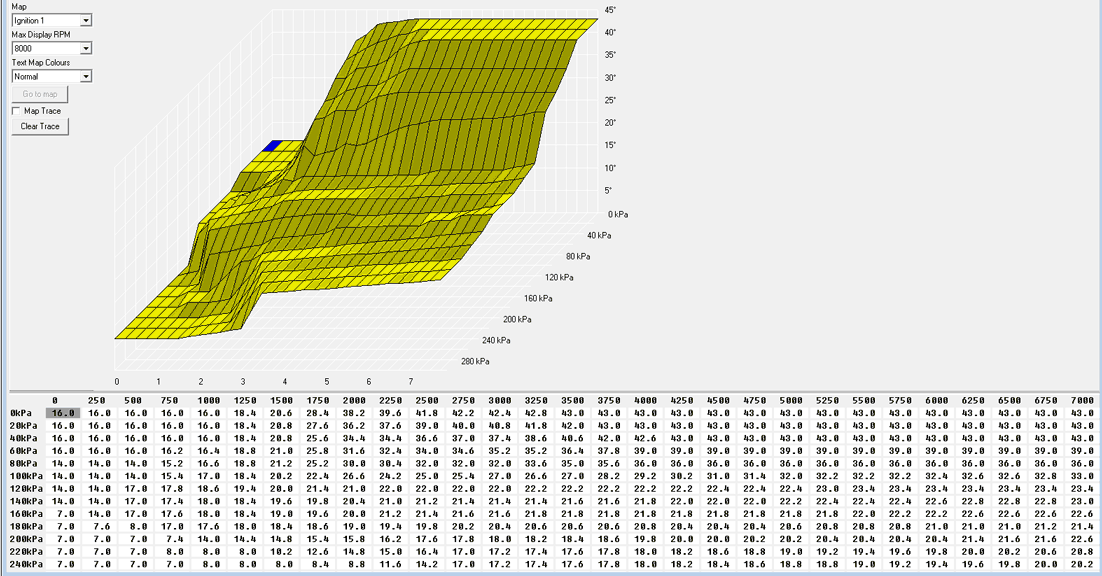

here's my "dyno-tuned" timing map:

Attached Thumbnails
My turbo MX-5-sytka0606.gif
muoto is offline   Reply With Quote
Old 06-14-2012, 04:41 PM   #23
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

I have to get external mic for my gopro

But car runs fine. There’s odd small oil leak in oil pan and I don’t feel like re-sealing the whole oilpan. Maybe I just leave it.

And then there’s a usual E85 catch-can issue. I get about liter of water in one trackday. But there’s a little I can do to that except build super big catch-can
muoto is offline   Reply With Quote
Old 06-14-2012, 06:31 PM   #24
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by muoto View Post
one boring dyno video:
http://www.youtube.com/watch?v=83uJpgAMZo0

and one odd looking dyno graph:

Before someone comments it. Those are newton meters and kilowatts

So it’s: 284whp @6400rpm
max torque: 265lbs around 4300rpm
boost was only 14.5PSI
there was something wrong with the wastegate signal hose and I didn’t get more boost. Wastegate was fully closed (in Adaptronic EBC wastegate settings) but still it didn’t boost more.
I'm pretty sure that dyno dynamics "shootout mode" means crank hp and not whp.
edit: Yeah it says on the dyno that the mode is "Shoot_4F". That's for 4 cylinder 2WD Forced induction flywheel "estimation"
Attached Thumbnails
My turbo MX-5-dynoatwheels.jpg

Last edited by soviet; 06-14-2012 at 06:53 PM.
soviet is offline   Reply With Quote
Old 06-14-2012, 06:36 PM   #25
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by soviet View Post
I'm pretty sure that dyno dynamics "shootout mode" means crank hp and not whp.

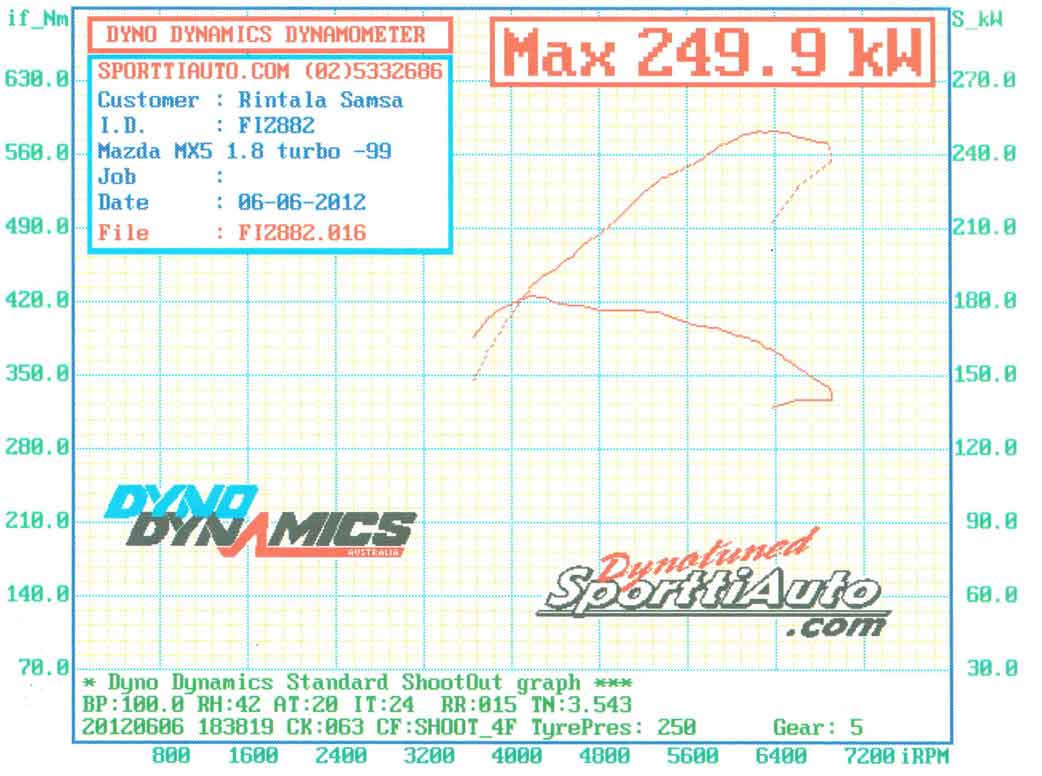

No. Here's crank hp chart:



335hp at flywheel @14.5psi
Attached Thumbnails
My turbo MX-5-dynokoneteho0606.jpg
muoto is offline   Reply With Quote
Old 08-22-2012, 06:26 AM   #26
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

muoto is offline   Reply With Quote
Old 08-22-2012, 10:21 AM   #27
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Awesome work man. Keep the vids coming, can never get too many of those
18psi is offline   Reply With Quote
Old 08-22-2012, 06:29 PM   #28
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

muoto is offline   Reply With Quote
Old 08-23-2012, 01:43 AM   #29
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I'm only going to hate on the mouse trap. Get a rollbar if you're doing **** like that.

Car looks badass otherwise though, sounds healthy.
Fireindc is offline   Reply With Quote
Old 08-23-2012, 05:09 AM   #30
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Fireindc View Post
I'm only going to hate on the mouse trap. Get a rollbar if you're doing **** like that.
Yeah I know but at least i get quick painless death if I rotate it Real rollbar is in my shopping list though

Also I had to get better tires. Now I have Yokohama AD08 215/45 and they spin on third when exiting corner. I had never concentrate so much just to control throttle
muoto is offline   Reply With Quote
Old 08-23-2012, 05:38 AM   #31
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

b b bb BUILT ENGINE MEGA FRAKKING WIN

3.5" exhaust MEGA FRAKKING WIN

GT2560R MEGA FRAKKING FAIL

Why you do this to me? Put bigger turbo on plez
Faeflora is offline   Reply With Quote
Old 08-23-2012, 05:41 AM   #32
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

BTW your air filter heat shield looks frikken fantastic. But it won't work. The heat shield itself will heat up. And radiate the heat to the air filter side.

Cold air intake is only worth it unless it is actually sitting outside of the engine bay like cowl induction. Hornetball does that and recorded good results
Faeflora is offline   Reply With Quote
Old 08-23-2012, 06:10 AM   #33
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Faeflora View Post
b b bb BUILT ENGINE MEGA FRAKKING WIN

3.5" exhaust MEGA FRAKKING WIN

GT2560R MEGA FRAKKING FAIL

Why you do this to me? Put bigger turbo on plez
2560 is in there because it was cheap (400$. Almost new). We design that downpipe EFR6258 in mind. That is why there’s v-band adapter in turbine housing

Quote:
Originally Posted by Faeflora View Post
BTW your air filter heat shield looks frikken fantastic. But it won't work. The heat shield itself will heat up. And radiate the heat to the air filter side.

Cold air intake is only worth it unless it is actually sitting outside of the engine bay like cowl induction. Hornetball does that and recorded good results
You are probably right. But it isn’t too hot to touch after track abuse. Just a little warm

And IAT isn’t problem. My cheap (95$) china IC is doing good job there. Air temp before IC = +125°C. After IC = +28°C (max)

Last edited by muoto; 08-23-2012 at 07:10 AM.
muoto is offline   Reply With Quote
Old 08-23-2012, 07:50 AM   #34
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default



And I think it’s time for Deatschwerks DW300 pump. I’m now using Walbro 190HP and I can clearly see my fuel pressure fall from 80psi to 70psi after 6000rpm
Attached Thumbnails

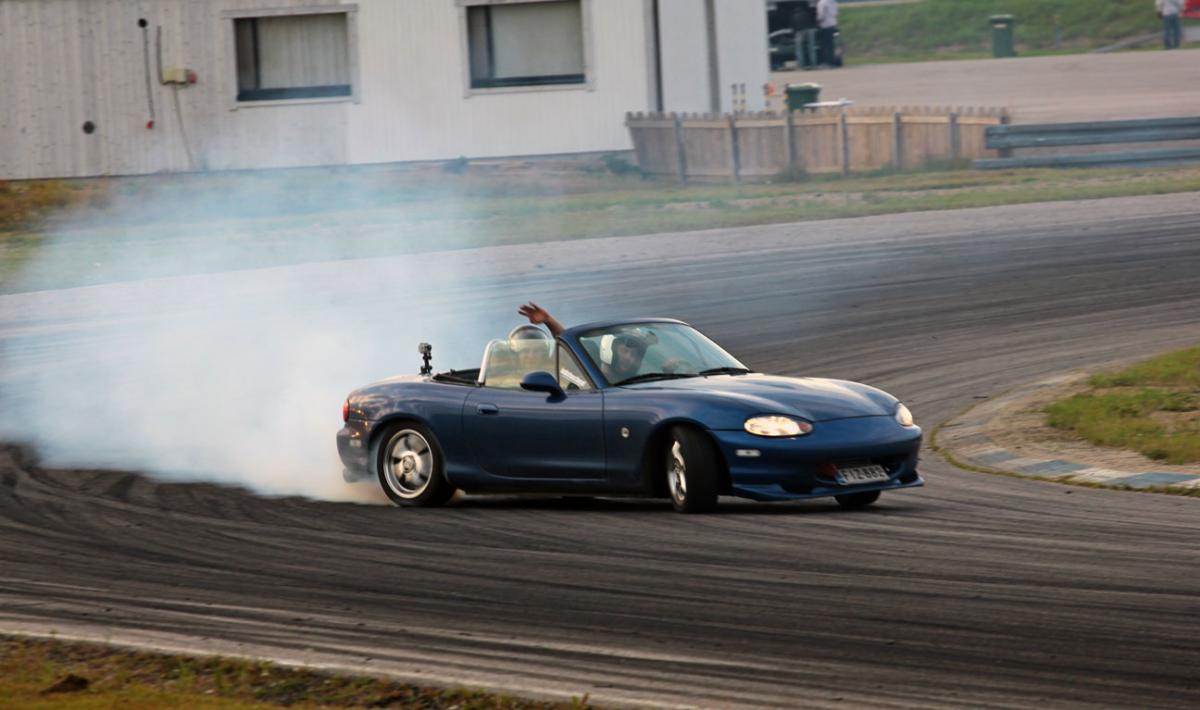

My turbo MX-5-bring1.jpg

Last edited by muoto; 08-23-2012 at 05:37 PM.
muoto is offline   Reply With Quote
Old 08-23-2012, 10:14 PM   #35
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Your bov sounds amazing.

Tial 50mm right? I got the same one just for that sound. what spring you got in there? does it surge?
18psi is offline   Reply With Quote
Old 08-24-2012, 05:54 AM   #36
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
Your bov sounds amazing.

Tial 50mm right? I got the same one just for that sound. what spring you got in there? does it surge?
Actually its fake 50mm Tial. Much cheaper than the real one: 50MM BOV with Tial Style Flange - Red (Type 2)

It came with two springs. One is so stiff that it makes loud surge noise every time you let off the gas. And the soft springs other hand is so soft that it leaks on idle. But I read somewhere that it’s normal to BOV leak little on idle. (that almost rhymes)

Last edited by muoto; 08-24-2012 at 06:09 AM.
muoto is offline   Reply With Quote
Old 08-29-2012, 03:17 AM   #37
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

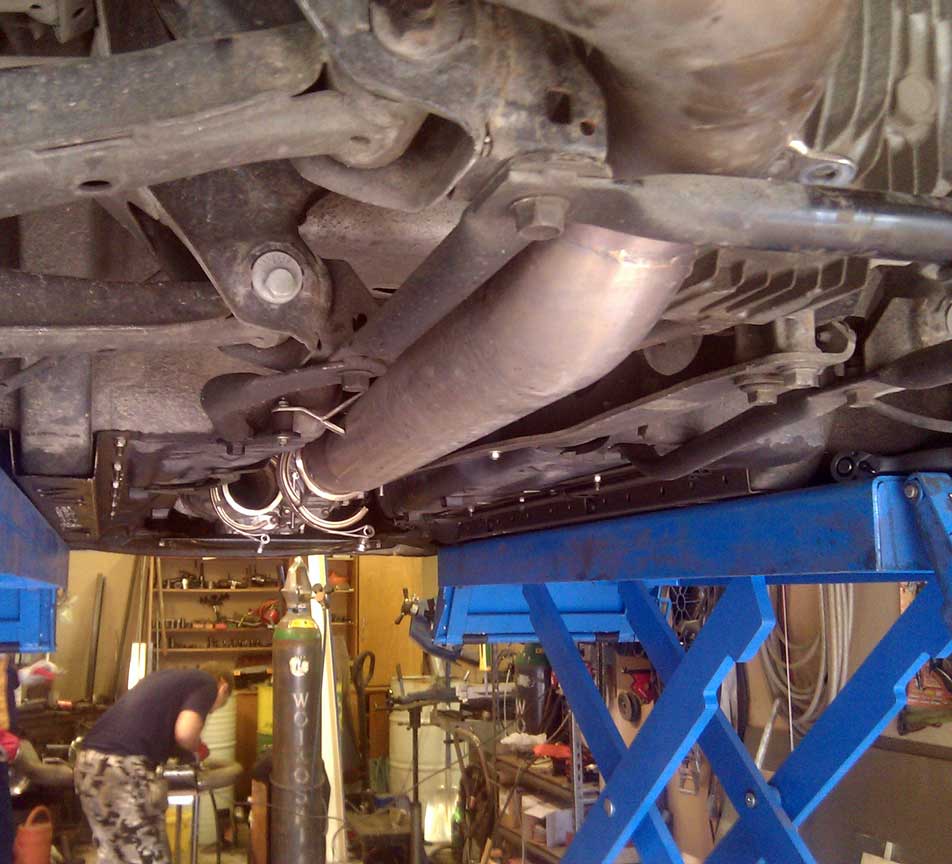

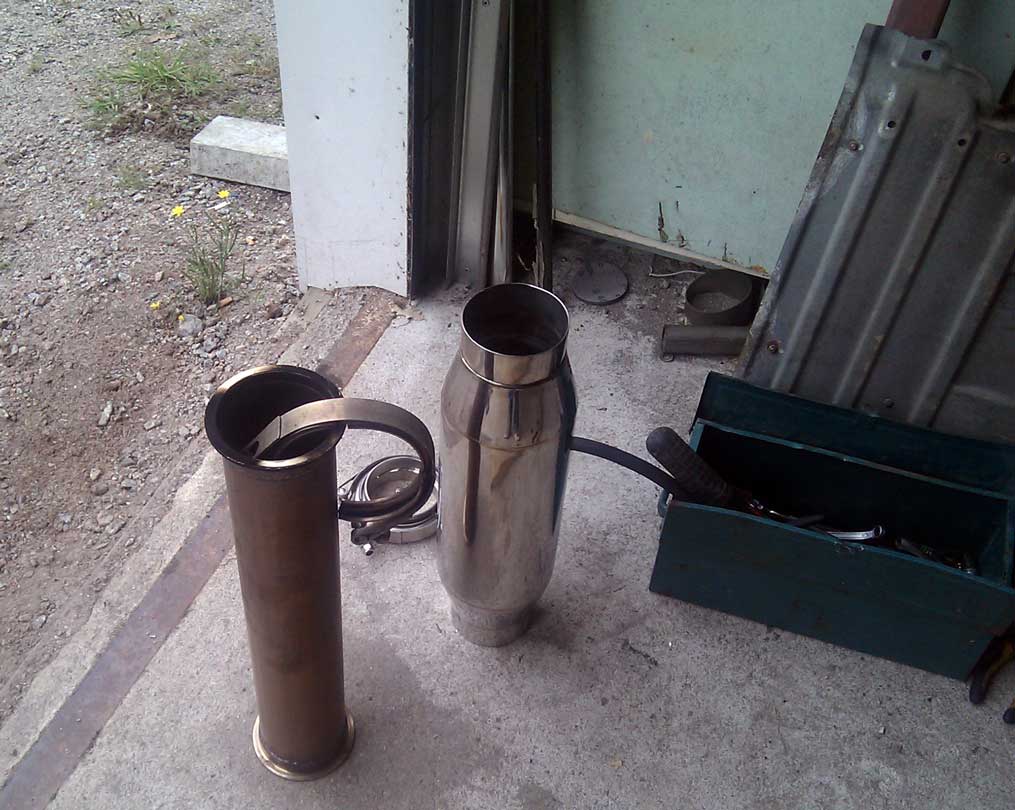

We have annual inspections here so I have to add resonator that look like a catalysator to the car

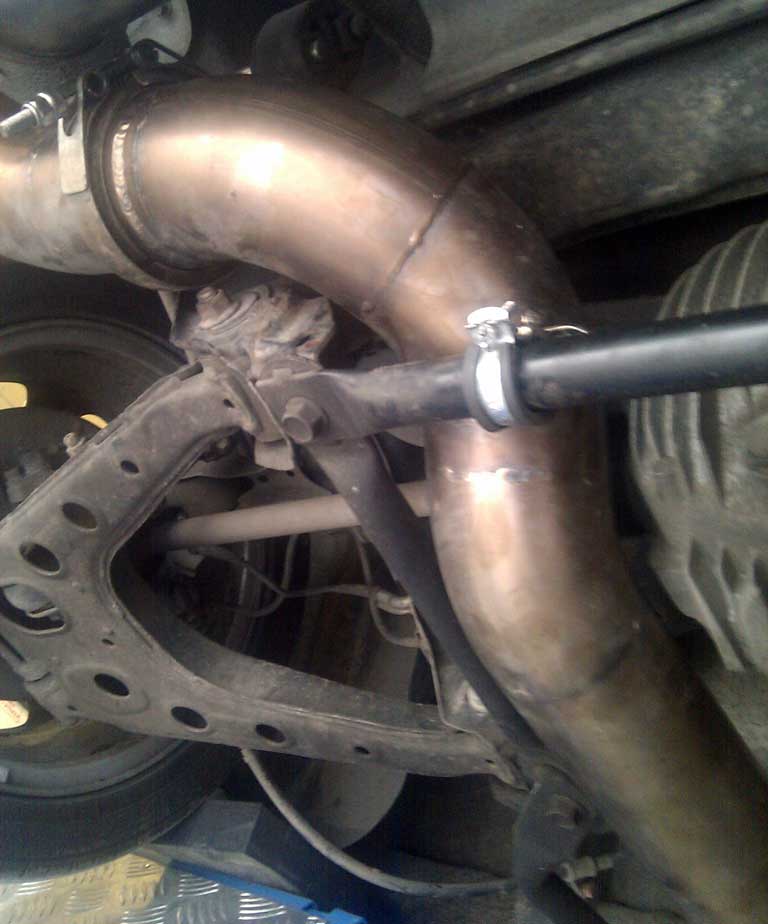

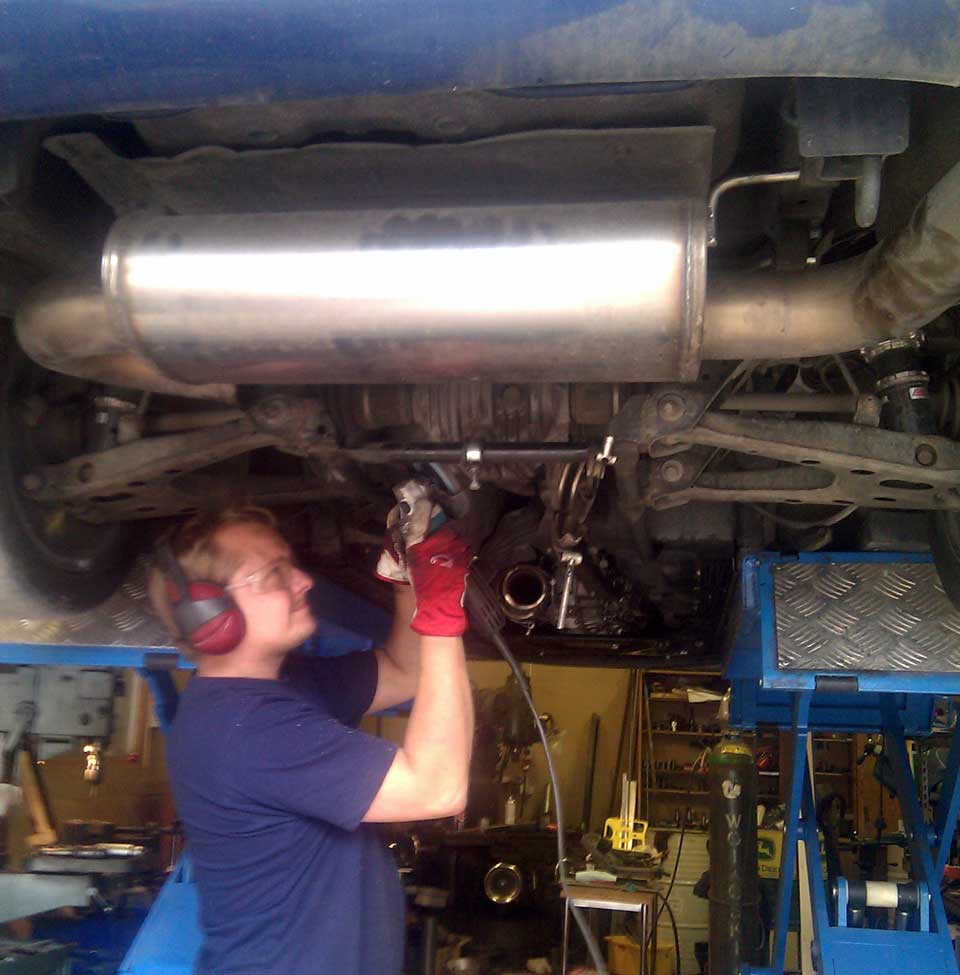

Exhaust has been making noise so we make more room for it by grinding diff housing


Now it has room to move
Attached Thumbnails
My turbo MX-5-reson.jpg   My turbo MX-5-diffhits.jpg   My turbo MX-5-takaputk.jpg   My turbo MX-5-resonsis.jpg
muoto is offline   Reply With Quote
Old 08-29-2012, 03:34 AM   #38
Junior Member

Join Date: Aug 2012
Location: Santa Fe, NM
Posts: 99
Total Cats: -24
Default

so pretty i would love to run a similar setup
coltonr is offline   Reply With Quote
Old 09-22-2012, 04:21 AM   #39
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Can someone remind me why are we still using superchargers?

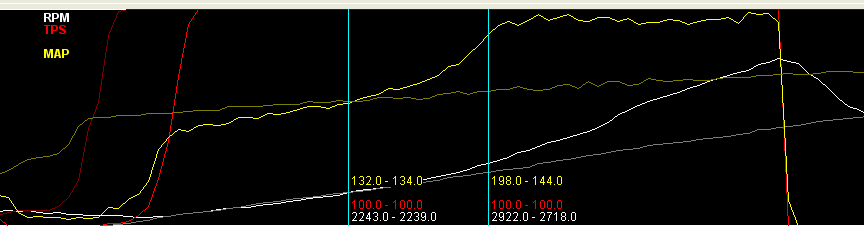

This is my current GT2560 setup vs. previous FastForwardSupercharger™ MP62 kit in the backround. If you're looking just boost level, at 2200rpm turbo start making more. Still I'm sure GT2560 is making a lot more torque above 1800rpm although boost pressure is a bit lower. It pulls like big turbodiesel engine. I hit my boost target at 2900rpm! and this is with BP4W head not the VVT one. f*cking awesome

GT2560 fifth gear pull: (rpm | psi)
1879 2.75
2022 3.48
2122 4.20
2276 5.24
2390 6.82
2456 6.96
2564 7.98
2662 9.72
2776 11.46 (wastegate opens)
2866 12.64
2996 15.38 (boost limit)

...$4695 for FFS supercharger kit? No thanks

ps. You guys should see the IAT temp log between turbo and FFS sc no wonder that I was able to break 2 engines with the supercharger
Attached Thumbnails
My turbo MX-5-turbovssc.gif

Last edited by muoto; 09-22-2012 at 05:39 AM.
muoto is offline   Reply With Quote
Old 09-22-2012, 06:13 AM   #40
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

Common MUOTO you have the IAT logs, share them.
