Old 06-28-2013, 06:00 PM   #201
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

That's perfect

My needle pegged at max from that video
18psi is offline   Reply With Quote
Old 06-30-2013, 10:24 AM   #202
Junior Member

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

Very impressive. Can't wait to have test drive...
jim_rocketmow is offline   Reply With Quote
Old 06-30-2013, 07:22 PM   #203
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

Having driven the car I do like how it rock's. Last year it was bags of fun, now it's more of see ya, be good and bye bye, there is less time for laugh's and more oh ****'s when it launches off.
Wasn't it running more than 15psi when I drove it?
samulis is offline   Reply With Quote
Old 07-17-2013, 04:03 AM   #204
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

That new mic placement seems to be a winner
I had there world's shittiest brake pads. I hope to get my TSE BBK this week

Also I just order Twin Disc ceramic clutch from 949racing I kinda had to. Current FM1 clutch has begun to slip on 4th gear occasionally






And to my local police department who is spying my build thread GTFO! Go watch drunk drivers or something and leave me alone. My car has exactly the amount of power I want it to have so I have no problem to prove it only have 20% over the stock if I want to. Go **** yourselves

Last edited by muoto; 07-17-2013 at 04:17 AM.
muoto is offline   Reply With Quote
Old 07-17-2013, 07:29 AM   #205
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Amazing stuff. If I show up on your doorstep will you let me try your car?
sturovo is offline   Reply With Quote
Old 07-17-2013, 09:02 AM   #206
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by muoto View Post
And to my local police department who is spying my build thread GTFO! Go watch drunk drivers or something and leave me alone. My car has exactly the amount of power I want it to have so I have no problem to prove it only have 20% over the stock if I want to. Go **** yourselves

Braineack is offline   Reply With Quote
Old 07-17-2013, 05:57 PM   #207
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

Love your helmet
samulis is offline   Reply With Quote
Old 07-17-2013, 06:05 PM   #208
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by muoto View Post
And to my local police department who is spying my build thread GTFO! Go watch drunk drivers or something and leave me alone. My car has exactly the amount of power I want it to have so I have no problem to prove it only have 20% over the stock if I want to. Go **** yourselves
are you serious?
wow that's crazy.

I was just wondering why that vid was set to private lol

Quote:
Originally Posted by Braineack View Post
[yt]C6eM8eRvnCg[/\\yt]
18psi is offline   Reply With Quote
Old 07-18-2013, 03:20 AM   #209
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by sturovo View Post
Amazing stuff. If I show up on your doorstep will you let me try your car?
Of course Do a road trip. Finland is beautiful in summer. Maybe someday I show up your doorstep as I just find out that E85 stations have become more common in central Europe

Quote:
Originally Posted by 18psi View Post
are you serious?
wow that's crazy.

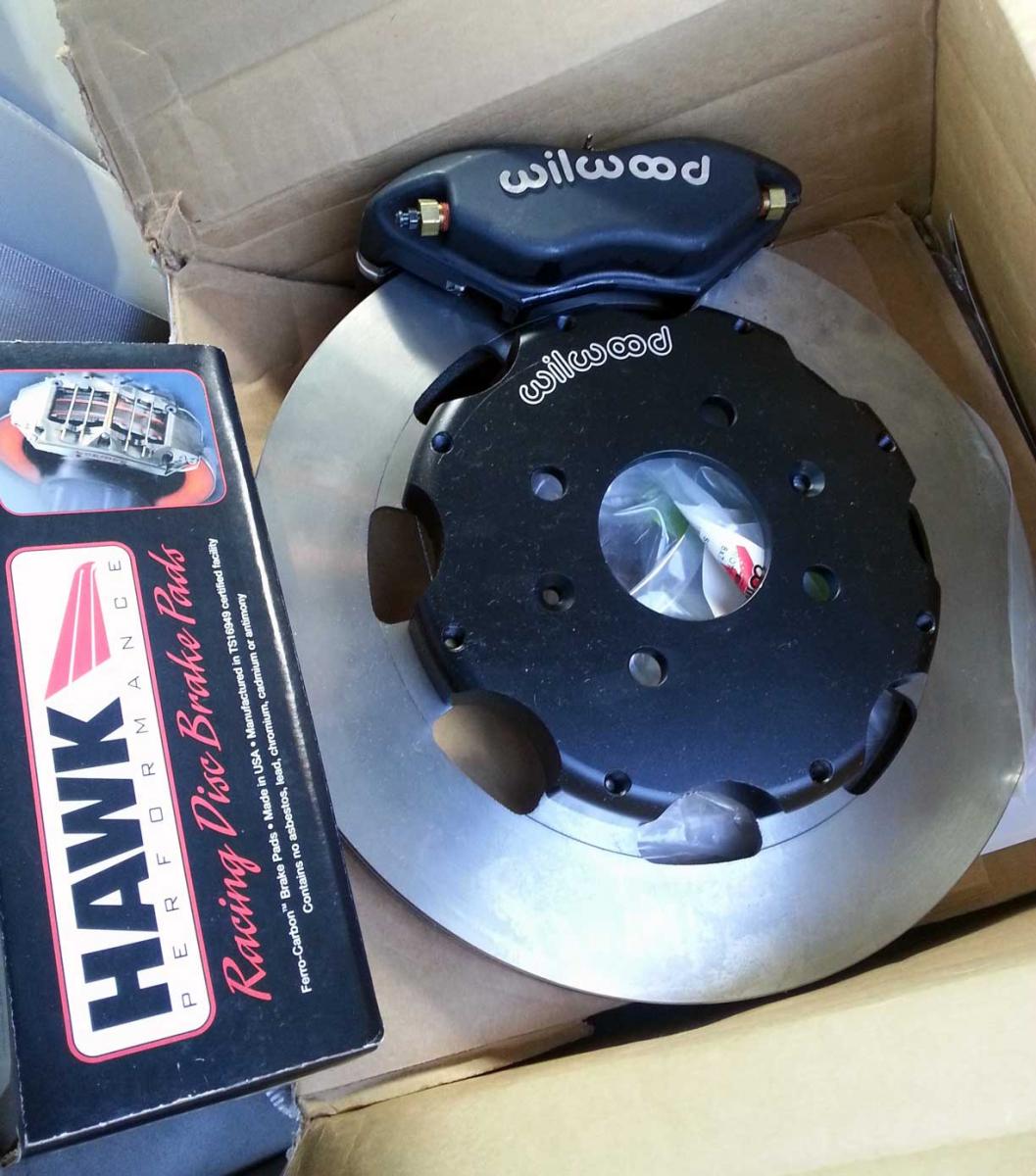

All the Scandinavian country’s (or at least Finland) has this strange law that you can only add up max 20% power to your car. This of course does not apply in closed race track so that is why I don’t get that local police attention. I mean of course I have different boost settings in street. Every time someone drives over 20% power God kills a puppy


...and btw these are in my backseats I know, that’s wrong place for them
Attached Thumbnails
My turbo MX-5-2013-07-17-17.26.jpg

Last edited by muoto; 07-18-2013 at 03:32 AM.
muoto is offline   Reply With Quote
Old 07-18-2013, 09:43 AM   #210
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

Does the police station have a dyno? or is it your responsibility to produce a dyno sheet upon police request? Are the 20% increase for hp or torque, or an average both? In the States, it is speed that kills, in Finland it is power?
m2cupcar is offline   Reply With Quote
Old 07-18-2013, 09:52 AM   #211
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by m2cupcar View Post
Does the police station have a dyno? or is it your responsibility to produce a dyno sheet upon police request? Are the 20% increase for hp or torque, or an average both? In the States, it is speed that kills, in Finland it is power?

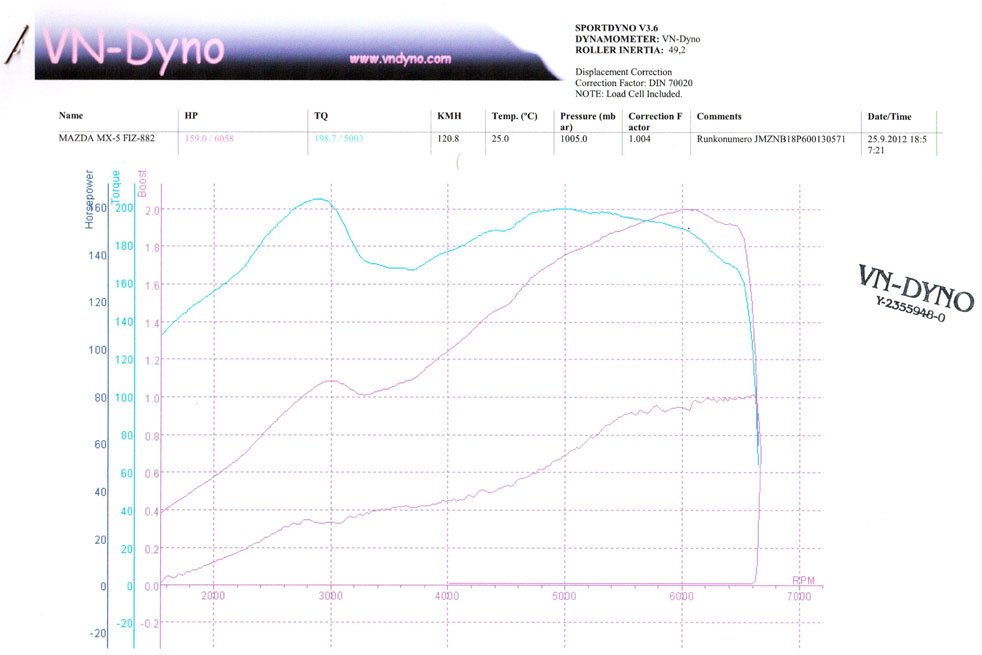

It’s the car owner responsibility to deliver max 20% dyno paper to the "turbo modification inspection" or whatever it is in English. Here’s mine:




159bhp like a boss
Attached Thumbnails
My turbo MX-5-dynakats.jpg
muoto is offline   Reply With Quote
Old 07-18-2013, 03:48 PM   #212
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

The rule goes that you are allow'd to increase power more than 20% over what the biggest engine of the model line produce and grow more than 25% engine size. Weirdly they aint intrested about torque. Also it cant go lighter than 7kg per 1hp. So no V8 swaps in Finland. Still, Norway is worst.
samulis is offline   Reply With Quote
Old 07-18-2013, 04:32 PM   #213
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

EBC to the rescue! 25lbs at 4000RPM and 6 at 7000. 350ft-lbs and 160hp. It'll really be like a diesel.
thenuge26 is offline   Reply With Quote
Old 07-18-2013, 05:33 PM   #214
Junior Member

Join Date: Sep 2009
Location: Bergen, Norway
Posts: 129
Total Cats: 12
Default

Quote:
Originally Posted by m2cupcar View Post
Does the police station have a dyno? or is it your responsibility to produce a dyno sheet upon police request? Are the 20% increase for hp or torque, or an average both? In the States, it is speed that kills, in Finland it is power?
If it`s anything like Norway, it`s not death they are serious about, but the lack of taxes paid on the motors new performance...

Quote:
Originally Posted by samulis View Post
The rule goes that you are allow'd to increase power more than 20% over what the biggest engine of the model line produce and grow more than 25% engine size. Weirdly they aint intrested about torque. Also it cant go lighter than 7kg per 1hp. So no V8 swaps in Finland. Still, Norway is worst.
Atleast the only sanction they can do here is tell you to put the car back to stock...
lassi is offline   Reply With Quote
Old 07-19-2013, 03:14 AM   #215
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

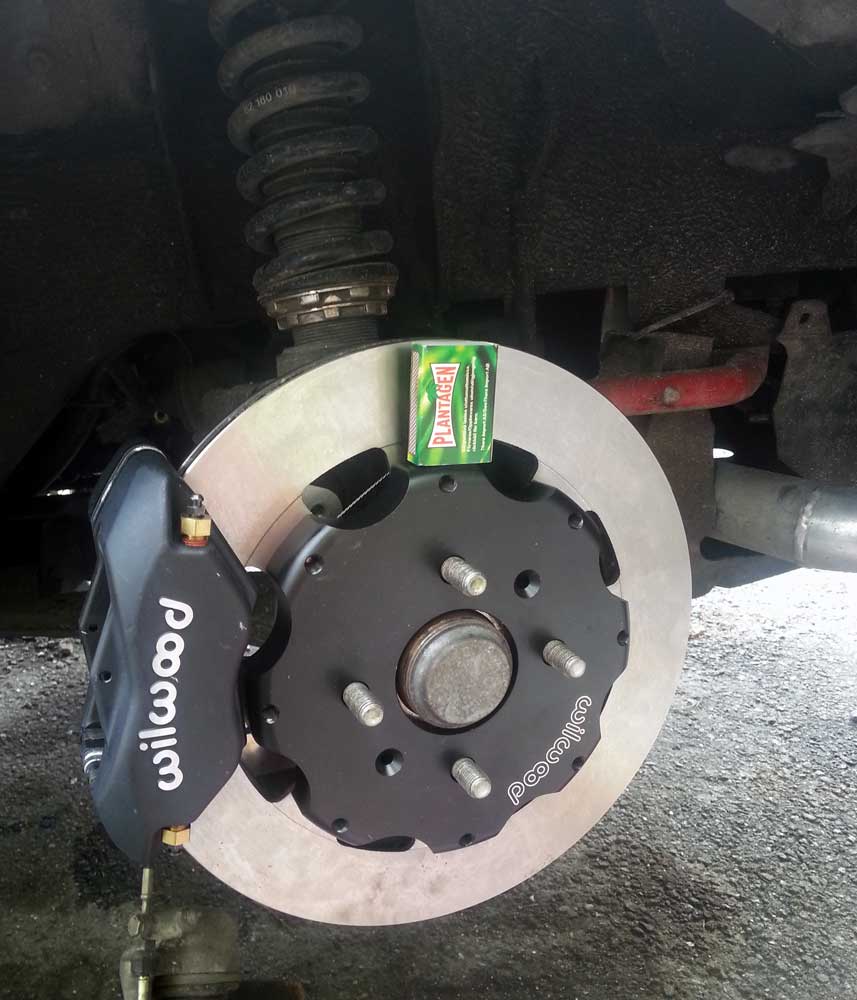

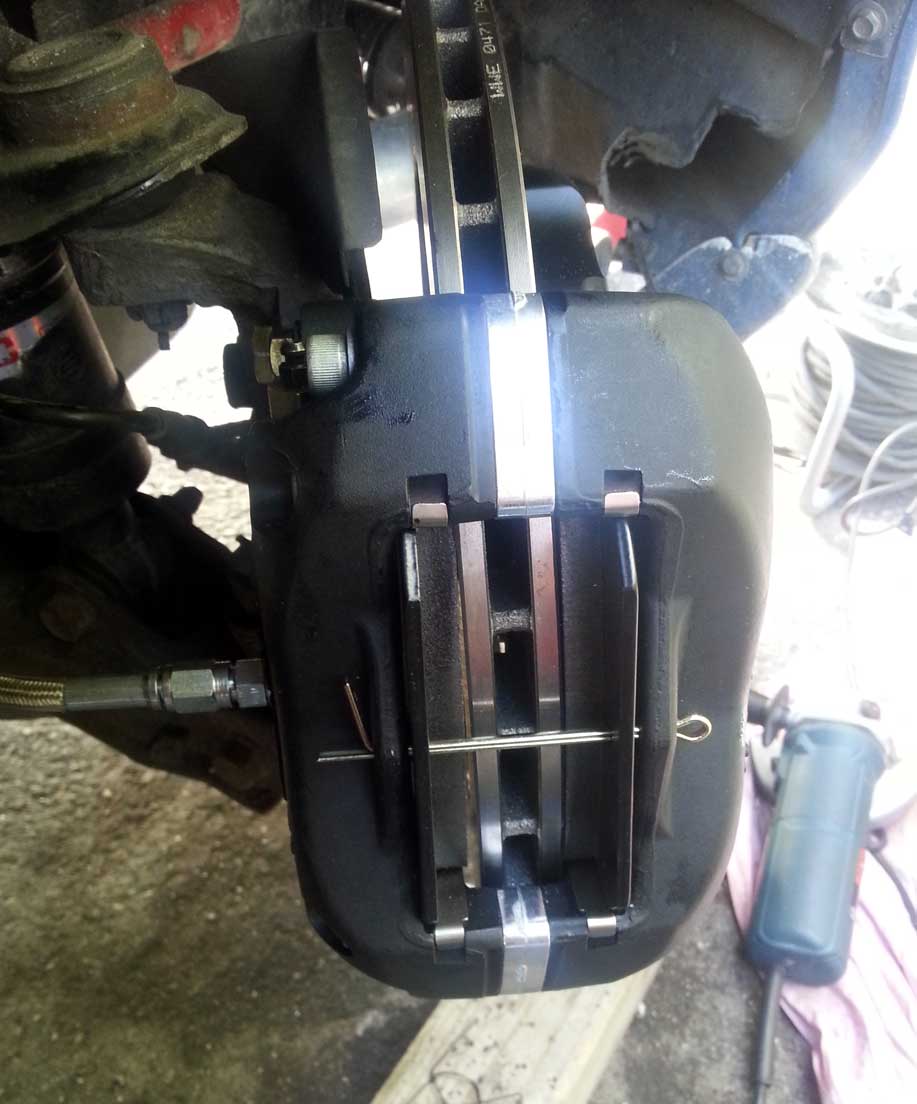

TSE 11.75" BBK




Hawk HP+ pads because I’m not ready for the big boy DTC-60 pads yet

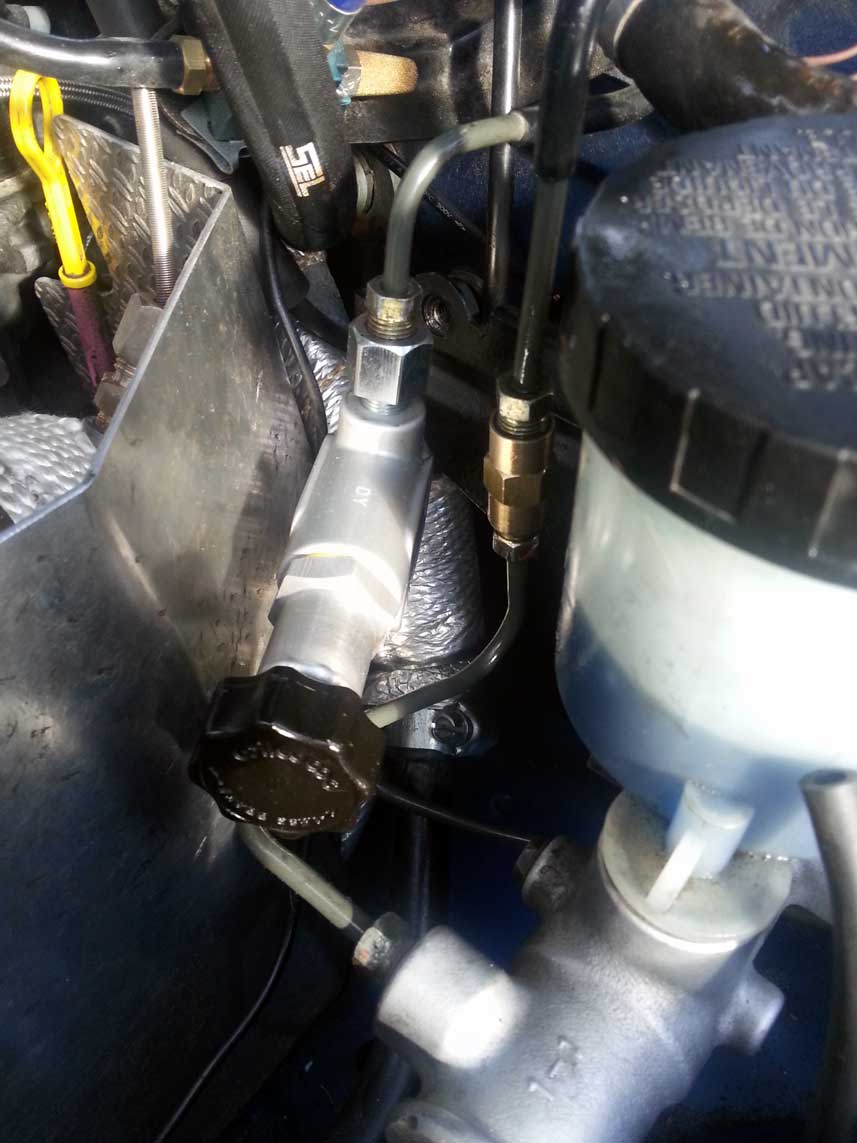

Proportioning Valve




all ready


Brakes seems to bite well. Maybe too well if you see my video:
I accelerate to 75mph and then hit the brakes to almost full stop. Oil level was OK. Is this normal? I mean I can’t be only one ...or am I only one who has notice this?
Attached Thumbnails
My turbo MX-5-2013-07-18-16.50.jpg   My turbo MX-5-b2013-07-18-17.06.jpg   My turbo MX-5-2013-07-18-17.58.jpg   My turbo MX-5-2013-07-18-22.06.jpg   My turbo MX-5-2013-07-18-16.50.jpg

My turbo MX-5-b2013-07-18-17.06.jpg   My turbo MX-5-2013-07-18-17.58.jpg   My turbo MX-5-2013-07-18-22.06.jpg

Last edited by muoto; 07-19-2013 at 08:38 AM.
muoto is offline   Reply With Quote
Old 07-19-2013, 05:49 AM   #216
Junior Member

Join Date: Aug 2007
Location: Finland
Posts: 60
Total Cats: 0
Default

Could that rapid oil drowning come from too low oil level? He is having oli level about halfway betwen marks? I'm filling oil up to upper mark and just a bit more for trackdays..
jim_rocketmow is offline   Reply With Quote
Old 07-19-2013, 07:46 AM   #217
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

I always run one extra quart on the track, both for this reason and for increased cooling capacity (oil helps cool the engine). Actually, I always ran an extra quart on the street, too. It is insurance and protection.
sixshooter is offline   Reply With Quote
Old 07-19-2013, 10:17 AM   #218
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Muoto, Thanks for reminding why I am here with the 20% power rule. On top of 50% requirement of original parts in the car.

Anyway the oil starvation under brakes is real. In Dragon Hillclimb there are no big brakezones for the oil to rush forwards, so I cannot say whether added plate blocking the openings in the front of the sump helped or not, but it didn't hurt.

Added quart should help, but there were not much room before oil hits the crank. There should be some oil in head and circulation when the motor is running so that helps. I measured that full height of oil was almost touching the MBSP pan when motor was horizontal in 2001 motor. Cornering and braking might make this worse.

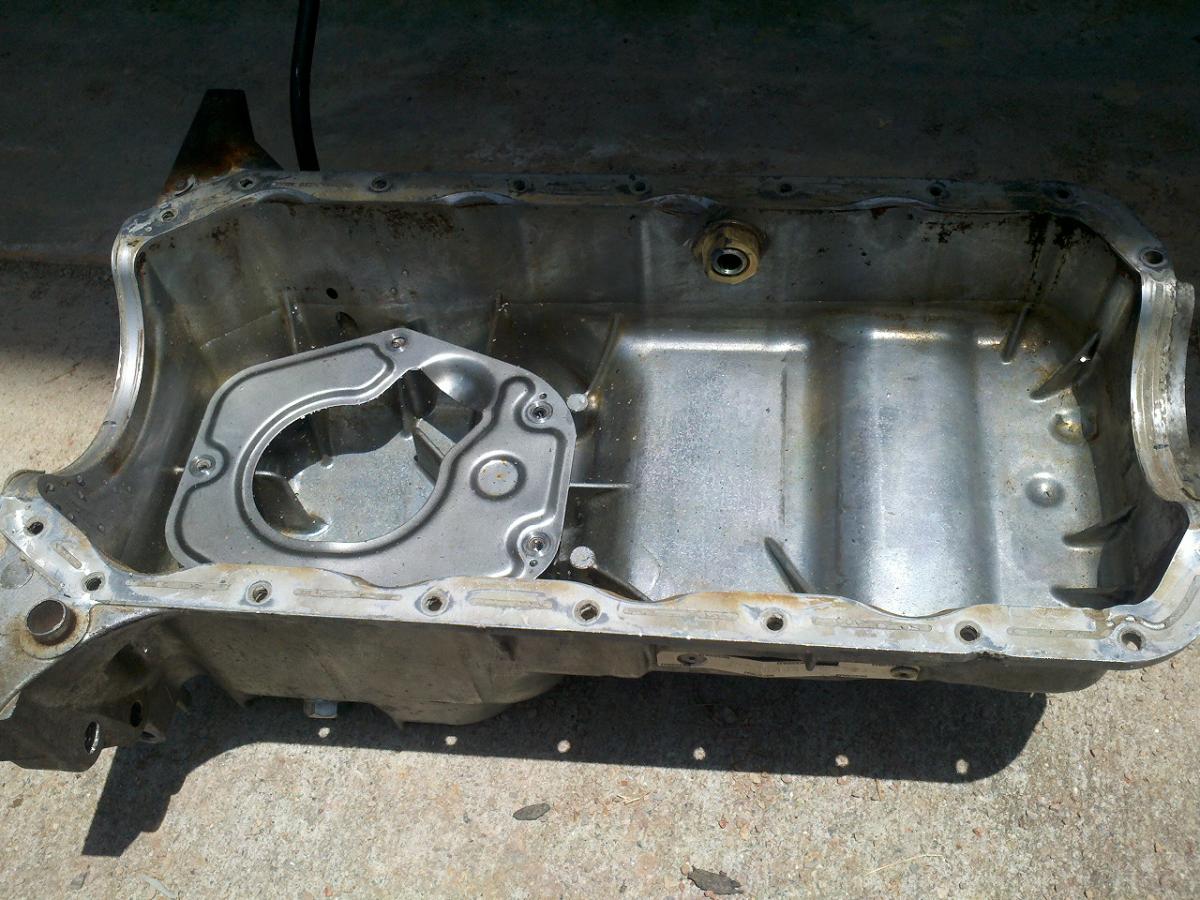

Here are couple of poor quality cellphone photos from the pan.

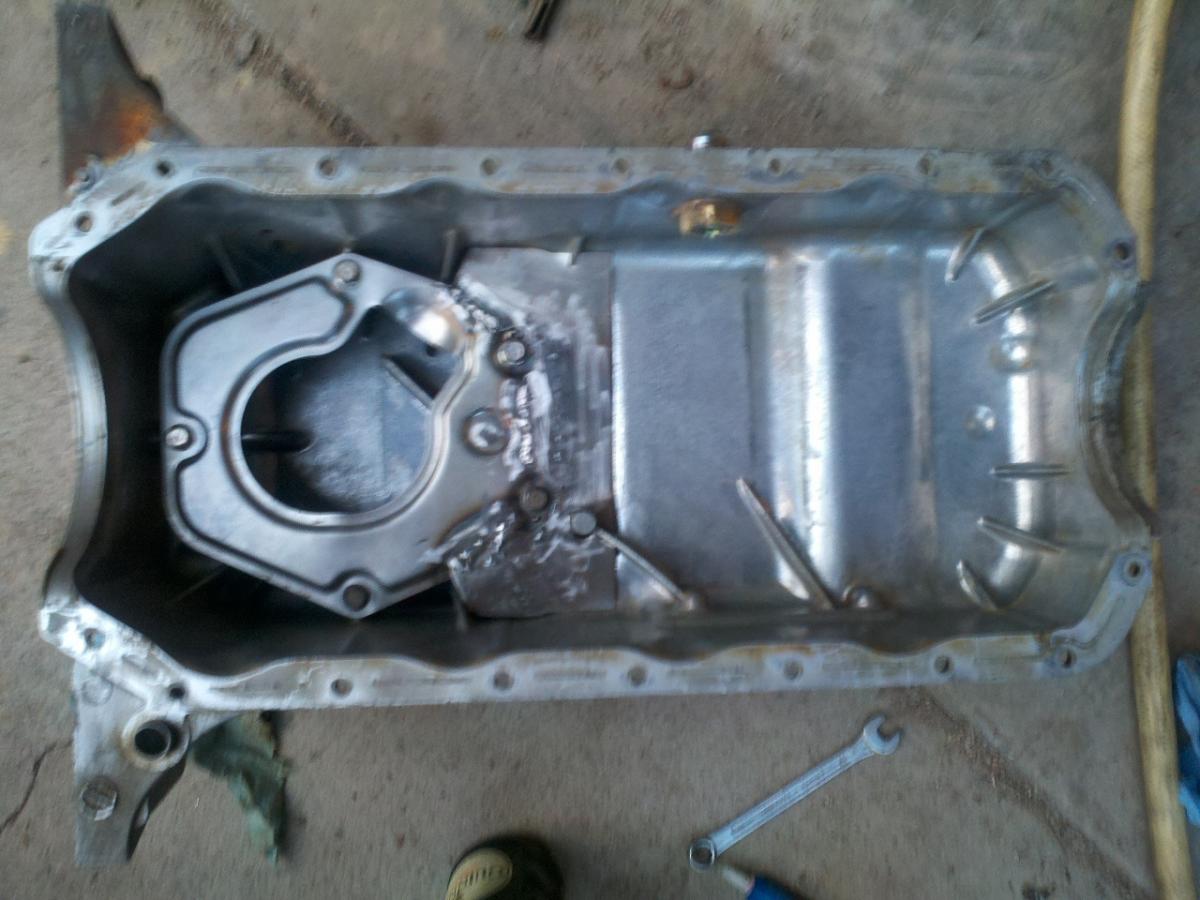

First the pan with full oil quantity and then mild steel plate welded on existing horizontal plate.
Attached Thumbnails
My turbo MX-5-2013-05-27_13-15-41_186.jpg   My turbo MX-5-2013-05-27_20-23-22_477.jpg
hrk is offline   Reply With Quote
Old 07-19-2013, 10:31 AM   #219
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Hrk, kiitos!

That is exactly what I'm going to make
muoto is offline   Reply With Quote
Old 07-22-2013, 10:41 AM   #220
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default





Even though clutch was slipping like hell I manage to drive third. TSE 11.75 brakes were awesome! In the longest straight I manage to get 200kmh on the speedo. With my old brakes I would probably have died.

Now I just need that new twin disc clutch and more boost. Then I can go after Evo 8 and SC Elise which are ahead of me in points. Adding horsepower is best way to compensate my lack of track experience.
muoto is offline   Reply With Quote
