Old 05-08-2015, 04:30 AM   #361
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default


old Artech manifold & big trim (56) GT2871 with small 0.64 turbine housing. Still enough torque to broke dozen gearboxes


Started porting the .64 housing for quicker wastegate control. Any tips?


I figured oil squirters are pointless with supertech pistons and E85
muoto is offline   Reply With Quote
Old 05-11-2015, 10:28 AM   #362
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

Quote:
Originally Posted by muoto View Post
Started porting the .64 housing for quicker wastegate control. Any tips?
Keep smoothing the top of the port inlet like you are doing. Depending on the casting there is only so much you can do here before it becomes too thin

You can open up the outlet side of it a bit, leaving 1.5-2mm of surface to seal against the flapper. That being said if you aren't getting creep I wouldn't bother opening up the outlet.
Sirnixalot is offline   Reply With Quote
Old 05-12-2015, 03:55 AM   #363
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Thanks.
There is little boost creep if boost limit is set below 15psi. Quicker control what I’m after as we all know 300ftlbs+ is what kill our 6speed’s. EWG would be best but ported IWG with less mid-range ign.timing hopefully do the job and keep my gearbox intact

300ft-lbs limit is ok as long as I can keep that same torque in high revs

Last edited by muoto; 05-12-2015 at 04:33 AM.
muoto is offline   Reply With Quote
Old 05-12-2015, 06:34 AM   #364
Junior Member
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 388
Total Cats: 4
Default My turbo MX-5

sub'd
ysleem is offline   Reply With Quote
Old 06-29-2016, 02:40 AM   #365
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

yo, what you been up to?
turbofan is offline   Reply With Quote
Old 06-30-2016, 09:58 AM   #366
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by turbofan View Post
yo, what you been up to?

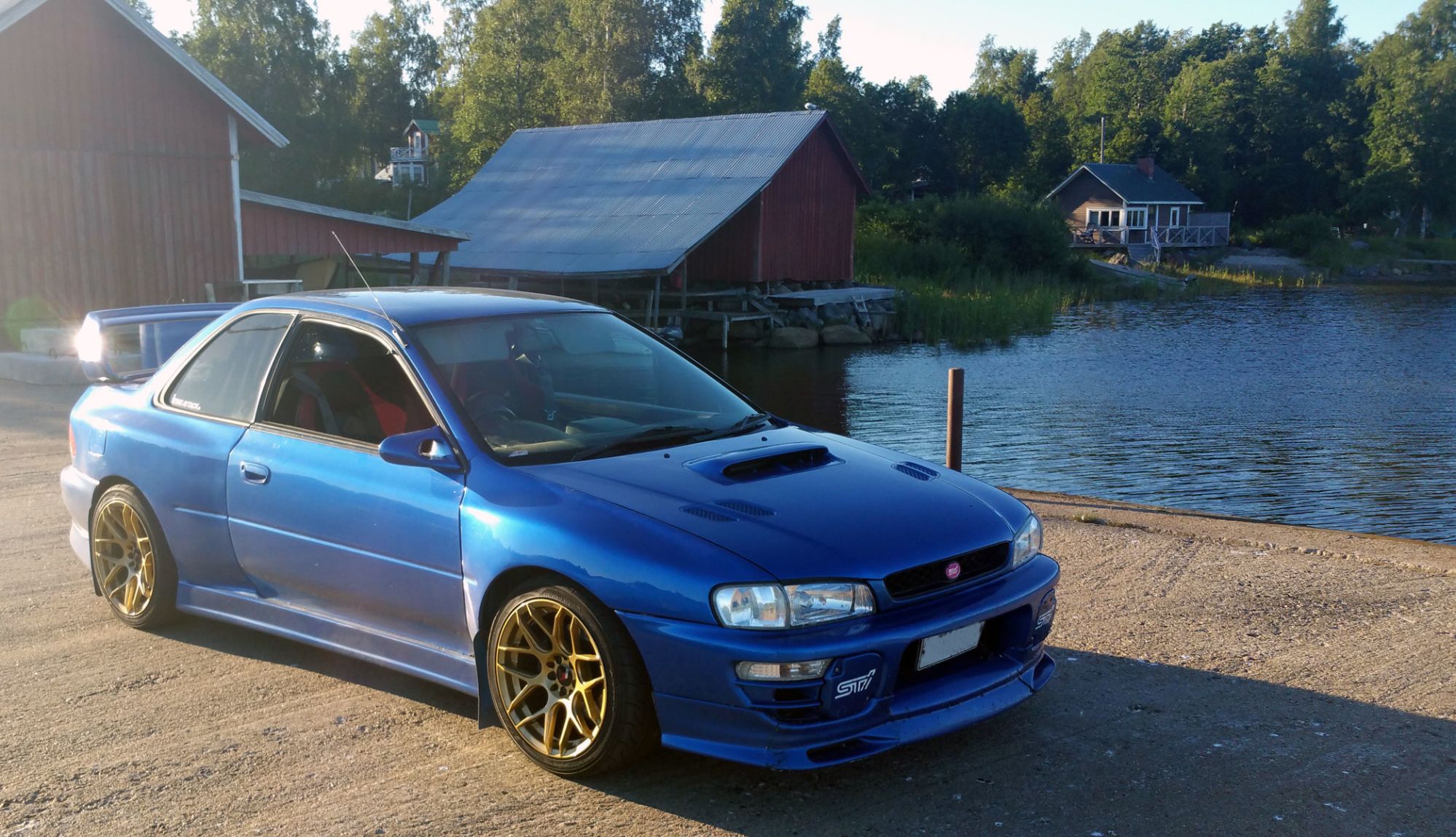

bought a dailydriver. had been fixing that



MY97 STI (JDM import). Running E85 with 1200cc injectors
Attached Thumbnails
My turbo MX-5-80-2016_06_29_21_00_00_4eb8e1d44fb1bd38d601bf9e36014d60ff8f4594.jpg
muoto is offline   Reply With Quote
Old 06-30-2016, 12:26 PM   #367
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I love your daily driver
18psi is offline   Reply With Quote
Old 06-30-2016, 12:44 PM   #368
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Holy smokes. Yes. Awesome. Moar info plz
turbofan is offline   Reply With Quote
Old 06-30-2016, 01:36 PM   #369
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
I love your daily driver
Quote:
Originally Posted by turbofan View Post
Holy smokes. Yes. Awesome. Moar info plz
Thanks. With DCCD center diff open (65% to rear) handling is really close to Miata. Also weight only 2733 pounds stock.

Engine is stock STI EJ207 except ACL bearings, ARP bolts and Cosworth head gaskets. ECU is modified and tuned by myself. Get 22mpg in highway with E85 Don't know the exact power figures but it should be over 300hp with IHI VF28 boosting 18PSI with 3" decat
muoto is offline   Reply With Quote
Old 07-02-2016, 04:36 PM   #370
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

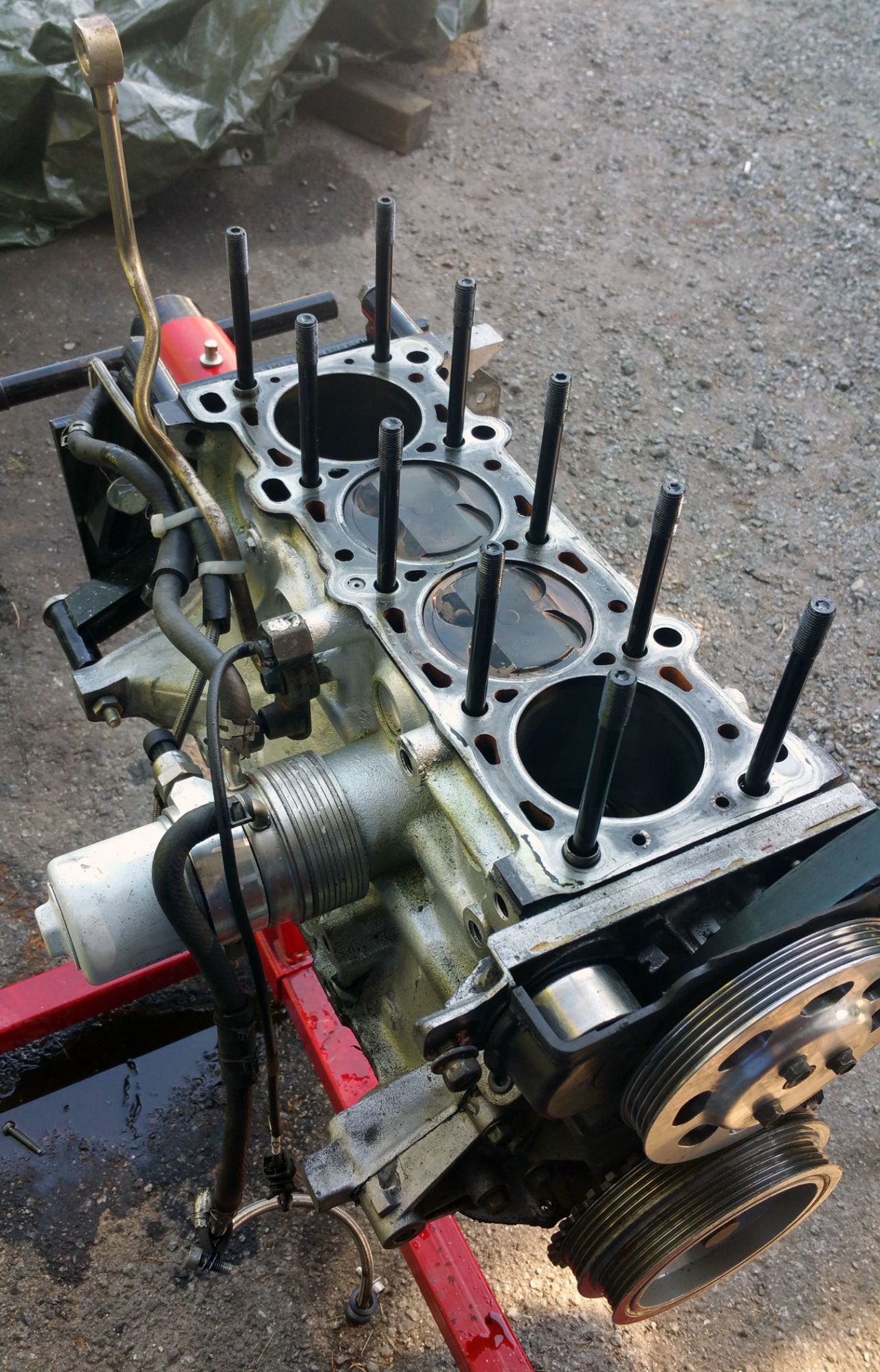

Here's my BP current state


Had to take engine out due knocking noise from cyl 4

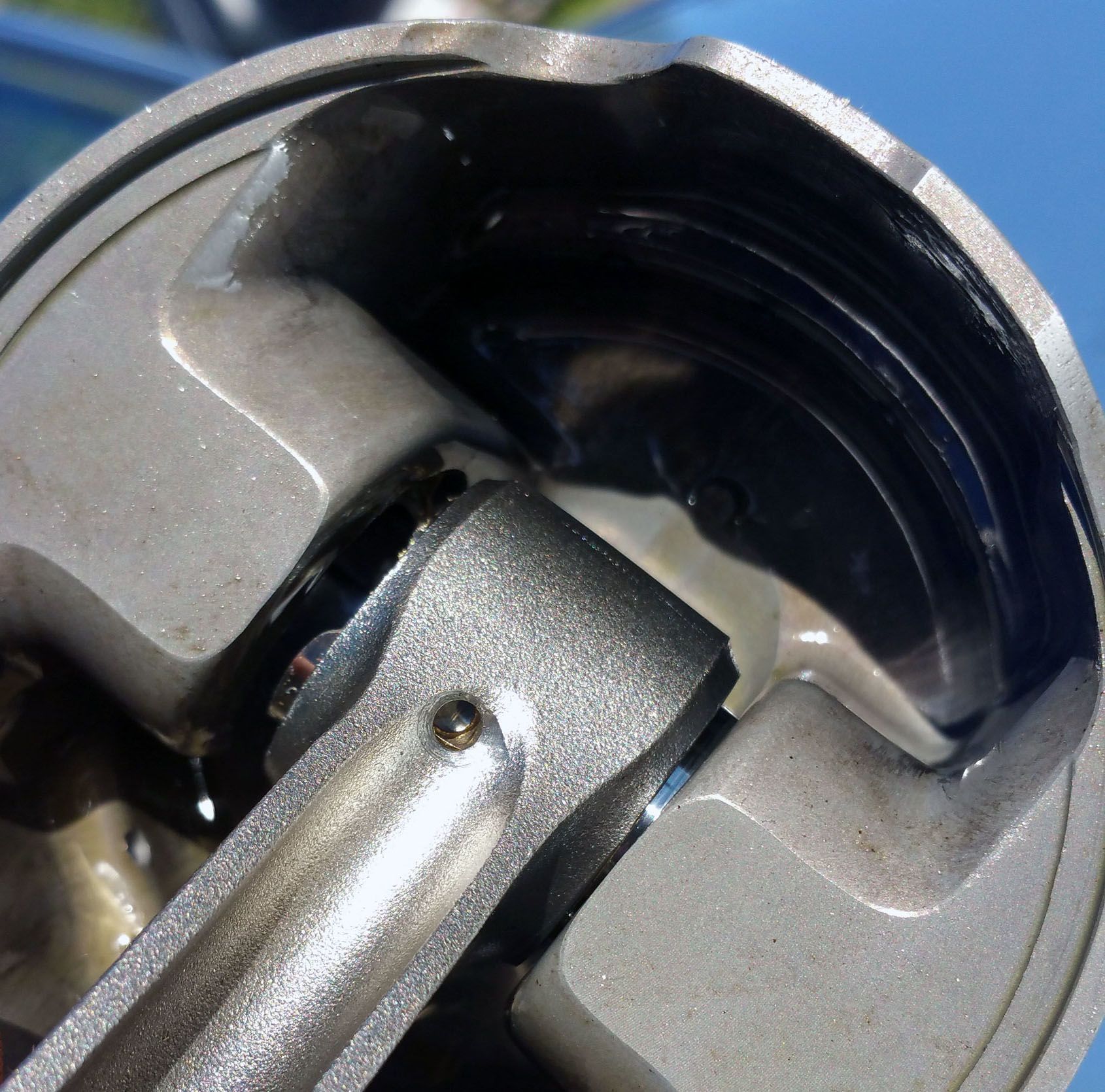

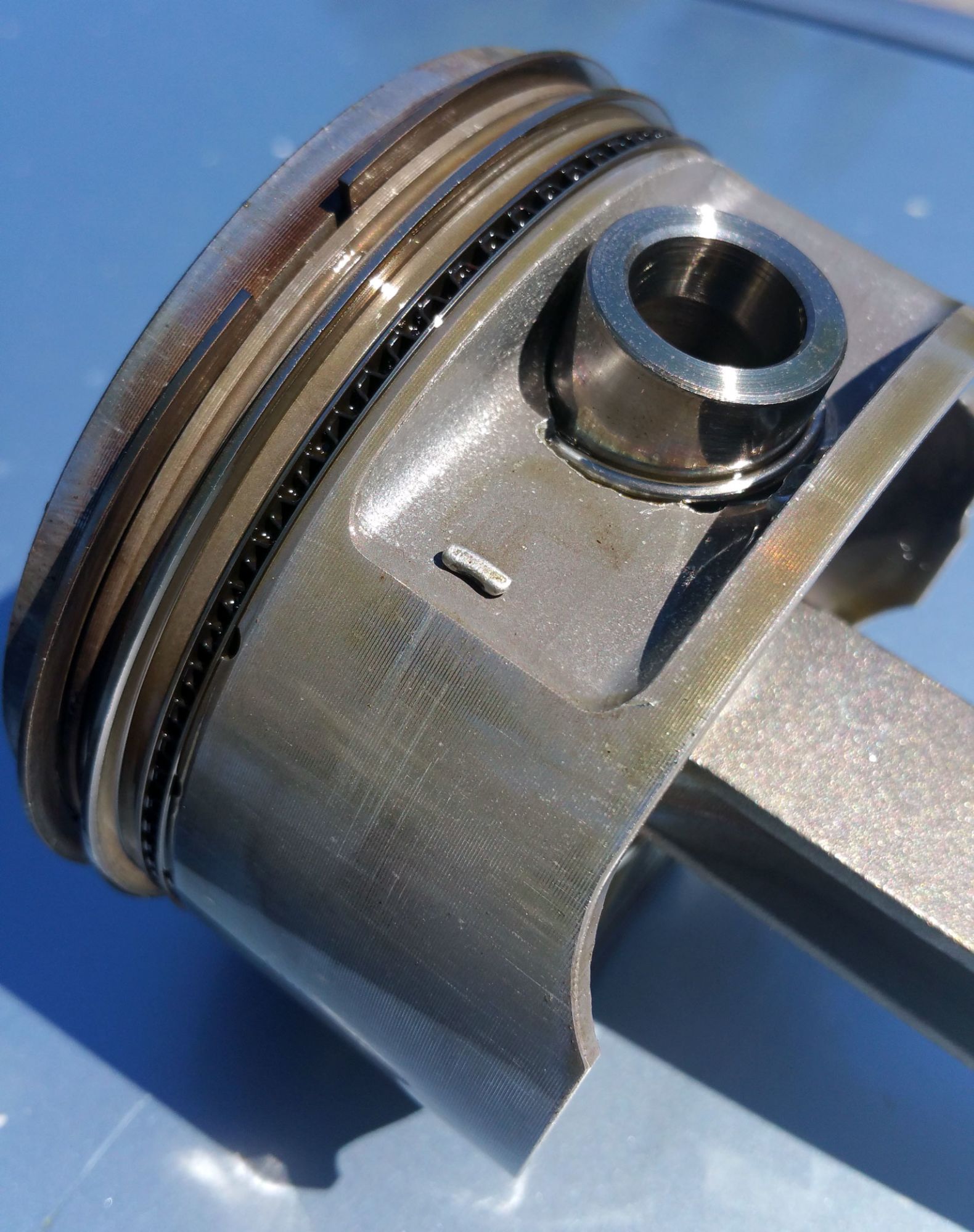

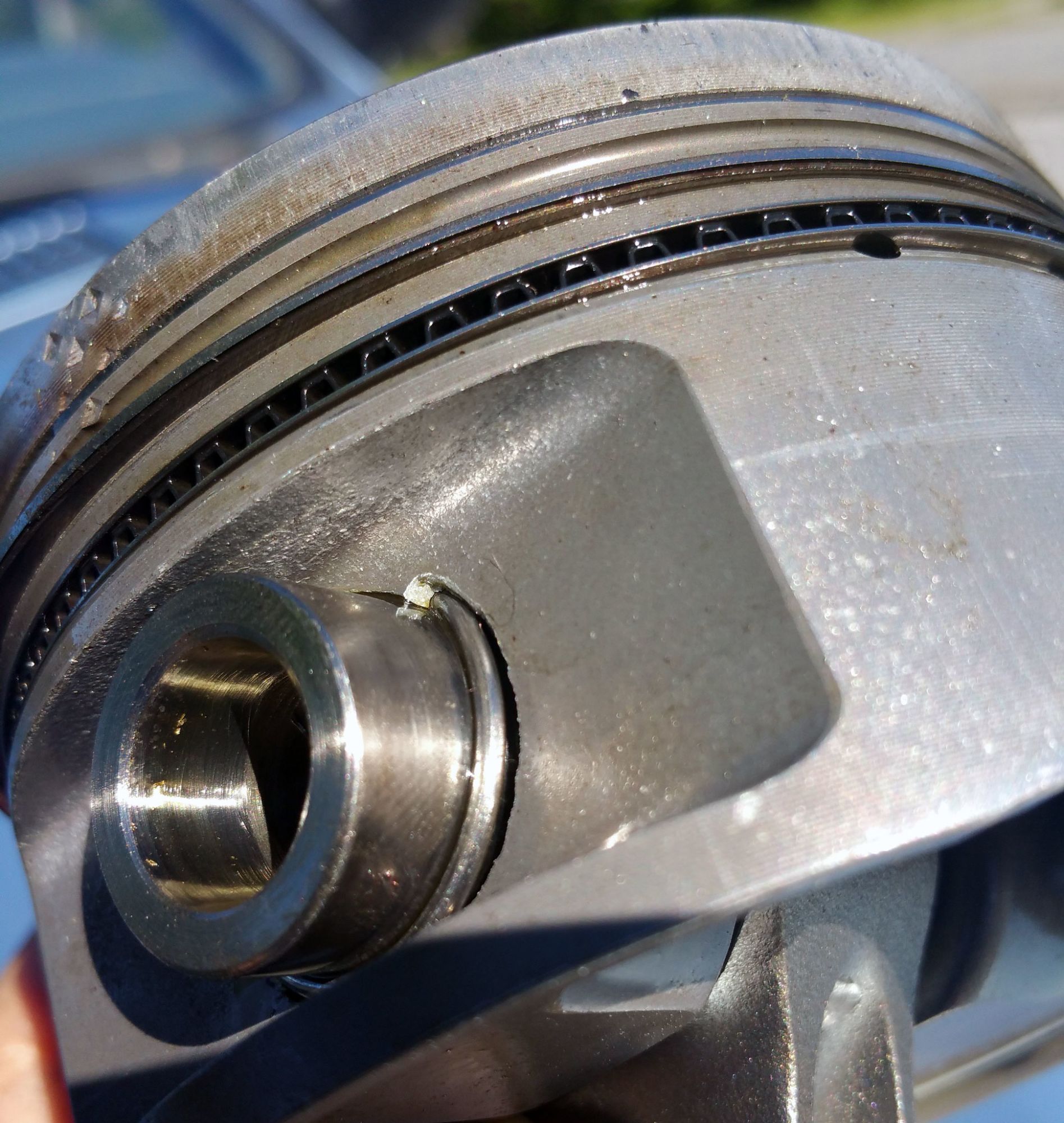

wtf?? Supertech piston had broken around the pin allowing pin to slide out....


...and broken in half whyy?
Attached Thumbnails
My turbo MX-5-80-16kone_101b6b5453ab869583cd6757e08787df17f23954.jpg   My turbo MX-5-80-16manta1_0bc941c7b93d5da35dd183d10d2cb3c0566cb026.jpg   My turbo MX-5-80-16manta2_da0eab8fb5230da2e41a43808dd0814613742eab.jpg   My turbo MX-5-80-16manta4_6c46d4fa7cbb2d1ebec968fa9bea50603d7ab319.jpg
muoto is offline   Reply With Quote
