Old 05-29-2013, 03:00 PM   #141
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
why not do what many others did and make an intake mani out of aluminum tubing?
Well, in the “Honda IM thread" there was a report someone breaking Begi aluminum tube IM.
muoto is offline   Reply With Quote
Old 05-29-2013, 03:04 PM   #142
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

pics or it didnt happen.


I have seen thousands of successful track stories of aluminum tube manis.
Pen2_the_penguin is offline   Reply With Quote
Old 05-29-2013, 04:00 PM   #143
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
I have seen thousands of successful track stories of aluminum tube manis.
With pos BP engine which vibrates more than any engine Iíve ever seen?
muoto is offline   Reply With Quote
Old 05-29-2013, 04:07 PM   #144
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

What about incorporating the OEM manifold support brace?
18psi is offline   Reply With Quote
Old 05-29-2013, 04:17 PM   #145
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
What about incorporating the OEM manifold support brace?

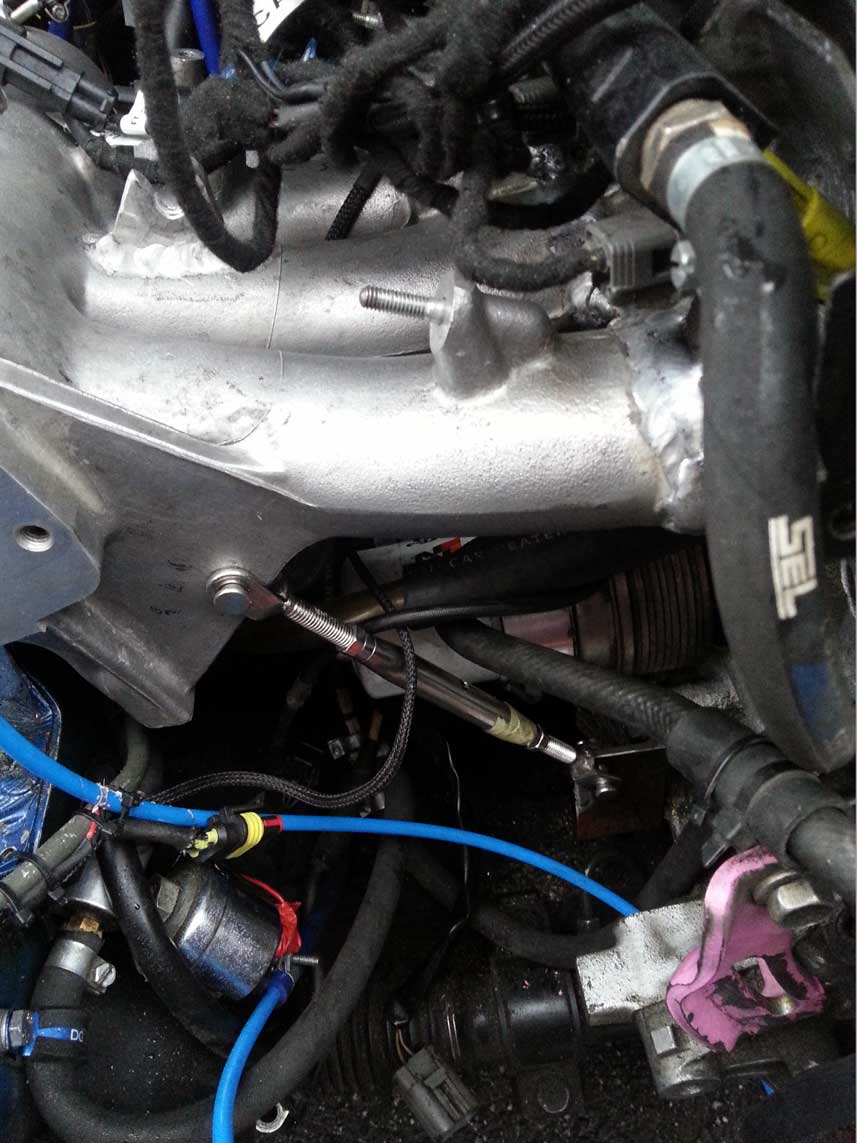

I already have a support brace there

Attached Thumbnails
My turbo MX-5-2013-05-09-19.18.jpg
muoto is offline   Reply With Quote
Old 05-29-2013, 05:00 PM   #146
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

is it recent or was the failure with it on?
18psi is offline   Reply With Quote
Old 05-29-2013, 05:17 PM   #147
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
is it recent or was the failure with it on?
last failure was with brace attached

Like someone said in Honda IM thread: "I have no idea what I'm doing with my life"
muoto is offline   Reply With Quote
Old 05-29-2013, 05:41 PM   #148
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

That brace is putting a moment on the manifold most likely. I bet your crack started at cylinder 4 with that brace on. Put another one to the other end.
Leafy is offline   Reply With Quote
Old 05-29-2013, 05:45 PM   #149
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
I bet your crack started at cylinder 4 with that brace on.
No, actually runner #1 was first to crack
muoto is offline   Reply With Quote
Old 05-29-2013, 08:03 PM   #150
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

maybe the brace is too tight?

Quote:
Originally Posted by muoto View Post
With pos BP engine which vibrates more than any engine I’ve ever seen?
you have a damper, right?
Pen2_the_penguin is offline   Reply With Quote
Old 05-29-2013, 08:23 PM   #151
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Quote:
Originally Posted by muoto View Post
last failure was with brace attached

Like someone said in Honda IM thread: "I have no idea what I'm doing with my life"
that brace looks really weak and unsupportive.
factory one definitely bolts teh mani down a lot more and grabs most of it not just the front 1 runner
but I'm not saying it is or if that's your issue.

I dunno, just guessing here.
18psi is offline   Reply With Quote
Old 05-30-2013, 05:16 AM   #152
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
maybe the brace is too tight?

you have a damper, right?
It might have been too tight. I tighten it on track and probably twist it too tight in hurry

I have 949racing's supermiata damper and mazda competition motor mounts
muoto is offline   Reply With Quote
Old 05-30-2013, 05:39 AM   #153
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

with a brace like that I would have just twisted it till it got snug, and then a quarter turn further. Good luck dude
Pen2_the_penguin is offline   Reply With Quote
Old 05-30-2013, 05:43 AM   #154
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
with a brace like that I would have just twisted it till it got snug, and then a quarter turn further. Good luck dude

That is exactly how it is now tightened
muoto is offline   Reply With Quote
Old 05-30-2013, 06:28 AM   #155
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

captured a very special video for this special thread

Pen2_the_penguin is offline   Reply With Quote
Old 05-30-2013, 10:43 AM   #156
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
that brace looks really weak and unsupportive.
factory one definitely bolts teh mani down a lot more and grabs most of it not just the front 1 runner
but I'm not saying it is or if that's your issue.

I dunno, just guessing here.
Well Iím here guessing too. After all Iím an alcoholic not a qualified engineer. I had to first break stuff to know how to build it better. Anyway, that brace is there support more of the plenum than the runner #1. That plenum section is really thick and I donít think itís going to flex. </guessing>

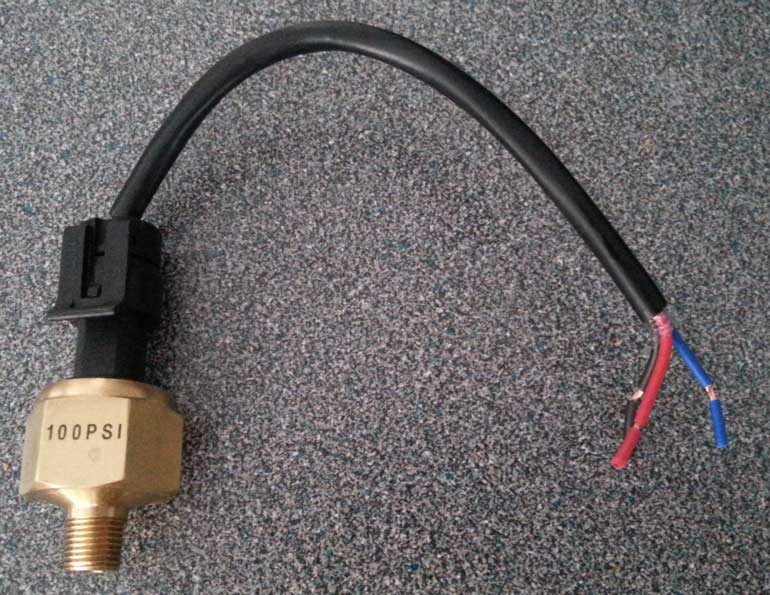

Next thing to do is set oil pressure warning system. With these power figures I donít expect my stock pump last long. Super Miata damper should protect oil pump but...who knows how well?... Adaptronic reads that 0-5v pressure sensor and alerts if pressure suddently drops on track. Maybe I should put another for the fuel pressure alsoÖ

ps. If any of the mods are reading. Change my thread title to ďTurbo MX-5 (I have no idea what I'm doing with my life)Ē
Attached Thumbnails
My turbo MX-5-2013-05-30-11.37.jpg
muoto is offline   Reply With Quote
Old 05-30-2013, 10:46 AM   #157
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

But that brace is really just creating a moment arm because its connected the the manifold with a floppy joint. It would be ok if you connected it at the other end of the plenum the same way, or if you make a solid, stiff, 2 bolt connection with the same points you have now.
Leafy is offline   Reply With Quote
Old 05-30-2013, 12:02 PM   #158
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

I’m tired of welding and bracing that ****. I want my intake to be as my exhaust manifold. Bulletproof and sexy
muoto is offline   Reply With Quote
Old 06-03-2013, 08:05 AM   #159
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default





....Turns out it was clutch slip. It seems that FM lvl1 didn’t like 17psi so I’m back to the 15psi boost. It really didn’t come as a surprise as lvl1 is only rated for 318ft/lbs.

Any recommendations for cheap at least 380ft/lbs. rated clutch?
Attached Thumbnails
My turbo MX-5-34244107.jpg   My turbo MX-5-img_5167bmt.jpg

Last edited by muoto; 06-03-2013 at 08:52 AM.
muoto is offline   Reply With Quote
Old 06-03-2013, 11:31 AM   #160
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Well the lvl2 should definitely be able to hold down more than the 1, possibly well into the 350 range. Beyond that, looks like the twin disk is what you should start eyeballing. Esp since you're tracking the car
18psi is offline   Reply With Quote
