Old 06-24-2014, 09:29 AM   #321
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Now that I once again have to change the gearbox I might as well get a better clutch

quick summary of my previous clutches
FM level 1 Slipped Only good for a GT2560
FM level 2 Slipped uses the same disc as FM lvl1 and slips almost as much
949racing/Competition Clutch Twin disc Destroys gearboxes enough said

I guess that left me ACT xtreme clutches that Soviet and others here use
This maybe? ZM4-XTG6 - XT/Race Sprung 6 Pad
or this: ZM5-XTG6 - XT/Race Sprung 6 Pad
I have no idea what’s the difference between those two
muoto is offline   Reply With Quote
Old 06-24-2014, 09:33 AM   #322
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I bet if either of those acts dont slip they too will destroy gearboxes.
Leafy is offline   Reply With Quote
Old 06-24-2014, 09:38 AM   #323
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
I bet if either of those acts dont slip they too will destroy gearboxes.
as long as it holds better than current FM lvl2

FM lvl2 is rated 353 ft/lb and ACT xtreme is 430 ft/lb
muoto is offline   Reply With Quote
Old 06-24-2014, 09:40 AM   #324
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by muoto View Post
as long as it holds better than current FM lvl2

FM lvl2 is rated 353 ft/lb and ACT xtreme is 430 ft/lb
Yeah, but the slip is the only thing saving your tranny most likely.
Leafy is offline   Reply With Quote
Old 06-24-2014, 09:43 AM   #325
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
Yeah, but the slip is the only thing saving your tranny most likely.
you are right ‘bout that

I just bought new 6speed with only 44K miles on it. It should last a year with sprung clutch
muoto is offline   Reply With Quote
Old 06-24-2014, 09:52 AM   #326
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Sprung 6 Puck has served me well and I'm certainly not easy on my car, "Sprung" is the key, I'll break CV shafts before anything else. The clutches you've linked are NC versions btw.
FAB is offline   Reply With Quote
Old 06-24-2014, 09:56 AM   #327
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by FAB View Post
Sprung 6 Puck has served me well and I'm certainly not easy on my car, "Sprung" is the key, I'll break CV shafts before anything else. The clutches you've linked are NC versions btw.
Really the only unsprung clutch I'd run is a carbon on carbon clutch like the one I run. The carbon friction plates have enough flex that the springs are unneeded.

Bundy seems to have even bigger problems with sprung clutches breaking his 6 speeds than unsprung though.

You could always just turn the boost down, like me. And my ***** 5 speed saver tune.
Leafy is offline   Reply With Quote
Old 06-25-2014, 10:23 AM   #328
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

ZM2-XTG6 it is then. 405 ftlb should be enough



Quote:
Originally Posted by Leafy View Post
You could always just turn the boost down, like me. And my ***** 5 speed saver tune.
Here in Scandinavia less than a 15psi is considered a N/A
muoto is offline   Reply With Quote
Old 06-25-2014, 11:32 AM   #329
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Honestly why aren't you buying twin-disk?
I only have this clutch because I got it for cheap with a nice flywheel.
soviet is offline   Reply With Quote
Old 06-25-2014, 11:49 AM   #330
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by soviet View Post
Honestly why aren't you buying twin-disk?
I only have this clutch because I got it for cheap with a nice flywheel.
Read my thread I had twin disc. My low mileage gearbox lasted about a week with that

Sprung clutch is mandatory
muoto is offline   Reply With Quote
Old 07-08-2014, 04:11 AM   #331
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default




waiting for new ACT clutch from FAB9 and new gearbox from UK
muoto is offline   Reply With Quote
Old 07-08-2014, 11:50 AM   #332
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Time to cast your own T5 adapter bellhousing....


TECH: Make a Bellhousing out of an old Intake Manifold!! | The H.A.M.B.
soviet is offline   Reply With Quote
Old 07-09-2014, 04:14 AM   #333
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by soviet View Post
Time to cast your own T5 adapter bellhousing....
Isn’t T5 only rated for 300 lb ft?

I've been thinking something like Getrag 420G (368 lb ft) from M3 bmw but its little bit costly 2000-4000$.

Then there’s a fairly common R154 "truck gearbox" from Toyota Supra/ Soarer/Cresta that lot of my friends use on their 700whp drift cars. That gearbox take 500 lb ft all day long and those boxes goes around 1000-1500$ in here. Even the gear rations are kind of ok compared to my current 6speed: http://www.miata.fi/kuvat/lootatv.gif

Last edited by muoto; 07-09-2014 at 04:25 AM.
muoto is offline   Reply With Quote
Old 07-09-2014, 10:06 AM   #334
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

I haven't ruled T5 out just yet. Their derivatives have been used in Cosworth Sierras, including 500 hp A-group ones in road racing, the configuration is close and there are quite a few companies modifying them with wider straight cut gears and dog rings.
Companies like G-force claim 500 ftlb torque and the stock transmission is said to weigh only 75 lbs.
hrk is offline   Reply With Quote
Old 07-09-2014, 11:00 AM   #335
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

Yeah, G-Force claims their upgraded T5 will hold 500ft/lbs in a 3000lb car launching on slicks.

G-Force Transmissions and Long Shifters
Quote:
Generally, it can be assumed that with the available upgraded mainshaft, the G-Force Street 5-Speed kit will handle roughly 600 hp or 500 ft-lb. of torque in a 3300 lb. vehicle running drag radials at the track with a moderate clutch upgrade.

The Getrag 420G has very nice ratios and I would love to run it. But the weird 3-bolt output flange confuses me.
soviet is offline   Reply With Quote
Old 07-10-2014, 04:26 AM   #336
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Can RX7 turbo2 gearbox take 450ft/lbs?
- it's cheap (400-500$ on ebay)
- there's adaptor for it Miata BP/RX7 TII Transmission Adapter Plate - Maverick Motorsports
- gear rations are "kind of ok" www.miata.fi/kuvat/t2ratiomph.gif

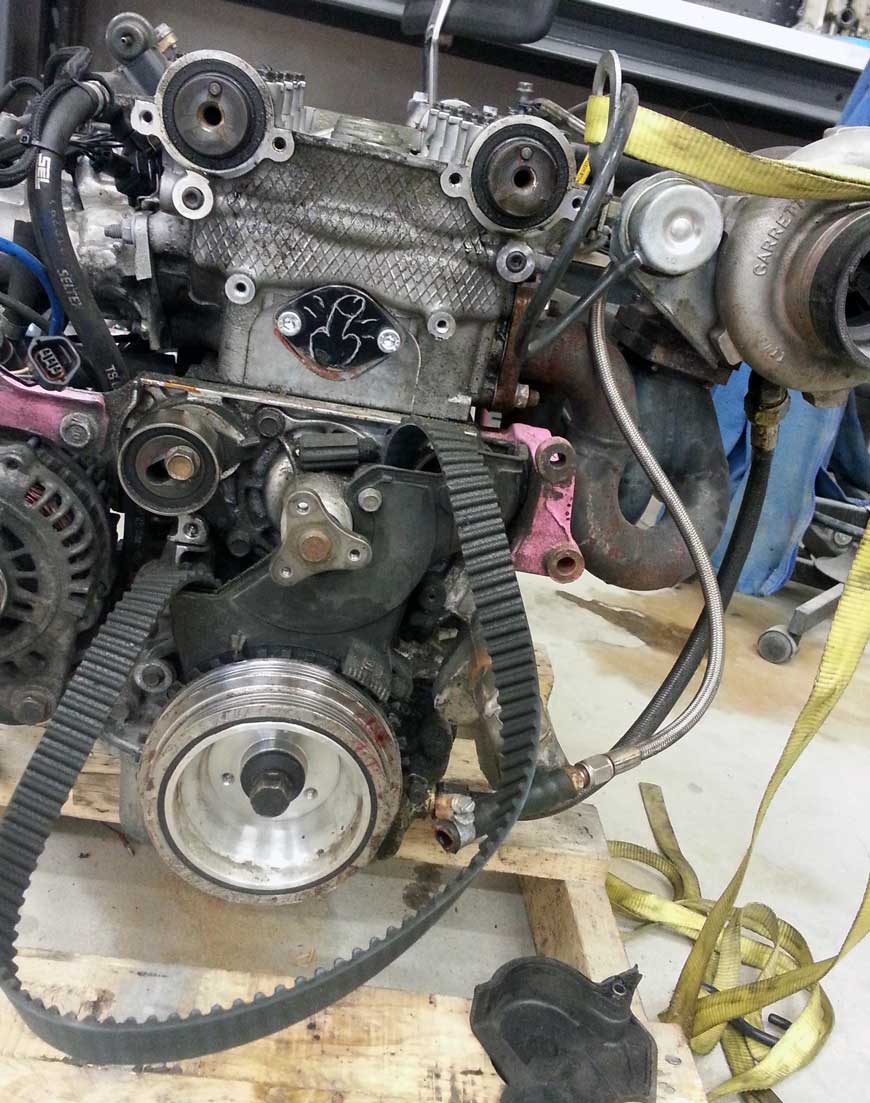

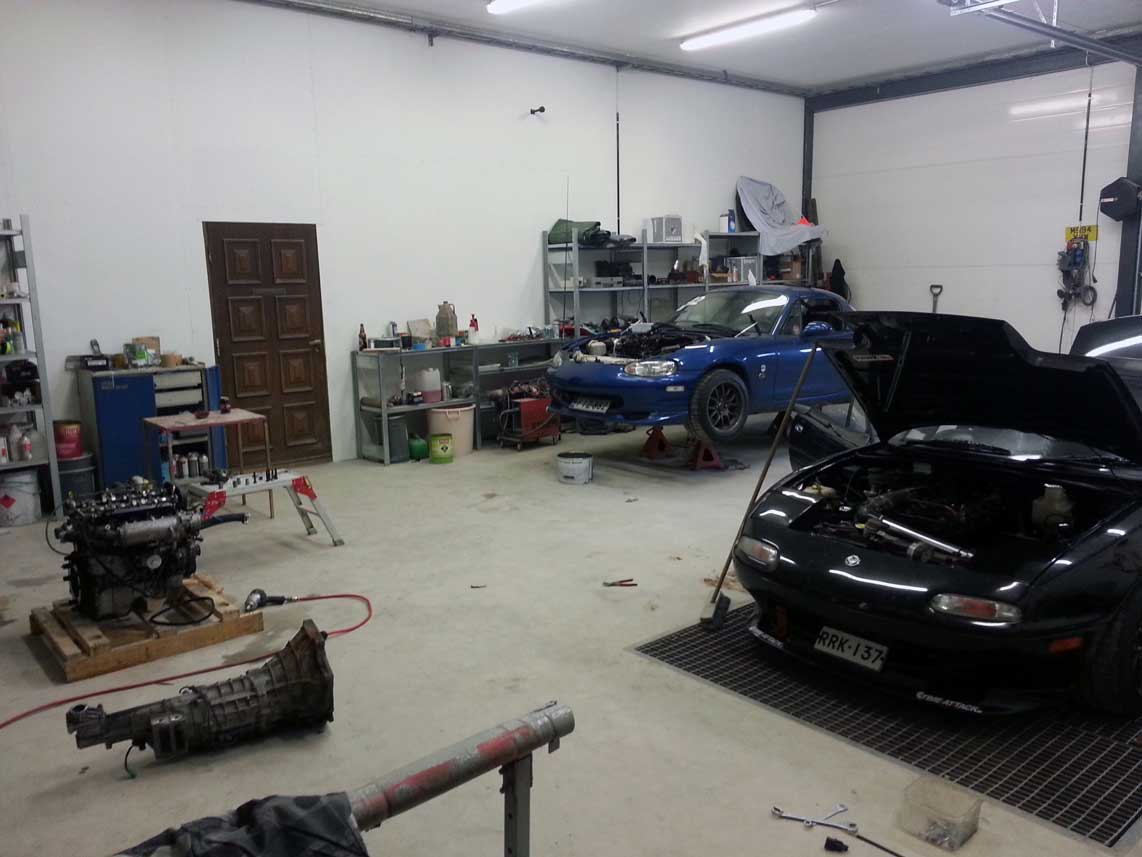

few pics from yesterday:


Attached Thumbnails
My turbo MX-5-zz2014-07-09-18.jpg   My turbo MX-5-2014-07-09-20.22.jpg
muoto is offline   Reply With Quote
Old 07-10-2014, 04:58 AM   #337
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

I think MT.net should send out coolant block off plates decorated like yours instead of stickers.
turbofan is offline   Reply With Quote
Old 07-10-2014, 05:05 AM   #338
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by turbofan View Post
I think MT.net should send out coolant block off plates decorated like yours instead of stickers.
It still lacks the colorful rainbow flying off it. I'm working on it. Top priority

Last edited by muoto; 07-10-2014 at 05:34 AM.
muoto is offline   Reply With Quote
Old 01-21-2015, 05:04 PM   #339
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Muoto! Just reviewed your build. I realized that you're running Federal's RSR and I'm thinking about getting some. How do you like the tire? Are you running a 205 on a 9" 6UL?

Still love the build.
turbofan is offline   Reply With Quote
Old 01-28-2015, 09:04 AM   #340
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by turbofan View Post
Muoto! Just reviewed your build. I realized that you're running Federal's RSR and I'm thinking about getting some. How do you like the tire? Are you running a 205 on a 9" 6UL?

Still love the build.
I did have and run [email protected]" 6UL and it was ok. Did have too much power for those tires anyway but for mid 200whp car those are excellent
muoto is offline   Reply With Quote
