Old 05-19-2014, 08:50 AM   #301
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

muoto is offline   Reply With Quote
Old 05-19-2014, 11:19 AM   #302
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

where on that video does it start to slip?
Braineack is online now   Reply With Quote
Old 05-19-2014, 11:27 AM   #303
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Braineack View Post
where on that video does it start to slip?
3:22 & 8:21

it slips on 5th gear
muoto is offline   Reply With Quote
Old 05-31-2014, 12:55 PM   #305
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

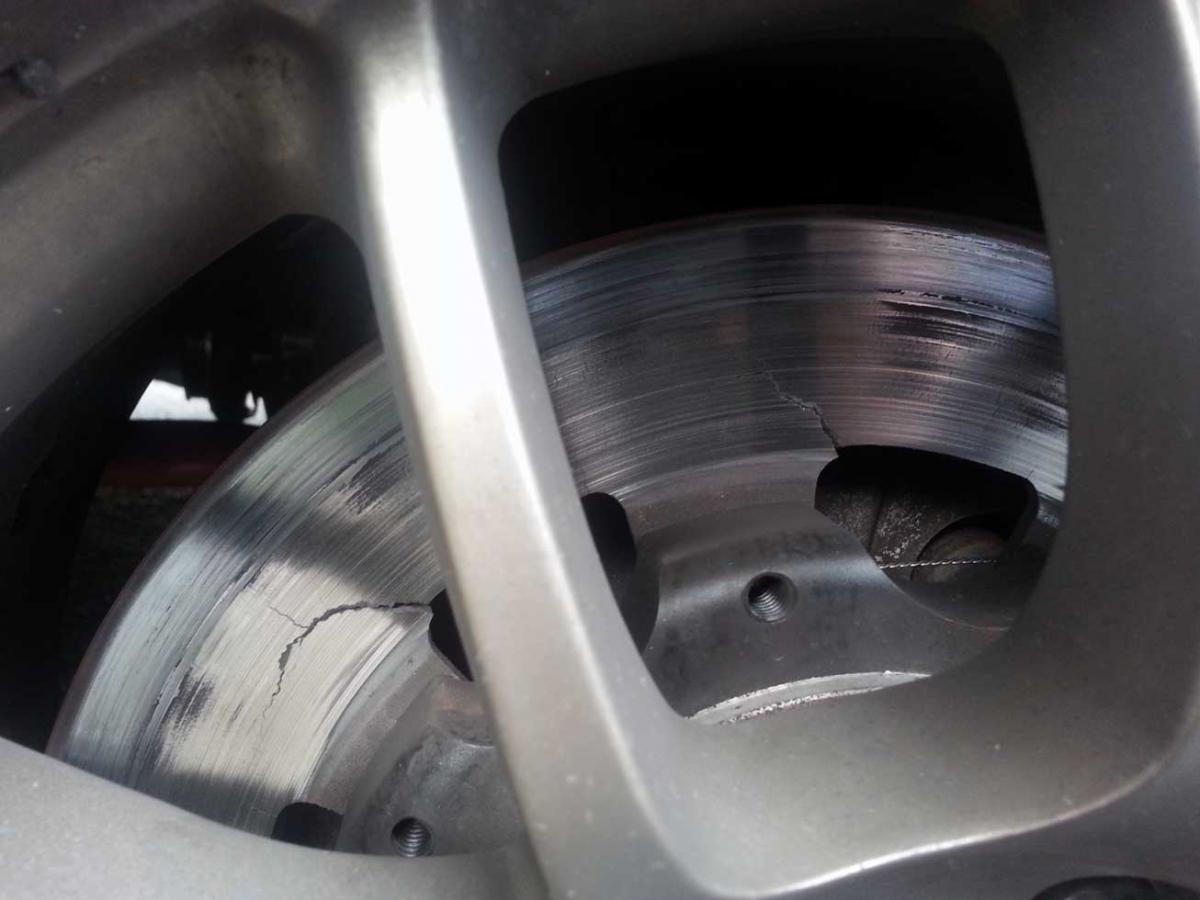

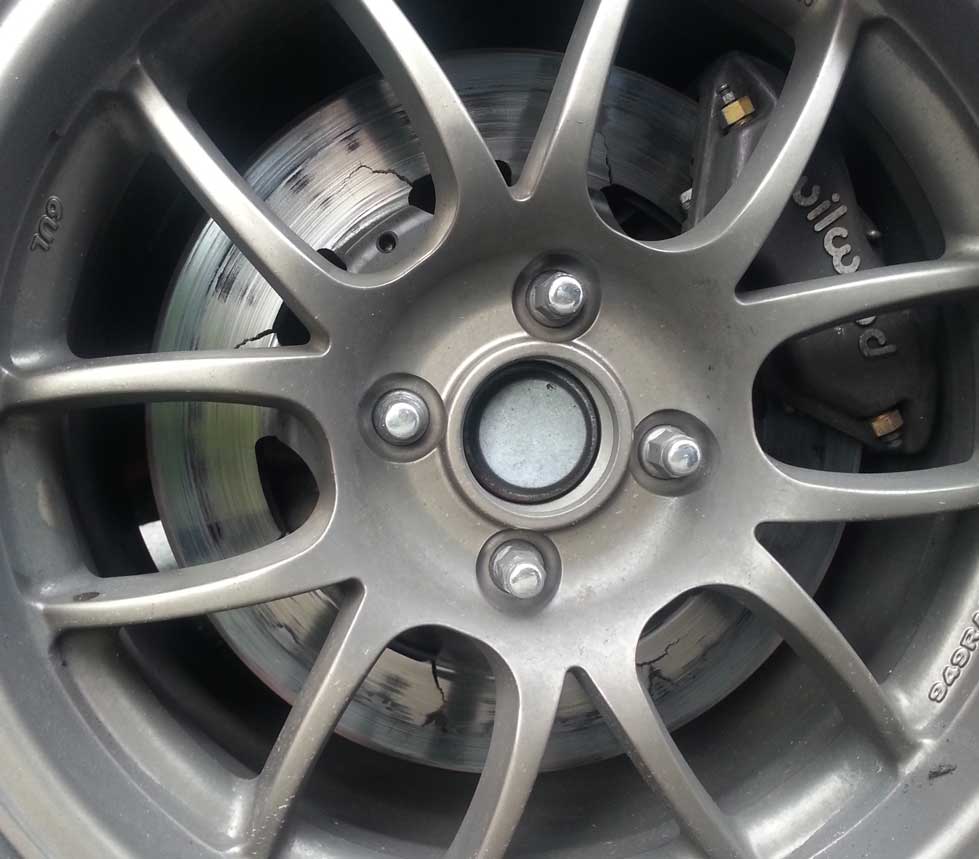

Can cold rain do this on track?
Attached Thumbnails
My turbo MX-5-2014-05-31-17.02.jpg   My turbo MX-5-2014-05-31-17.00.50.jpg
muoto is offline   Reply With Quote
Old 05-31-2014, 03:04 PM   #306
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Unless you're drowning them in liquid nitrogen after each session, I'm gonna say that's not healthy. TSE 11.75" kit?
Oscar is offline   Reply With Quote
Old 05-31-2014, 05:51 PM   #307
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

Those cracks! Before this, did you get vibrations when you stepped on the brakes?
Yezzir is offline   Reply With Quote
Old 05-31-2014, 06:40 PM   #308
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

wow that looks scary
18psi is offline   Reply With Quote
Old 05-31-2014, 06:59 PM   #309
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

That's absolutely terrifying. Glad no accident happened as a result.
turbofan is offline   Reply With Quote
Old 06-02-2014, 03:46 AM   #310
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Oscar View Post
TSE 11.75" kit?
yes

Quote:
Originally Posted by Yezzir View Post
Those cracks! Before this, did you get vibrations when you stepped on the brakes?
Didnít feel anything different. Only weird noise every time I was on brake
muoto is offline   Reply With Quote
Old 06-02-2014, 03:47 AM   #311
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Wow that could have ended badly! Glad you spotted it before it was too late!
timk is offline   Reply With Quote
Old 06-02-2014, 04:07 AM   #312
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by timk View Post
Wow that could have ended badly! Glad you spotted it before it was too late!
I drove 300km home from track before I noticed those cracks. Good thing we don’t have much traffic here

anyone know part no. for the TSE 11.75” BBK Wilwood ultralite rotor?

Last edited by muoto; 06-03-2014 at 02:45 AM.
muoto is offline   Reply With Quote
Old 06-02-2014, 01:30 PM   #313
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

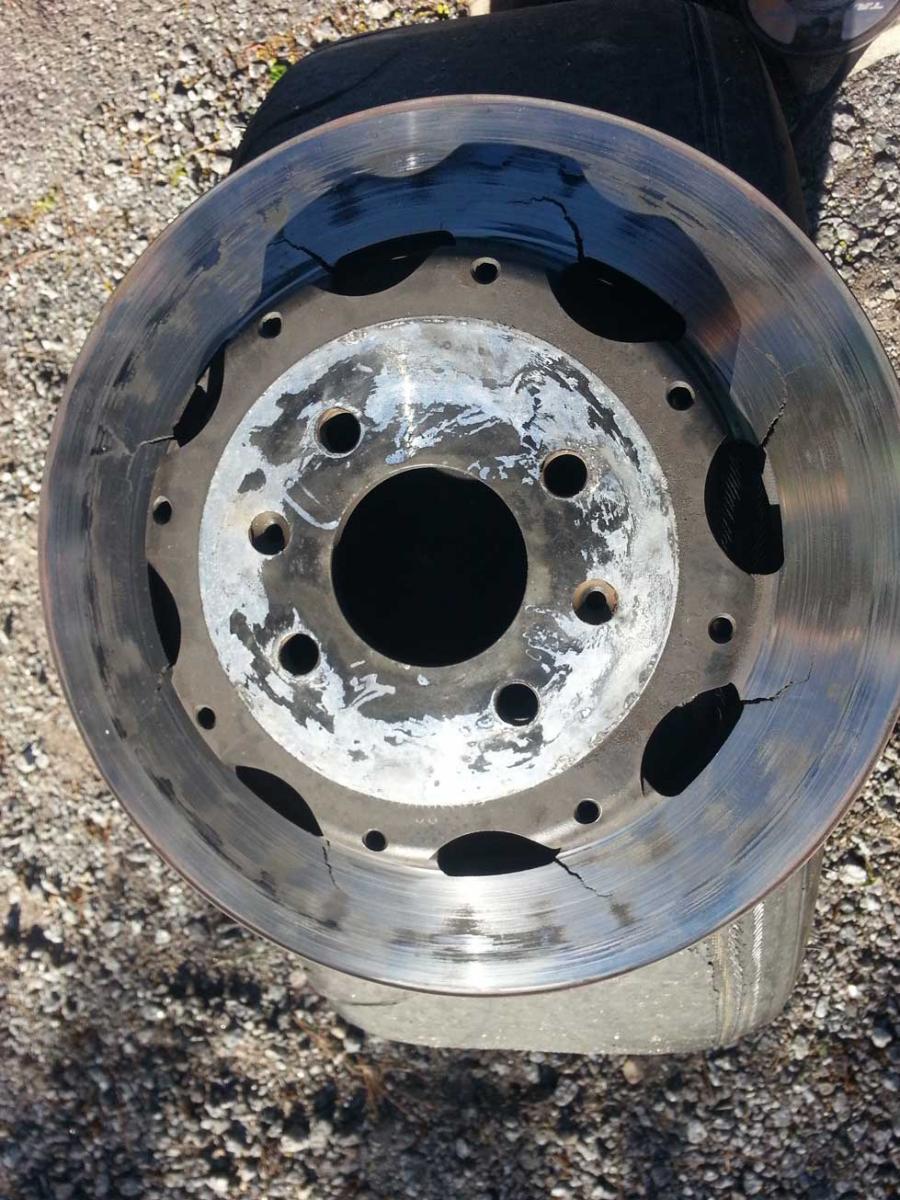

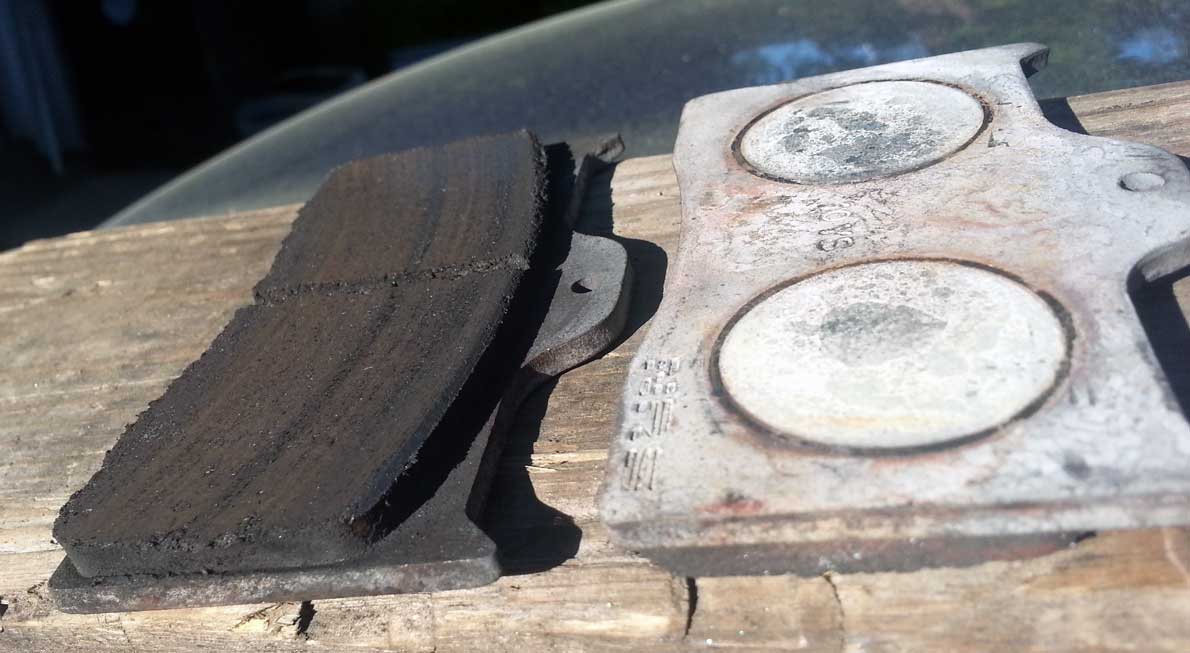

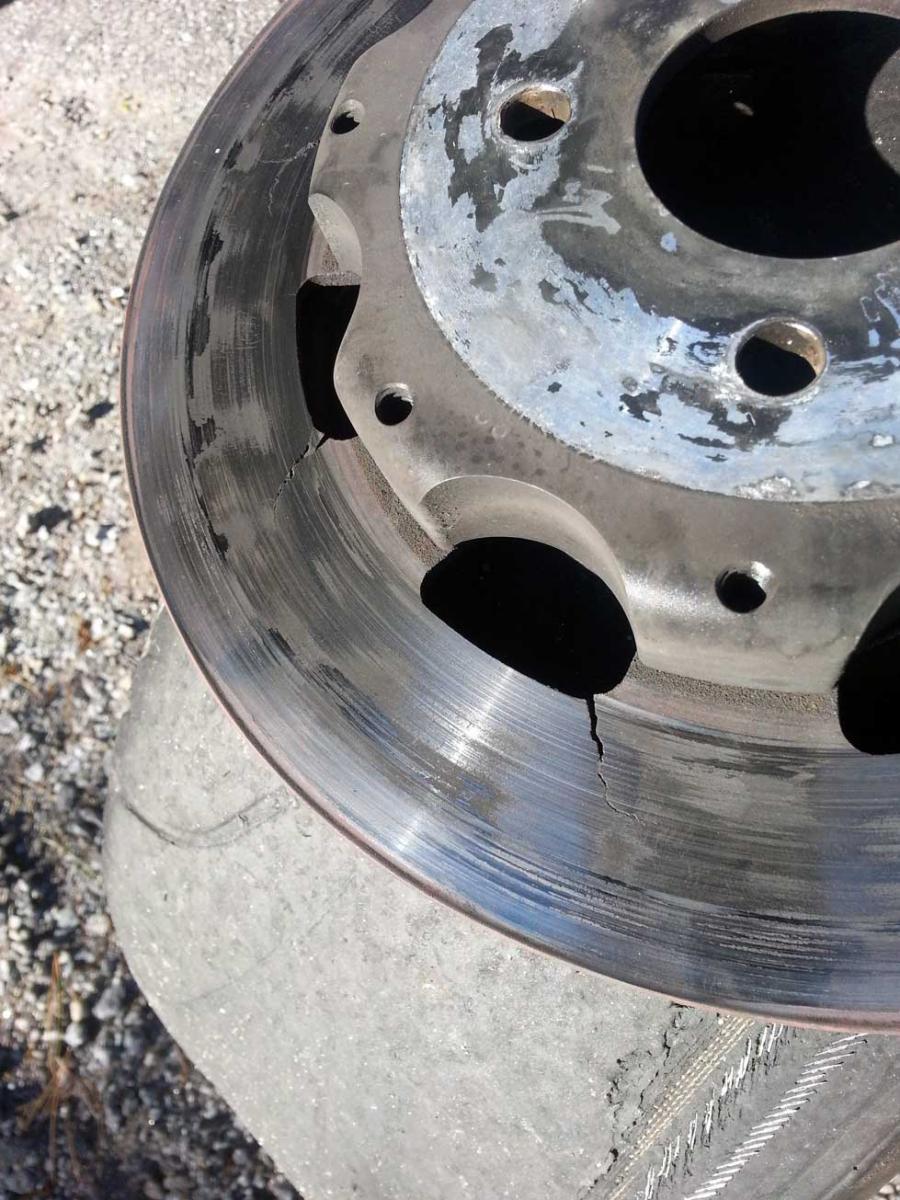

so what the hell
Attached Thumbnails
My turbo MX-5-2014-06-02-18.44.06.jpg   My turbo MX-5-2014-06-02-18.44.jpg   My turbo MX-5-2014-06-02-18.54.jpg
muoto is offline   Reply With Quote
Old 06-02-2014, 02:29 PM   #314
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,672
Total Cats: 1,561
Default

I bet thermal shock from being red hot and going through a puddle could easily do that.
sixshooter is online now   Reply With Quote
Old 06-02-2014, 02:32 PM   #315
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

do you Run an ABS system?

Quote:
Originally Posted by muoto View Post
I drove 300km home from track before I noticed those cracks. Good thing we don’t much traffic here

anyone know part no. for the TSE 11.75” BBK Wilwood ultralite rotor?
It's a standard 8x7" bolt pattern. I run the TSE kit on my personal car. We switched out the Wilwood rotors for a set of PFC rotors. The quality of the iron is substantially higher. the part number you need for the PFC is 299.20.0050.01/02 (01-drivers) (02- pass). We can get them for you. If you want to stick with the wilwood rotors you need a part# 160-12283

Last edited by OGRacing; 06-02-2014 at 05:43 PM.
OGRacing is offline   Reply With Quote
Old 06-03-2014, 02:52 AM   #316
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by OGRacing View Post
do you Run an ABS system?
Yes.



Quote:
Originally Posted by OGRacing View Post
It's a standard 8x7" bolt pattern. I run the TSE kit on my personal car. We switched out the Wilwood rotors for a set of PFC rotors. The quality of the iron is substantially higher. the part number you need for the PFC is 299.20.0050.01/02 (01-drivers) (02- pass). We can get them for you. If you want to stick with the wilwood rotors you need a part# 160-12283
Rotors that came with the TSE 11.75” kit are Wilwood Ultralite 32 Vane Rotor part.no. 160-0471. Maybe the cheapest ones you can get.

Local motorsport shop sells Ultralite HP rotors part.no.160-5841. To get the car running quickly again I probably gonna change that broken one with that

Last edited by muoto; 06-03-2014 at 04:35 AM.
muoto is offline   Reply With Quote
Old 06-03-2014, 04:34 AM   #317
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

few photos





muoto is offline   Reply With Quote
Old 06-03-2014, 12:23 PM   #318
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by muoto View Post
Yes.
That cracking is caused by the ABS system. Your rotors are reaching thermal capacity and then the system hammers the brakes on/off/on/off/on/off. a OEM abs system can destroy some of the toughest rotors.
OGRacing is offline   Reply With Quote
Old 06-03-2014, 02:09 PM   #319
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by OGRacing View Post
That cracking is caused by the ABS system. Your rotors are reaching thermal capacity and then the system hammers the brakes on/off/on/off/on/off. a OEM abs system can destroy some of the toughest rotors.
I think you are right! Just look at my front tires from that last brake disc picture. There’s hardly any surface left and it felt like that in track. ABS was kicking whole time

Thanks OGRacing! Now I can sleep again
muoto is offline   Reply With Quote
Old 06-03-2014, 05:18 PM   #320
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by muoto View Post
I think you are right! Just look at my front tires from that last brake disc picture. Thereís hardly any surface left and it felt like that in track. ABS was kicking whole time

Thanks OGRacing! Now I can sleep again
Any time you have need brake/safety tech let us know. We have field reps all over. We see more than 150 events a year.
