Old 07-22-2013, 10:44 AM   #221
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by muoto View Post
Now I just need that new twin disc clutch and more boost. Then I can go after Evo 8 and SC Elise which are ahead of me in points. Adding horsepower is best way to compensate my lack of track experience.
Horsepower and hoosiers made my car way easier to drive. You can get avons true slicks WAY easier than we can since you're in Europe, run some of those bad boys.
Leafy is offline   Reply With Quote
Old 07-22-2013, 10:57 AM   #222
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
Horsepower and hoosiers made my car way easier to drive. You can get avons true slicks WAY easier than we can since you're in Europe, run some of those bad boys.
It’s a shame that they are prohibited in my Club –class (i.e. modified street cars). Tire rule is TW140 and in Europe we don’t have much R15 225/45 street tires. RS-3 and BFG Rivals apparently don’t have some European road approval thing. I guess next year I have to ship tires from US


edit: Superlap video. Sorry 'bout the sound, ...or lack of it:

Last edited by muoto; 07-22-2013 at 12:34 PM.
muoto is offline   Reply With Quote
Old 08-12-2013, 05:17 AM   #223
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Short but cool video from last Saturday’s race


Unfortunately Competition Clutches sent me wrong pressure plate for my twin disc. So I had to drive with the old worn clutch and lower the boost to ~10psi which feels like slow N/A.

Last edited by muoto; 08-13-2013 at 03:09 AM.
muoto is offline   Reply With Quote
Old 08-12-2013, 12:57 PM   #224
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

damn that track looks like fun!
m2cupcar is offline   Reply With Quote
Old 08-12-2013, 02:18 PM   #225
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Brought back good memories from Ahvenisto! And nice driving car works well too since you had to lift to the tower corner even with cone chicane!
hrk is offline   Reply With Quote
Old 08-12-2013, 02:54 PM   #226
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

SO AWESOME. I lol'd @ 10psi feeling like slow NA, but I'm sure that is true with the power you are used to. Still looked awesome and quick. Love the data overlay on the video too. Bueno.
Fireindc is offline   Reply With Quote
Old 08-14-2013, 05:16 PM   #227
Junior Member

Join Date: Mar 2012
Posts: 56
Total Cats: 8
Default

wow. just wow!
ardler_dan is offline   Reply With Quote
Old 08-16-2013, 05:24 AM   #228
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

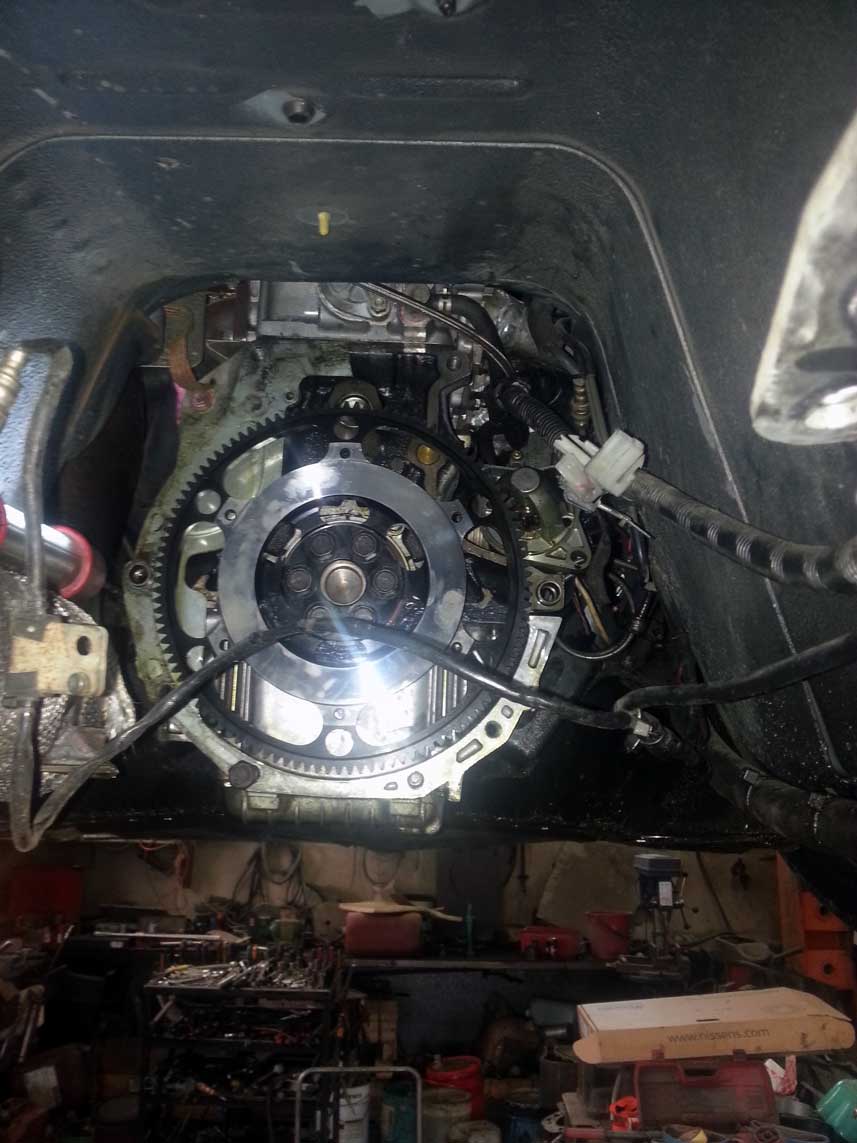

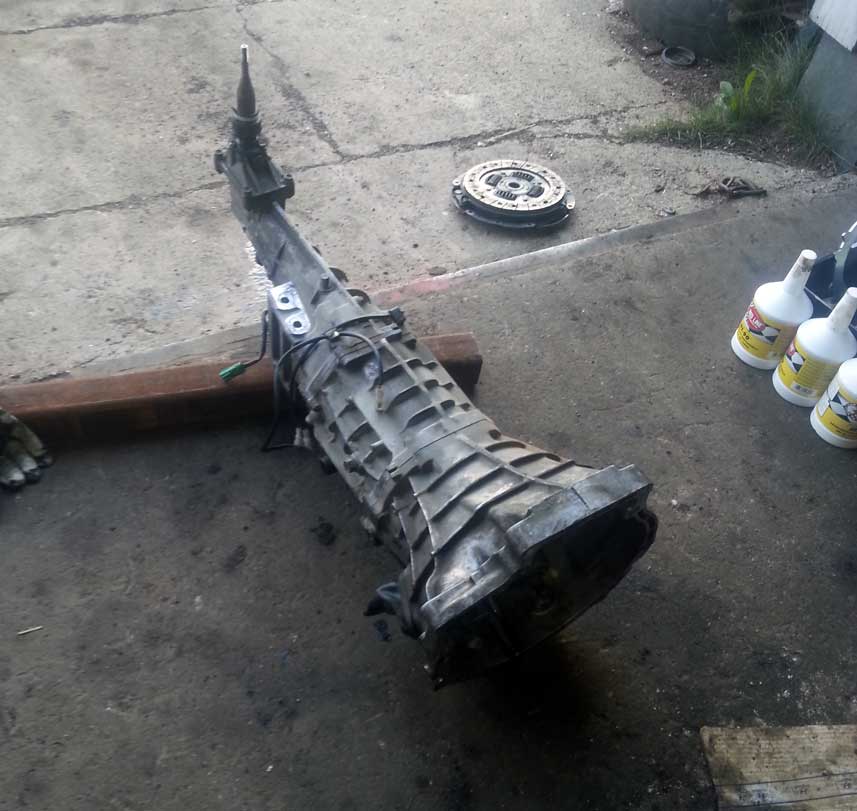

Competition Clutch twin disc is in




It took 8 hours to change. I could have gone faster with beer

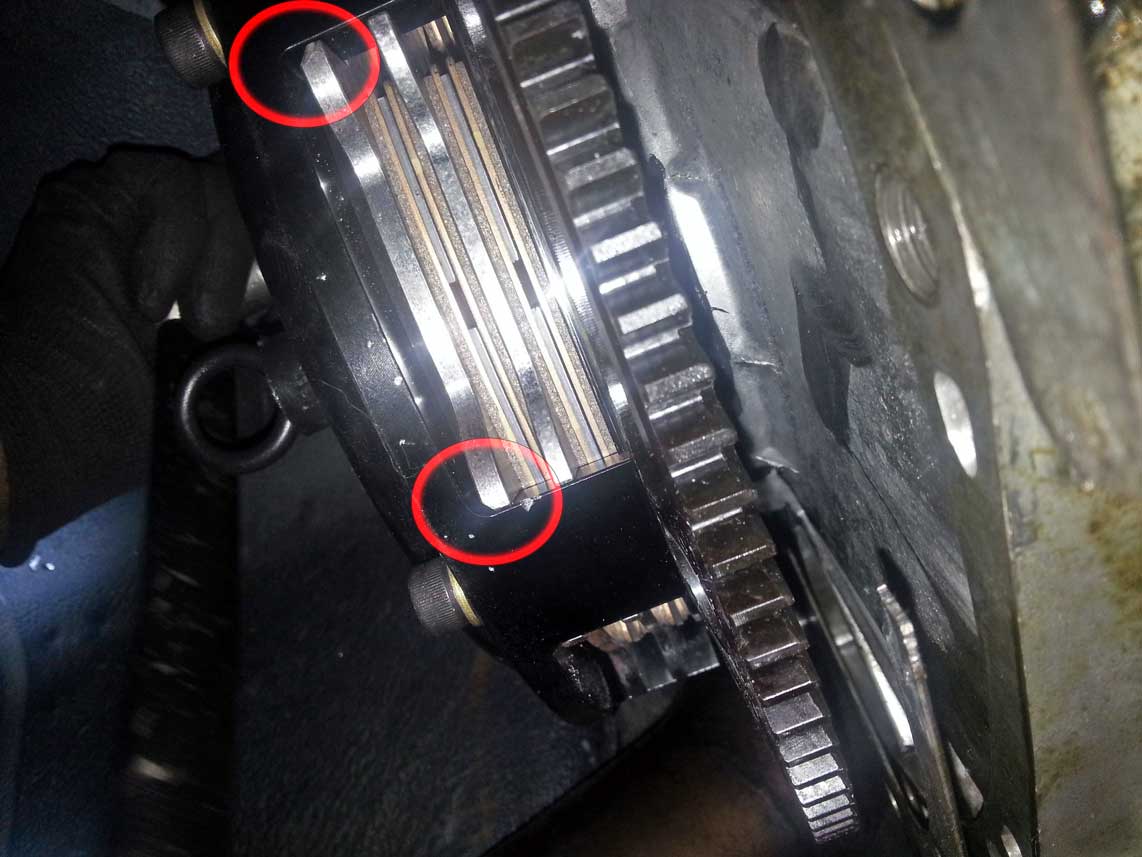

And hereís why it take so long me to get that new clutch. Competition clutch had to make new pressure ring with chamfered drive flanges. With the original pressure ring, the clutch will not disengage.
Attached Thumbnails
My turbo MX-5-2013-08-15-20.11.jpg   My turbo MX-5-vv2013-08-15-19.39.jpg   My turbo MX-5-rrr2013-08-15-20.23.jpg
muoto is offline   Reply With Quote
Old 08-23-2013, 07:22 AM   #229
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Did a quick tracktest with the new clutch. Next Tuesday I’m going to the same track again and do a longer test drive. It’s my local track. Nicely renewed as you can see from the asphalt

@ 18-19psi

There were few corners when I had trouble getting in third gear. On the way home I notice that fifth gear won’t go in every time. This morning I find out that when in stationary fifth and reverse won’t work anymore! ****.. It has to be something with the gear selector rod etc...
muoto is offline   Reply With Quote
Old 08-23-2013, 08:25 AM   #230
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

lol @ 949racing box sliding around in passenger floorboard.
sixshooter is offline   Reply With Quote
Old 08-23-2013, 09:18 AM   #231
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

It has changed quite a bit, new extension seems to be good improvement from original set up.
It was hometrack fo me as well, about 30 km where I was born.
hrk is offline   Reply With Quote
Old 08-23-2013, 09:23 AM   #232
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

that car looks like it really gets going fast; must not have a 1.6L.
Braineack is offline   Reply With Quote
Old 08-29-2013, 05:10 AM   #233
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Here's longer testing/practice session from last Tuesday

first run:
- Boost settings are wrong. Boost drop to 15psi near redline
- AFRís are also off. 12.5:1 towards the redline.
- After six laps my TSE 11.75Ē brakes started to fade. Must be due to street brake pads (Hawk HP+).
- Water temp went to +111c. A new record



second run:
- Boost map fixed. 18-19psi whole time
- AFRís fixed as well.
- Occasional boost-cut at 22psi. I had to fine tune my PID settings more
- Injectors are now officially max out. Fuel pressure is 90psi and injector DC is 94% near the redline
muoto is offline   Reply With Quote
Old 08-29-2013, 09:51 AM   #234
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Time for some of those ID1300s Savington was talking about.
thenuge26 is offline   Reply With Quote
Old 08-29-2013, 10:11 AM   #235
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by thenuge26 View Post
Time for some of those ID1300s Savington was talking about.
muoto is offline   Reply With Quote
Old 08-29-2013, 09:55 PM   #236
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

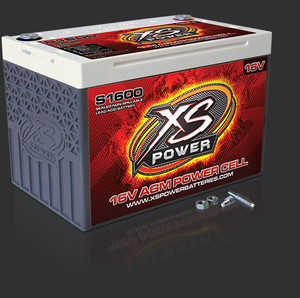

No need for new injectors, just raise (somehow) voltage to 16V

Can you dyno it? And I wonder if your 3.5" downpipe makes any difference. I thought about going bigger but everyone says that 3" is more than sufficient.
soviet is offline   Reply With Quote
Old 08-29-2013, 10:52 PM   #237
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Attached Thumbnails
My turbo MX-5-%24t2ec16v-yke9s7tw3rvbrdeolis1g%7E%7E60_35.jpg
miata2fast is offline   Reply With Quote
Old 08-29-2013, 10:57 PM   #238
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

the racerender gauges thing is AWESOME.

many props to you for that.

seriously love it.

if only it would read in MPH
18psi is offline   Reply With Quote
Old 08-29-2013, 11:04 PM   #239
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by soviet View Post
No need for new injectors, just raise (somehow) voltage to 16V

Can you dyno it? And I wonder if your 3.5" downpipe makes any difference. I thought about going bigger but everyone says that 3" is more than sufficient.
He's still running old EV6 style injectors, so the ID1300s will be an improvement in more than 1 way.

I haven't considered doing a 3.5" downpipe, but if there's room then why not. My plan is to build something like the Wittyworks setup you have, what do you think, is there room for it?
thenuge26 is offline   Reply With Quote
Old 08-29-2013, 11:07 PM   #240
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I'd like to see good pics of these 3.5 dp's clearing everything because the last couple that we fabricated it was super tight in there, and that was with just a 3"
18psi is offline   Reply With Quote
