Old 01-28-2015, 02:59 PM   #341
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Thanks for the info. I ordered them a week or so ago but it's good to hear confirmation of that, I won't be running tons of power (or likely hardly any power) for the time being.

You can always post more pics BTW
turbofan is offline   Reply With Quote
Old 01-28-2015, 03:03 PM   #342
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

new pics are coming as soon as I start rebuilding my engine
muoto is offline   Reply With Quote
Old 02-20-2015, 08:09 AM   #343
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

engine rebuild has begun! some new pics







Pistons look clean. Remember this engine had run with E85



wait...wut?



That explains all the noise

My supermiata damper got loose, started to vibrate and looks like it crack the crank in half Am I first?
muoto is offline   Reply With Quote
Old 02-20-2015, 08:36 AM   #344
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

That's the first Miata crank I've seen broken through the #1 crank throw.
sixshooter is offline   Reply With Quote
Old 02-20-2015, 09:57 AM   #345
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

you're certainly in the first handful lol

that's some impressive carnage, congrats for making MAN torque
18psi is offline   Reply With Quote
Old 02-20-2015, 11:14 AM   #346
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,576
Total Cats: 154
Default

Quote:
Originally Posted by 18psi View Post
you're certainly in the first handful lol

that's some impressive carnage, congrats for making MAN torque
Looks like less of a power related failure and more of an installation/part failure. Like he said, the damper slipping off and wobbling like crazy fucked thay crank up.
Ryan_G is offline   Reply With Quote
Old 02-22-2015, 02:35 PM   #347
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Don't think I've ever seen a crank failure, before.
viperormiata is offline   Reply With Quote
Old 02-23-2015, 06:47 AM   #348
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Ryan_G View Post
Like he said, the damper slipping off and wobbling like crazy fucked thay crank up.
You're right sir.

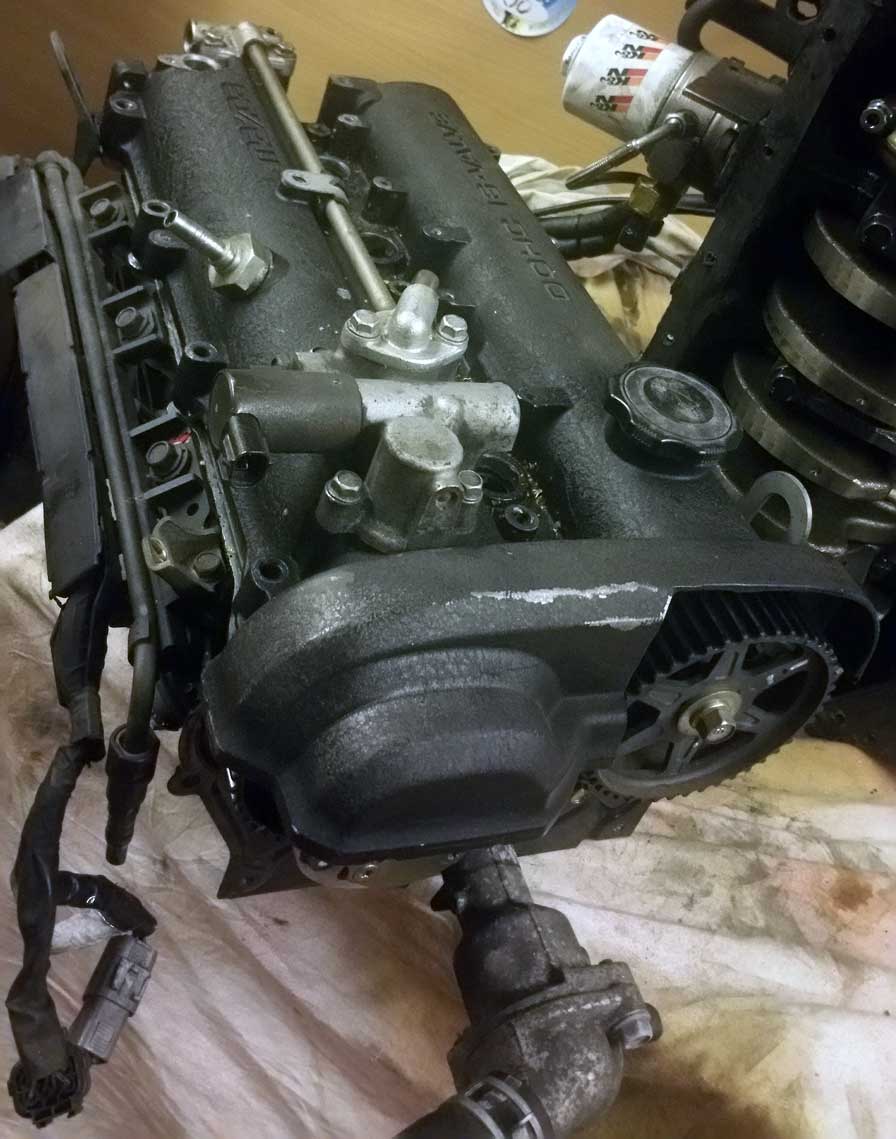

Also I just bought VVT head. I was thinking something like supertech springs & SUB’s. Make it “8000rpm proof”
Attached Thumbnails
My turbo MX-5-2015-02-23-18.41.jpg

Last edited by muoto; 02-23-2015 at 01:05 PM.
muoto is offline   Reply With Quote
Old 02-23-2015, 07:52 AM   #349
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Super keen to see how you go with the VVT head.

Were the rods and pistons salvageable?
timk is offline   Reply With Quote
Old 03-02-2015, 03:37 AM   #350
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default


Supertech rods and pistons were OK




Only damage was that ~0.1mm notch in #1 main bearing cap. I don't think that matter




So;
-new crank
-new bearings
-new m-tuned oil pump
-ARP main bearing bolts. (maybe)

...and balance everything
muoto is offline   Reply With Quote
Old 03-20-2015, 09:04 AM   #351
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Found an old crank back of my garage



It look OK apart from one journal which I have to polish and maybe use bigger bearing with that

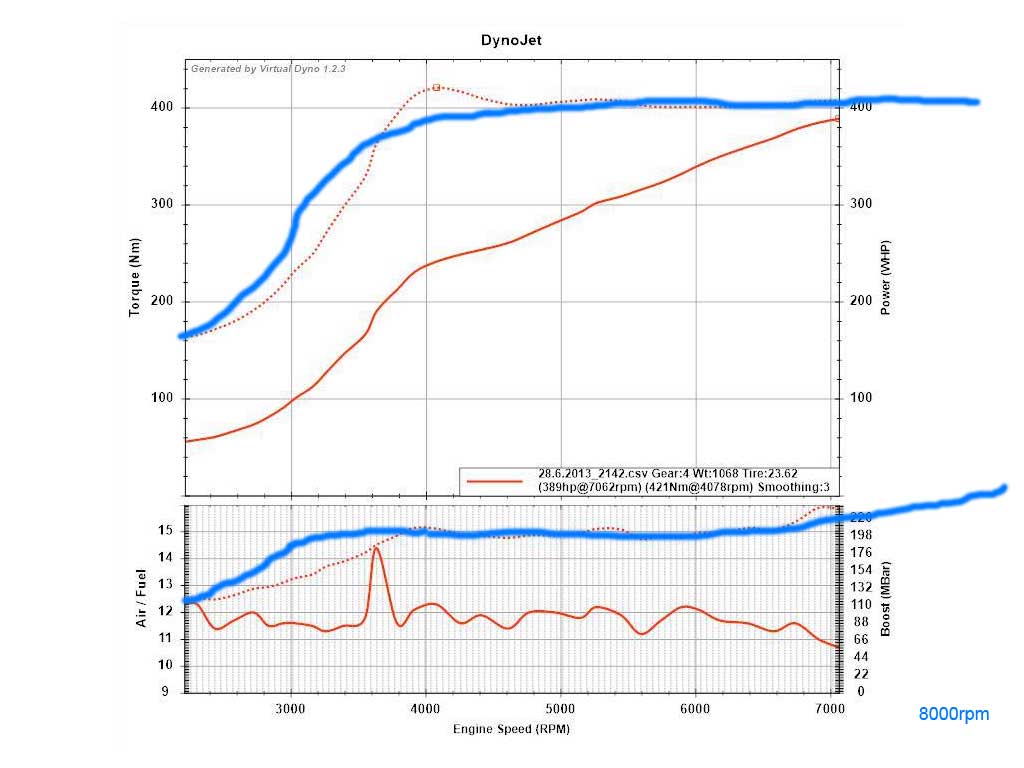

Here's what I wish to achieve with the build VVT head:


A much wider powerband. Make it spool ~300rpm quicker with the VVT cam. Lower midrange torque by retard timing from 21 to 18deg, this to make 6speed's last longer. And then as the torque start to decline just add boost to compensate and keep that flat torque line as long as possible with these stock cams.

mMMm....3500-8000rpm torque curve
Attached Thumbnails
My turbo MX-5-ukdvd.jpg
muoto is offline   Reply With Quote
Old 03-20-2015, 09:08 AM   #352
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Dont retard that midrange timing, just run less boost there.
Leafy is offline   Reply With Quote
Old 03-20-2015, 09:17 AM   #353
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
Dont retard that midrange timing, just run less boost there.
Wish it was that simple with internal WG Well I'll try port the turbine housing and see if I can get it work any better..or quicker I mean
muoto is offline   Reply With Quote
Old 03-20-2015, 10:42 AM   #354
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

ARP would be good insurance to keep the caps tight. New crank looks like it needs undersized bearings. Good luck.
hrk is offline   Reply With Quote
Old 03-20-2015, 10:51 AM   #355
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by hrk View Post
ARP would be good insurance to keep the caps tight. New crank looks like it needs undersized bearings. Good luck.
ARP main bolts ordered. Although I didn't have any problems with the stock ones

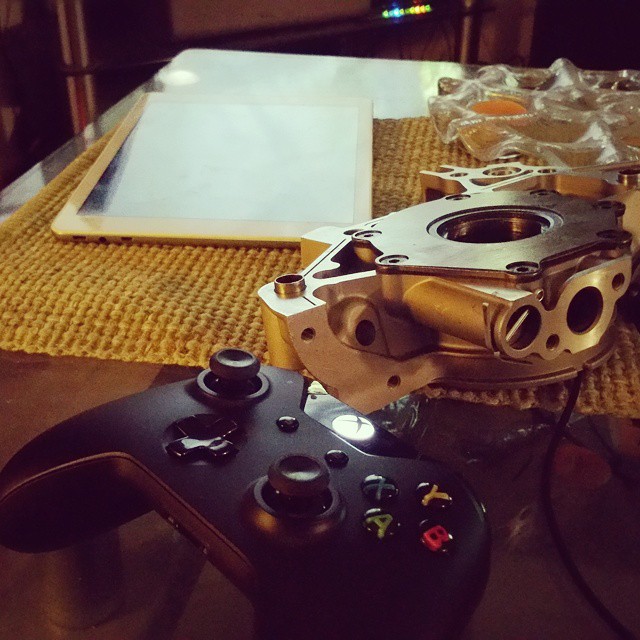

Also there's M-Tuned billet oil pump waiting
Attached Thumbnails
My turbo MX-5-10408025_10153171190137661_6950597618092475782_n.jpg
muoto is offline   Reply With Quote
Old 05-05-2015, 01:23 PM   #356
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default


painted


I hope this will stop my oilpressure dropping while braking
muoto is offline   Reply With Quote
Old 05-05-2015, 10:30 PM   #357
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Cool DIY baffle, I hope it works!
timk is offline   Reply With Quote
Old 05-06-2015, 12:05 PM   #358
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

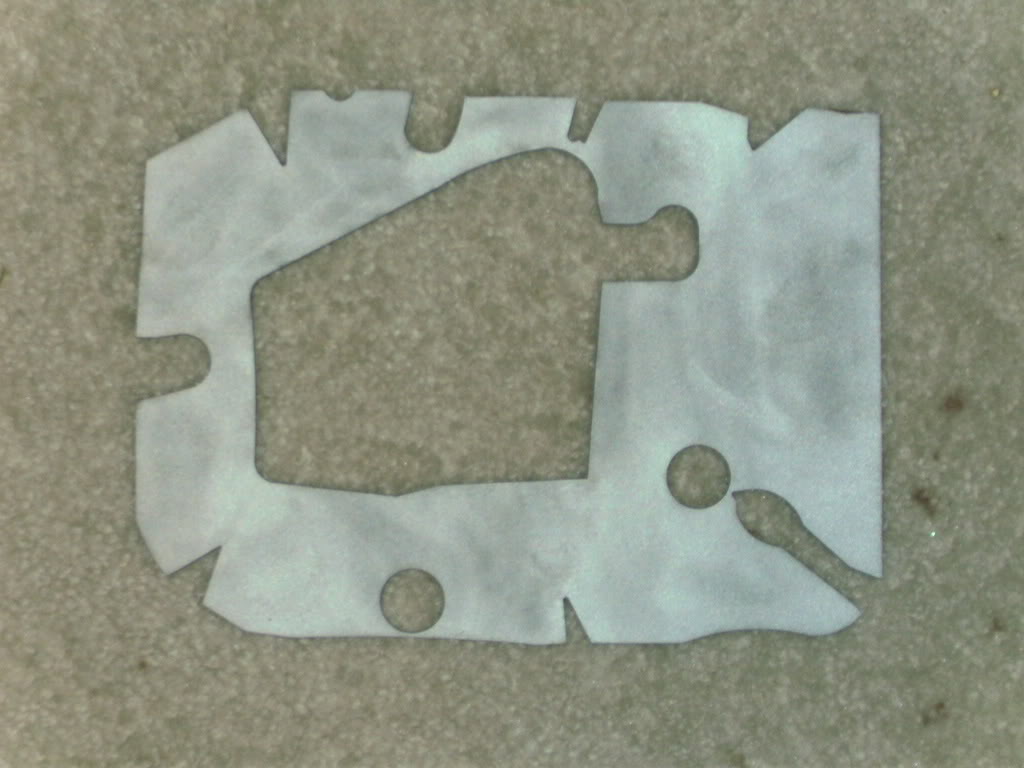

I'd go even further with the baffle- all the way around- like prod racers:
Attached Thumbnails
My turbo MX-5-oilpanbaffle.jpg
m2cupcar is offline   Reply With Quote
Old 05-07-2015, 08:38 AM   #359
Junior Member
Thread Starter

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

I think about it but oil can escape in only direction there. Plus I haven’t notice any pressure drops on cornering, only when I braking:

muoto is offline   Reply With Quote
Old 05-07-2015, 09:14 AM   #360
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Everyone has their tricks. I add one extra quart to the pan for track duty. I know the oil needs to drain by gravity out of the head and that most of the draining happens at the rear of the engine. I worry with high revving that it is pumping a lot of oil up to the top of the engine that doesn't have much time to get back down to the pan. I also like to think it reduces the propensity for the oil to heat up quickly because of the added volume.
sixshooter is offline   Reply With Quote
