Old 04-19-2016, 04:34 PM   #1301
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 558
Default

Js11
hi_im_sean is offline   Reply With Quote
Old 04-19-2016, 04:37 PM   #1302
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

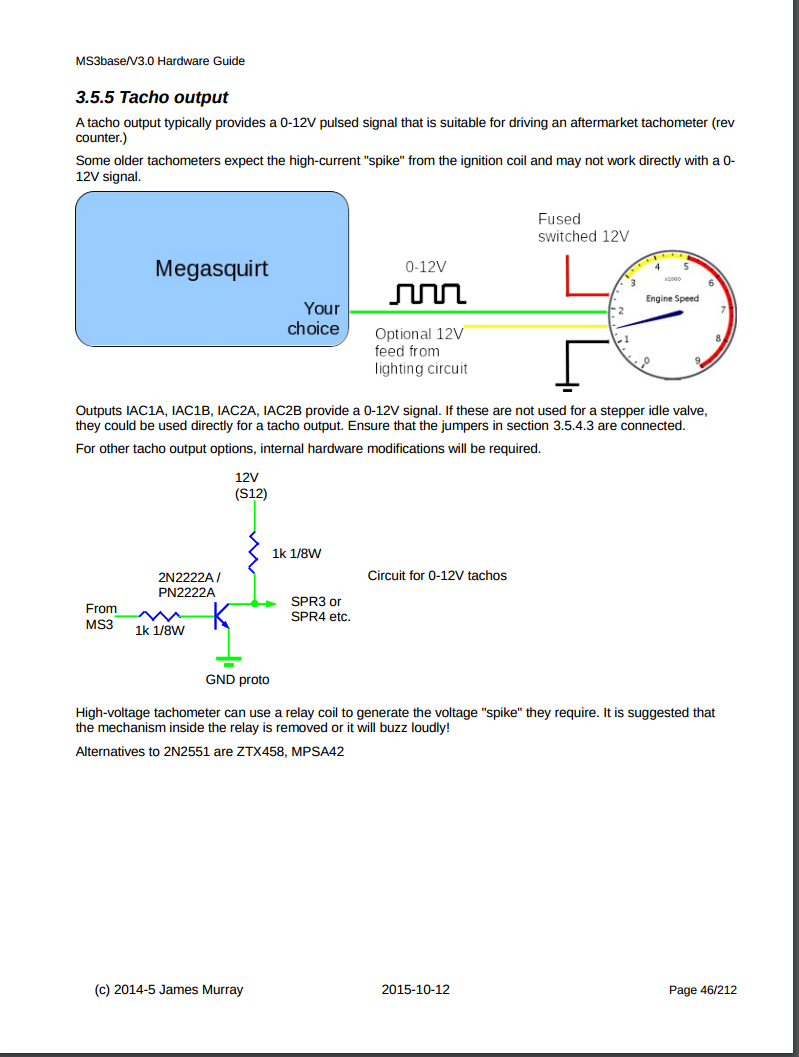

The manuel agrees with you

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-flucgvc.png
aidandj is offline   Reply With Quote
Old 04-19-2016, 06:12 PM   #1303
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 558
Default

Well, that one does.

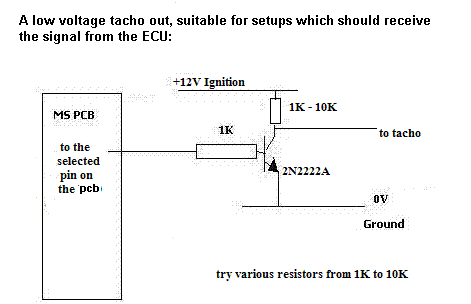

"Due to the vast amount of tacho's out there it is very difficult to give a suitable diagram, but these have worked for several installation:

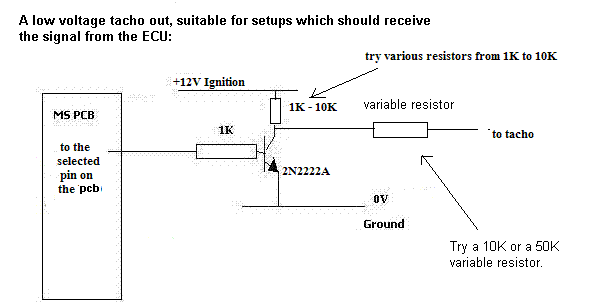

If the above examples don't work then try fitting a variable resistor in line with the tacho signal and adjust the pot untill it works:



"


Someone here has to have, or had, a proto/diy based tach output to verfiy the circuit works...

Its easy enough, might just go wire in a pot, after i verify the MS is outputting a good signal
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-lowvtacho.gif   sean's cheap thrills, 90 1.6 with subaru td04-lowvariabletacho.gif
hi_im_sean is offline   Reply With Quote
Old 05-11-2016, 09:33 AM   #1304
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 558
Default

Today is the day. The day of reckoning.

Bets?
1.Sean- 2000wtq
2.


Changed the oil yesterday, I now have a little over 600 miles on the motor and it seems to be running great, sealed up well, no leaks. Ill crack the oil filter open when I get a chance.

I have only been able to scope out the tach, and it appears the MS is outputting 0-12V garbage. Looks like i need toy with that circuit, ill see what the output from the daughter board looks like first I suppose.
hi_im_sean is offline   Reply With Quote
Old 05-11-2016, 09:36 AM   #1305
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

I broke 200ft/lbs. I think you will get closer to 220.

I wanna see over 20psi
aidandj is offline   Reply With Quote
Old 05-11-2016, 09:42 AM   #1306
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Tulsa
Posts: 175
Total Cats: 16
Default

NO WINDOWS IN THE BLOCK = SUCESS
dr_boone is offline   Reply With Quote
Old 05-11-2016, 09:56 AM   #1307
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

I expect nothing less than 250tq

even on a 1.fail that should be possible
18psi is offline   Reply With Quote
Old 05-11-2016, 10:33 AM   #1308
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

Injectors are questionable at 250.

I'm at 75% DC at 200ish ft/lbs.
aidandj is offline   Reply With Quote
Old 05-11-2016, 10:35 AM   #1309
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

injectors don't top out in the midrange where he should be making torque
18psi is offline   Reply With Quote
Old 05-11-2016, 10:36 AM   #1310
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

I mean he could futz with the table so he has a torque spike then pull boost. But thats just a dyno queen thing.
aidandj is offline   Reply With Quote
Old 05-11-2016, 10:39 AM   #1311
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 466
Total Cats: 22
Default

232whp and 205 lb/ft on pump gas

Will you be doing any E85 on the car?
90civichhb is offline   Reply With Quote
Old 05-11-2016, 10:43 AM   #1312
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

Quote:
Originally Posted by aidandj View Post
I mean he could futz with the table so he has a torque spike then pull boost. But thats just a dyno queen thing.
midrange torque makes a dyno queen?

u srs?

btw the boost would likely taper on it's own

Quote:
Originally Posted by 90civichhb View Post
232whp and 205 lb/ft on pump gas

Will you be doing any E85 on the car?
plots?
18psi is offline   Reply With Quote
Old 05-11-2016, 10:44 AM   #1313
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 558
Default

I should have mentioned this will be ACN 91 **** water. TD04-13T ALLOFIT (or whatever hits a wall first. im with vlad on that one. DC should be fine for mid range spike, and turbo will taper to whatever it tapers to)

E85 pending injector duty results from **** water tune.
hi_im_sean is offline   Reply With Quote
Old 05-11-2016, 10:45 AM   #1314
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

I'm still holding out for injectors going first. But for no reason other than to be different.

#notmainstream
aidandj is offline   Reply With Quote
Old 05-11-2016, 10:46 AM   #1315
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 558
Default

Quote:
Originally Posted by aidandj View Post
I'm still holding out for injectors going first. But for no reason other than to be different.

#notmainstream
And i have $5 on Mr. Daly for injectors at what HP or TQ, sir?
hi_im_sean is offline   Reply With Quote
Old 05-11-2016, 10:47 AM   #1316
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

Just injectors before turbo.
aidandj is offline   Reply With Quote
Old 05-11-2016, 10:49 AM   #1317
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

which injectors does he have?

and we need to establish the method that will be used to determine that they are indeed maxed out. ie: leaning out despite adding fuel to ve table
idc aint really accurate
my stockers were at something like 120-130% on the msm before it leaned out
18psi is offline   Reply With Quote
Old 05-11-2016, 10:56 AM   #1318
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 558
Default

The mustang 610ccs. Im letting the tuner figure out max.

aaron?
hi_im_sean is offline   Reply With Quote
Old 05-11-2016, 10:56 AM   #1319
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

He said he isn't going to run them past 90%.

GT500's
aidandj is offline   Reply With Quote
Old 05-11-2016, 10:58 AM   #1320
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,833
Total Cats: 558
Default

I'm not sure my tuner will even go to 90.
hi_im_sean is offline   Reply With Quote
