Old 01-26-2016, 06:37 PM   #1141
Junior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 363
Total Cats: 20
Default

Nice, isn't it?
Roda is offline   Reply With Quote
Old 01-26-2016, 06:50 PM   #1142
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 656
Total Cats: 80
Default

I've got 5 year tags as well lol.
Arca_ex is offline   Reply With Quote
Old 01-26-2016, 07:48 PM   #1143
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default

Quote:
Originally Posted by Roda View Post
Nice, isn't it?
It's awesome

Quote:
Originally Posted by Arca_ex View Post
I've got 5 year tags as well lol.
Emissions exempt?
hi_im_sean is online now   Reply With Quote
Old 01-26-2016, 07:57 PM   #1144
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 656
Total Cats: 80
Default

Quote:
Originally Posted by hi_im_sean View Post
Emissions exempt?
Yup. Also has normal insurance.

I think emissions exempt is the only way to get a 5 year tag since the requirement is every 2 years.
Arca_ex is offline   Reply With Quote
Old 01-26-2016, 08:13 PM   #1145
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default sean's cheap thrills, 90 1.6 with subaru td04

Well how the fuu....

Edit-nm

Last edited by hi_im_sean; 01-26-2016 at 08:24 PM.
hi_im_sean is online now   Reply With Quote
Old 02-19-2016, 10:45 PM   #1146
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default

Well, this took way longer than it should have, but its done!

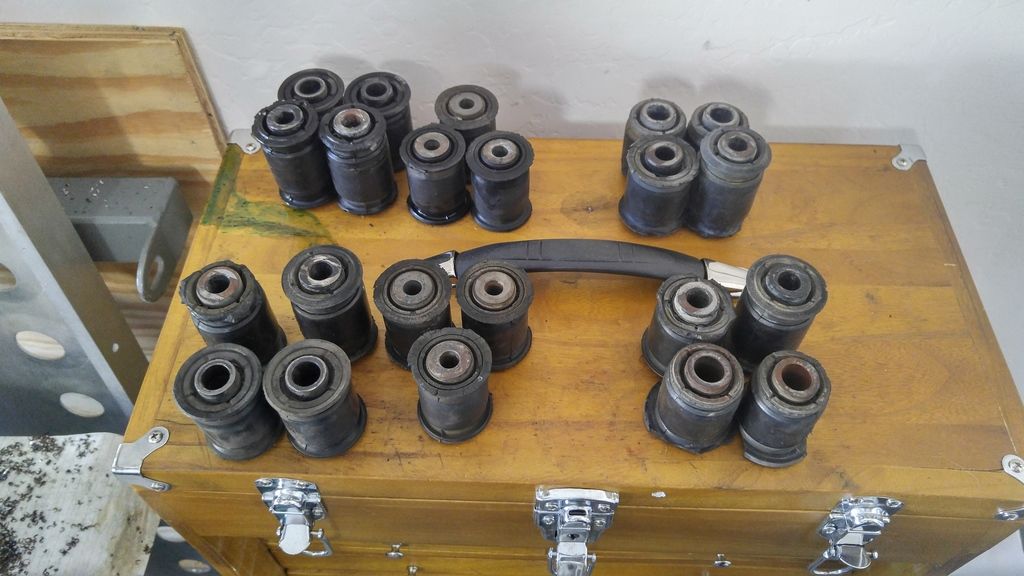

Ive only driven it a few miles so I only have an initial impression, but its fuking awesome. The delrin introduced less NVH than I though it would, but I already had a pretty good amount of NVH with my motor mounts and the FLCA bushings were already delrin offsets. Everything feels tighter and you can tell the suspension isnt moving under load as much.

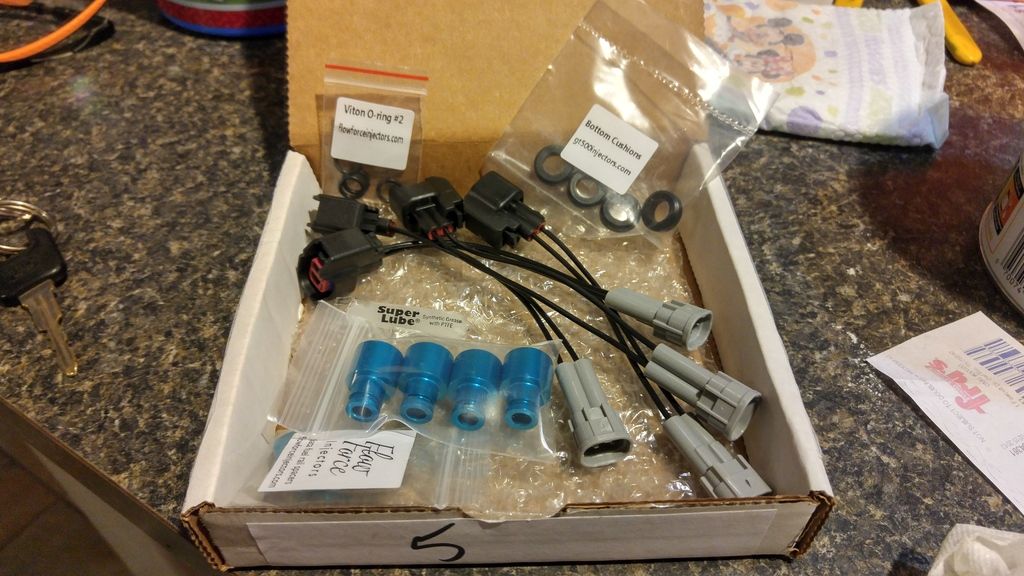

Also had nigelt send em some awesomeness.



Now I should have enough injector to use the torque capacity of a 6 speed, which im still looking for at a decent price.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20160217_153926_hdr_zpsy8iau6el_98899c6763a8cd6a8651e3f82549d7f88a3bccb8.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-adele_finger_2_jpeg_1272723e538d9dc125e7256fcdc032f9a210382c.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160219_182712_hdr_zpspkuvel3h_7d3e190df04e868d1d9211bd65e486cb3836e96f.jpg
hi_im_sean is online now   Reply With Quote
Old 02-21-2016, 03:43 PM   #1147
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default

Can anyone tell me the best PWM freq. to run a MAC valve or EBC?
hi_im_sean is online now   Reply With Quote
Old 02-21-2016, 03:46 PM   #1148
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,416
Total Cats: 186
Default

I think 30-40 hz should be right. Make sure you have a diode across it though, that's important for it to work right.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 04:02 PM   #1149
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

yes 19.5hz works best for the DIY valve.

I don't know anything about a diode, I don't use one and EBC works fine
deezums is offline   Reply With Quote
Old 02-21-2016, 05:12 PM   #1150
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default

Already have the diode (for flyback) in the megasquirt.
hi_im_sean is online now   Reply With Quote
Old 02-21-2016, 05:48 PM   #1151
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default

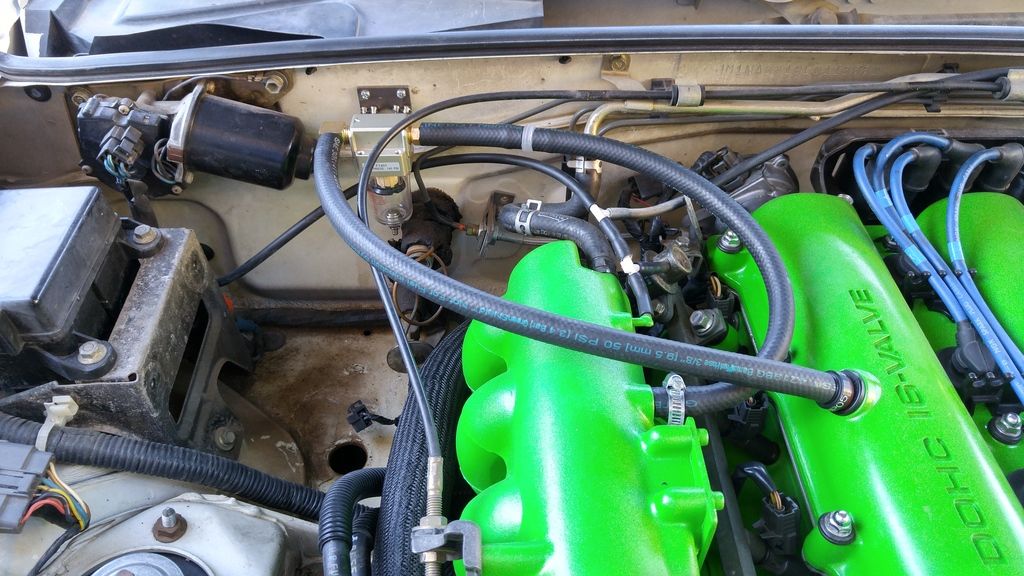

The deezums catch can. I like how clean the install is.

I have $20 and about 1 hour invested.




Also, i have been tooling around on the stock PVC up until today for about the last 60 miles now without the dipstick popping. YYUUSSSSSSS!!!!!

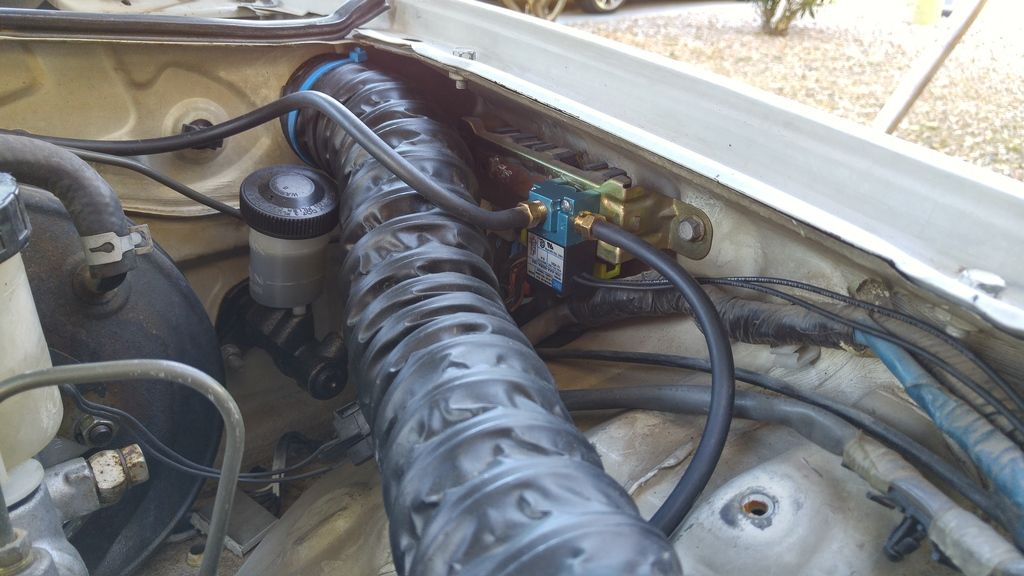

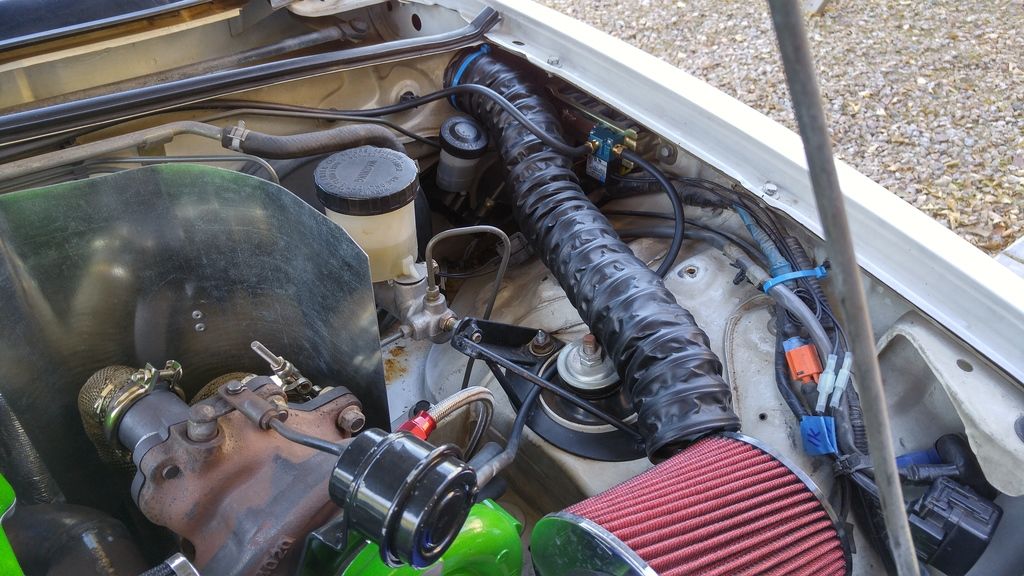

EBC




More **** to tune. I pulled the pins out of the diag connector and solder leads to them so they come out the backside of the connector along with the factory harness. for the EBC. I dont want to trust spade connectors, and now i can still probe the diag conn.



Now can anyone 18psi tell me how much psi I should shoot for to save my 5 speed (street tune for now)? 1.6 with TD04-13T.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20160221_153735_hdr_zps8gpxqhww_02462052328eb7e47bb63a852dcab475b82a3f27.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160221_153753_hdr_zpsxiwtithf_9912f64ed47cc65b878caa97c658651c27c3dc8e.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160221_153805_hdr_zpson3kuefi_e302a2a23e916452ba4c0a74dcc86a68dea5b8d5.jpg
hi_im_sean is online now   Reply With Quote
Old 02-21-2016, 05:50 PM   #1152
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

19hz

12psi
aidandj is offline   Reply With Quote
Old 02-21-2016, 05:52 PM   #1153
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Allofit
deezums is offline   Reply With Quote
Old 02-21-2016, 05:55 PM   #1154
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,416
Total Cats: 186
Default

Quote:
Originally Posted by hi_im_sean View Post
The deezums catch can. I like how clean the install is.

I have $20 and about 1 hour invested.




Also, i have been tooling around on the stock PVC up until today for about the last 60 miles now without the dipstick popping. YYUUSSSSSSS!!!!!




EBC




More **** to tune. I pulled the pins out of the diag connector and solder leads to them so they come out the backside of the connector along with the factory harness. for the EBC. I dont want to trust spade connectors, and now i can still probe the diag conn.



Now can anyone 18psi tell me how much psi I should shoot for to save my 5 speed (street tune for now)? 1.6 with TD04-13T.
Since you have EBC, set it up to ramp boost as you rev, to keep the torque flat/reasonable and maximize power. Keeping the torque peak down will save your transmisison, and the higher boost at revs will give you the most power you can make reliably. I'm doing the same thing (sort of) on my setup, 500whp, but only 350-380 torque for transmission reliability.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 06:11 PM   #1155
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,447
Total Cats: 2,264
Default

If it was me I would honestly go for as much torque as possible since it's a streetcar and because 5 speeds are a dime a dozen

That slug can do 20psi peak but wont hold more than 15 up top. Or just do 15 all across
18psi is offline   Reply With Quote
Old 02-21-2016, 06:49 PM   #1156
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default

I think I might do something in between pats and vlads strategy's. While even I can get 5 speeds cheap, I dont want to be swapping them out all the time, and theyre not always available at a sane price.

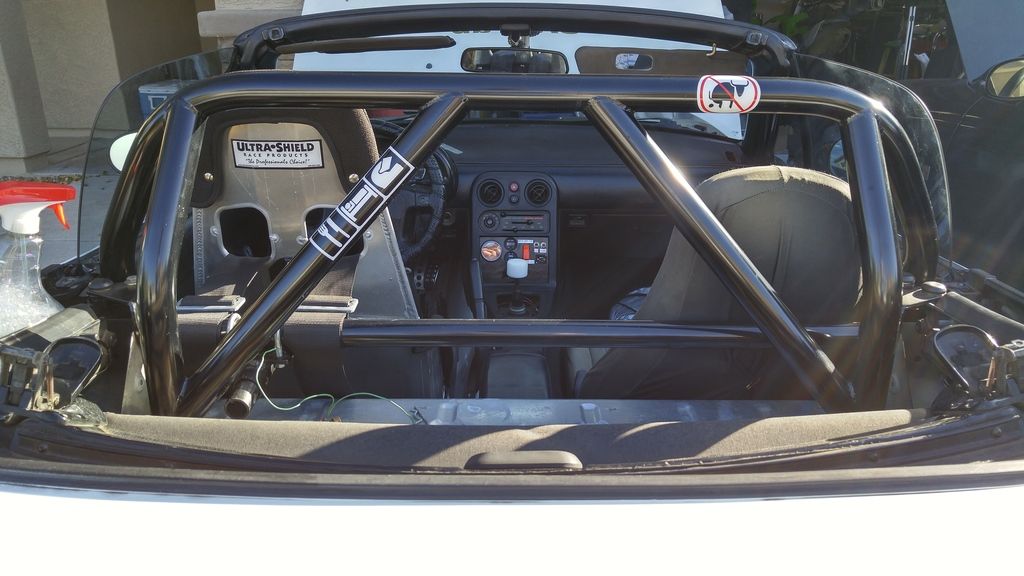

I cleaned it for the first time in a few years, I thought of you vlad.

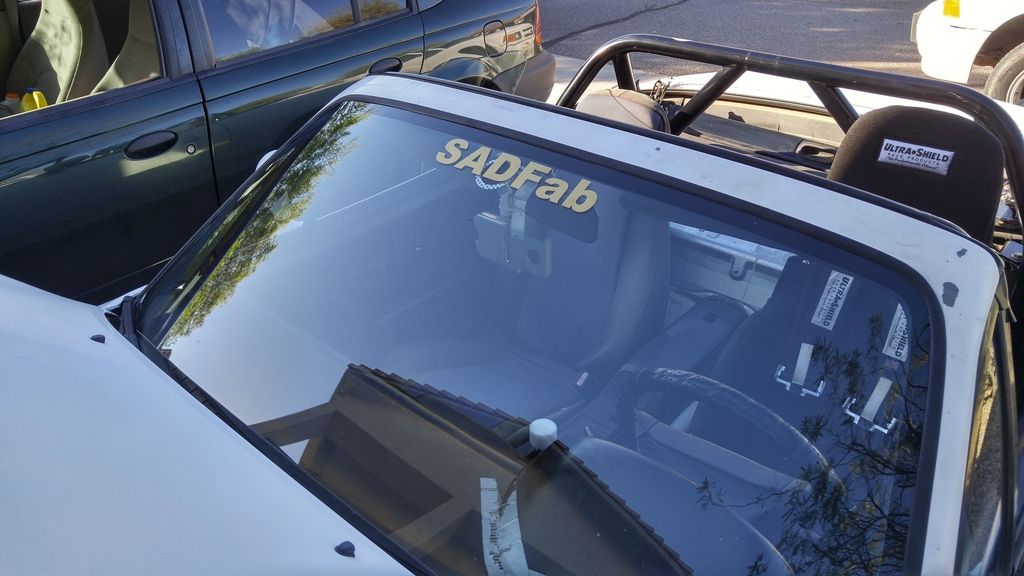

Also added some stickers and got a tombstone that is in one piece. The original one is disintegrating from the AZ heat and UV rays. All the clips have long since broken off and it just kind of sat there on the console. It would flop around when I shifted on track, only being held by the wiring harness to the switch panel lol. Its nice to finally have a solid tombstone. Now I just need a cluster hood.




Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20160221_161605_hdr_zps2yhsivkg_b4225b8e4989c6af0b9087ee4c3f8a6613d6bec0.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160221_161536_hdr_zps9apagldl_c64a5e8486dc3f8ec682927541b830b65db923d7.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160221_161309_hdr_zpsniviv7lw_f1d8851144e747a86429093a56a55697a5d3c518.jpg
hi_im_sean is online now   Reply With Quote
Old 02-21-2016, 07:27 PM   #1157
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default sean's cheap thrills, 90 1.6 with subaru td04

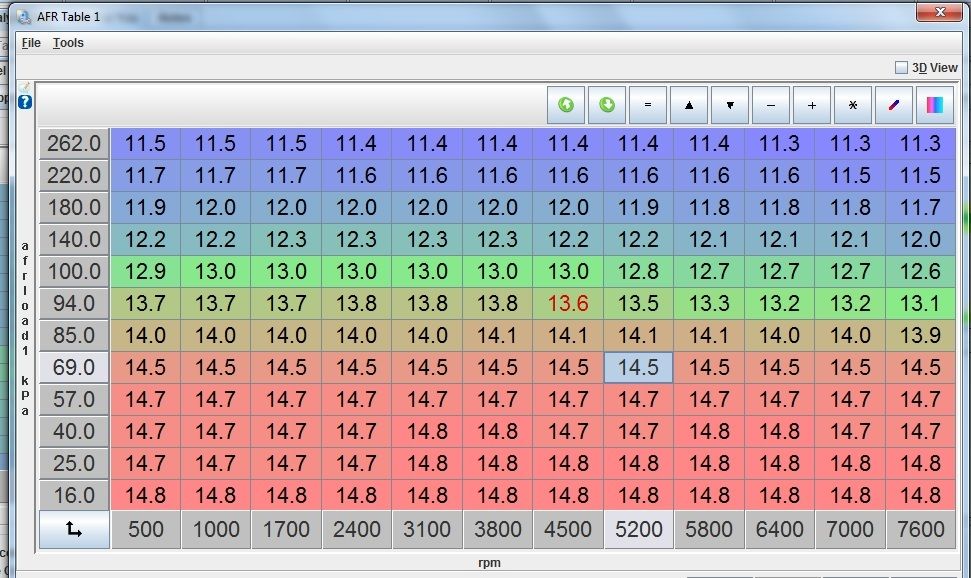

thoughts?
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-afr_20target_202_21_16_zpszv2pd296_eb869d6ebbb375cc8a1bca24f215e6d84df906ea.jpg

Last edited by hi_im_sean; 02-21-2016 at 08:18 PM.
hi_im_sean is online now   Reply With Quote
Old 02-21-2016, 07:50 PM   #1158
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,447
Total Cats: 2,264
Default

not bad.
trust me you won't be making the kind of torque to be shredding 5 speeds unless you launch it or track it hard. it's a 1.6 after all
18psi is offline   Reply With Quote
Old 02-22-2016, 08:47 AM   #1159
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,630
Total Cats: 495
Default

Quote:
Originally Posted by 18psi View Post
not bad.
trust me you won't be making the kind of torque to be shredding 5 speeds unless you launch it or track it hard. it's a 1.6 after all

Average accepted 5 speed breaking tq is like 225 to 250 right?

Challenge accepted.


discalaimer- track tune will be the "some of it" setting of about 8-10psi.
hi_im_sean is online now   Reply With Quote
Old 02-22-2016, 09:01 AM   #1160
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

200ft/lbs checking in.
aidandj is offline   Reply With Quote
