Old 03-16-2016, 07:20 PM   #1201
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

allofit

now
18psi is offline   Reply With Quote
Old 03-16-2016, 09:41 PM   #1202
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by 18psi View Post
allofit

now

I shall make you proud
hi_im_sean is offline   Reply With Quote
Old 03-17-2016, 11:53 AM   #1203
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

18psi is offline   Reply With Quote
Old 03-18-2016, 08:32 PM   #1204
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

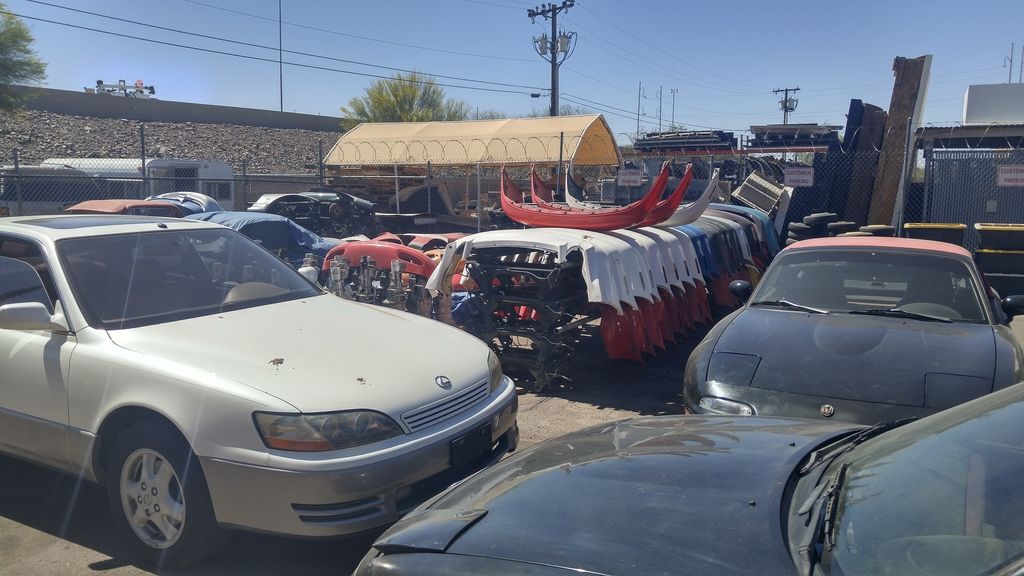

Went to Miata Mikes/Miata Mecca today.

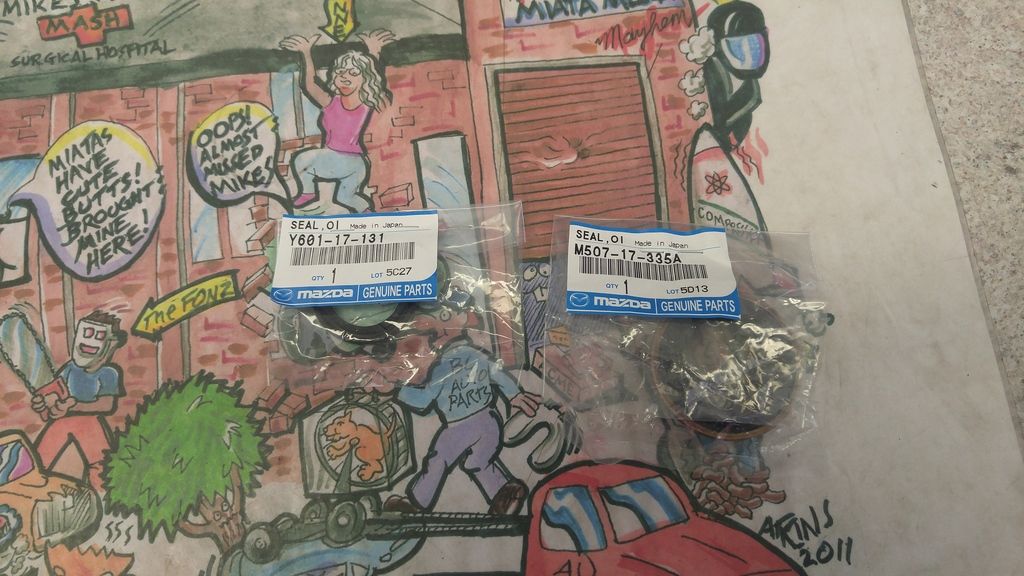

I haz tranny seals!!!!!!!!

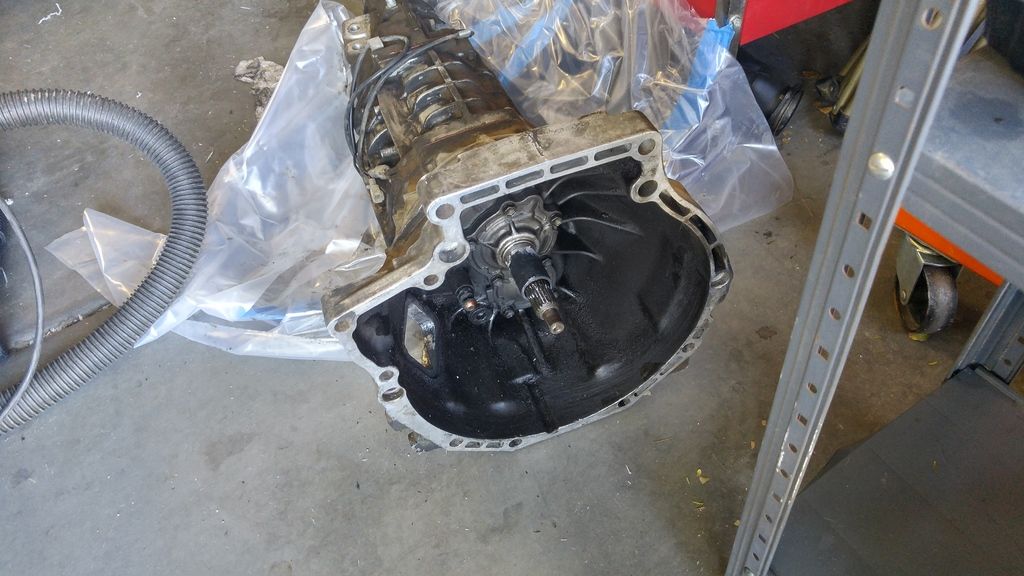

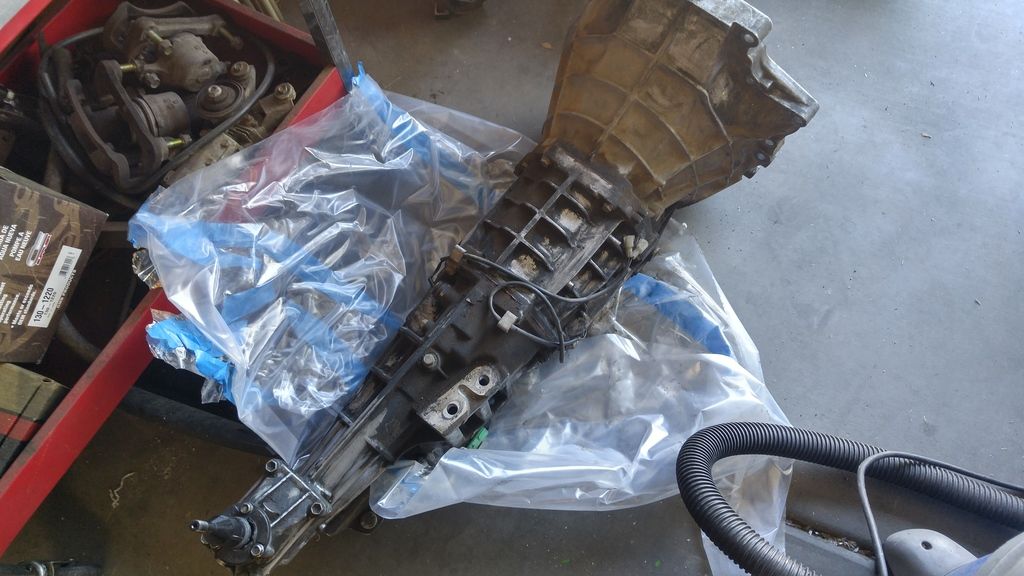

Before

this doesnt really convey just how fuking filthy this trans was. PO must have had everything leaking ALLOFIT.

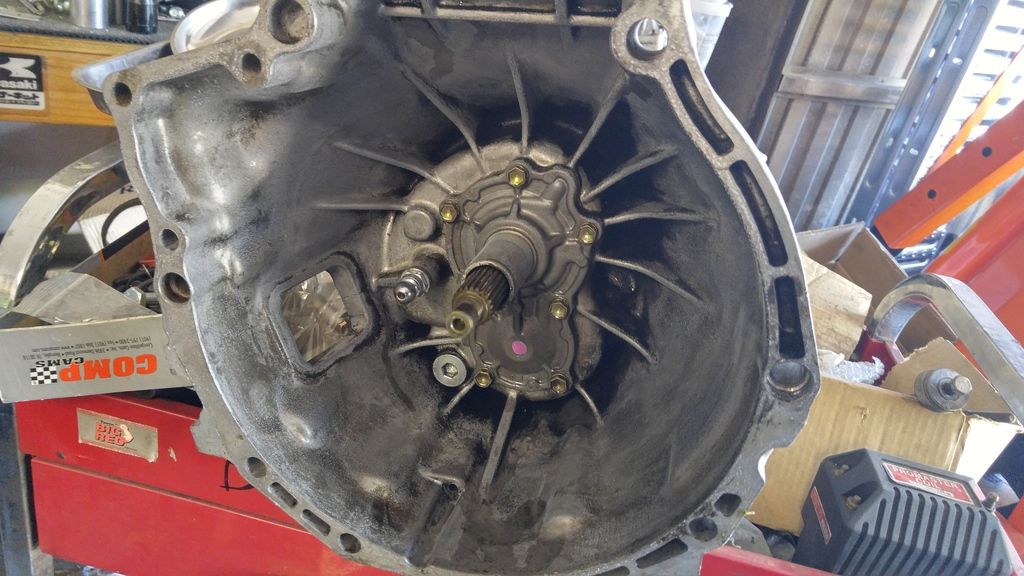

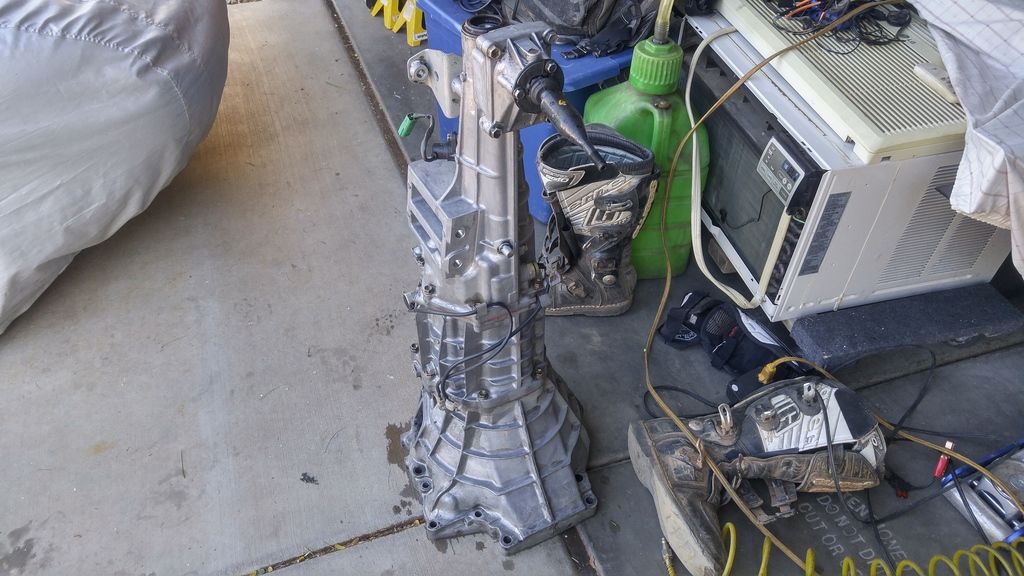

After




Arca_ex is going to help me stab it on sunday. I think ill drive it for a week to make sure everything is good to go, then go to the dyno.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_123603_hdr_zpsfw5mqeuw_69a11c0bbedef71ed6387e7ecbc1db368f56f509.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_124302_hdr_zpsv1mkp6nd_37346d48de80a435f705afb821bf450ebb68f2e5.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_124039_hdr_zpsfrad3wad_9a327d6f952410ee7c938ce2198aa687a01d50c6.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_144248_hdr_zpsewrsc7gv_c85ce1a72cf3bc6017b1faf7d1821f040a5be566.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_144259_hdr_zpsfbnpgevg_0e34529f41d8fc7fa4925c643f0f7d888ba65d16.jpg

sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_155423_hdr_zpsagq5zit6_29c104116d45c344a3c91c3144a7929588d387f5.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_170128_hdr_zpsqhczkrwk_da504058bfe8c208fff328c46a9b8fd6c1208baa.jpg
hi_im_sean is offline   Reply With Quote
Old 03-19-2016, 10:49 AM   #1205
Junior Member
iTrader: (30)

Join Date: Jul 2011
Location: Chandler, AZ
Posts: 429
Total Cats: -11
Default

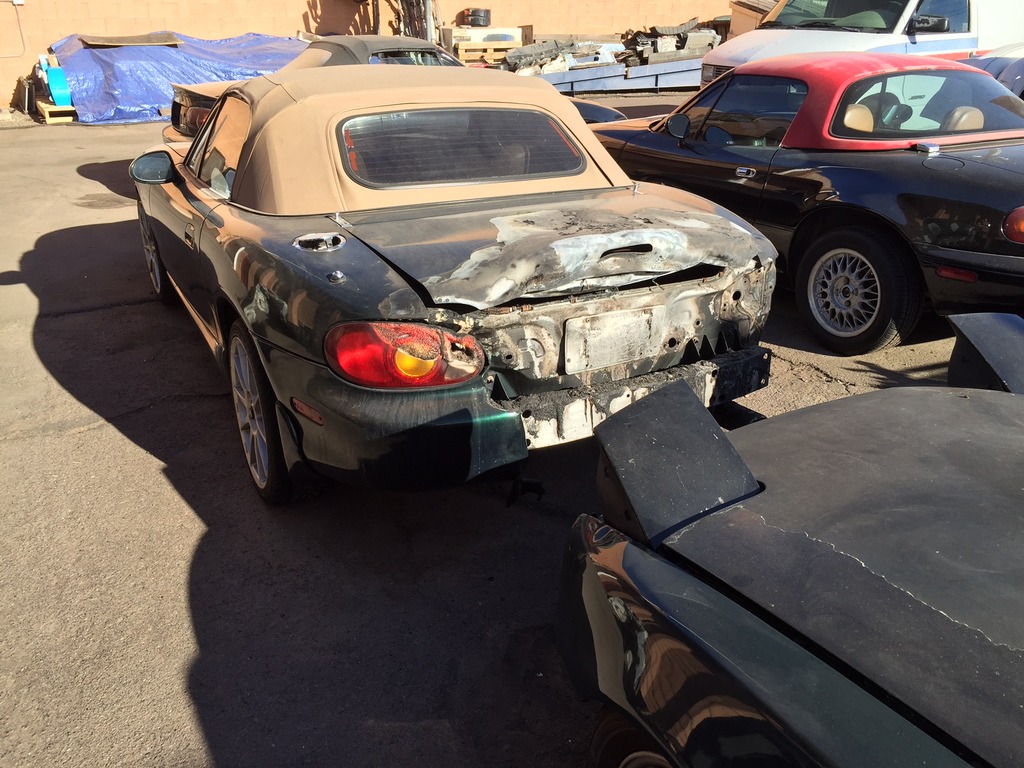

I went to Mike's place yesterday too lol, you probably saw the burnt NB there.

That trans looks much better now.


Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-img_1201_zpsk7gjtbd4.jpg
Silentoreo34 is offline   Reply With Quote
Old 03-19-2016, 05:54 PM   #1206
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Yea I saw that, looks like something in the trunk, or battery caught fire.

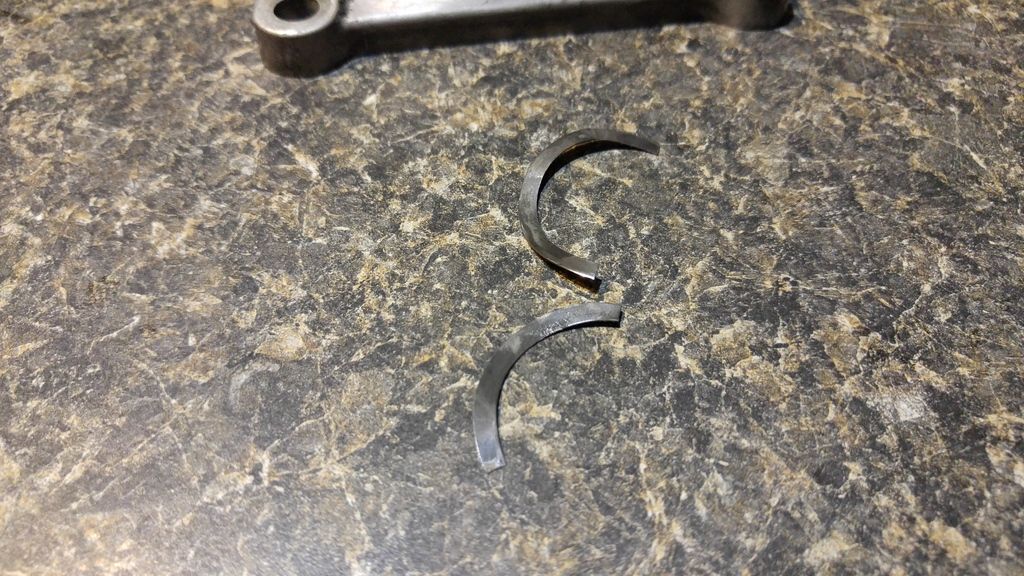

The turret was cruddy, I was trying to clean it from the outside and it wasn't working, so I pulled the cover, and hosed it out with brake clean. Once all the crud was gone, this was free to fall out.

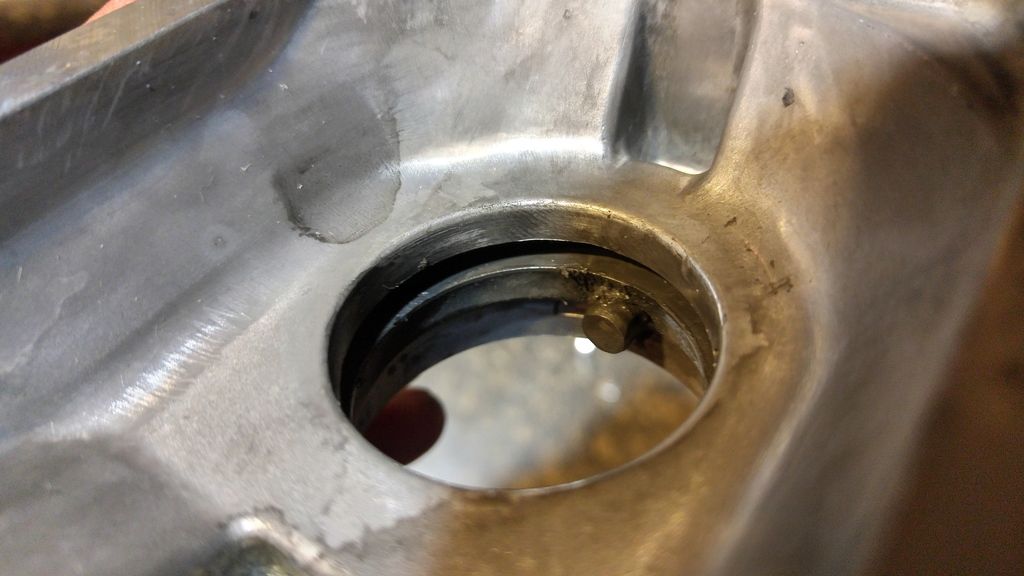

It came from here.

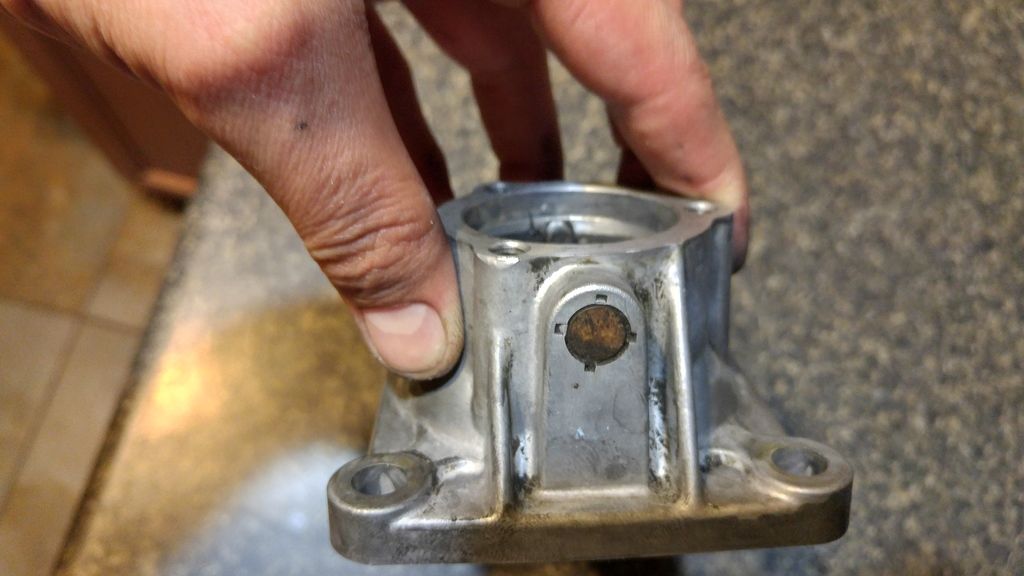

I have dubbed this the "făggot spring". Because you need to pull the shift pins to replace it, which would necessitate milling off the peen marks here, and on the other side, and pressing them out.



The pins would have to be reinstalled to the correct depth and re-peened.

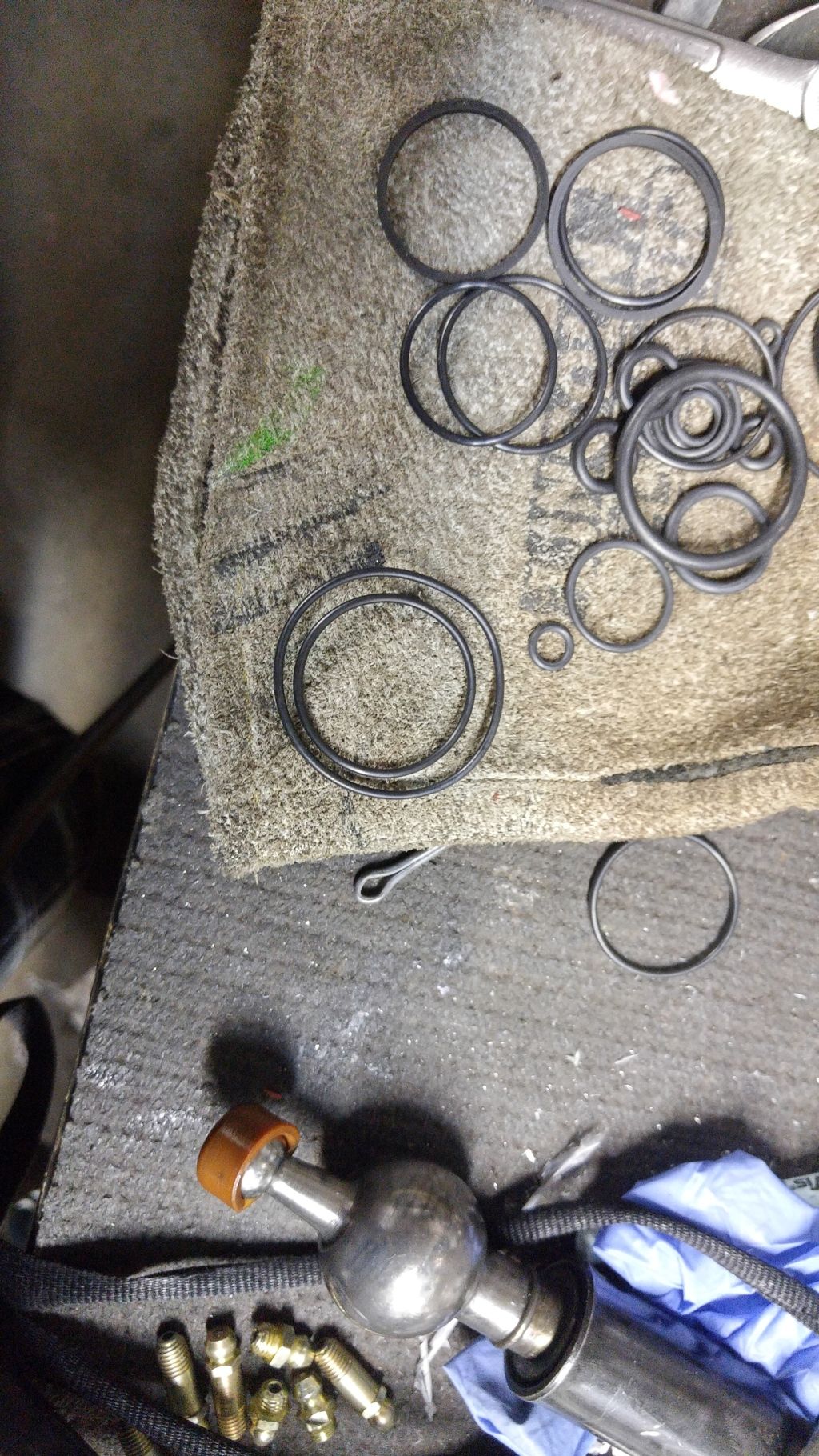

O-ring

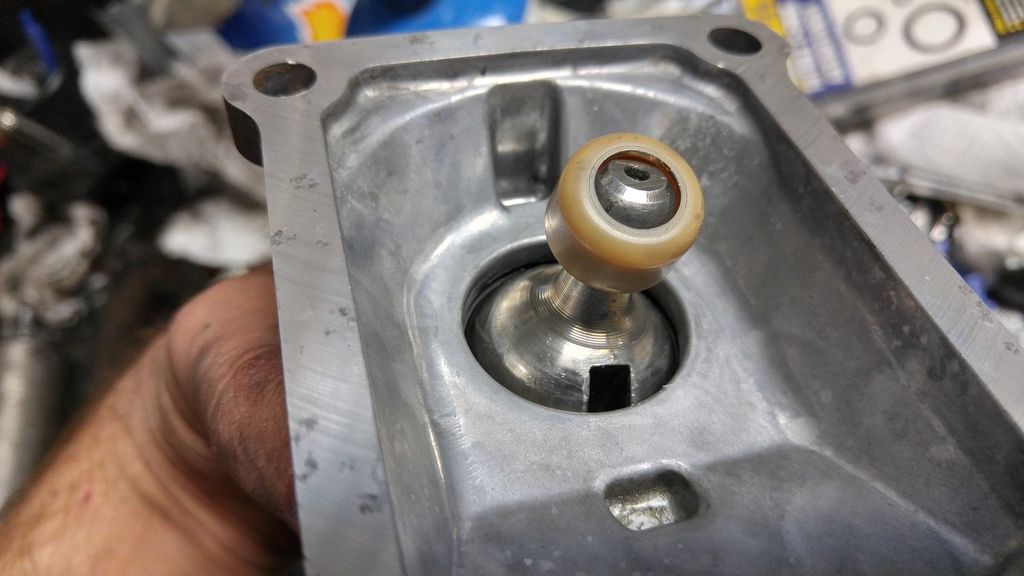

You cant see it but the O-ring is in there now to take up the gap under the shifter bushing. *** you făggot spring





shifting from 1 through 6

Ready to go for tomorrow.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_185224_hdr_zps9dswstzb_fcdc8945f8e5d2469e6f36b07115caeea7595321.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_185247_hdr_zpslugjxnvf_60d10a5193ad34943cf14b4a3b573481be725e79.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_185344_hdr_zpssimkagtq_d5c111f3702600337b00bdbbc360195c3681fd8f.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_204107_hdr_zpsbnzd7m59_55ed95672755c96308c045050dea1d3c922f1120.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_204800_hdr_zpsvfmyixtm_90b22797b052d20a4c9107ff982447a387399bbc.jpg

sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_185224_hdr_zps9dswstzb_fcdc8945f8e5d2469e6f36b07115caeea7595321.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_185247_hdr_zpslugjxnvf_60d10a5193ad34943cf14b4a3b573481be725e79.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_185344_hdr_zpssimkagtq_d5c111f3702600337b00bdbbc360195c3681fd8f.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_204107_hdr_zpsbnzd7m59_55ed95672755c96308c045050dea1d3c922f1120.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20160318_204800_hdr_zpsvfmyixtm_90b22797b052d20a4c9107ff982447a387399bbc.jpg


Last edited by hi_im_sean; 03-19-2016 at 06:03 PM. Reason: făggot
hi_im_sean is offline   Reply With Quote
Old 03-19-2016, 07:13 PM   #1207
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Did not hear the appropriate noises for shifting through a 6 speed.

aidandj is offline   Reply With Quote
Old 03-19-2016, 07:25 PM   #1208
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

ebay exhaust?
hi_im_sean is offline   Reply With Quote
Old 03-19-2016, 07:34 PM   #1209
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Eggxactly
aidandj is offline   Reply With Quote
Old 03-20-2016, 05:59 PM   #1210
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

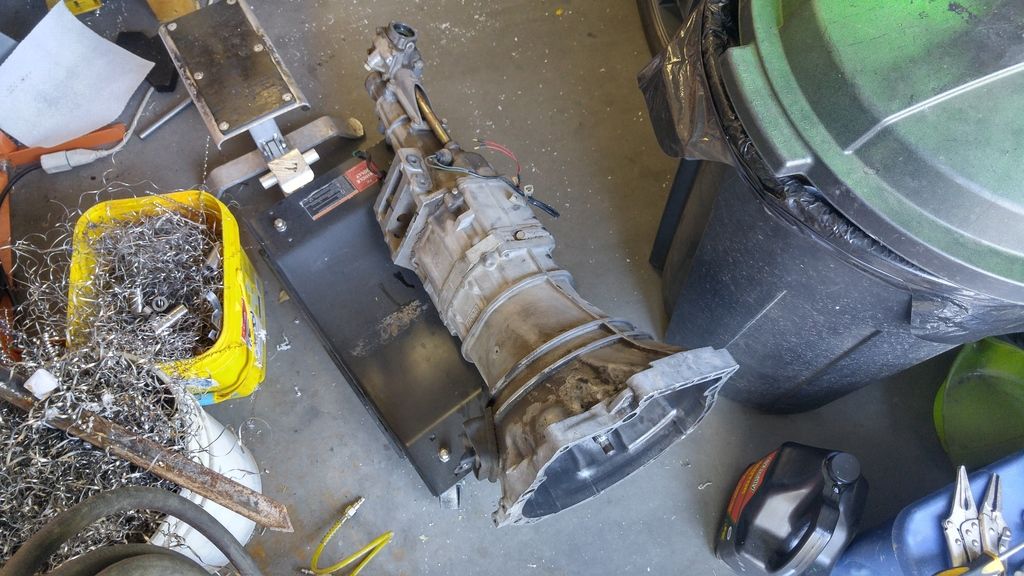

Your 5 speed is ready Zach.



6 speed shifts great not sure what everyone complains about, maybe the shift quality goes to **** later in life, maybe its the syncromesh. I dunno. I did 1qt of valvoline syncromesh and 0.8 qts of amsoil 75w90


Im still on stock coils so i think im going to do cops asap just to avoid any issue on the dyno when im nearing 20 psi.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20160320_142746_hdr_zpstyqzltwr_309d9b147ed4b479ba7694675c824b7582f71bc7.jpg
hi_im_sean is offline   Reply With Quote
Old 03-20-2016, 06:02 PM   #1211
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Any suggestion on COPs. Im looking for cheap and easiest install. D585s? toyota?

Vlad sell me something i can bolt on for like $18.50 shipped.
hi_im_sean is offline   Reply With Quote
Old 03-20-2016, 06:06 PM   #1212
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Toyota's aren't any stronger than OEM. Go with whatever deezums runs. They are dirt cheap.

ryansmoneypit might even have some sexy CAD files for brackets.
aidandj is offline   Reply With Quote
Old 03-20-2016, 06:10 PM   #1213
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Deezums is the one that recommended the 585s. Awaiting bracket info.
hi_im_sean is offline   Reply With Quote
Old 03-20-2016, 06:11 PM   #1214
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Not $18 or PNP, but probably the hottest cheapest spark you can buy.

99 00 01 02 03 04 05 06 07 Tahoe Engine Igntion Coil Ignitor Pack 5 3L | eBay

Going to a pick and pull might be cheaper, maybe.
deezums is offline   Reply With Quote
Old 03-20-2016, 06:20 PM   #1215
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Now, how do I wire them to the 1.6 igniter?
hi_im_sean is offline   Reply With Quote
Old 03-20-2016, 06:39 PM   #1216
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,976
Total Cats: 145
Default

I haz files. I have sinned, for I have Lagged bad on getting them up. I'll try to remember tomorrow.
ryansmoneypit is offline   Reply With Quote
Old 03-20-2016, 06:40 PM   #1217
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

You don't, the ls coils have ignitors built in. Basically just give them 12V and ground, tie the signal ground into ground, and bring as many megasquirt triggers directly to the coils as you can.

I made a PNP-esque harness by beating my ignitor with a hammer. I just jumped the triggers over inside the case, also think I spliced the ECU rpm trace to the diag/tach box in there too. The pins inside the case suck for soldering, if I did it again I'd just splice it all together. You can use the coil plugs on that strip of 4 as the end of the harness then.
deezums is offline   Reply With Quote
Old 03-20-2016, 09:37 PM   #1218
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default



Not sure if GM coils have a tach signal. If they don't you need a tach out circuit.
aidandj is offline   Reply With Quote
Old 03-20-2016, 10:59 PM   #1219
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 656
Total Cats: 80
Default

Transmission swap great success.

I want a turbo on the track car now. You ruined it for me.
Arca_ex is offline   Reply With Quote
Old 03-20-2016, 11:02 PM   #1220
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Write TSE a big check and bolt an EFR on. Problem solved.
aidandj is offline   Reply With Quote
