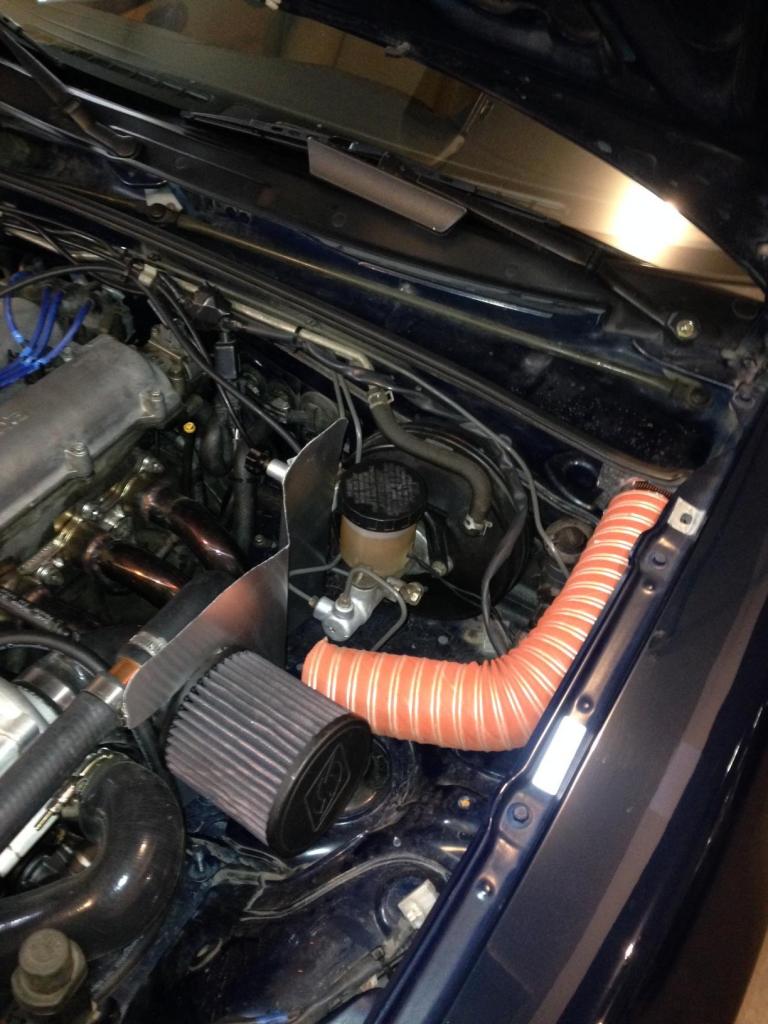

Doing this helped my IAT's quite a bit... just need to bend the clutch hard-line a little bit to make clearance for the hose.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-img_05791.jpg
dcamp2 is offline   Reply With Quote
Old 11-10-2014, 09:33 PM   #142
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

thanks for the suggestions.

dcamp2 is that just a piece of duct laying there? no deceptive magic? i assume the cowl is a high pressure area?

il have to ponder this and if i have time before the next track day at the end of the month, i may revisit it. if not, when i replace the radiator in december ill probably screw with it then.
hi_im_sean is offline   Reply With Quote
Old 11-10-2014, 09:40 PM   #143
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,953
Total Cats: 570
Default

I think the problem is that you're confusing a heat shield with a cold air box. You already had the former (because there's an OEM heat shield covering the OEM header). You're really not doing anything with the added shield at the moment.

A cold air box has 2 things:

1. A reasonably tight air compartment around an air filter (you've kind of build that up); AND

2. A source of cold air.

#2 is key. My red car gets cold air from the headlight lid NACA duct. Dave's getting his from the cowl area (my silver car does this too).
hornetball is offline   Reply With Quote
Old 11-10-2014, 09:46 PM   #144
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 690
Total Cats: 44
Default

Quote:
Originally Posted by hi_im_sean View Post
thanks for the suggestions.

dcamp2 is that just a piece of duct laying there? no deceptive magic? i assume the cowl is a high pressure area?

il have to ponder this and if i have time before the next track day at the end of the month, i may revisit it. if not, when i replace the radiator in december ill probably screw with it then.
yeah, I drilled through the cowl with a hole saw and wedged in a 2.5" flange then ran some duct over to the filter... the duct is secured with a few zip-ties (not pictured). Cowl is a high pressure area. I ran the same duct into the stock airbox for a long time- works great.
dcamp2 is offline   Reply With Quote
Old 11-10-2014, 09:50 PM   #145
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by hornetball View Post
I think the problem is that you're confusing a heat shield with a cold air box.

yup, my assumption was radiant heat from the exhaust was the main issue.

this car needs to stay street able, so the headlight should probably stay put. is the cowl duct the next best option?

Last edited by hi_im_sean; 11-10-2014 at 11:09 PM.
hi_im_sean is offline   Reply With Quote
Old 11-10-2014, 09:52 PM   #146
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by dcamp2 View Post
yeah, I drilled through the cowl with a hole saw and wedged in a 2.5" flange then ran some duct over to the filter... the duct is secured with a few zip-ties (not pictured). Cowl is a high pressure area. I ran the same duct into the stock airbox for a long time- works great.
it looks like im being convinced to drill a hole. any issue with raising pressure in the engine bay?

suggestions on ducting from lowes racing, or do i need to order this **** from somewhere?

Last edited by hi_im_sean; 11-10-2014 at 11:09 PM.
hi_im_sean is offline   Reply With Quote
Old 11-10-2014, 10:08 PM   #147
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 690
Total Cats: 44
Default

Quote:
Originally Posted by hi_im_sean View Post
it looks like i being convinced to drill a hole. any issue with raising pressure in the engine bay?

suggestions on ducting from lowes racing, or do i need to order this **** from somewhere?
Not sure on it raising pressure... my car runs cool enough on track...

I got my stuff from aircraft spruce, although lowes racing might have something workable...


ALUMINUM FLANGES FOR DUCTING from Aircraft Spruce

Search Results from Aircraft Spruce
dcamp2 is offline   Reply With Quote
Old 11-11-2014, 11:44 AM   #148
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

hardware stores didnt have much under 6" diameter.

i got some of this at oreilly
Murray Climate Control 55046 - Duct Hose | O'Reilly Auto Parts

and was going to tackle it this morning, but i cant find my hole saws

so i think im going to clean the garage for today and i have some coolant leaks to fix
hi_im_sean is offline   Reply With Quote
Old 11-11-2014, 12:55 PM   #149
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,953
Total Cats: 570
Default

The Aircraft Spruce duct flanges are pretty inexpensive and really high quality. I use them for all sorts of things.
hornetball is offline   Reply With Quote
Old 11-11-2014, 02:18 PM   #150
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by hornetball View Post
The Aircraft Spruce duct flanges are pretty inexpensive and really high quality. I use them for all sorts of things.
i was just going to slap something together for the flange. im not known for my patience.
hi_im_sean is offline   Reply With Quote
Old 11-11-2014, 02:21 PM   #151
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,953
Total Cats: 570
Default

Quote:
Originally Posted by hi_im_sean View Post
im not known for my patience.
LOL. Yeah. Just noticed the thread tag.
hornetball is offline   Reply With Quote
Old 11-11-2014, 02:24 PM   #152
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by hornetball View Post
LOL. Yeah. Just noticed the thread tag.
yup, im still learning to slow down and think about what im doing instead of being in overdrive all the time, lol. some say i have adhd
hi_im_sean is offline   Reply With Quote
Old 11-23-2014, 02:03 PM   #153
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

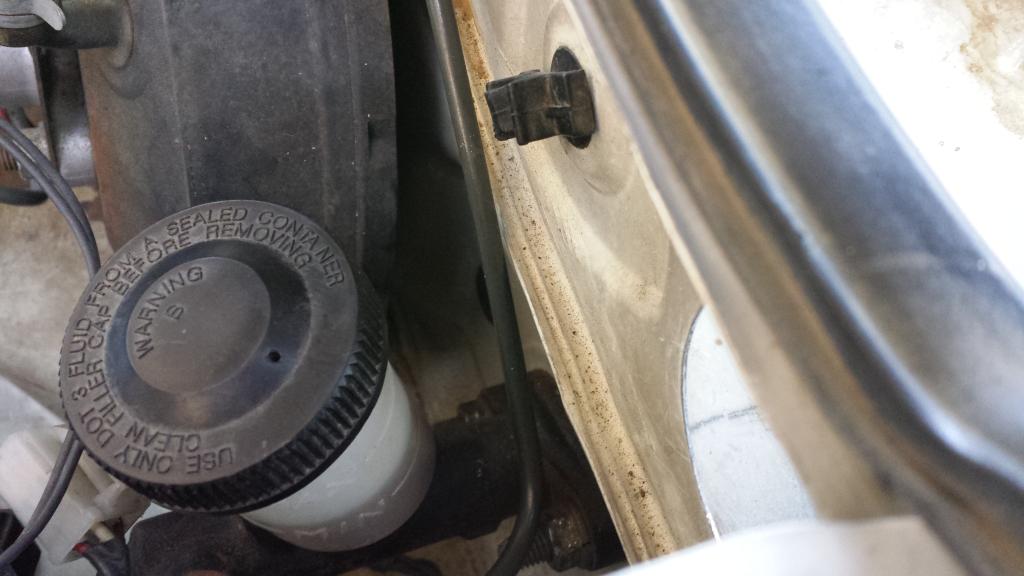

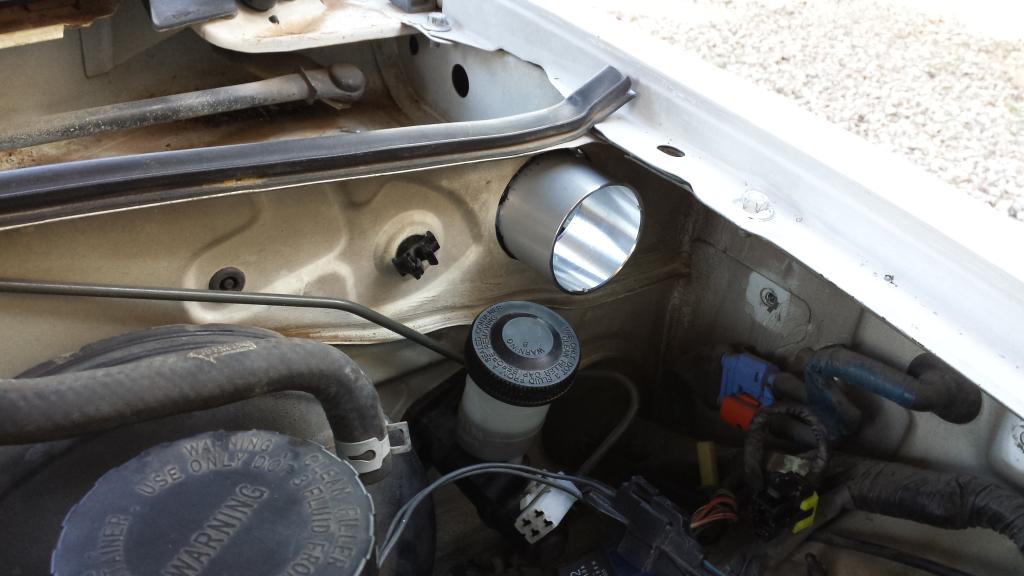

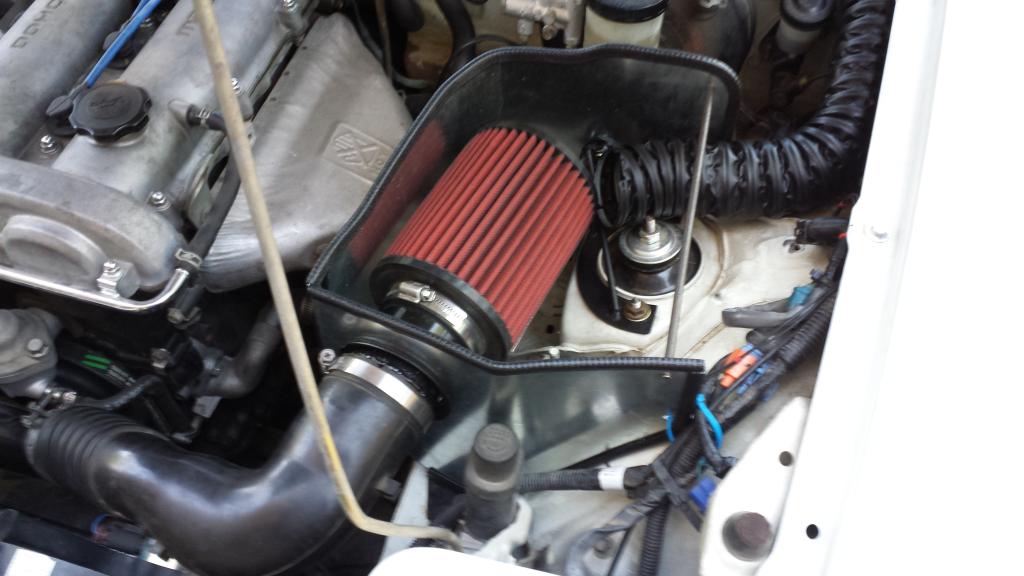

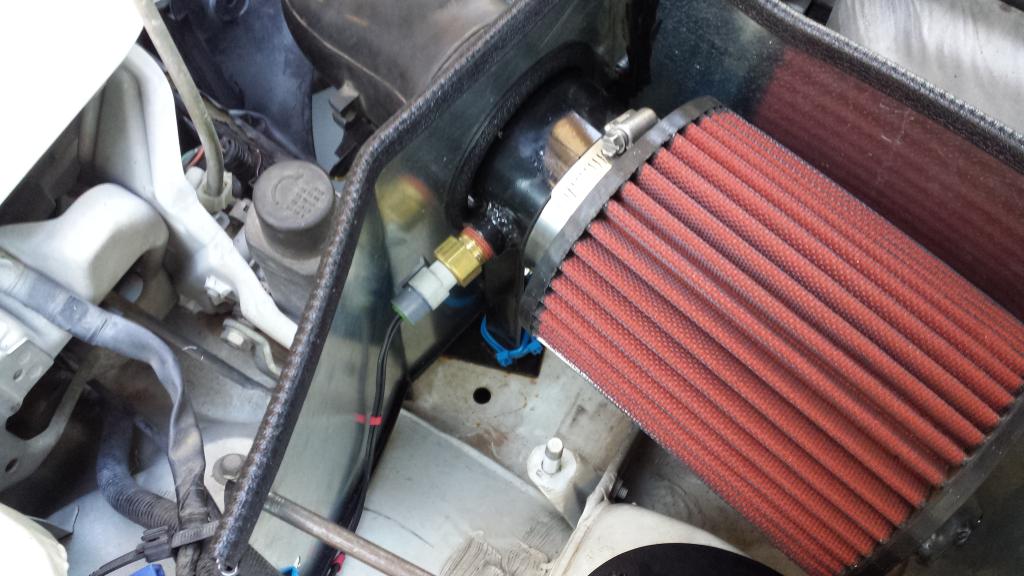

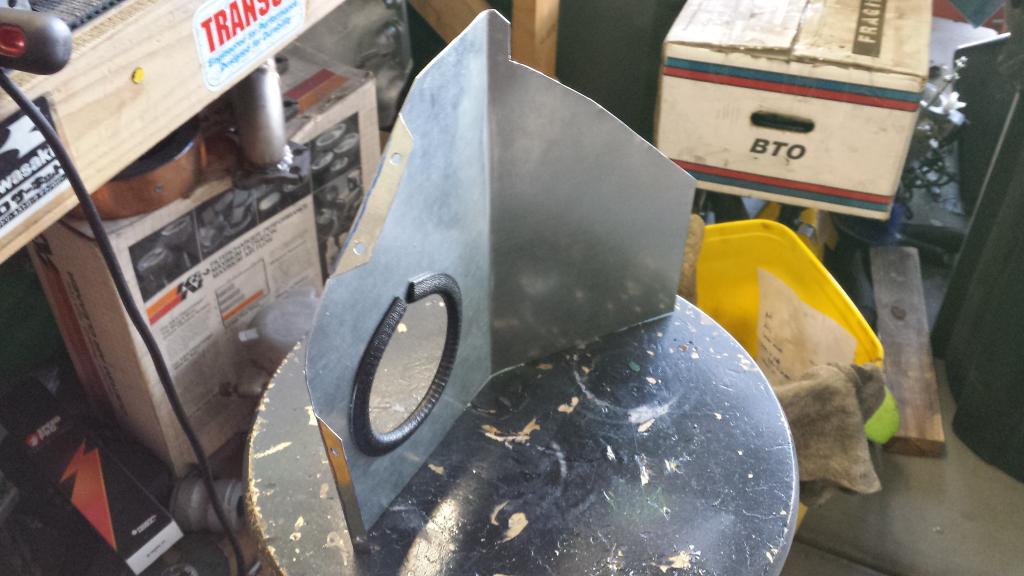

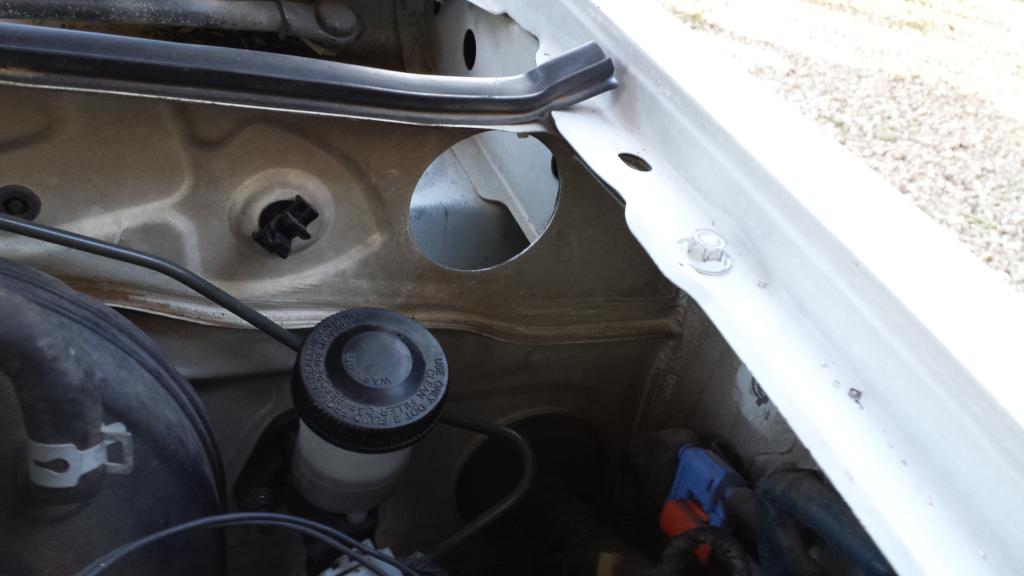

so i found a flange in one of my piles of **** from a vacuum collection system. it is amazingly close to what i need. i just had to open the ID up a little as it has really thick walls, and shorten it. i trimmed the flange thickness down just because and to add lightness. i found my hole saw arbor and bought the right size hole saw and made a hole. i also bent the clutch line out of the way.




has about a 1/16" of clearance so im going to put some rubber hose on it, or edging on the firewall lip.

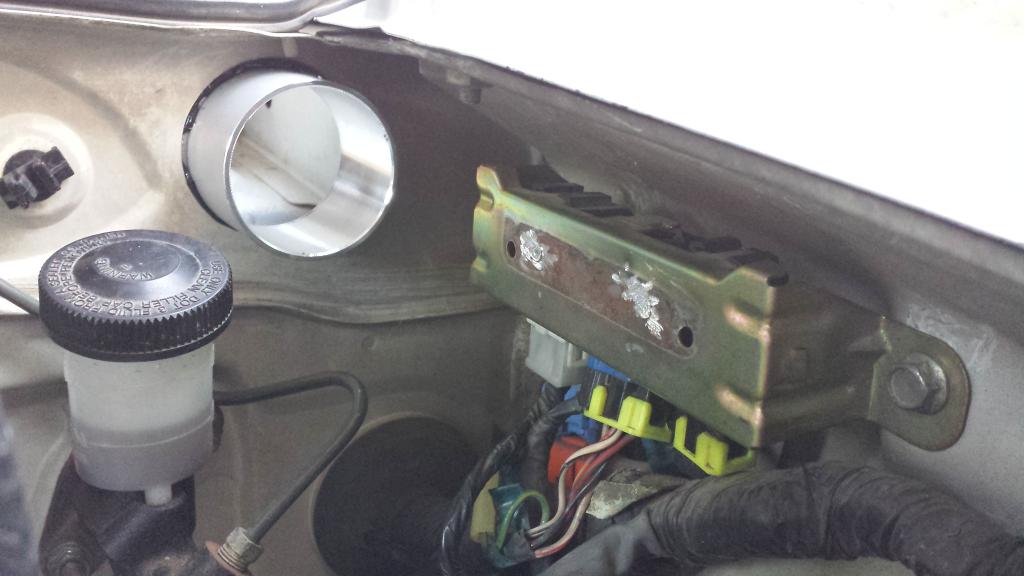

i siliconed the flange in


this was in the way

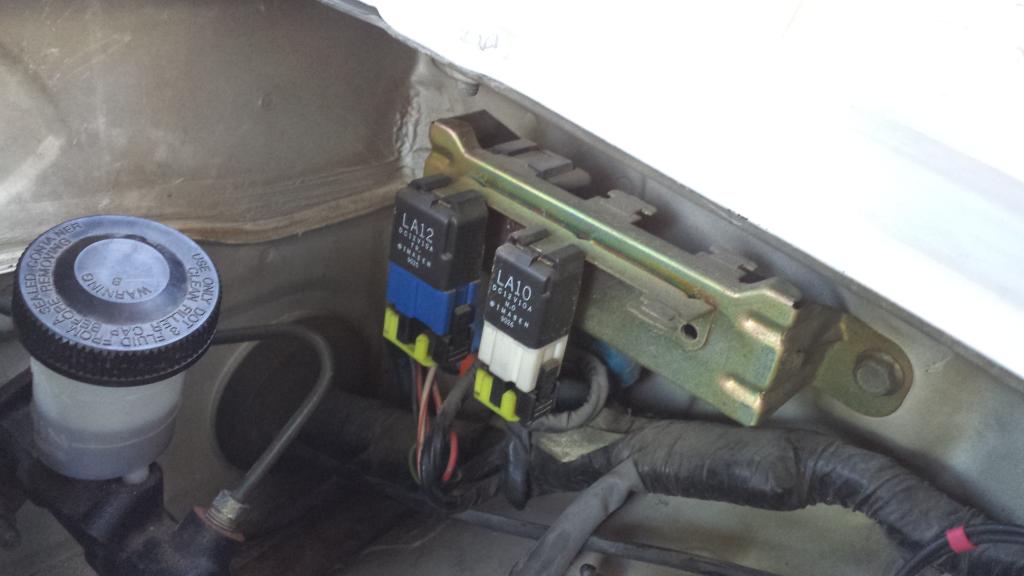

so i modified it and broke 2 of the relay housings in the process so the contacts are now open to the elements. there are 2 open slots on the back side that one of the relays fit, the other is just tucked up in there



Quote:
Originally Posted by hi_im_sean View Post

i probably wont put anymore effort into it since it will all change when i go turbo
i lied

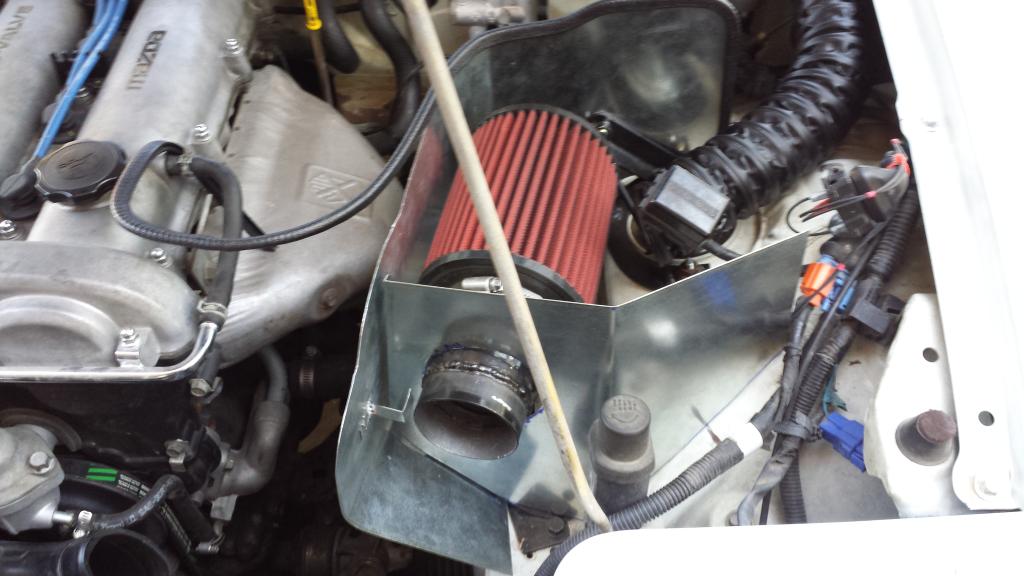

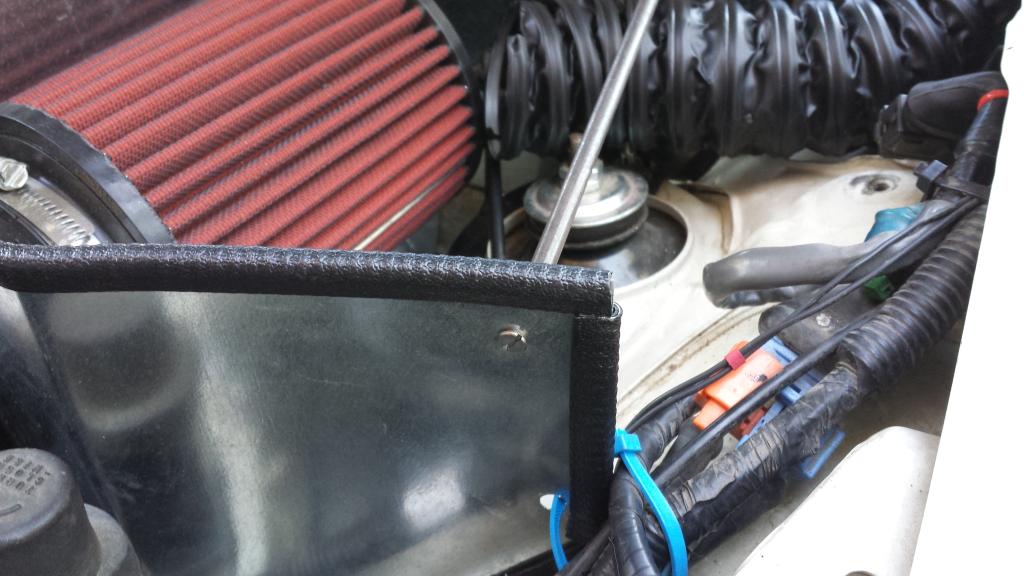

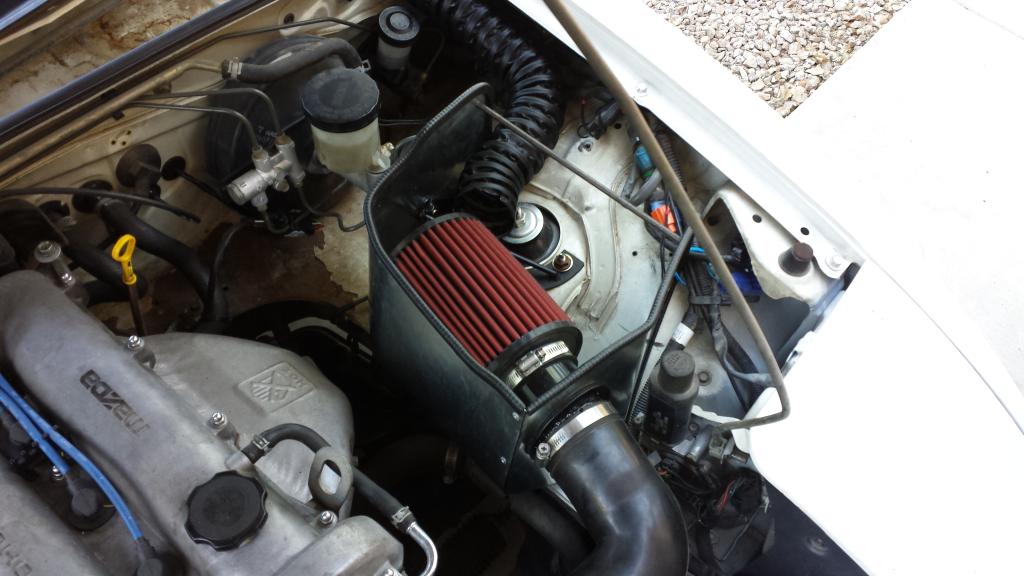

i cut a piece of 1/4" stock and drill and tapped the ends to tie the box together. air duct ziptied to the MC brace. im pretty happy with it. im going to try to get a log later today to see how it works.








and i sealed all the corners with silicone
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20141117_094157_zpsinqbfwob.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141117_094209_zpsri02z9es.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141117_095841_zpsaxo2hqrw.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141116_150250_zpsxr3rxzgo.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141123_081648_zpshizywmix.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20141123_093759_zpsg7bghf9r.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141123_102320_zpsr59bg0m7.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141123_114147_zps5dzorcat.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141123_114211_zpsicihe86y.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141123_113932_zpsxxt0i4l4.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20141123_113913_zpsmvnxfwoe.jpg

Last edited by hi_im_sean; 11-23-2014 at 04:44 PM.
hi_im_sean is offline   Reply With Quote
Old 12-04-2014, 04:45 PM   #154
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

the new intake mods helped immensely. the exhaust reducer, that i used as the filter mount, and IAT sensor heat soak very little now. before they would be "uncomfortable to touch" hot after a 20 minute drive. i drove 30 miles to the track, and it was hardly above ambient. data logs indicate anywhere from 8 to 20 degrees cooler than before. there is also a noticeable bump in power across the board when its cooler out.

track day pics







the car was loose and not confidence inspiring the last 2 events. i know the alignment isnt quite right and the tires are done, i also need to take care of a few control arm bushings.
sphericals
https://www.miataturbo.net/race-prep...cussion-82072/

then i can get an alignemnt, new rivals are in the garage waiting to be mounted
hi_im_sean is offline   Reply With Quote
Old 12-04-2014, 05:07 PM   #155
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,953
Total Cats: 570
Default

Success!
hornetball is offline   Reply With Quote
Old 12-04-2014, 05:45 PM   #156
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by hornetball View Post
Success!
thanks for the help!
hi_im_sean is offline   Reply With Quote
Old 12-07-2014, 12:27 PM   #157
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

i pulled the fenders off this morning to make my diy braces and to replace the passenger side fender. i found evidence of previous collision damage right behind where it got hit most recently on the pass fender. someone tried to repair it, but didnt get much of anything straight.

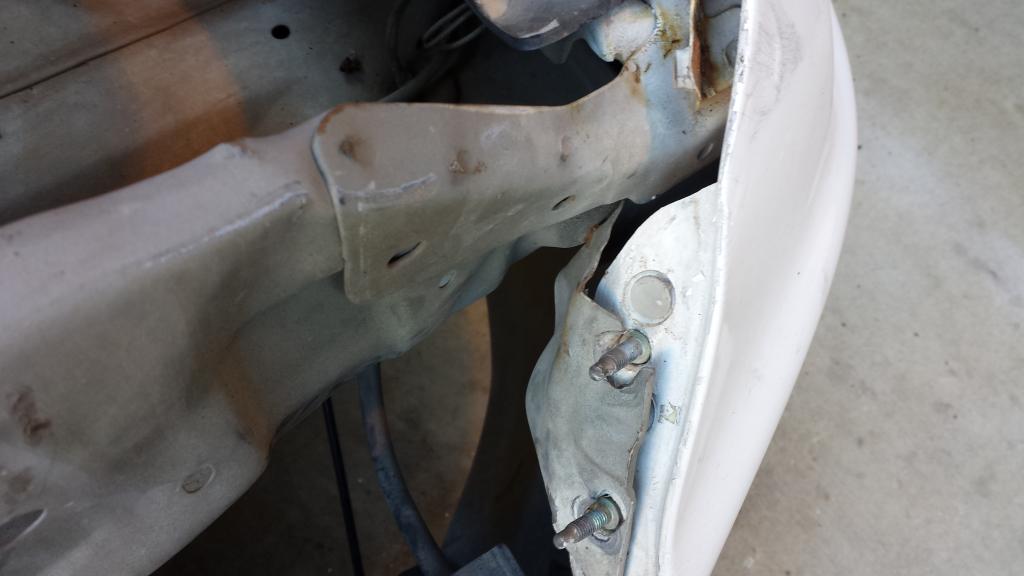

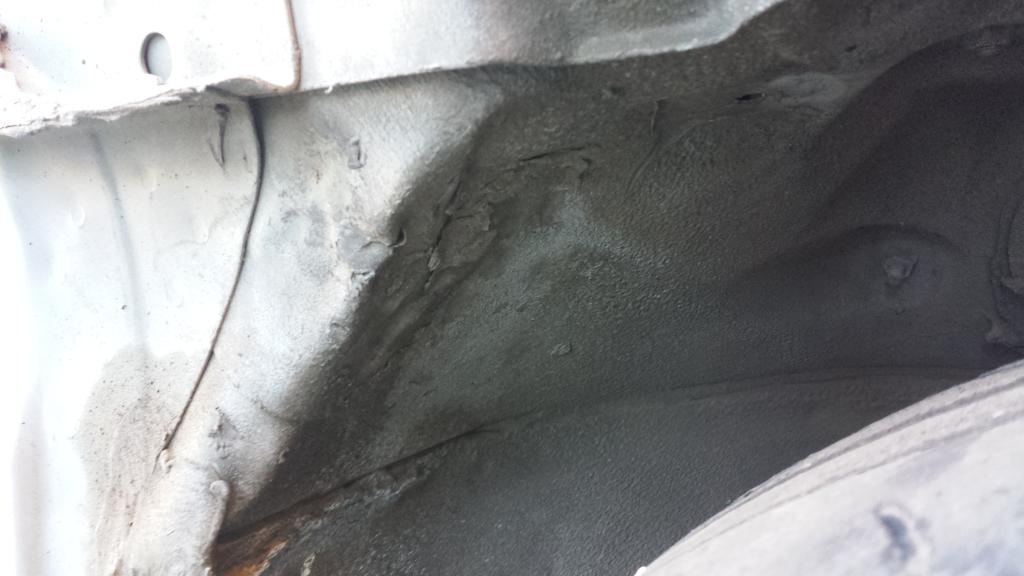

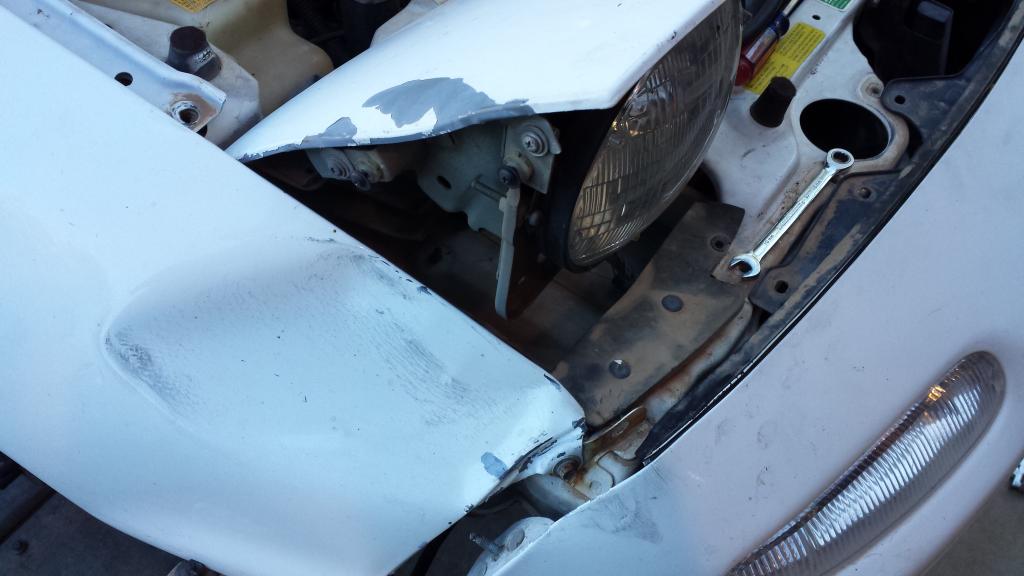

this is the recent damage from the moron who hit it in front of my house and ran.


fender dented in, front fender mount bent back a little, head light cover dented in, and headlight housing frame "racked" just slightly. the headlight base (the part that bolts the to car) is surprisingly straight.

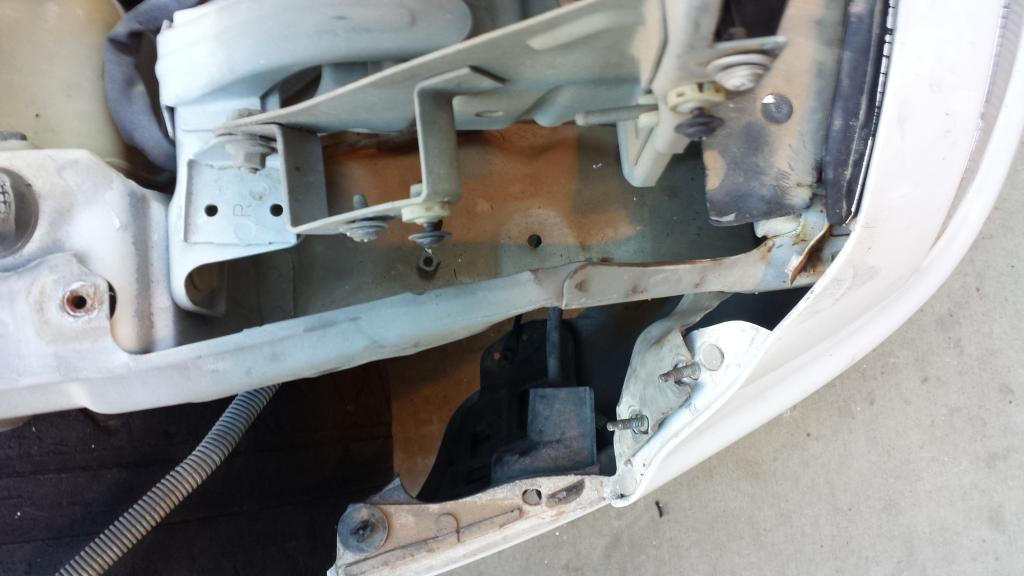

you can see the bend right in front of the pivot bolt

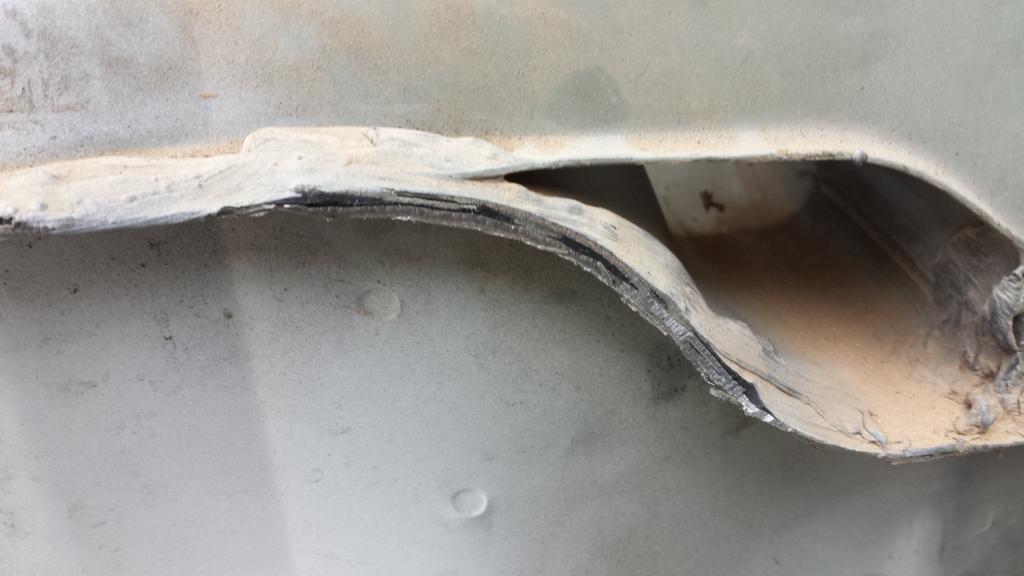

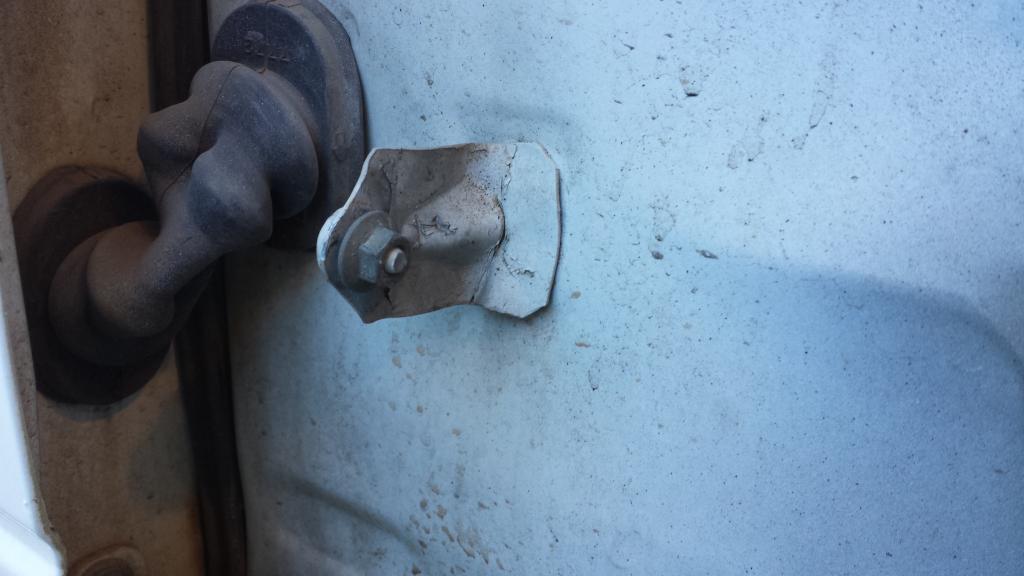

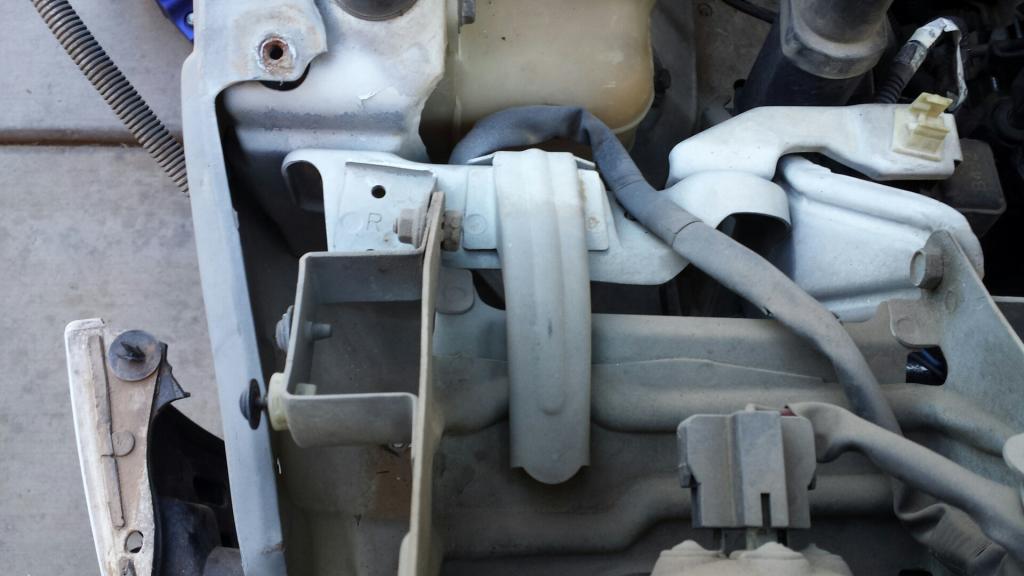

and the previous damage.

pushed in about 1/2" right behind the wheel


rear fender stay

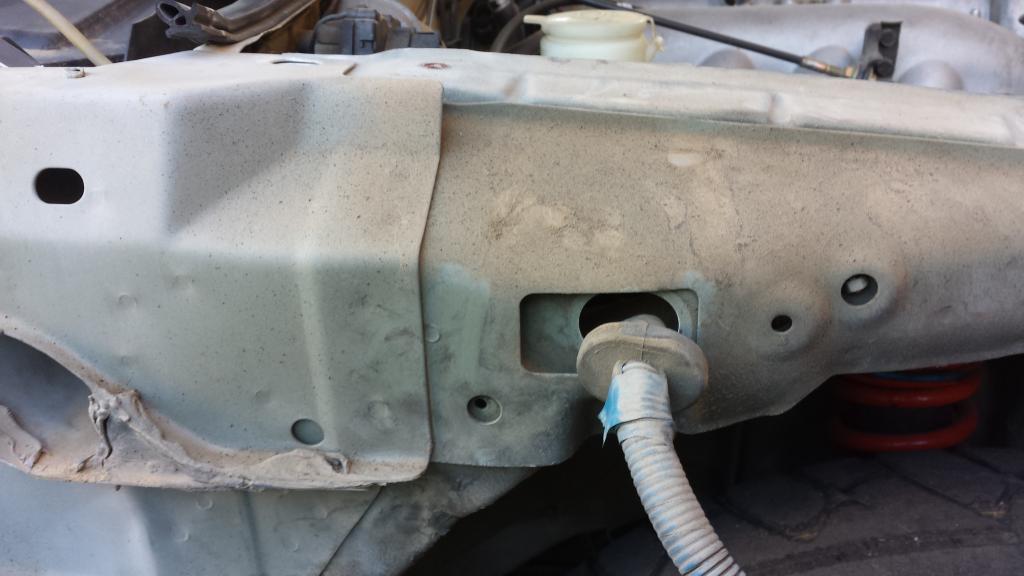

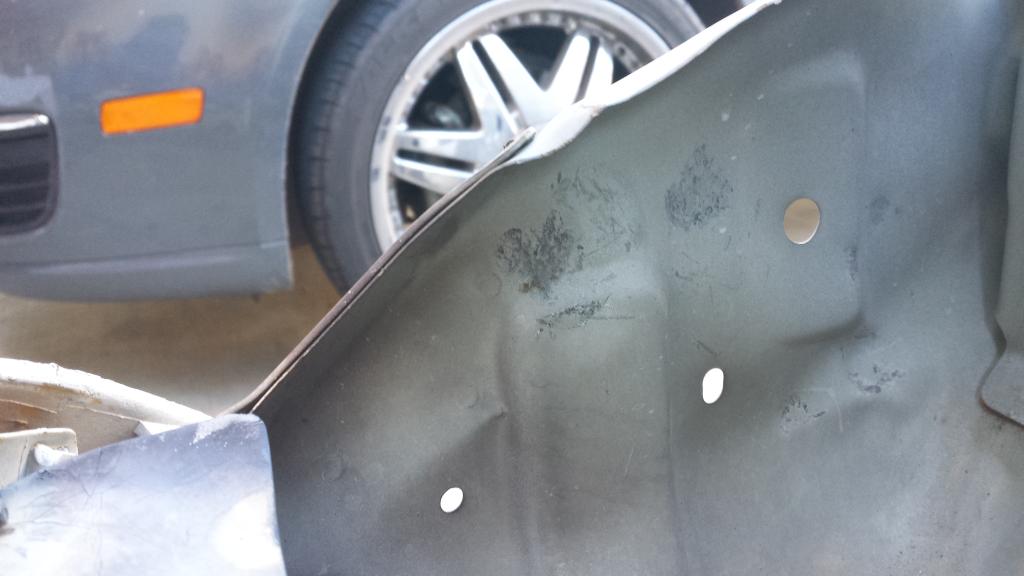

front fender stay is peeled back to the first spot weld and wrinckled

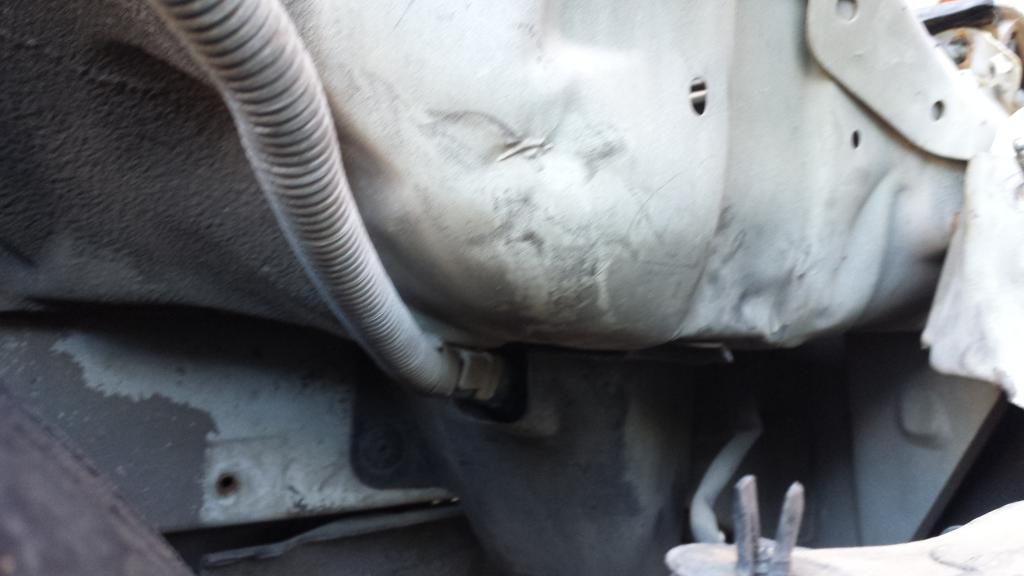

front "rail" not straight, pushed in


and hammer marks where someone tried

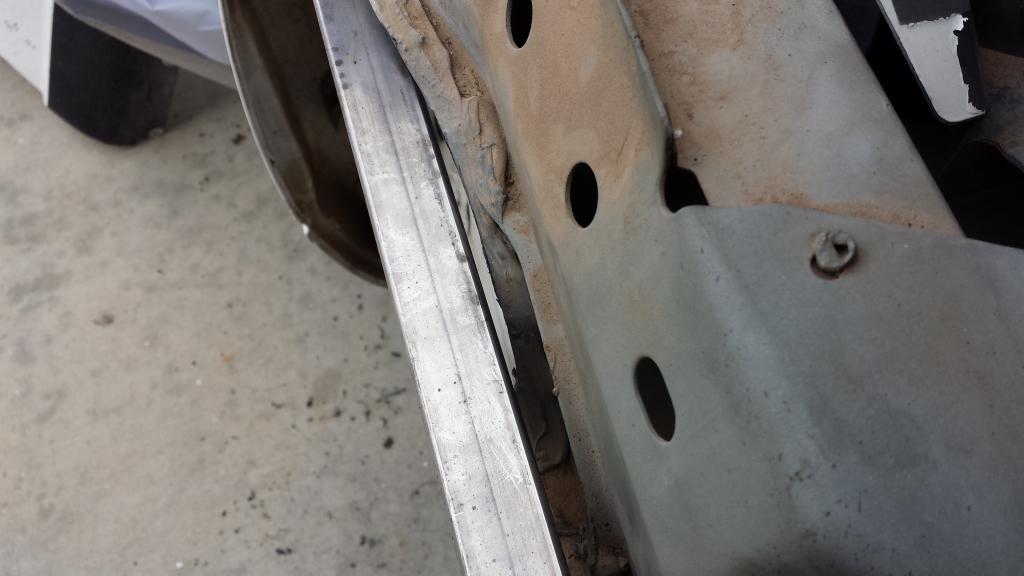

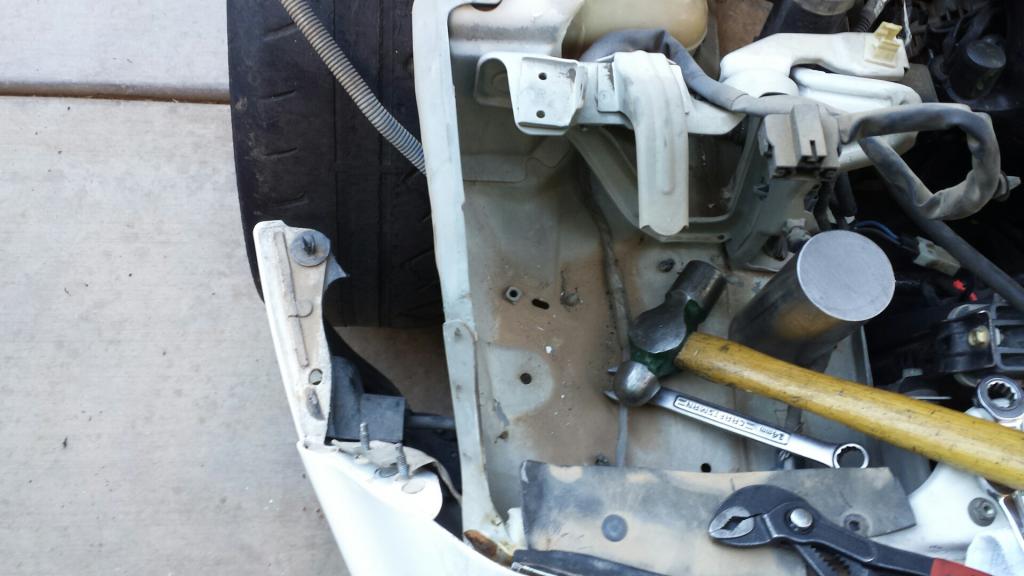

after i was done with it. you can see my chunk of 4340 round stock used as a dolley



and my question for today. why do all the braces on the market bolt to the hole where the wire bundle runs through? is there any reason i cant make the front landing right behind it on that lap joint/seam there? its 2 layers thick instead of just one, it wont disturb the cable, its nice and flat.... i can only see benefits, thoughts?

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20141207_090603_zpse9uepum8.jpg   sean's cheap thrills, 90 1.6 with subaru td04-2014-12-07%252010.10.17_zpstu9fp901.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141207_093024_zpsoybzu70o.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141207_095731_zpsk72giolk.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141207_093014_zpsr6mfzixe.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20141207_093008_zpsvfq7rjf7.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141207_093617_zpspappvsvb.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141207_093031_zpsnttqvv31.jpg   sean's cheap thrills, 90 1.6 with subaru td04-2014-12-07%252010.20.24_zpshwiz8e5h.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141207_095740_zpsyh6q8i6b.jpg

hi_im_sean is offline   Reply With Quote
Old 12-07-2014, 01:04 PM   #158
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,953
Total Cats: 570
Default

Nice work. No clue on your question though.
hornetball is offline   Reply With Quote
Old 12-17-2014, 06:06 PM   #159
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

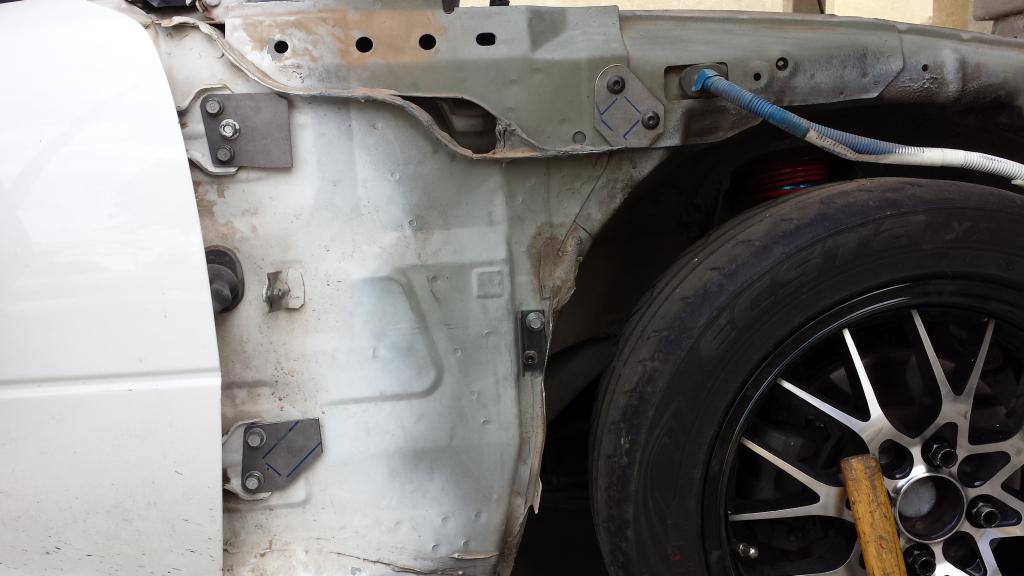

ive only had a n hour here and there to work on this, so ive been slowly chippin away the last 2 weeks.

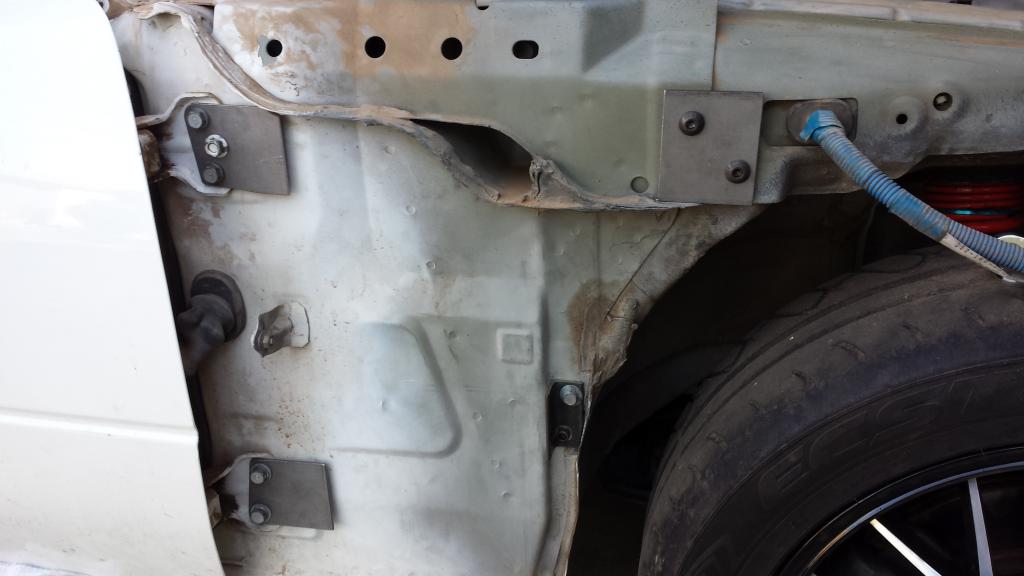

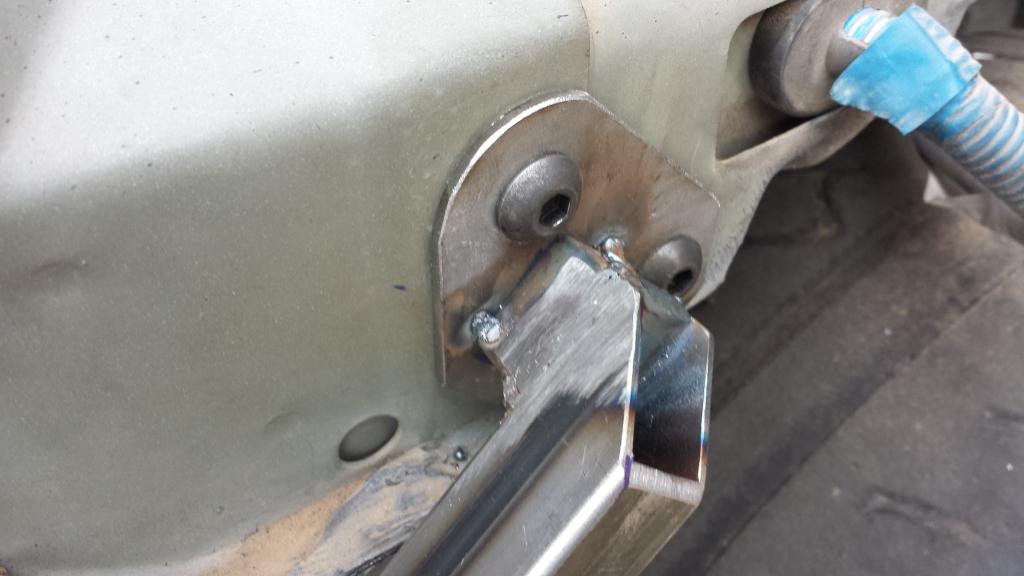

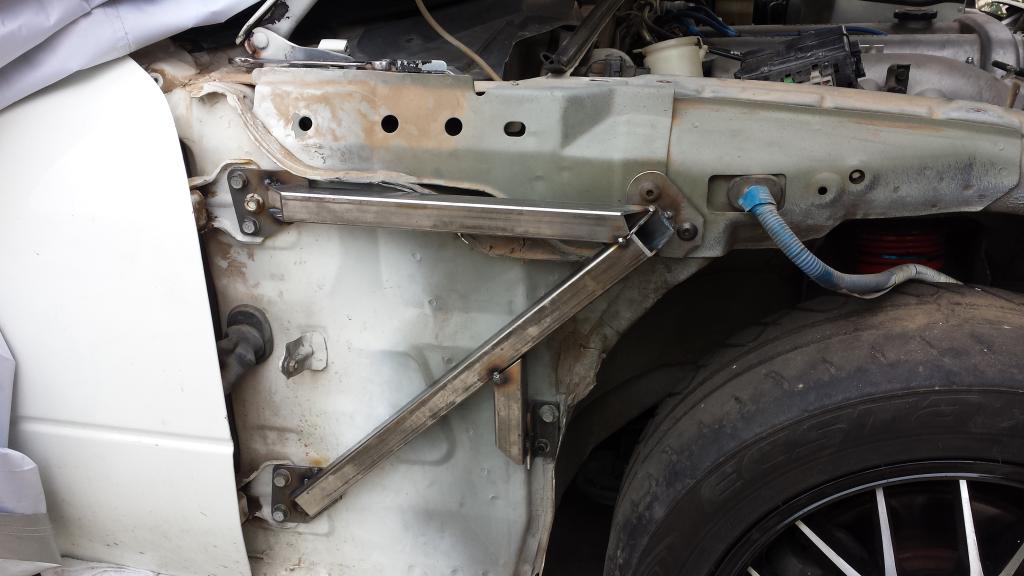

ill just let this post be a visual experience:















Attached Thumbnails

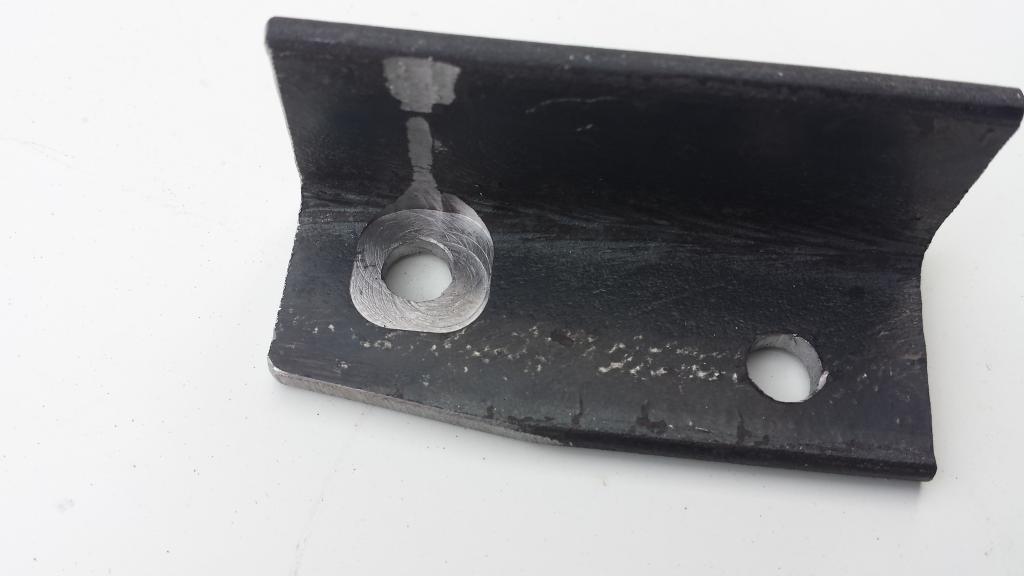

sean's cheap thrills, 90 1.6 with subaru td04-20141208_094931_zpscyximrqz.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141215_120021_zpsllxdlpu6.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141215_105612_zpsezxcaiyk.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141215_120012_zpsczu0tacx.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141215_123600_zps70sh7adm.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20141215_123556_zpscdvusgel.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141215_133228_zps1ubb1sjq.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141215_132922_zps5mwgldjv.jpg
hi_im_sean is offline   Reply With Quote
Old 12-22-2014, 10:09 PM   #160
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

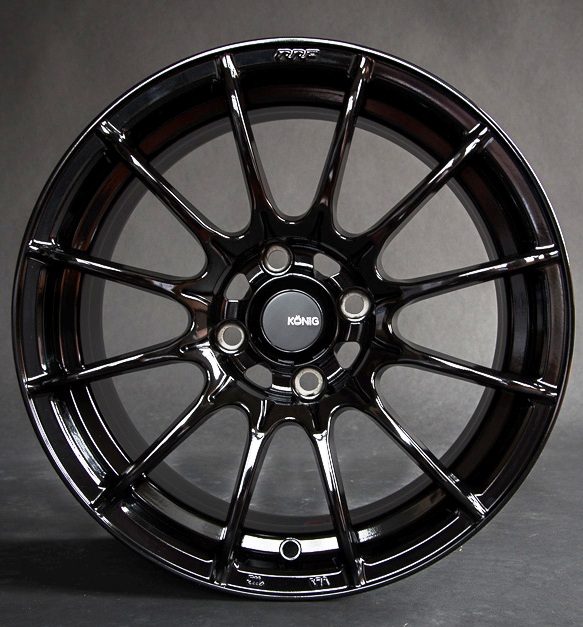

phils tire has a deal i couldnt pass up. got a set of konig dial in 15x9s in gloss black on the way. i wanted broze, but i guess those are gone.

$440 shipped for a set of 4! 12.8lbs! flow formed! blah blah blah

thanks phil and kim!

they had 2 sets left when i called at noon today.


so i got my tires a month ago before i knew i was going to have 9" wheels, and got more of the 205/50-15s we have been running to go on my 15x6.5s (i know i was a noob when i bought those wheels). should i stretch these tires on the 9s? or wait until the next set of tires to get the proper 225/45s and just run the 15x6.5s for now? i would just exchange them for the 225s, but i think return shipping is going to be too much money.

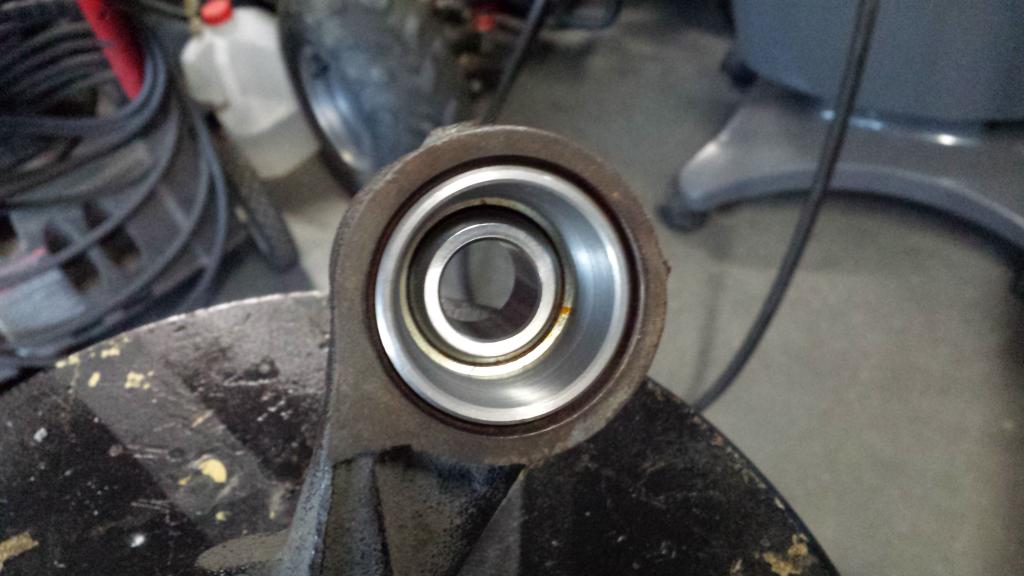

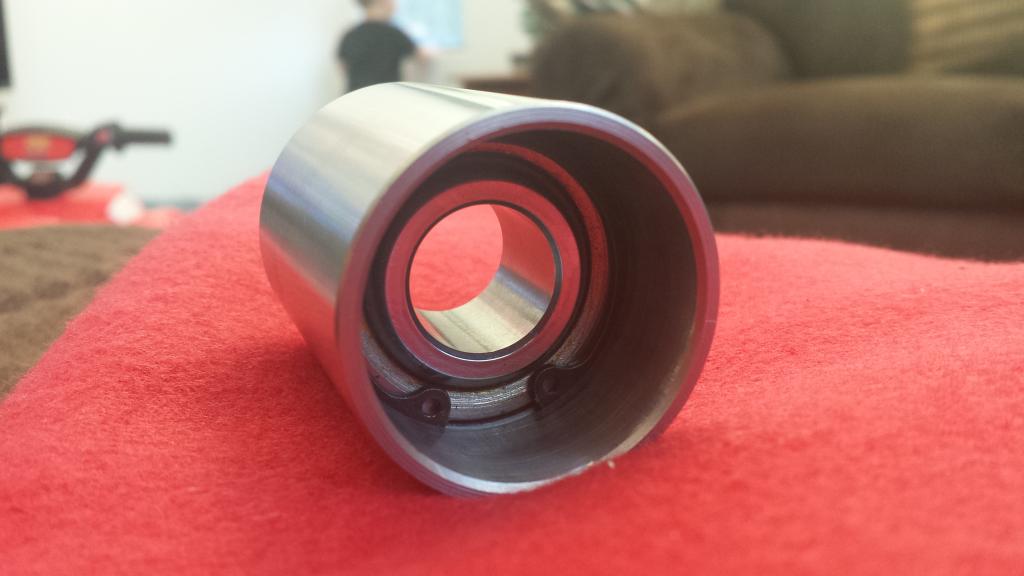

i also ordered a foot of 2" delrin to make some front upper offset bushings, and they send me 2 feet on accident so now i can make some rear lower outer bushings too.

will upper offset bushing for more camber cause clearance issues with the top hat, or anything else with 9" wheels? i dont really want to run a spacer.

also this:
https://www.miataturbo.net/race-prep...cussion-82072/


Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-konig-dial-miata-wheels-gloss-black.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141222_163835_zpsedsek6sn.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20141222_170447_zps8cp6umzx.jpg
hi_im_sean is offline   Reply With Quote
