Old 03-11-2015, 09:40 AM   #261
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,591
Total Cats: 252
Default

OK. I wouldn't mind banjo to barb, if the barb were 11mm 8mm, but they all seem to be 12mm. Maybe I could find a hose that would fit both ends (mixing manifold on the other end), but seems compromised.

No way would a hose fit on both ends.

Thanks

Last edited by DNMakinson; 03-11-2015 at 09:57 AM. Reason: Sizes way wrong
DNMakinson is offline   Reply With Quote
Old 03-11-2015, 10:36 AM   #262
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

Quote:
Originally Posted by DNMakinson View Post
OK. I wouldn't mind banjo to barb, if the barb were 11mm 8mm, but they all seem to be 12mm. Maybe I could find a hose that would fit both ends (mixing manifold on the other end), but seems compromised.

No way would a hose fit on both ends.

Thanks
not the most common or inexpensive fitting, but theyre out there
12mm banjo to 8mm barb | eBay

wrong bolt, reuse your current bolt
http://www.ebay.com/itm/Banjo-and-bo...0bc0f1&vxp=mtr

not sure about hits one with the rubber seals and all, but cant see why it wouldnt work with copper washers
Amazon Amazon
hi_im_sean is offline   Reply With Quote
Old 03-11-2015, 12:23 PM   #263
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,591
Total Cats: 252
Default

Right, I should have been more specific. I meant something that resembles the OEM Subie with the curved section. Something 90 degree that ends up directing the barbs similar to what you have done.

The FM kit seems to use the simple ones.

Are you planning to use heat sleeve on your lines?
DNMakinson is offline   Reply With Quote
Old 03-11-2015, 12:29 PM   #264
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Leafy is offline   Reply With Quote
Old 03-11-2015, 12:56 PM   #265
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,591
Total Cats: 252
Default

Quote:
Originally Posted by Leafy View Post
Yep, that is the set-up that is 12mm when I need 8mm.

I'll find something to do what I want, but it may not be a piece of cake.

I may get a replacement from Sturovo of what I have now, but route it in such a manner that I don't mess it up.
DNMakinson is offline   Reply With Quote
Old 03-11-2015, 01:10 PM   #266
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

they do also have a bunch that go from banjo to braided line, to barb. KINUGAWA TURBO Online Shopping Cart - Turbo Water line / Hose kit

How small of a damn water line are you trying to run? 12mm OD 9mm ID that hose eblows are setupfor is pretty normal. Thats normal 3/8" ID lines that like everyone else uses.
Leafy is offline   Reply With Quote
Old 03-11-2015, 03:10 PM   #267
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

Quote:
Originally Posted by DNMakinson View Post
Right, I should have been more specific. I meant something that resembles the OEM Subie with the curved section. Something 90 degree that ends up directing the barbs similar to what you have done.

The FM kit seems to use the simple ones.

Are you planning to use heat sleeve on your lines?
my bad, yea, i dont think ive seen a banjo with a bend in it at 8mm/5/16"

ill run heat sleeve where i have to. i was hoping to route it in such a way to where i wouldnt, but thats not likely to happen.

Quote:
Originally Posted by Leafy View Post

How small of a damn water line are you trying to run? 12mm OD 9mm ID that hose eblows are setupfor is pretty normal. Thats normal 3/8" ID lines that like everyone else uses.
5/16"/8mm because thats the line size provided by the miata. 3/8" is technically too large for the nipple by the stock thermo housing, but im sure they work fine for most with a worm clamp.
hi_im_sean is offline   Reply With Quote
Old 03-11-2015, 03:12 PM   #268
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,591
Total Cats: 252
Default

Mixing Manifold nipple and the T/S extension are 8mm.

Short term I think I'll get a barbed Banjo and repair what I have. Then when I do the coolant re-route, run AN line, 4 or 6, to the spacer.
DNMakinson is offline   Reply With Quote
Old 03-11-2015, 03:13 PM   #269
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

So I bet you can get that 8mm tube over a ******* 9mm barb whats 1mm between friends? Lol, if its a rubber hose just use the heat gun and some spit to slip it on.
Leafy is offline   Reply With Quote
Old 03-11-2015, 03:24 PM   #270
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,591
Total Cats: 252
Default

Quote:
Originally Posted by Leafy View Post
So I bet you can get that 8mm tube over a ******* 9mm barb whats 1mm between friends? Lol, if its a rubber hose just use the heat gun and some spit to slip it on.
Because the steel pipe is 12mm OD, 9mm ID, not the proposed mating hose.

Sure, strech 1mm or 12%, but not 50%.
DNMakinson is offline   Reply With Quote
Old 03-11-2015, 03:31 PM   #271
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

No the Steel pipe is for 9mm ID hose.
Leafy is offline   Reply With Quote
Old 03-11-2015, 03:42 PM   #272
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

Quote:
Originally Posted by Leafy View Post
No the Steel pipe is for 9mm ID hose.
no its not, its for 12mm ID hose. the ID of the pipe is referred to as 9mm
hi_im_sean is offline   Reply With Quote
Old 03-11-2015, 03:44 PM   #273
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

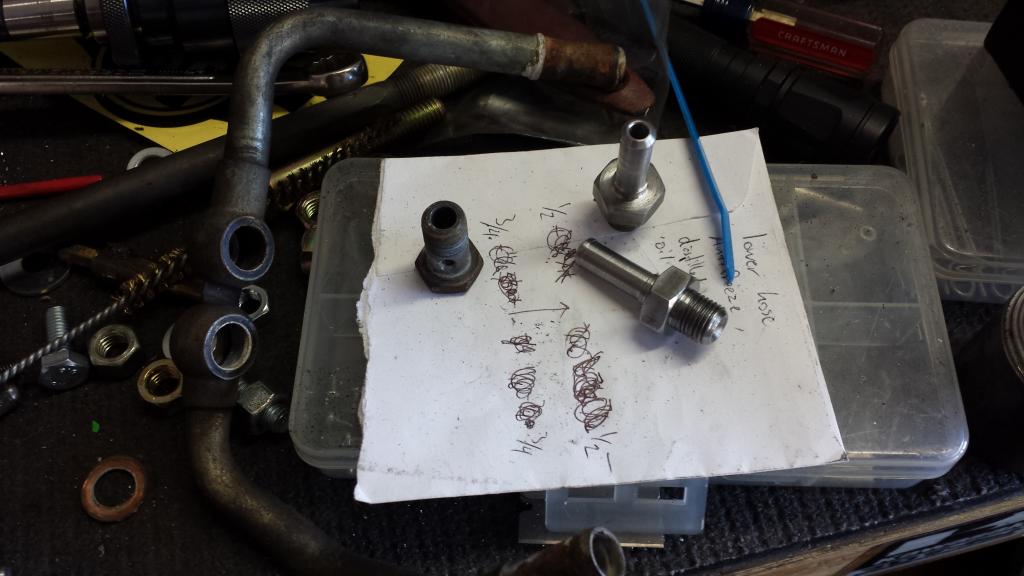

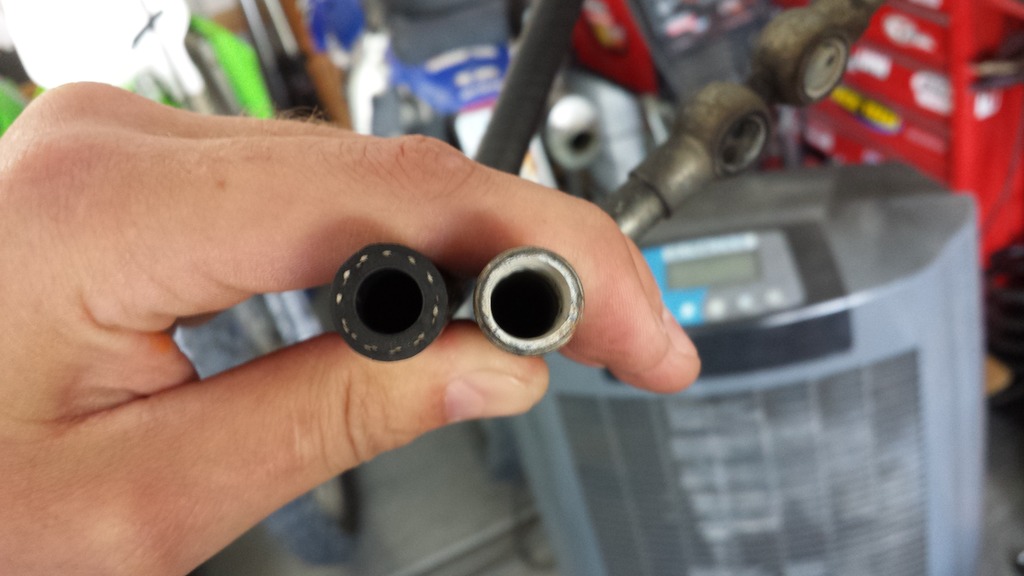

just look at the size diff in the pic i posted a few pages ago

hi_im_sean is offline   Reply With Quote
Old 03-11-2015, 03:52 PM   #274
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Well its certainly not for 1/2" ID hose. I mean I've got them on the subaru (not these exact ones but the OEM ones that they're supposed to replace), its 3/8. No turbo this size is going to use ******* 1/2" ID hose for coolant.
Leafy is offline   Reply With Quote
Old 03-11-2015, 03:54 PM   #275
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

Quote:
Originally Posted by Leafy View Post
Well its certainly not for 1/2" ID hose. I mean I've got them on the subaru (not these exact ones but the OEM ones that they're supposed to replace), its 3/8. No turbo this size is going to use ******* 1/2" ID hose for coolant.
Your right it's not 1/2". Its 12mm
hi_im_sean is offline   Reply With Quote
Old 03-11-2015, 03:56 PM   #276
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Quote:
Originally Posted by hi_im_sean View Post
Your right it's not 1/2". Its 12mm
ooooo, 0.7mm difference, its so huge...
Leafy is offline   Reply With Quote
Old 03-11-2015, 04:03 PM   #277
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

Quote:
Originally Posted by Leafy View Post
ooooo, 0.7mm difference, its so huge...
no one is talking about 1/2" hose but you. the discussion is about going from 8mm to 12mm, 50 percent increase as described to you already, 4mm difference. make sense?

now stop pooping in my build thread jonathan
hi_im_sean is offline   Reply With Quote
Old 03-11-2015, 04:15 PM   #278
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Holy ****. 12mm is 1/2 when you're talking about hard metric. Does it make sense now? That barb is designed for 9mm ******* ID hose which has a 12mm OD. This is also know as 3/8" ID hose with a 1/2" OD. Aka most turbo coolant lines ever. The non bubble part of that damn adapter I linked is 9mm. Which means if you try really hard you can get 8mm aka 5/16th ID hose on the things.
Leafy is offline   Reply With Quote
Old 03-11-2015, 05:09 PM   #279
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,591
Total Cats: 252
Default

Thanks, Sean. I ordered a 12mm banjo -> 8mm barb from... Flyin Miata! Garrett is 14mm, but they have both available. $16.80 delivered with washers, over 1/3 of which is shipping. That's what happens when one only needs a single, small part.

And yes, your picture well shows the difference between what comes on the TD04, and what we need to mate with Miata.
DNMakinson is offline   Reply With Quote
Old 03-11-2015, 05:27 PM   #280
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

Quote:
Originally Posted by Leafy View Post
Holy ****. 12mm is 1/2 when you're talking about hard metric. Does it make sense now? That barb is designed for 9mm ******* ID hose which has a 12mm OD. This is also know as 3/8" ID hose with a 1/2" OD. Aka most turbo coolant lines ever. The non bubble part of that damn adapter I linked is 9mm. Which means if you try really hard you can get 8mm aka 5/16th ID hose on the things.
you were saying...







also id like to know where you get your 0.060" wall thickness hose from. sounds like some good ****.

and for good measure: 1/2" is more often associated with, and is closer to, 13mm, not 12.

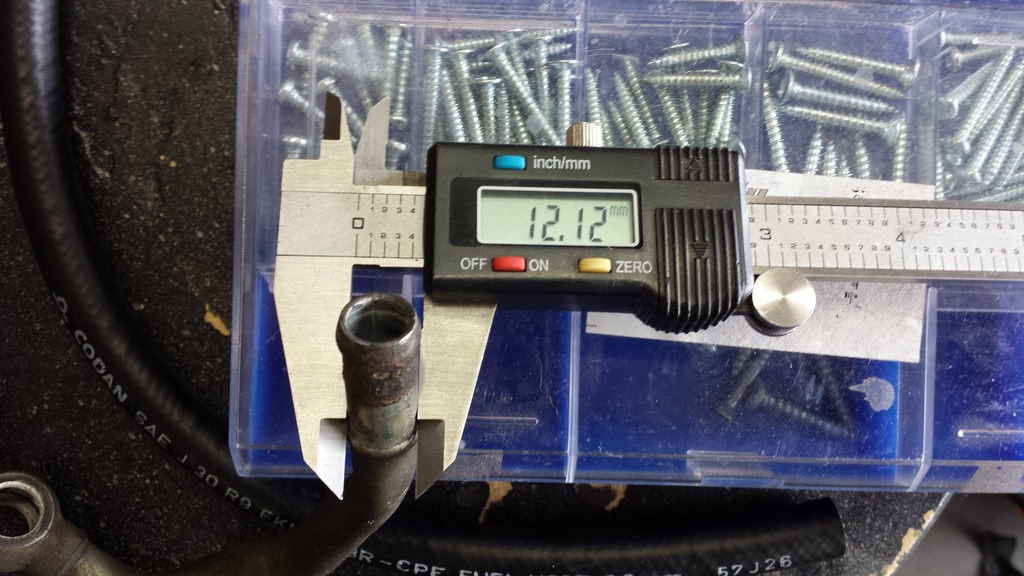

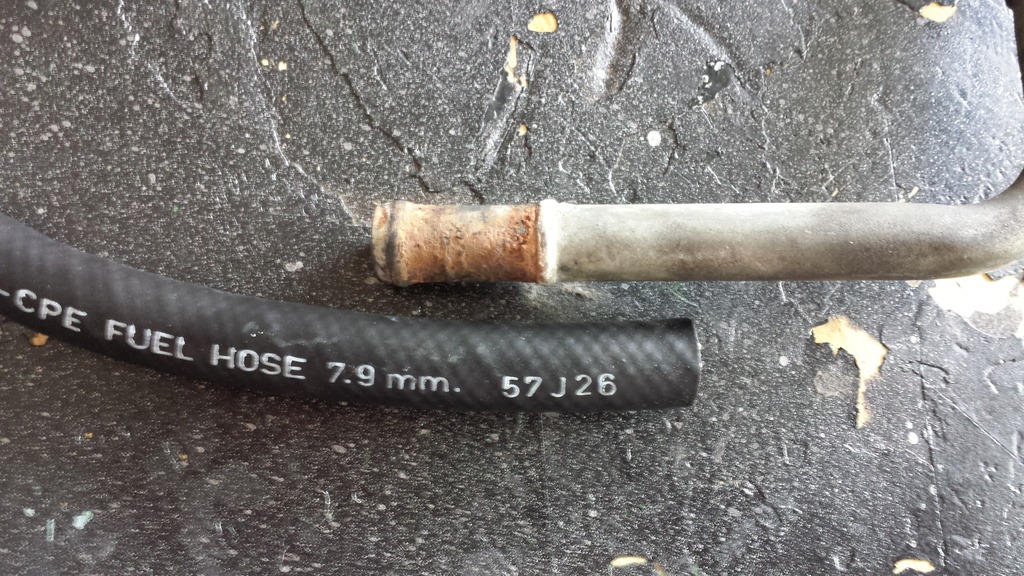

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20150311_142123_zpsp1ckrk2n.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150311_141834_zpslh2wms8l.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150311_141816_zpspe6ewt0k.jpg
hi_im_sean is offline   Reply With Quote
