Old 02-06-2015, 04:49 PM   #221
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

it really doesnt look as bad as i thought, the leverage looks low. its just that a little piece of me dies when i have to stack fitting to get the result i want when i know just about any adapter can be made out of one piece/unit.
hi_im_sean is online now   Reply With Quote
Old 02-06-2015, 06:04 PM   #222
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,925
Total Cats: 93
Default

Quote:
Originally Posted by hi_im_sean View Post
it really doesnt look as bad as i thought, the leverage looks low. its just that a little piece of me dies when i have to stack fitting to get the result i want when i know just about any adapter can be made out of one piece/unit.
Sometimes it makes sense though. Like a pipe thread should only be a 1 use connection, its perfect for cutting into expensive parts. While a flare type connection is great for stuff that has to be undone a couple times its really not something you want to integrate into a part unless its an inverted flare. Straight, washer/oring seals fall in a middle ground, where they're easy to put on parts and are ok with connection/disconnection but have their own draw backs.
Leafy is offline   Reply With Quote
Old 02-06-2015, 06:46 PM   #223
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by Leafy View Post
Sometimes it makes sense though. Like a pipe thread should only be a 1 use connection, its perfect for cutting into expensive parts. While a flare type connection is great for stuff that has to be undone a couple times its really not something you want to integrate into a part unless its an inverted flare. Straight, washer/oring seals fall in a middle ground, where they're easy to put on parts and are ok with connection/disconnection but have their own draw backs.
well if there is a good reason to do so, like using helicoils in aluminum in cases where the fastener is R/Red often to save the threads, then sure. but i mean having to stack fittings or whatever because they dont make the one you need, or when people are to cheap/stupid/un-resourceful.
hi_im_sean is online now   Reply With Quote
Old 02-06-2015, 08:37 PM   #224
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

Cheap here. I save 30$ a side by going m12-an then the 90. A 90* m12-an cost 30 more a side.
aidandj is offline   Reply With Quote
Old 02-07-2015, 01:15 PM   #225
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,253
Total Cats: 213
Default

If you purchase premade hoses, you can get the 90 crimped onto the end of the hose.
DNMakinson is offline   Reply With Quote
Old 02-07-2015, 01:51 PM   #226
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

Quote:
Originally Posted by DNMakinson View Post
If you purchase premade hoses, you can get the 90 crimped onto the end of the hose.
I'm using rubber hose, not braided.
aidandj is offline   Reply With Quote
Old 02-07-2015, 02:07 PM   #227
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by aidandj View Post
I'm using rubber hose, not braided.
you can crimp either. just need the proper fittings.

i have access to a hydraulic crimper, but id have to but the right size dies, and i really didnt wnat to get into custom hoses. with barbs, if i spring a leak at the track, all i need is a screwdriver and length of hose.

on a related note, check this **** out
http://www.walmart.com/ip/Milton-Ind...-Tool/19252906

Last edited by hi_im_sean; 02-08-2015 at 03:12 PM.
hi_im_sean is online now   Reply With Quote
Old 02-07-2015, 09:57 PM   #228
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

can anyone inform me as to why one would choose a puck style clutch over a full disc when theres a choice of either that would satisfy torque requirements? after a little google searching, i am still unclear as to what the pros and cons are to each type.
hi_im_sean is online now   Reply With Quote
Old 02-08-2015, 02:19 PM   #229
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

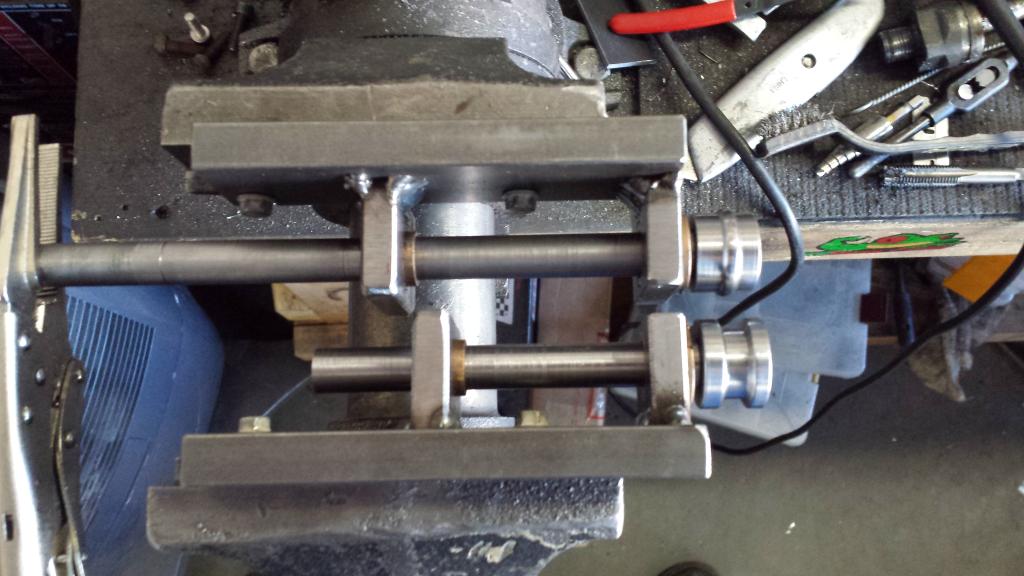

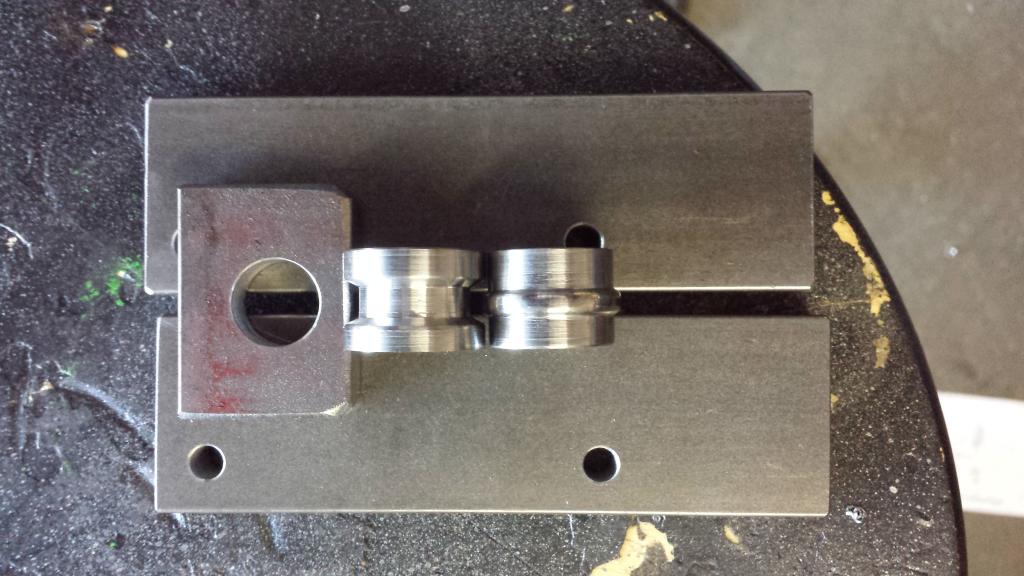

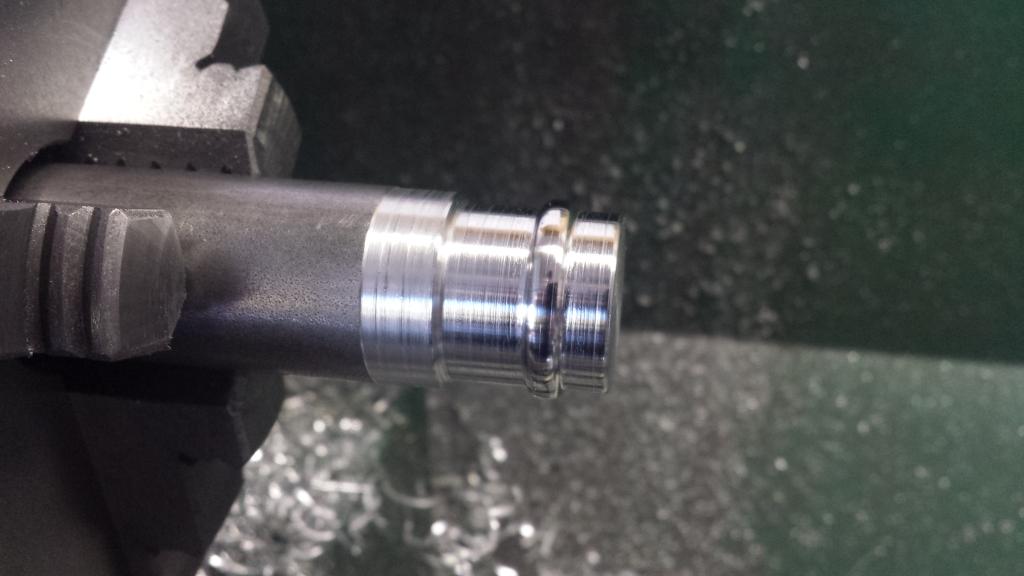

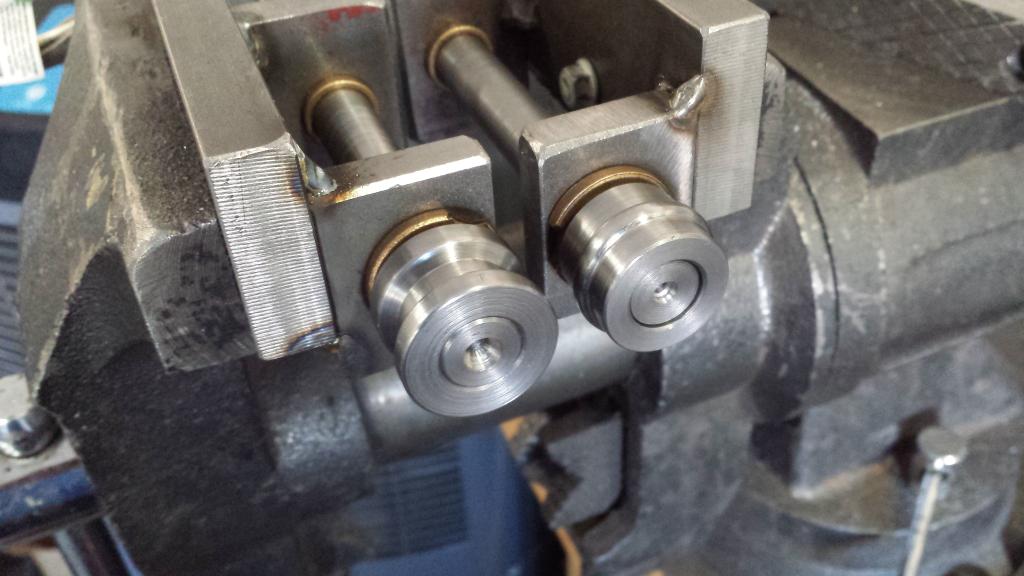

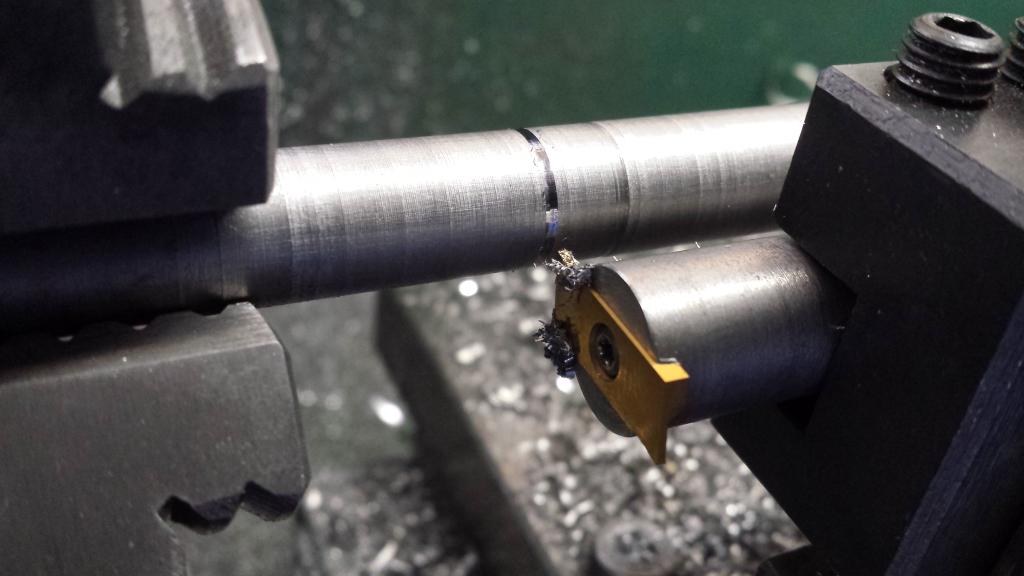

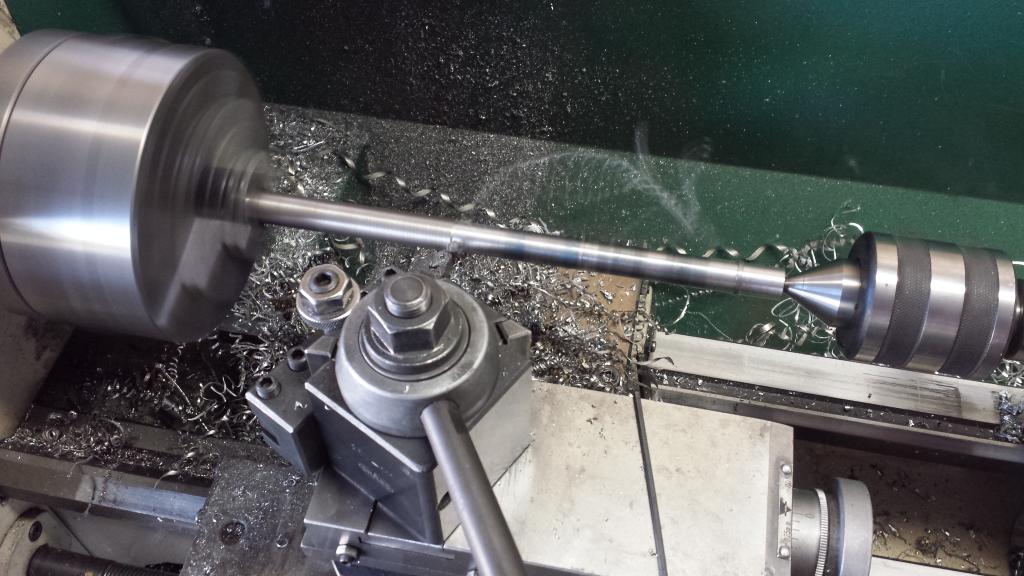

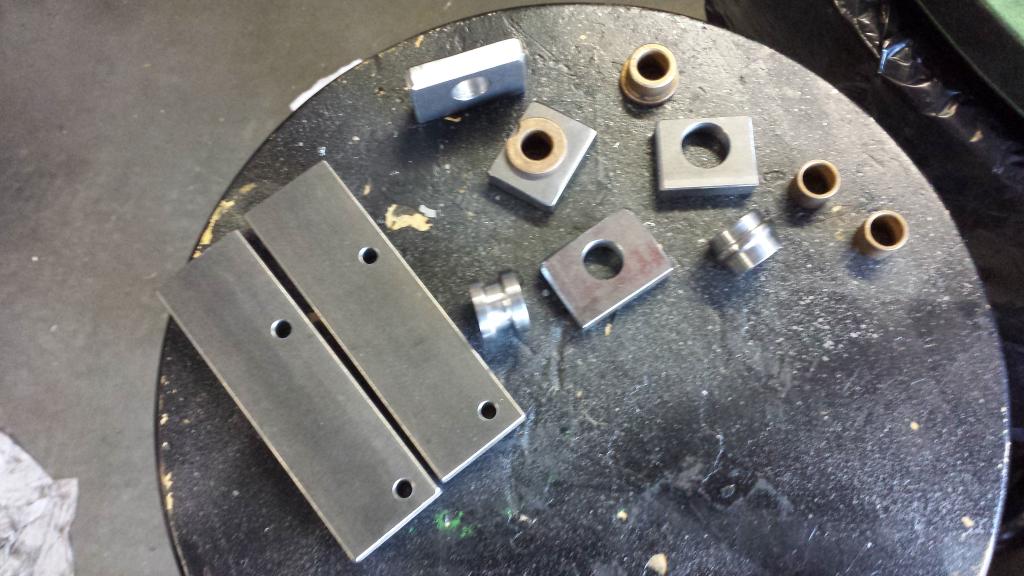

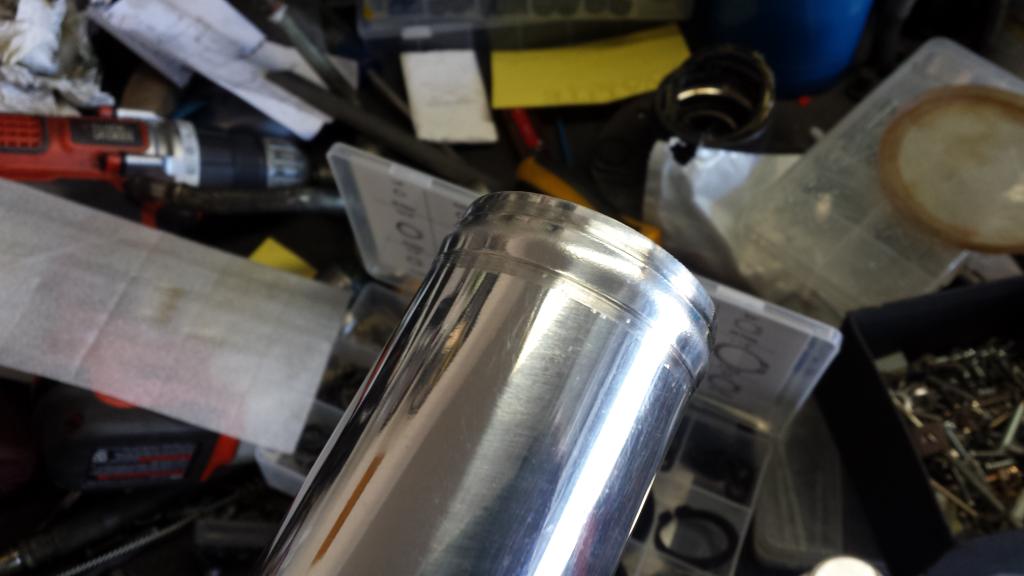

the female die had a sharp edge, so it left a ridge on the pipe. it has been fixed, but i dont have a good pic of the bead i rolled after the die was rounded off.

heres the first one i rolled
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20150207_151352_zpsvfxcmgzt.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150208_085447_zpsxglmxngv.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150208_085603_zps4yif2lfi.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150208_092000_zps13h7qqap.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150208_112424_zpsq8fjvyxm.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20150208_113233_zpsmwnwlaju.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150208_113238_zpsmveij3we.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150208_113629_zpsd5napfi7.jpg
hi_im_sean is online now   Reply With Quote
Old 02-08-2015, 02:35 PM   #230
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

hahaha LOVE how you're literally making everything from scratch
18psi is offline   Reply With Quote
Old 02-08-2015, 03:05 PM   #231
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by 18psi View Post
hahaha LOVE how you're literally making everything from scratch
thanks vlad
hi_im_sean is online now   Reply With Quote
Old 02-09-2015, 12:43 PM   #232
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

That beader is uber-cool!
hornetball is offline   Reply With Quote
Old 02-09-2015, 12:57 PM   #233
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

Way cooler than the one I'm going to make: DIY $5 charge pipe bead roller - D-series.org
aidandj is offline   Reply With Quote
Old 02-09-2015, 01:00 PM   #234
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

I saw those when I was searching for ideas. Probably way less work for the same result, and you'll never see the ugliness.

Edit: when I'm done using it, you can borrow it. it might be a while though, we are going to finish the season (may) before we turbo.
hi_im_sean is online now   Reply With Quote
Old 02-10-2015, 01:11 PM   #235
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,406
Total Cats: 1,259
Default

Puck versus non-puck at same rating means that puck clutch has weaker pressure plate because the material is grippier. I prefer the stronger pressure plate and smoother engagement of the non-puck, myself.
sixshooter is offline   Reply With Quote
Old 02-10-2015, 02:55 PM   #236
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by sixshooter View Post
Puck versus non-puck at same rating means that puck clutch has weaker pressure plate because the material is grippier. I prefer the stronger pressure plate and smoother engagement of the non-puck, myself.
ive done a little more googling and the consensus seems to be: pucks are on/off switches and "cool better". i cant see any reason to not go with a full disk.
hi_im_sean is online now   Reply With Quote
Old 02-10-2015, 03:56 PM   #237
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

Quote:
Originally Posted by hi_im_sean View Post
I saw those when I was searching for ideas. Probably way less work for the same result, and you'll never see the ugliness.

Edit: when I'm done using it, you can borrow it. it might be a while though, we are going to finish the season (may) before we turbo.
Totally didn't see the ninja edit. I'll hit you up when I finally get around to bead rolling my piping, I should probably do it before a track day. If you're not done I will just make the ghetto one. I don't know why no one has mass-produced one of those and sold it for $10 I bet they would sell like wildfire.
aidandj is offline   Reply With Quote
Old 02-10-2015, 03:59 PM   #238
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

Nevermind, turns out my work has one in the machine shop. I will just pull all my piping at some point and do it there.
aidandj is offline   Reply With Quote
Old 02-10-2015, 05:44 PM   #239
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by aidandj View Post
Nevermind, turns out my work has one in the machine shop. I will just pull all my piping at some point and do it there.
we have a really nice one at work too. its just not a place i can or want sneak intercooler piping into.

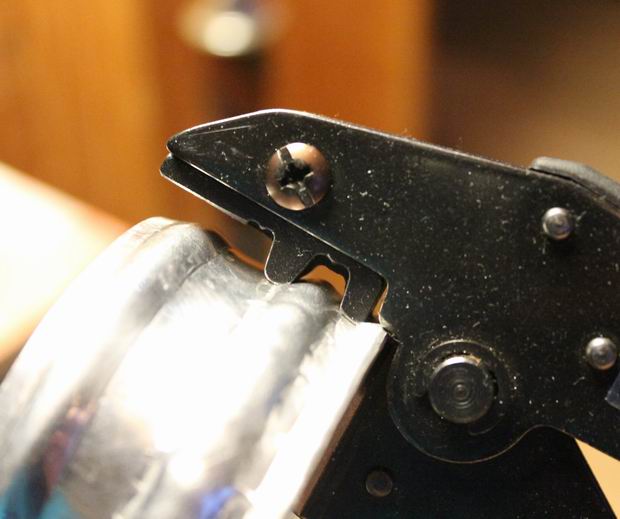

yet another idea i came across, although it hurts me to see a crimper used i such a way
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-69857d1406339064-diy-bead-roller-intake-piping-aluminum-beadroller7.jpg
hi_im_sean is online now   Reply With Quote
Old 02-10-2015, 06:02 PM   #240
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

Ahh, ours is in the "engineers shop" where the elec. Eng's get to play with the mechanical eng. toys
aidandj is offline   Reply With Quote
