I also came up with a different design for the mixing manifold similar to yours. No time on the engine yet, we'll see how it works out.

Attached Thumbnails

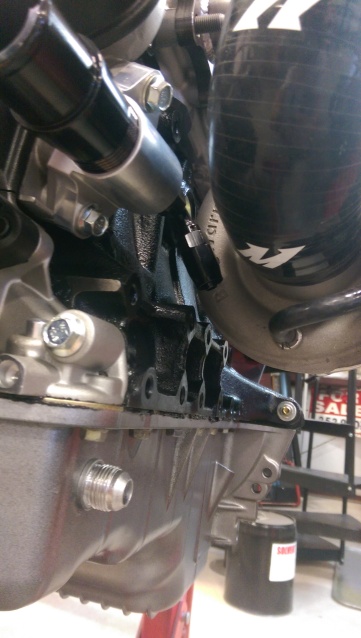

sean's cheap thrills, 90 1.6 with subaru td04-ngcxhy.jpg
TheBandit is offline   Reply With Quote
Old 06-27-2015, 05:23 PM   #342
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by TheBandit View Post
I also came up with a different design for the mixing manifold similar to yours. No time on the engine yet, we'll see how it works out.

that is a very nice piece. i wanted to incorporate an angle into mine so it points down more, but having only manual machines i decided *** it.
hi_im_sean is online now   Reply With Quote
Old 07-01-2015, 06:28 PM   #343
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Got the head back!

Hot tanked,milled, new stem seals, valves cleaned, valves lapped. Machinist said the guides and stems where within spec and only a few were lightly leaking, so he just lapped them all lightly. $130, not bad. I also now realize where my 3 missing spark plugs went



Got the pipe fitting, which makes it obvious I didnt start the tap straight. It was too large to chuck up in anything I have, so I had to hand start it. The wall is thicker than I anticipated, so it may support 3/8" NPT after all. If it does I may use this and sell the other one.

Last edited by hi_im_sean; 10-23-2016 at 12:29 PM.
hi_im_sean is online now   Reply With Quote
Old 07-01-2015, 06:33 PM   #344
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

<p>Classifieds for the blockoff plate. Our ghetto one will work for now.</p>
aidandj is offline   Reply With Quote
Old 07-02-2015, 04:40 PM   #345
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

I made a video for you gheys. Every hose connection is like this. The water here in phoenix is as hard as it comes, so im guessing a PO used tap water.



Is the stupid starter bracket really necessary? These 2 things.



New gaskets, and the head is on.


Another stup PO thing. The coil bracket broke across one of the bolt holes, so they brazed it with brass rod.


I did an equally shitty job of welding a washer on there. (cops one day)


Reroute!


I also took apart all the HLAs and soaked them in sea foam. Quite a bit of "oil solids" came out of a few of them, most of the varnish is gone now as well. I assembled them with some good synthetic.

Last edited by hi_im_sean; 10-23-2016 at 12:33 PM.
hi_im_sean is online now   Reply With Quote
Old 07-02-2015, 04:51 PM   #346
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,416
Total Cats: 186
Default

FYI if you ever have the head off, check the valves again. I've never had luck lapping valves and that lasting more than about 500 miles. Easy way to check is just spray brake parts cleaner down the port and watch the valves for wetness.
patsmx5 is offline   Reply With Quote
Old 07-03-2015, 10:22 AM   #347
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 436
Total Cats: 19
Default

I also just cleaned my HLAs and what a difference that made. Time consuming work but now my car doesn't sound like a room full of type writers after my autocross runs.
90civichhb is offline   Reply With Quote
Old 07-03-2015, 10:29 AM   #348
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

These are the easiest HLAs ive ever done. Maybe an hour to take them all apart, clean and reaseemble, not incluing soak time. They just pull apart, they have one simple feed hole, its wonderful. I curse the nissan KAs. They use a 846,992 guage wire retainer that you have to use a nice sharp #11 blade to get under, the whole assembly is the size of a pencil eraser. Youre lucky if you dont detroy it getting it off. After a track session it sounded like an angry family of badgers with advanced parkinsons had taken residence in my valve cover. I hope this makes it all better.

Last edited by hi_im_sean; 10-23-2016 at 12:34 PM.
hi_im_sean is online now   Reply With Quote
Old 07-03-2015, 10:34 AM   #349
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by patsmx5 View Post
FYI if you ever have the head off, check the valves again. I've never had luck lapping valves and that lasting more than about 500 miles. Easy way to check is just spray brake parts cleaner down the port and watch the valves for wetness.
Good tip. If I have any issues, Ill do a leak down and go from there. Wish id thought of this before I slapped it on, but I do trust my machinist. Ive been using him for over 10 years and hes always done great work.

Last edited by hi_im_sean; 10-23-2016 at 12:34 PM.
hi_im_sean is online now   Reply With Quote
Old 07-03-2015, 11:13 AM   #350
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

<p>Its called character. Lets me know my car loves me.</p><p>Also, never heard rod knock, so every time the HLAs get really bad I start to worry that I bent something.</p>
aidandj is offline   Reply With Quote
Old 07-03-2015, 11:15 AM   #351
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by aidandj View Post
Its called character. Lets me know my car loves me.</p><p>Also, never heard rod knock, so every time the HLAs get really bad I start to worry that I bent something.
Should have cleaned them for realz while you had em out. The reason I cleaned my KAs in my hardbody was because it had a rod knock lmao.

Last edited by hi_im_sean; 10-23-2016 at 12:35 PM.
hi_im_sean is online now   Reply With Quote
Old 07-03-2015, 11:28 AM   #352
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

<p>I'll do it on my new engine. Don't care enough about this one to make it worth it. The next owner can do it.</p>
aidandj is offline   Reply With Quote
Old 07-06-2015, 08:30 PM   #353
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

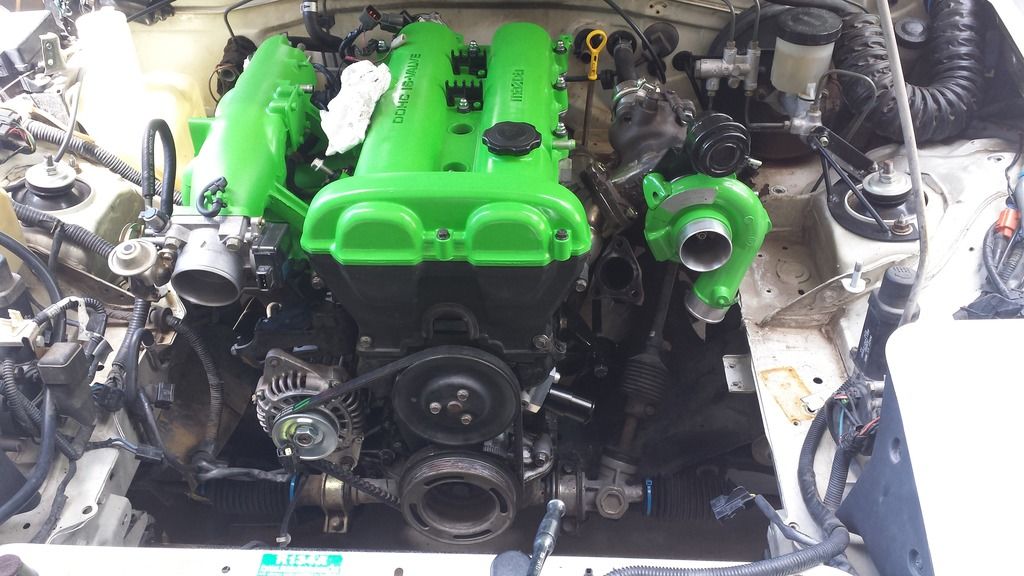

Got a lot done today.

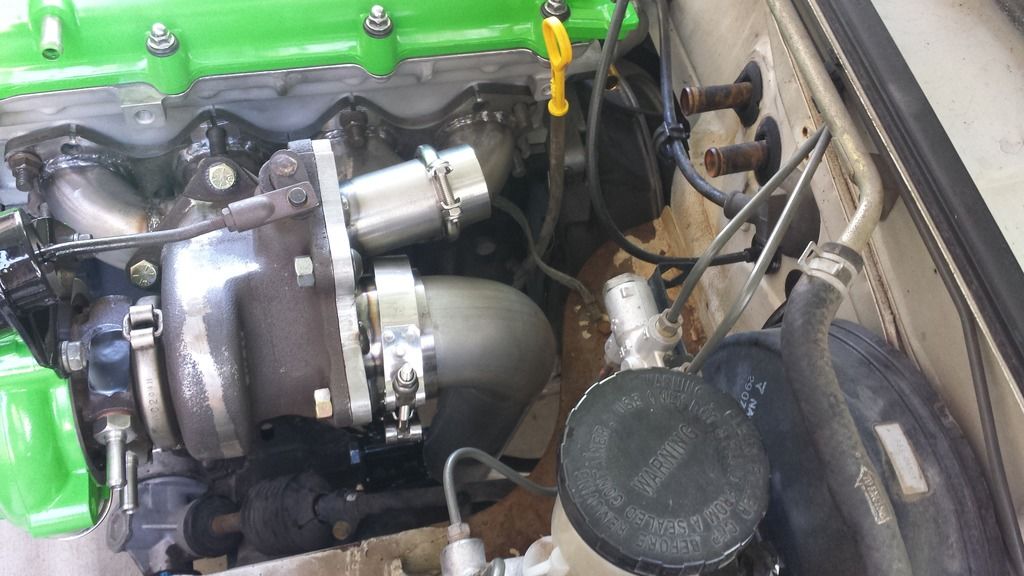

Down pipe clearence! Ive got a soild 3/4" minimum now.

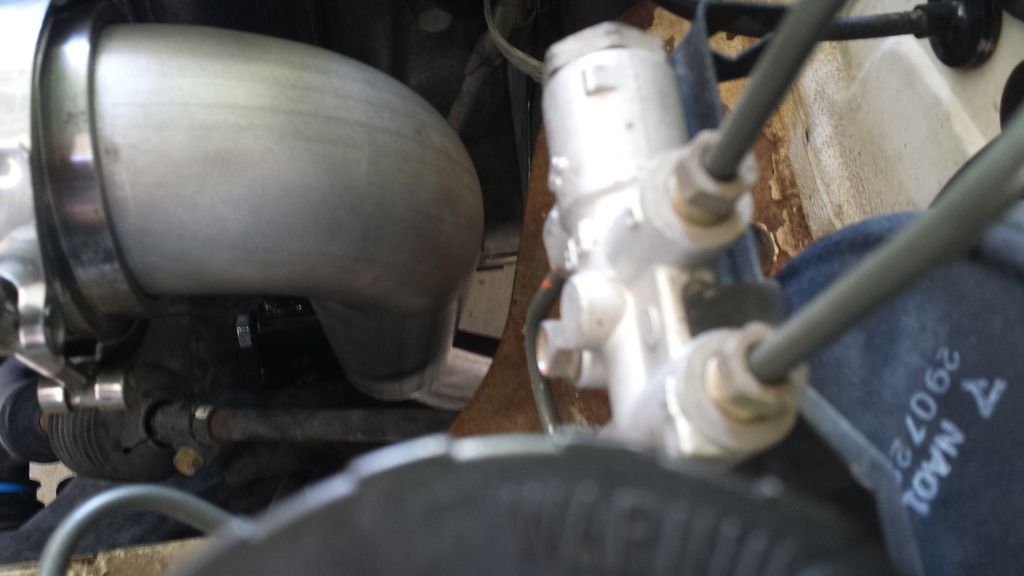

There should be plenty of room for the divocred pipe, but its going to be tricky

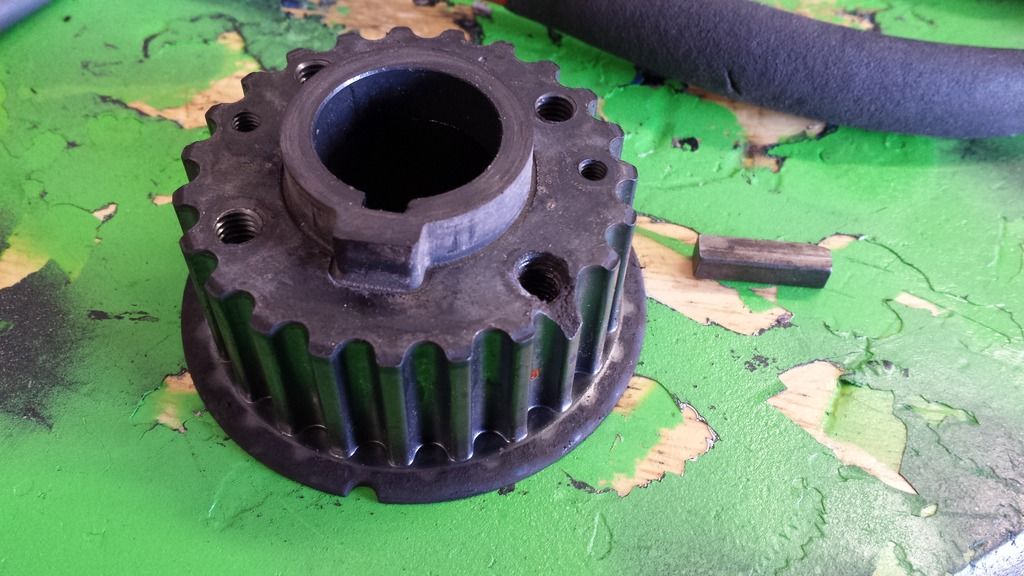

I found this while i was resetting the timing belt :(


Also had a helper today
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150706_140858_zpsnjl0mcio_f5d92a97e77c0eddc1f548903032c27394112a47.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150706_143915_zps2mnymfet_c8236d95e0fa0aa7c753c60229f2866b74e68430.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150706_144012_zpslussvl0z_b1c4f617ea595d25aa6abffae120fd216f36a531.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150706_1038420_zpskwyvd1qx_f5ac68cc0b3fe2350940a4ae5d07f31edb6794db.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150706_142831_zpsrk2gdqlg_8ececaf1ba7334ffe999de1628a89f909fa35771.jpg

hi_im_sean is online now   Reply With Quote
Old 07-06-2015, 09:50 PM   #354
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

1 90 degree bend and a hole saw. Divorced downpipe done.
aidandj is offline   Reply With Quote
Old 07-06-2015, 09:57 PM   #355
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by aidandj View Post
1 90 degree bend and a hole saw. Divorced downpipe done.
**** that.

Also forgot to mention i removed stupid starter bracket. I don't get why that thing is there
hi_im_sean is online now   Reply With Quote
Old 07-06-2015, 10:02 PM   #356
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

OK a 90 degree bend and a tractor flapper. I'm gonna find a spare hood and do that.
<br />
<br />Digging the v-band. Much jealous.
aidandj is offline   Reply With Quote
Old 07-06-2015, 10:38 PM   #357
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by aidandj View Post
OK a 90 degree bend and a tractor flapper. I'm gonna find a spare hood and do that.
lol, i might actually rock that



Quote:
Originally Posted by aidandj View Post
Digging the v-band. Much jealous.
thanks dude
hi_im_sean is online now   Reply With Quote
Old 07-09-2015, 04:31 AM   #358
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 656
Total Cats: 80
Default

Are you merging back into the exhaust or just doing a screamer?

Looks like a pretty cool setup so far.
Arca_ex is offline   Reply With Quote
Old 07-09-2015, 08:40 AM   #359
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default sean's cheap thrills, 90 1.6 with subaru td04

Going to merge back. The plan is to do it a ways down past the clutch area as suggested by corky. Packaging and dp install/removal may necessitate a shorter run though.

I have a nice vibrant bellows flex coupler that'll go in between the dump and the merge so im not fighting 2 rigidly coupled vbands when installing.
hi_im_sean is online now   Reply With Quote
Old 07-10-2015, 02:46 PM   #360
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

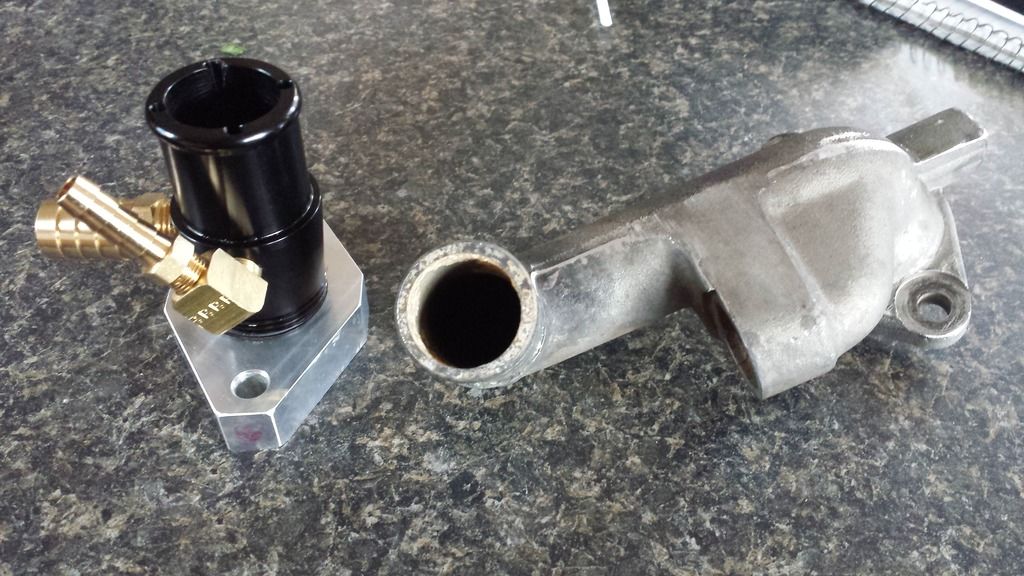

Ta da!



This will work nicely
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150709_160254_zpsosrcw6si_2eae4b2656a0270176a7a93cd8899faefcf7a05f.jpg
hi_im_sean is online now   Reply With Quote
