Build Threads Building a motor? Post the progress here.

sean's cheap thrills, 90 1.6 with subaru td04

Thread Tools

Search this Thread

Old 03-11-2015, 05:31 PM
  #281
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by DNMakinson
Thanks, Sean. I ordered a 12mm banjo -> 8mm barb from... Flyin Miata! Garrett is 14mm, but they have both available. $16.80 delivered with washers, over 1/3 of which is shipping. That's what happens when one only needs a single, small part.

And yes, your picture well shows the difference between what comes on the TD04, and what we need to mate with Miata.
no problem.

i have a really hard time understanding how someone can argue their point after seeing that pic.
hi_im_sean is offline
Old 03-11-2015, 05:38 PM
  #282
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

aidan, i see you lurkin, i want my fat black woman "i told you so meme" pic
hi_im_sean is offline
Old 03-11-2015, 07:20 PM
  #283
Elite Member
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,885
Total Cats: 616
Default

Ill do you one better.
Attached Thumbnails sean's cheap thrills, 90 1.6 with subaru td04-302chom.jpg   sean's cheap thrills, 90 1.6 with subaru td04-t7k03d.gif
Monk is offline
Old 03-11-2015, 07:54 PM
  #284
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by Monk
Ill do you one better.
perfect!



i have a track day on the 22nd. still curious what i should be running for cold psi. anyone?

205/50 rivals on 9s for those just joining us.
hi_im_sean is offline
Old 03-11-2015, 08:17 PM
  #285
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Originally Posted by hi_im_sean
aidan, i see you lurkin, i want my fat black woman "i told you so meme" pic
Was I right somewhere along there? I got so lost in your guys bickering I stopped trying lol.
aidandj is offline
Old 03-11-2015, 08:20 PM
  #286
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default

obviously photoshopped. I can tell from the pixels.
Leafy is offline
Old 03-11-2015, 08:20 PM
  #287
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Originally Posted by Leafy
obviously photoshopped. I can tell from the pixels.
^closest thing you will get to an admittance of wrongness.
aidandj is offline
Old 03-11-2015, 08:31 PM
  #288
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by aidandj
Was I right somewhere along there? I got so lost in your guys bickering I stopped trying lol.
lol no, i just wanted you to post a fat black woman meme for me like you did in some other thread. you seemed to be keeping up with it all in the shadows according to "Currently Active Users Viewing This Thread: "

Originally Posted by Leafy
obviously photoshopped. I can tell from the pixels.
Originally Posted by aidandj
^closest thing you will get to an admittance of wrongness.
ill take it

im sorry we had a fight jonatahn
hi_im_sean is offline
Old 03-21-2015, 02:07 PM
  #289
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

so i knew the brakes were done at the last track day, but damn!


didt realize they were that bad. im now getting slight taper too in 2 planes as you can see in the pic.

new pads, turned the front rotors(they are about 1/4" too big to fit on my lathe, so i had to go to oreillys), new pins and boots/seals. i bought piston seals too, but they seem fine and i dont really want to spend the time to do all that right now, especially the rear calipers.

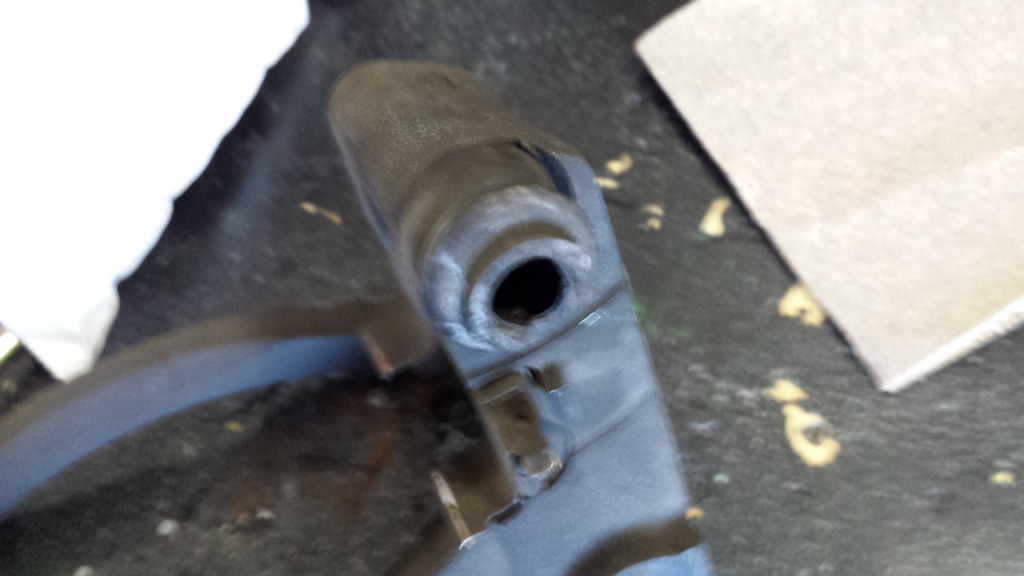

fuzzy pic of a torn boot

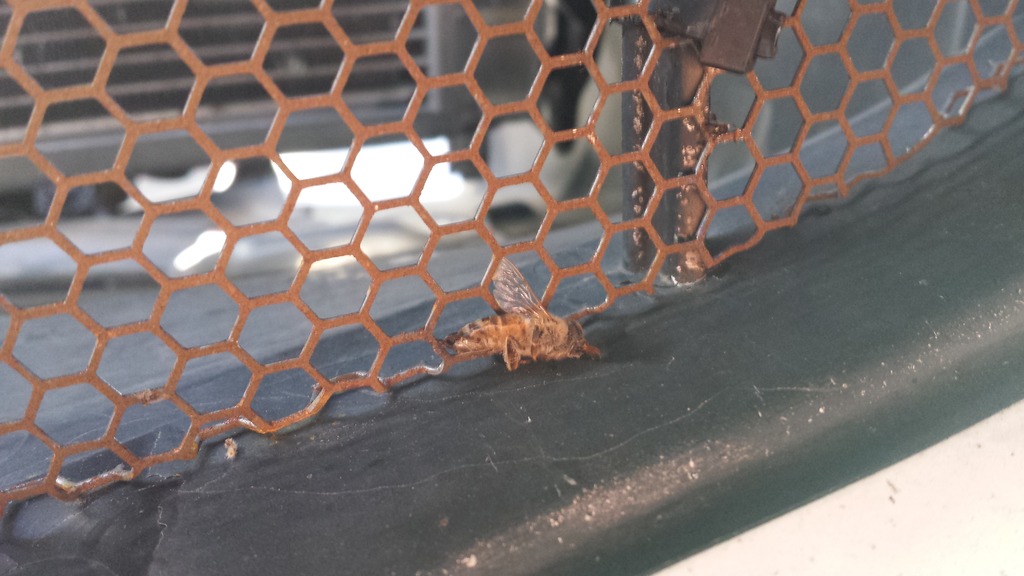

and the irony here is awesome


i thought that **** was galvinized :(. ill paint it flat black one day
Attached Thumbnails sean's cheap thrills, 90 1.6 with subaru td04-20150321_085223_zpsdlyxvaft.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150321_093319_zps7akakvlf.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150321_084718_zpskeff2g1d.jpg
hi_im_sean is offline
Old 03-21-2015, 04:37 PM
  #290
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

i take that back, i need to rebuild the drivers side rear. the dust boot was torn and fell off, it was just sitting on the piston, so you can imagine how much **** got in there and will take out the seal. also its leaking a little brake fluid out the back adjuster access bolt, so im guessing the adjuster seal is going bad too. and finally the larger of the 2 caliper pins was loose and therefore it bent, the threads were ok on the caliper. this caused dragging and the pads were much more worn than the pass side ones were.
hi_im_sean is offline
Old 03-25-2015, 05:47 PM
  #291
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

if everything goes right, this was my last na track day on this track.

critique, criticism?

one more track day in april, then BOOST!

im inclined to go with the ACT ZM1-XTSS. good choice yes?
ZM1-XTSS // Advanced Clutch Technology

edit:cold psi- 29 ok, but can be better, 28 even more gooder, 27 oh **** go back go back

Last edited by hi_im_sean; 03-27-2015 at 03:16 PM.
hi_im_sean is offline
Old 03-27-2015, 07:25 AM
  #292
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 20,652
Total Cats: 3,011
Default

Originally Posted by hi_im_sean
im inclined top go with the ACT ZM1-XTSS. good choice yes?
ZM1-XTSS // Advanced Clutch Technology
Yes.
sixshooter is offline
Old 03-27-2015, 11:50 AM
  #293
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by sixshooter
Yes.
did you ever sell yours?
hi_im_sean is offline
Old 03-27-2015, 03:38 PM
  #294
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 20,652
Total Cats: 3,011
Default

Originally Posted by hi_im_sean
did you ever sell yours?
Yes. Local forum guy picked it up when he was at my house looking at other parts.
sixshooter is offline
Old 04-14-2015, 05:58 PM
  #295
Newb

oztif's Avatar

Join Date: Apr 2015
Posts: 1
Total Cats: 0
Default similar build

excuse me if this is common knowledge.
Great read thank you.

Last edited by oztif; 04-14-2015 at 06:08 PM. Reason: wrong link
oztif is offline
Old 04-14-2015, 10:01 PM
  #296
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

ive seen it before and its been shared on this site a few times at least. what a weird first post.
hi_im_sean is offline
Old 04-20-2015, 05:34 PM
  #297
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

ran my last n/a track day yesterday. set new records on this course as its the first time ive done it since the last round of wheel, tire and suspension changes. it was a great day and the car felt solid. now that ive got my tire pressures dialed in and i actually remembered to set them all cold, the car was as nuetral as ever and became much easier to push to the limit and correct when going slightly over the limit.

video

a lot of things are going wrong with this car in a hurry though. just in time to tear it down for turbo and fix it all!
things that have happened/noticed in the last 48 hrs
1. saturday i noticed the slightest coolant weep at the rear of the head. it disappeared sunday.
2. on sunday the coolant weep was replaced with a pretty good oil leak at the back of the head. after every run i would have a small puddle around spark plug 4 on top of the valve cover. coil packs are getting soaked.
3. engine is still burning lots of oil. 1 qt/ 100 miles
4. while griding for my last run sunday, a noise developed right when you revved the engine just above idle, like an exhaust rattle
5. at the track there was a slight strange clicking noise/sensation (felt through the floor) when you would back up with the wheel turned, only about half way to lock. after the last run it intensified and now does it while turning and backing up and while braking right when the car comes to a stop and the chassis settles. i have no idea what this is and cant find anything loose.
6. on the way home from the track sunday, it developed a slight miss at idle. see #2 for possible cause.
7. when i was bringing the engine up to temp this morning for comp test, it started leaking coolant from the upper hose. the hose was harder (more pressurized) than i think it should be which (along with the spark plug below) makes me wonder about a possible blown head gasket.

i did a comp test this morning, which in combination with the way plug number 4 looks, i think reveals that cylinder 4 is probably where most of the oil is going.
engine was warmed up, throttle held wide open. data set of one, too lazy to do an average.
1. 158 psi
2. 150 psi
3. 163 psi
4. 168 psi

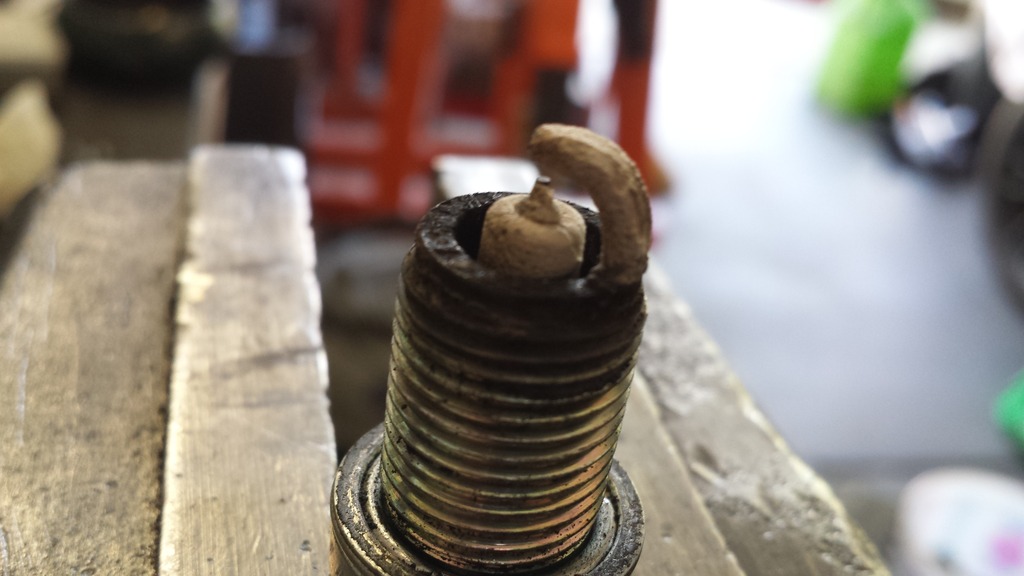

plug 1 and 2 were clean, this was plug number 4:


it doesnt have that many miles on it...

3 looked kind of in between 1 and 4. notice all the white deposits. as i understand this is from oil or fuel additives. i thought it could be caused by coolant maybe from a weak head gasket. not sure. this may also be the cause of my #4 rattle, as it could actually be pinging i suppose from the oil in the combustion chamber.

im almost positive i need valve seals, and with 160k its likely the guides may be worn as well. i think im going to pull the head, have it checked out and replace the valve seals at a minimum. i was going to replace seals while it was on the car, but with all this, i might as well just pull it and make life easy. it needs all the other seals anyway. and i can get a peak at the cylinders.

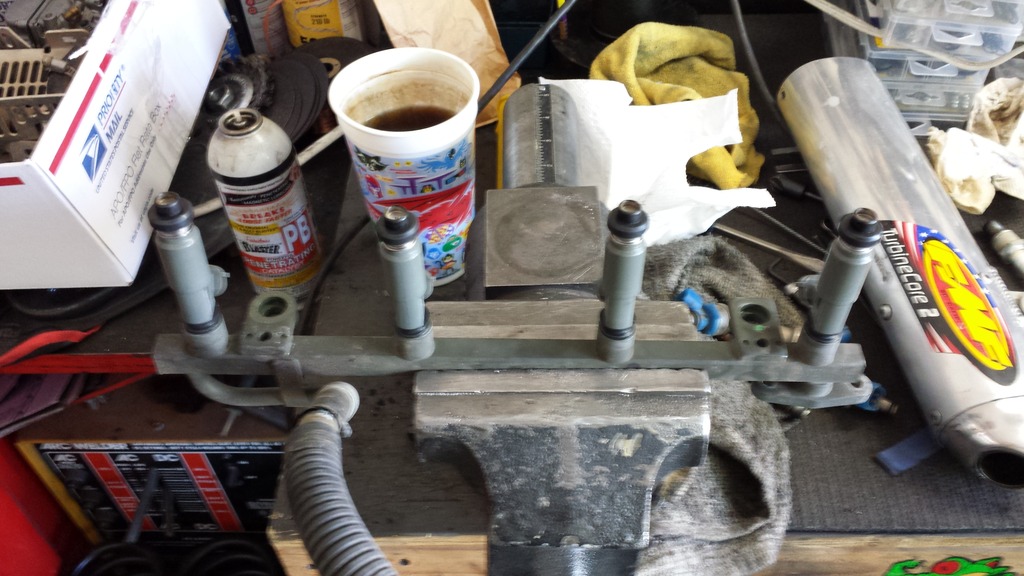

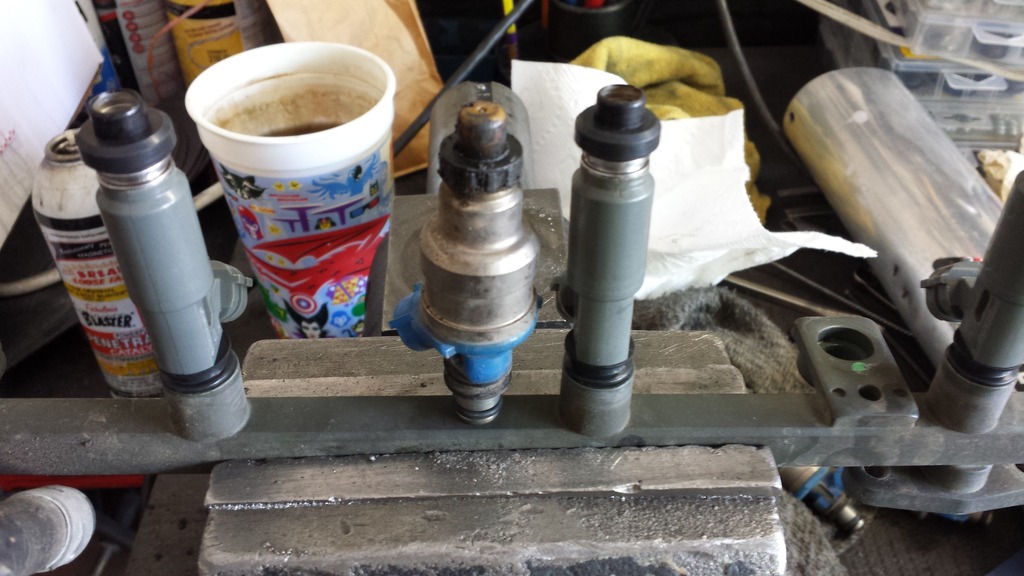

i decided before i do that, i want to make sure my questionable eBay injectors are going to work. so i installed those this morning.




my megasquirt laptop died, so i need to transfer all the files to its replacement and dial in req fuel, etc.

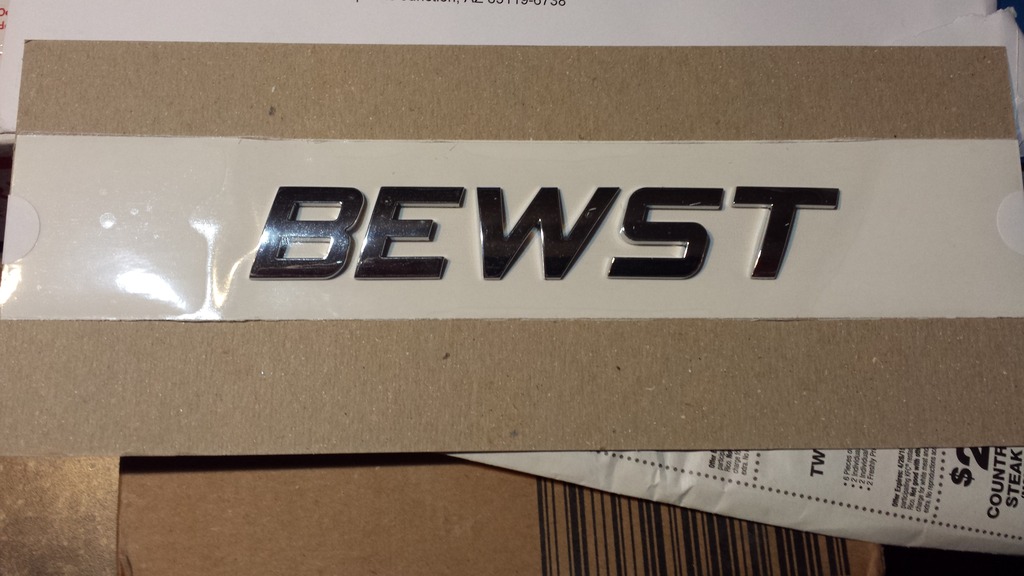

i coned toyota into sending me a boost emblem
Attached Thumbnails sean's cheap thrills, 90 1.6 with subaru td04-20150420_103449_zpsq3laq9xc.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150420_115356_zpsvzjphd3f.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150420_115410_zpsoe3v6ban.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150411_185818_zpswtegznuh.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150420_103449_zpsq3laq9xc.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20150420_115356_zpsvzjphd3f.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150420_115410_zpsoe3v6ban.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150411_185818_zpswtegznuh.jpg
hi_im_sean is offline
Old 04-20-2015, 05:36 PM
  #298
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Engine just needs more boost, boost normally helps seal things up by pressurizing everything

I wonder if the misfire was just soaked coils.
aidandj is offline
Old 04-20-2015, 05:41 PM
  #299
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by aidandj
Engine just needs more boost, boost normally helps seal things up by pressurizing everything
i approve of this type of thinking

Originally Posted by aidandj
I wonder if the misfire was just soaked coils.
im almost sure it was. i stopped by my friends house on the way home from the track to help pull an s2k trans. i dont recomend it. anyway, it only started missing when i pulled up to his house, he immediately asked whats wrong with your car? it was that obvious. the 25 mile drive to his house gave the leak ample opportunity to soak the coils. after it sat for a few hours while we pulled the tans, the oil drained away, no more misfire. the shorter 10 mile drive home didnt give the leak enough time to thoroughly soak the coils so it wasnt doing it when i got home. thats my theory anyway.

btw, i forgot to bring the imnotgay gps with me, so i didnt get to test with trackmaster. :(
hi_im_sean is offline
Old 04-20-2015, 05:42 PM
  #300
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

No worries, I got it working with Trackmaster the other day.
aidandj is offline
