Old 10-06-2008, 12:16 AM   #41
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

and technically my wheel compares to yours like this:

tdo4l-13T

Turbine
EX: 41.14mm IN: 47.24mm

Compressor
IN: 40.64mm EX: 56.01mm
420CFM / 265 HP

Super 60

Turbine
EX: 48.72mm IN: 58.9mm

Compressor
IN: 48mm EX: 60mm
500CFM / 315 HP



y8s, I'll see what I can do about the legend. Noonish at Moore's automotive in Fairfax.
Braineack is offline   Reply With Quote
Old 10-06-2008, 12:28 AM   #42
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

are you posting specs for all turbos listed in the spool chart?
m2cupcar is offline   Reply With Quote
Old 10-06-2008, 06:10 AM   #43
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Posting this too because jesus I want a VVT head

user PhilMD at m.net
Engine: '01 longblock, Weisco 9:1 +1mm pistons
Turbo: GT2560R
Manifold: AVO
Downpipe Size/Style: AVO, unknown size
Headwork: unknown, VVT head
Engine Management: MoTeC
Other Spoolin' Helpers/Hurters: VVT, VVT, and...vvt.
Transmission 6-speed

FIFTH GEAR PULL:

RPM Boost(psi)
2500rpm - 7.9psi
2750rpm - 11.1psi
3000rpm - 14.2psi
3250rpm - 16.2psi
3500rpm - 16.6psi
Savington is offline   Reply With Quote
Old 10-06-2008, 03:05 PM   #44
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Updated- 5th gear freeway pull from low rpm. Much better example.

Engine: '94 1/8L
Turbo: GT2860rs
Manifold: BEGi S4 stainless tubular
Downpipe Size/Style: BEGI divorced
Exhaust Size: 2.5"Exhaust Components: Magnaflow Muffler, metal cat
Intercooler Core Size: 18"x8"x3"
Intake Manifold: Stock
Headwork: none
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: Toyota COPs, lead foot,

5th GEAR PULL:

RPM Boost(psi)
5th gear pull VS. 4th gear pull (avg of 3 pulls)
1925 = 1psi = 1863
1985 = 2psi = 2060
2115 = 3psi = 2225
2335= 4psi = 2456
2460 = 5psi = 2549
2628= 6psi = 2733
2735= 7psi = 2880
2790= 8psi = 2990
2880= 9psi = 3090
2960= 10psi = 3190
3061= 11ps = 3250
3135= 12psi NA (no overboost)
3260= 13psi NA (no overboost)


OK, my 1st one sucked. It was taken from a track day in a low gear, revs never dropped low enough.

Here is a log from a 5th gear pull on the freeway this morning from 1900 rpms. Much better! Please correct my shameful 1st one on the xls chart!

Last edited by cueball1; 10-07-2008 at 02:17 PM.
cueball1 is offline   Reply With Quote
Old 10-06-2008, 03:40 PM   #45
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

If I had any idea how to make or modify that chart I would do it myself. Sucks to be older with little knowledge of xls basics.
cueball1 is offline   Reply With Quote
Old 10-06-2008, 03:49 PM   #46
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

i have office 2007 at home which makes the chart look pretty and sharp. looks like *** off the older verison.

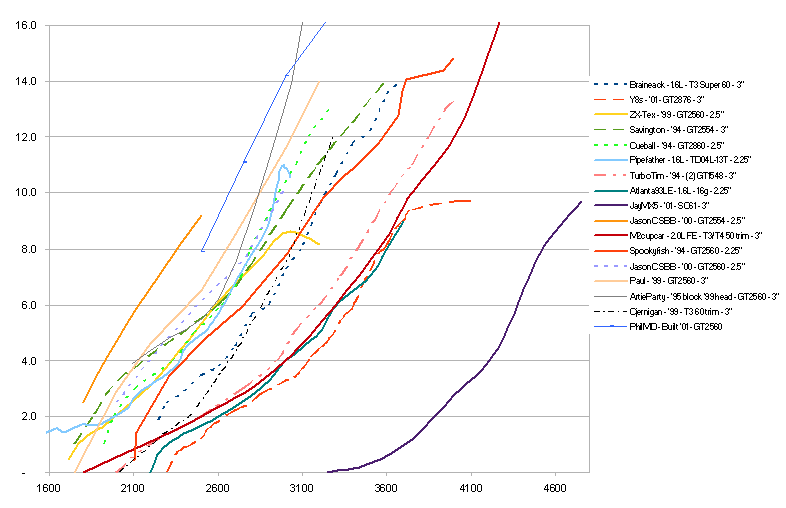

anyways, clearly see 5 groupings: The super spoolers. The 2554 and 2560s. The T3s. The large trims. And the super large trims.


interesting to see how my boost build compared to chad with same turbo manifold and exhaust. looks like my headwork may help me below 3K, despite my 200cc less. granted I'm still making 200cc less power :(
Attached Thumbnails
I want your spool data!-spool-chart.gif
Attached Files
File Type: xls New Spool plots.xls (59.5 KB, 183 views)
Braineack is offline   Reply With Quote
Old 10-06-2008, 03:59 PM   #47
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

gimme the dataz.
y8s is offline   Reply With Quote
Old 10-06-2008, 04:03 PM   #48
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I plotted Cueball's data cause I am at home sick today and freaking bored. I cannot repost the new graph since I am using Open Office and a lot of the Excel formatting is lost in translation.

But, Cueball's spool is right in there with the 2560 plots. Very nice! The only thing I can see in his setup to explain this is the S4 manifold. If that is the case, then it seems like a 2860 with an S4 could be a good choice for the street since it still spools nicely and should be a bit more efficient than the 2560.
ZX-Tex is offline   Reply With Quote
Old 10-06-2008, 04:23 PM   #49
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Wow, I was gonna say, cueball's data looks close to mine, and THEN I realized it's a GT2860 on an NA 1.8 head. Damn!!!!
JasonC SBB is offline   Reply With Quote
Old 10-06-2008, 04:26 PM   #50
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

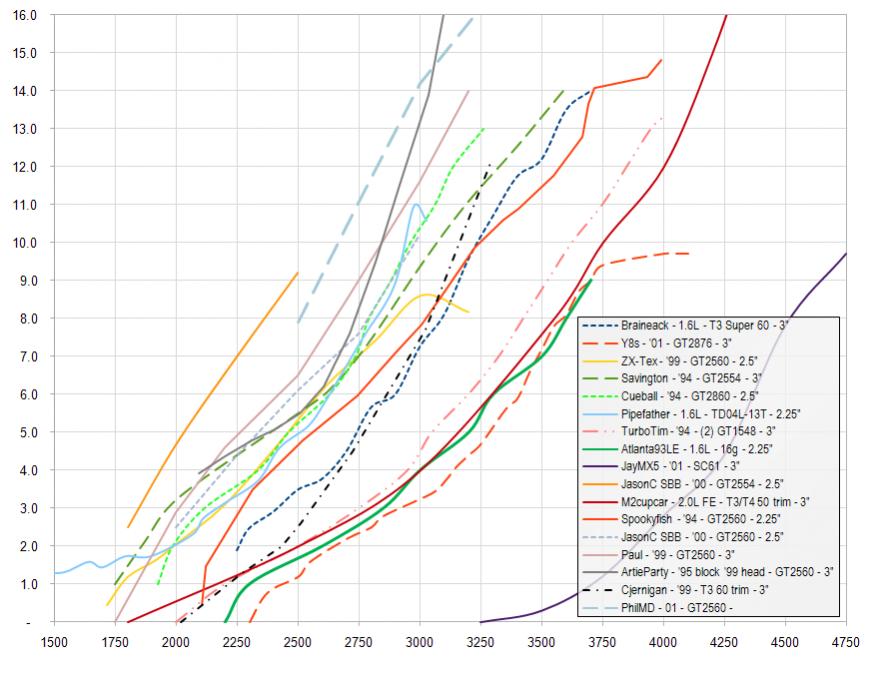

I made my own. includes cueball's latest. and some dude named PhilMD.
Attached Thumbnails
I want your spool data!-spooldata.jpg
Attached Files
File Type: xls New Spool plots.xls (48.0 KB, 175 views)
y8s is offline   Reply With Quote
Old 10-06-2008, 04:32 PM   #51
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

scale it from 0-15psi and 1750-4100RPM.
Braineack is offline   Reply With Quote
Old 10-06-2008, 04:47 PM   #52
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Thanks guys! That plot was on my freeway commute this morning. Got out ahead of traffic, dropped to 1500rpms in 5th and floored it. Overboosted to 13psi until the EBC kicked in and dropped back. Let off then. 2.5" enthuza with race cat. Corky talked me out of the 2560 in favor of the 2860 on my system. Now I know why.

All those super-charger guys talking about instant spool and flat torque can kiss my lily white behind.
cueball1 is offline   Reply With Quote
Old 10-06-2008, 06:01 PM   #53
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by Braineack View Post
scale it from 0-15psi and 1750-4100RPM.
what fer
y8s is offline   Reply With Quote
Old 10-06-2008, 08:00 PM   #54
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

how about grouping into 3 or 4 categories- of course the 1.6's have to be kept in a separate graph
The_Pipefather is offline   Reply With Quote
Old 10-06-2008, 08:01 PM   #55
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by cueball1 View Post
Thanks guys! That plot was on my freeway commute this morning. Got out ahead of traffic, dropped to 1500rpms in 5th and floored it. Overboosted to 13psi until the EBC kicked in and dropped back. Let off then. 2.5" enthuza with race cat.
What's a race cat? A resonator that looks like a cat?

Or a feline with racing stripes? (LOL I shaved one of my long-haired cats once because I was tired of his shedding, and started with racing stripes)
JasonC SBB is offline   Reply With Quote
Old 10-06-2008, 09:08 PM   #56
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Note to self:
  1. Ballast the car to bring it up to the same weight as the rest of these pigs to increase load and improve spool
  2. Do a pull from 1000rpms to inflate results over real world scenario
  3. do pull in 5th gear to increase load and improve spool
paul is offline   Reply With Quote
Old 10-06-2008, 10:02 PM   #57
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

If you did that, Tim would just remove one of his turbos and spank everybody. And yes, I think it was mentioned to make pulls/data 1:1. So cueball, you need to do a fourth gear run for relative placement in the data.
m2cupcar is offline   Reply With Quote
Old 10-06-2008, 11:20 PM   #58
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

cueball's line is making my pants tight...in the bad place. That turbo with 120cc more, the 99-head, and ebc should get the job done.
hustler is offline   Reply With Quote
Old 10-06-2008, 11:21 PM   #59
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

i better be making +260rwhp at 15 pounds on friday.
Braineack is offline   Reply With Quote
Old 10-07-2008, 12:27 PM   #60
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Engine: '91 1.6L
Turbo: G15
Manifold: Greddy
Downpipe Size/Style: Turbotony
Exhaust Size: 2.5"Exhaust Components: Custom 3" cat back, turbo tony cat
Intercooler Core Size: Starion
Intake Manifold: Stock
Headwork: none
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: 4500ft-5500ft. elevation, mild built motor, fidanza flywheel act 6 puck, spring and ball MBC.

4th GEAR PULL:

RPM Boost(psi)

2926= 3.3psi
2985= 3.8psi
3111= 5.3psi
3384= 7.2psi
3445= 8psi
3471= 8.8psi
3562= 10.8psi
3628= 11.8psi
3671= 12.8psi
3775= 14.3psi
4003= 15psi


I based the psi numbers by subtracting an assumed 1 atmosphere of 12.46 from my map values. This isn't entirely accurate because the altitude of my city changes so much depending on what part of town you are in and I didn't want to break out the GPS. I estimated on the low side of 4500ft.

http://www.engineeringtoolbox.com/ai...ure-d_462.html

Last edited by BenR; 10-07-2008 at 05:25 PM.
BenR is offline   Reply With Quote
