Old 01-13-2015, 12:43 PM   #281
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Quote:
Originally Posted by Bbarn93 View Post
Only one thats realy tried to help so far so i appreciate it.
I beg your pardon, sir.
sixshooter is offline   Reply With Quote
Old 01-13-2015, 01:20 PM   #282
Newb

Join Date: Jan 2015
Posts: 32
Total Cats: -64
Default

My bad you too lol. Everyone else has been a jackass IMO
Bbarn93 is offline   Reply With Quote
Old 01-13-2015, 01:55 PM   #283
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,698
Total Cats: 267
Default

I was also playing nice. But really, Bbarn, you have only succeeded in creating a page full of crap in the middle of Sturovo's previously wonderful thread.

Think of all the future readers that have to wade through this.

Lars was trying to be helpful. If you don't like his advice, ignore it.

Just shut up, already.
DNMakinson is offline   Reply With Quote
Old 01-13-2015, 02:08 PM   #284
Newb

Join Date: Jan 2015
Posts: 32
Total Cats: -64
Default

Quote:
Originally Posted by DNMakinson View Post
I was also playing nice. But really, Bbarn, you have only succeeded in creating a page full of crap in the middle of Sturovo's previously wonderful thread.

Think of all the future readers that have to wade through this.

Lars was trying to be helpful. If you don't like his advice, ignore it.

Just shut up, already.
Did you not read the part where i said i dont want to junk up this thread so PM me?
Bbarn93 is offline   Reply With Quote
Old 02-01-2015, 07:42 PM   #285
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Joe Perez View Post
I checked recently and that battle is now over....

but it looks like a new one has started

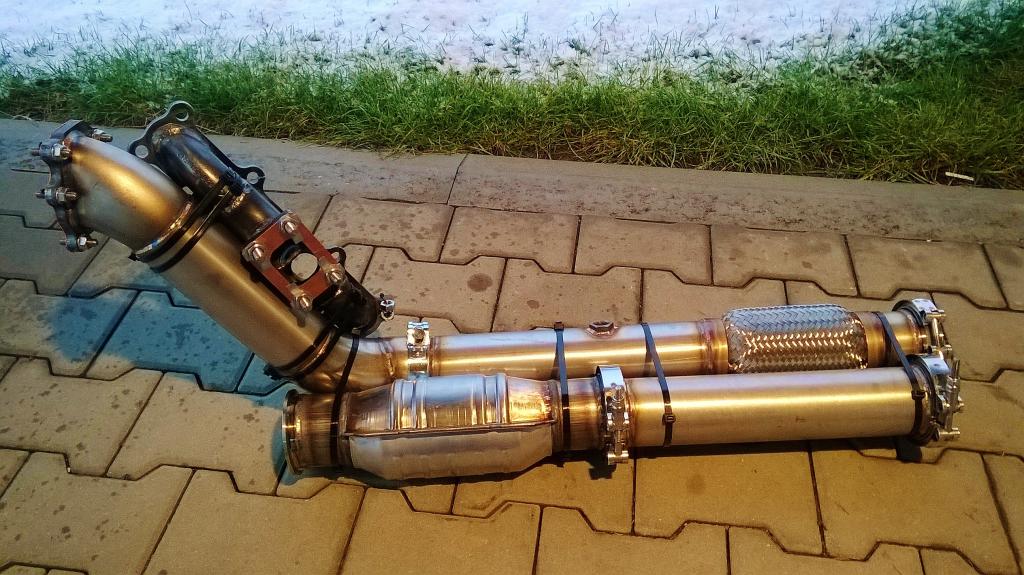

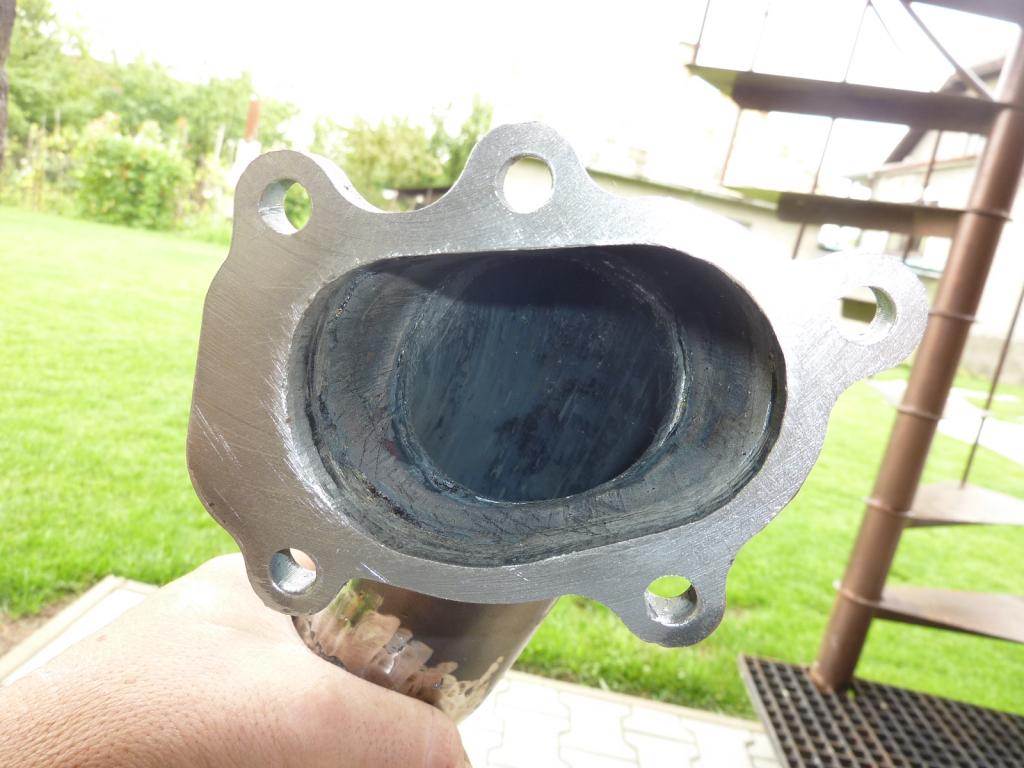

Recent stuff included a smooth flowing 80mm setup


and a tidy DP elbow kit
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-wp_20150130_002_zpsgieldshv.jpg   TD04/TD05 fitted in place of T25/T28-wp_20150130_002_zpsgieldshv.jpg
sturovo is offline   Reply With Quote
Old 02-08-2015, 11:41 AM   #286
Newb

Join Date: Feb 2015
Posts: 1
Total Cats: 0
Default

hey sturovo, im looking to get 2 different kits off you, could you pm me as i cant pm yet on here! cheers
powerlord is offline   Reply With Quote
Old 02-10-2015, 03:34 PM   #287
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Roy, you have PM

Recently I was asked to make a downpipe for use with a cast manifold.
I was curious how much downpipe space would be lost when using a cast manifold. The turbo flange on the cast manifold sits square is offset 40mm vertically from exhaust port centerline.

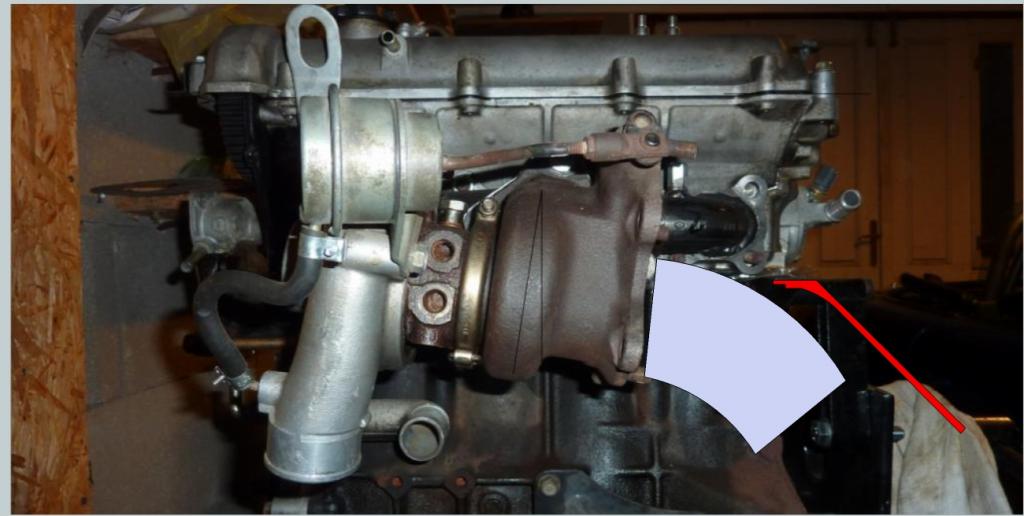

Usually I make manifolds with the turbo flange located at port centerline and rotated by 8 degrees... something like in this sketch. (The red line shows the firewall / frame lip.)



It turns out that the relatively small difference in location and orientation of the turbo flange has a significant influence on how the downpipe can be made.

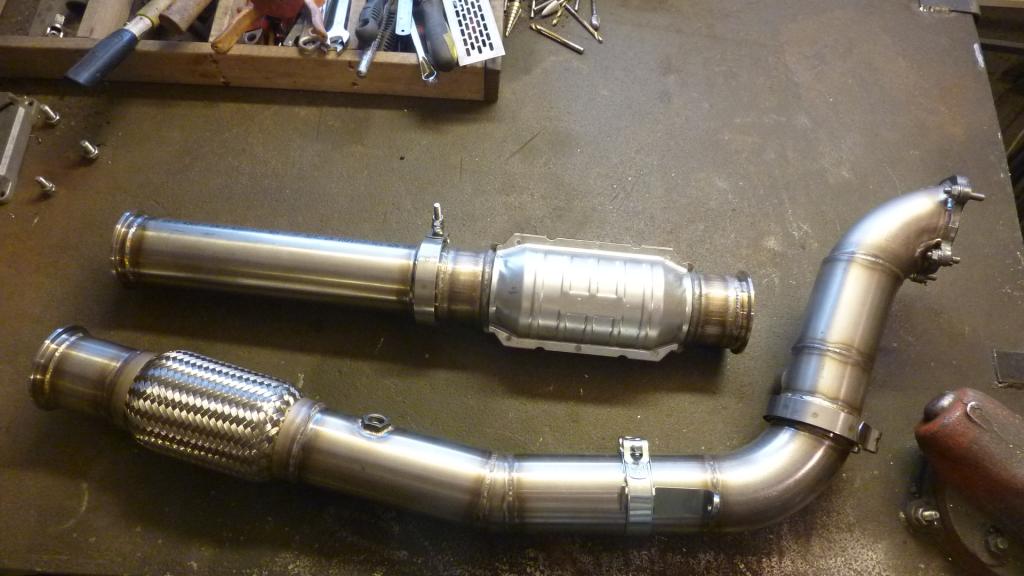

This is an 80mm downpipe for a cast log


To get it to fit the firewall lip will have to be trimmed ( ~10mm) for the cast manifold downpipe as there is not enough space otherwise. Also the downpipe has to be made in 2 pieces as in order to be able to fit it. Flow also suffers due to the arrangement.

And this is an 80mm one for a port centerline manifold.


This fits without modifying the frame, can be made in one piece, is easier to make and has better flow characteristics compared to the one for the cast manifold.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1080196_zpsejjmqlsn.jpg

Last edited by sturovo; 02-10-2015 at 04:12 PM.
sturovo is offline   Reply With Quote
Old 02-19-2015, 02:20 PM   #288
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

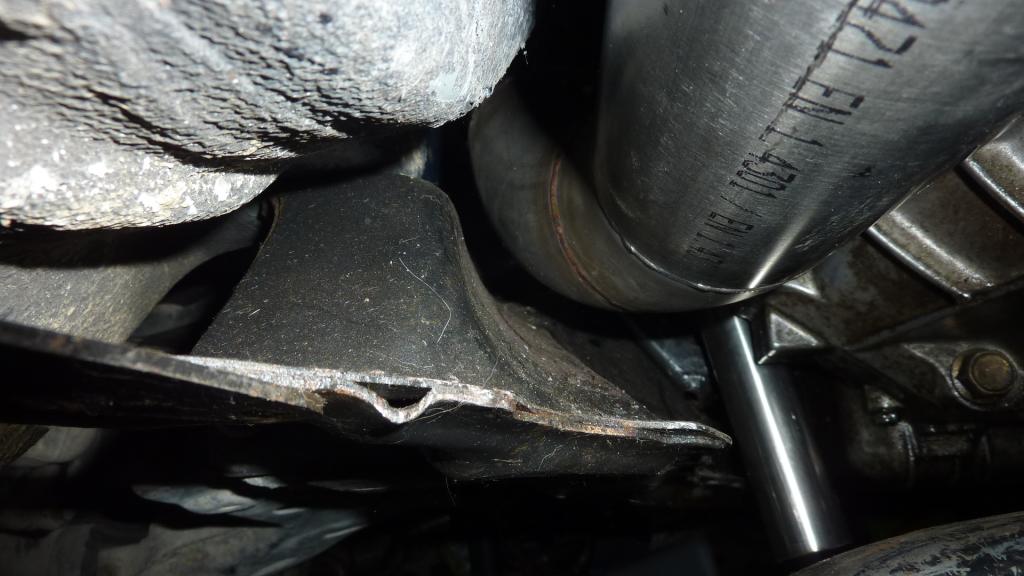

Ever wonder why the stock NA downpipe has a kick mid way along the length as opposed to being a straight pipe?



Wonder no more
It is to allow clearance / access to the automatic transmission sump.

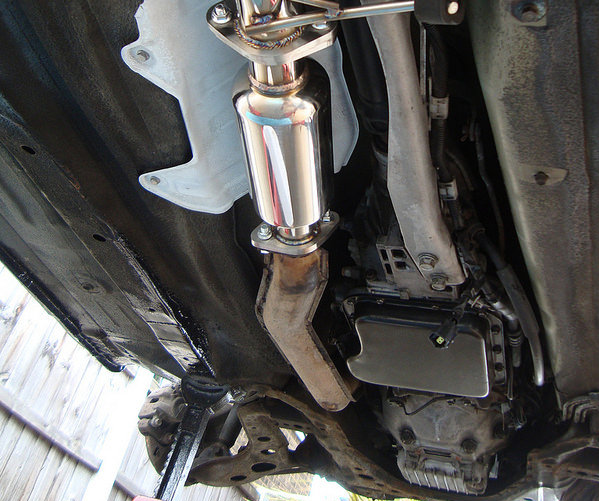

This came to light as I was asked for the first time to make a turbo setup for an automatic which ended up looking like this.

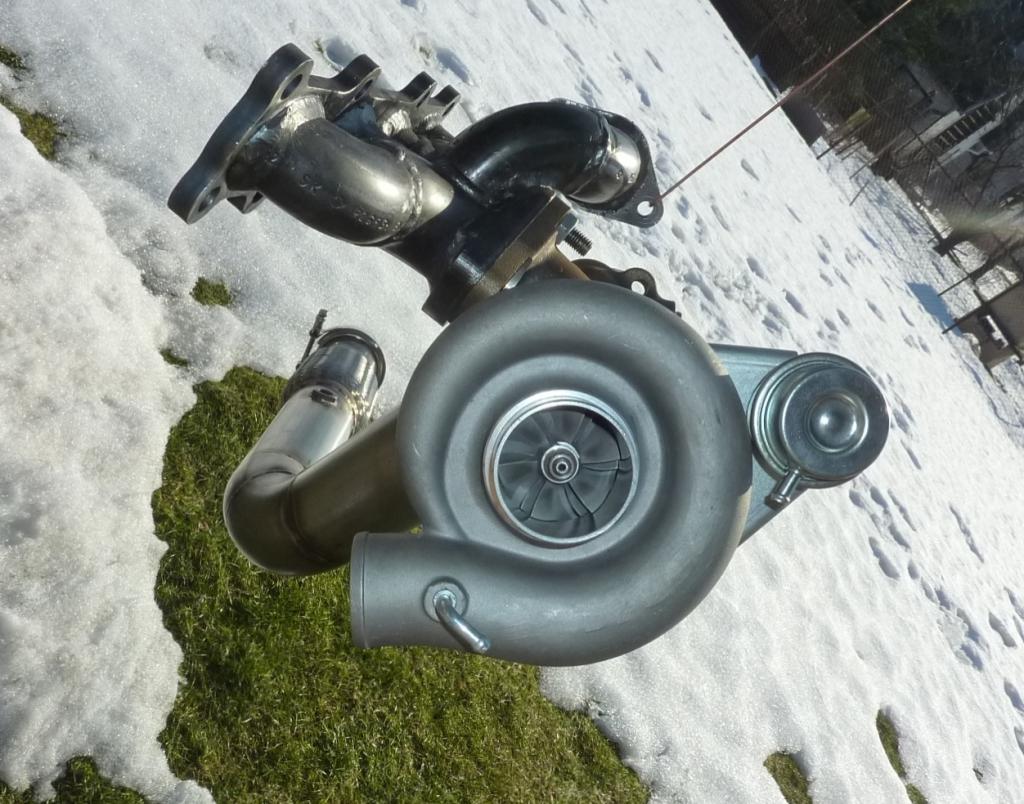

And in another first, I recently made an externally gated wrx turbo manifold with an 80mm downpipe.


Which reminded me of some kind of Tie Fighter....which starred in Downpipe Odyssey iirc ?

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-automatic_zps5nua4zq0.png   TD04/TD05 fitted in place of T25/T28-p1080236_zpsqwdqjybq.jpg   TD04/TD05 fitted in place of T25/T28-87d269de-5beb-4bb1-96d0-db636dfddab8_zpsl00mrwgl.jpg
sturovo is offline   Reply With Quote
Old 02-20-2015, 06:32 AM   #289
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Ah wow I would have never guessed! We don't even get an auto transmission offering here in Australia, with the exception of the NC.
timk is offline   Reply With Quote
Old 03-02-2015, 05:35 PM   #290
Junior Member

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

How much would it cost make a turbo down pipe elbow for a top mount t25? It's got to be a tight 90 degree turn to clear the chassis. I have the HKS top mount and will have to make a custom down pipe. Can you can make the whole thing? I'm on the search for at least a elbow.
Hinano is offline   Reply With Quote
Old 03-02-2015, 05:54 PM   #291
Junior Member

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by sturovo View Post

HKS replacement downpipe
This one this one! This will fit the 1.8?? How much for this? This is for the t25 correct?
Hinano is offline   Reply With Quote
Old 03-08-2015, 07:11 PM   #292
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by timk View Post
We don't even get an auto transmission offering here in Australia
Tim, not a great loss
The automatics came with a detuned 1.6 and make 90 bhp, plus the cams and pistons are not great for turbocharging.

Quote:
Originally Posted by Hinano View Post
I'm on the search for at least a elbow.
Ryu, sounds like a plan!

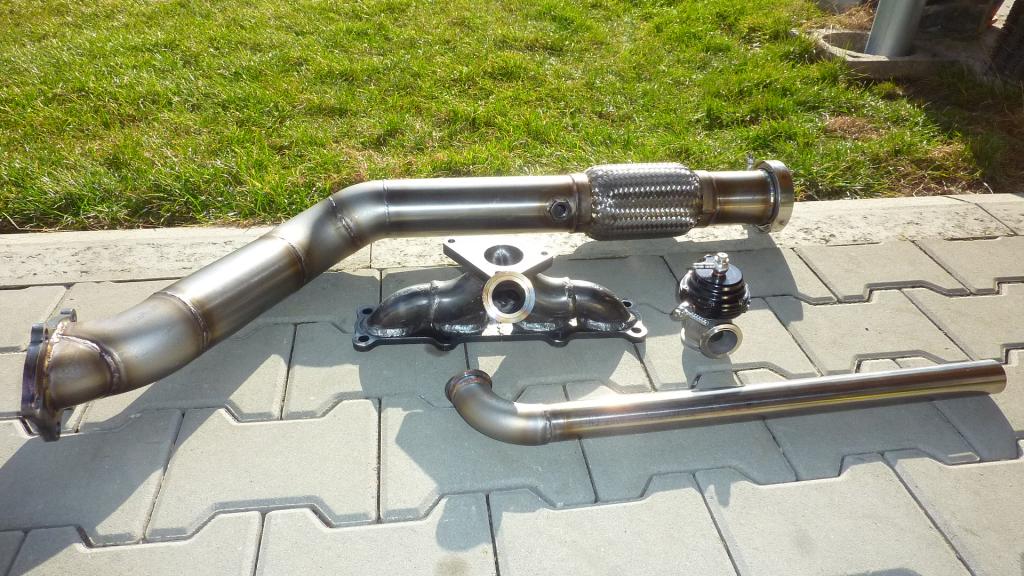

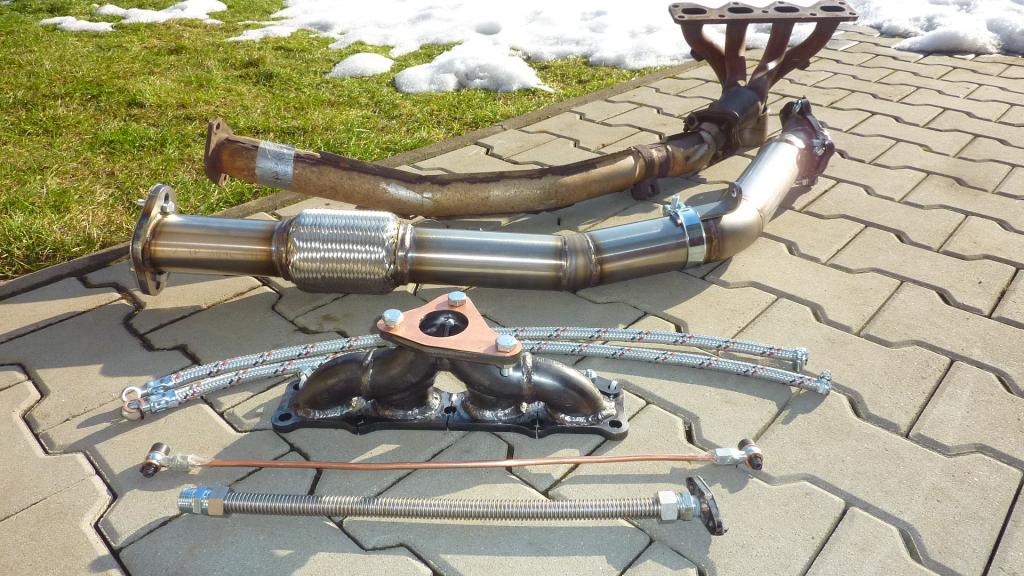

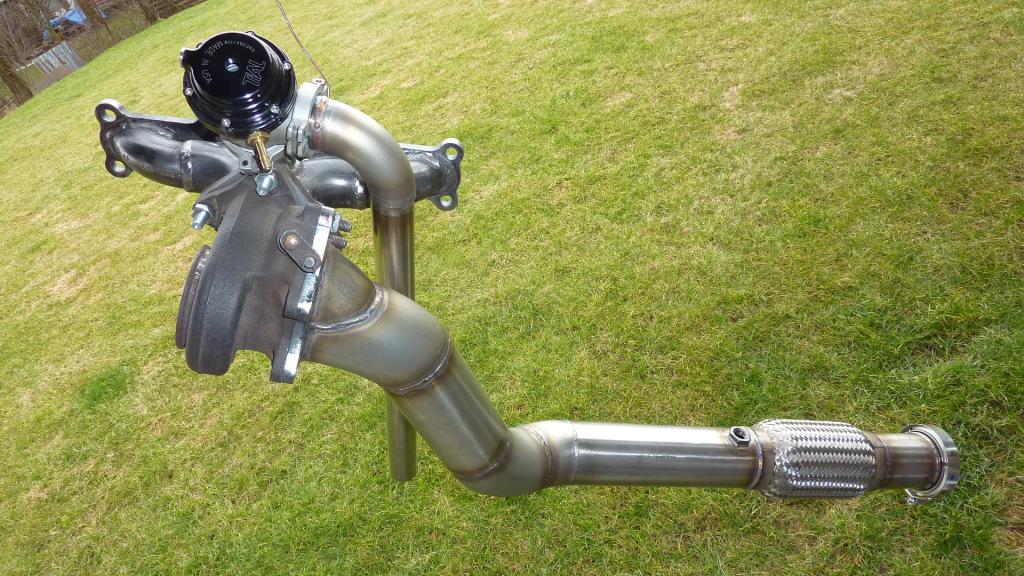

Recent bits include a wrx turbo setup with external wastegate and 80mm downpipe.





dat clearance

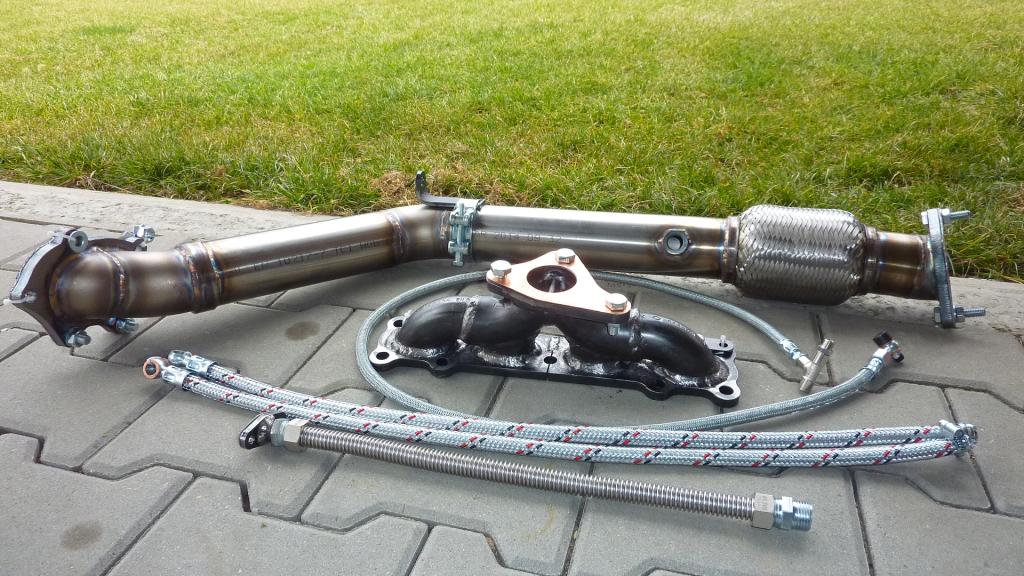

a couple of NA kits



Name:  P1080318_zps7v2hv44s.jpg
Views: 49
Size:  131.7 KB

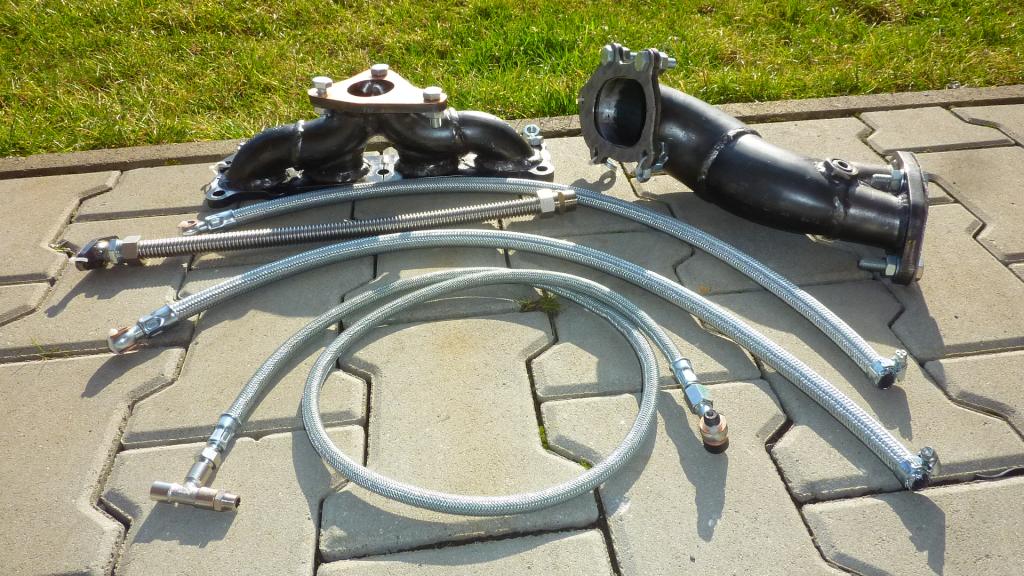

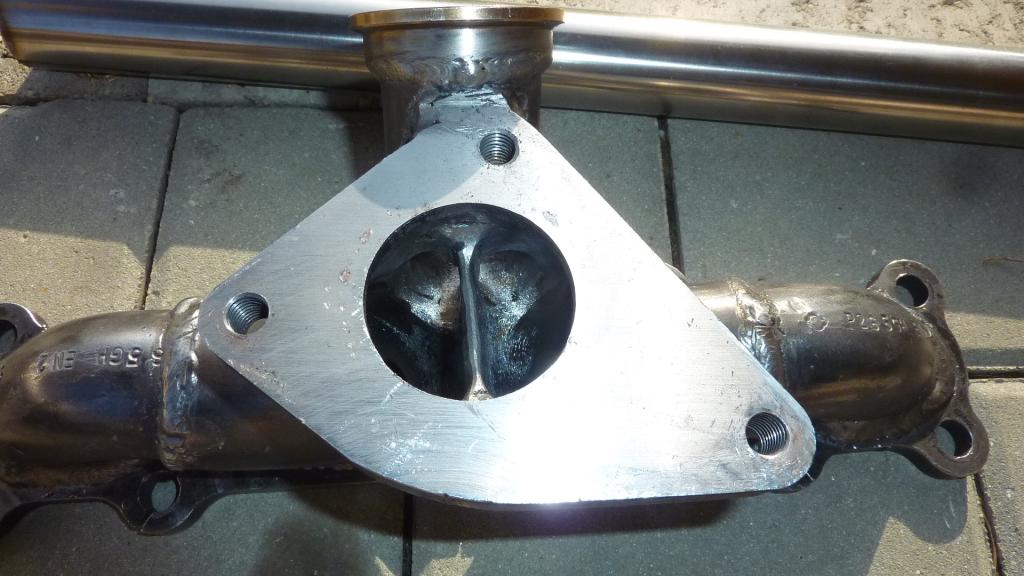

and a NBFL downpipe elbow kit
Name:  P1080393_zps3tpqgpdj.jpg
Views: 57
Size:  140.9 KB
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1080359_zpsi1a64dil.jpg   TD04/TD05 fitted in place of T25/T28-p1080386_zpsis3untia.jpg   TD04/TD05 fitted in place of T25/T28-p1080333_zpskfbb3pau.jpg   TD04/TD05 fitted in place of T25/T28-p1080373_zps0agk3tdx.jpg

Last edited by sturovo; 03-08-2015 at 07:27 PM.
sturovo is offline   Reply With Quote
Old 03-08-2015, 08:07 PM   #293
Junior Member

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Looking forward to the elbow Sturovo!

One step closer to turbooooo
Hinano is offline   Reply With Quote
Old 03-11-2015, 04:50 PM   #294
Newb

Join Date: May 2011
Posts: 12
Total Cats: 0
Default

Amazing work man! Came here looking at thoughts of using my TD05-16G, but I found a ton of amazing fab work!

If I weren't a welder myself, I would absolutely be ordering one of your kits.
btothefnrock is offline   Reply With Quote
Old 03-12-2015, 04:01 PM   #295
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by btothefnrock View Post
Came here looking at thoughts of using my TD05-16G

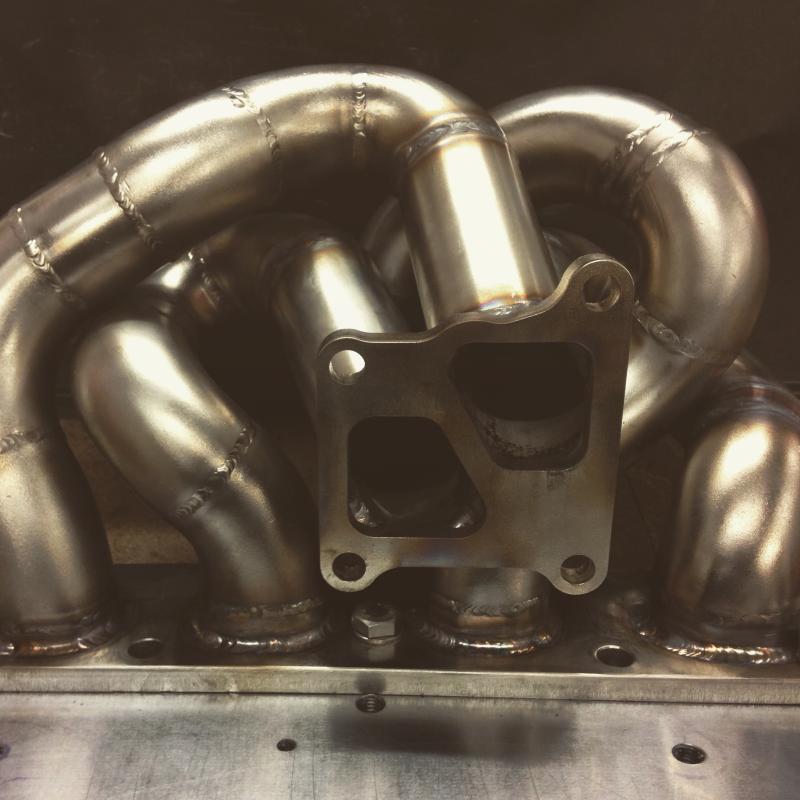

Twin scroll? I have never tried but this EVO 16g manifold made by deebee on nutz looks pretty great! LHD could be tricky though.

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-d8b85807-50bb-40a8-ae60-dfdd1d6574b7.jpg
sturovo is offline   Reply With Quote
Old 03-25-2015, 04:50 PM   #296
Newb

Join Date: Mar 2015
Posts: 1
Total Cats: 0
Default

I've been furiously researching/looking for suitable parts for my recently acquired MX and came across this amazing thread. Sturovo I'm amazed by your fab skills! I was thinking of fabing up a turbo dump pipe that would connect to the standard exhaust, and you've done it (and way better than I ever could)! Are you still making these kits?
adruss85 is offline   Reply With Quote
Old 03-26-2015, 07:17 PM   #297
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by adruss85 View Post
Are you still making these kits?
Adam, yes I am still making parts.

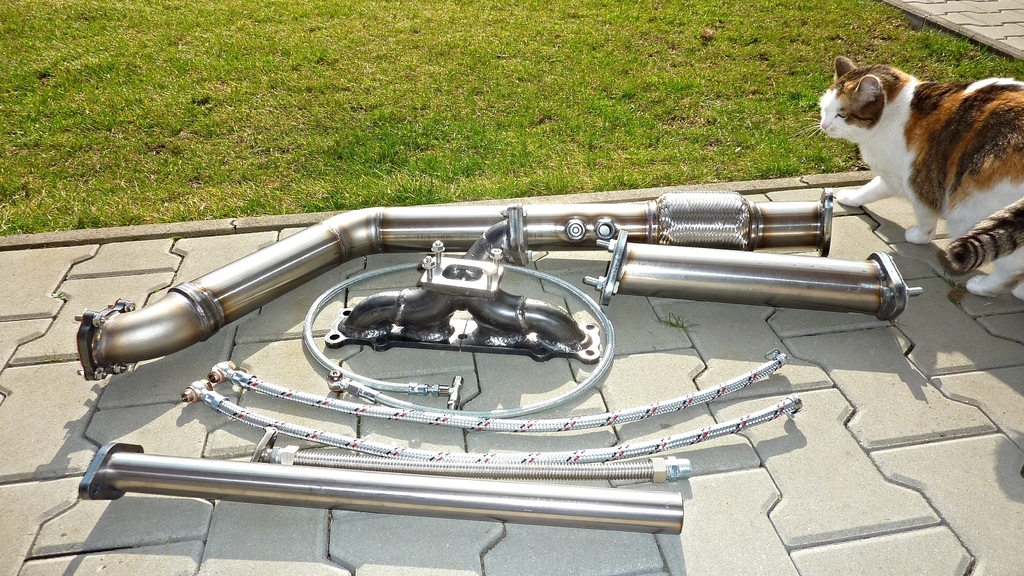

Plus I have a new helper
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-1262b284-4735-49bc-ac43-6c6e134914de_zpsey8vbs25.jpg
sturovo is offline   Reply With Quote
Old 06-13-2015, 02:06 AM   #298
Newb

Join Date: Nov 2014
Posts: 1
Total Cats: 0
Default

Quote:
Originally Posted by sturovo View Post
Adam, yes I am still making parts.
Plus I have a new helper
Hi there Sturovo,

Are you still, still making manifolds/kits etc or moved on to cast mani's now?

Either way, I'm new to the forum & can't PM, could you send me info for a NA with TD04 manifold, please?
In fact if you could send me the price for a manifold, oil & water lines, and a down pipe as well as the manifold price, that would be great.
I won't be able afford a "kit" of parts as I've just been made redundant (which is why I have time to start working on my MX5 again) so may have to start with just manifold and go from there. But if I have both prices then I can work out what I need to save for both situations.

Thanks in advance,

Steve.
Steve Hignett is offline   Reply With Quote
