Old 10-10-2013, 05:34 PM   #141
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I actually think you can buy a billet 19t with the STS turbine in that fitment too.
Leafy is offline   Reply With Quote
Old 10-11-2013, 04:03 AM   #142
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

awesome work!
muoto is offline   Reply With Quote
Old 10-11-2013, 10:04 AM   #143
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by Leafy View Post
I actually think you can buy a billet 19t with the STS turbine in that fitment too.
So... full spool during cranking?
thenuge26 is offline   Reply With Quote
Old 10-11-2013, 10:06 AM   #144
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by thenuge26 View Post
So... full spool during cranking?
No, the STS turbine is bigger than the L turbine, its actually the same dimensions as the HL turbine, so I'm guessing it'll spool up like the L turbine but flow better than the HL. And of course the 19t comp wheel is a whole boat load bigger than the 12c one.
Leafy is offline   Reply With Quote
Old 10-15-2013, 05:24 PM   #145
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

OK, every one can resume breathing.....

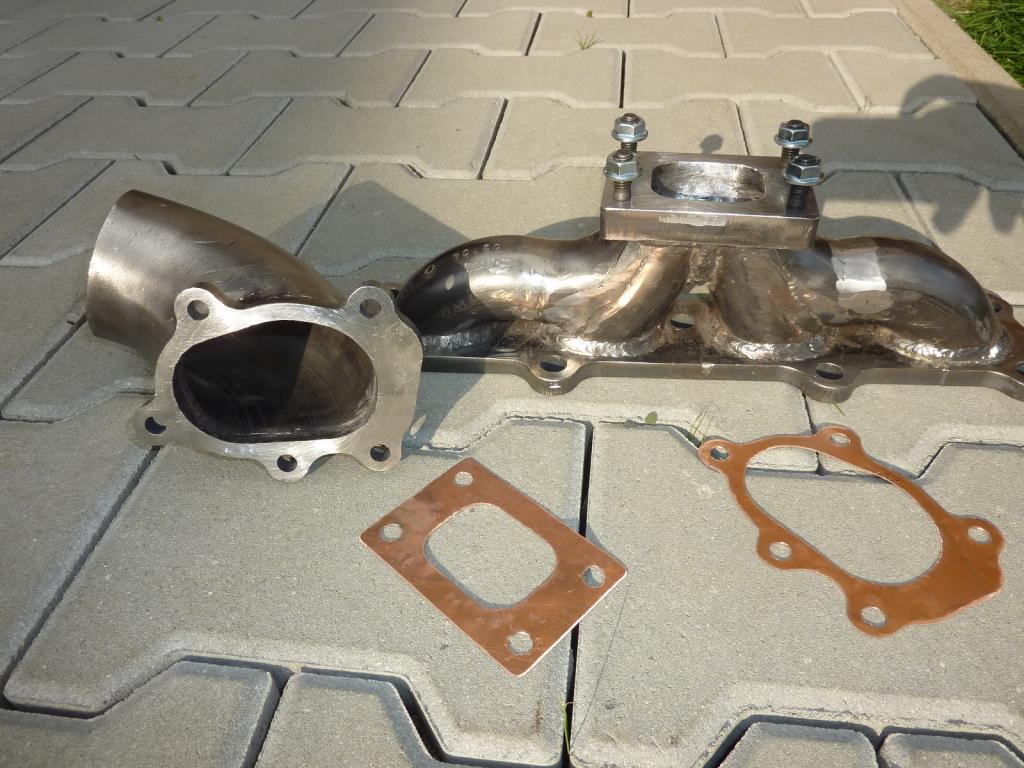

I finished welding the V log.



Flow is


and it fits with a 3" dp
Attached Thumbnails

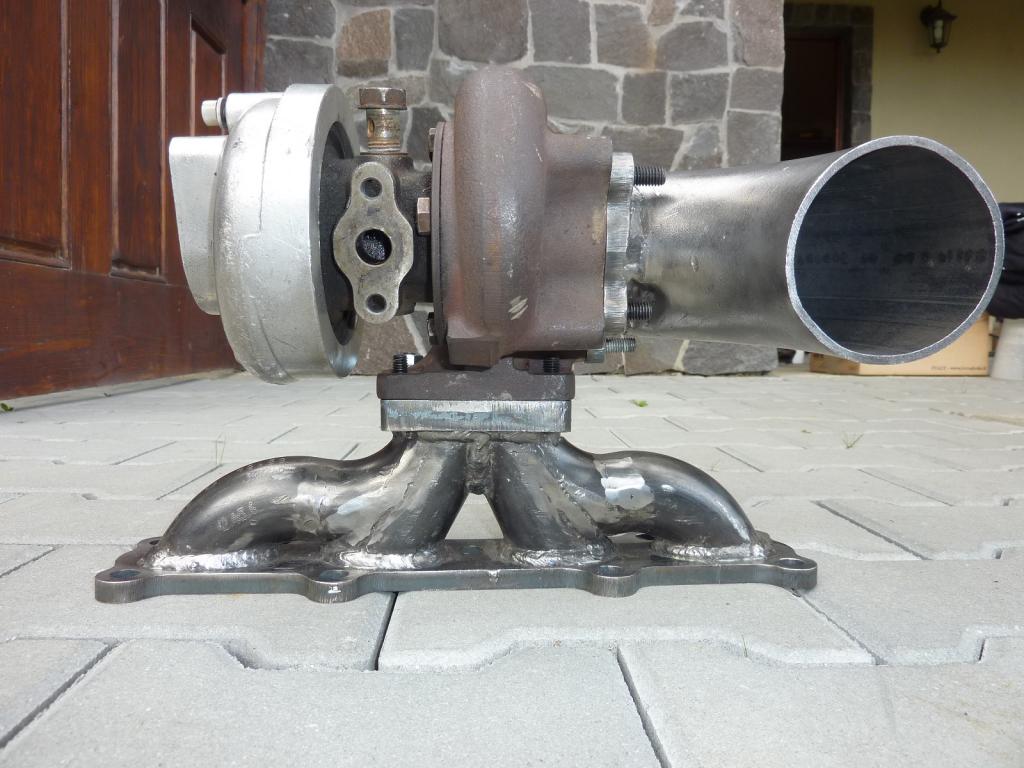

TD04/TD05 fitted in place of T25/T28-p1040380_zpsee051138.jpg   TD04/TD05 fitted in place of T25/T28-p1040384_zps3e7bacae.jpg   TD04/TD05 fitted in place of T25/T28-p1040369_zps509fb32a.jpg
sturovo is offline   Reply With Quote
Old 10-31-2013, 03:46 PM   #146
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Recent stuff...

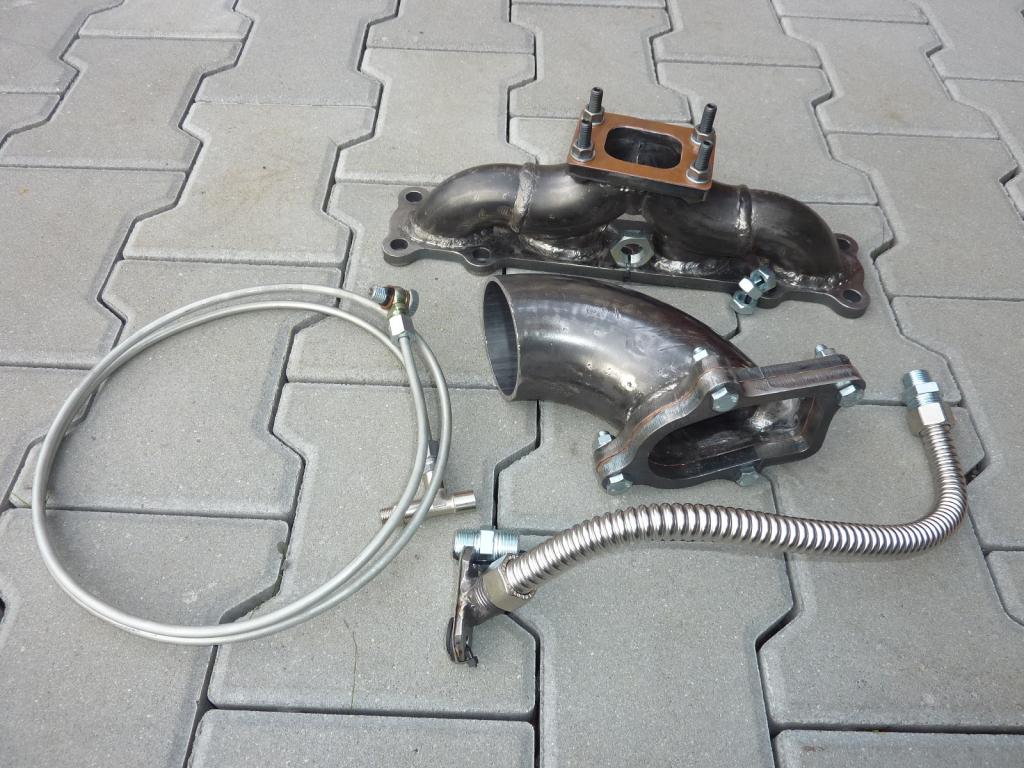

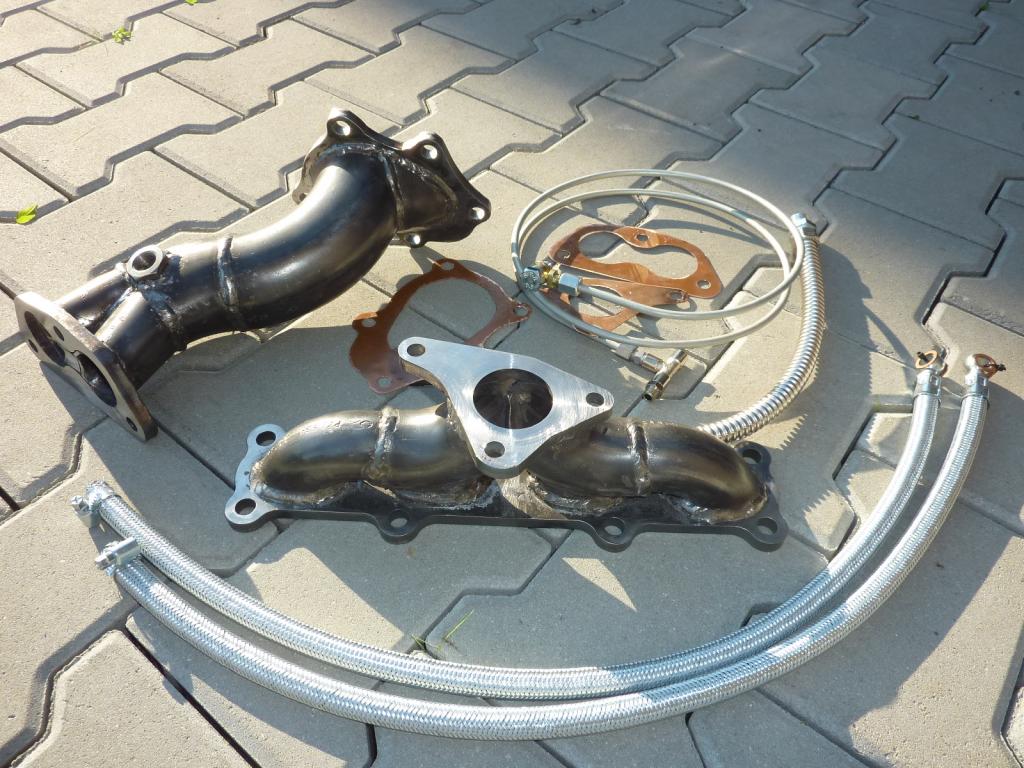

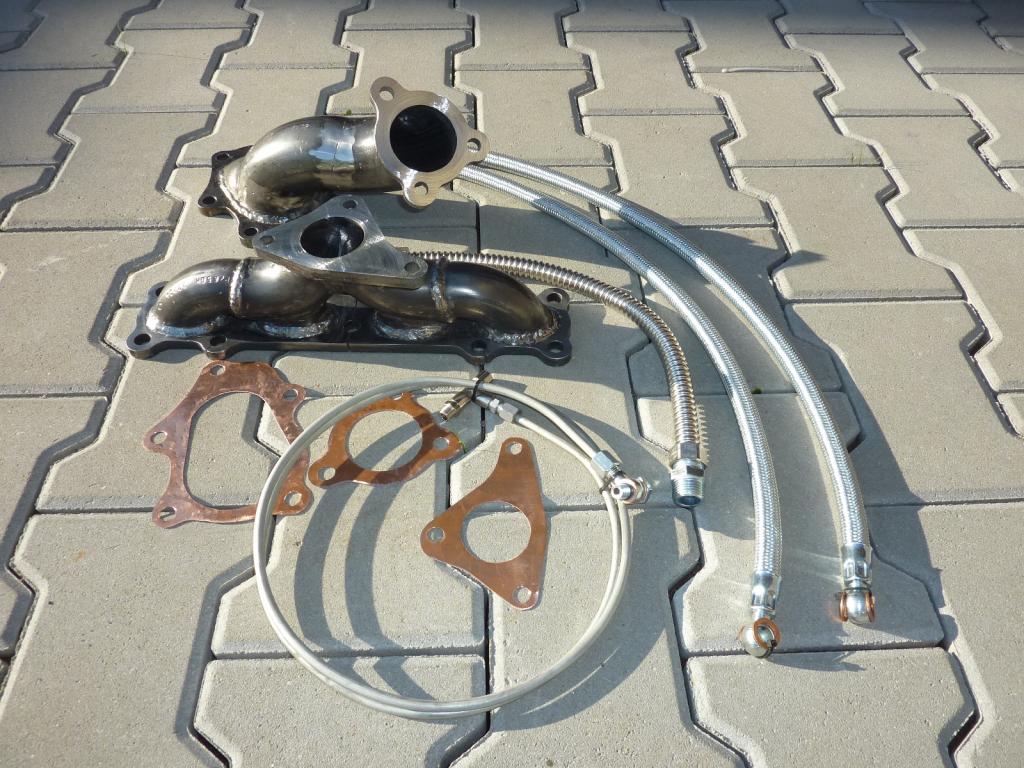

Greddy replacement manifold and downpipe elbow


Fitted up ok which is a relief as the turbo dimensions were scaled from a photo

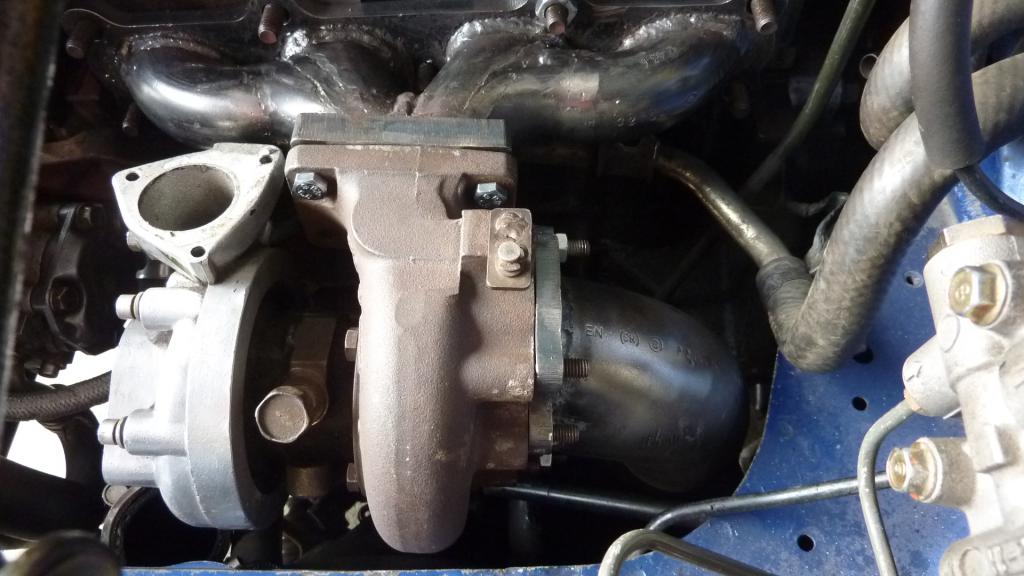

td04-13t 1.8 nb

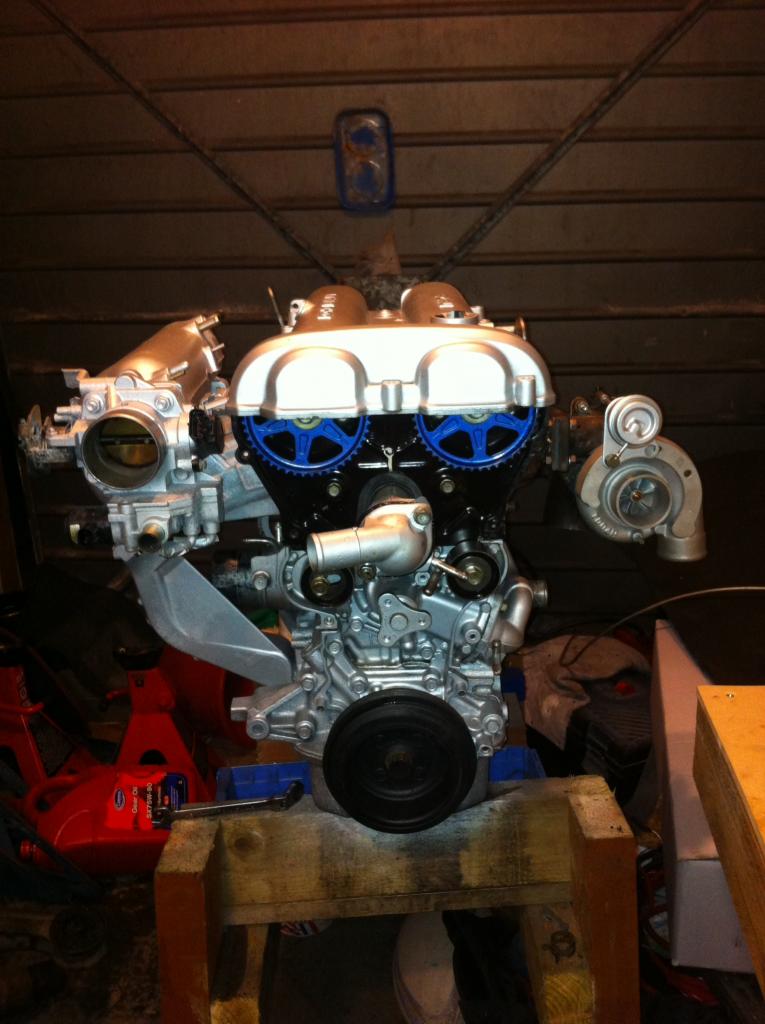

td04-13t 1.8 na going on a Exocet

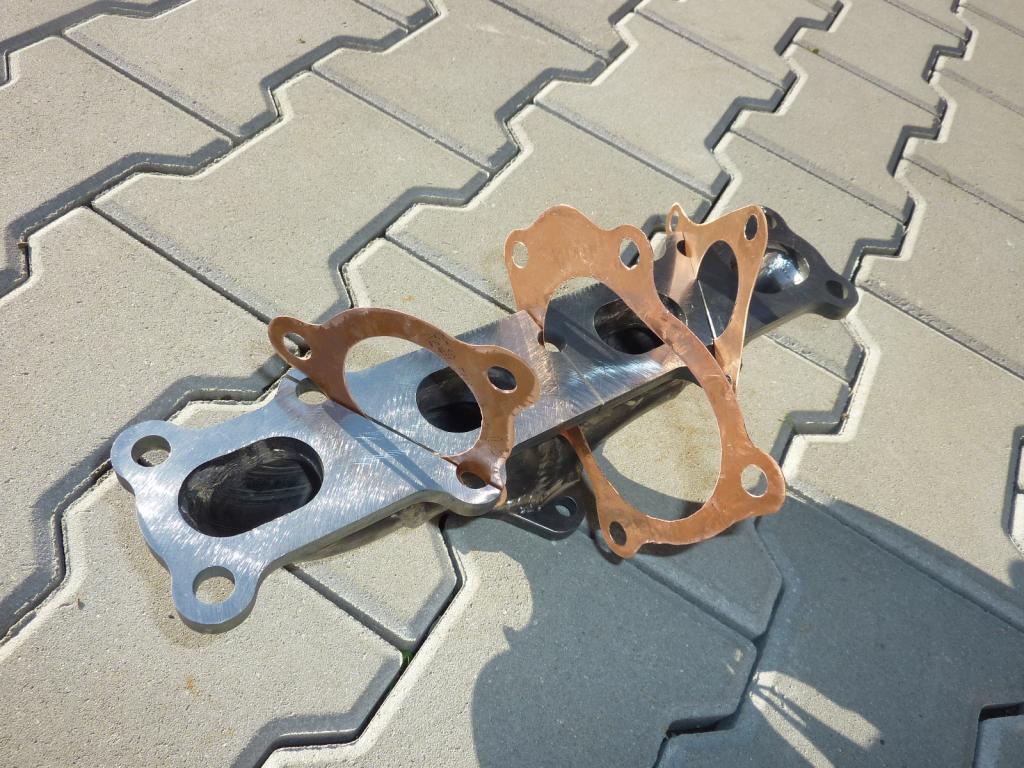

and a pollinate me gasket holder
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040412_zpsac243d64.jpg   TD04/TD05 fitted in place of T25/T28-photo_zpsdfe1bba3.jpg   TD04/TD05 fitted in place of T25/T28-p1040428_zps4e22068d.jpg   TD04/TD05 fitted in place of T25/T28-p1040457_zps3caaeb9e.jpg   TD04/TD05 fitted in place of T25/T28-p1040452_zpsd860f062.jpg

sturovo is offline   Reply With Quote
Old 11-01-2013, 05:15 PM   #147
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Might have missed it somewhere in this thread but where are you getting those flexible metal oil drains?
Edit- Also these manifolds are 1.5" pipe or 1.25"?
hochkis is offline   Reply With Quote
Old 11-02-2013, 09:27 AM   #148
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by hochkis View Post
Might have missed it somewhere in this thread but where are you getting those flexible metal oil drains?
Edit- Also these manifolds are 1.5" pipe or 1.25"?

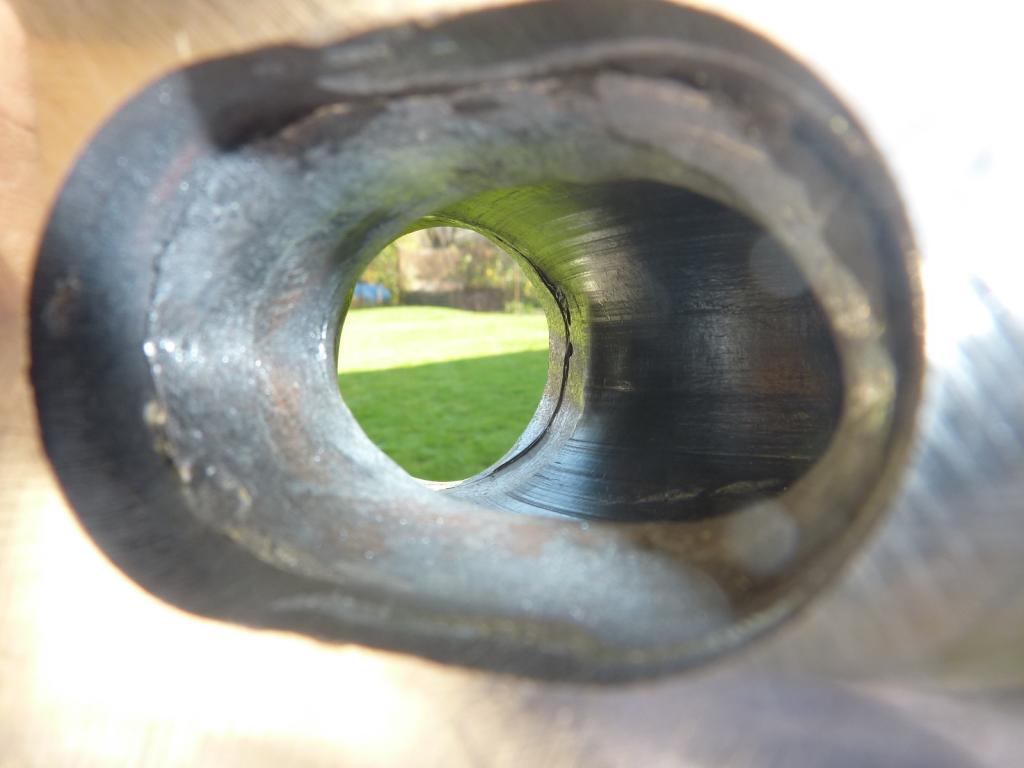

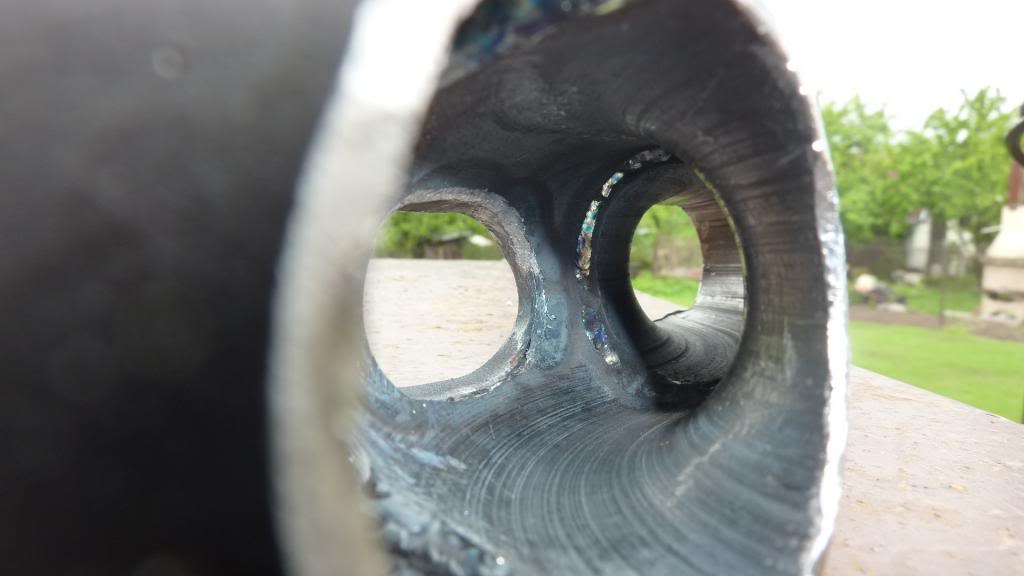

Most manifolds I make have use a combination of 5/4 for the runners and 6/4 for the merge. I prefer 5/4 for the runners as better vectoring can be achieved. There is a small step where the 2 sizes join unless the 5/4 end is flared before welding. (I guess the step acts similarly to a reversion cone?)



The 5/4 id is less than the gasket / manifold port size so the ends need to get flared a little also. The actual exhaust port size (as opposed to the gasket size) is pretty close to 5/4.

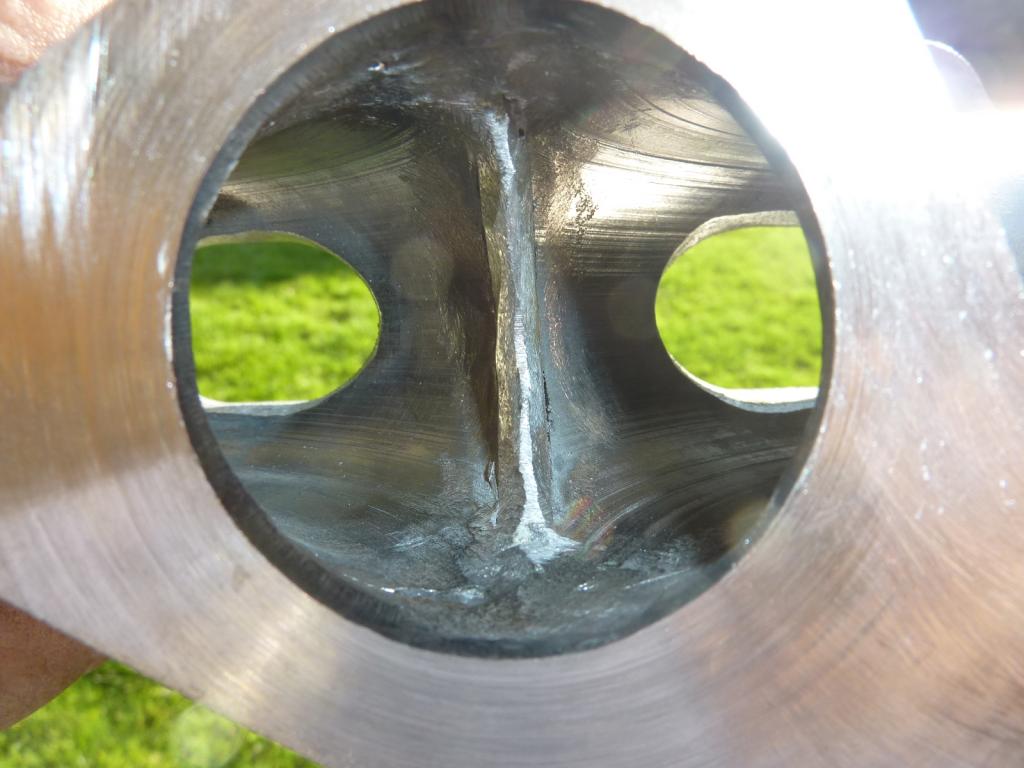

The dual 6/4 merge is a good match for both t2 and subaru 3 bolt flanges.

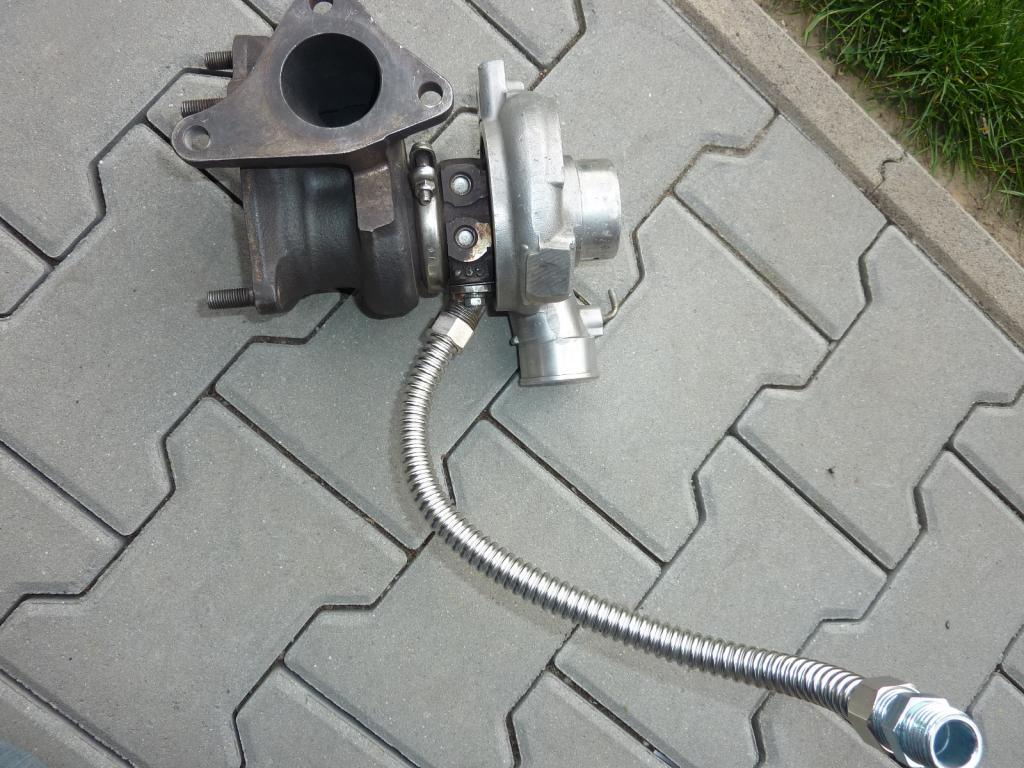

The oil drains I make myself.
(The stainless tube comes in rolls and it gets cut to length. Tubing is rated for 15 bar and > deg C)
The turbo connection fitting is derived from the first principles of sweat and swearing as it involves 3 holes, threaded pipe, welding, surfacing and gasket in a 1 inch piece.
Why? way to retain the stock coolant line...

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030384_zpsef59b05d.jpg   TD04/TD05 fitted in place of T25/T28-p1040322_zpsabe485a2.jpg   TD04/TD05 fitted in place of T25/T28-p1040438_zpsa400f23e.jpg   TD04/TD05 fitted in place of T25/T28-p1040440_zpse79e6b3b.jpg
sturovo is offline   Reply With Quote
Old 11-20-2013, 05:17 PM   #149
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

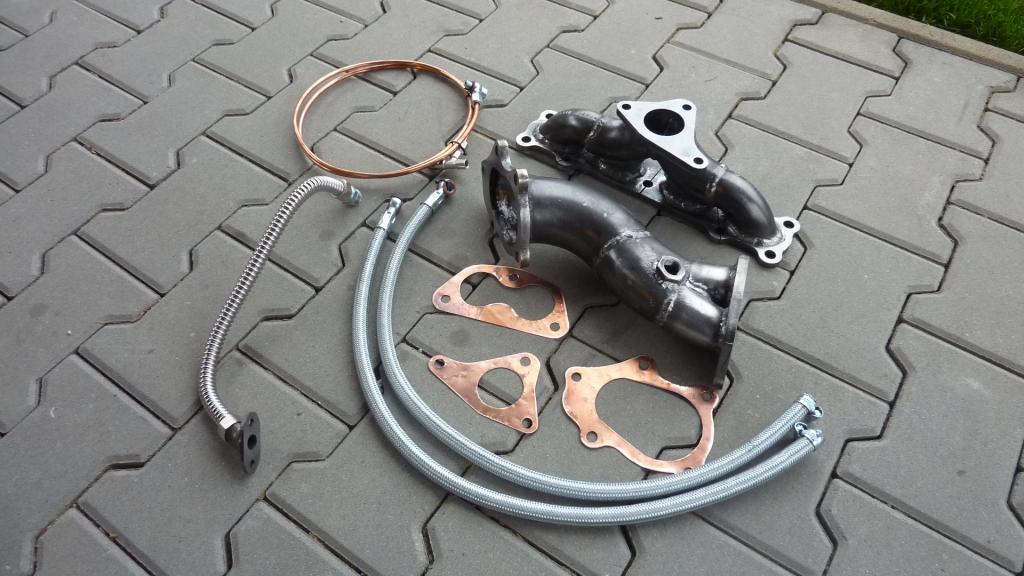

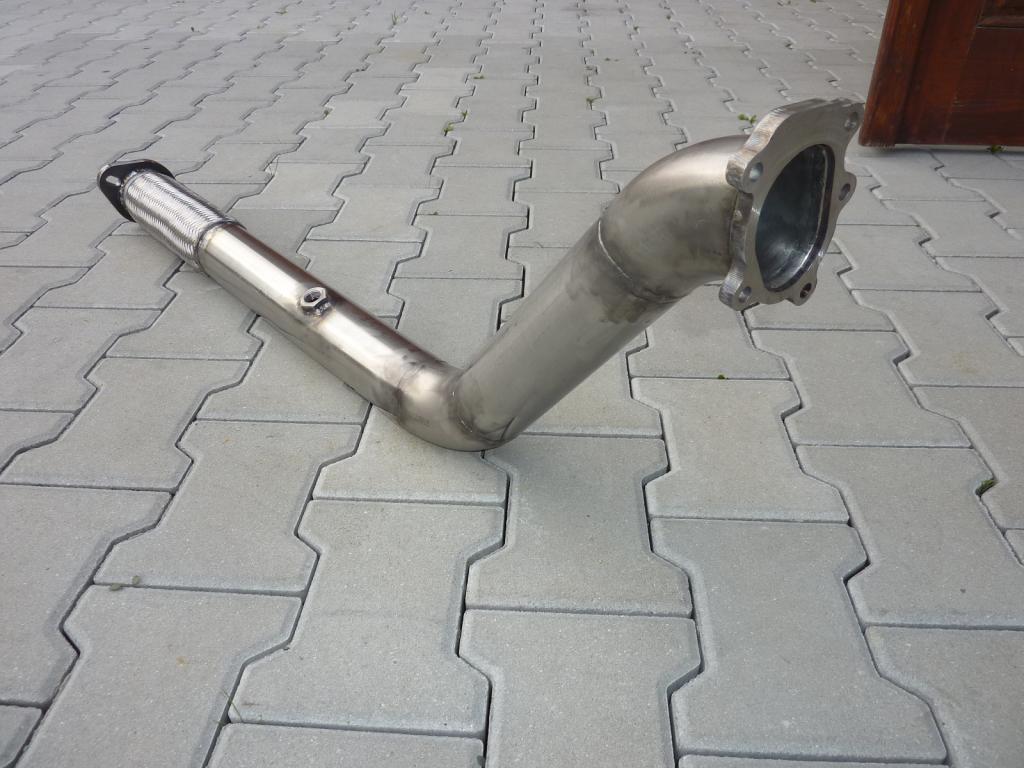

kit no 40


Making downpipes is not fun, some kind of endless measure-cut loop
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040848_zpsdf2e4fe2.jpg   TD04/TD05 fitted in place of T25/T28-p1040830_zps501626a6.jpg
sturovo is offline   Reply With Quote
Old 11-20-2013, 05:18 PM   #150
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I wish my down pipe looked that good.
Leafy is offline   Reply With Quote
Old 11-27-2013, 03:34 PM   #151
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

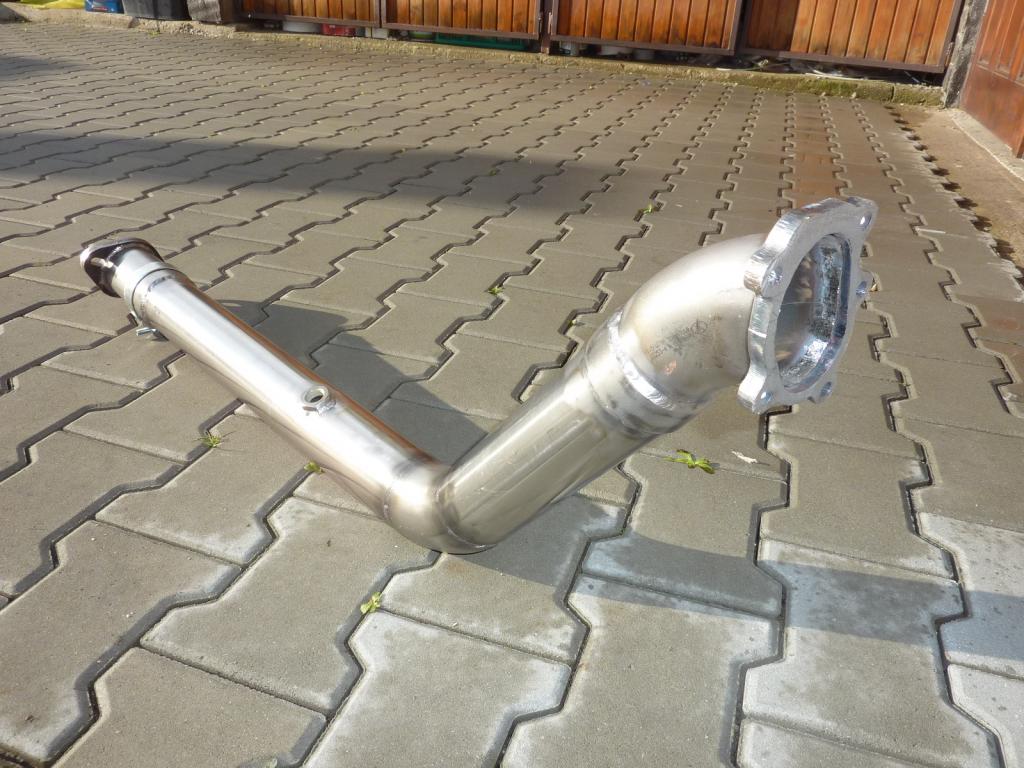

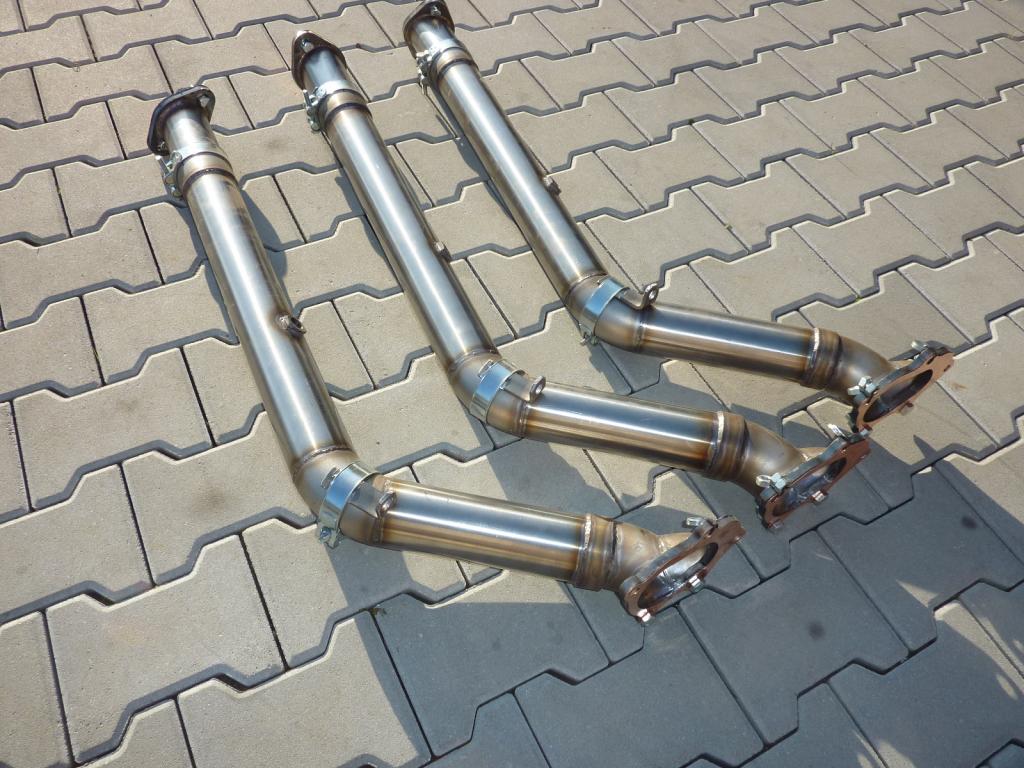

Encouraged by Leafy's talking stuff I went in to a downpipe flat spin and spat out a few more

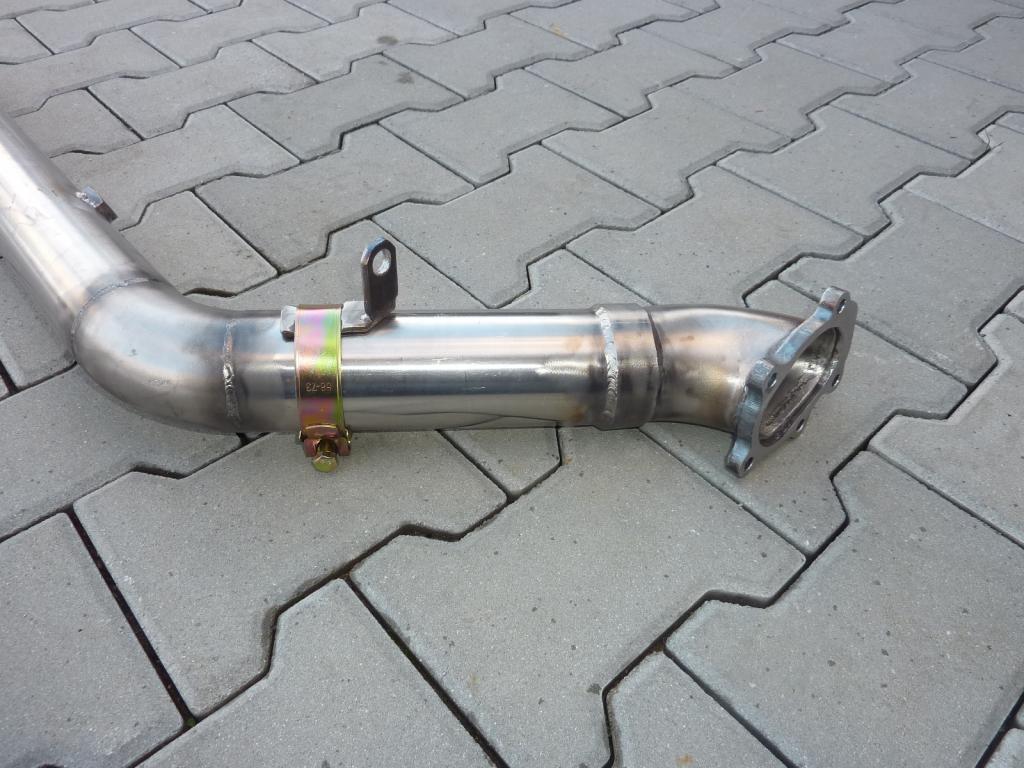

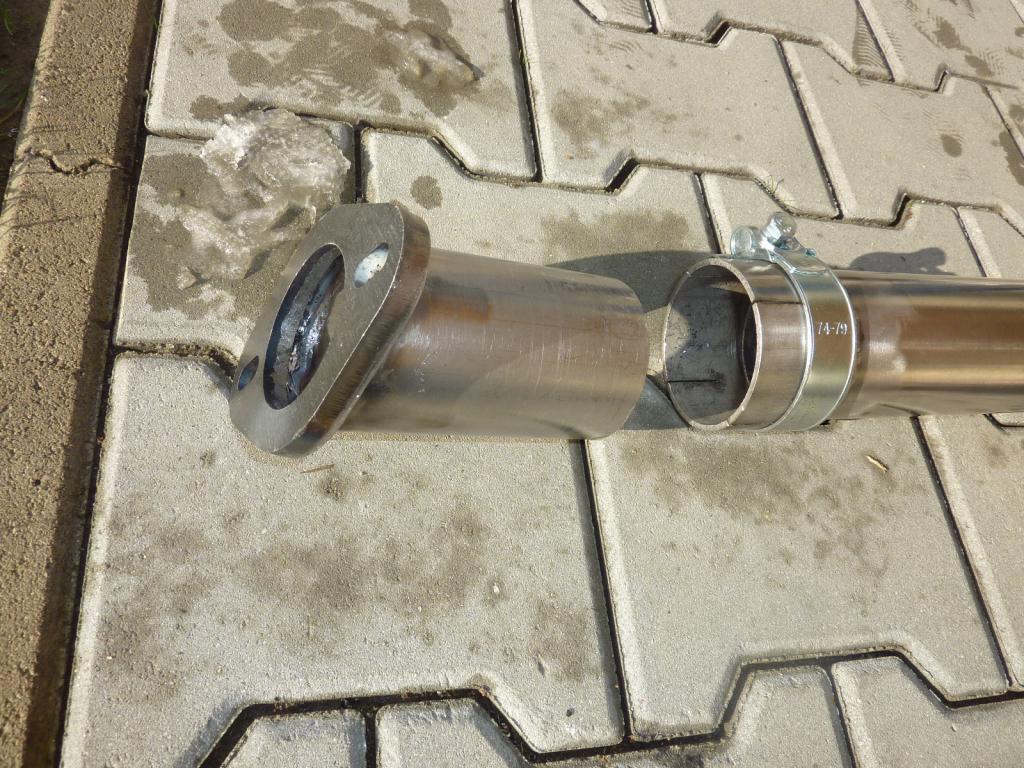

I added a slip joint as at heart I am not a flexi fan


And a gearbox bolt clamp bracket

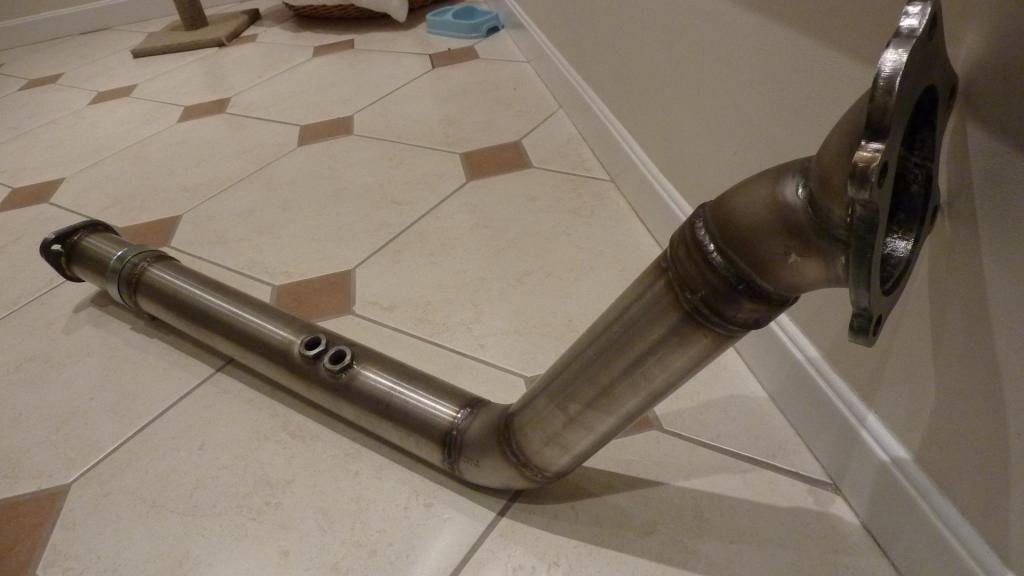

And also made a TD05 version


Next up...... NB versions
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040882_zpsaeaa4b93.jpg   TD04/TD05 fitted in place of T25/T28-p1040890_zpsdb3de486.jpg   TD04/TD05 fitted in place of T25/T28-p1040897_zps135ed23d.jpg   TD04/TD05 fitted in place of T25/T28-p1040907_zps4b34c5f1.jpg
sturovo is offline   Reply With Quote
Old 11-27-2013, 04:06 PM   #152
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

I have always been under the impression hard mounting an exhaust was/is always a no-no. This is why the OEM's don't and I personally have had a hard mounted exhaust crack/break at the mount.
karter74 is offline   Reply With Quote
Old 11-27-2013, 04:40 PM   #153
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

The stock downpipe is hard mounted to the tranny like he's doing. Unfortunately Bundy says you need a wider band than the one you showed or its still gonna fail in track use.
Leafy is offline   Reply With Quote
Old 11-27-2013, 05:11 PM   #154
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

Nothing wrong with hard mounting as long as its not welded directly to the pipe but rather clamps the pipe like he's doing. OEM's actually do it this way.

Good work Sturovo, your improvement is evident with each iteration
18psi is offline   Reply With Quote
Old 12-15-2013, 06:25 PM   #155
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Good work Sturovo, your improvement is evident with each iteration
Thanks 18. Several of the changes have been the result of users feedback and suggestions.

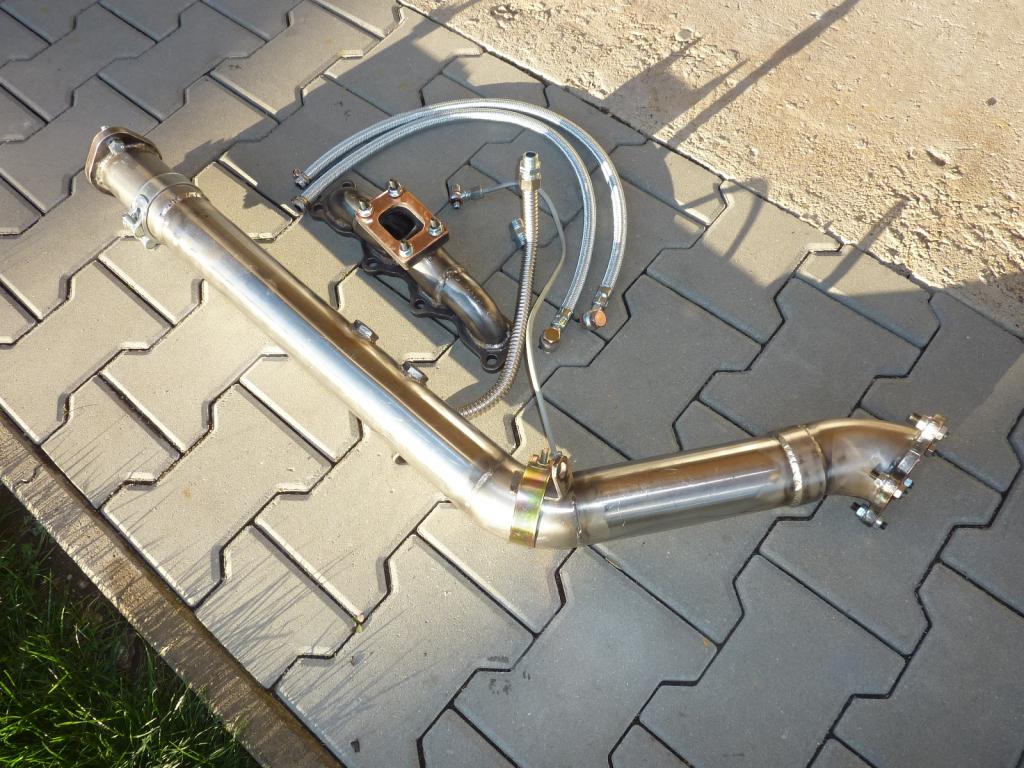

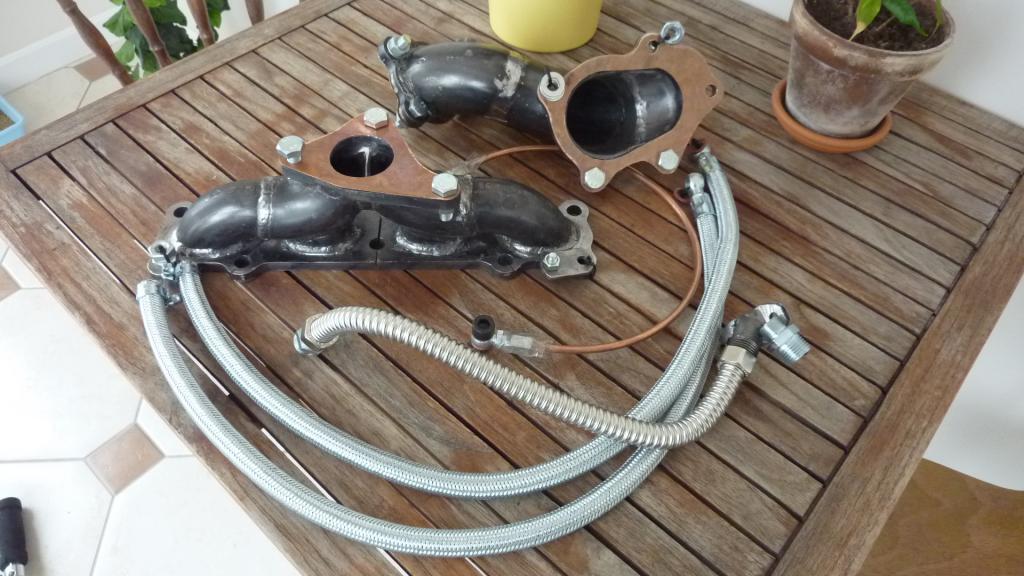

Recent stuff...

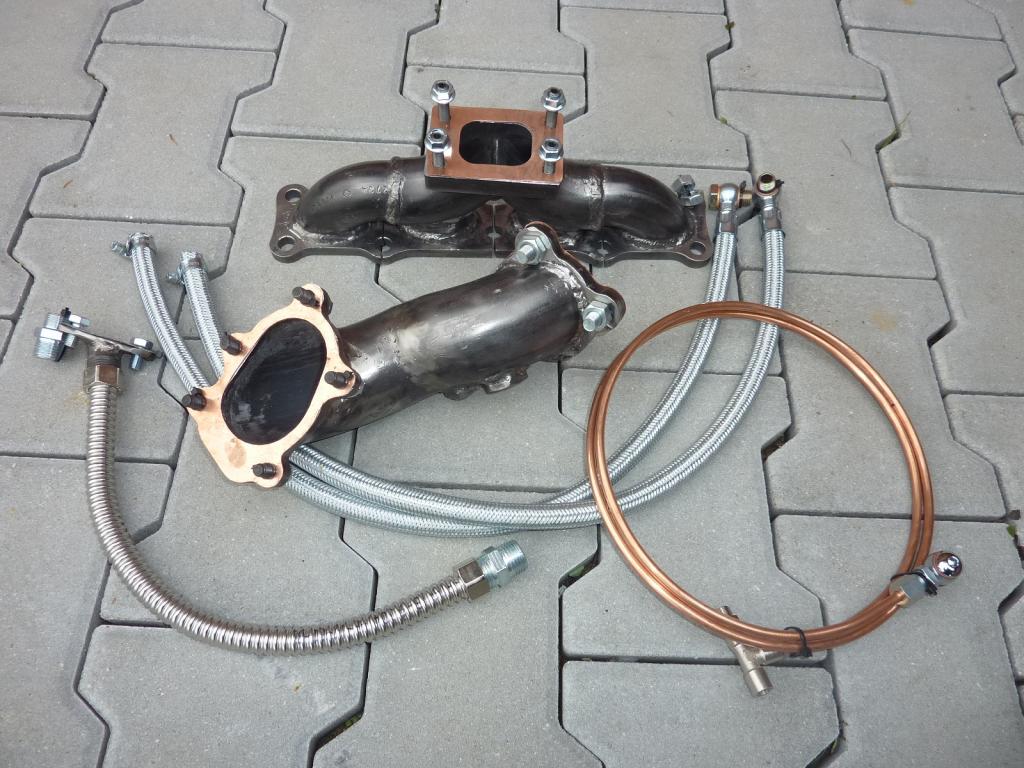

T25 kit for a 1.6 NA. with a 15mm thick manifold turbo flange tapped for fancy studs.

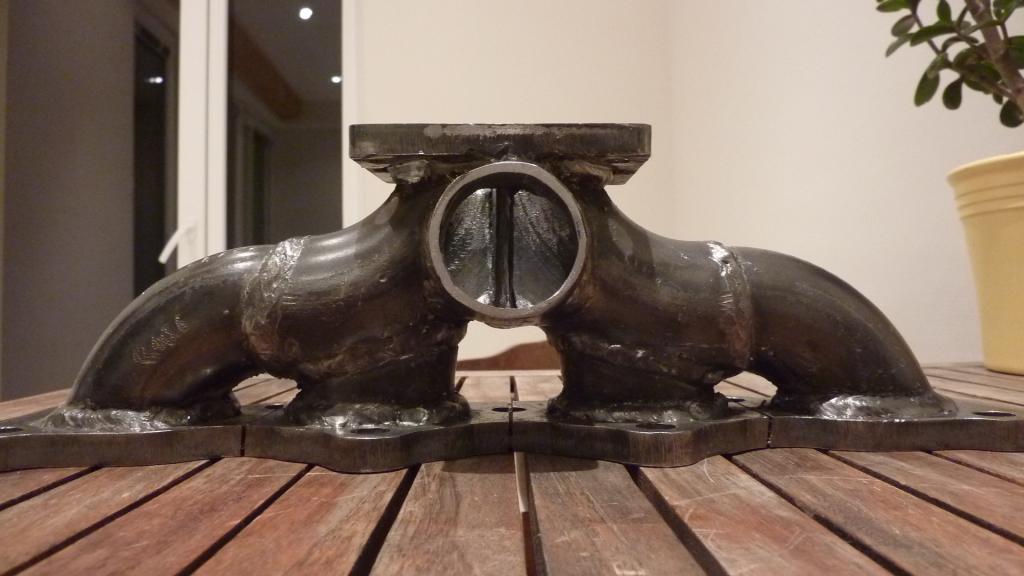

A t28 manifold for a 1.6 NA with an external waste gate port. The divided merge extends into the waste gate port and hopefully should help flow.


TD04 for a 1.8 NA

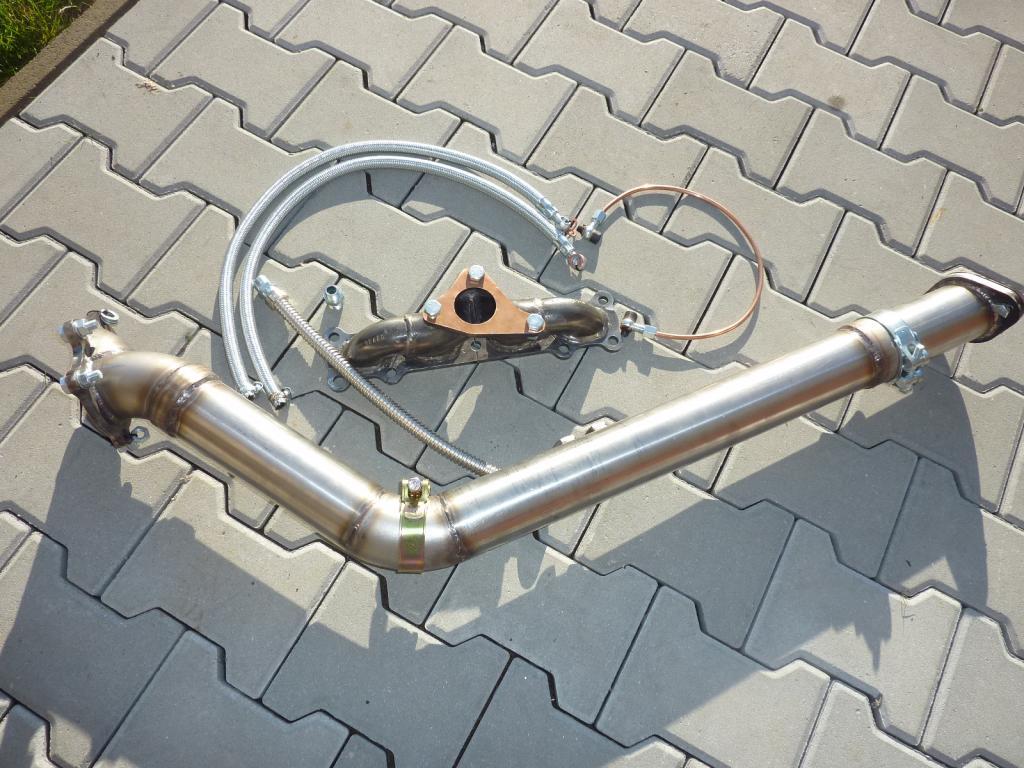

And some kits with 70mm downpipes


Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050022_zpsb52e4e76.jpg   TD04/TD05 fitted in place of T25/T28-p1040985_zps81d6f89e.jpg   TD04/TD05 fitted in place of T25/T28-p1040968_zps1b9ec7bc.jpg   TD04/TD05 fitted in place of T25/T28-p1040937_zps25475348.jpg   TD04/TD05 fitted in place of T25/T28-p1040944_zpsd86a33ee.jpg

sturovo is offline   Reply With Quote
Old 12-15-2013, 07:09 PM   #156
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

I have lots of want for a 1.6 TD04 kit... lol
Looks like you do some pretty awesome work.
supercooper is offline   Reply With Quote
Old 12-16-2013, 01:58 AM   #157
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

I've got about 1000 miles on my kit now William. Loving every minute of it! Thanks again!
I'm 'ing over those full length downpipes.. do want.
furrycurry33 is offline   Reply With Quote
Old 01-03-2014, 04:49 PM   #158
Newb

Join Date: Jan 2014
Posts: 42
Total Cats: 10
Default

As many others have said, your work with a stick welder is fantastic! I'm really looking forward to see what you've got coming up next.
BrilloHeadBen is offline   Reply With Quote
Old 01-06-2014, 05:16 PM   #159
Junior Member

Join Date: Jun 2011
Location: Southcoast, MA
Posts: 47
Total Cats: 1
Default

Quote:
Originally Posted by supercooper View Post
I have lots of want for a 1.6 TD04 kit... lol
Looks like you do some pretty awesome work.

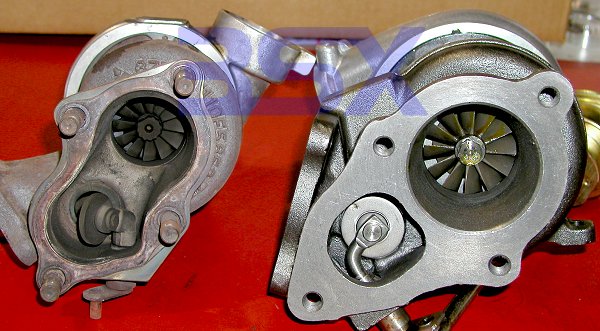

This. I'd be interested in a better manifold and down pipe with the bolt pattern on the right.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-turbos-td05evo3-vs-td04stock-11-600l.jpg
frapjap is offline   Reply With Quote
Old 01-10-2014, 06:16 PM   #160
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Ryan, Ben, I appreciate the kind words!

Quote:
Originally Posted by furrycurry33 View Post
I've got about 1000 miles on my kit now William. Loving every minute of it! Thanks again!
I'm 'ing over those full length downpipes.. do want.
Austin, It is a bit tricky to make a full downpipe without having the matching manifold in hand as a slight twist at the turbo flange can makes a significant difference at the other end. As an alternative a replacement 60 to 70mm downpipe like this one could work.




Quote:
Originally Posted by frapjap View Post
This. I'd be interested in a better manifold and down pipe with the bolt pattern on the right.
Ray, I would like to try Thing is that those turbos were never popular where in Slovakia/Europe so getting my hands on one may be difficult.
They were used on DSM's and evo 3's?

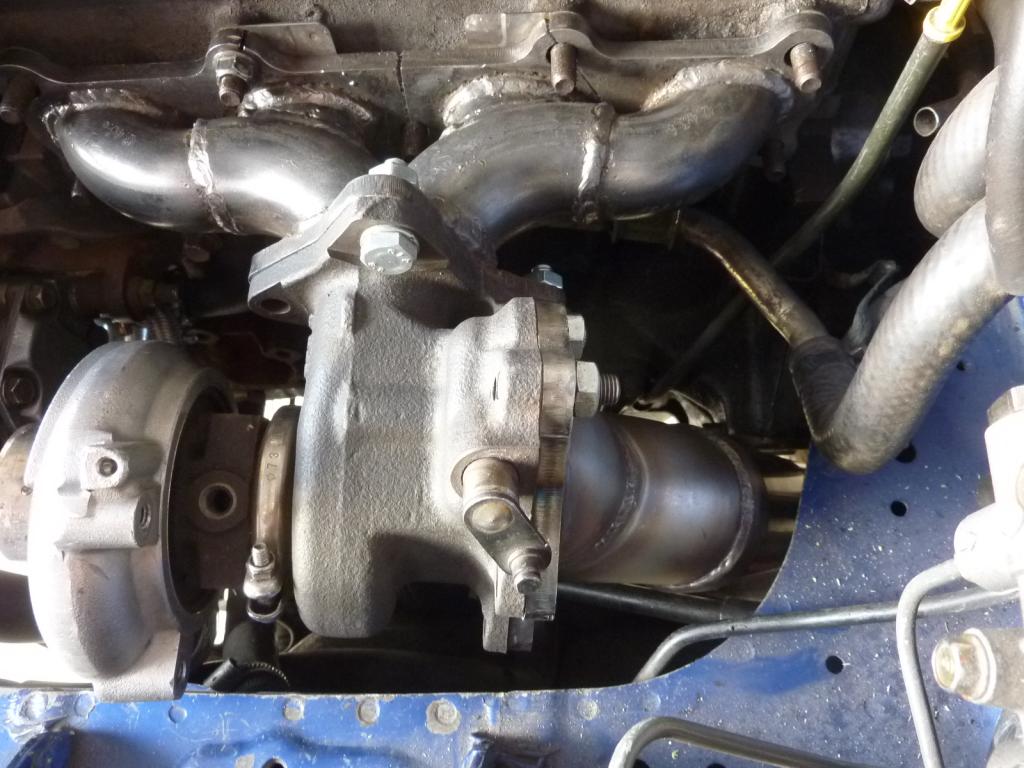

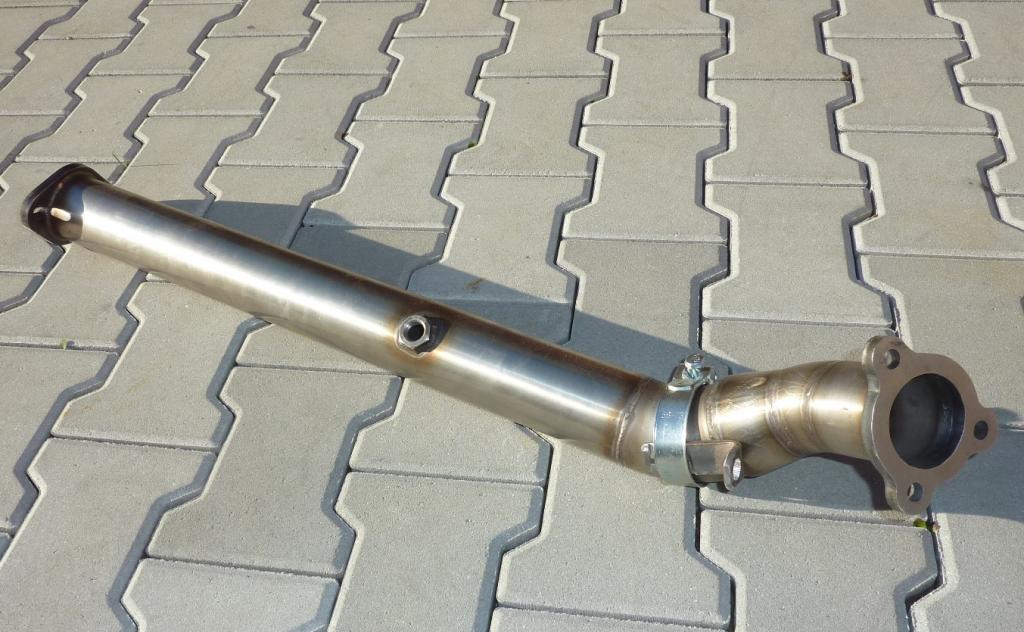

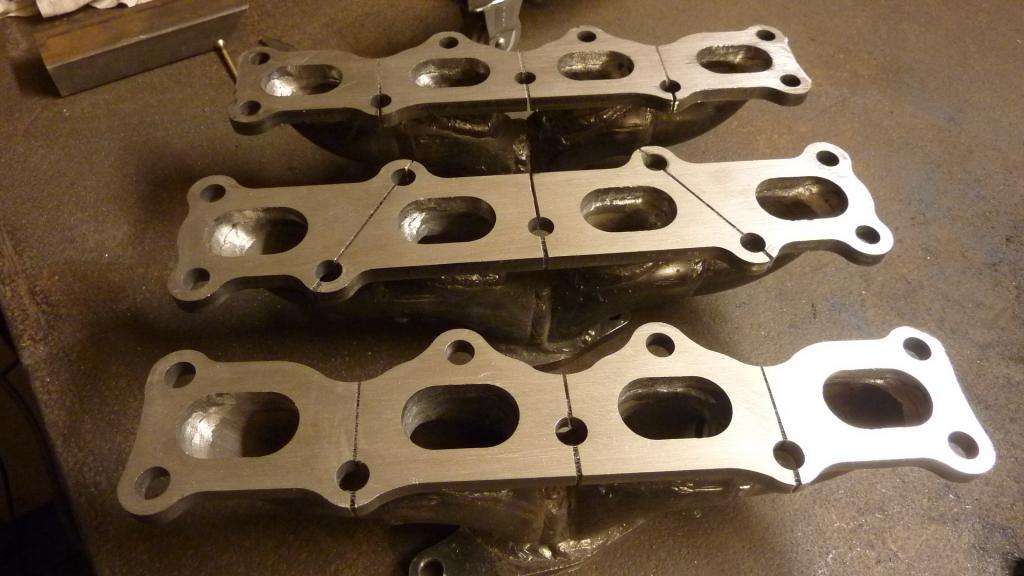

Meanwhile I have been working on a few Subaru based NA set ups





decent clearances



and a NB T25

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050208_zpsee9760a8.jpg   TD04/TD05 fitted in place of T25/T28-p1050125_zps53b18840.jpg   TD04/TD05 fitted in place of T25/T28-p1050096_zps4375bdbc.jpg   TD04/TD05 fitted in place of T25/T28-p1050163_zpsdaa0e52b.jpg
sturovo is offline   Reply With Quote
