Old 03-15-2014, 12:02 AM   #181
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,901
Total Cats: 609
Default

ive been watching this thread since the first post, youve inspired a lot of my build. keep it up!
hi_im_sean is offline   Reply With Quote
Old 03-17-2014, 12:29 AM   #182
Junior Member

Join Date: Jul 2013
Location: SanDiego
Posts: 53
Total Cats: 5
Default

have you thought about doing a twin scroll setup with an evo 8/9 turbo?
ThunderKunt is offline   Reply With Quote
Old 03-17-2014, 12:31 AM   #183
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by ThunderKunt View Post
have you thought about doing a twin scroll setup with an evo 8/9 turbo?
Are those the left handed spinning ones? Possible packaging problems with those maybe.
Leafy is offline   Reply With Quote
Old 03-17-2014, 12:41 AM   #184
Junior Member

Join Date: Jul 2013
Location: SanDiego
Posts: 53
Total Cats: 5
Default

yeah it is. im doing some fab for one on my car and its a tight fit. ive been reading this thread and getting some ideas.
ThunderKunt is offline   Reply With Quote
Old 03-20-2014, 02:36 PM   #185
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

wondering how much the manifolds cost and if you ever ship them to the states?
mmmjesse is offline   Reply With Quote
Old 04-01-2014, 07:46 PM   #186
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by hi_im_sean View Post
ive been watching this thread since the first post, youve inspired a lot of my build. keep it up!
Thank you Sean, we are interested in seeing your parts! Post some pictures if you get a chance.

Quote:
Originally Posted by ThunderKunt View Post
have you thought about doing a twin scroll setup with an evo 8/9 turbo?
Reggie, I thought about this but haven't gotten round to making a manifold yet. As Leafy pointed out it looks a bit awkward to fit due to the angle of the compressor discharge and turbo outlet flanges but it should be possible to weld a log similar to the stock Evo cast part. Looking at the pitch and shape of the ports it may even be possible to modify a welded Evo manifold to fit a 1.8.

Quote:
Originally Posted by mmmjesse View Post
wondering how much the manifolds cost and if you ever ship them to the states?
Jesse I sent a PM. I have sent a handful of parts to the states but I guess in general you guys are spoiled for choices. And now that the trackspeed kit is flooding the market I expect that this thread will have to be wound down.

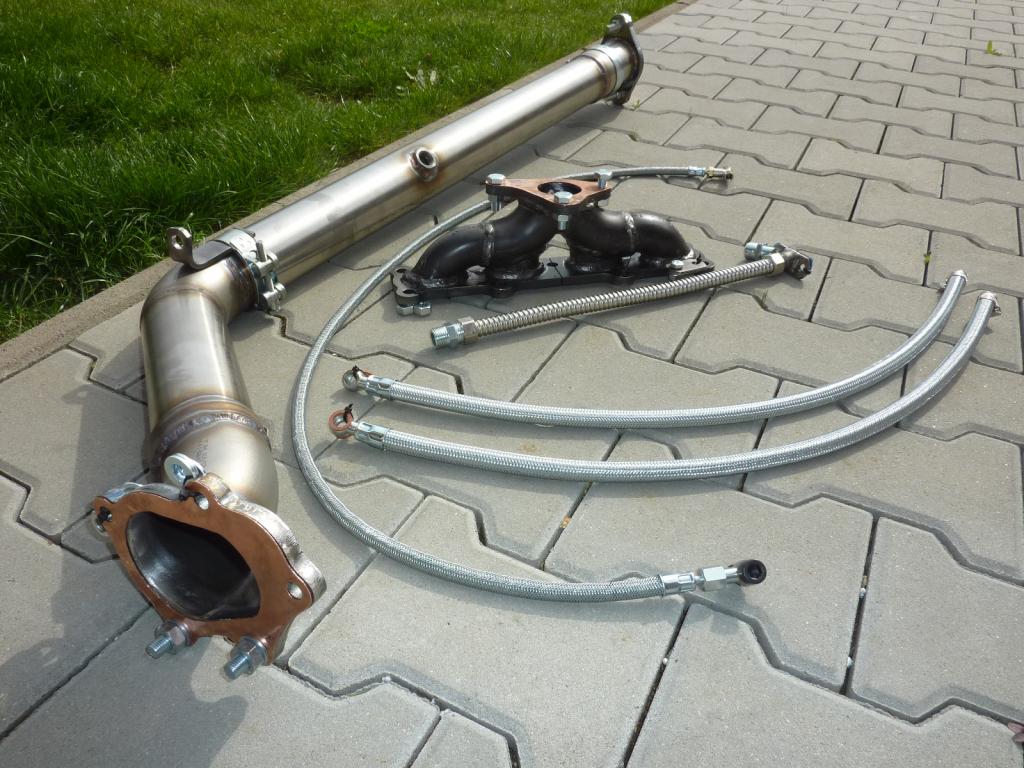

Recent stuff includes a nb fl td04 set up. The downpipe is pretty long as it is also replaces the cat.

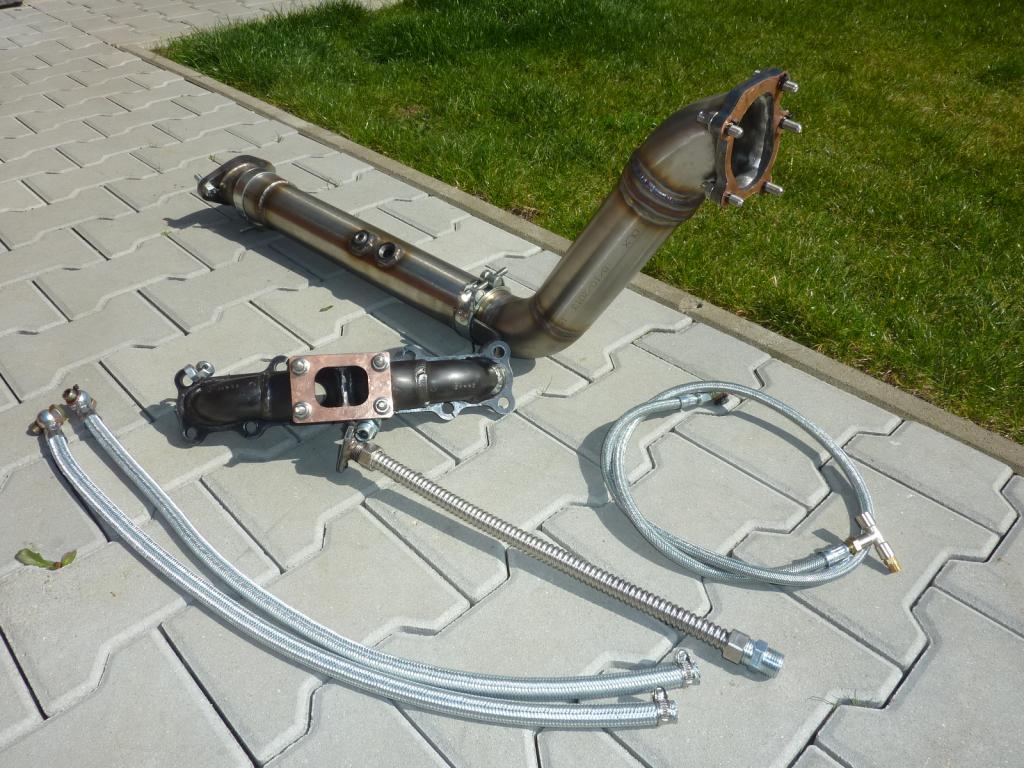

A t28 nb kit


Some times I am not sure to stick or tig so I end up using both.

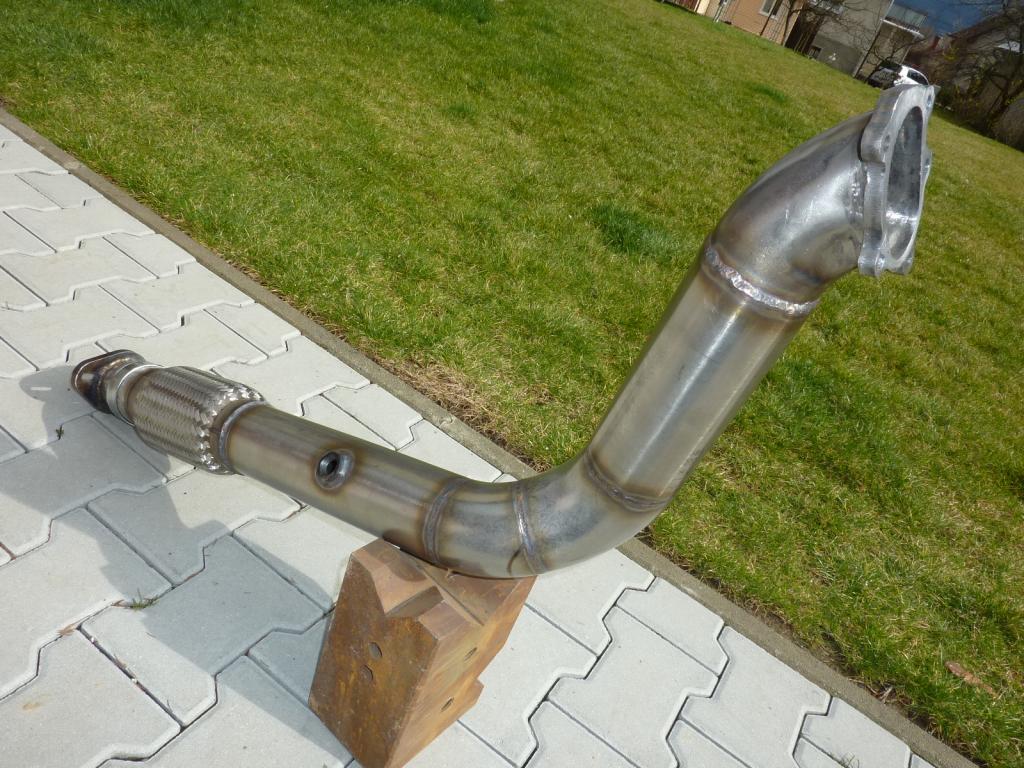

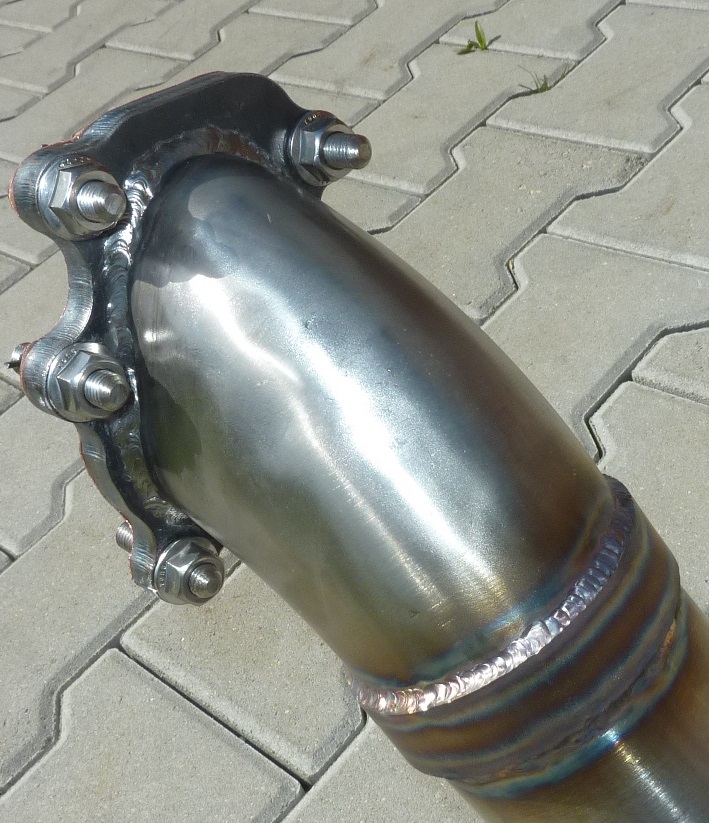

80mm downpipe

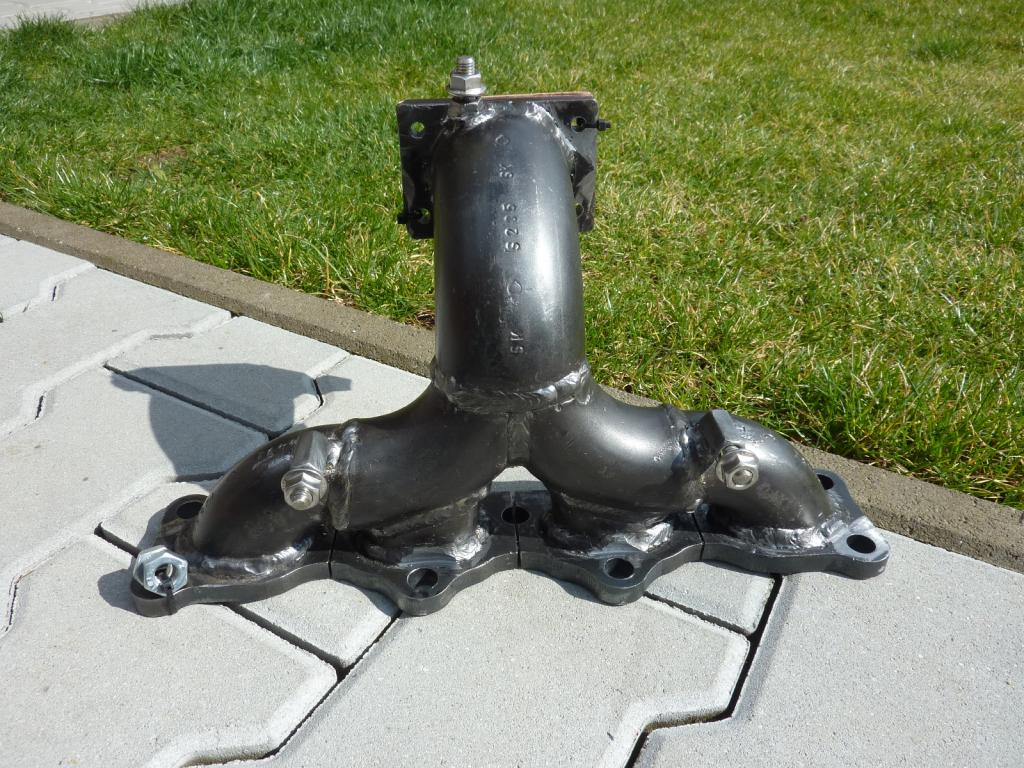

and a BBR replacement manifold
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050754_zpsbec58e6f.jpg   TD04/TD05 fitted in place of T25/T28-p1050731_zps75dfcd48.jpg   TD04/TD05 fitted in place of T25/T28-p1050726_zps6d81b146.jpg   TD04/TD05 fitted in place of T25/T28-p1050690_zps4f2c8cef.jpg   TD04/TD05 fitted in place of T25/T28-p1050684_zps29066ed6.jpg

sturovo is offline   Reply With Quote
Old 04-01-2014, 11:27 PM   #187
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

"Reggie, I thought about this but haven't gotten round to making a manifold yet. As Leafy pointed out it looks a bit awkward to fit due to the angle of the compressor discharge and turbo outlet flanges but it should be possible to weld a log similar to the stock Evo cast part. Looking at the pitch and shape of the ports it may even be possible to modify a welded Evo manifold to fit a 1.8. "

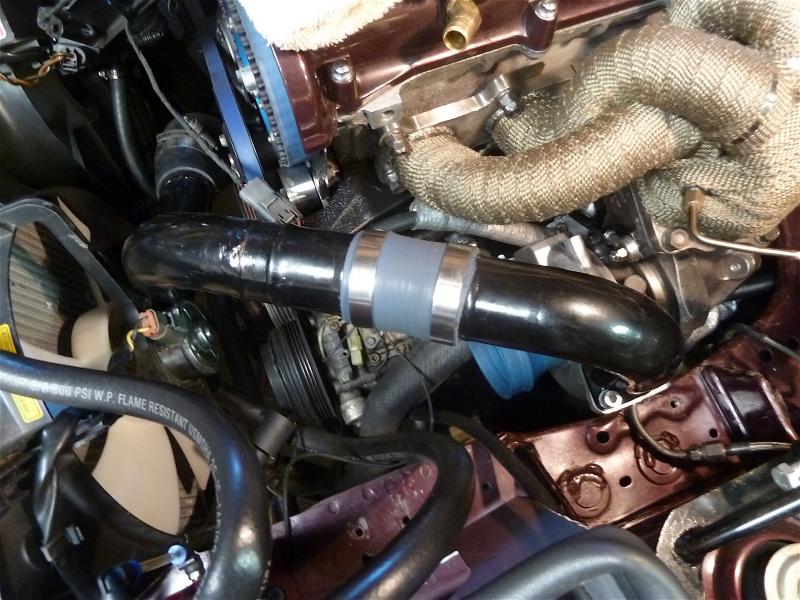

Sorry, not to crap up the thread. The winter project was to install a TD05HR on the car. I got it in there. I think it would be easier with your idea working around a log similar to stock evo cast part. Everything clears-but it's tight. It's almost done:

I will try to get a thread started this weekend.
Give it a try. Your skillset is up to the task.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1020089_zps8d0ec976.jpg
2manyhobyz is offline   Reply With Quote
Old 04-02-2014, 04:52 PM   #188
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

I'm planning to make a manifold similar to your design very soon. Your elbows are all long radius elbows right?

What is that BBR manifold for?
hochkis is offline   Reply With Quote
Old 04-07-2014, 03:32 PM   #189
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 2manyhobyz View Post

Sorry, not to crap up the thread. The winter project was to install a TD05HR on the car. I got it in there. I think it would be easier with your idea working around a log similar to stock evo cast part. Everything clears-but it's tight. :
Jeff, that looks great! I am inspired now, I must try.

Quote:
Originally Posted by hochkis View Post
I'm planning to make a manifold similar to your design very soon. Your elbows are all long radius elbows right?

What is that BBR manifold for?
Michael I use regular 5/4 and6/4 elbows mostly. I did make a few manifolds using r=1.5 d metric bends previously but now I use regular bends as the dimensions suit axial mount logs pretty well. The max width of I make a 1.6 manifold is 105mm and the 1.8 is 95mm. It is possible to hold these dimensions using regular bends. Here is a video showing a typical manifold going together.



The BBR manifold was a replacement manifold for a cast part that was used on a factory MX5 turbo sold in the UK in the early 90's.
sturovo is offline   Reply With Quote
Old 04-16-2014, 05:37 PM   #190
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

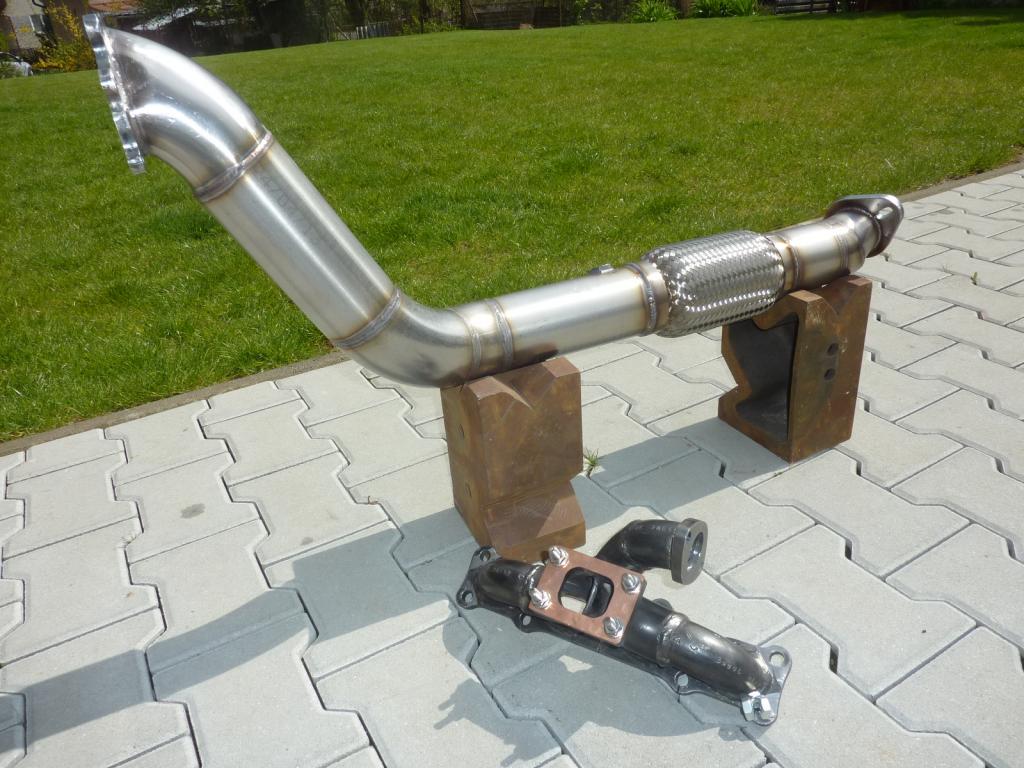

and the matching downpipe

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050848_zps9d1499e8.jpg
sturovo is offline   Reply With Quote
Old 04-28-2014, 03:42 PM   #191
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

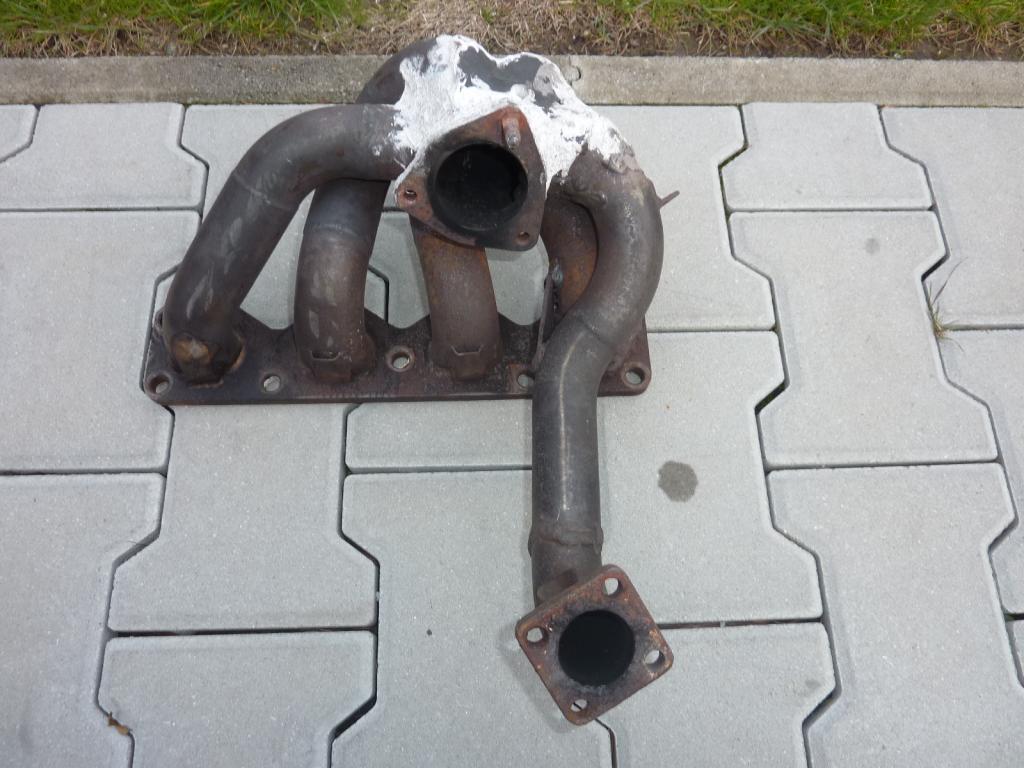

Anyone come across one of these before?



As far as I can tell it is from some now defunct Greddy kit. It had been repaired several times previously but now has gotten to the stage where repairs are no longer an option due to metal embitterment.

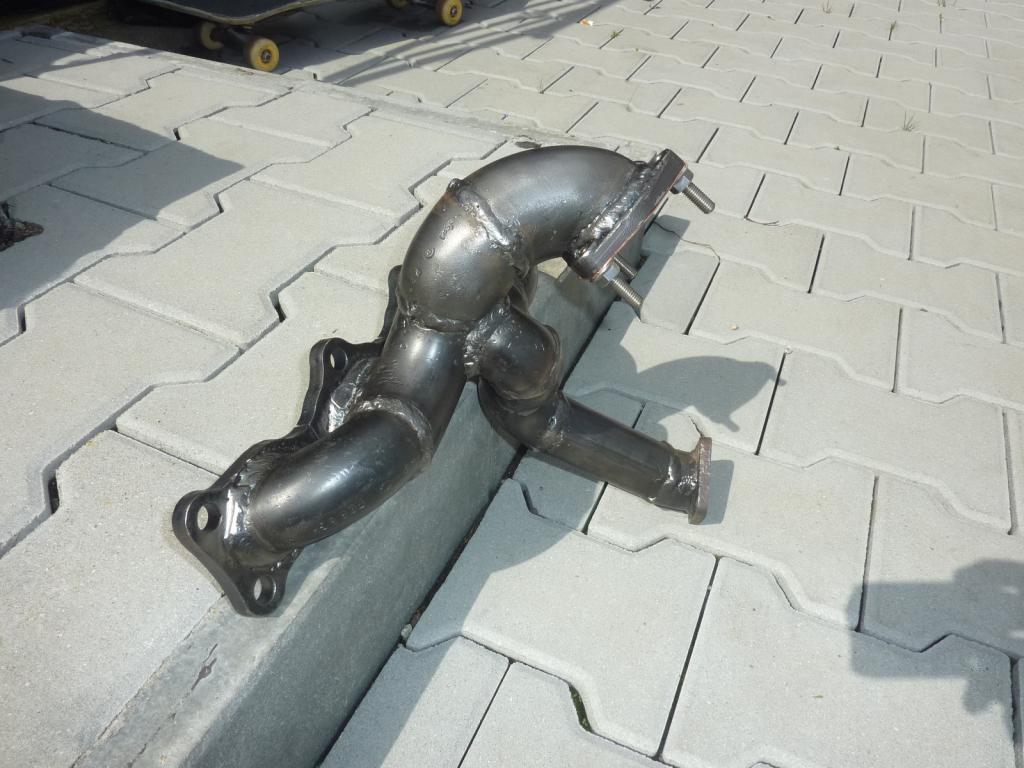

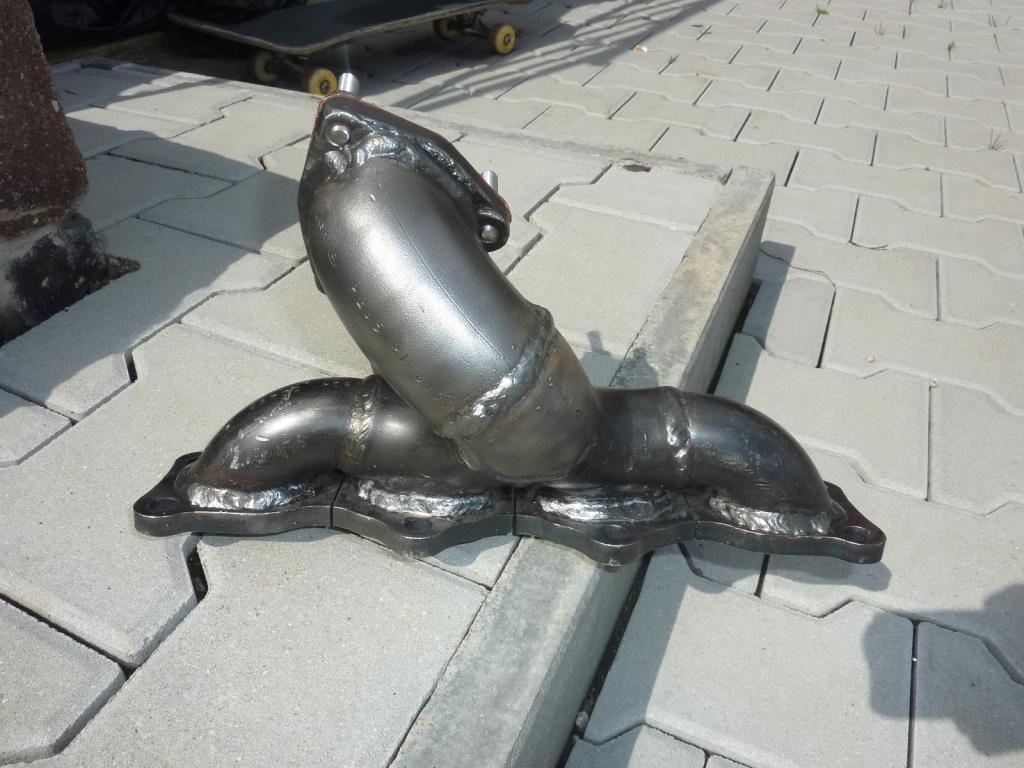

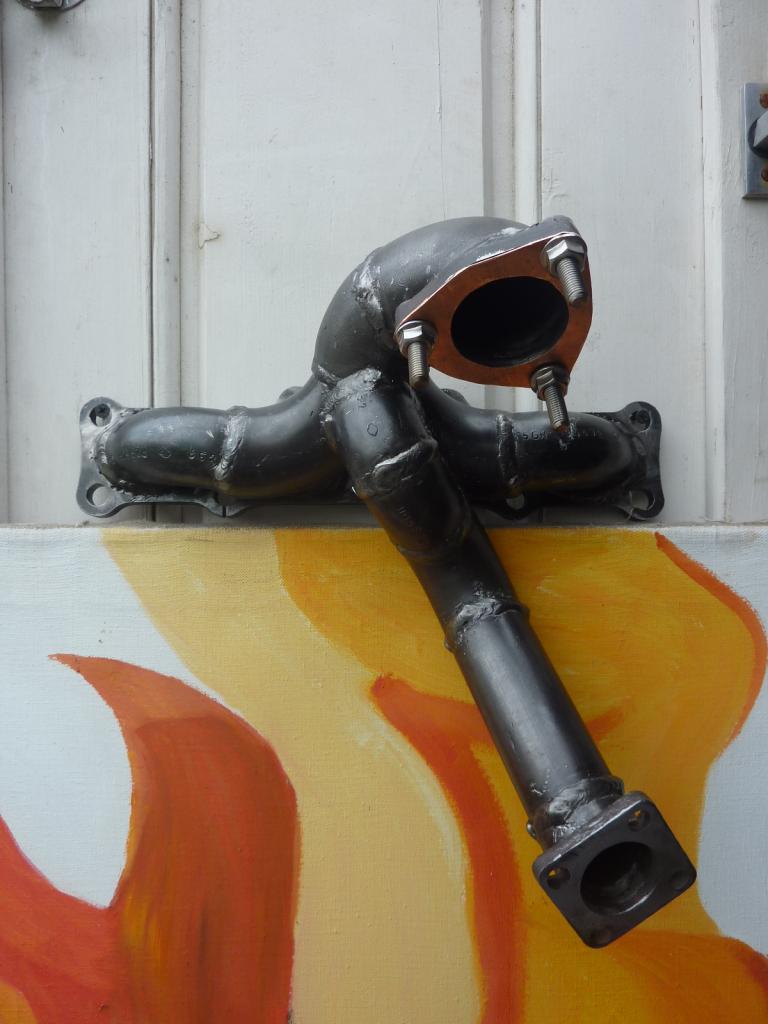

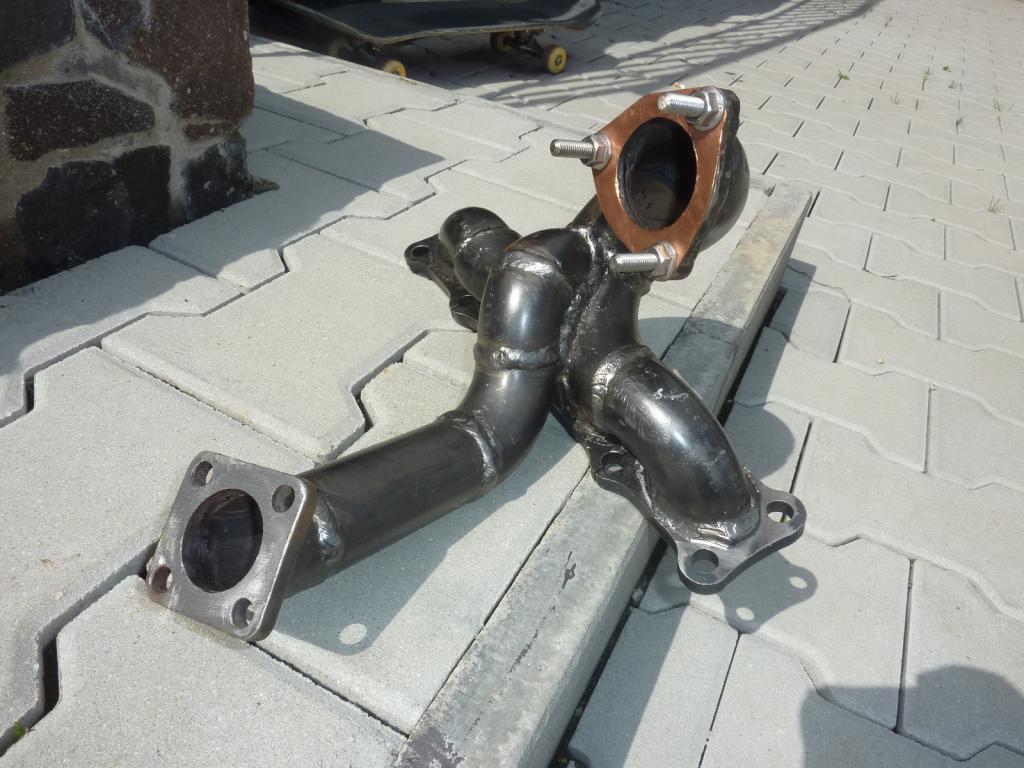

I was asked to make a log based mild steel replacement..... which went kind of ok from a technical....... gas in here -> gas out there....... point of view.







And in general I was happy other than the way it looks. I tried to jizz it up...

First with some dodgy garage art

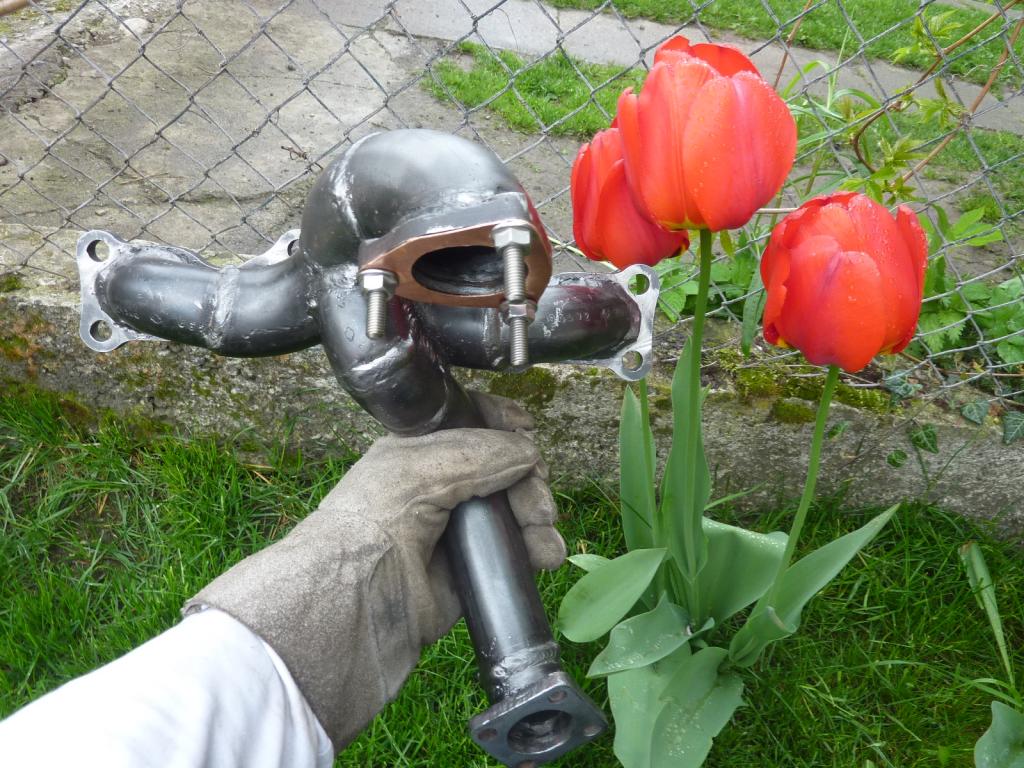

and then some garden flowers



But I soon gave up on the beautification idea no matter what i tried the head crab reminiscent fugliness's endured

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050860_zps86abcbc4.jpg   TD04/TD05 fitted in place of T25/T28-p1050922_zpsd01980d8.jpg   TD04/TD05 fitted in place of T25/T28-p1050920_zpsbc7e8914.jpg   TD04/TD05 fitted in place of T25/T28-p1050921_zps101a05c3.jpg   TD04/TD05 fitted in place of T25/T28-p1050905_zps0e21695c.jpg

TD04/TD05 fitted in place of T25/T28-p1050910_zpsf7ed01d1.jpg   TD04/TD05 fitted in place of T25/T28-headcrab_standard.jpg
sturovo is offline   Reply With Quote
Old 04-28-2014, 03:54 PM   #192
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I think you could lay that ewg pipe between Kate Upton's bare **** and it would still look ugly. Nice try though.
thenuge26 is offline   Reply With Quote
Old 04-30-2014, 10:53 AM   #193
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,901
Total Cats: 609
Default

HL ftw
hi_im_sean is offline   Reply With Quote
Old 05-14-2014, 05:58 PM   #194
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

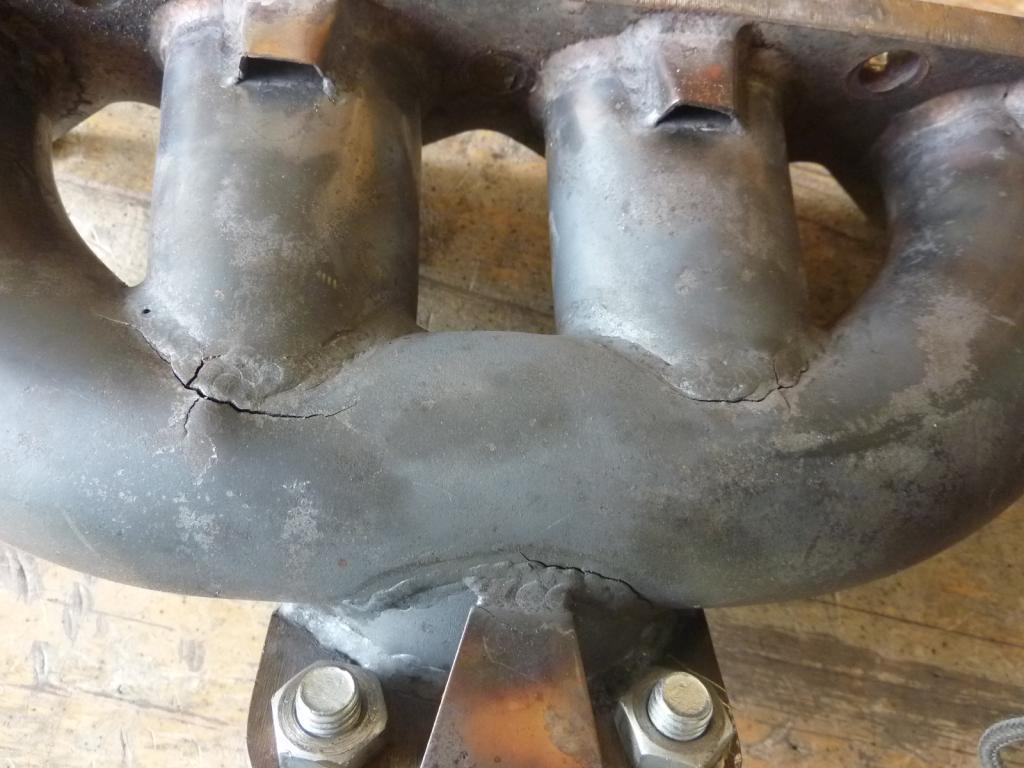

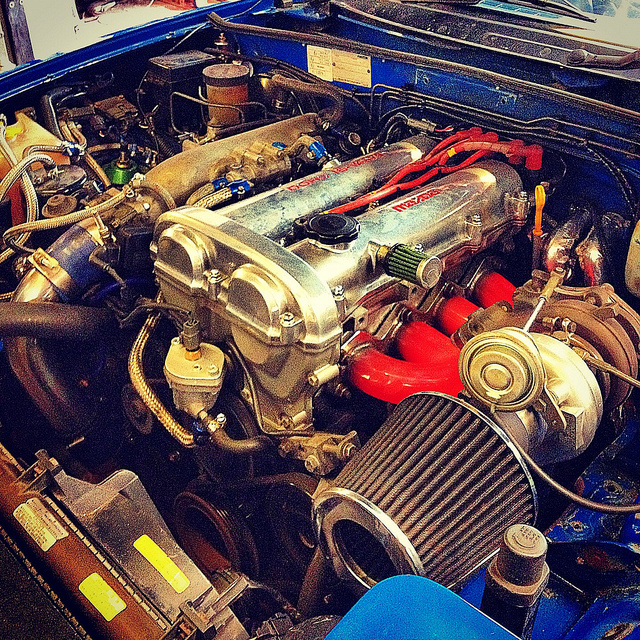

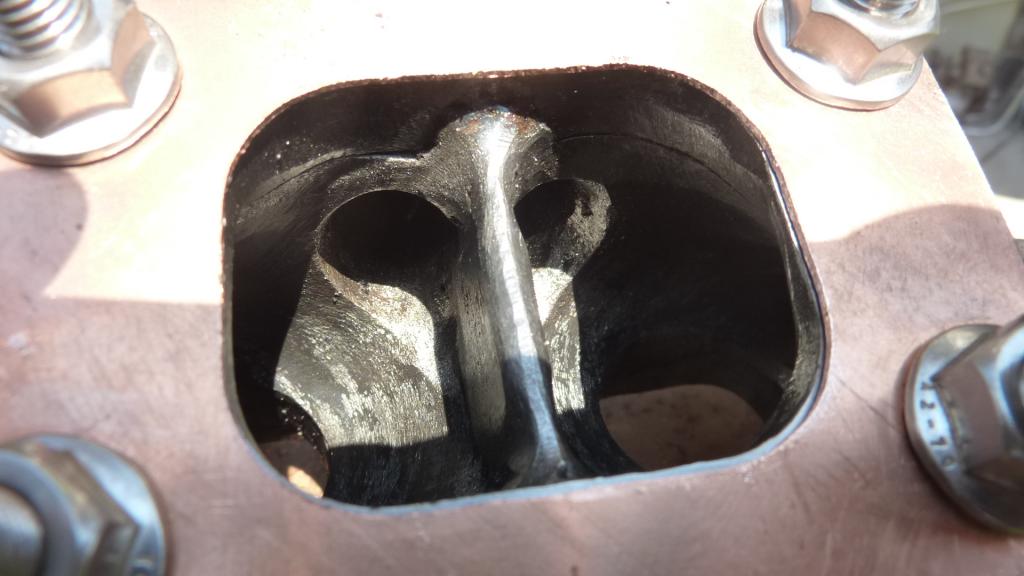

If you this with thin wall stainless manifolds



then it is only a matter of time due to the formation of chromium-rich domains and precipitates within the iron-rich matrix by spinodal decomposition of ferrite....
that this happens

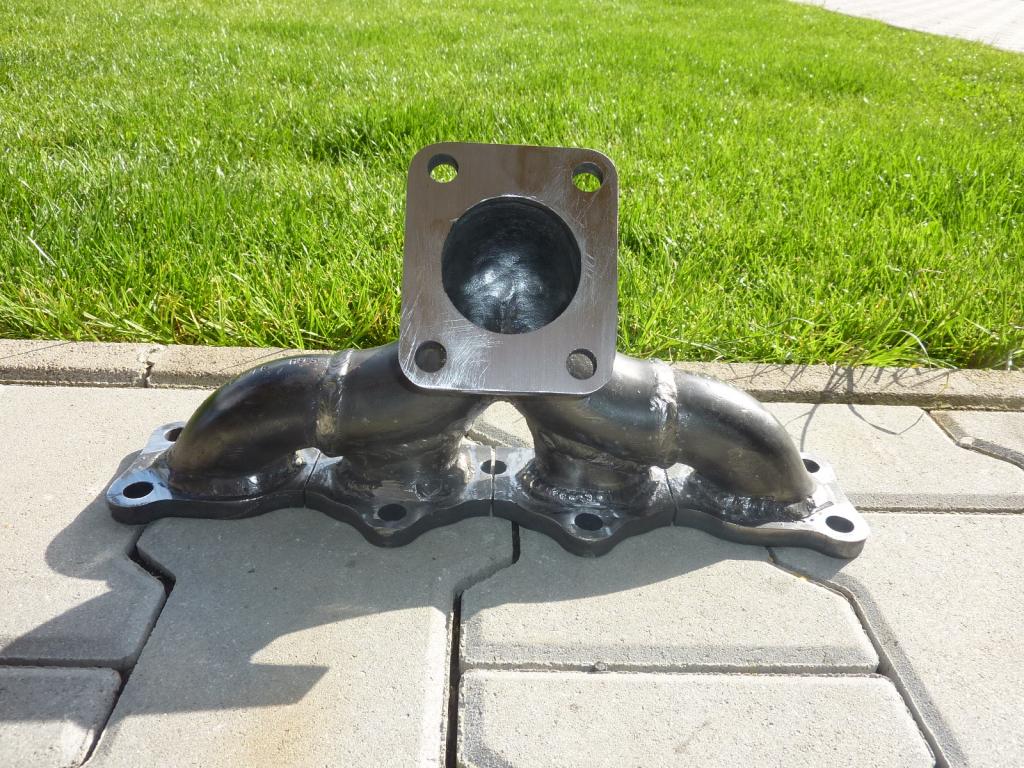

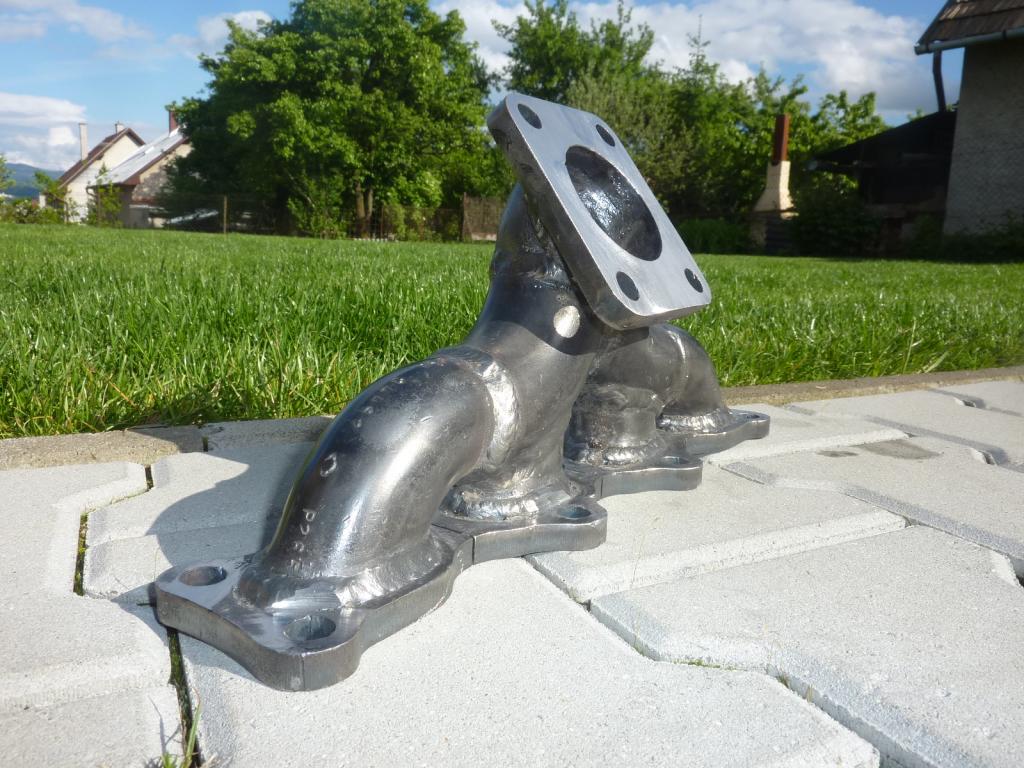

So I made a replacement using schedule 40 boiler steel elbows.

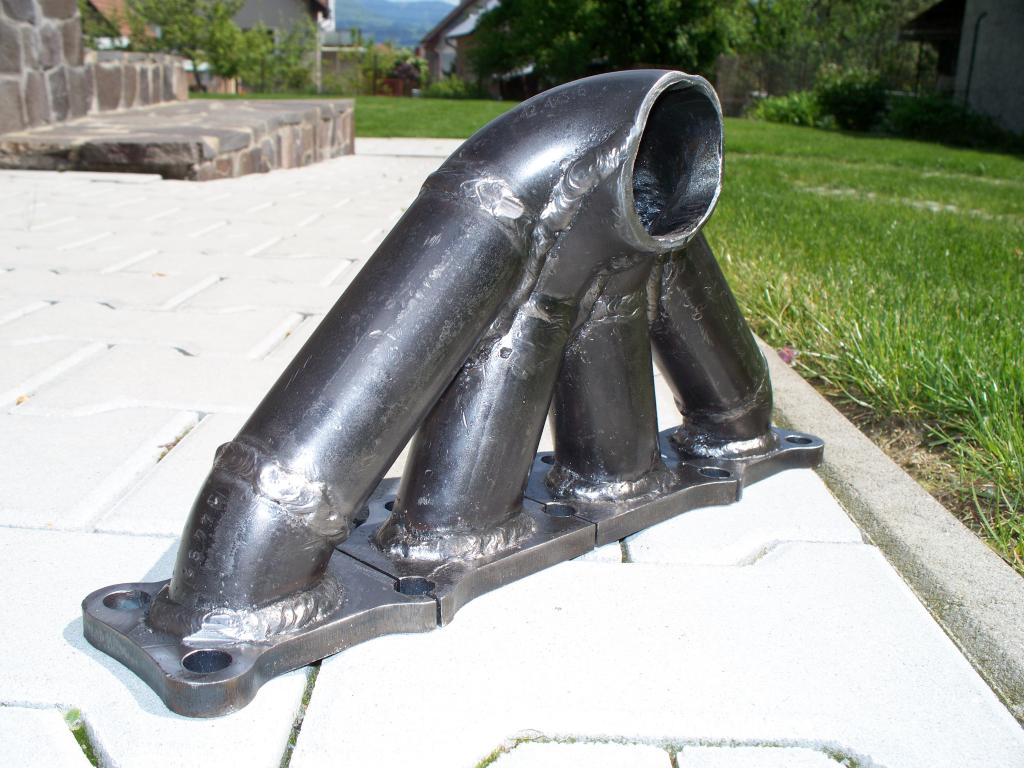

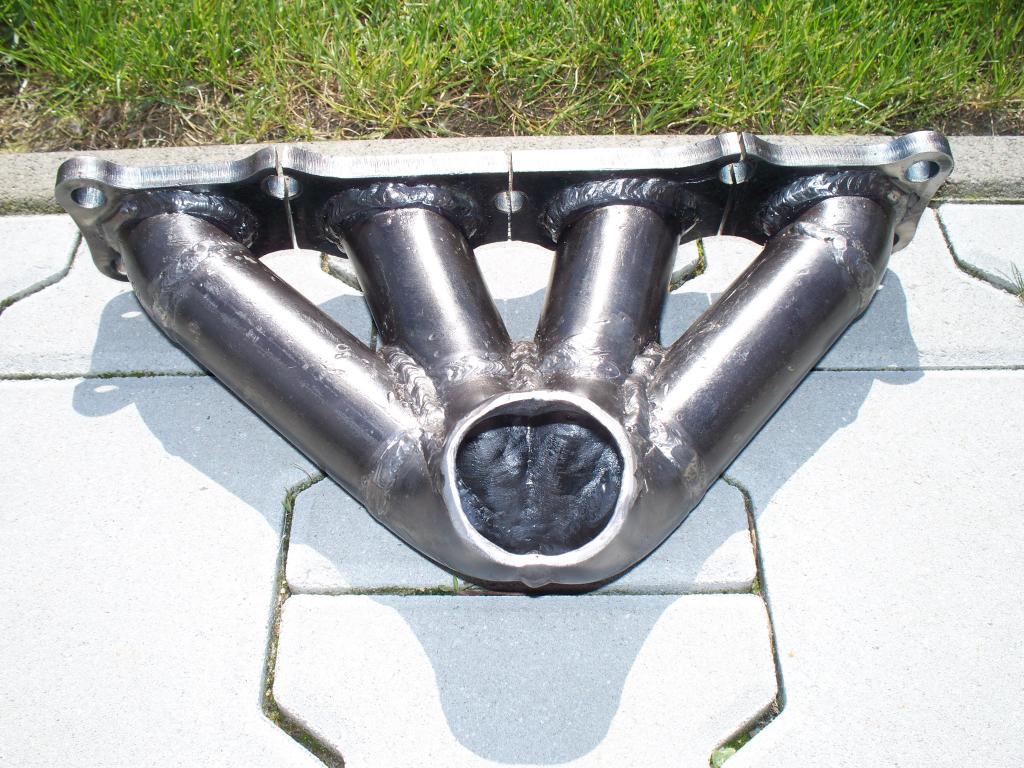

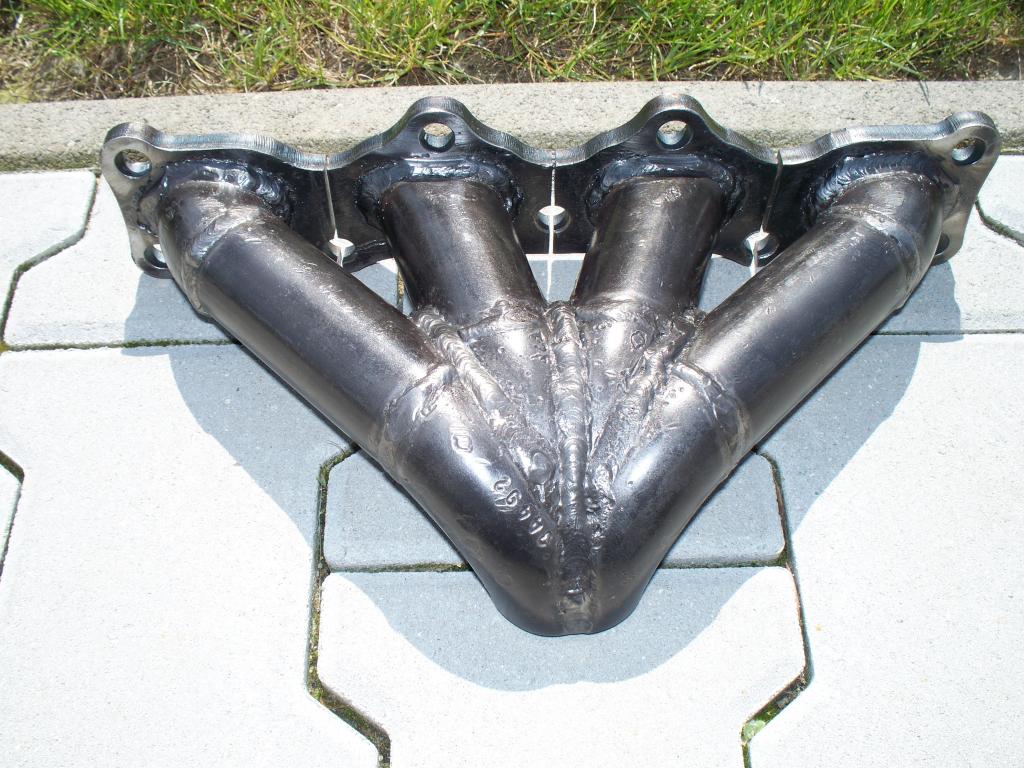

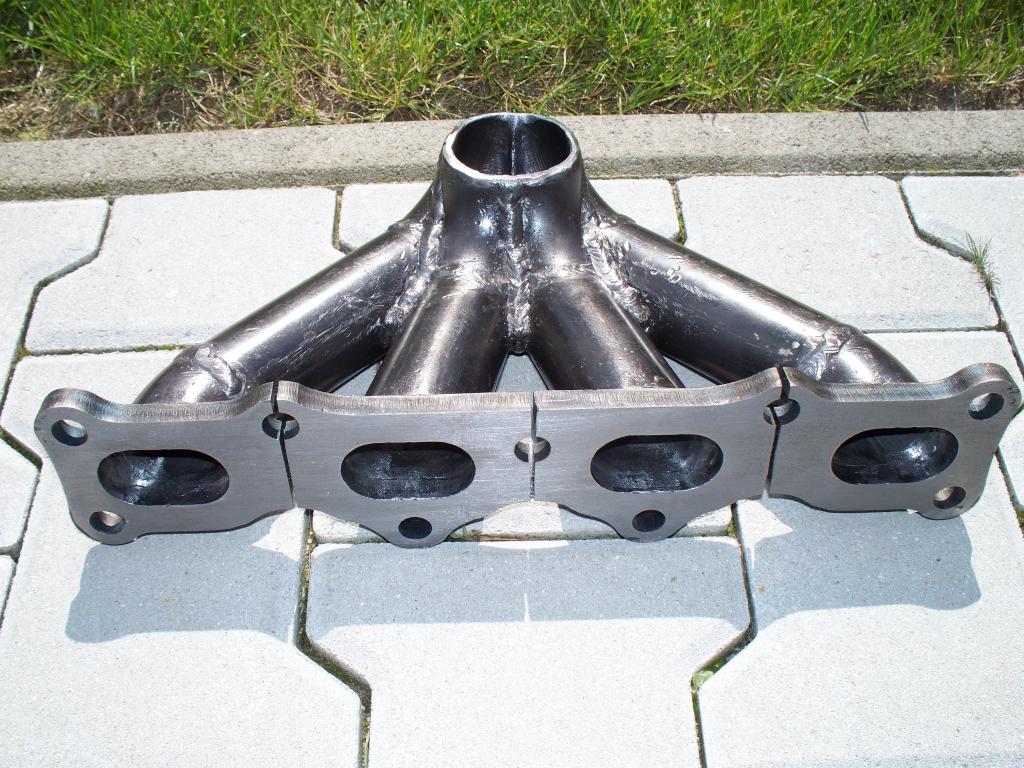

Feeling brave, I also attempted to replicate one of Tim's great designs







Not the easiest to make, well at least the first time, as the merge is fussy.

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-7645999210_67a475d656_z_zps545a932f.jpg   TD04/TD05 fitted in place of T25/T28-p1050984_zps63306ddd.jpg   TD04/TD05 fitted in place of T25/T28-p1060006_zps8a6ddd52.jpg   TD04/TD05 fitted in place of T25/T28-p1060011_zps1effc7ba.jpg   TD04/TD05 fitted in place of T25/T28-100_0870_zps5b77dfb5.jpg

TD04/TD05 fitted in place of T25/T28-100_0868_zps59e82d81.jpg   TD04/TD05 fitted in place of T25/T28-100_0867_zps7738184a.jpg   TD04/TD05 fitted in place of T25/T28-100_0873_zpsb30031e1.jpg
sturovo is offline   Reply With Quote
Old 05-15-2014, 09:33 AM   #195
Junior Member

Join Date: Nov 2010
Location: NH
Posts: 60
Total Cats: -2
Default

Quote:
Originally Posted by sturovo View Post
then it is only a matter of time due to the formation of chromium-rich domains and precipitates within the iron-rich matrix by spinodal decomposition of ferrite....
There are definitely enough sciencey words for that to be true!

jch13 is offline   Reply With Quote
Old 06-10-2014, 06:39 PM   #196
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by jch13 View Post
There are definitely enough sciencey words for that to be true!

But is the truth even relevant? Sciencey words is is how we roll here on mt.net

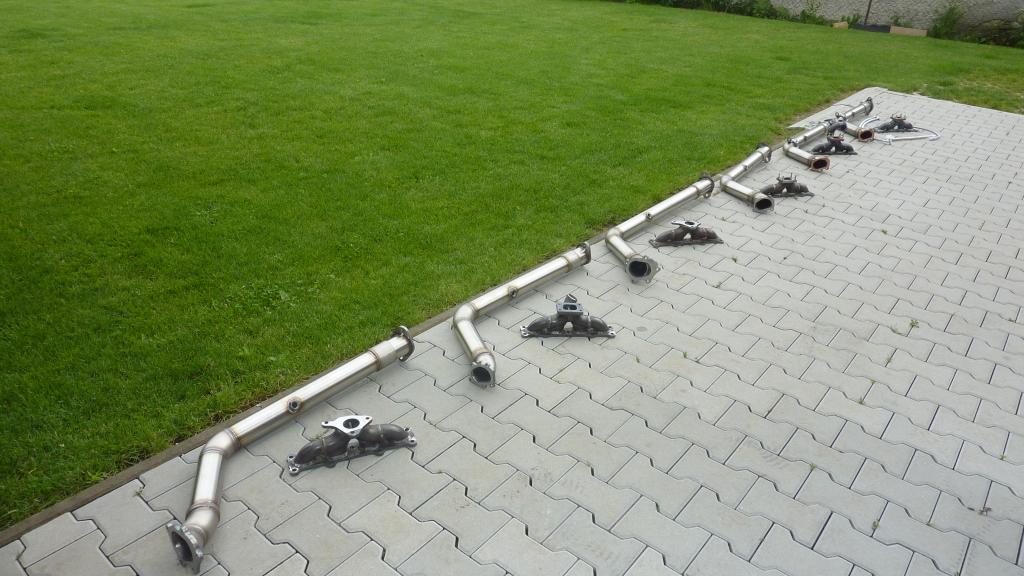

Just in case any one is having difficulties recognizing when hobbies start to spiral out of control....
for me a good indication is when I live in the shed stuff piles up on the drive


Luckily there is a 19t antidote close by
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1060068_zpse1f14a93.jpg   TD04/TD05 fitted in place of T25/T28-p1060103_zps3c35fc03.jpg
sturovo is offline   Reply With Quote
Old 06-10-2014, 08:17 PM   #197
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

hahaha that's awesome.
18psi is offline   Reply With Quote
Old 08-03-2014, 07:23 PM   #198
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
hahaha that's awesome.
Thanks Vlad. You mean the house?
I am surprised it turned out ok as I built it myself and made up the details on the way.
Here it was about half way through.

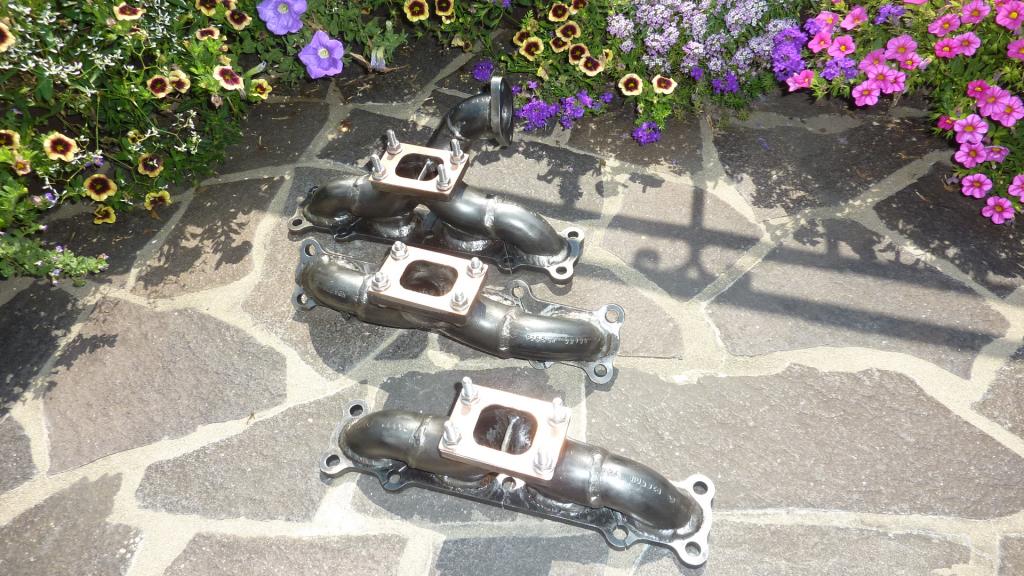

And now that summer is here the the various types of t28 manifolds are in bloom



Is that a camels toe in there?



Meanwhile, testing on techsalvager inspired css intercooler piping continues

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1020197_zps5e35c542.jpg   TD04/TD05 fitted in place of T25/T28-p1060249_zpsd02fec06.jpg   TD04/TD05 fitted in place of T25/T28-wp_20140715_006_zps96abf27d.jpg   TD04/TD05 fitted in place of T25/T28-p1060235_zps9c017db8.jpg
sturovo is offline   Reply With Quote
Old 08-19-2014, 11:31 AM   #199
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

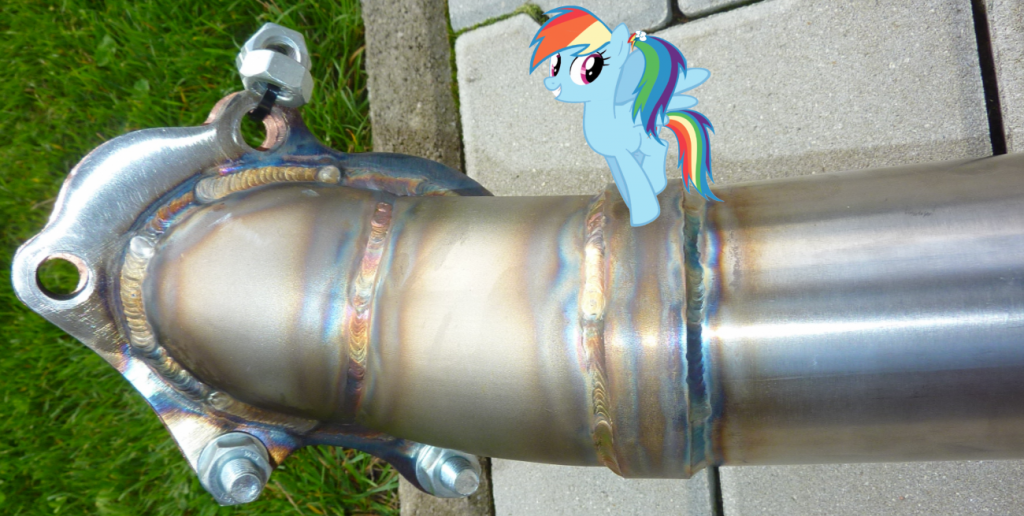

Does my bum look big in this?


What about the colors?
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-untitled_zpsc064110d.png
sturovo is offline   Reply With Quote
Old 08-19-2014, 11:48 AM   #200
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

haha very cool. your work keeps improving

and WOW yes your house is beautiful too. Good job man.

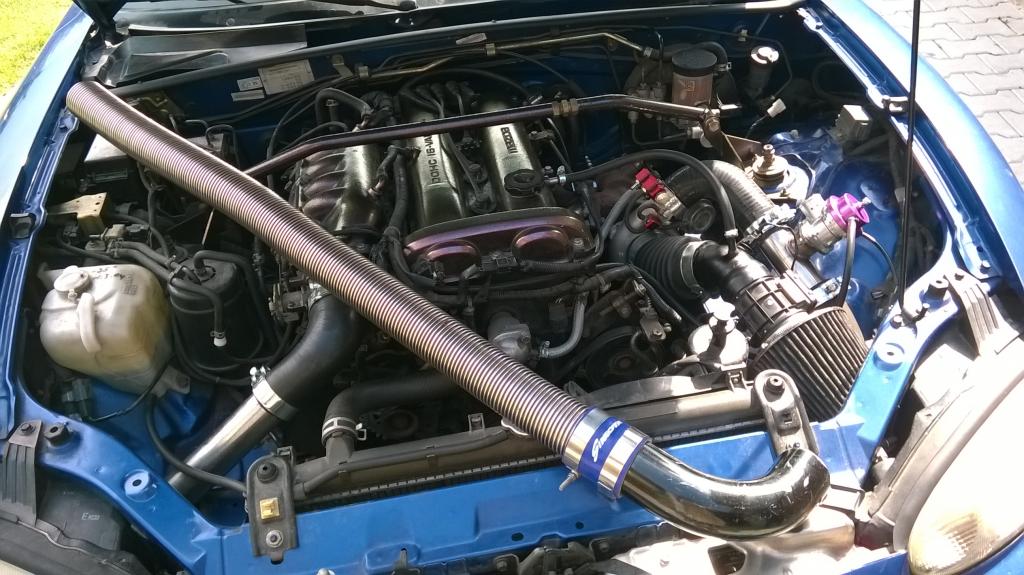

...but what is that accordion/flex pipe for? please don't tell me you're building fmic piping out of it?
