Old 09-05-2014, 10:45 AM   #201
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
...but what is that accordion/flex pipe for? please don't tell me you're building fmic piping out of it?
Ok I wont tell you about the CSS fmic plan
CSS has several advantages.... but probably is not suitable for the all of it crowd.

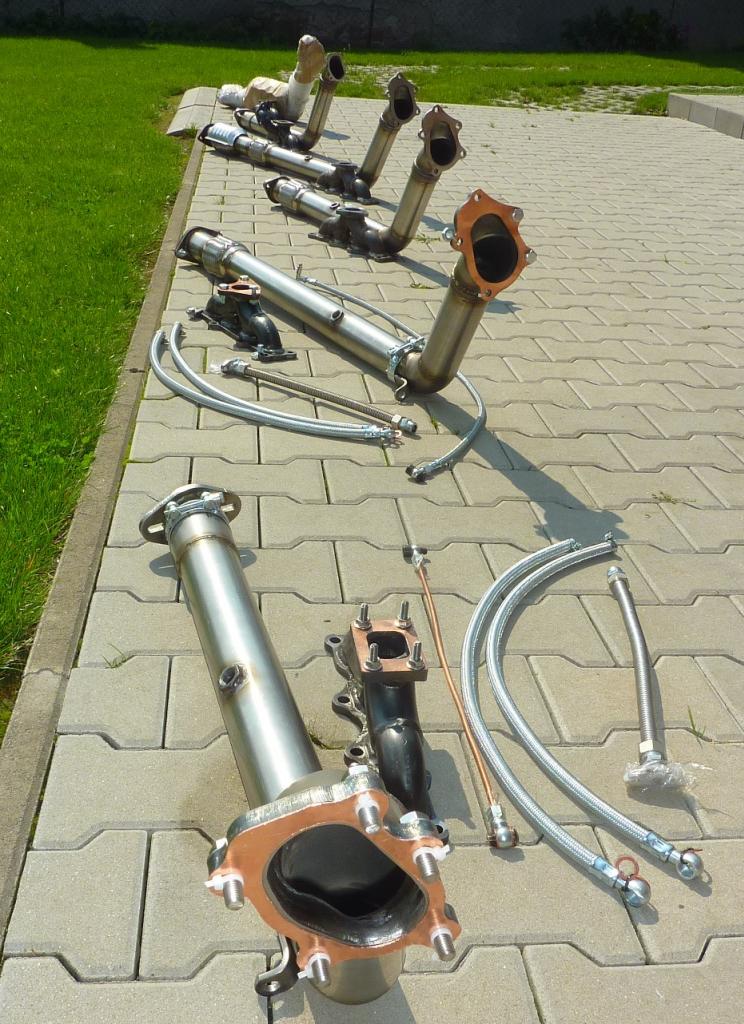

meanwhile, some synchronized downpipes snuck out of the shed
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1060352_zps946380c7.jpg
sturovo is offline   Reply With Quote
Old 09-05-2014, 11:02 AM   #202
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

I wish the exchange rate wasn't so friggin' high now. I've really enjoyed my 1.6 kit..
furrycurry33 is offline   Reply With Quote
Old 09-05-2014, 11:14 AM   #203
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Sturvo did you get a TIG machine? Love those gold beads.
thenuge26 is offline   Reply With Quote
Old 10-03-2014, 09:36 PM   #204
Newb

Join Date: Oct 2014
Posts: 1
Total Cats: 0
Default

Sturovo can you please message me a price, I have a 1991 1600 Na and am looking for a Subaru TDO5 Manifold and down pipe for it with oil and water pipes and shipping to the UK, Cheers
777luke is offline   Reply With Quote
Old 11-05-2014, 05:59 PM   #205
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by furrycurry33 View Post
I wish the exchange rate wasn't so friggin' high now. I've really enjoyed my 1.6 kit..
Austin you are not alone, the evil exchange rate/shipping costs duo often mess my plans. Good to hear you are enjoying your car

Quote:
Originally Posted by thenuge26 View Post
Sturvo did you get a TIG machine? Love those gold beads.
Yes Steve, tig set now onboard. I am glad you noticed the loveable gold beads.

Quote:
Originally Posted by 777luke View Post
Sturovo can you please message me a price, I have a 1991 1600 Na and am looking for a Subaru TDO5 Manifold and down pipe for it with oil and water pipes and shipping to the UK, Cheers
PM sent Luke. I am not sure about the td05-16g on a 1.6 unless it is forged as the last set up I did first warped time..... and then the rods.

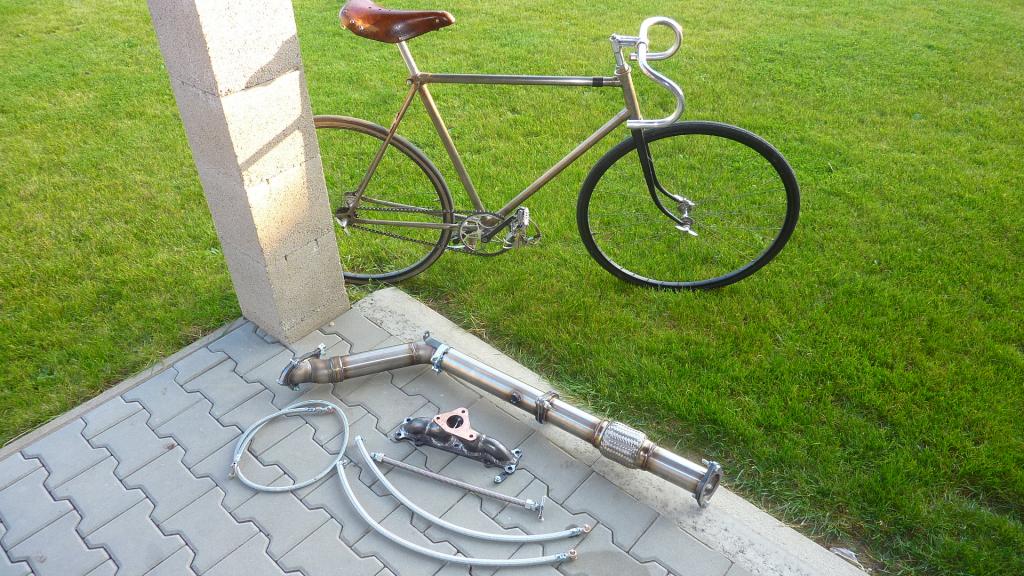

Recent stuff

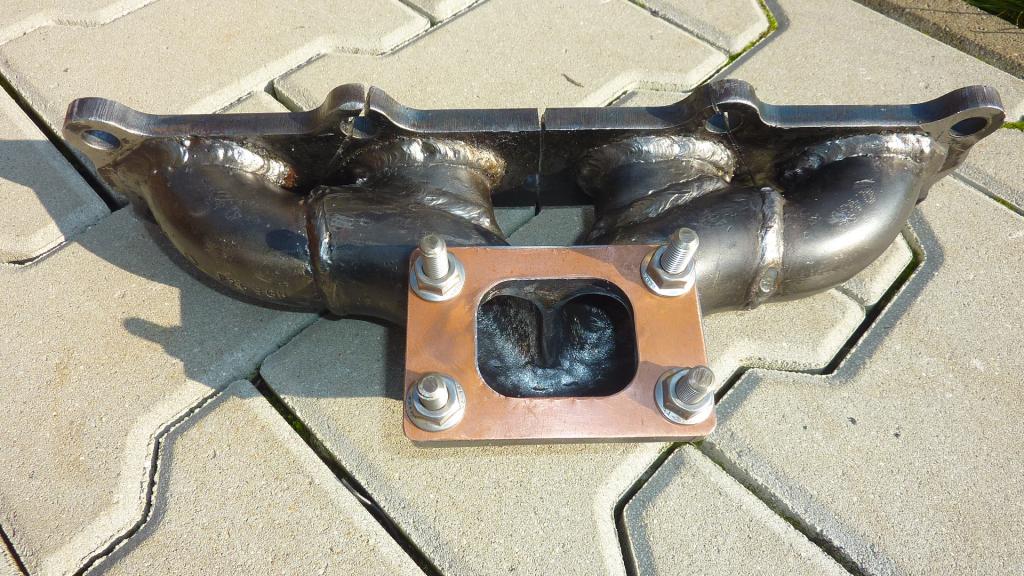

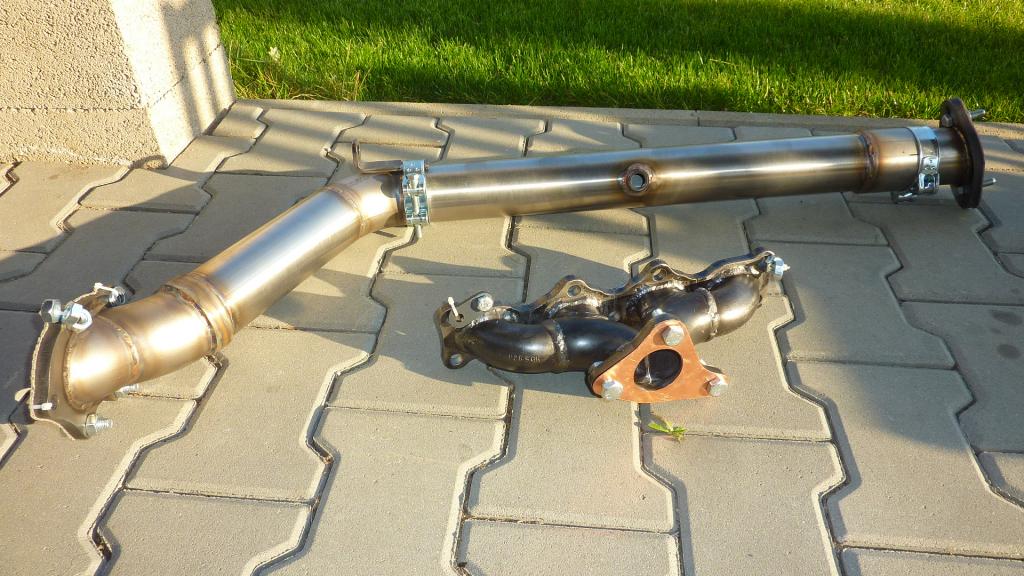

A TD04 kit for a MK2.5 with provision for using the stock cat.


A TD04 kit for a 1.6 NA

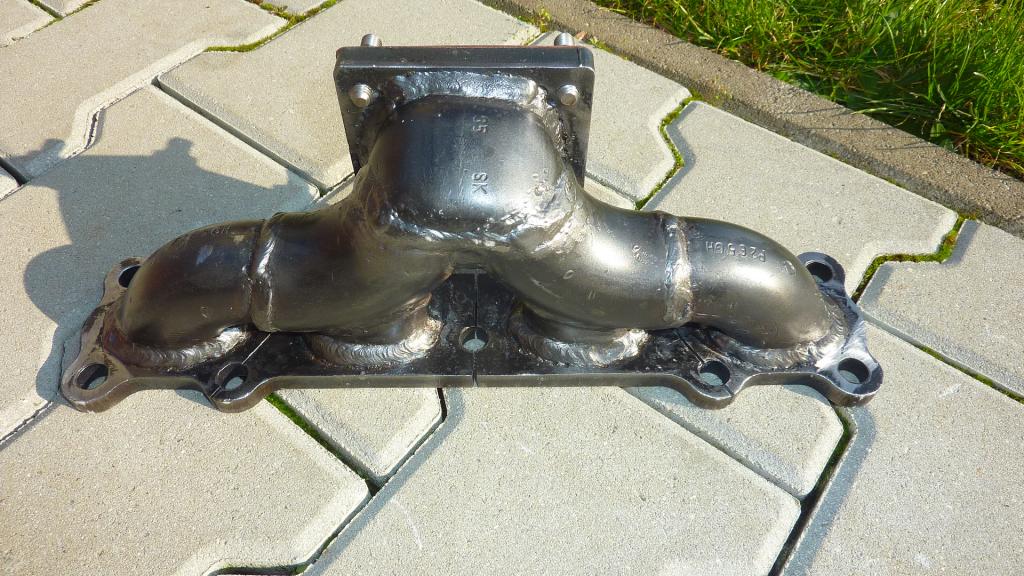

And a HKS 1.8 replacement manifold
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1060400_zps4df54ce7.jpg   TD04/TD05 fitted in place of T25/T28-p1060398_zps03f20e01.jpg   TD04/TD05 fitted in place of T25/T28-p1060394_zpsc3ef2407.jpg   TD04/TD05 fitted in place of T25/T28-p1060395_zps452371f7.jpg
sturovo is offline   Reply With Quote
Old 11-13-2014, 12:26 PM   #206
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

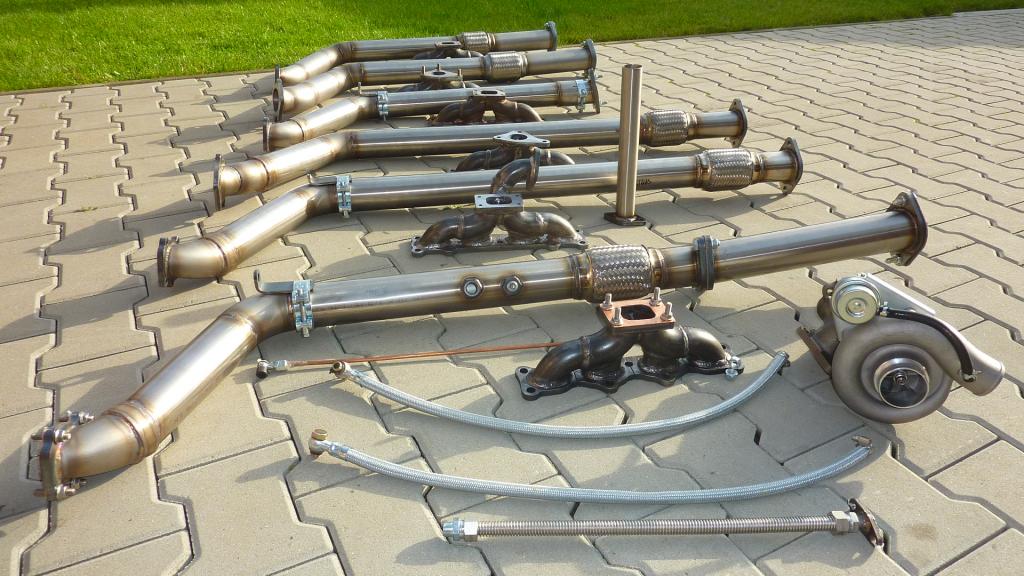

Warning! this image contains downpipe fractals.... Beaniousiac's stap on..... and a 20G

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1060455_zps60870797.jpg
sturovo is offline   Reply With Quote
Old 12-02-2014, 04:25 PM   #207
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

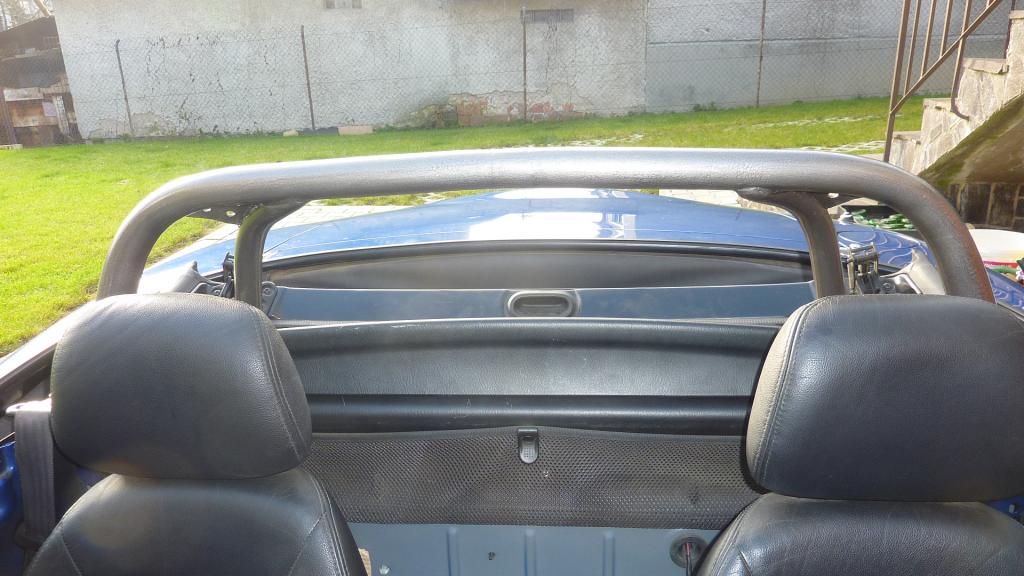

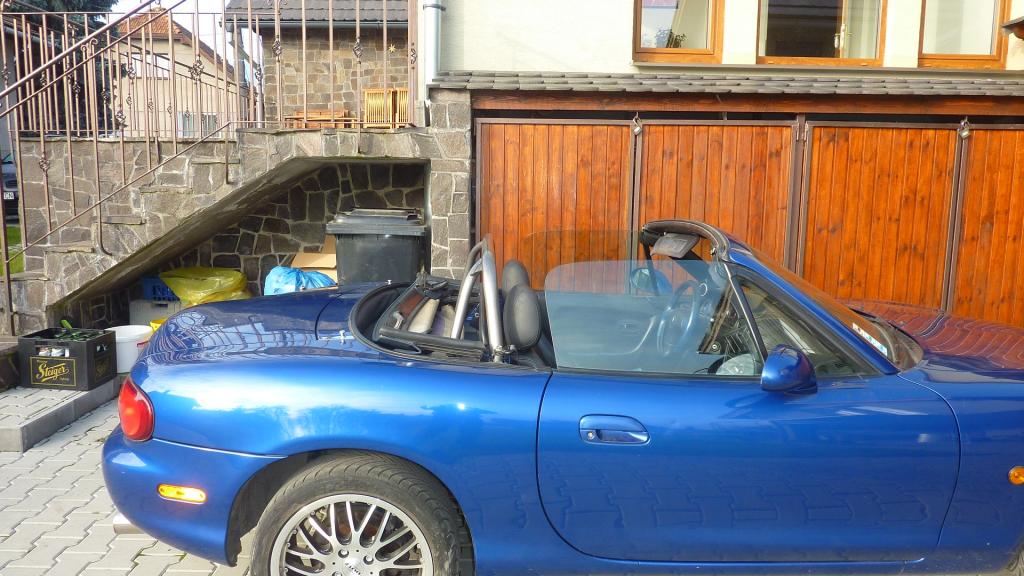

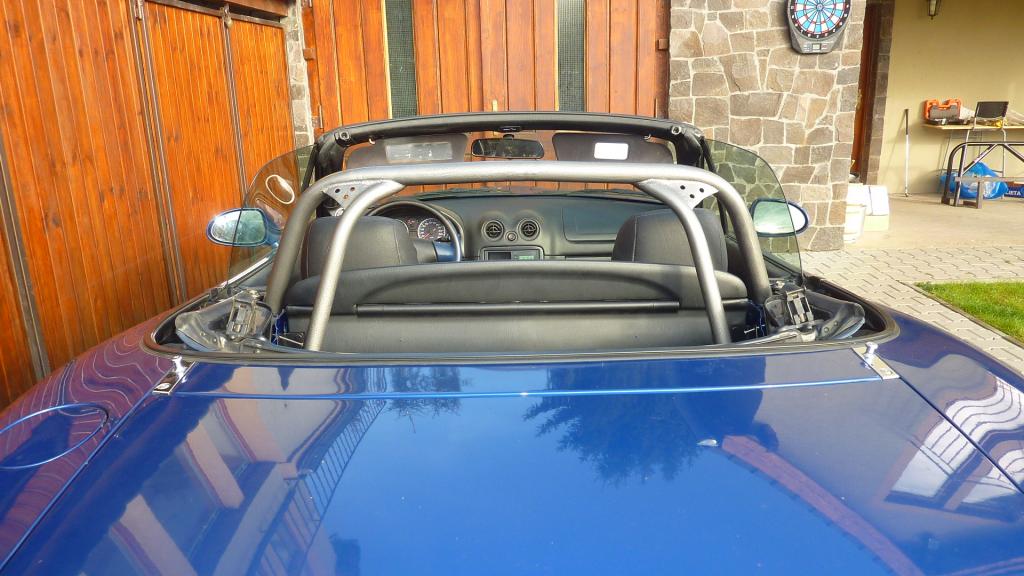

Messing around with better mouse trap ideas.....
Not there yet but the idea is a bar that is easy day to day but does not collapse when the car is upside down.

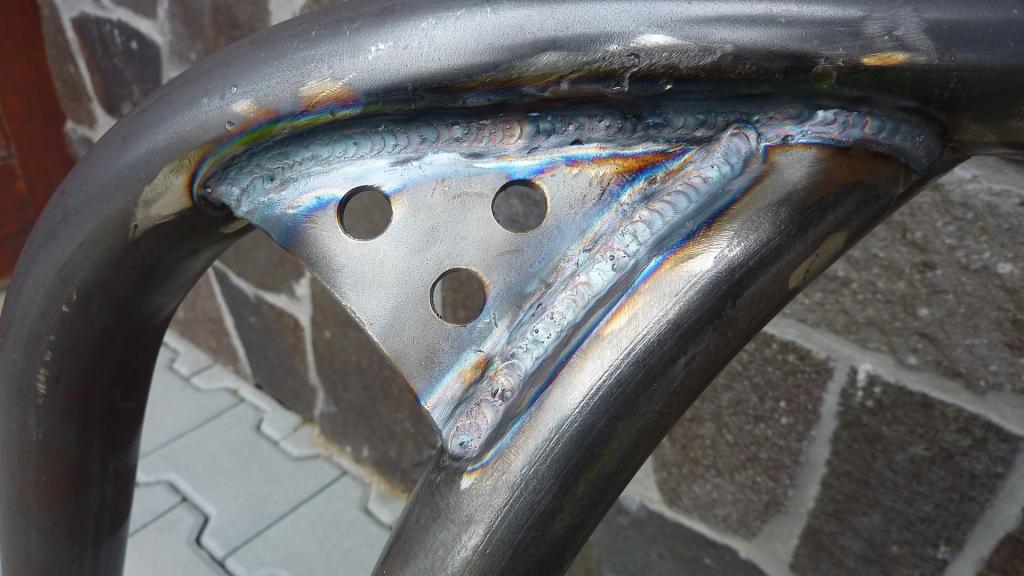

How come no one else uses predator laser sight gussets?


And for that matter why don't more people tilt turbos?
Is it something got to do with the mind and obtuse angle aversion? (Most manufacturers allow 15 degrees.)

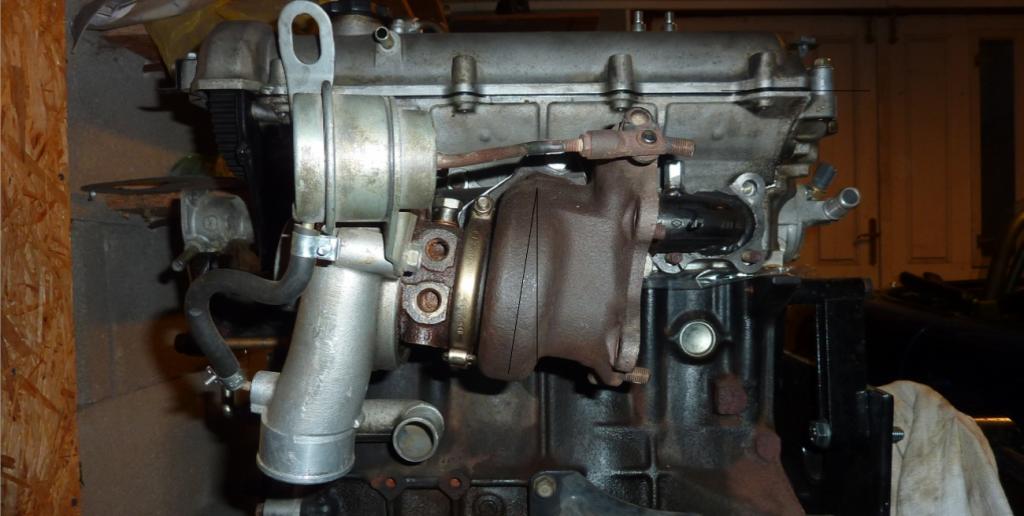

Even with 10 degrees of twist (as in the picture) you can fit a 3" downpipe to a port centered manifold....
as in bye bye boost creep
plus better clearance for coolant piping and oil drain
plus more space to the frame rail at the widest part of the compressor
plus better clearance to PS etc etc

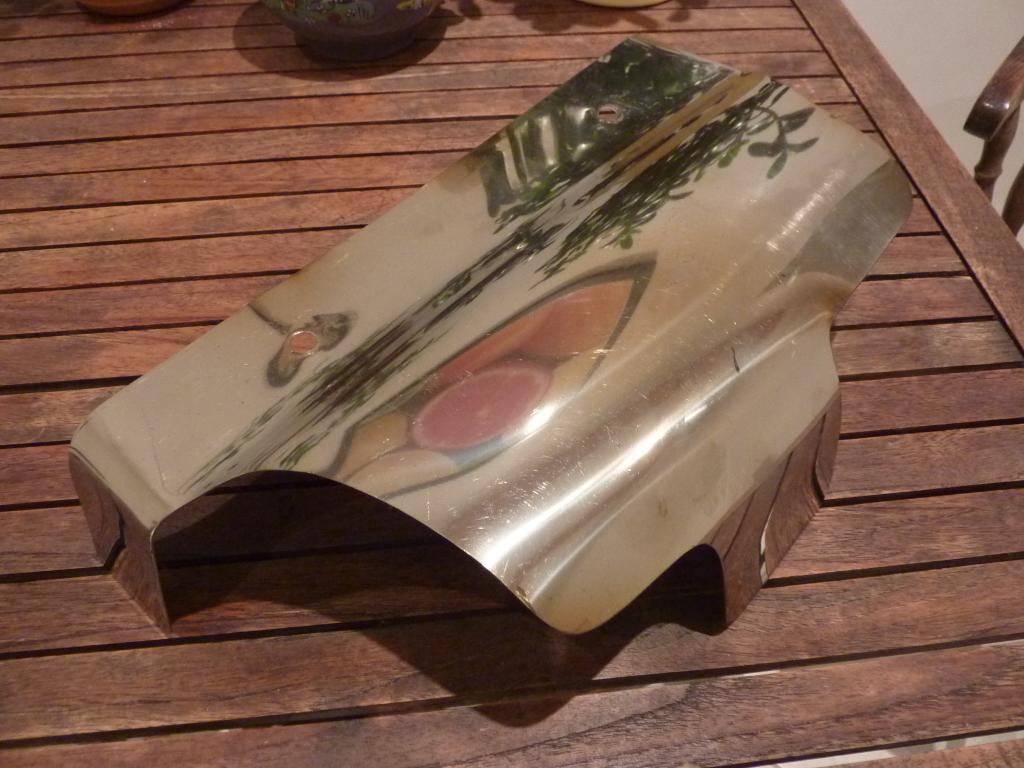

And some thing shiny and burnt to look JDM
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1060526_zps5bd39e0a.jpg   TD04/TD05 fitted in place of T25/T28-p1060524_zps1b7bd7f0.jpg   TD04/TD05 fitted in place of T25/T28-p1060522_zpse382682e.jpg   TD04/TD05 fitted in place of T25/T28-p1080517_zpsd38a6877.jpg   TD04/TD05 fitted in place of T25/T28-10deg_zpsa880c319.jpg

TD04/TD05 fitted in place of T25/T28-p1060545_zps7f0664bd.jpg
sturovo is offline   Reply With Quote
Old 12-02-2014, 06:41 PM   #208
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Why don't you move the turbo toward the nose of the car? Instead of centering the turbine inlet flange between cylinders 2 and 3, try centering it in front of cylinder 2.
sixshooter is offline   Reply With Quote
Old 12-03-2014, 09:28 PM   #209
Newb

Join Date: Dec 2014
Posts: 20
Total Cats: -13
Default

I need one of these manifolds, td04's are dirt cheap here in ontario
HappyMiata is offline   Reply With Quote
Old 12-04-2014, 05:18 AM   #210
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by sixshooter View Post
Why don't you move the turbo toward the nose of the car? Instead of centering the turbine inlet flange between cylinders 2 and 3, try centering it in front of cylinder 2.
Im 99% certain you gave me a really hard time for building a manifold like this in the past.
nitrodann is online now   Reply With Quote
Old 12-04-2014, 07:23 AM   #211
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Quote:
Originally Posted by nitrodann View Post
Im 99% certain you gave me a really hard time for building a manifold like this in the past.
Me? The only criticism I've ever had for log manifolds was that the pulses from cyls 1 and 4 crash into each other. A little curvature helps direct them to the turbine housing and prevent pulse reversion. Sturovo tries to direct the flow with most of his designs, but logs are always going to be a compromise in that regard. I run a log, so I get it.
sixshooter is offline   Reply With Quote
Old 12-04-2014, 08:05 AM   #212
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by sixshooter View Post
Why don't you move the turbo toward the nose of the car? Instead of centering the turbine inlet flange between cylinders 2 and 3, try centering it in front of cylinder 2.
Wouldn't positioning the turbo further forward effect whether it's compatible with P/S.

I suspect a lot of Sturvo's customers have and want to keep P/S.
richyvrlimited is offline   Reply With Quote
Old 12-04-2014, 09:02 AM   #213
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,698
Total Cats: 267
Default

Quote:
Originally Posted by richyvrlimited View Post
Wouldn't positioning the turbo further forward effect whether it's compatible with P/S.

I suspect a lot of Sturvo's customers have and want to keep P/S.
No, it works really well, if turbo is raised. See my build thread for an example. A
DNMakinson is offline   Reply With Quote
Old 12-04-2014, 03:51 PM   #214
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by sixshooter View Post
Why don't you move the turbo toward the nose of the car? Instead of centering the turbine inlet flange between cylinders 2 and 3, try centering it in front of cylinder 2.

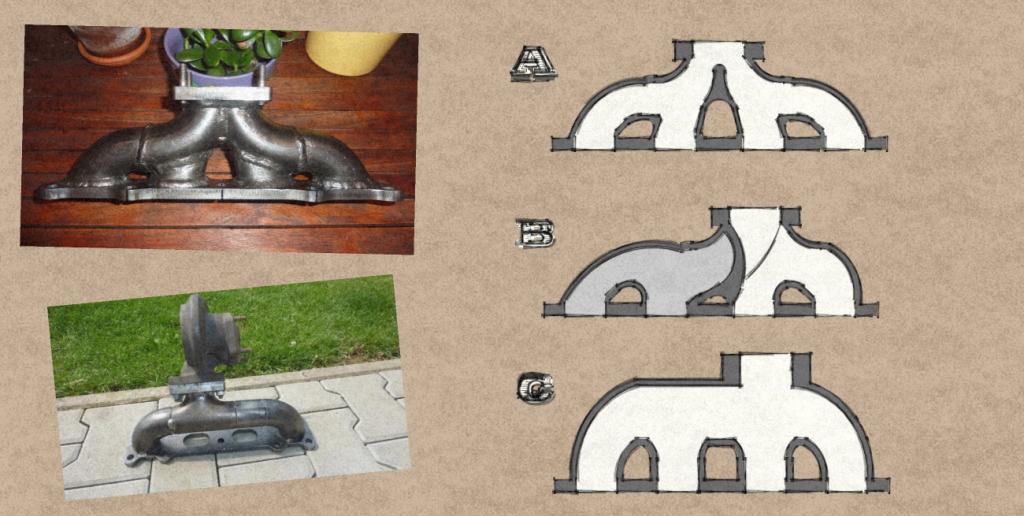

Steve, I made a few setups like that a few years ago. One advantage of Taco style logs is that they are quick and easy to make and offer a decent solution. Surprisingly though it is still difficult to run a 3" downpipe when the turbo is fwt/top mounted.

I usually make axial logs now as the flow characteristics seem to be better and turbo positioning is pretty decent. I made a variation of the axial flow manifold once where the turbo flange was opposite port 2. The flow to the collector area was split horizontally as opposed to vertically. It was real difficult to make and the center manifold stud had to be extended to the width of the manifold. As a casting it could make sense but not definitely not fabricating.

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-manifoldcompare_zps5b12c2c2.jpg
sturovo is offline   Reply With Quote
Old 12-04-2014, 06:45 PM   #215
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

What you've said makes sense to me. I just thought it would be easier.
sixshooter is offline   Reply With Quote
Old 12-26-2014, 06:00 PM   #216
Junior Member

Join Date: Jul 2013
Location: Norway
Posts: 50
Total Cats: 5
Default

Quote:
Originally Posted by sturovo View Post
Ok I wont tell you about the CSS fmic plan
CSS has several advantages.... but probably is not suitable for the all of it crowd.

meanwhile, some synchronized downpipes snuck out of the shed

This work is amazing, art even!

Please PM me. I am interested in some TD04 love!
Teejay187 is offline   Reply With Quote
Old 12-29-2014, 02:58 PM   #217
Newb

Join Date: Dec 2014
Location: The Netherlands
Posts: 1
Total Cats: 0
Default

I need one!
1.6na td04-13t

But I can't pm because I need more posts...
Ter Grills is offline   Reply With Quote
Old 12-29-2014, 03:42 PM   #218
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

sturovo I am seriously going to start sending everyone who asks me for 1.6 setups to you.
shuiend is offline   Reply With Quote
Old 01-05-2015, 07:58 PM   #219
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by sixshooter View Post
What you've said makes sense to me. I just thought it would be easier.
Steve, I am beginning to think getting cast manifolds made up is the easiest answer....... seriously 24$?

Turbo Manifold : tanskyshop

Quote:
Originally Posted by Teejay187 View Post
I am interested in some TD04 love!
Truls PM to to follow

Quote:
Originally Posted by Ter Grills View Post
I need one!
Terry some TD04 loving info is on the way

Quote:
Originally Posted by shuiend View Post
sturovo I am seriously going to start sending everyone who asks me for 1.6 setups to you.
Thanks Lars, I feel special!

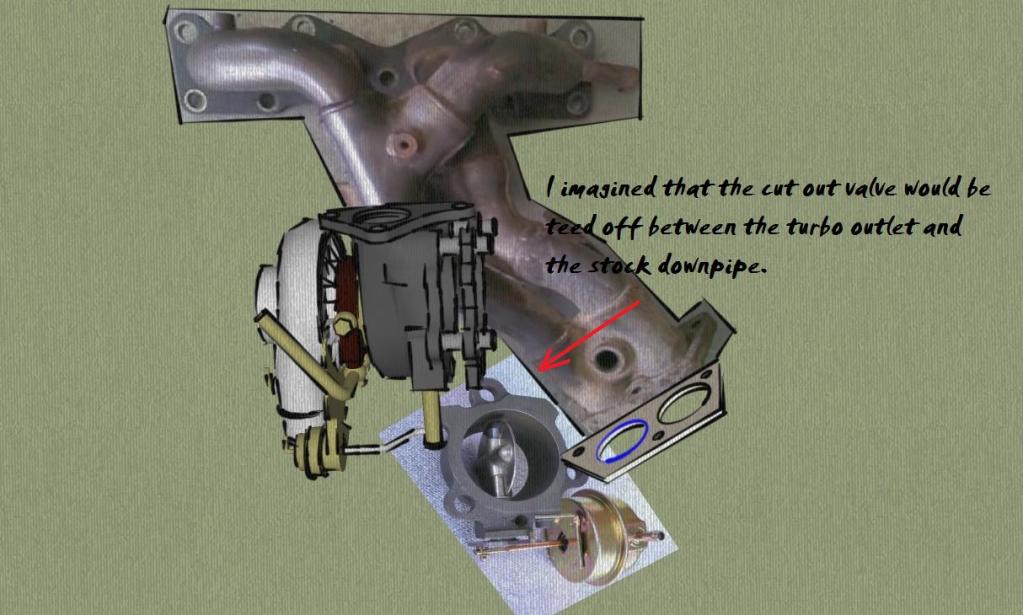

Speaking of special, I think it is time to revive this great idea

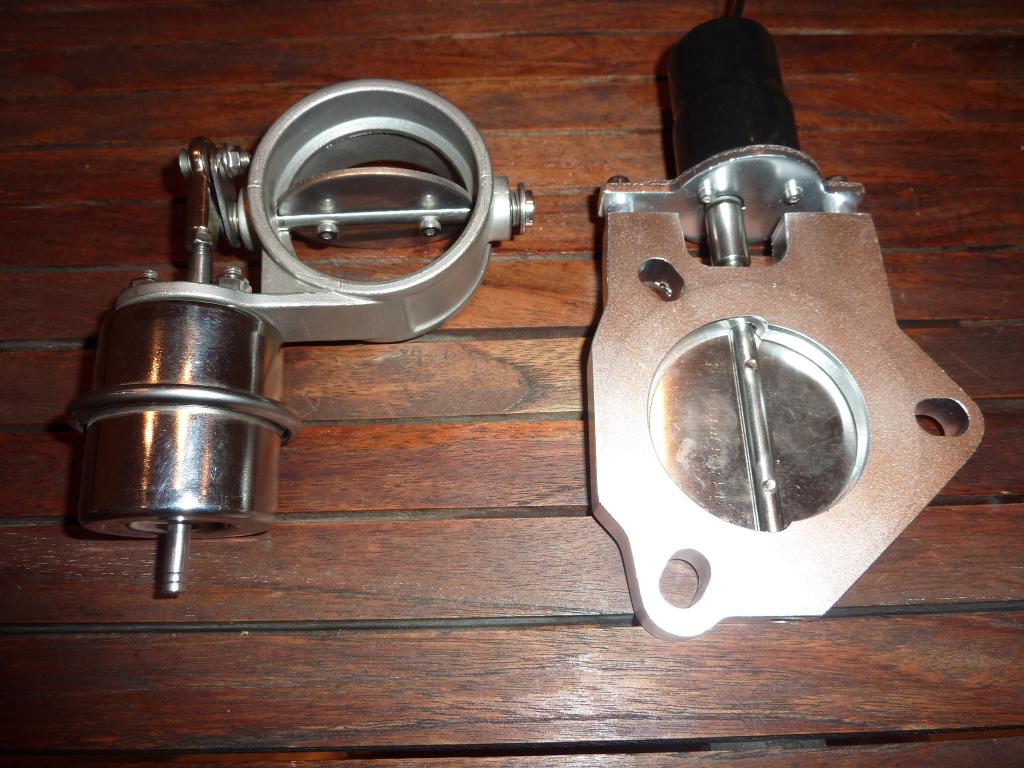

Which cutout to use? The vacuum one or the electrical?


I mean whats not to like? Keep the stock downpipe and exhaust for times when a civilized 200 WHP is enough and open the loud funnel when you want to bark and spit flames at people?

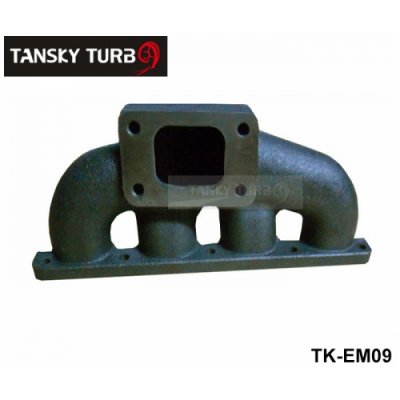

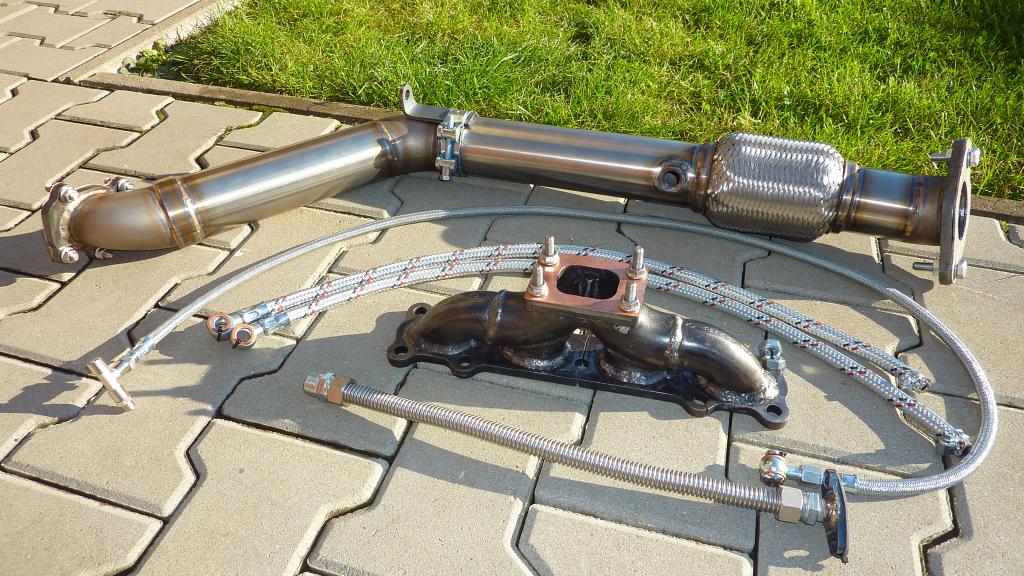

Some recent stuff included a BBR replacement

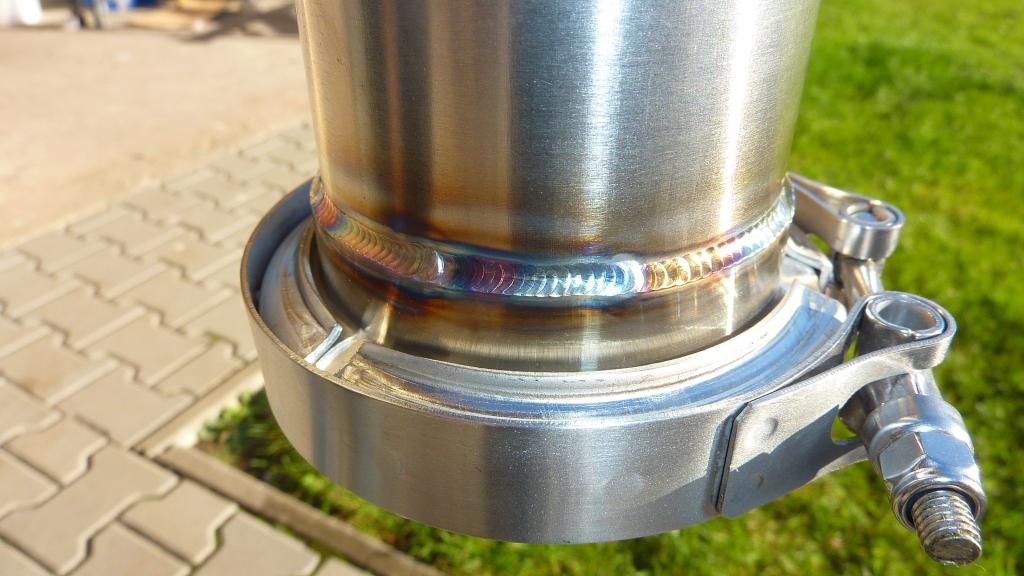

Some Vband stuff

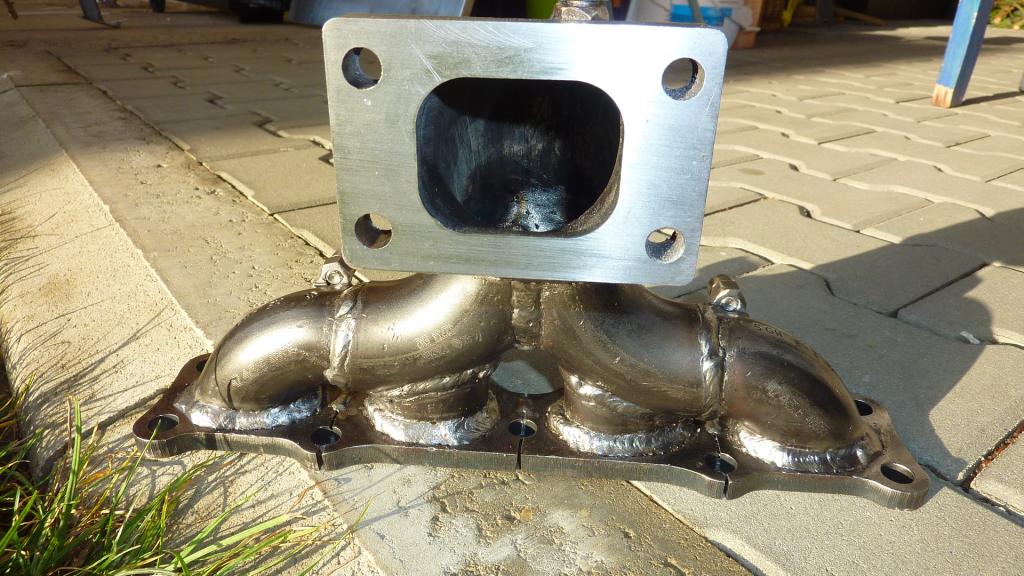

NB t25 kit

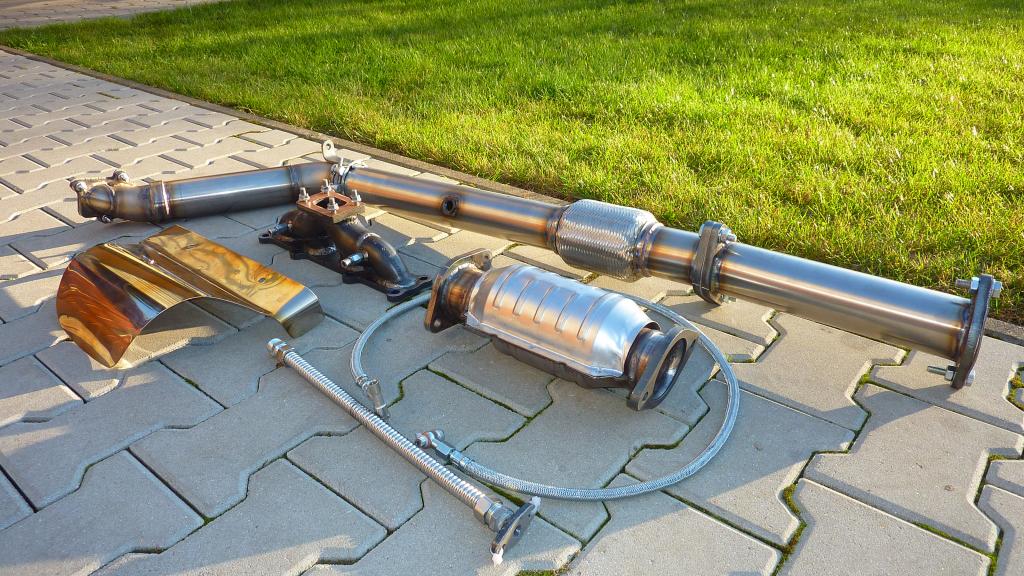

A cat decat setup


And a weird looking moon
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1060877_zps67e024a8.jpg   TD04/TD05 fitted in place of T25/T28-p1060786_zps299fff47.jpg   TD04/TD05 fitted in place of T25/T28-p1060686_zps87452abc.jpg   TD04/TD05 fitted in place of T25/T28-p1060683_zps822e4303.jpg   TD04/TD05 fitted in place of T25/T28-p1060674_zpsc2bdc3ef.jpg

TD04/TD05 fitted in place of T25/T28-2a56592f5be5d1ed822b91dfd7e3306a.image.400x400.jpg
sturovo is offline   Reply With Quote
Old 01-05-2015, 08:04 PM   #220
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by sturovo View Post
And a weird looking moon
A little photoshop could make that into a believable Endor.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-cd544878-6ed5-479a-a642-59d30bb32051_zps6891d464.jpg
