Old 07-18-2013, 01:13 PM   #101
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

+1 for doing it with a stick welder. I wish my tig welds looked that good.
thenuge26 is offline   Reply With Quote
Old 07-21-2013, 12:28 PM   #102
Newb

Join Date: Mar 2010
Posts: 12
Total Cats: 1
Default looks good

hi,
Looks good,I think its almost ready for shipping to Holland?????
dick 5322 is offline   Reply With Quote
Old 07-21-2013, 03:24 PM   #103
I'm Miserable!

Join Date: Jul 2013
Posts: 28
Total Cats: -40
Default

Dhdhdhsjdssiddid
jarrod27 is offline   Reply With Quote
Old 07-21-2013, 03:46 PM   #104
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by thenuge26 View Post
+1 for doing it with a stick welder. I wish my tig welds looked that good.
Thanks! I guess I'm just a stick welding queen
That said there are a few spots on these parts that can not be welded in another way.


Quote:
Originally Posted by dick 5322 View Post
hi,
Looks good,I think its almost ready for shipping to Holland?????
Yes Dirk, almost ready to go, just need to do a bit of lathe work on a few fittings.
sturovo is offline   Reply With Quote
Old 07-23-2013, 07:55 AM   #105
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

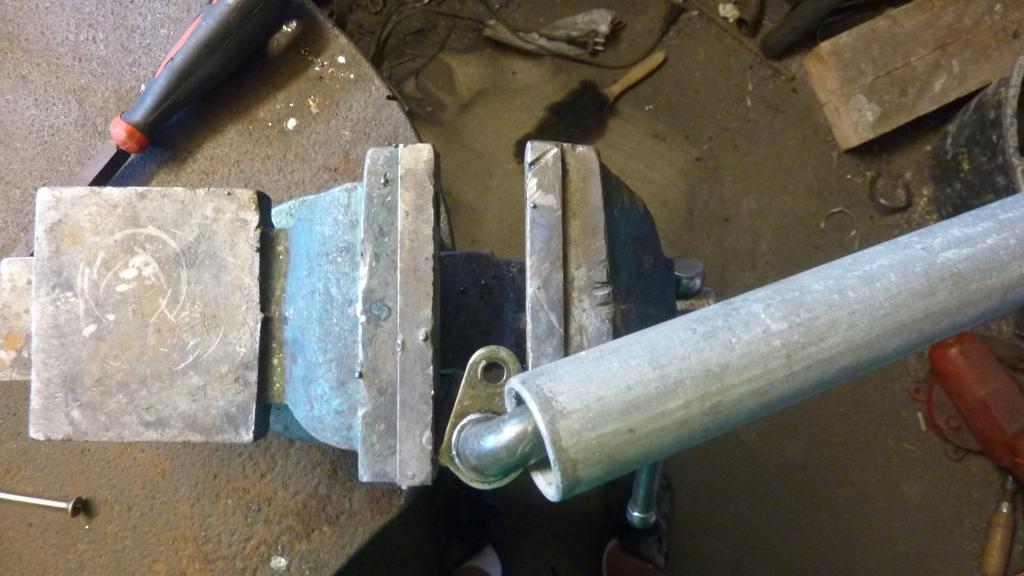

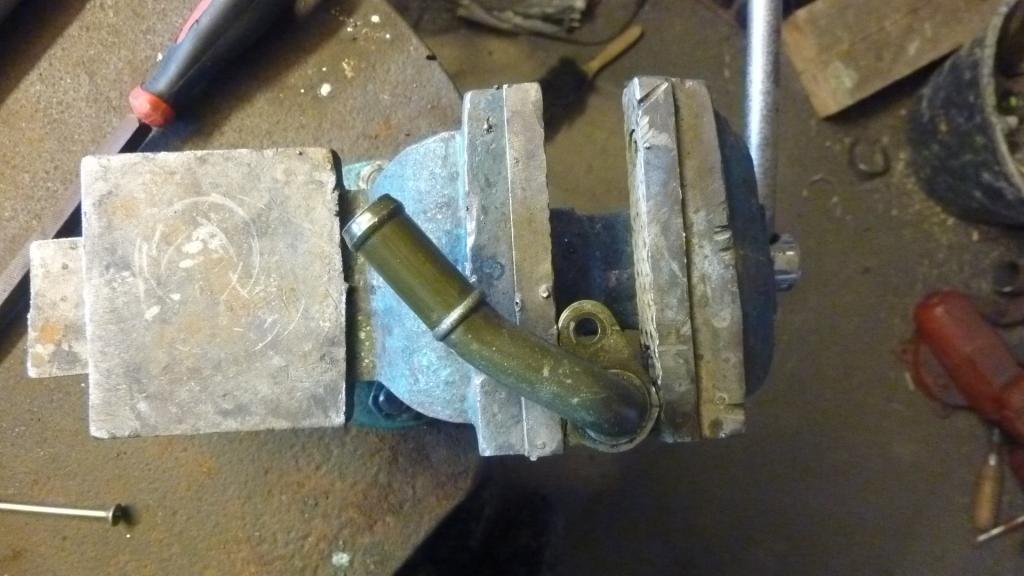

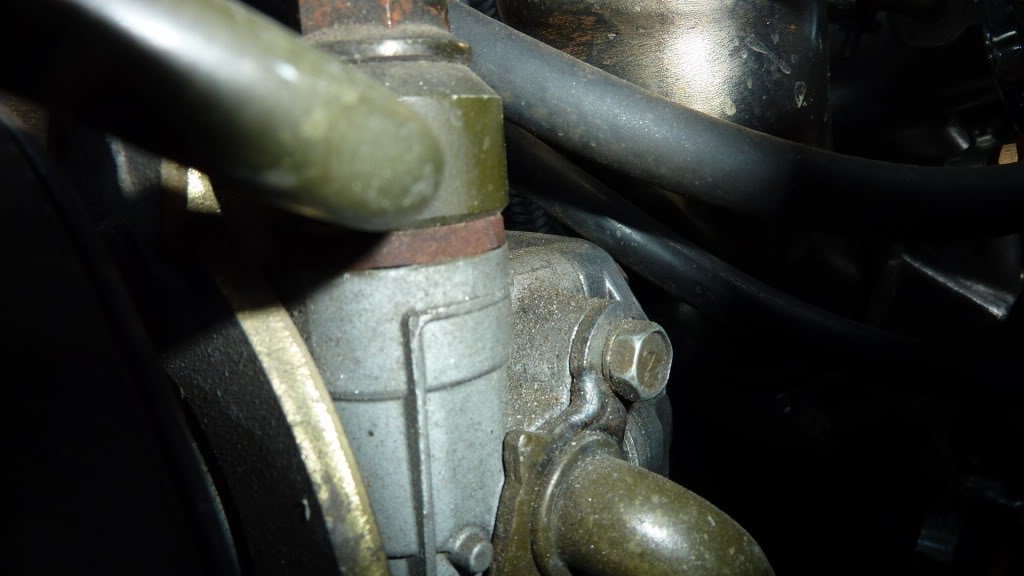

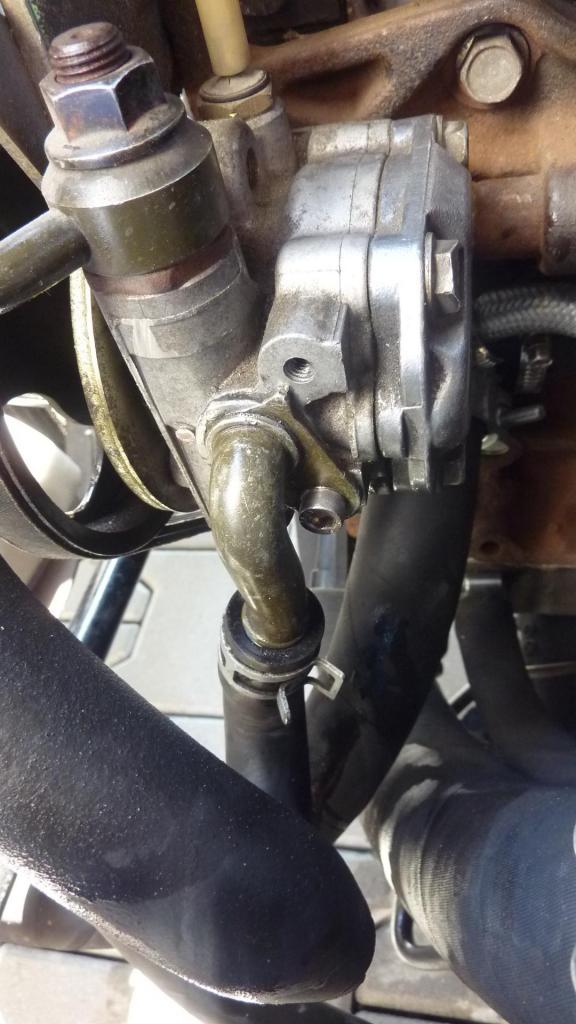

Previously I rotated the NB PS oil pipe out of the way by welding on a washer and tapping a new thread the blank hole


Turns out there is an easier way. When making the connecting pipe the pipe is swaged around the bracket. It is possible to rotate it with a bit of force which is a much easier way than the previous solution.





I used a cap head bolt instead of the original hex one as it is easier to tighten.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1020975.jpg   TD04/TD05 fitted in place of T25/T28-p1030797_zps60c5e483.jpg   TD04/TD05 fitted in place of T25/T28-p1030798_zpsbae200ac.jpg   TD04/TD05 fitted in place of T25/T28-p1030800_zpsc4ac51e5.jpg
sturovo is offline   Reply With Quote
Old 07-29-2013, 04:48 PM   #106
Newb

Join Date: Mar 2010
Posts: 12
Total Cats: 1
Default ps oil pipe

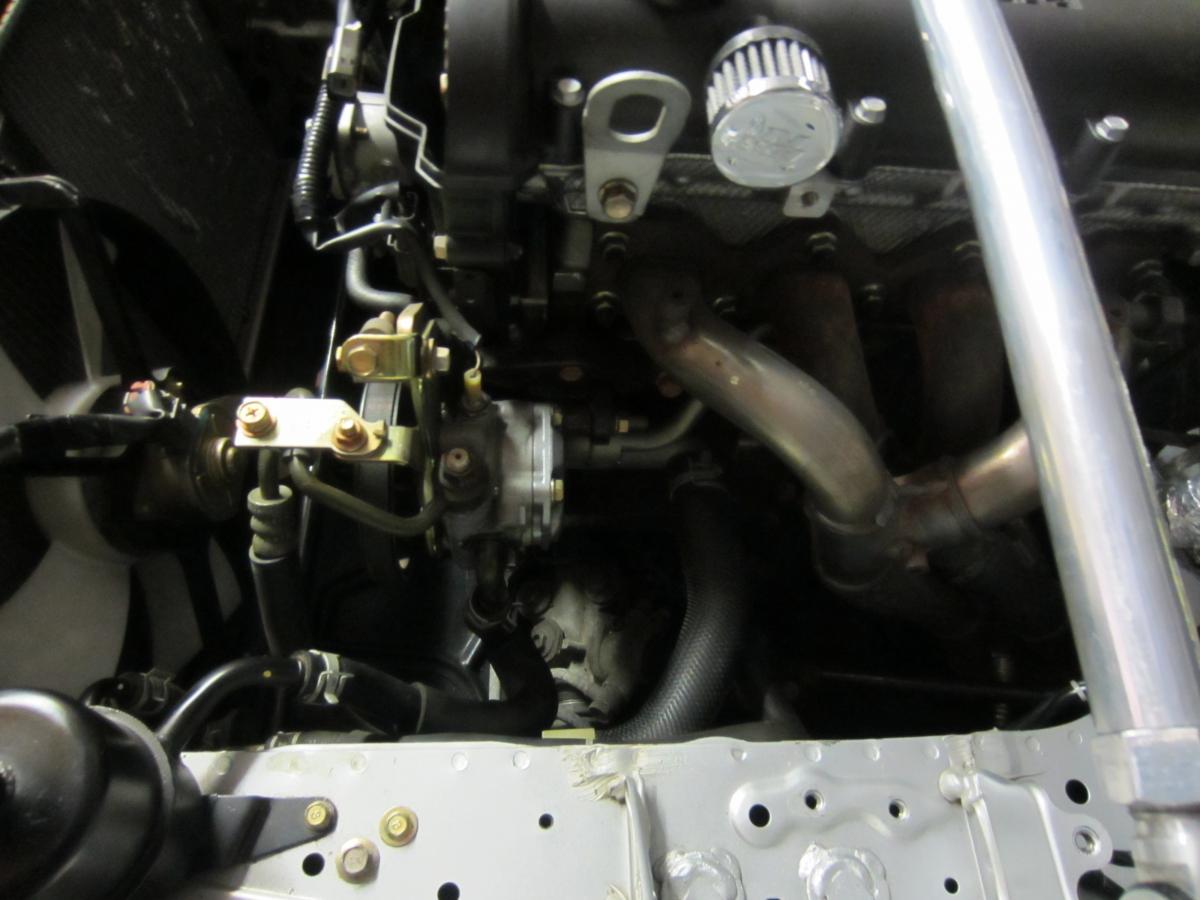

Hi,

Rotate the pipe,easy 10 minutes job.
Also a little more room for drilling the oil pan.

Dirk
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-img_0352.jpg
dick 5322 is offline   Reply With Quote
Old 07-31-2013, 03:50 PM   #107
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by dick 5322 View Post
Hi,

Rotate the pipe,easy 10 minutes job.
Also a little more room for drilling the oil pan.

Dirk
Just curious Dirk, would it be possible to rotate the PS pipe in position or is it better to use a bench vice?
sturovo is offline   Reply With Quote
Old 07-31-2013, 04:13 PM   #108
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

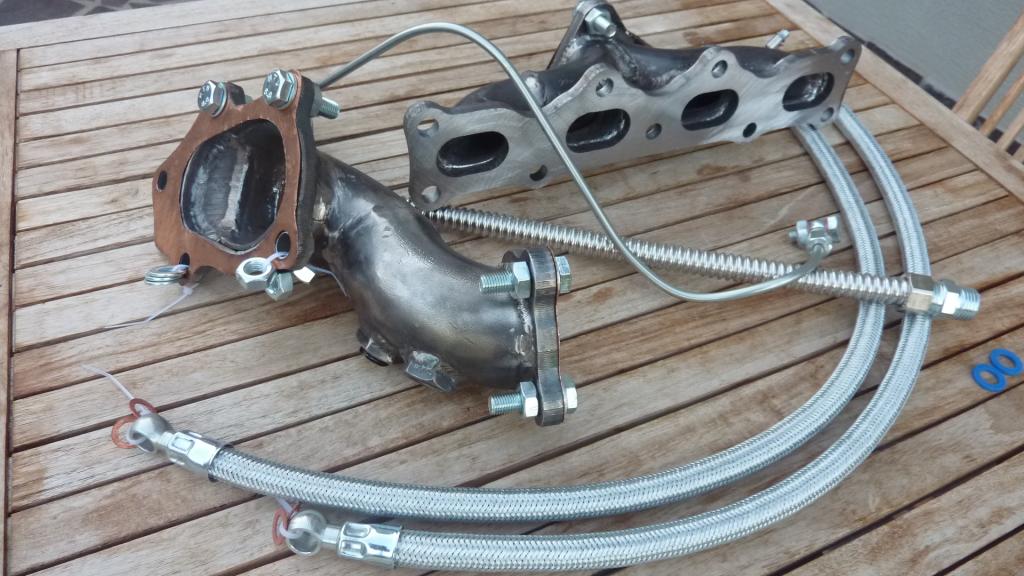

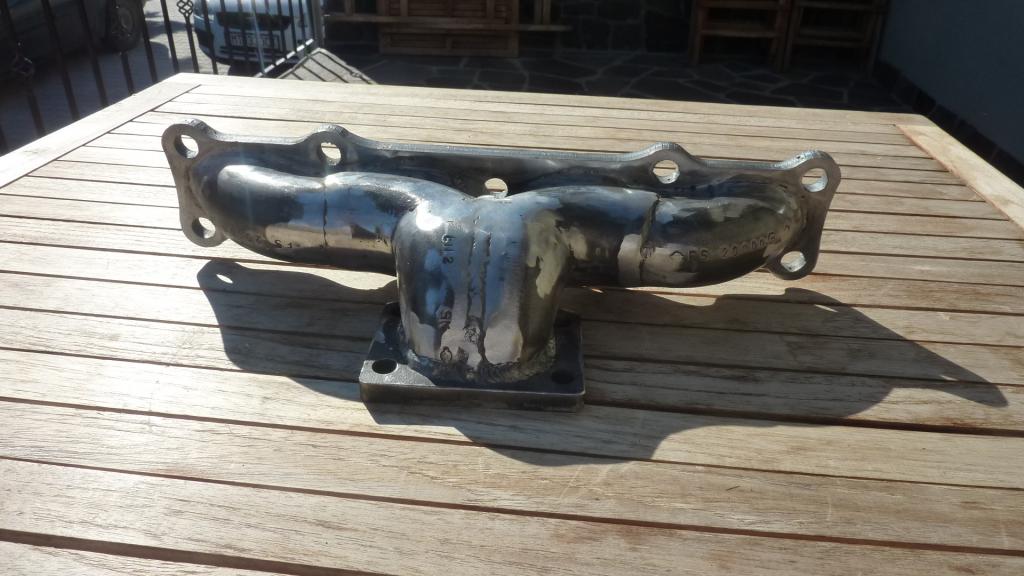

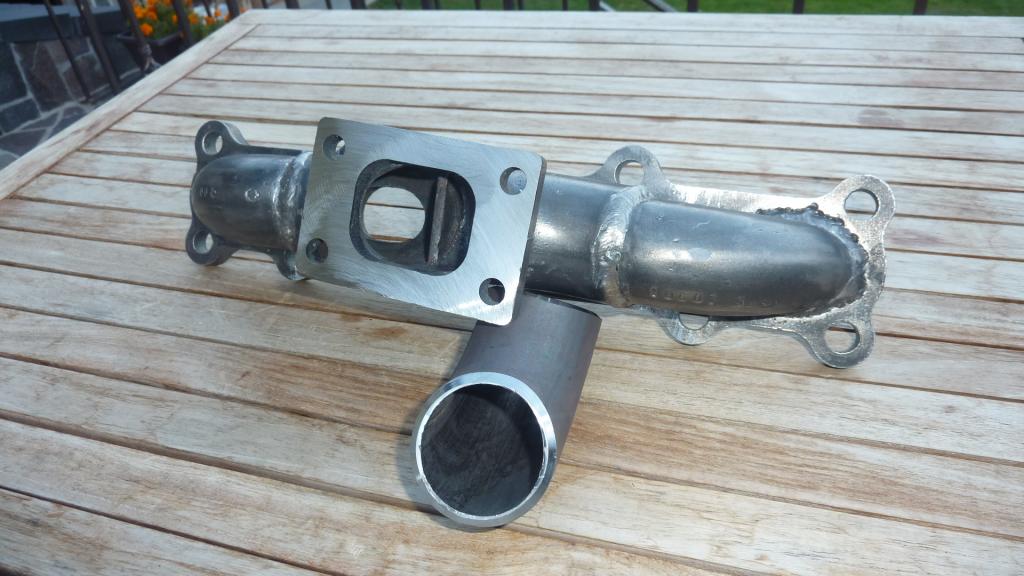

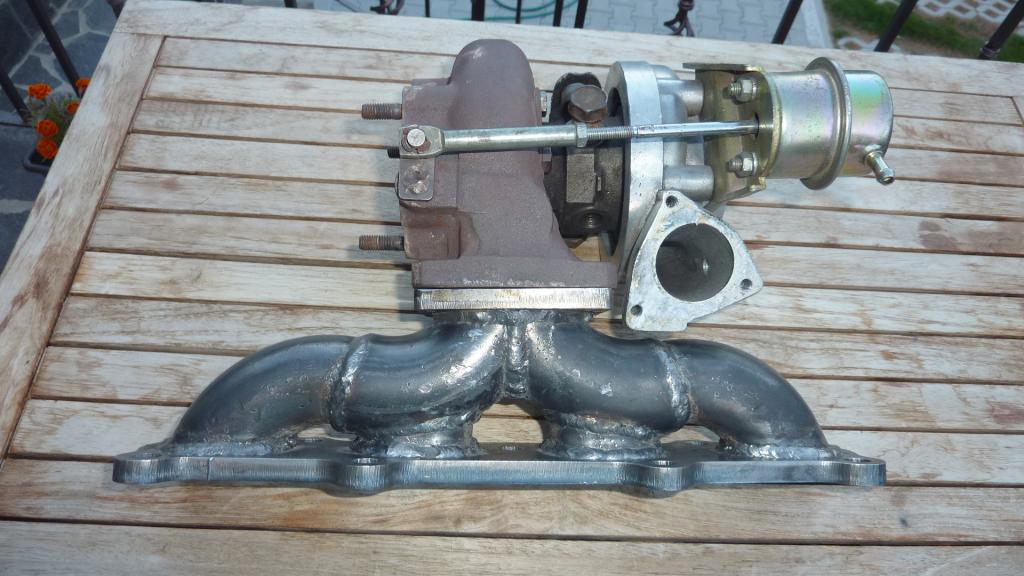

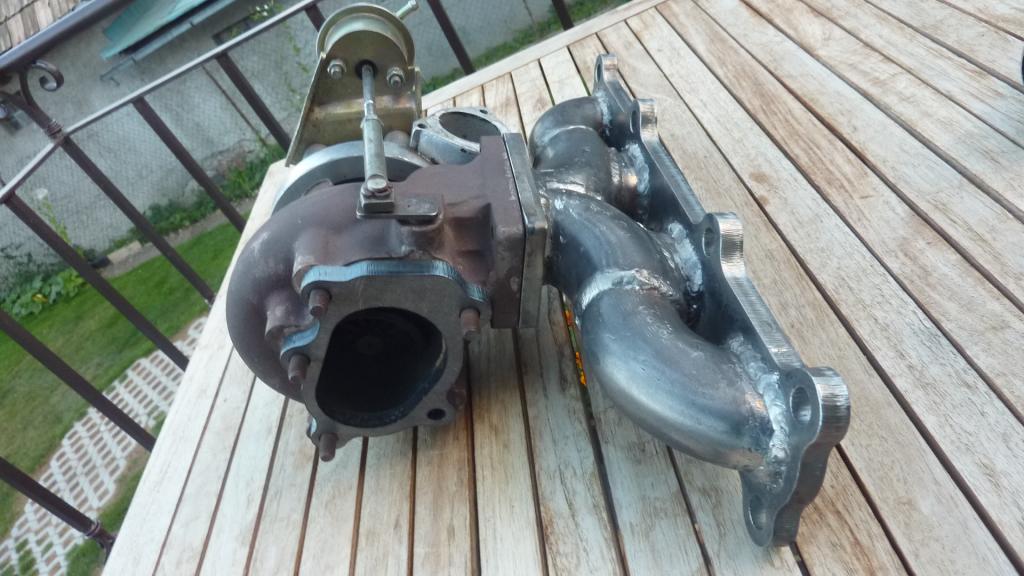

One of those "where were you the day" moments presenting the 1.8/t2 flanged, track ready, 7016 welded, heavy walled, short tubular manifold.


215 mm overall width means no problems with frame rail


bonus, even the outlet flange I photo traced matches up.

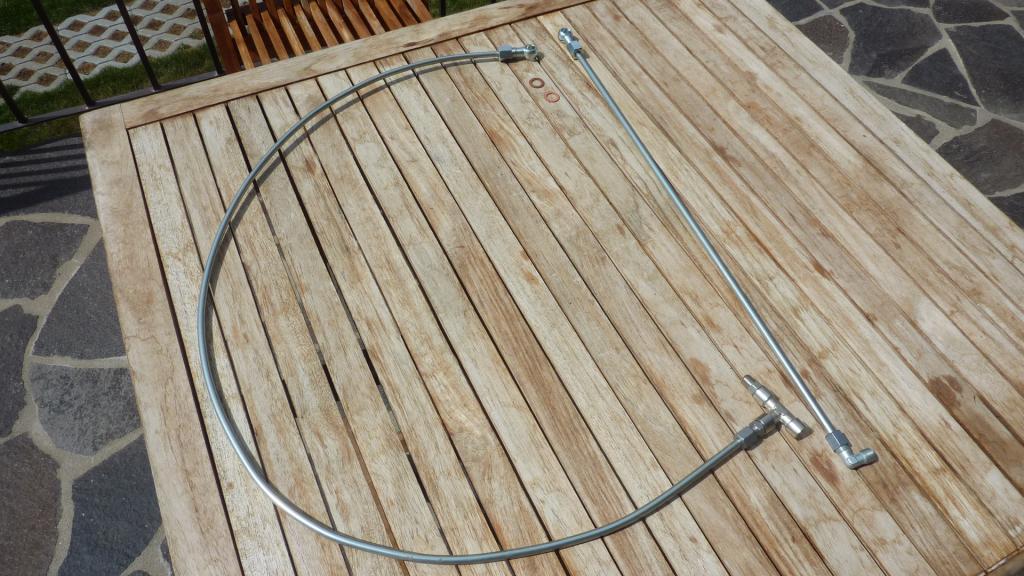

I put together a hardline oil feed from the sender for the people who are not ready for Dirks excellent solution.


So far the most popular kit is for the 1.6 NA, 7 sets shipped
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030822_zps8f64ab3e.jpg   TD04/TD05 fitted in place of T25/T28-p1030825_zps86ccd6c6.jpg   TD04/TD05 fitted in place of T25/T28-p1030831_zps7e368e12.jpg   TD04/TD05 fitted in place of T25/T28-p1030813_zps9a6e8a9e.jpg   TD04/TD05 fitted in place of T25/T28-p1030810_zps81ceef38.jpg

sturovo is offline   Reply With Quote
Old 08-02-2013, 02:49 PM   #109
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

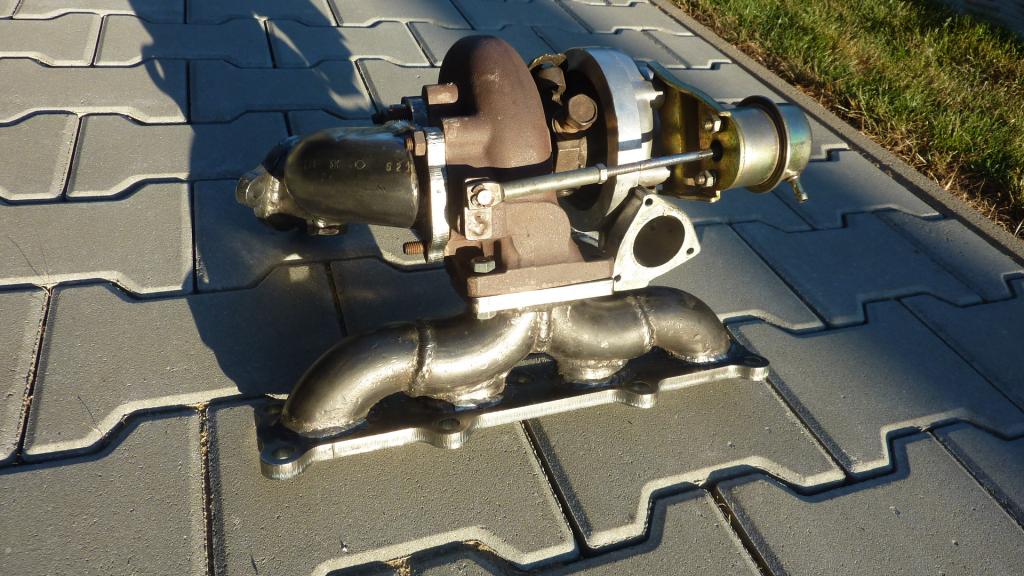

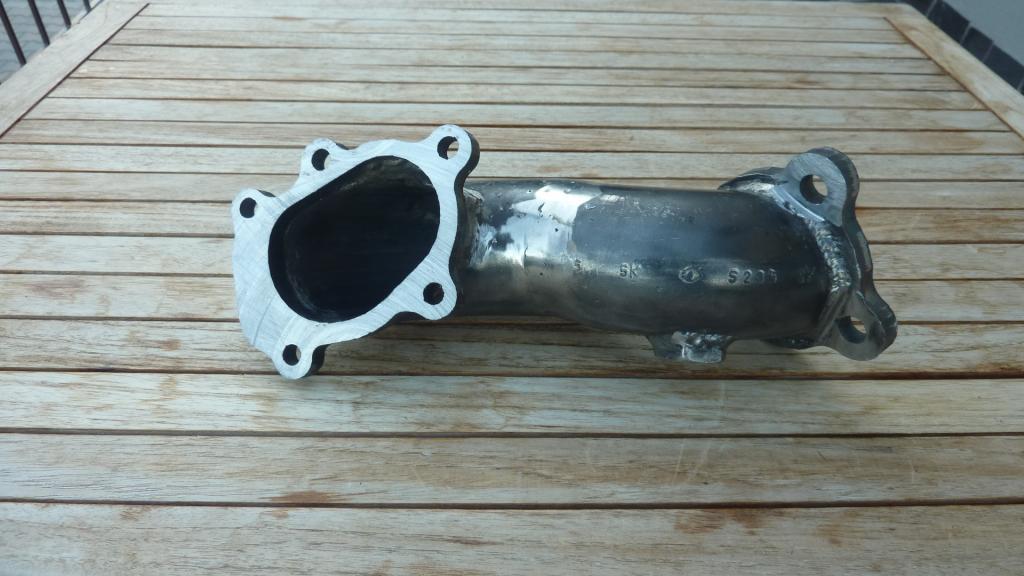

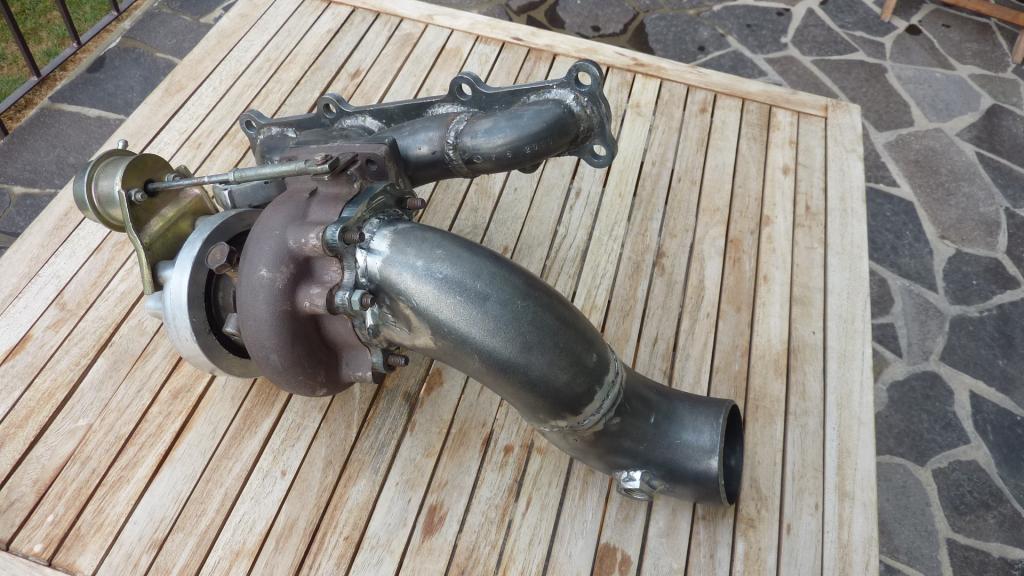

finished off the 60mm stock exhaust tie in downpipe for the t25/t28.



luckily there is enough space by the compressor outlet to keep the stock wastegate bracket positioning



Started working on a 1.6 HKS replacement which is difficult to make given the position of the outlet flange
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030844_zpsfdc2b6e3.jpg   TD04/TD05 fitted in place of T25/T28-p1030838_zps7a02583e.jpg   TD04/TD05 fitted in place of T25/T28-p1030848_zps2efd34b4.jpg
sturovo is offline   Reply With Quote
Old 08-06-2013, 04:59 PM   #110
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

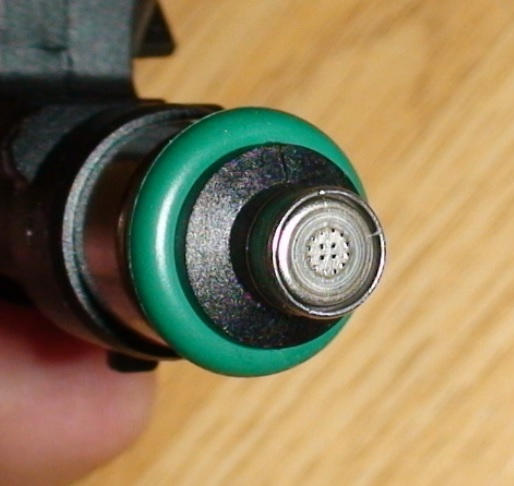

I ordered some of these

INJECTOR ASY. 2013 Ford Mustang 58SDSM (5.8L DOHC SC GAS ) # DR3Z9F593A
New 0280158298 (non face hacked) 600 cc ev14's for 25$ each.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-0280158298boschev14_zpsc10369aa.jpg
sturovo is offline   Reply With Quote
Old 08-08-2013, 12:54 PM   #111
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Sturovo: I've really enjoyed this thread, looks like you're having a great time with R&D there!

Quote:
Originally Posted by sturovo View Post
I ordered some of these

INJECTOR ASY. 2013 Ford Mustang 58SDSM (5.8L DOHC SC GAS ) # DR3Z9F593A
New 0280158298 (non face hacked) 600 cc ev14's for 25$ each.
Do you have a data sheet on these? I'm VERY interested!
elesjuan is offline   Reply With Quote
Old 08-08-2013, 02:08 PM   #112
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by elesjuan View Post
Do you have a data sheet on these? I'm VERY interested!
I don't have the injectors (on the way) yet but I would be surprised if they come with data sheet as they are standard Ford parts as opposed to modified aftermarket injectors.
What I read is that they are dual cone 25 deg spray pattern which suits 2 intake valves. They are 48.65 mm long so not a straight fit. I will make adapters or fit them without rail spacers.
These links give some info
http://www.bosch-motorsport.de/en-US...2775993867.pdf

Fuel injectors - S4wiki
sturovo is offline   Reply With Quote
Old 08-08-2013, 02:32 PM   #113
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by sturovo View Post
I don't have the injectors (on the way) yet but I would be surprised if they come with data sheet as they are standard Ford parts as opposed to modified aftermarket injectors.
What I read is that they are dual cone 25 deg spray pattern which suits 2 intake valves. They are 48.65 mm long so not a straight fit. I will make adapters or fit them without rail spacers.
These links give some info
http://www.bosch-motorsport.de/en-US...2775993867.pdf

Fuel injectors - S4wiki
Those links are the information I was specifically looking for, Thanks! Forgot that Ford uses strange part numbers so I had troubles finding references outside of OEM vendors. You should defiantly keep us updated on your findings when they show up!
elesjuan is offline   Reply With Quote
Old 08-09-2013, 03:21 PM   #114
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

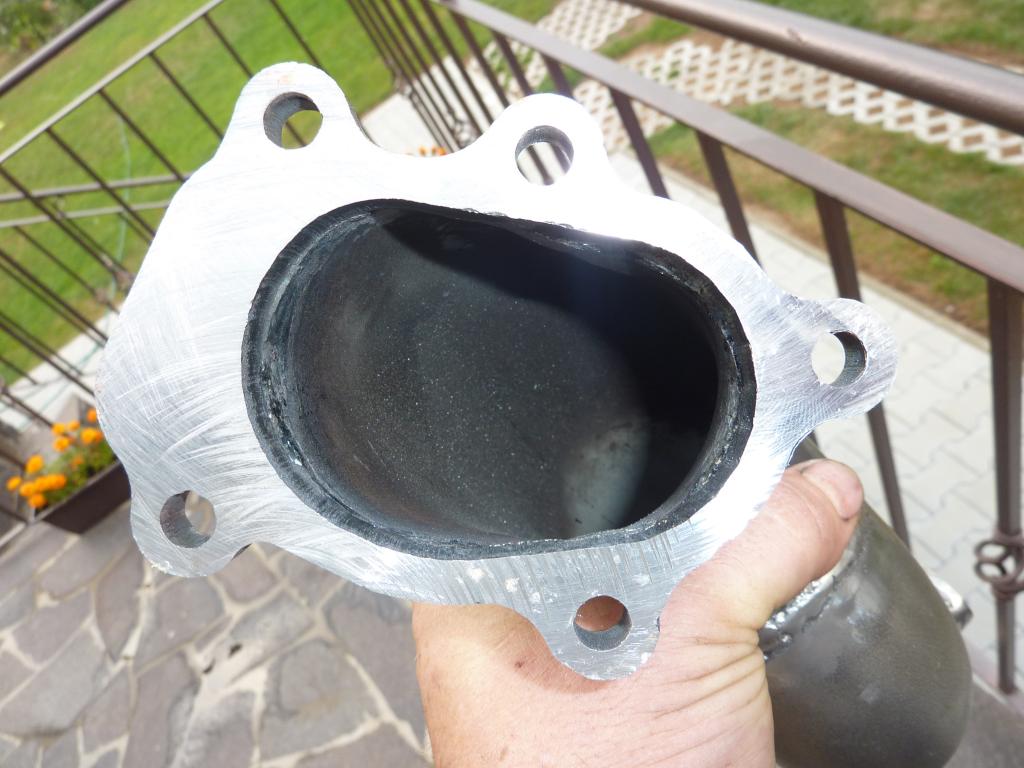

finished up a 3 inch t25/t28 downpipe



I am pleased how the transition worked out, it should flow well.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030881_zpsdcf776b8.jpg   TD04/TD05 fitted in place of T25/T28-p1030867_zps85a0cebf.jpg
sturovo is offline   Reply With Quote
Old 08-09-2013, 06:12 PM   #115
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Love the blacksmith fab. Just picked up a TD04 and will be doing something similar to the flowish log on the SAABata.
Stein is offline   Reply With Quote
Old 08-13-2013, 01:56 PM   #116
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Stein View Post
Love the blacksmith fab. Just picked up a TD04 and will be doing something similar to the flowish log on the SAABata.

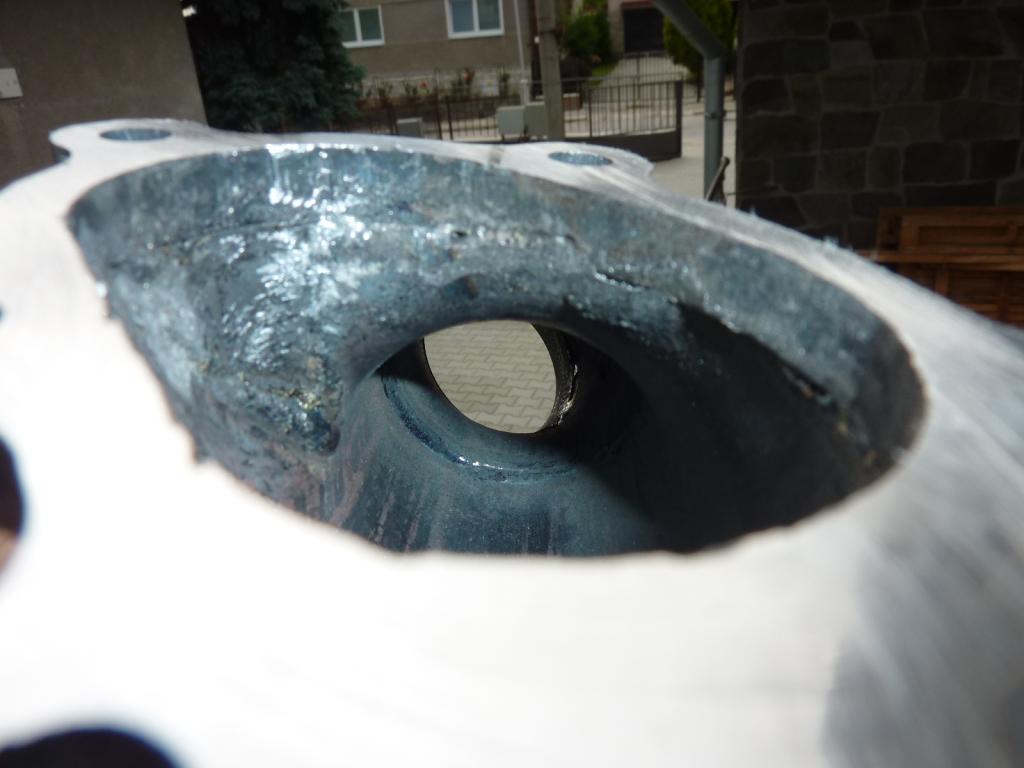

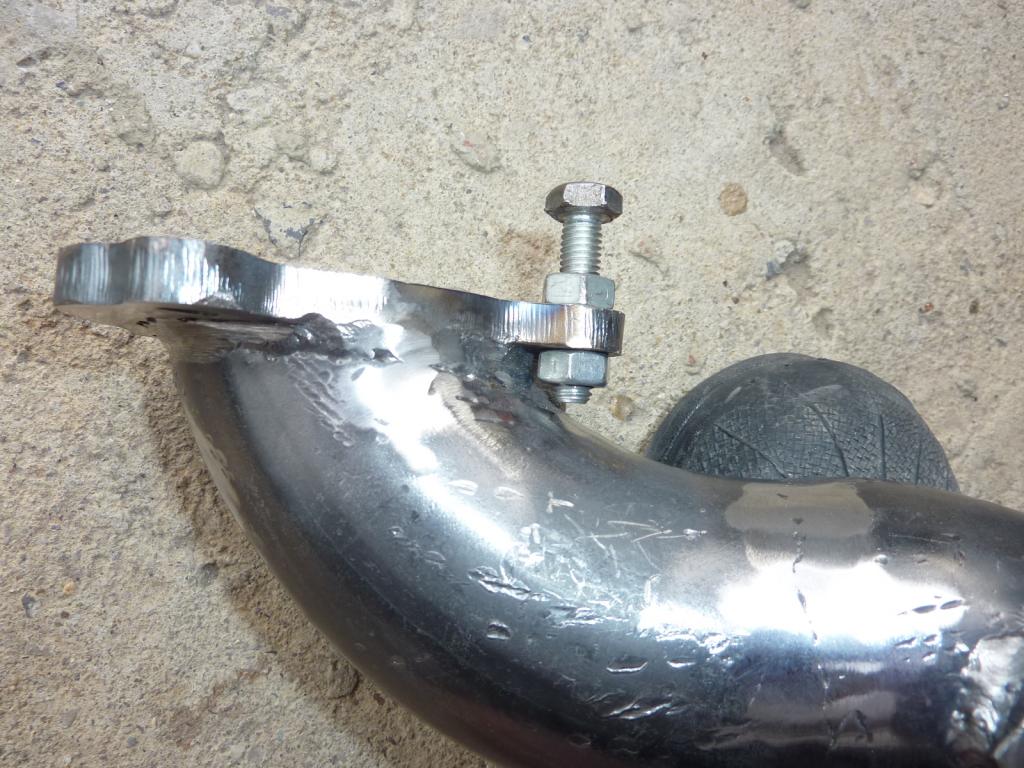

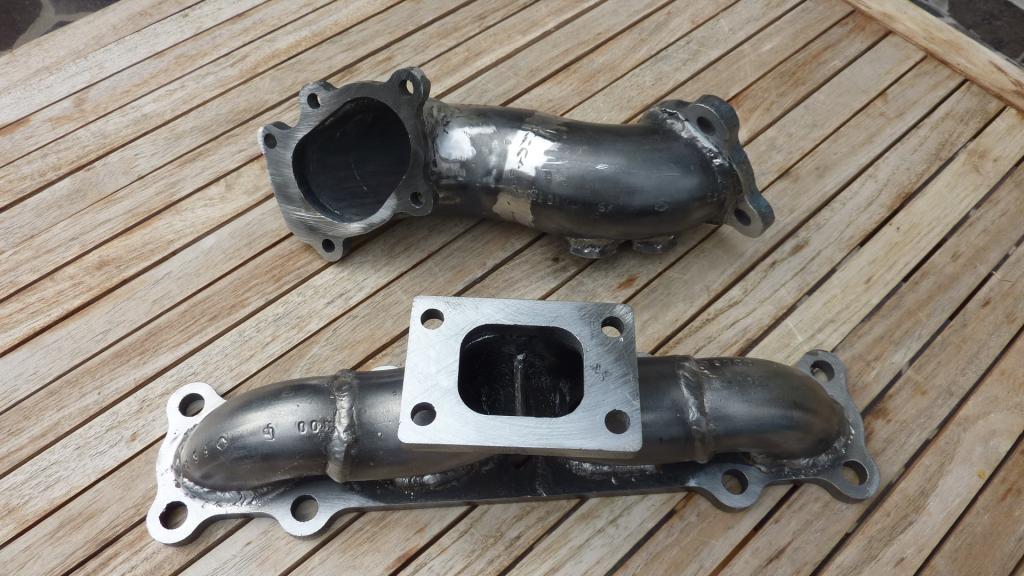

Thanks Stein, if you need drawings give me a shout. Meanwhile I blacksmithified a t25 setup for a 1.8 NA with a 2.5 inch downpipe.



2,5 inch is about as large as I can make the downpipe and when tying into the stock NA exhaust. Still it should give decent flow.



With 2.5 inch bends clearance is tight for the bottom stud so I notched the flange thickness by 1/8".

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030908_zps42c7436c.jpg   TD04/TD05 fitted in place of T25/T28-p1030912_zps19f2acbd.jpg   TD04/TD05 fitted in place of T25/T28-p1030917_zps93f12427.jpg
sturovo is offline   Reply With Quote
Old 08-23-2013, 11:13 AM   #117
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

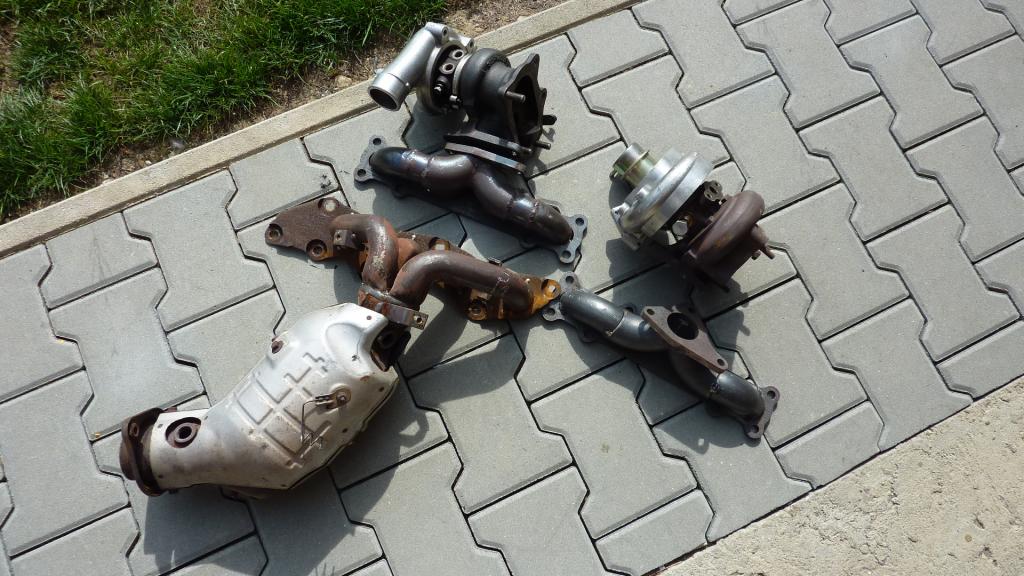

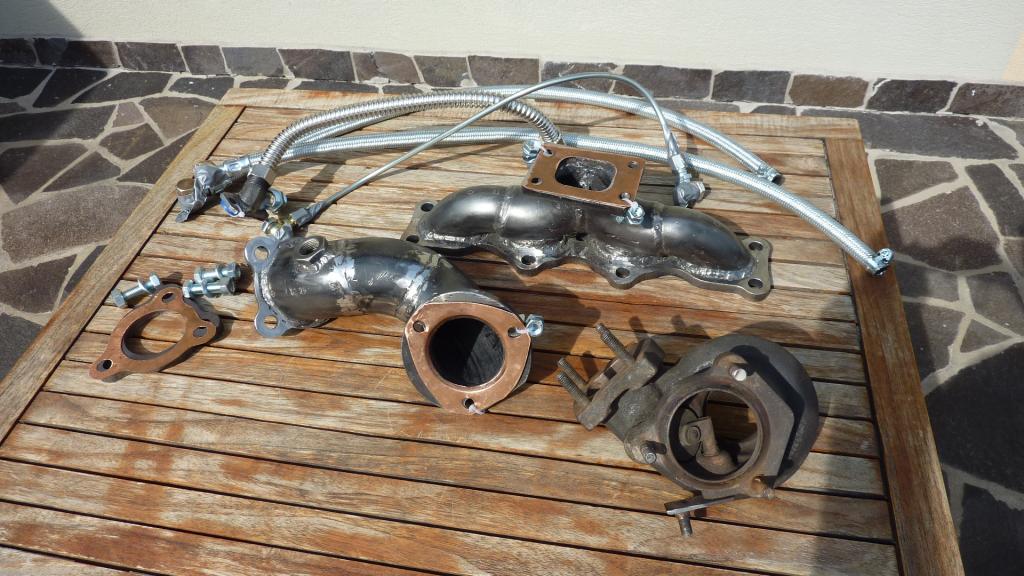

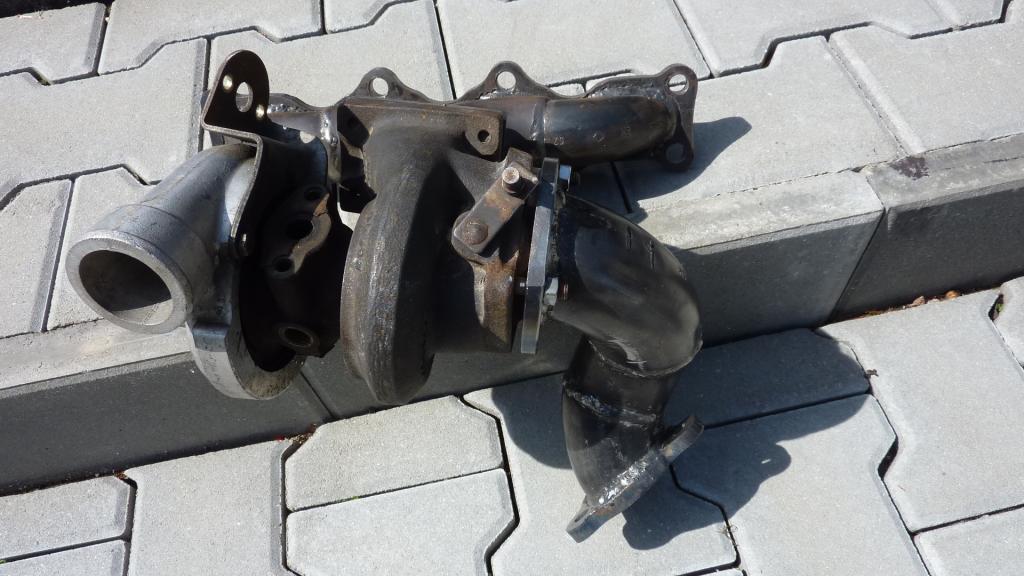

i pieced together a setup foir a 1.6 NA which will use a turbo from a Saab.



The 2.5 inch downpipe was tricky to tie into the stock exhaust flange as the turbo outlet is more aft than usual.



Next up NC!
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030980_zps40494824.jpg   TD04/TD05 fitted in place of T25/T28-p1030978_zps353e156a.jpg   TD04/TD05 fitted in place of T25/T28-p1030987_zpseff17330.jpg
sturovo is offline   Reply With Quote
Old 08-27-2013, 12:35 PM   #118
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,708
Total Cats: 269
Default

Quote:
Originally Posted by sturovo View Post
The larger 5 bolt exhaust pattern is one used by Subaru for decades afaik.
This pattern is found turbos from IHI and Mitsubishi for Subaru's, Impreza, Forrester, Legacy etc. so probably a good way to describe it would be a Subaru 5 bolt downpipe flange.
Do you have Inlet and Outlet flange drawings you could send me? I think I have a correct Exhaust flange drawing, but not the Turbine flanges.

I cannot PM you yet, but you could PM me, I would think.
DNM
DNMakinson is online now   Reply With Quote
Old 08-27-2013, 05:25 PM   #119
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

DNM, attached are the files I use for 3bolt Subaru turbos. (The originals are in sketchup and I exported them to .dwg also.)

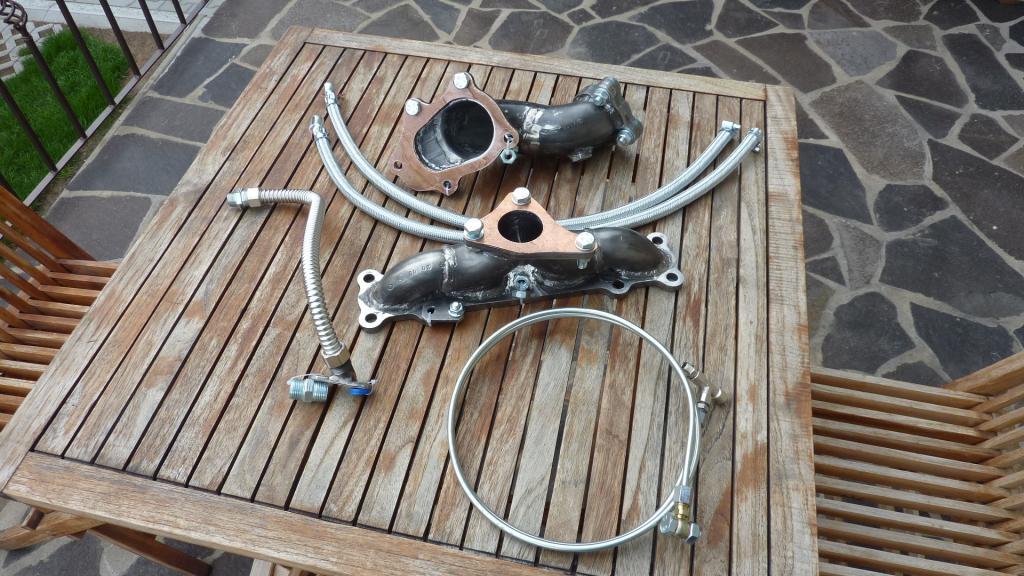

Meanwhile I made this

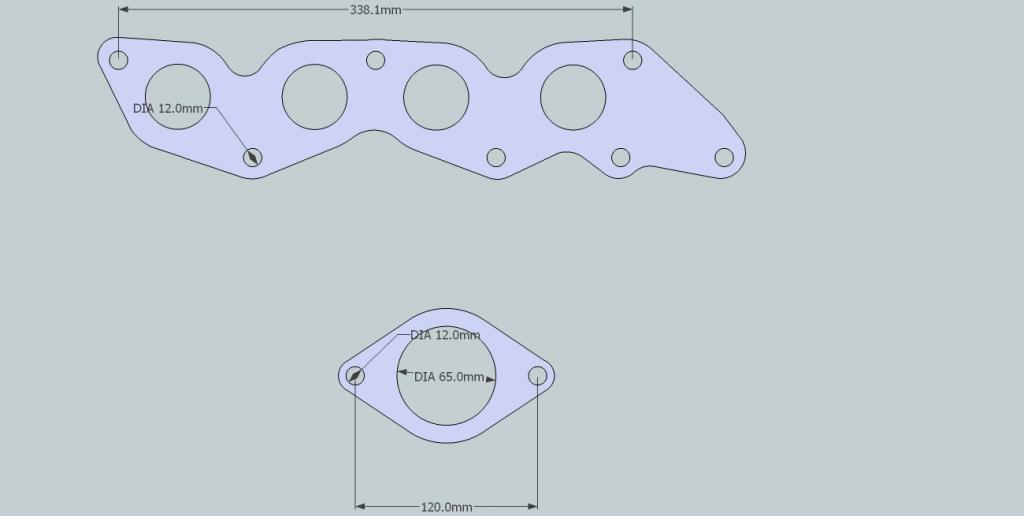

and drew a couple of nc flanges
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040004_zpsa50deeef.jpg   TD04/TD05 fitted in place of T25/T28-ncflangecut_zpsf49a37ff.jpg
Attached Files
File Type: zip td04l-13t flanges.zip (364.1 KB, 59 views)
sturovo is offline   Reply With Quote
Old 08-27-2013, 07:43 PM   #120
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I'm interested to see your NC manifold Sturovo. I suspect that even with a stick welder it will be prettier and better made than this one.

thenuge26 is offline   Reply With Quote
