Old 08-30-2013, 01:14 PM   #121
Newb

Join Date: Jun 2012
Posts: 25
Total Cats: 1
Default

Selling any manifolds for the TD04? Loving your progress.
Jae_Rex is offline   Reply With Quote
Old 09-02-2013, 04:38 PM   #122
Newb

Join Date: Sep 2013
Posts: 1
Total Cats: 0
Default

Hi Sturovo,

I am watching closely your forums, and I am very excited, as this might be a viable and cheap solution to pump a little more out from my car. I would go for around 160 hp, aiming to have more power on the midrange. Do you think it is possible with your setup, without touching the stock exhaust, or adding an intercooler? How would it effect emissions (not to have any trouble with the "law"?

Also, and the biggest question, do you deal with selling a complete package? By complete I mean, with turbo, and ecu, and also injectors (if needed). I have seen that you modded 2 cars, did you do that by your own? If so, are you willing to deal with installation/tuning as well?
As you are in Slovakia, and I live in Hungary, the distance is not to far for visiting you if that would be the case.

Thanks


Viktor
Dorel is offline   Reply With Quote
Old 09-03-2013, 04:19 PM   #123
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by thenuge26 View Post
I'm interested to see your NC manifold Sturovo. I suspect that even with a stick welder it will be prettier and better made than this one.
Thanks for the vote of confidence Steve!

Quote:
Originally Posted by Jae_Rex View Post
Selling any manifolds for the TD04? Loving your progress.

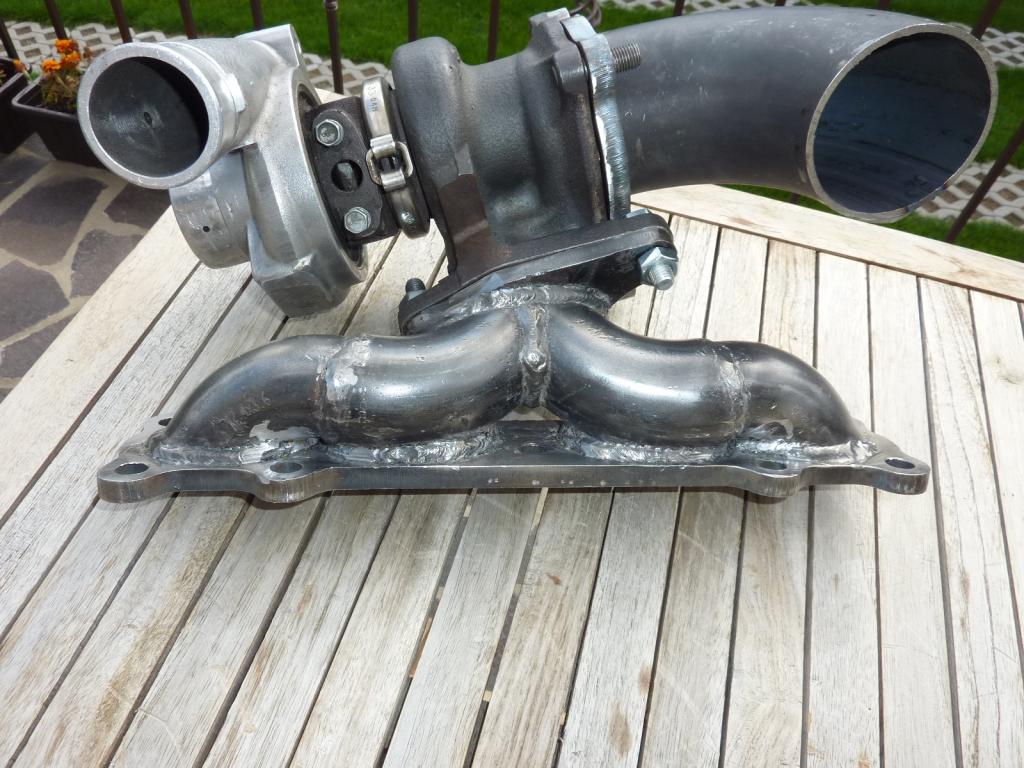

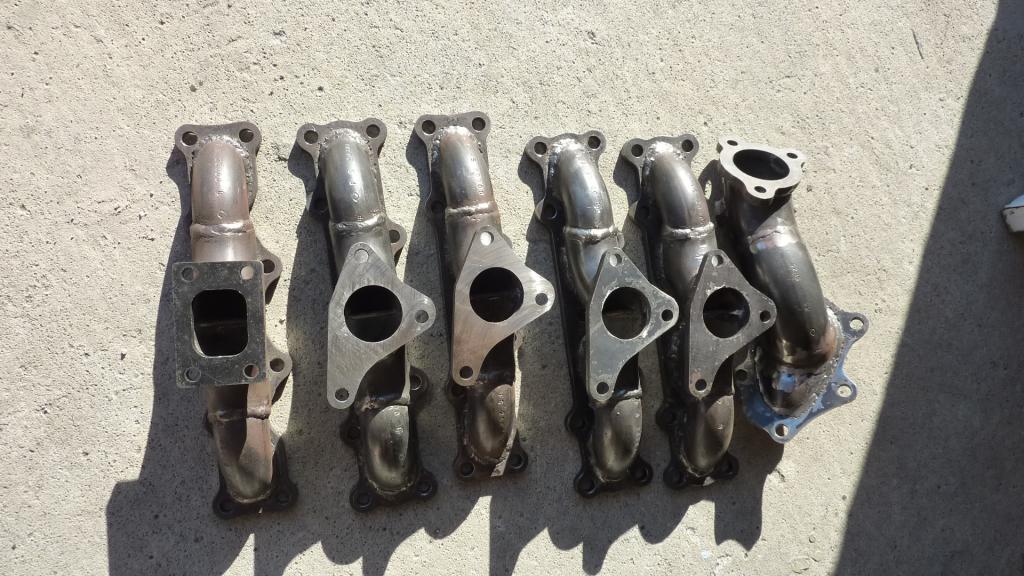

Yes Jae, I have have been busy making TD04 manifolds recently. These ones are getting ready for porting/surfacing/cleaning.




Quote:
Originally Posted by Dorel View Post
Hi Sturovo,

I am watching closely your forums, and I am very excited, as this might be a viable and cheap solution to pump a little more out from my car.
Viktor
Viktor thanks for your interest. I have sent you a pm.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040031_zps8a516eb6.jpg
sturovo is offline   Reply With Quote
Old 09-07-2013, 12:13 PM   #124
Newb

Join Date: Sep 2013
Location: Newcastle, England
Posts: 5
Total Cats: 0
Default

Hi,

I am really interested in a manifold for a 1994 eunos 1.8 to fit a TD04. Can you help me out?

The work you have done is pretty impressive. I am a fitter by trade and i am pretty sure i couldnt fab something up that well!

Would you ship to North East England?
dcd87 is offline   Reply With Quote
Old 09-07-2013, 04:27 PM   #125
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by dcd87 View Post
Hi,

I am really interested in a manifold for a 1994 eunos 1.8 to fit a TD04. Can you help me out?

The work you have done is pretty impressive. I am a fitter by trade and i am pretty sure i couldnt fab something up that well!

Would you ship to North East England?

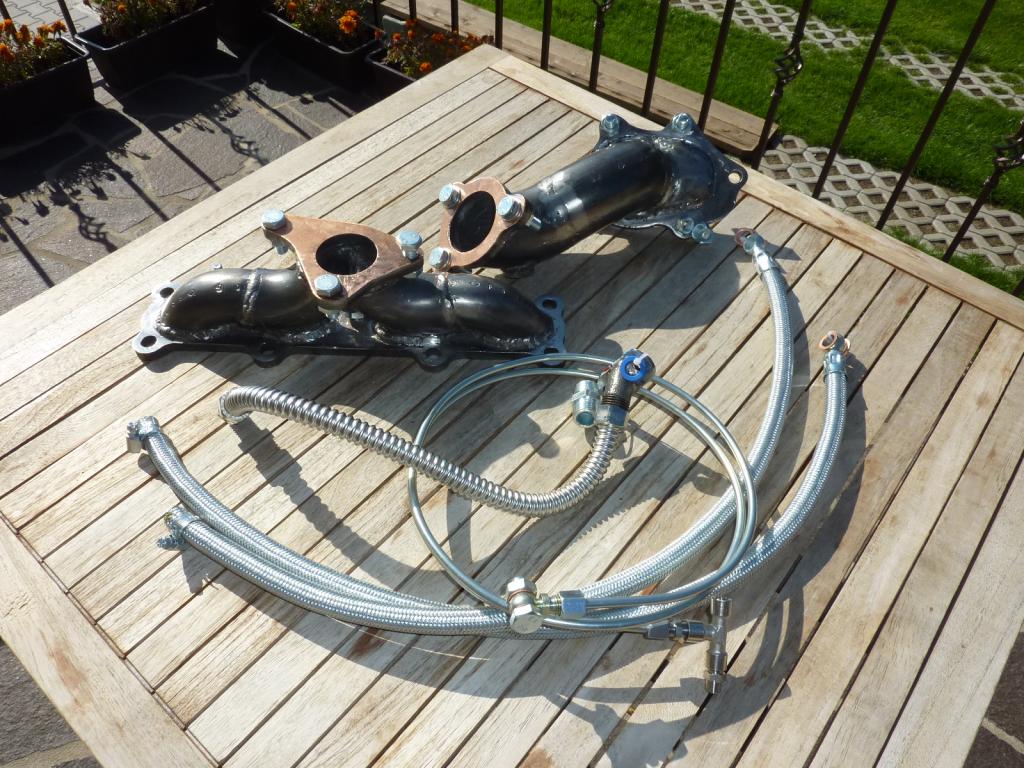

Yes Dan I would like to help you out! I have made several TD04 1.8 na setups recently delivered to the UK .


As a trained fitter I am sure that after a few tries you would be making better parts than me!
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040034_zpsa585ae94.jpg
sturovo is offline   Reply With Quote
Old 09-07-2013, 06:04 PM   #126
Newb

Join Date: Sep 2013
Location: Newcastle, England
Posts: 5
Total Cats: 0
Default

Looks really good Sturovo. Can you pm me with details please?
dcd87 is offline   Reply With Quote
Old 09-09-2013, 03:42 PM   #127
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

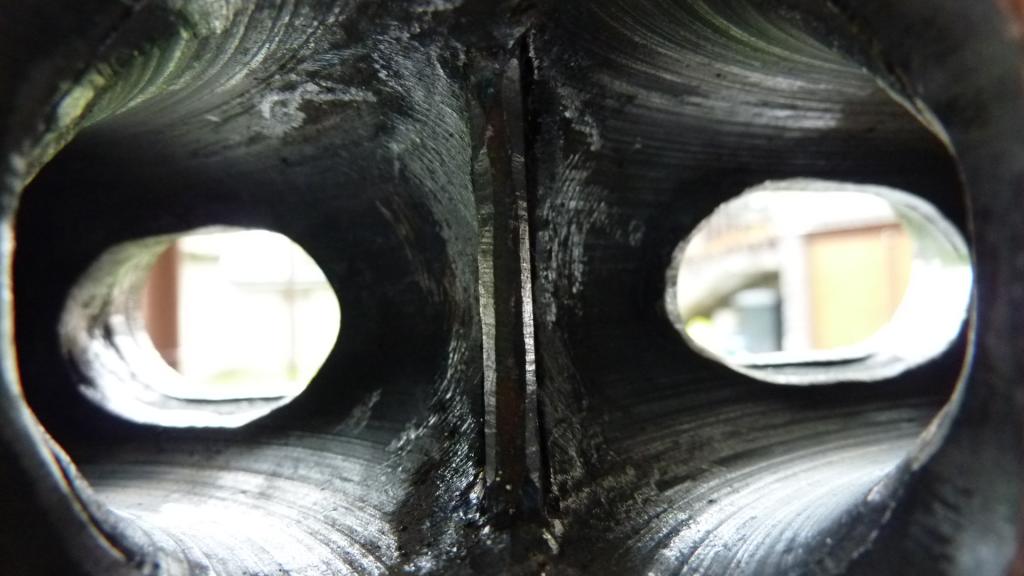

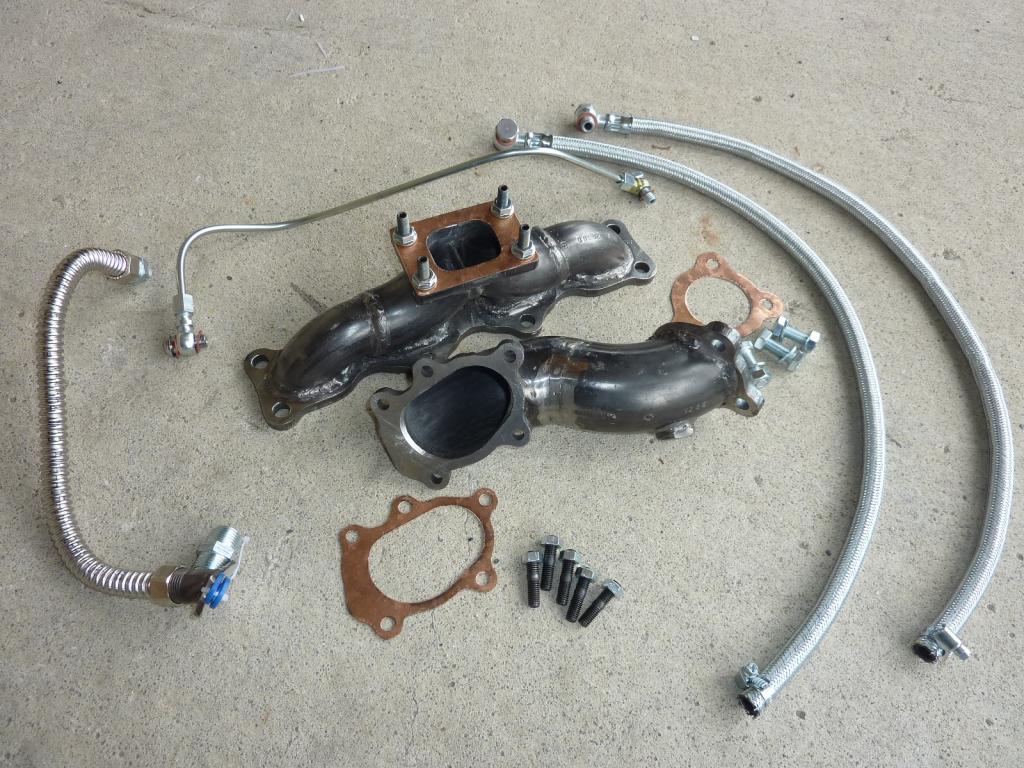

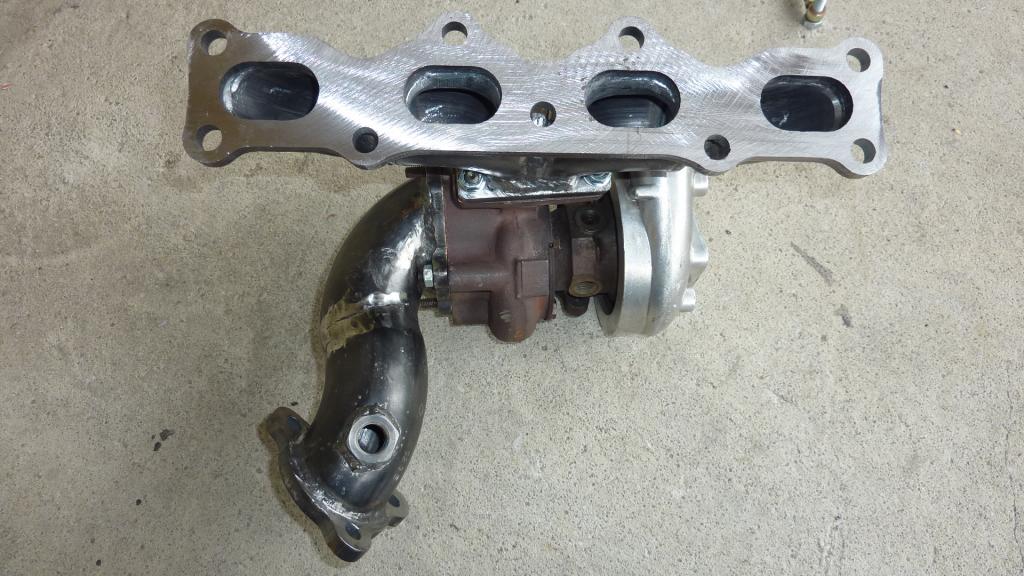

First time I made one of these. t25 with heavy wall manifold and 2.5" downpipe for a 1.6 NA.



divided merge should help spool and power



Bottom stud of turbo outlet flange is tight but a couple of threads poke through.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040067_zps93e08178.jpg   TD04/TD05 fitted in place of T25/T28-p1040075_zpsef1b70aa.jpg   TD04/TD05 fitted in place of T25/T28-p1040061_zps2d3cffb8.jpg
sturovo is offline   Reply With Quote
Old 09-12-2013, 02:43 PM   #128
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

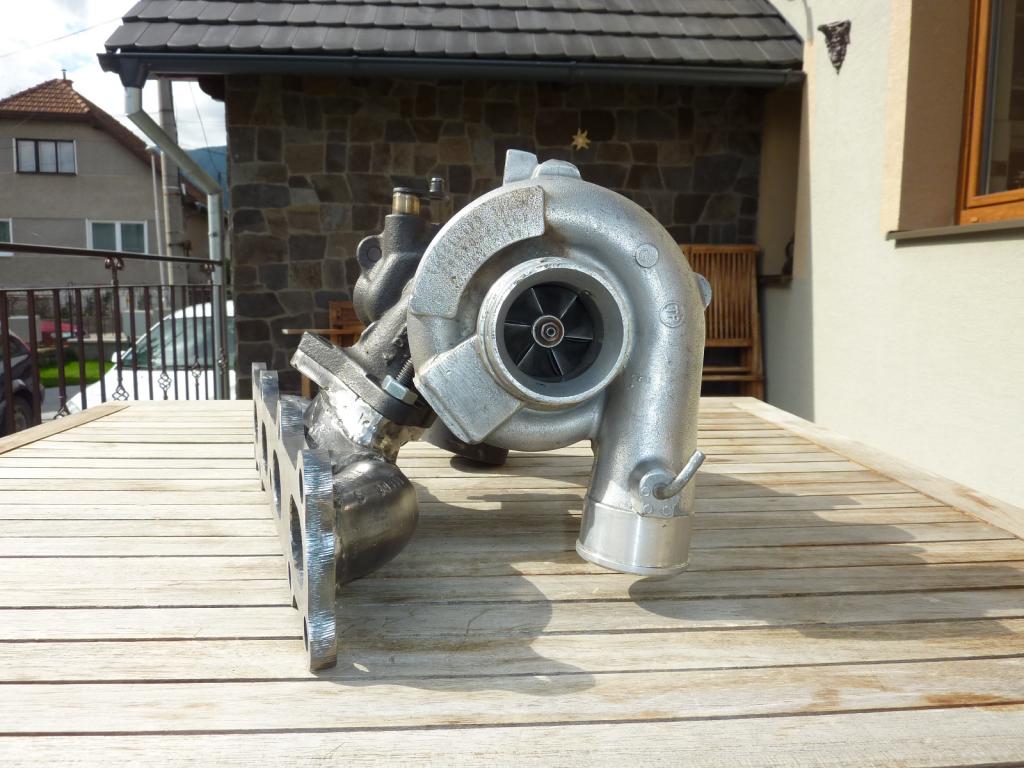

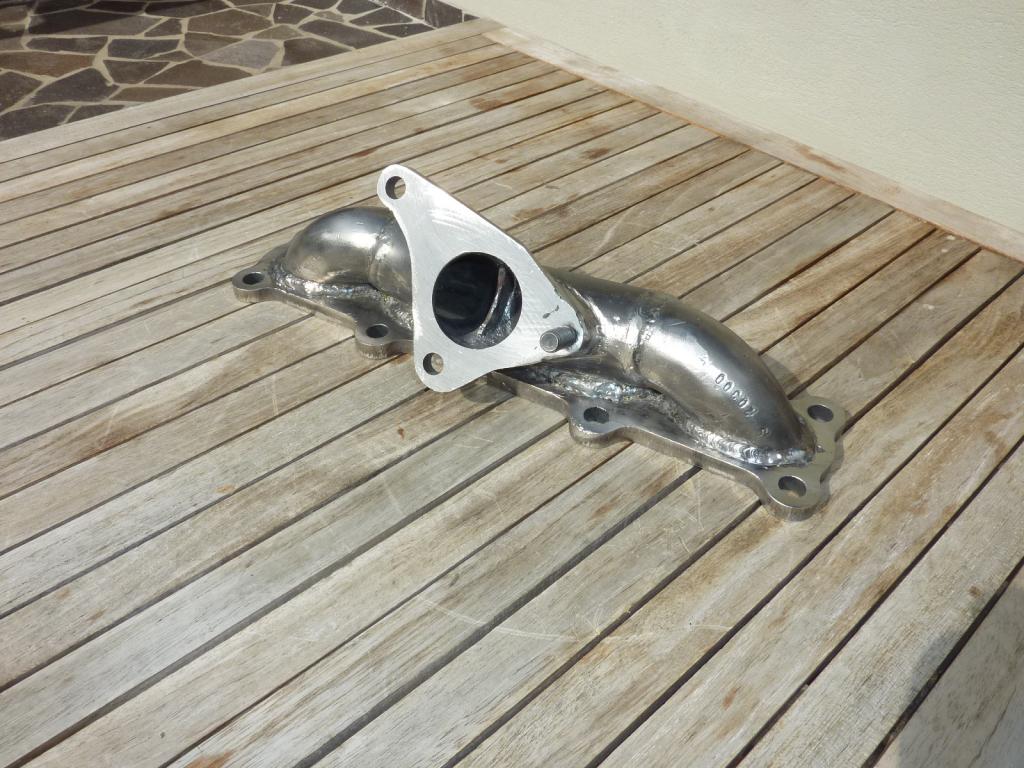

I put together a setup for 1.8 NA engined super 7 style kit car. Space was incredibly tight so I had to make an unusual manifold. Notice the length of 2 and 3 runners

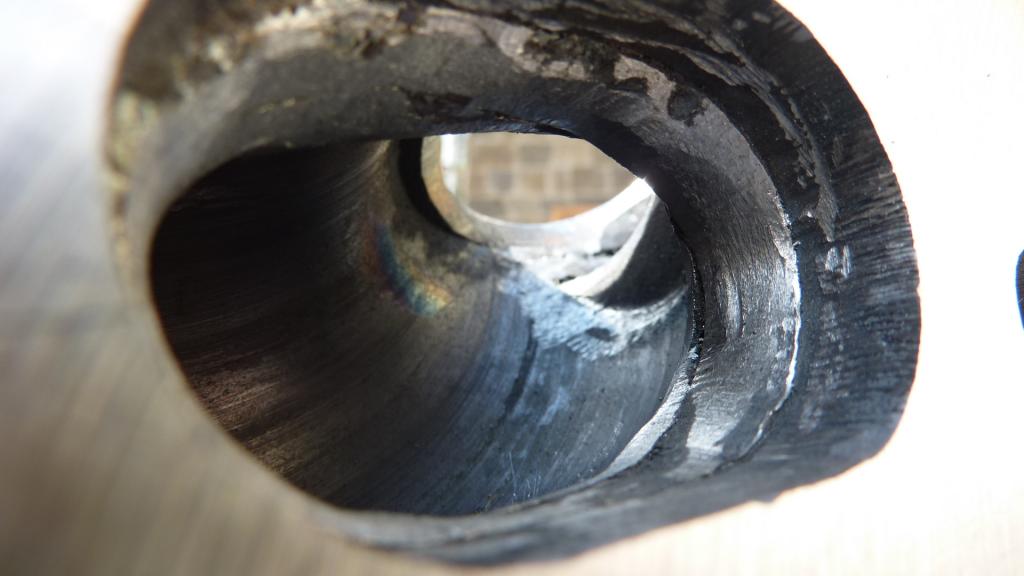

There is only a couple of cm's between the rocker cover and the turbo.



Flow should be pretty decent as everything points to the way out.



Did I mention that space was tight?

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040099_zpsf9ec5b55.jpg   TD04/TD05 fitted in place of T25/T28-p1040126_zps552abd1e.jpg   TD04/TD05 fitted in place of T25/T28-p1040114_zps36055048.jpg   TD04/TD05 fitted in place of T25/T28-p1040105_zps200210fd.jpg   TD04/TD05 fitted in place of T25/T28-img_20130904_141756_0_zps3070489c.jpg

sturovo is offline   Reply With Quote
Old 09-13-2013, 09:45 AM   #129
Junior Member

Join Date: Nov 2010
Location: NH
Posts: 60
Total Cats: -2
Default

Just read through your entire thread this morning. Great work!

I had been considering changing to a TD04-13T because it seems to be a great turbo for the Miata, but the lack of support/information has been very disappointing. Your thread has all of the info I was looking for to adapt a T3 manifold to a TD04-13t. Just wanted to say thanks for being so open and sharing!

I look forward to your future work.
jch13 is offline   Reply With Quote
Old 09-25-2013, 05:34 PM   #130
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by jch13 View Post
J
I had been considering changing to a TD04-13T because it seems to be a great turbo for the Miata
James I agree, the 13t ticks many boxes for daily driven cars.
That said t25's are great also other than non tired ones are getting more difficult to find.

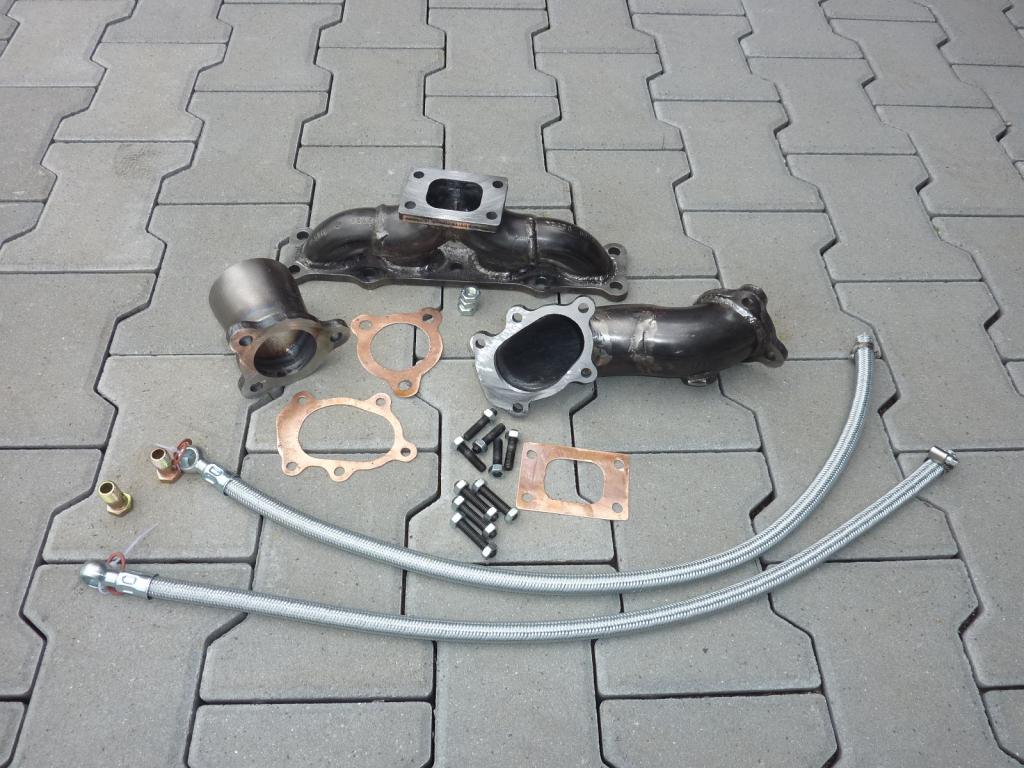

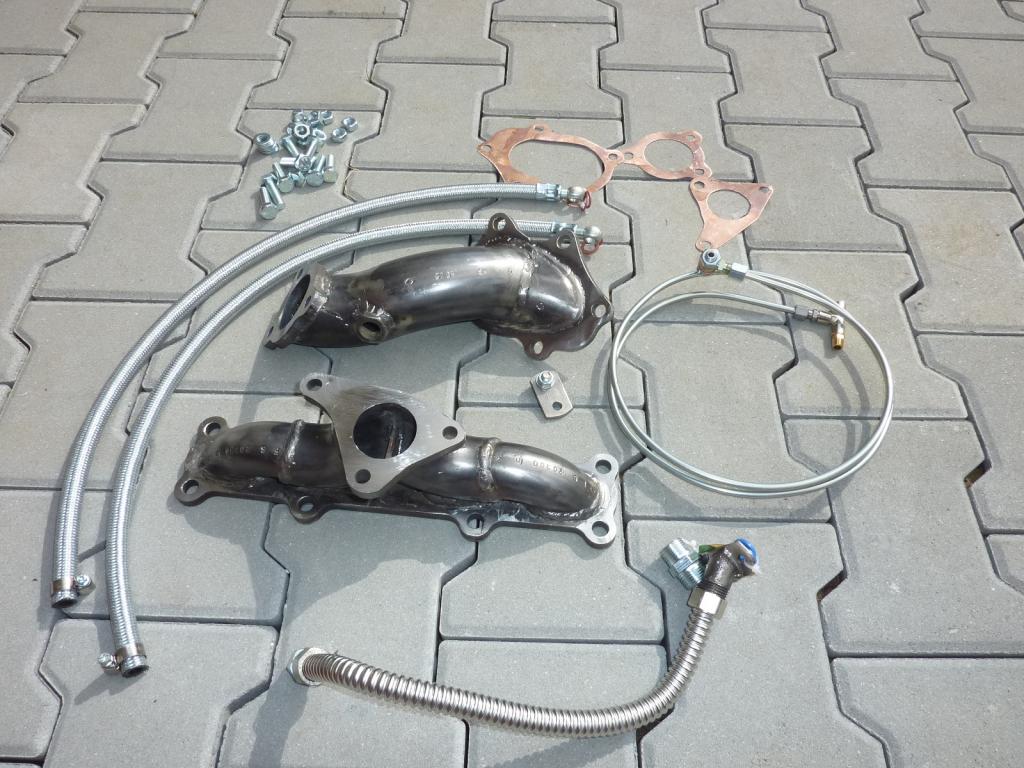

Meanwhile in the shed I cranked out a few kits for both turbo types.


TD04 for 1.8 NA


T25 for 1.6 NA

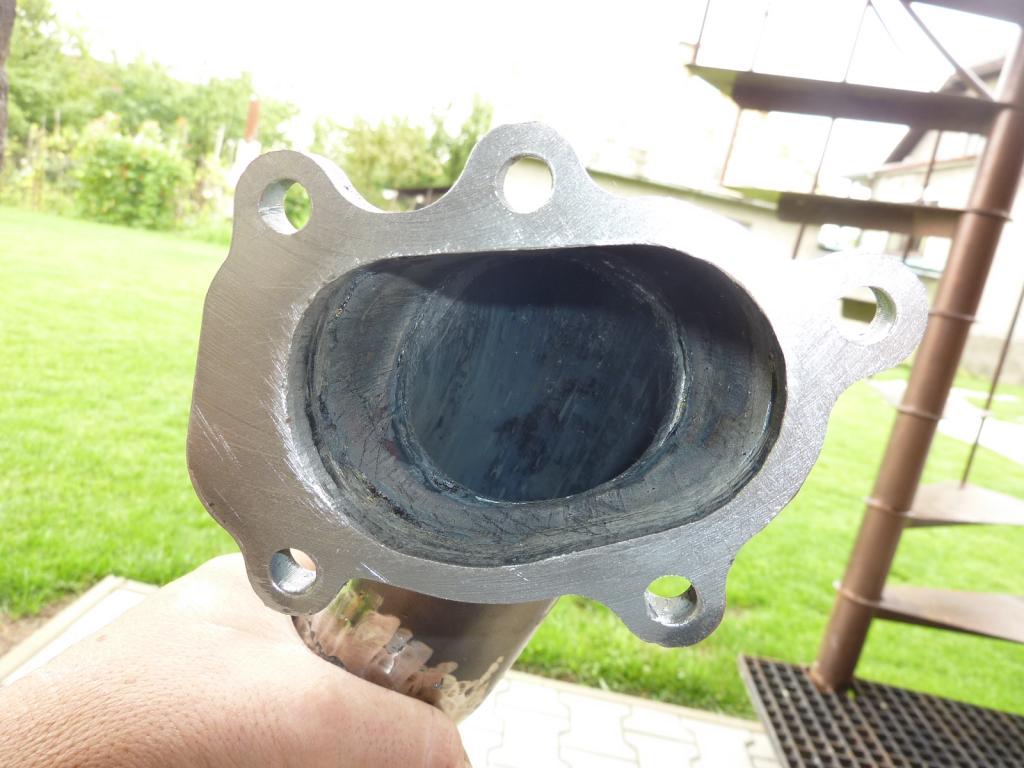

HKS replacement downpipe
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040192_zps30727b55.jpg   TD04/TD05 fitted in place of T25/T28-p1040214_zps6acd1960.jpg   TD04/TD05 fitted in place of T25/T28-p1040177_zps8b1b54df.jpg
sturovo is offline   Reply With Quote
Old 10-01-2013, 04:18 PM   #131
Junior Member

Join Date: Jun 2013
Posts: 115
Total Cats: 1
Default

Quote:
Originally Posted by sturovo View Post
I put together a setup for 1.8 NA engined super 7 style kit car. Space was incredibly tight so I had to make an unusual manifold. Notice the length of 2 and 3 runners


Did I mention that space was tight?

Yep thats mine. Happy with your work William.

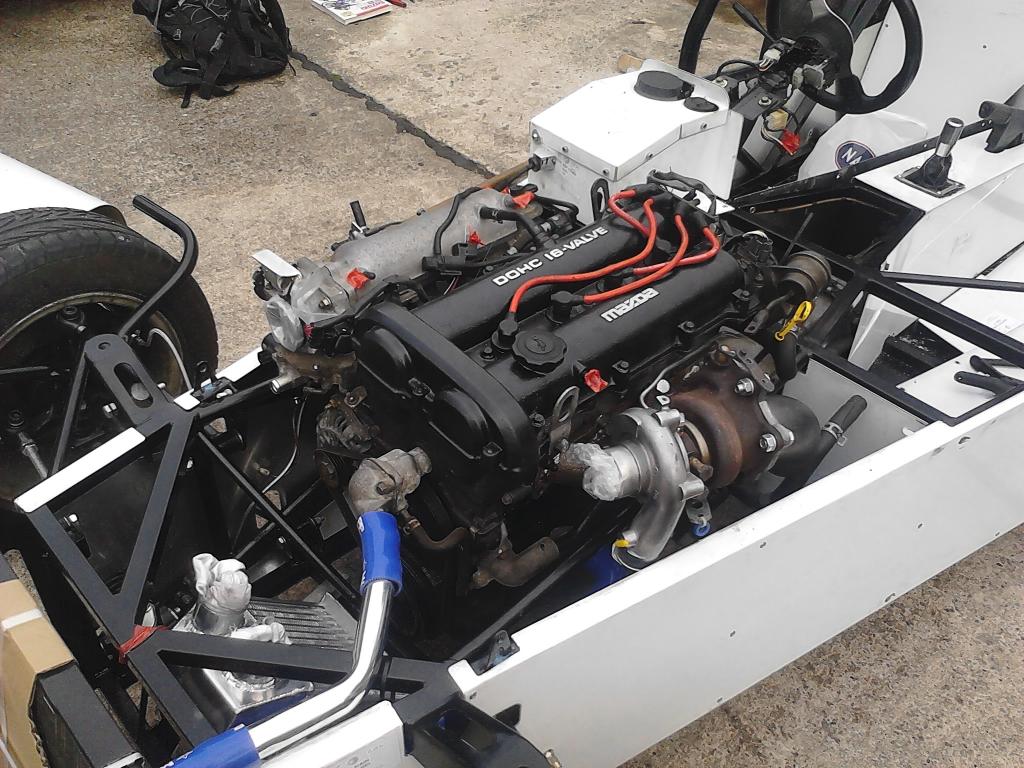

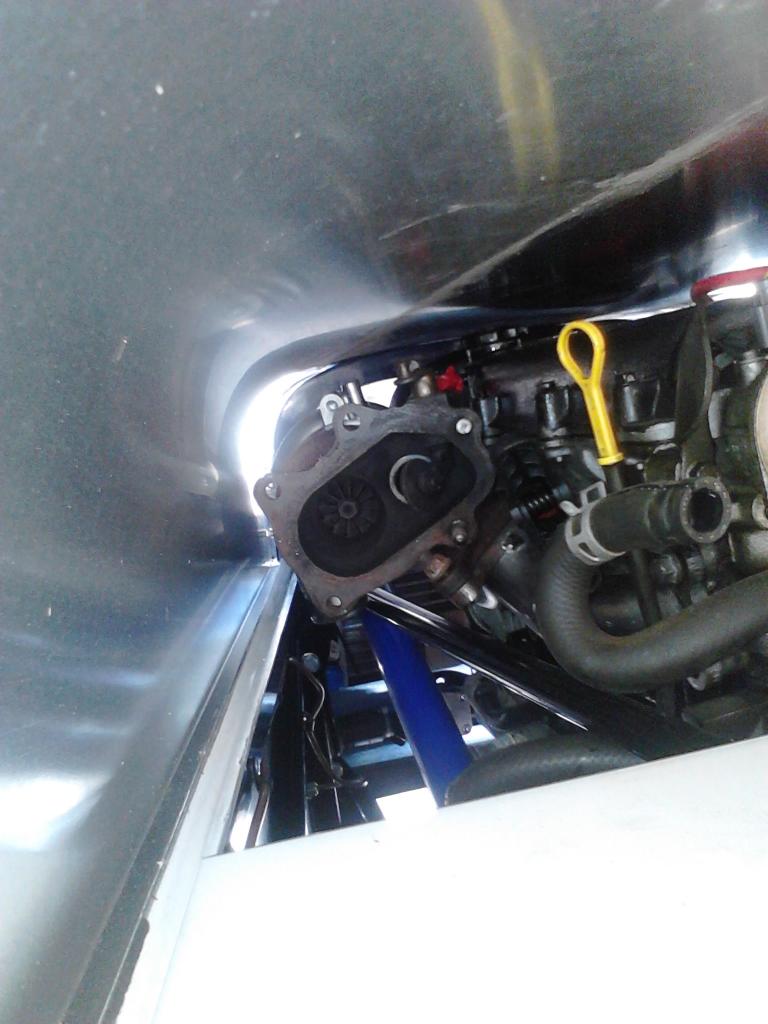

Heres a pic of it mounted. Unfortunately I'm away overseas for the next 6 months so the project will have to wait til then. At least it gives me a chance to build my megasquirt while I'm away without rushing.

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-img_20130923_163204_0_zps27432303.jpg
luke2152 is offline   Reply With Quote
Old 10-02-2013, 04:06 PM   #132
Newb

Join Date: Mar 2010
Posts: 12
Total Cats: 1
Default happy to

Hi,
This weekend finished my turbo built,all went well. My little td035 turbo
from a subaru forester spools verry well,with no lag.Its a low boost turbo
but for now its ok to me,can always buy a cheap td04 for a upgreat.
Intercooler is from a audi a4 got it for 30 euro on a wrekyard
So thanks and have a nice day

Dirk
dick 5322 is offline   Reply With Quote
Old 10-02-2013, 06:18 PM   #133
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by luke2152 View Post

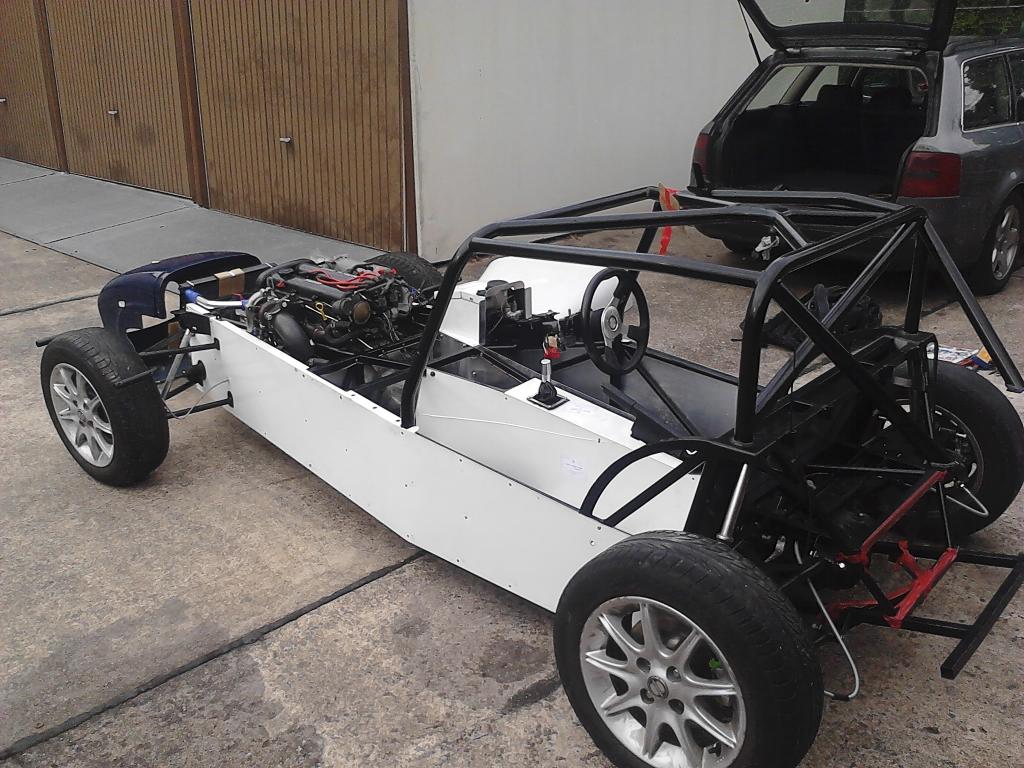

Heres a pic of it mounted.
WOW Luke, that car looks great. Super light and focused.
I can only imagine how quick it will be.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-img_20130923_163139_0_zps8c8f3939.jpg
sturovo is offline   Reply With Quote
Old 10-02-2013, 06:36 PM   #134
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by dick 5322 View Post
Hi,
This weekend finished my turbo built,all went well. My little td035 turbo
from a subaru forester spools verry well,with no lag.Its a low boost turbo
but for now its ok to me,can always buy a cheap td04 for a upgreat.
Intercooler is from a audi a4 got it for 30 euro on a wrekyard
So thanks and have a nice day

Dirk

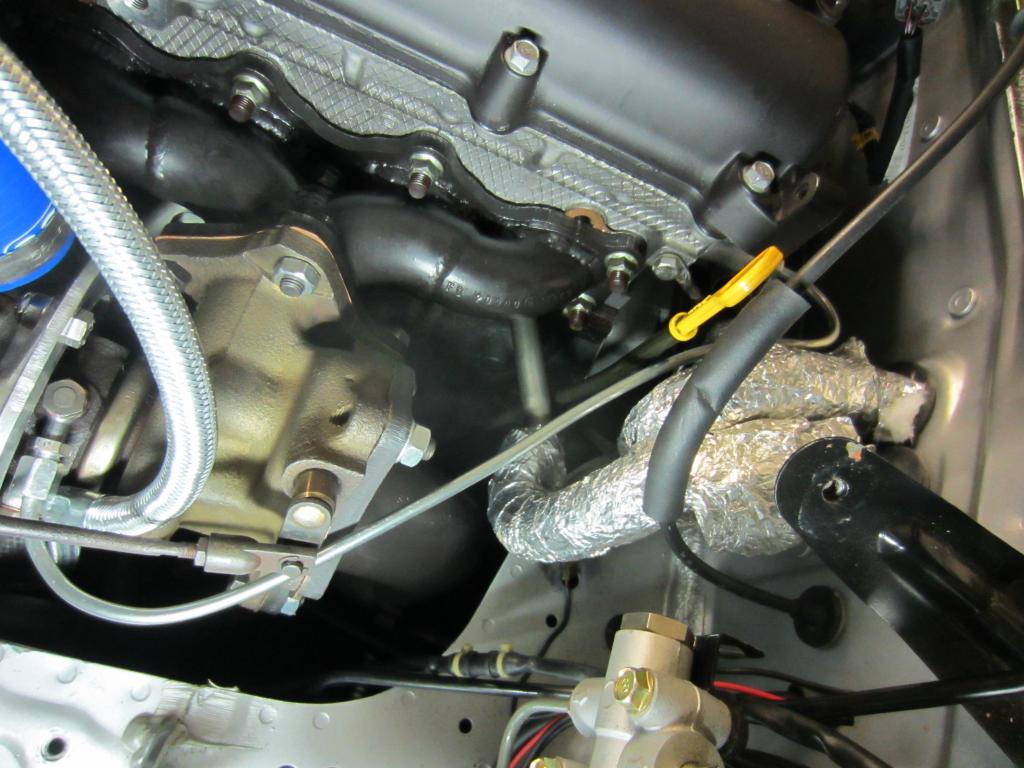

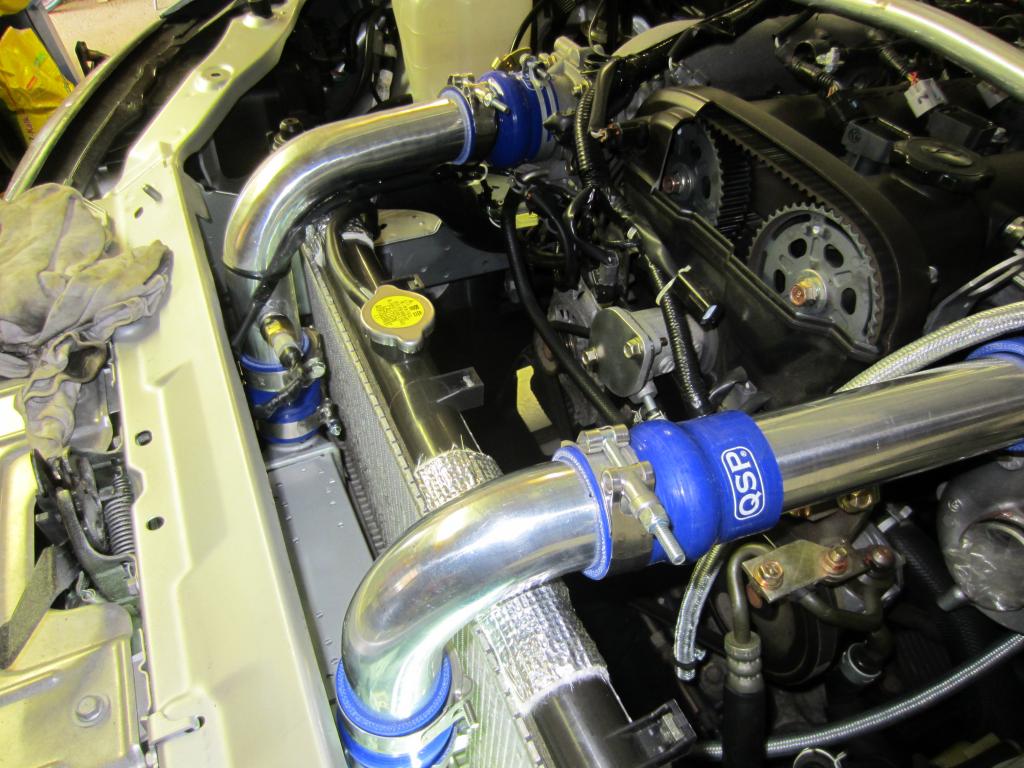

Dirk thank you for the update! Your set up looks great. There is decent space between the turbo/downpipe and the frame rail. There should be plenty of room even for a 20g.




Your intercooler setup looks good. Which model Audi is it from?




Usually people (myself included) use way too big intercoolers. Just look at the size they will use in F1 cars next season.

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-img_0475_zpscdf158c5.jpg   TD04/TD05 fitted in place of T25/T28-img_0473_zpsbeb019ab.jpg   TD04/TD05 fitted in place of T25/T28-vuemoteur1_zps327e07da.jpg
sturovo is offline   Reply With Quote
Old 10-04-2013, 12:43 PM   #135
Junior Member

Join Date: Jun 2013
Posts: 115
Total Cats: 1
Default

[QUOTE Usually people (myself included) use way too big intercoolers. Just look at the size they will use in F1 cars next season.

[/QUOTE]

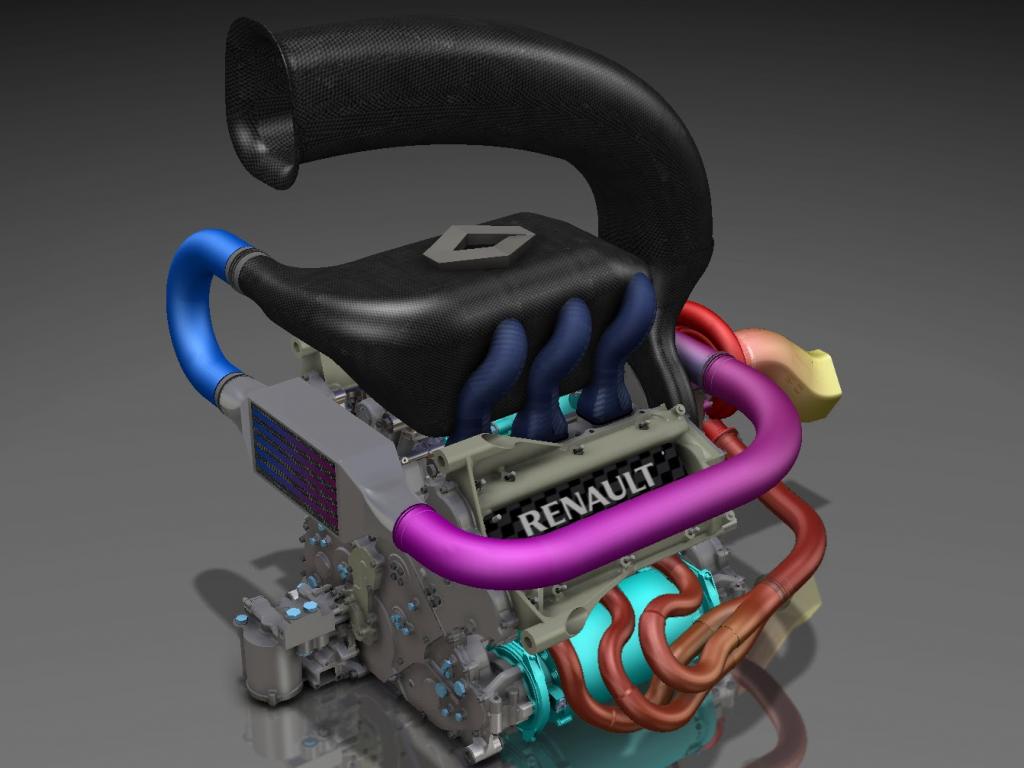

Interestingly I found this pic of the same engine sporting this monster...
http://pix.crash.net/motorsport/710/AU1061639.jpg

Guess we'll have to wait and see!
luke2152 is offline   Reply With Quote
Old 10-05-2013, 02:02 PM   #136
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by luke2152 View Post

Interestingly I found this pic of the same engine sporting this monster...
http://pix.crash.net/motorsport/710/AU1061639.jpg

Guess we'll have to wait and see!
Good info Luke, for sure your version looks more realistic.

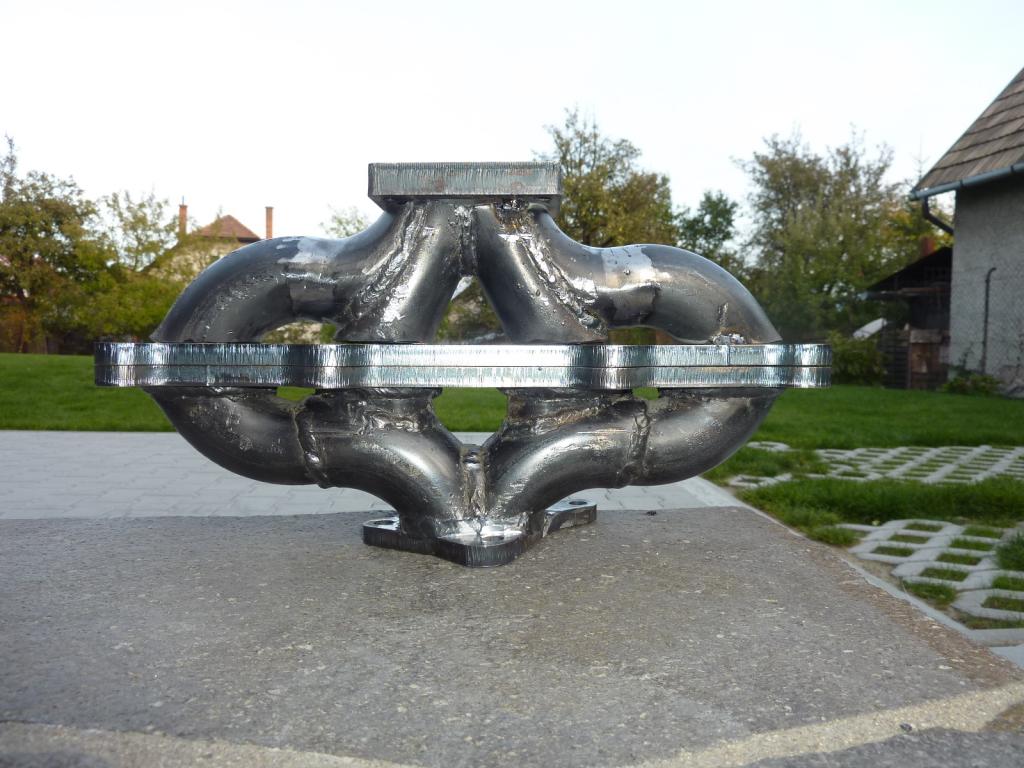

Meanwhile I have been messing around with a flowish V design.



Will it flow better?
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040294_zps5d4540f3.jpg
sturovo is offline   Reply With Quote
Old 10-05-2013, 06:43 PM   #137
Newb

Join Date: Oct 2013
Posts: 1
Total Cats: 0
Default

I have been following this thread for a while now as I am planning a DIY turbo conversion to my NB 1.8 and I am considering the TD04 turbo for the job.
I was planning to make a manifold similar to your designs but have limited fabrication experience. I do have both a MIG and stick welder but they (or I) aren't very good.

If you are selling these manifold / downpipes as kits I would be very interested in considering having one off you to save myself the trouble.

V design looks good, are the internals more direct from the inner ports, any pics of inside?

Edit: PM'd you on mx5nutz as I can't on here.

Jason

Last edited by doctoprox; 10-06-2013 at 05:10 PM.
doctoprox is offline   Reply With Quote
Old 10-06-2013, 03:01 PM   #138
Newb

Join Date: Oct 2013
Posts: 1
Total Cats: 0
Default

Hi I'm putting a td04 turbo on my 1997 1.8 mx5 if I send you pictures could you give me a price for a manifold and downpipe thanks
Stuartc15 is offline   Reply With Quote
Old 10-09-2013, 08:07 PM   #139
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

If anyone wants to buy a new badass turbo for this, kinugawa just came out with their awesome STS 9 blade turbine wheels for the td04 fitment. Their new wheels flow more air and spool better than any of the stock mitsu wheels or garrette wheels of comparable size. So that turbine wheel with a billet 19t or 20t comp wheel, I would expect you to be able to approach 300 wheel on pump gas.
Leafy is offline   Reply With Quote
Old 10-10-2013, 05:31 PM   #140
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Good info Leafy. +1

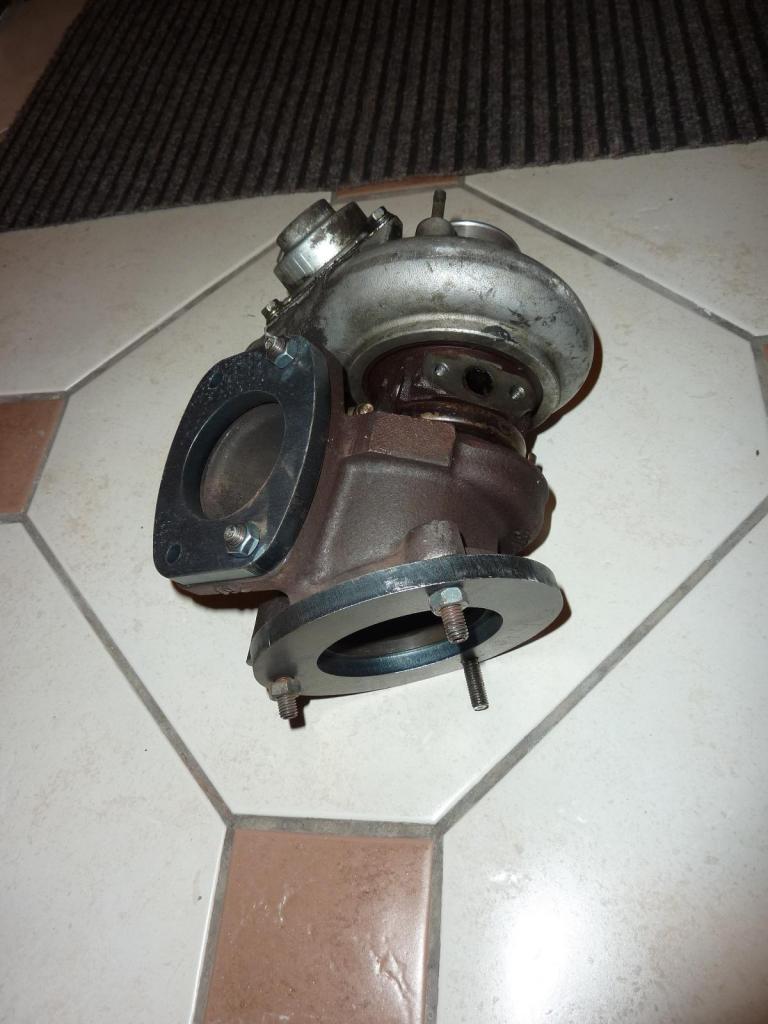

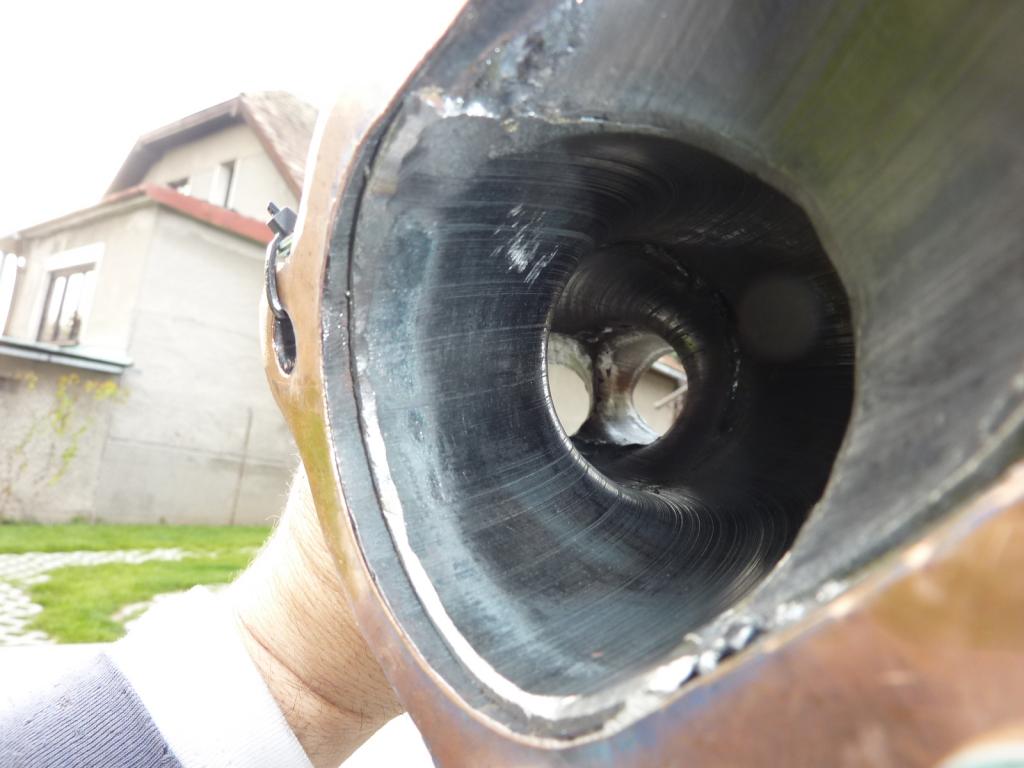

Interestingly I am working on something at the opposite end of the spectrum, a 12t from a Volvo which probably spools at idle.


Weird thing is the flanges and turbo it self are huge. The inlet is bigger than a t3 and it has a 3" outlet....... on a 200 hp turbo.

And just like fat chicks need loving the euro 4-2-1 NB exhaust needs a turbo stuck in the middle of it


Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1040310_zps4c8f5b34.jpg   TD04/TD05 fitted in place of T25/T28-p1040338_zps4fccdab7.jpg
sturovo is offline   Reply With Quote
