Old 01-11-2014, 03:46 AM   #161
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

so the braided water lines just connect to the "regular" water source locations in the front of the engine? what size are those braided lines, 5/16"?
18psi is offline   Reply With Quote
Old 01-13-2014, 03:31 PM   #162
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

What percentage of turbo miata's in Slovakia are the fruit of Sturovo's hard work?

What about Europe?

It seems like you're making a lot of these kits, and probably making a lot of european miata owners very happy.

Keep up the good work!
Efini~FC3S is offline   Reply With Quote
Old 01-13-2014, 05:59 PM   #163
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
so the braided water lines just connect to the "regular" water source locations in the front of the engine? what size are those braided lines, 5/16"?
Yes Vlad, the hose I use is 8mm id which is equivalent to 5/16". It is a good match for the regular connection points.

Quote:
Originally Posted by Efini~FC3S View Post
What percentage of turbo miata's in Slovakia are the fruit of Sturovo's hard work?

What about Europe?
Luke, I have been mapping progress using a fish bowl diagram.

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-small-vs-large.jpg
sturovo is offline   Reply With Quote
Old 01-13-2014, 06:15 PM   #164
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Nice diagram
18psi is offline   Reply With Quote
Old 01-14-2014, 09:42 AM   #165
Junior Member

Join Date: Jun 2011
Location: Southcoast, MA
Posts: 47
Total Cats: 1
Default

Quote:
Originally Posted by sturovo View Post
Ray, I would like to try Thing is that those turbos were never popular where in Slovakia/Europe so getting my hands on one may be difficult.
They were used on DSM's and evo 3's?
You're absolutely correct, its an Evo 3 style from an Eclipse/Talon.
I'll shoot you a PM to see if we can try to find a way to get a turbo into your hands.
frapjap is offline   Reply With Quote
Old 01-14-2014, 11:22 AM   #166
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

epic response, would read again
Efini~FC3S is offline   Reply With Quote
Old 02-02-2014, 06:39 PM   #167
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Efini~FC3S View Post
epic response, would read again
Thank you Luke, I am glad you like it
I learned to make meaningless diagrams during 6 sigma training in the 90's and thankfully the skill has stuck.
(Or was that fish bone and not fish bowl?)

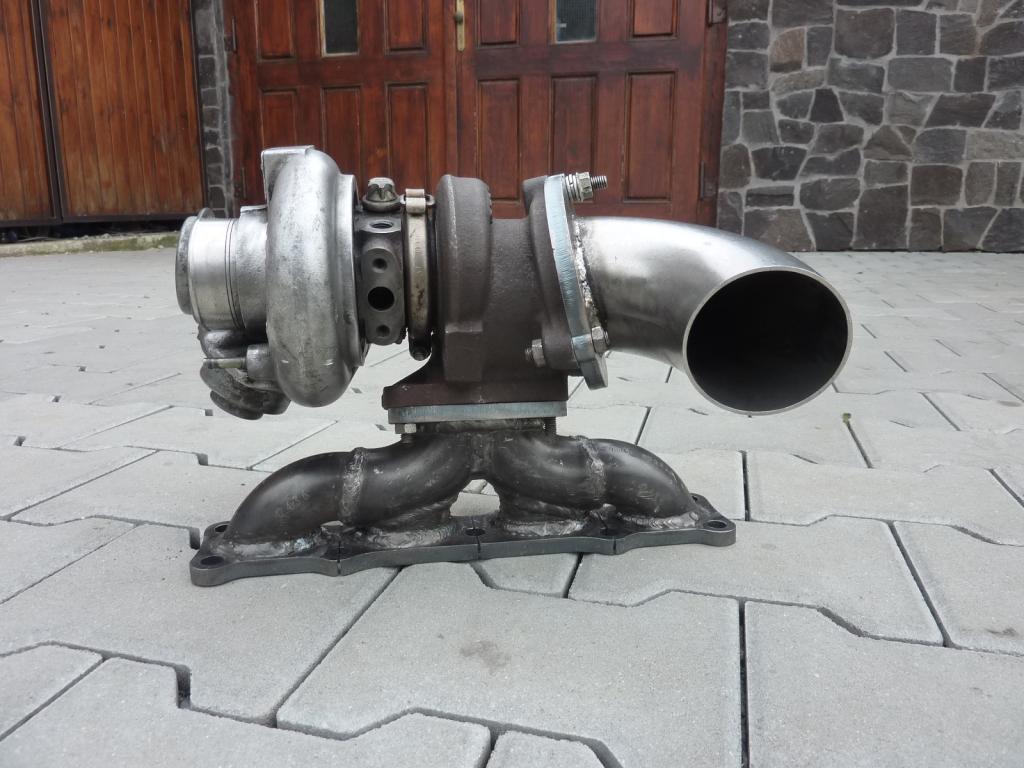

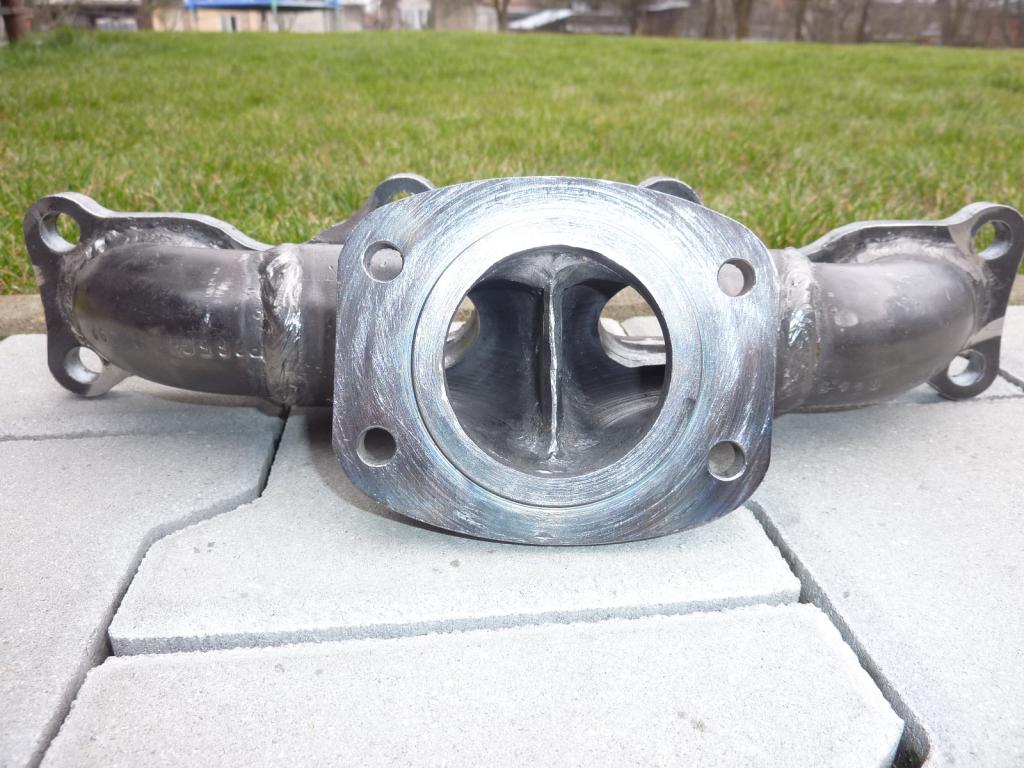

Recent stuff... a setup for a 1.6na based around a Volvo td04


with divided merge and male turbo flange

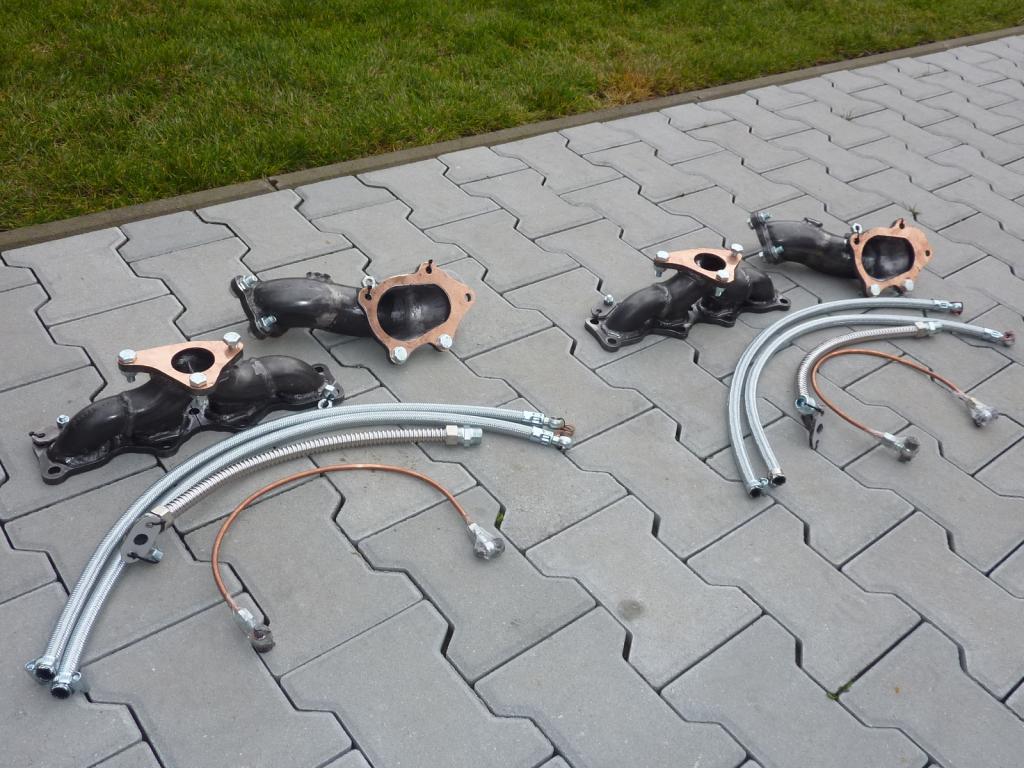

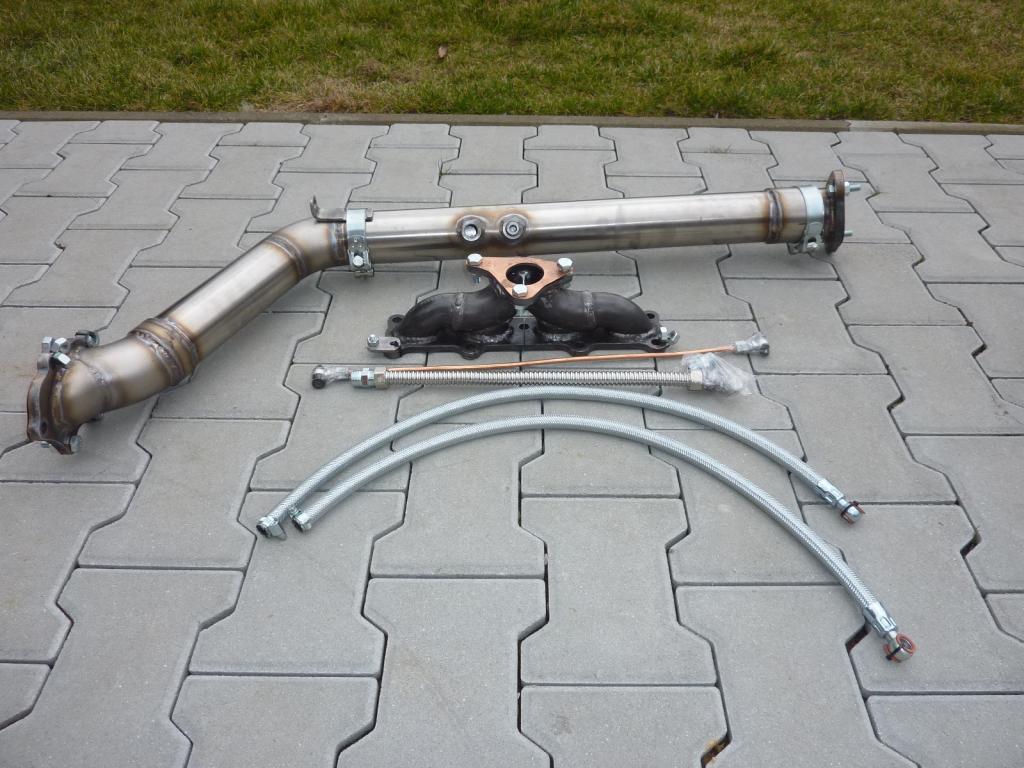

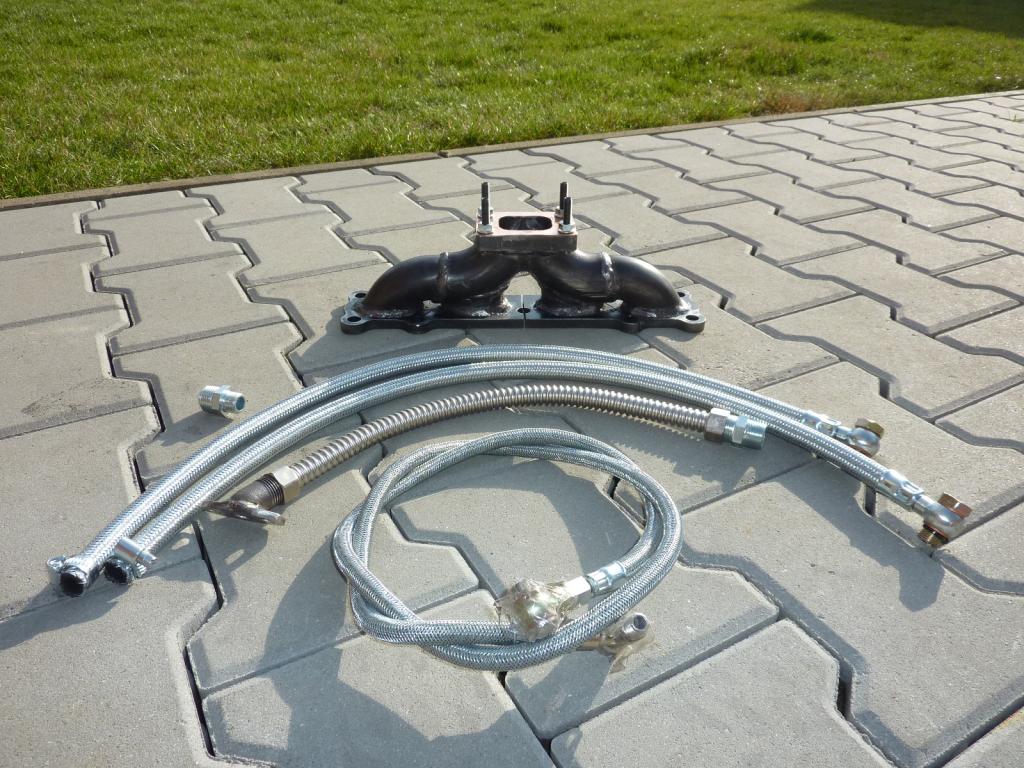

and a 1.8 set up for a Focus rs t25 turbo. (I started making braided oil feed lines.)


Flow should be decent


and a couple of my favorite 1.6na td04-13t setups
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050331_zpse10e4125.jpg   TD04/TD05 fitted in place of T25/T28-p1050343_zps363da1e0.jpg   TD04/TD05 fitted in place of T25/T28-p1050367_zpsa2940371.jpg   TD04/TD05 fitted in place of T25/T28-p1050371_zps9d96eb63.jpg   TD04/TD05 fitted in place of T25/T28-p1050303_zps2d25674e.jpg

sturovo is offline   Reply With Quote
Old 02-03-2014, 11:30 AM   #168
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Quote:
Originally Posted by sturovo View Post
Thank you Luke, I am glad you like it
I learned to make meaningless diagrams during 6 sigma training in the 90's and thankfully the skill has stuck.
(Or was that fish bone and not fish bowl?)

Efini~FC3S is offline   Reply With Quote
Old 02-03-2014, 01:51 PM   #169
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

I worked with a 6 Sigma "black belt" who couldn't find his own *** with both hands awhile back. He was great at painting lines of various colors on the parts department floor for no apparent reason. That guy was so useless.

But I love the fish bowl diagram.
sixshooter is offline   Reply With Quote
Old 02-03-2014, 01:53 PM   #170
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

lean > 6sigma
Leafy is offline   Reply With Quote
Old 02-05-2014, 06:32 PM   #171
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by sixshooter View Post
I worked with a 6 Sigma "black belt" who couldn't find his own *** with both hands awhile back. He was great at painting lines of various colors on the parts department floor for no apparent reason. That guy was so useless.
This^^^ although I cant say it was all bad as it made identifying nosers and tards pretty easy.

Quote:
Originally Posted by Leafy View Post
lean > 6sigma
Grasshopper awaits your wisdom. Leafy, teach me lean.

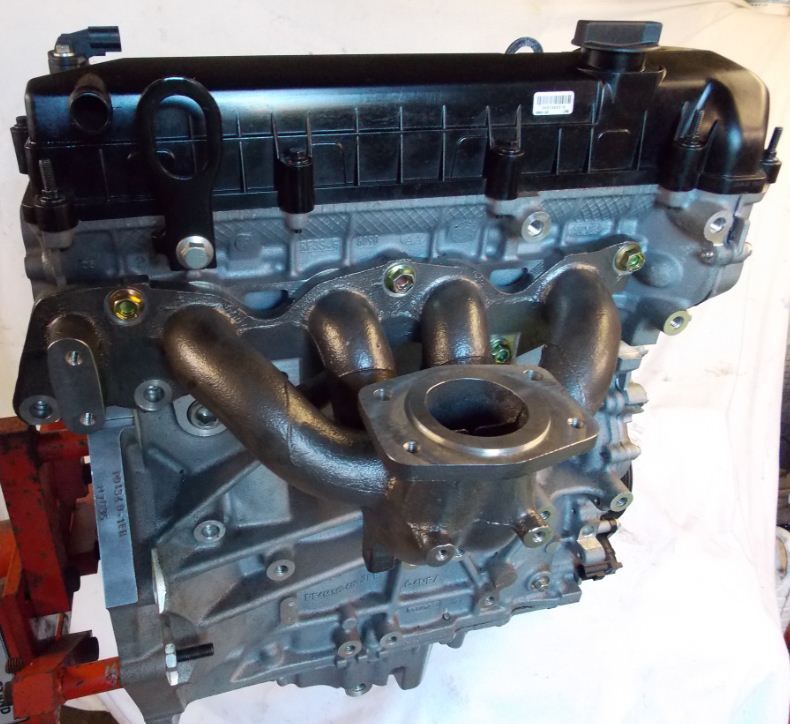

When making the Volvo turbo manifold I came across this, a duratec manifold supposedly made from cast steel. It looks well made.

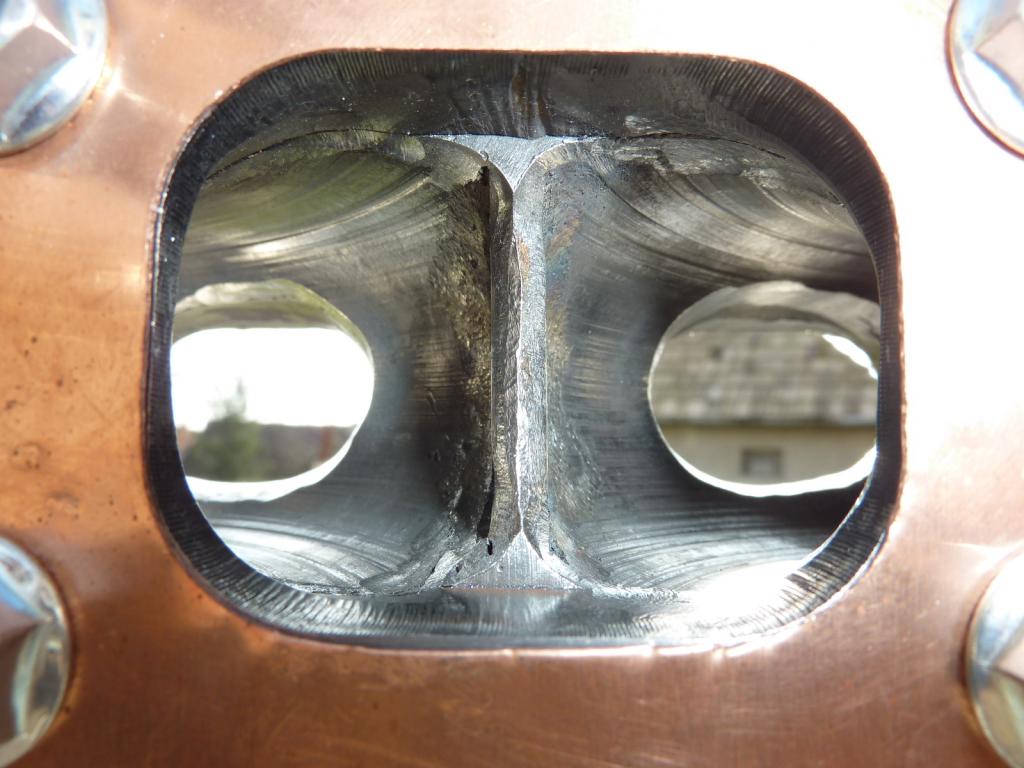

This should also fit the NC I guess. The downpipe would be tight but it looks like it could work as the Volvo turbo housing is shorter than most.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-_57_zps2cfda96a.jpg
sturovo is offline   Reply With Quote
Old 02-06-2014, 12:42 AM   #172
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

And a gearbox bolt clamp bracket


Great stuff.
Where/what do I search to find the gearbox bolt clamp bracket?
Thanks,
-Jeff
2manyhobyz is offline   Reply With Quote
Old 02-10-2014, 11:22 AM   #173
Newb

Join Date: Jun 2012
Posts: 25
Total Cats: 1
Default

Those kits are coming along very well. I will have to place my order for a 1.8 using a TD04 in the near future.
Jae_Rex is offline   Reply With Quote
Old 02-15-2014, 04:25 PM   #174
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 2manyhobyz View Post
Great stuff.
Where/what do I search to find the gearbox bolt clamp bracket?
Thanks,
-Jeff
Jeff, I use steel bar (25 x 5 mm) to make the bracket and the clamp is from an auto store.

Quote:
Originally Posted by Jae_Rex View Post
Those kits are coming along very well. I will have to place my order for a 1.8 using a TD04 in the near future.
Jae your plan sounds good! As long as it is a Td04 from a Subaru or Volvo it should be straight forward.

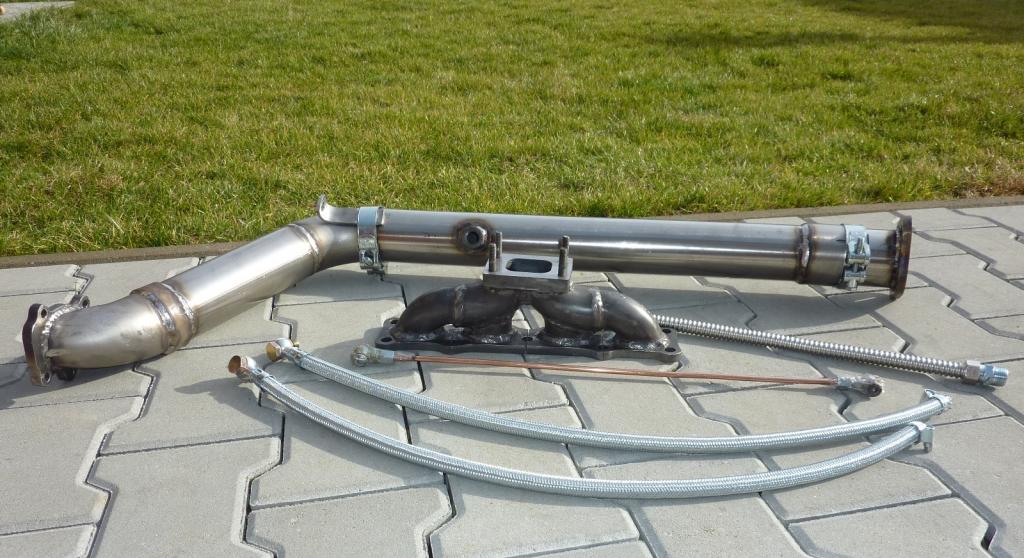

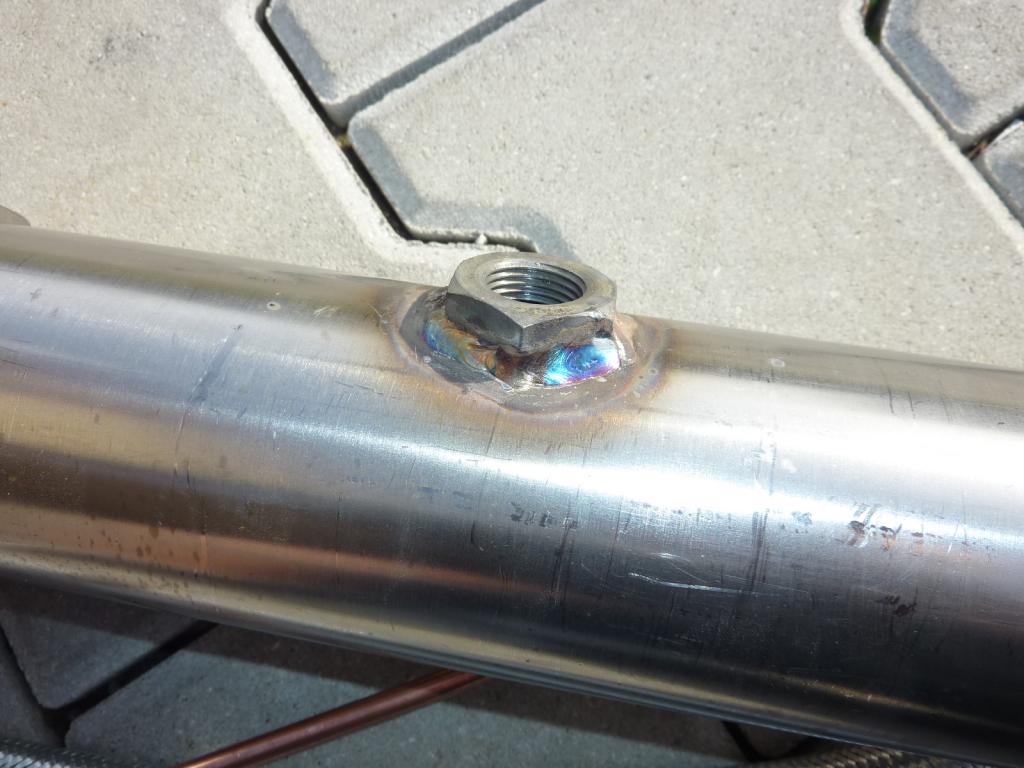

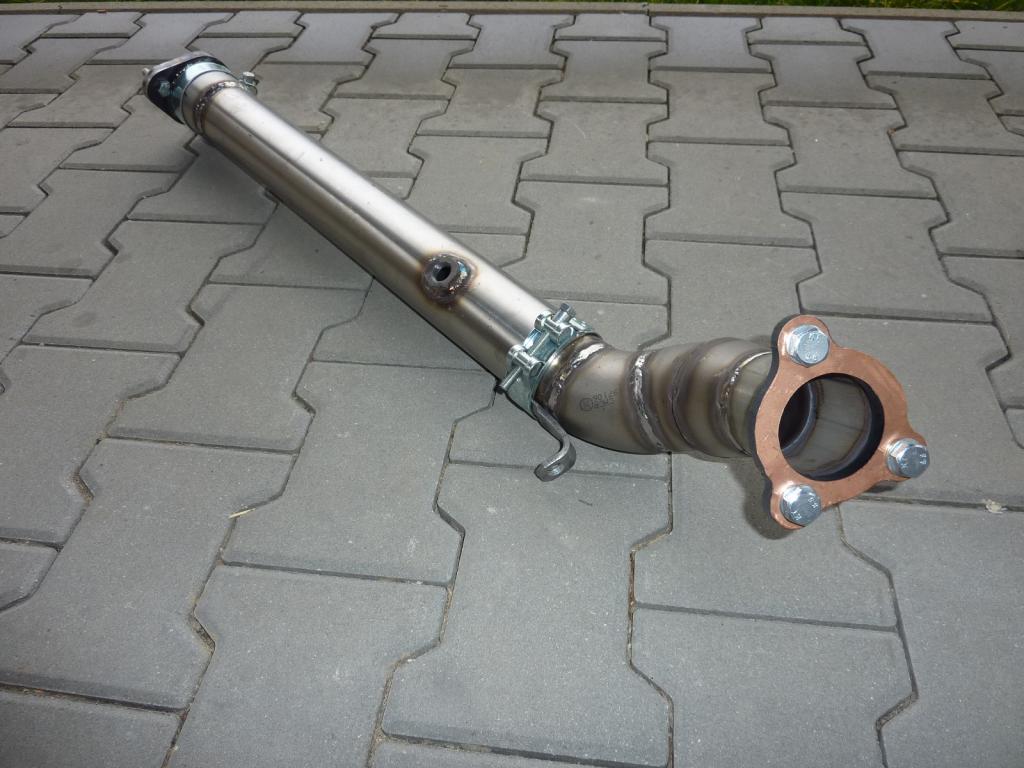

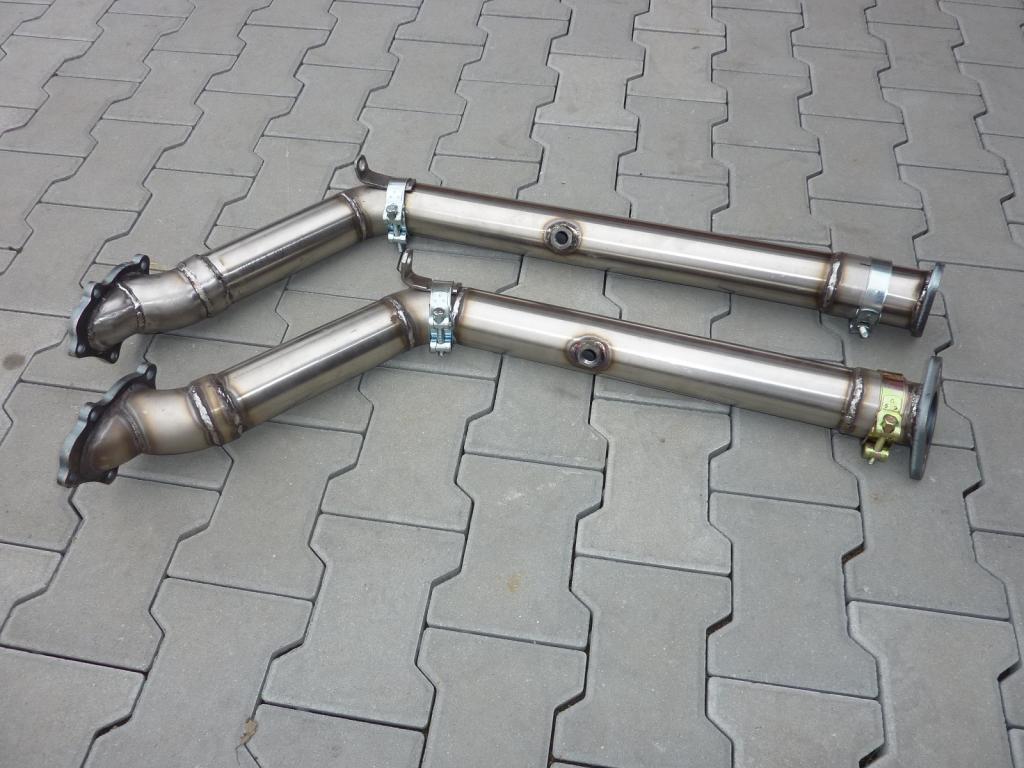

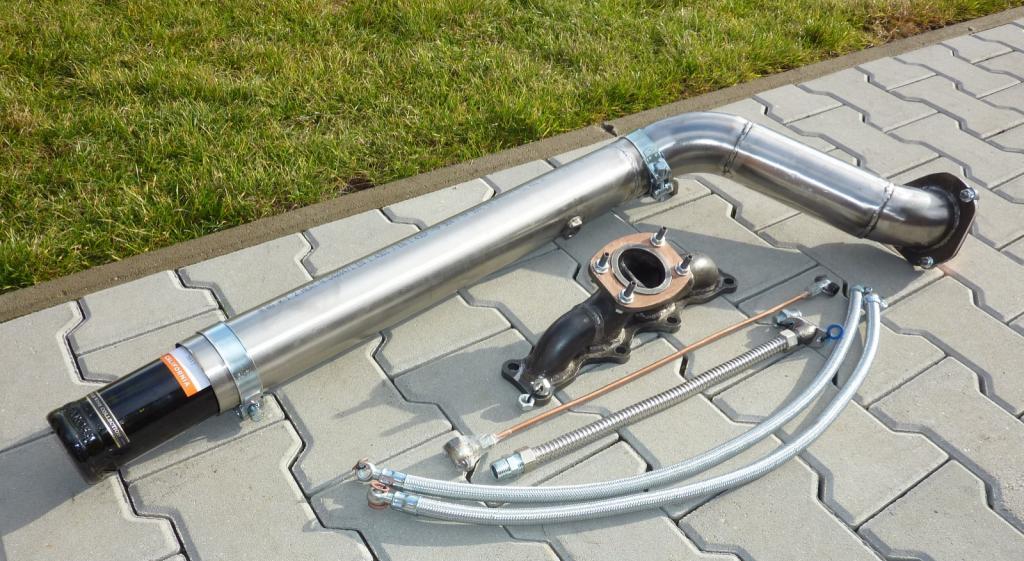

Meanwhile I made a Californian compliant 80mm downpipe
(I think 100 mm pipe can fit when using a kink in the middle, must try!)



A t25 set up for a 1.6 na

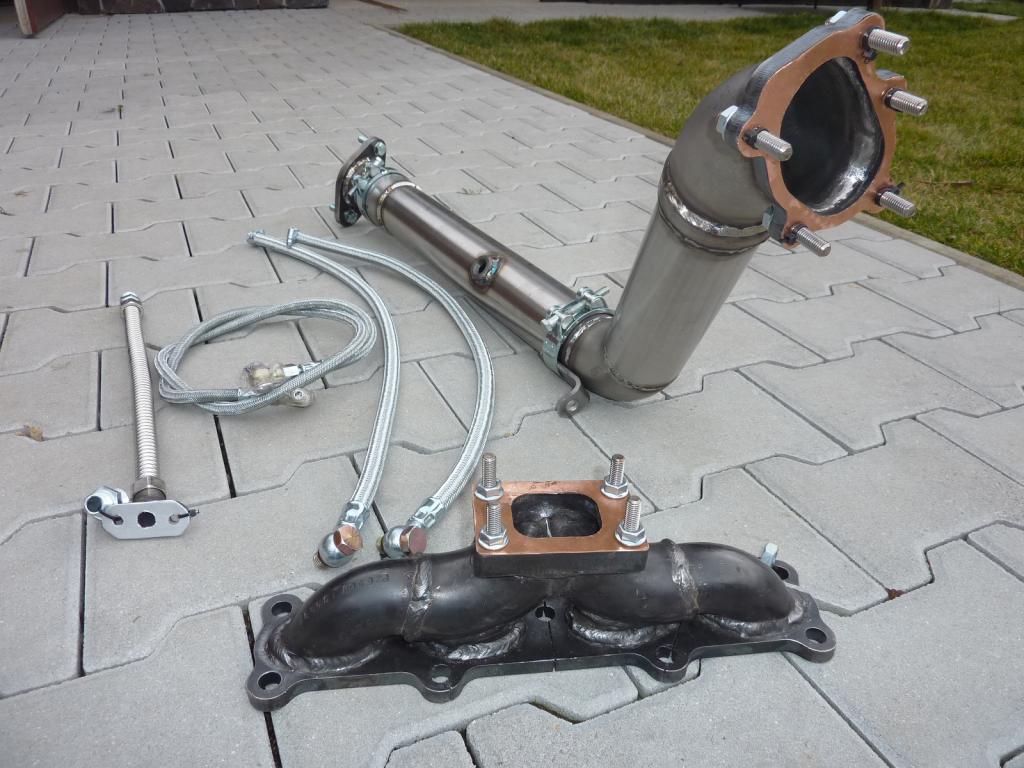

and a replacement 1.8 NA downpipe

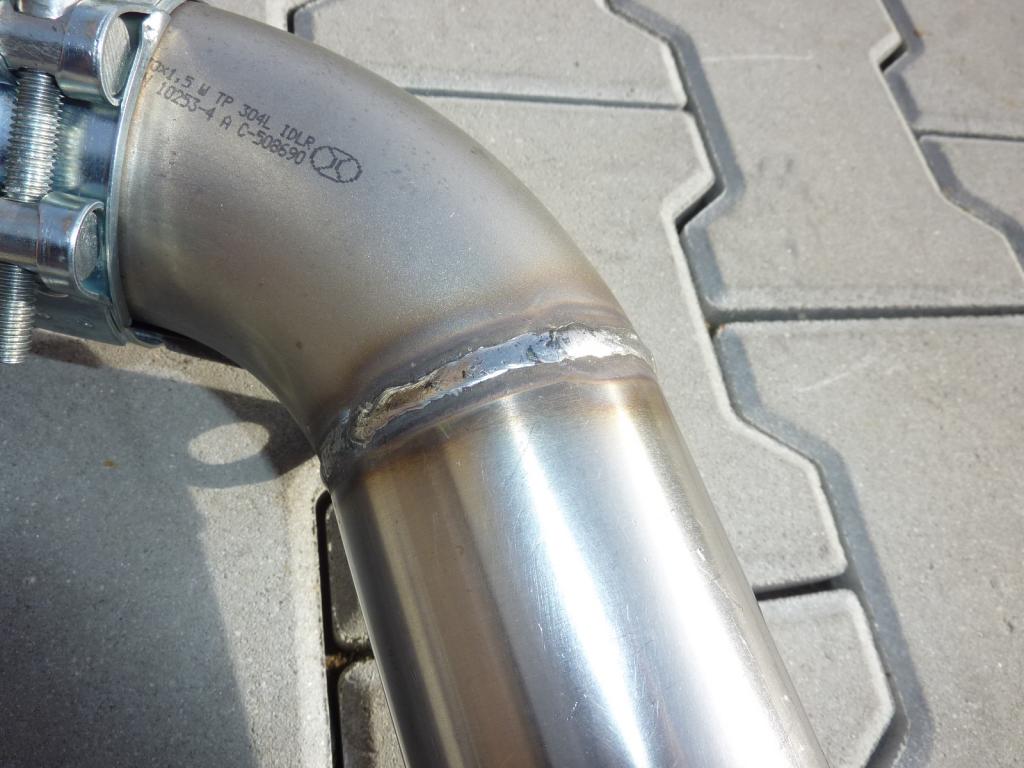

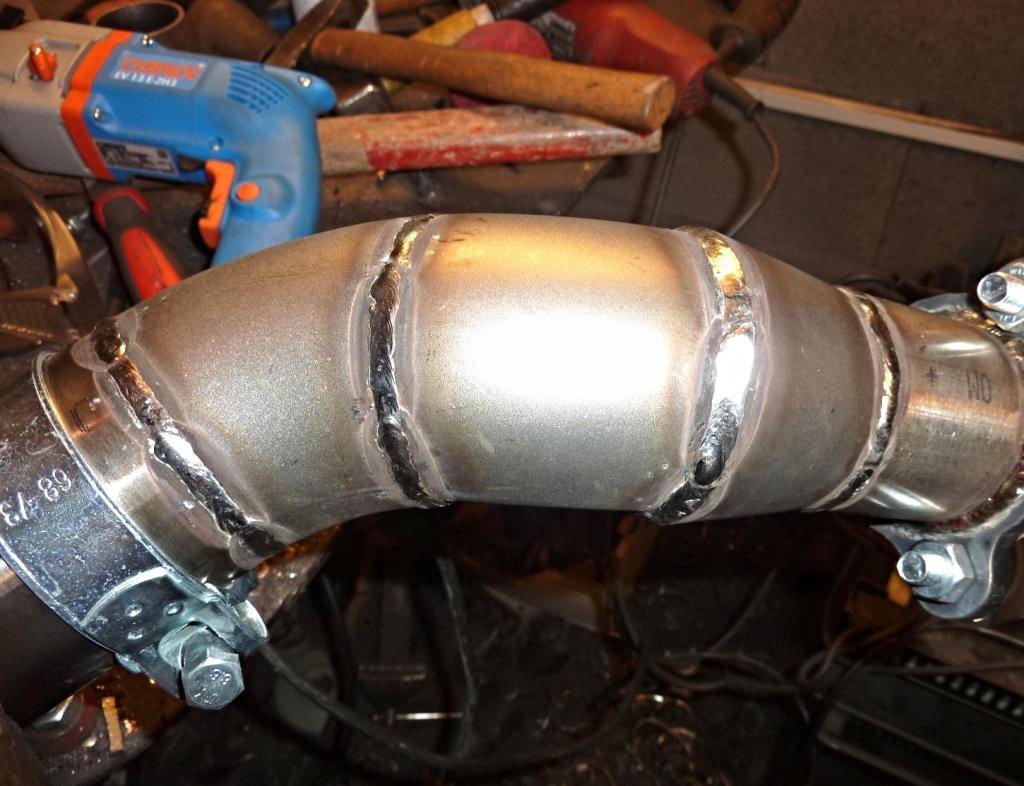

I came across some 1.6mm 309 electrodes that work well for exhaust pipes. 35 electrode positive amps and a steady hand give good results.
Decent penetration, no sugaring or splatter with self cleaning flux. Neat, strong 1 pass welds have never been this easy.





Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050440_zps5d42a8d7.jpg   TD04/TD05 fitted in place of T25/T28-p1050451_zps8c63f8a4.jpg   TD04/TD05 fitted in place of T25/T28-p1050395_zpsed8a1e76.jpg   TD04/TD05 fitted in place of T25/T28-682b8beb-fc57-4012-b191-eb44c5cdc4a6_zpsa0f6e6ac.jpg   TD04/TD05 fitted in place of T25/T28-p1050455_zps250ccaa7.jpg

TD04/TD05 fitted in place of T25/T28-p1050418_zps6fd2c9df.jpg   TD04/TD05 fitted in place of T25/T28-p1050456_zps44848b6e.jpg
sturovo is offline   Reply With Quote
Old 02-16-2014, 03:12 AM   #175
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

First of all, great work. I can definitely see your welding skills improve as you build more of these kits. (This is very much a compliment!)

A couple of questions... What material and what thickness are you using for the downpipes?
noname4me is offline   Reply With Quote
Old 02-17-2014, 12:44 AM   #176
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

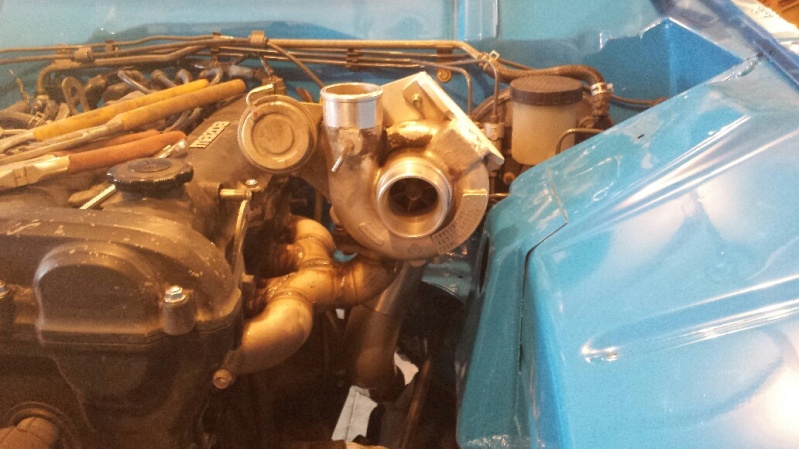

Thought I would post up my flowish log with an extra el to top mount my TD04.

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-20140216_171717_resized_zps29ee0f35.jpg
Stein is offline   Reply With Quote
Old 02-17-2014, 05:33 PM   #177
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by noname4me View Post
A couple of questions... What material and what thickness are you using for the downpipes?
Mike, I usually use 304L with a 1.5mm thick wall but this also depends on the local supplier to an extent. The 80mm downpipe has 1.2mm wall thickness although the bends are 1.5mm wall.

Quote:
Originally Posted by Stein View Post
Thought I would post up my flowish log with an extra el to top mount my TD04.

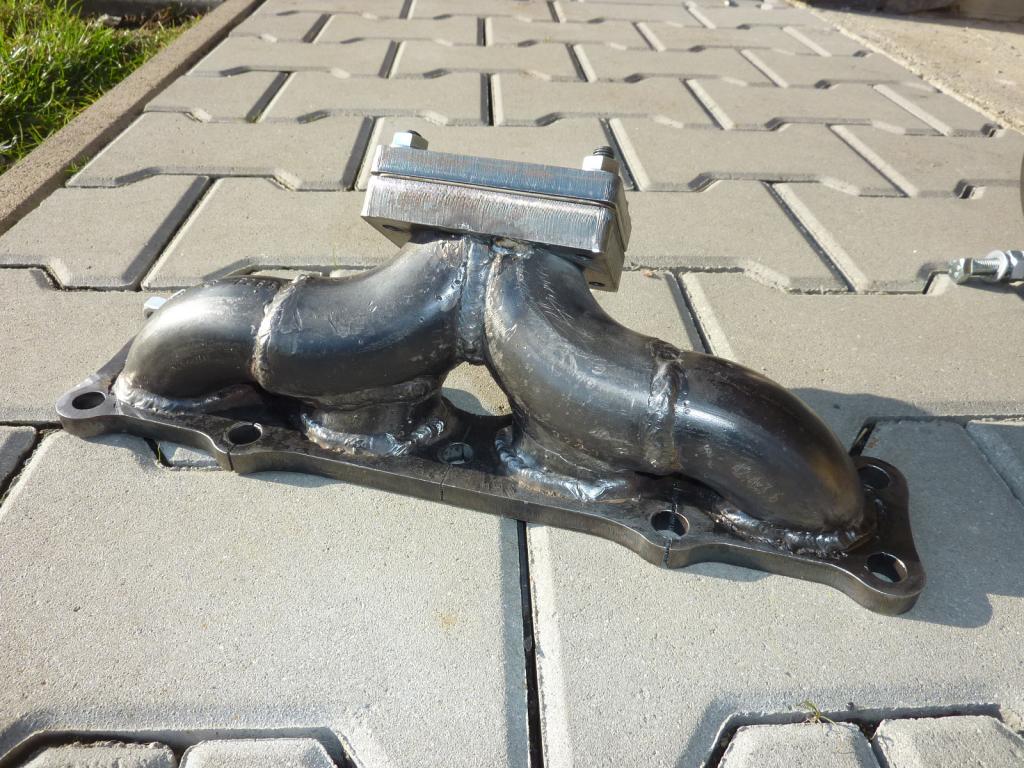

John, that looks great. Space pretty tight on your car compared to a MX5. I made a few manifolds with the flange at an angle where space was tight like this one.



but looking at how close your strut is to the engine probably this type would not fit either.
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050485_zps2904eda9.jpg
sturovo is offline   Reply With Quote
Old 03-03-2014, 03:26 PM   #178
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Recent stuff....

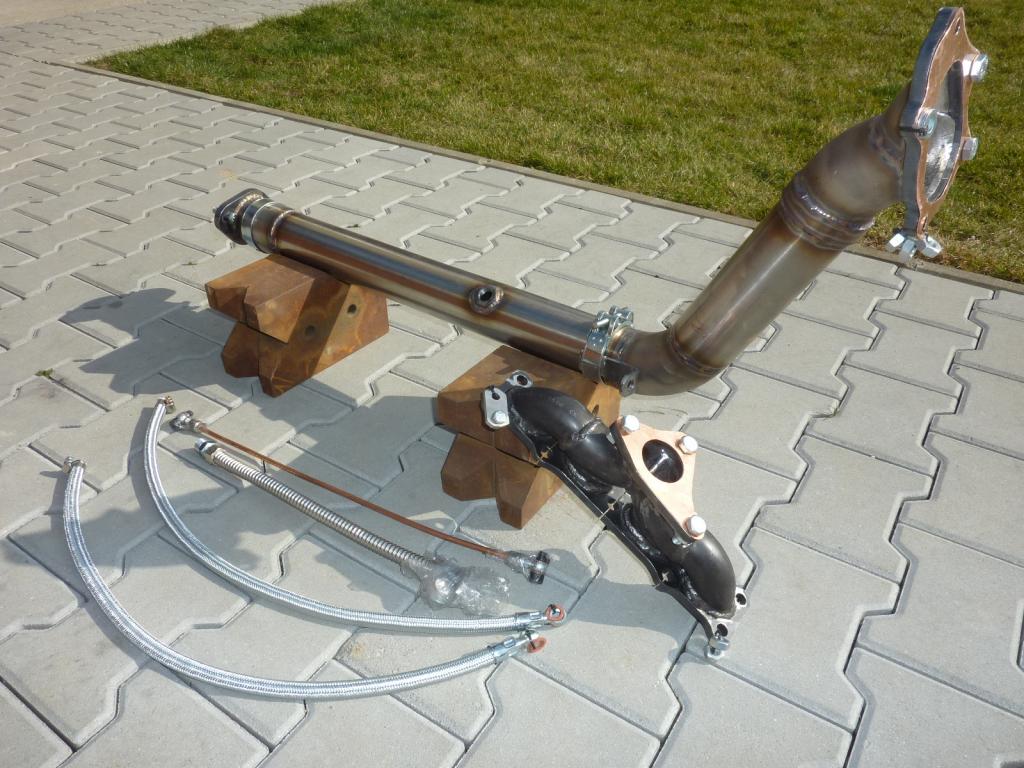

A td04 1.6 NA set up mounted on a v block pedestal for added drama.
(I will try with chicks next!)



A t28 1.8 NB kit with upgraded turbo studs


and a td04 1.8 NA kit with a couple of bungs
Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1050535_zps044577d0.jpg   TD04/TD05 fitted in place of T25/T28-p1050515_zpsade6d1cd.jpg   TD04/TD05 fitted in place of T25/T28-p1050547_zps63204b4c.jpg
sturovo is offline   Reply With Quote
Old 03-07-2014, 11:38 AM   #179
Junior Member

Join Date: Oct 2007
Location: Morro Bay, CA
Posts: 53
Total Cats: 0
Default

Holy ****! I never would have guessed this thread would have evolved to this after seeing the goods on page 1! You went from serious sketch to legit in just two years. Nice progression! Keep it up!
slomiata is offline   Reply With Quote
Old 03-14-2014, 08:20 PM   #180
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by slomiata View Post
Holy ****! I never would have guessed this thread would have evolved to this after seeing the goods on page 1! You went from serious sketch to legit in just two years. Nice progression! Keep it up!

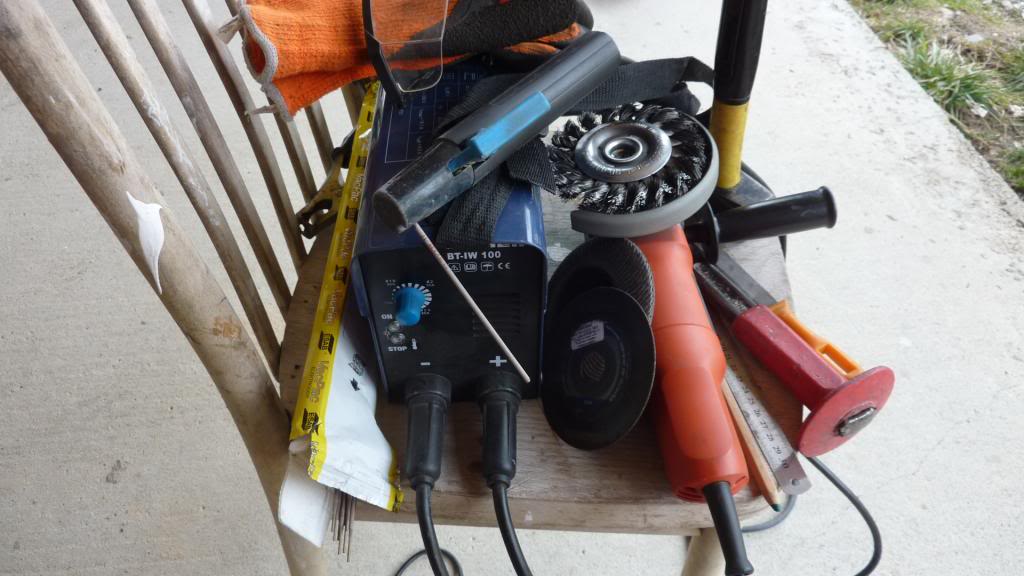

Ritchie, I guess it all went pear shaped after I got a present of a dc welder 12 months ago. Before then it was just for fun but when this beast arrived the gloves came off!

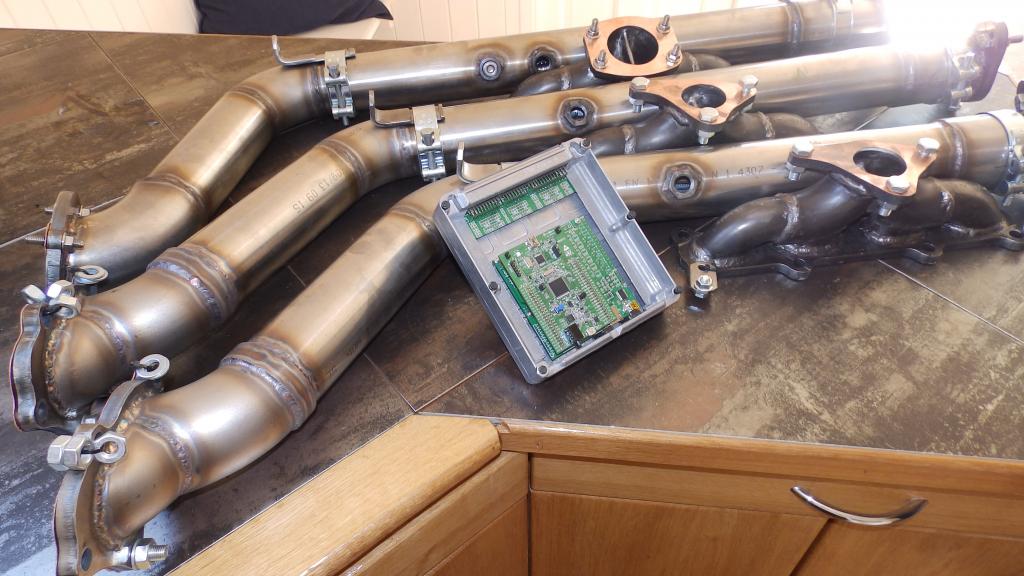

Since then I have made some other serious purchases and recently bought some flat files and a few drill bits.

The next hurdle in my quest to understand "what is miata?" is truly scary as it involves something I can neither see nor touch..... FIRMWARE

Attached Thumbnails
TD04/TD05 fitted in place of T25/T28-p1030279_zps914b29b2.jpg   TD04/TD05 fitted in place of T25/T28-p3140325_zpscfd6a84f.jpg
sturovo is offline   Reply With Quote
