Old 06-24-2014, 02:26 PM   #541
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Why not look for a way to run an electric power steering rack?
triple88a is offline   Reply With Quote
Old 06-24-2014, 02:52 PM   #542
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Maybe more cost, plus the oil pan solution is designed around the existing rack with NB geometry that does not have weird bumpsteer issues etc. Going with a new rack might entail sort of throwing away all that development which was one of the central achievments of the kit. Likely easier for everyone to simply have a different bracket than replace the rack.

I wonder though if there is a cheap, readily available semi-universal electric rack solution out there. You have to think that a company that can put out a steering rack kit with some customizability, low space requirements, and a reasonable (whatever that means) price could clean up in certain markets, particularly swaps and kit cars.
Sparetire is offline   Reply With Quote
Old 06-24-2014, 02:53 PM   #543
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Sparetire View Post
Maybe more cost, plus the oil pan solution is designed around the existing rack with NB geometry that does not have weird bumpsteer issues etc. Going with a new rack might entail sort of throwing away all that development which was one of the central achievments of the kit. Likely easier for everyone to simply have a different bracket than replace the rack.

I wonder though if there is a cheap, readily available semi-universal electric rack solution out there. You have to think that a company that can put out a steering rack kit with some customizability, low space requirements, and a reasonable (whatever that means) price could clean up in certain markets, particularly swaps and kit cars.
The electric pump in the trunk wasnt all that hard.
Leafy is offline   Reply With Quote
Old 06-24-2014, 03:12 PM   #544
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Leafy View Post
The electric pump in the trunk wasnt all that hard.
thread?
TurboTim is offline   Reply With Quote
Old 06-24-2014, 03:27 PM   #545
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Its in my build thread. I think someone blogged about a different pump too. I can make a write up once I get 100% of the kinks worked out. My setup is like $300 cheaper than a street setup would be, because I didnt care about varying the steering effort I just run ALLOFIT pump pressure. The more expensive MR-S pump can easily be setup to vary pressure by wheel speed.
Leafy is offline   Reply With Quote
Old 06-25-2014, 12:37 AM   #546
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Quote:
Originally Posted by Leafy View Post
The electric pump in the trunk wasnt all that hard.
Well no, this would work too but i'm talking about completely electric steering rack with no hydraulic fluid.
triple88a is offline   Reply With Quote
Old 06-25-2014, 12:40 AM   #547
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
Well no, this would work too but i'm talking about completely electric steering rack with no hydraulic fluid.
Good luck finding an electric rack that has the correct length for non fucked up bump steer, has the pinion in more or less the correct spot, and doesnt require a PHD in EE to wire.
Leafy is offline   Reply With Quote
Old 06-25-2014, 12:51 AM   #548
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Saturn Vue ion Chevrolet Equinox

+

Steering rack. PS for about 100-150 bucks.
triple88a is offline   Reply With Quote
Old 06-25-2014, 12:59 AM   #549
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
Saturn Vue ion Chevrolet Equinox

+

Steering rack. PS for about 100-150 bucks.
That goes to a motor on the steering column, so you would still want to run a manual or depowered maita rack.
Leafy is offline   Reply With Quote
Old 06-25-2014, 01:06 AM   #550
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

That is the simpler way however if u pull the motor a full electric rack is also a good possibility.

Forgot which hondas had the EPS racks.
triple88a is offline   Reply With Quote
Old 06-25-2014, 08:20 AM   #551
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
That is the simpler way however if u pull the motor a full electric rack is also a good possibility.

Forgot which hondas had the EPS racks.
You're never going to get the inner tie rod position correct. Its just not going to happen. And IIRC the hondas are rear steer so the pinion is on the wrong side.
Leafy is offline   Reply With Quote
Old 06-26-2014, 08:46 PM   #552
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by Leafy View Post
You're never going to get the inner tie rod position correct. Its just not going to happen. And IIRC the hondas are rear steer so the pinion is on the wrong side.
yeah I'm sure there are 100 ways to do the steering. Everyone will have their own idea, but we are trying to use as many OEM parts as possible, and keep the swap as simple and straight forward as possible. I may be biased, but I think we nailed it with the custom pan and oil pump.

Power steering is one of the last things on my list. The car is so easy to drive without it. A/C is a much greater priority for customers. Plus the front of the car is even lighter than stock now. I daily the test car all the time, no complaints.
KMiata is offline   Reply With Quote
Old 06-26-2014, 10:27 PM   #553
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

Enough talk about power steering, grow some muscles. Where is this new prototype header you speak of ??
ctdrftna is offline   Reply With Quote
Old 06-26-2014, 11:12 PM   #554
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Anybody know the thread and size for the steering depower screws?

I want to use some barbs or something. I dont want to hack off the metal lines.
triple88a is offline   Reply With Quote
Old 06-26-2014, 11:49 PM   #555
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
Anybody know the thread and size for the steering depower screws?

I want to use some barbs or something. I dont want to hack off the metal lines.
The LP side is M16x1.5 inverted flare, the pressure side is M14x1.5 banjo, at least on the NB power rack. The sizes might be flipped I forget, but LP is definitively inverted flare and pressure is banjo.
Leafy is offline   Reply With Quote
Old 06-26-2014, 11:53 PM   #556
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by ctdrftna View Post
Enough talk about power steering, grow some muscles. Where is this new prototype header you speak of ??
Yeah I was thinking of offering a P/S kit on the website. It would only include two 15 pound weights.

I'll have some pics of the second header. I'll tell you this much- First header is a good all around 4-2-1 header that you can run with 2.5" exhaust if you want to. Next header is a ballin' big tube header, 4-1, and 3" exhaust only. Made in the USA.
KMiata is offline   Reply With Quote
Old 06-27-2014, 12:02 AM   #557
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by ctdrftna View Post
Enough talk about power steering, grow some muscles.
Come do a run in my car. I'll turn the power steering off for you.
Leafy is offline   Reply With Quote
Old 06-29-2014, 06:24 PM   #558
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

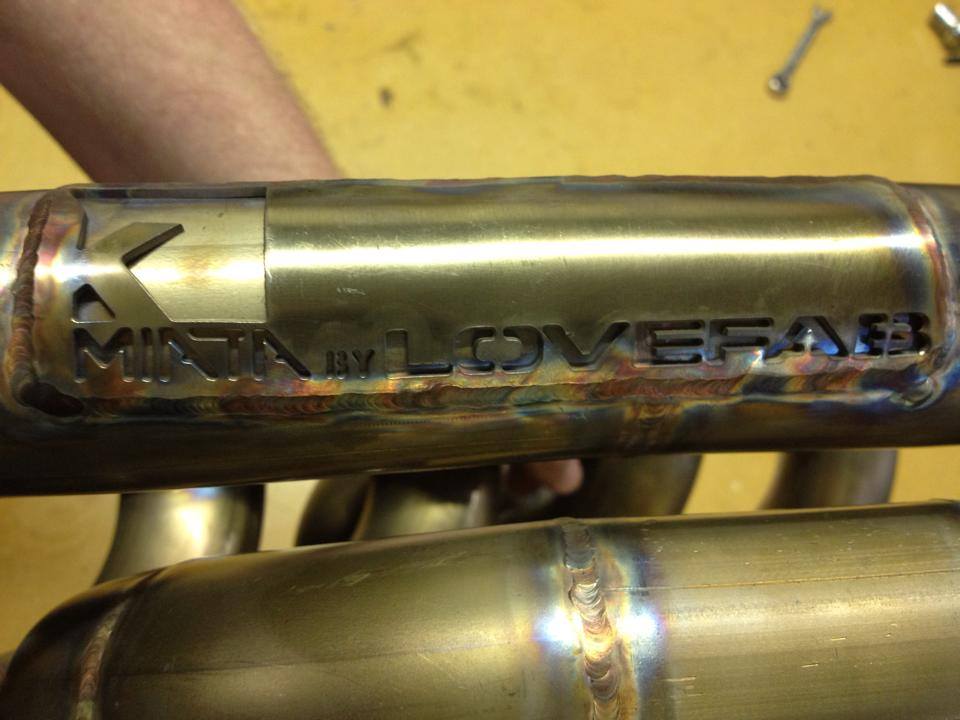

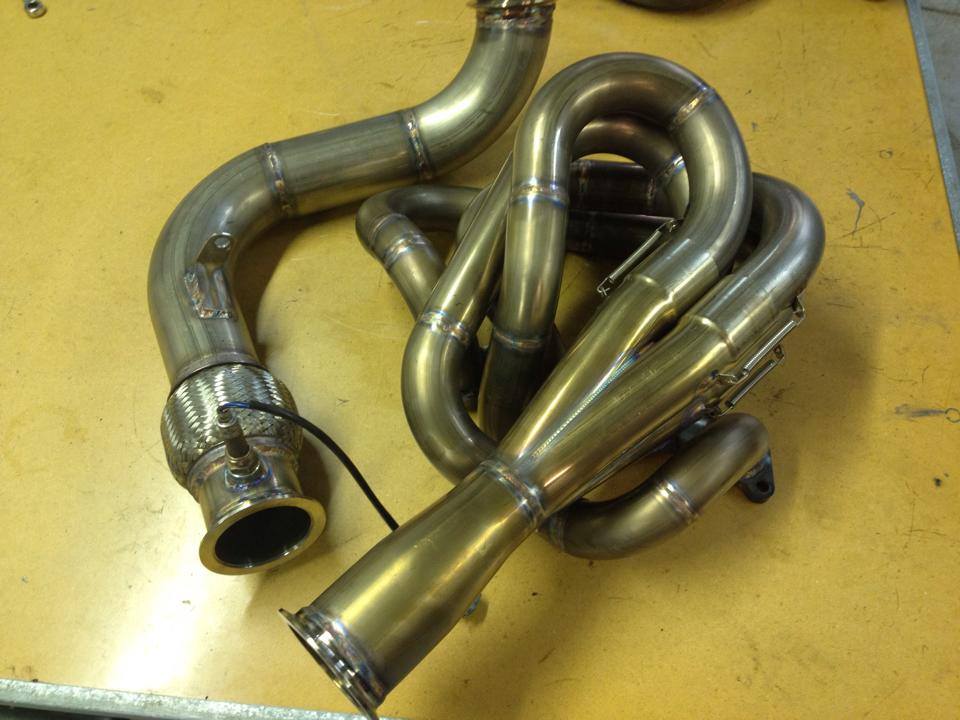

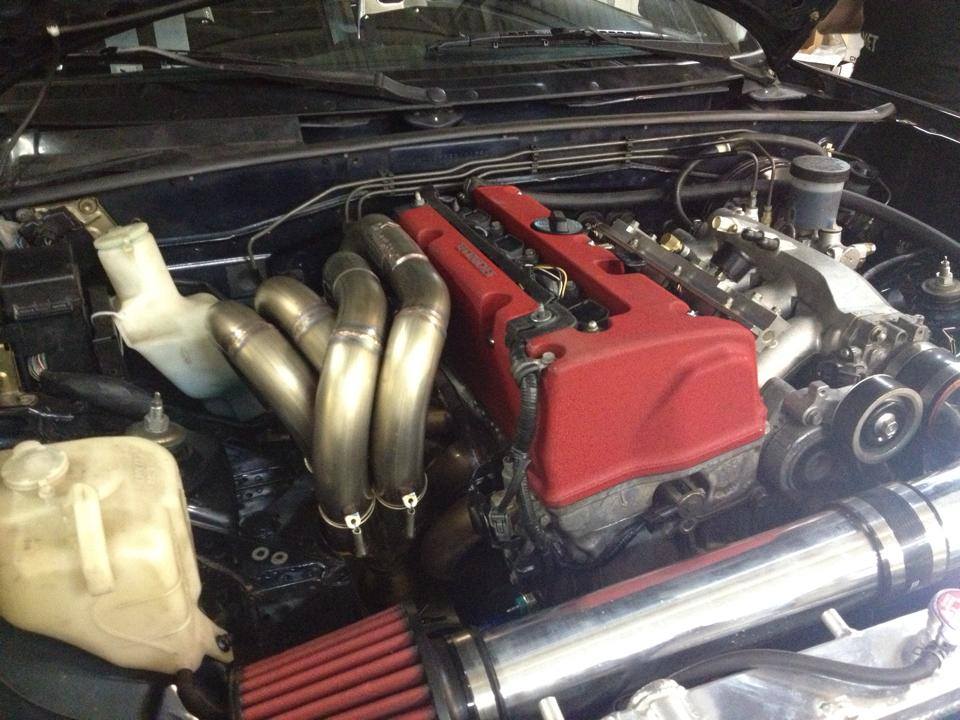

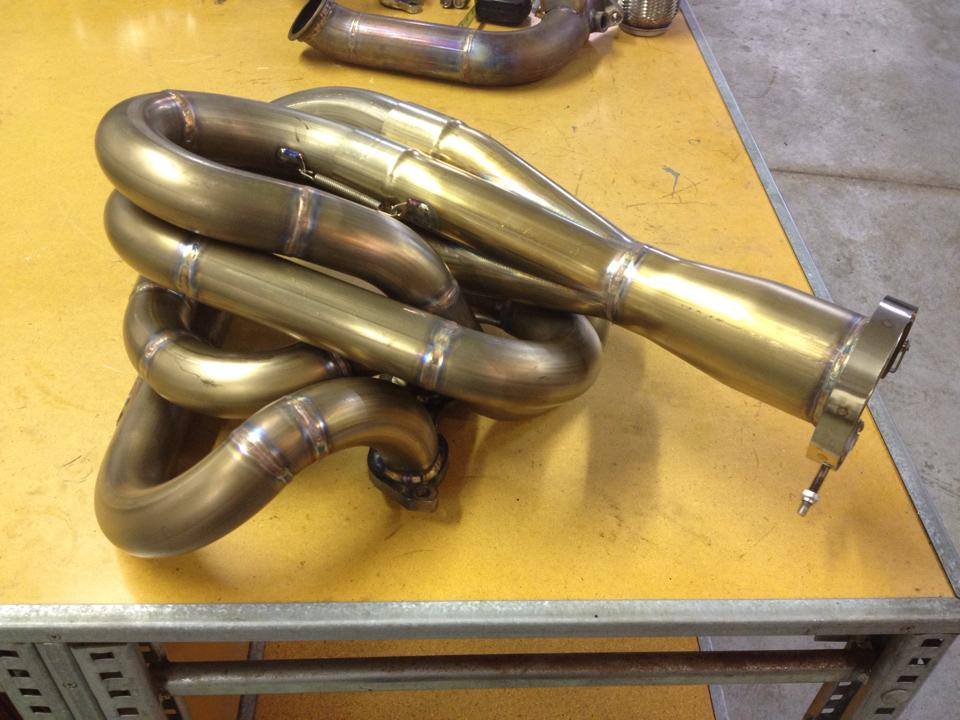

These were posted on Facebook not to long ago, I really like what I'm seeing. They said it picked up 6 whp and 12 ftlbs over the last header
Attached Thumbnails
K series Miata swap-miata-header-1.jpg   K series Miata swap-miata-header-2.jpg   K series Miata swap-miata-header-3-.jpg   K series Miata swap-miata-header-4.jpg
ctdrftna is offline   Reply With Quote
Old 06-29-2014, 08:45 PM   #559
Senior Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Goodbye miata window washer bottle. The factory wiring harness will also need to be shielded from radiant heat from the header.
99mx5 is online now   Reply With Quote
Old 06-29-2014, 09:32 PM   #560
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

I don't think wiring will be a issue, but this will fix washer bottle
https://flyinmiata.com/index.php?dep...umber=02-50020
ctdrftna is offline   Reply With Quote
