Old 11-21-2014, 11:32 AM   #701
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Quote:
Originally Posted by AndyHollis View Post
I strongly suggest you do NOT go 88mm bore on stock sleeves. Here's what happens when you track that for six months:
Was this the cause of your engine troubles during the most recent one lap or is this from an earlier engine?

Last edited by asmasm; 11-21-2014 at 12:28 PM.
asmasm is offline   Reply With Quote
Old 11-21-2014, 12:43 PM   #702
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Quote:
Originally Posted by asmasm View Post
Was this the cause of your engine troubles during the most recent one lap or is this from an earlier engine?
Yes, that was the One Lap 2014 motor.

It was already sick (down on compression 8% in one cylinder) prior to the event. Just got worse and worse during. Massive blowby, too. Post event compression test showed down 25% in that cylinder and down 10% in adjacent one.

We had originally planned to run a different motor (fresh pro built shortblock) but that one had an oil leak which we did not have time to fix (turned out to be through the girdle)
AndyHollis is offline   Reply With Quote
Old 11-21-2014, 02:13 PM   #703
Newb

Join Date: Oct 2014
Posts: 20
Total Cats: -17
Default

this is awesome
Bobbygmf is offline   Reply With Quote
Old 11-22-2014, 08:08 AM   #704
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 1,010
Total Cats: 8
Default

Subscribed for updates... Was considering an ls swap but I'm on the fence now. Too bad I sold the k20/24 hybrid sitting in my shed a year ago :(
airbrush1 is offline   Reply With Quote
Old 11-23-2014, 10:54 AM   #705
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Andy, you should do a dedicated build thread for your car.
hornetball is offline   Reply With Quote
Old 12-12-2014, 05:26 PM   #706
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Just had a thought, why not use the 1.6 miata flywheel and clutch design for this? It would WAY simply the flywheel that you guys have to have custom made. Even a stock k24 is going to be a lot of engine for the stock 1.8 clutch to handle so you're already into having to use aftermarket clutches. Might as well save weight and MOI by using the 1.6 stuff and make the flywheel easier to boot.
Leafy is offline   Reply With Quote
Old 12-12-2014, 07:15 PM   #707
Junior Member

Join Date: Nov 2010
Location: Chicagoland
Posts: 160
Total Cats: 2
Default

Quote:
Originally Posted by Leafy View Post
Just had a thought, why not use the 1.6 miata flywheel and clutch design for this? It would WAY simply the flywheel that you guys have to have custom made. Even a stock k24 is going to be a lot of engine for the stock 1.8 clutch to handle so you're already into having to use aftermarket clutches. Might as well save weight and MOI by using the 1.6 stuff and make the flywheel easier to boot.
It's spelled weigh. And more surface area makes a huge difference not having to put a stupid heavy pressure plate on a miata.
natedawg is offline   Reply With Quote
Old 12-12-2014, 08:29 PM   #708
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by Leafy View Post
Just had a thought, why not use the 1.6 miata flywheel and clutch design for this? It would WAY simply the flywheel that you guys have to have custom made. Even a stock k24 is going to be a lot of engine for the stock 1.8 clutch to handle so you're already into having to use aftermarket clutches. Might as well save weight and MOI by using the 1.6 stuff and make the flywheel easier to boot.
Good question, and one we considered. We decided to stick with the 1.8L setup for a few reasons:

1) Believe it or not, manufacturing cost was identical between the 1.6 and 1.8 style, due to the size of the piece of aluminum used to make the flywheel.

2) We recommend using a full 1.8 drivetrain to handle the additional torque of the K series, and most customers are using 1.8 cars anyway. Many already own an aftermarket 1.8 clutch so this helps keep their cost down.

3) we like the clutch options for the 1.8L better. Take the Exedy stage 2 clutch for example, which is perfect for a K24. the 1.6 stage 2 is only rated for 152wtq, but the 1.8 is good for 208wtq - perfect for NA K setups.
KMiata is offline   Reply With Quote
Old 12-12-2014, 08:32 PM   #709
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

I've been looking for some build threads on these but haven't turned up much. I sure hope they start popping up soon so I can get reading and learning!
turbofan is offline   Reply With Quote
Old 12-12-2014, 10:18 PM   #710
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by natedawg View Post
It's spelled weigh. And more surface area makes a huge difference not having to put a stupid heavy pressure plate on a miata.
weigh simplify the flywheel doesnt make any sense.

The racers who arent running twin disks or anything else with a non-standard flywheel seem to favor the 1.6 flywheel even if they're making big boy horsepower like bundy. Getting a heavier pressure plate is a good thing on the miata, the stock plate is just way too soft of a pedal. Even my 300ftlb rated clutch has a lighter pedal than I would prefer in a racecar its nice on the street though.
Leafy is offline   Reply With Quote
Old 12-13-2014, 06:28 AM   #711
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

That heavy pressure plate isn't nice on the thrust bearings though.

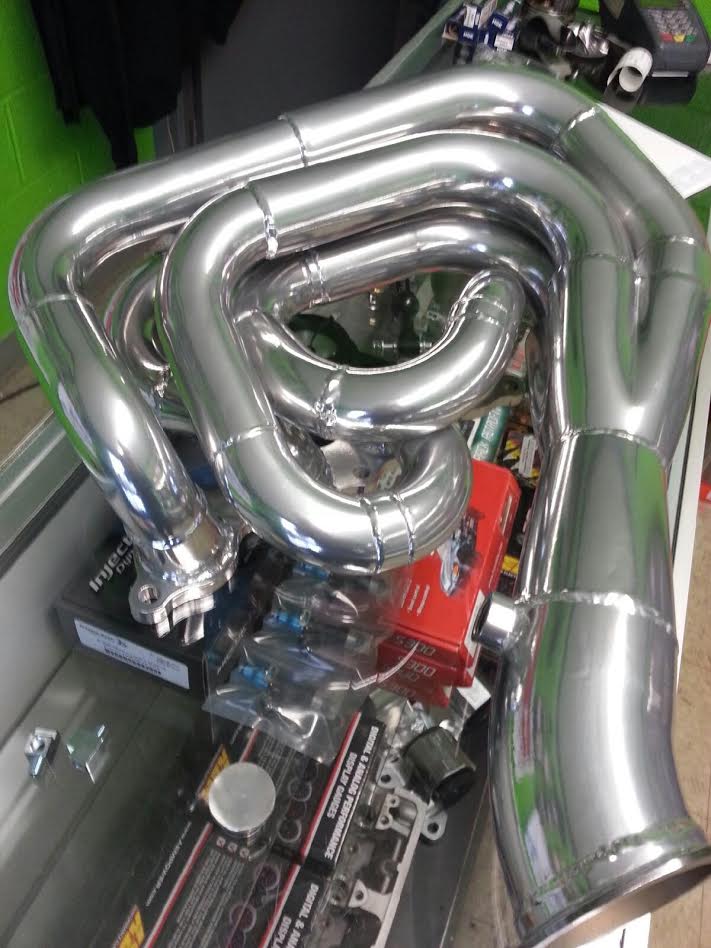

Oh and I got a picture from Kmiata of this,
Attached Thumbnails
K series Miata swap-unnamed.jpg
ctdrftna is online now   Reply With Quote
Old 12-13-2014, 12:02 PM   #712
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by turbofan View Post
I've been looking for some build threads on these but haven't turned up much. I sure hope they start popping up soon so I can get reading and learning!
Shut up and buy one so I can build it.
curly is offline   Reply With Quote
Old 12-13-2014, 02:48 PM   #713
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

That header is a circus and a masterpiece at the same time.
Anybody wanna buy a K24 off me? I can't get away from a 1.8BP. I have wayyy too much BP stuff sitting around.
thirdgen is offline   Reply With Quote
Old 12-13-2014, 03:00 PM   #714
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Quote:
Originally Posted by curly View Post
Shut up and buy one so I can build it.
Quote:
Originally Posted by thirdgen View Post
That header is a circus and a masterpiece at the same time.
Anybody wanna buy a K24 off me? I can't get away from a 1.8BP. I have wayyy too much BP stuff sitting around.
turbofan is offline   Reply With Quote
Old 12-13-2014, 03:16 PM   #715
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Quote:
Originally Posted by hornetball View Post
Andy, you should do a dedicated build thread for your car.
Quote:
Originally Posted by turbofan View Post
I've been looking for some build threads on these but haven't turned up much. I sure hope they start popping up soon so I can get reading and learning!
As I mentioned in my first post: www.OneLapMiata.com it's a Facebook page but you don't have to sign in to view. Follow along.

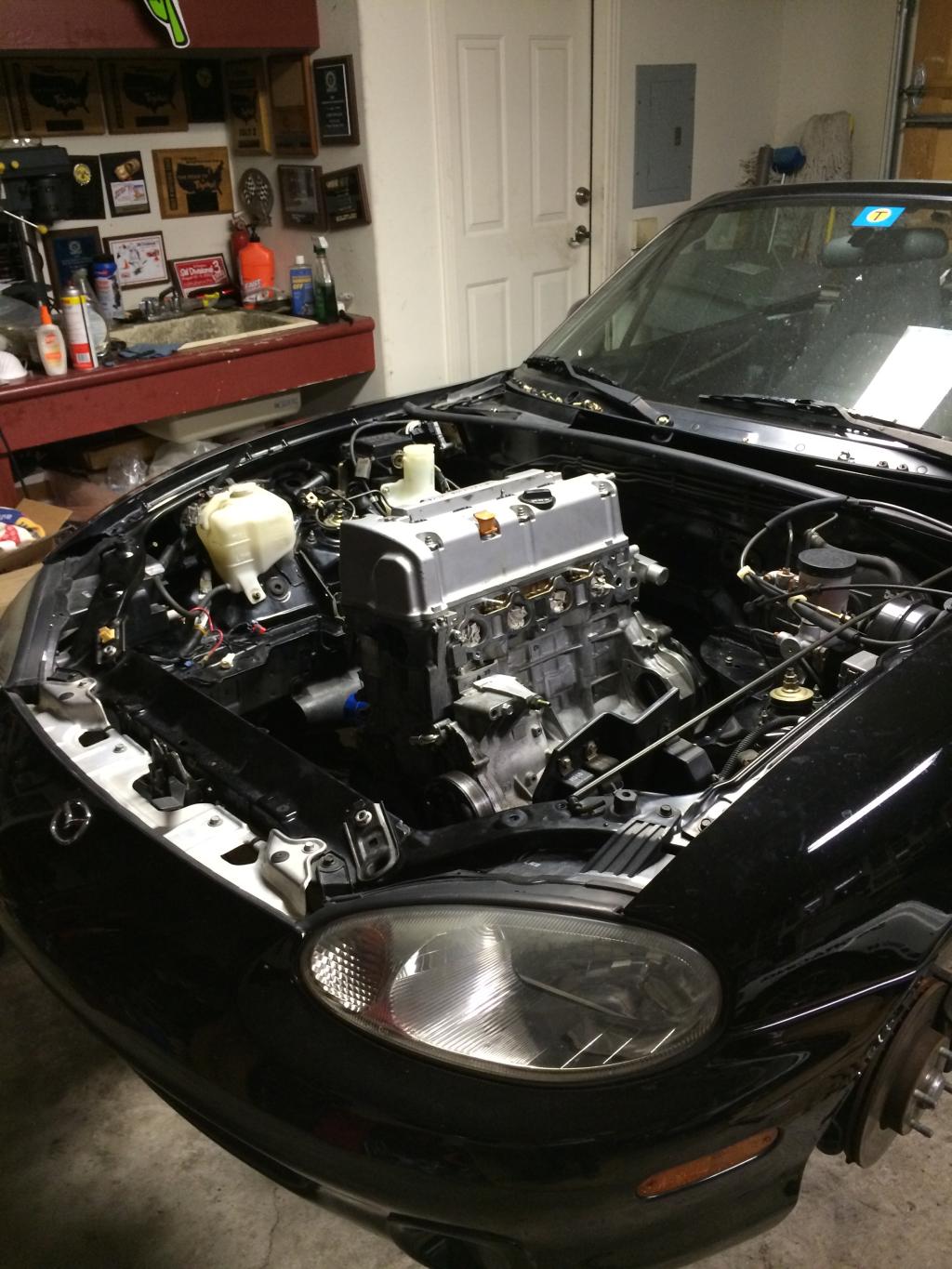

Here's a teaser: Name:  5CF75143-59D3-4314-BC07-D8823C10A615_zpshrcwwkma.jpg
Views: 26
Size:  172.0 KB
AndyHollis is offline   Reply With Quote
Old 12-13-2014, 03:19 PM   #716
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

It looks like a Suzuki cappuccino 3 cylinder in there, compared to a BP with all the crap on it.
thirdgen is offline   Reply With Quote
Old 12-13-2014, 03:23 PM   #717
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Quote:
Originally Posted by thirdgen View Post
It looks like a Suzuki cappuccino 3 cylinder in there, compared to a BP with all the crap on it.
Intake manifold will fill the void...at least the one's I'm looking at.

Custom plenum style by either Hayward or Xcessive...or ITBs with custom airbox.
AndyHollis is offline   Reply With Quote
Old 12-13-2014, 04:05 PM   #718
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Itbs with k&n sprint car airbox is the route I will be taking mine.

60mm kinsler's with 12" runners
ctdrftna is online now   Reply With Quote
Old 12-13-2014, 04:47 PM   #719
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

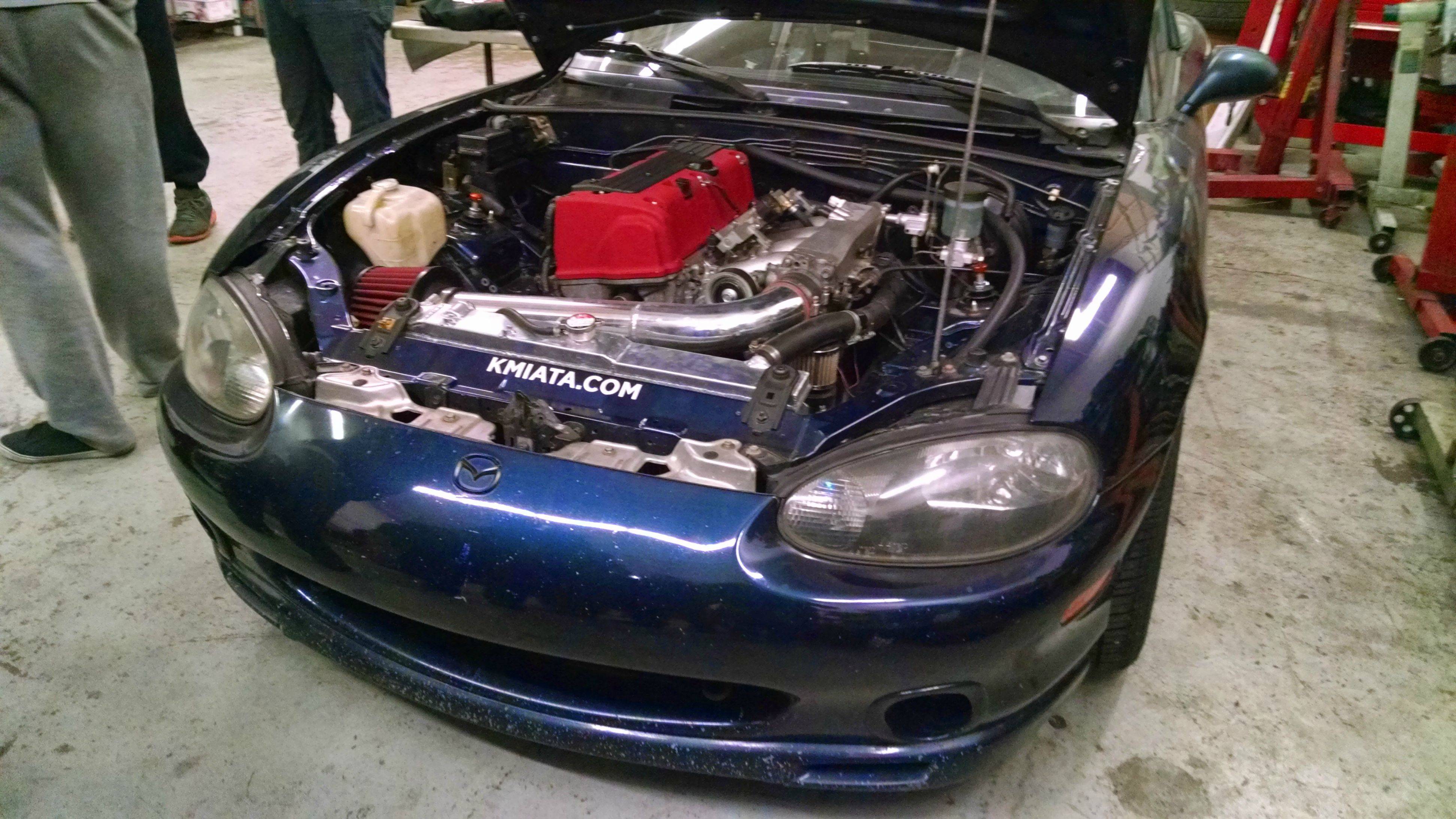

I think it looks at home in it's natural habitat.

Forgot I snapped this at the Dyno Day last month.

Mazduh is offline   Reply With Quote
Old 12-13-2014, 05:09 PM   #720
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

It fits so nicely, just looks like its backwards.
thirdgen is offline   Reply With Quote
