Old 05-31-2014, 11:21 PM   #501
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

I've raced k20 civics for years. One particular car/engine combo has spent many a lap spinning at 9000rpm and the engine is completely bone stock.

Seriously, I couldn't begin to count the number of times that car has gone over 8500rpms. Lots of nasty, high-rev downshifts for maximum engine braking...
Efini~FC3S is offline   Reply With Quote
Old 06-01-2014, 12:35 PM   #502
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

K20 has a 13mm shorter stroke they can rev all day long. I wouldn't be taking a k24 99 mm stroke to 9k to often unless it was a drag only race motor with light rotating assembly
ctdrftna is offline   Reply With Quote
Old 06-01-2014, 01:23 PM   #503
Junior Member
iTrader: (4)

Join Date: Oct 2006
Location: Alberta Canada
Posts: 228
Total Cats: 5
Default

Yes the long stroke has a few rpm limiting factors. The piston speed at 9K rpm exceeds that of F1 engines, not good for longevity or performance. The longer stroke allows for a wider power band, so performance at sub 8K rpm with the K24 motor is still better than the high rpm K20. I have a K24a2 ready to rock my world as soon as I have the kit.
Alta_Racer is offline   Reply With Quote
Old 06-01-2014, 04:01 PM   #504
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

What mods are done to your k ?
ctdrftna is offline   Reply With Quote
Old 06-01-2014, 05:02 PM   #505
Junior Member
iTrader: (4)

Join Date: Oct 2006
Location: Alberta Canada
Posts: 228
Total Cats: 5
Default

I will be running a basic stock TSX engine with the supporting mods for the swap only for the first year. I have a second motor that will be modified once any kinks are ironed out for the second round. It will stay non turbo, but compression, head work, cams, and probably ITB's are in the works. At that time some transmission mods and sort out a gear for the diff will be in order. The car will be sub 2000 lb.
Photos
Alta_Racer is offline   Reply With Quote
Old 06-01-2014, 06:56 PM   #506
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

Sweet about the same game plan as me but I'm gonna go forced induction after it's all sorted out, kraftwerks or turbo
ctdrftna is offline   Reply With Quote
Old 06-02-2014, 01:36 PM   #507
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Saw dave out racing the kmiata at Gridlife this last weekend. Car is amazing.
Mazduh is offline   Reply With Quote
Old 06-02-2014, 02:20 PM   #508
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

Pics or ban.
Chilicharger665 is offline   Reply With Quote
Old 06-03-2014, 11:10 AM   #509
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 799
Total Cats: 175
Default

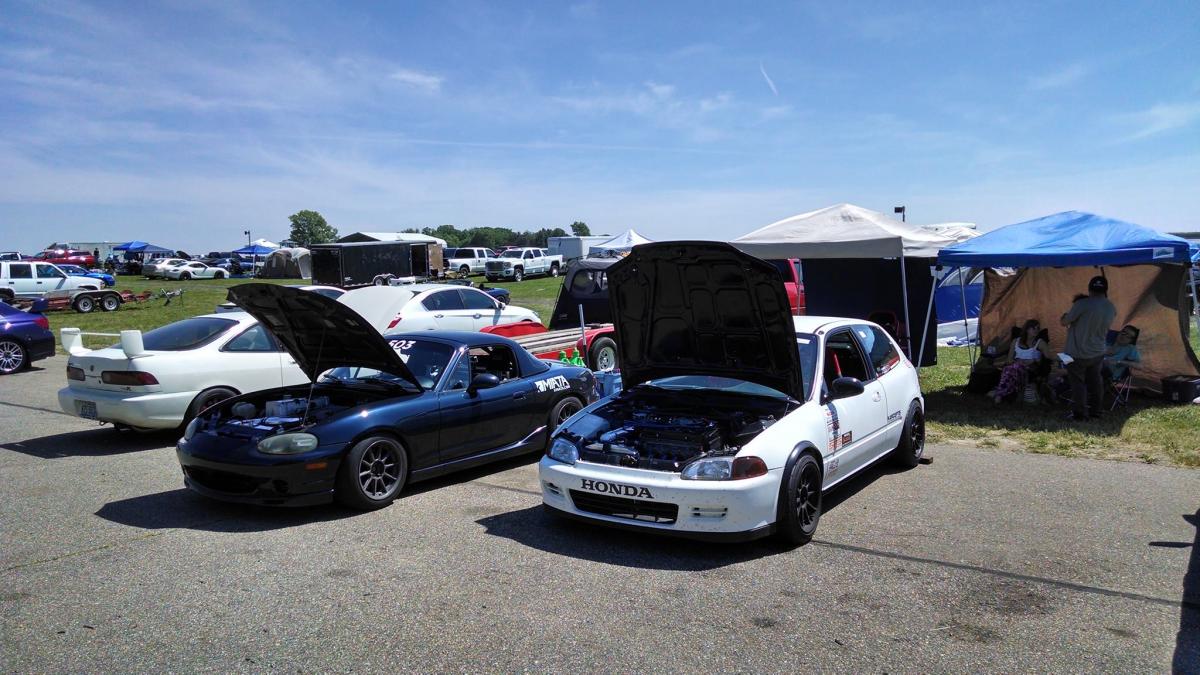

Pic from the weekend:


He was also at Mid Ohio yesterday with Autointerests and was looking pretty quick. 1:45s on 225 NT01s. He was telling me he already has 4 trackdays and 2500 street miles on the development car with zero issues. It is awesome to this all coming together.
Attached Thumbnails
K series Miata swap-10333301_695891108001_5527758189356692768_o.jpg
doward is offline   Reply With Quote
Old 06-03-2014, 08:01 PM   #510
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Quote:
Originally Posted by Alta_Racer View Post
Yes the long stroke has a few rpm limiting factors. The piston speed at 9K rpm exceeds that of F1 engines, not good for longevity or performance. The longer stroke allows for a wider power band, so performance at sub 8K rpm with the K24 motor is still better than the high rpm K20. I have a K24a2 ready to rock my world as soon as I have the kit.

Its killing me, but somewhere I found a very good discussion of the K24s properties with regard to high RPMs. It went way beyond just calculations of stroke vs. RPM to get an average piston speed. It looked at the (very good for a stocker) rod angles of the K24. What I took away from it was that for a 99MM stroke, the K24 is very capable of reving out of the box. It was on K20a somewhere.

Now I need to do some research and see if anyone is throwing K20 cranks in K24 blocks and very long rods for really good rod ratios. Maybe yes. When the 2.1L 4G6X engines appeared the full-on drag psychos loved them. The much more headroom and stability meant that much more playtime with basketball sized turbos. Plus the cylinder filling characteristics mean you can get jiggy with cam profiles to take advantage if you want to go all $pecial. I just don't know yet if that's possible/being done with these.
Sparetire is offline   Reply With Quote
Old 06-03-2014, 08:22 PM   #511
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

The K24's rod ratio is 1.55
Its not terrible, but I wouldnt call it good. Most of the other Honda engines in that rande (D16, B20, etc.) are typically only revved to around 8k unless its a drag car.

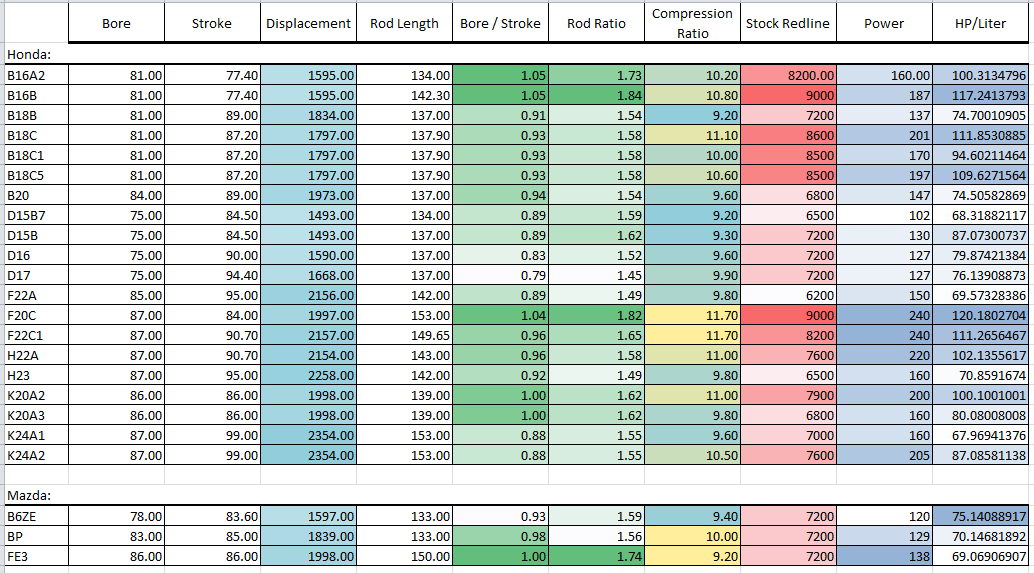

I started putting this together a while back but never got around to adding much more than Honda and a couple Mazdas.
Attached Thumbnails
K series Miata swap-8ewhxpu.png
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-04-2014, 04:05 PM   #512
Newb

Join Date: Apr 2014
Posts: 1
Total Cats: 0
Default

Does anyone have access to the original pics?
MattS67 is offline   Reply With Quote
Old 06-04-2014, 04:13 PM   #513
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Rod ratio is a REALLY small part of the equation. The F2T has close to an "ideal" rod ratio. Mazda made an F-series motor with a 2:1 rod ratio (seriously), and it sucks dick.

Here's a couple data points for that chart:

F2/F2T - 1.68
Long rod FE3 - 1.92 (FE crank in F2 block, G6 rods, F2 pistons, Fe3 head. Or keep it SOHC for full retard status)
F8/F8 DOHC - 2
concealer404 is offline   Reply With Quote
Old 06-04-2014, 04:40 PM   #514
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Ohh me me lets add:
KLDE/G4: 84.5 74.2 2497 137.82 1.14 1.86 9.5 7500 170 68
KLZE: last four numbers are 10.0 7600 200 80

Last edited by TurboTim; 06-04-2014 at 04:49 PM. Reason: Concealer's post below.
TurboTim is offline   Reply With Quote
Old 06-04-2014, 04:43 PM   #515
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

I think you have the redlines backwards. The ZE on a stock ZE ecu will spin to 7600rpms.
concealer404 is offline   Reply With Quote
Old 06-04-2014, 04:49 PM   #516
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Ahh ok, I wasn't sure. I thought it was 7000 to keep the retainers from breaking.
TurboTim is offline   Reply With Quote
Old 06-05-2014, 01:52 AM   #517
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by doward View Post
He was also at Mid Ohio yesterday with Autointerests and was looking pretty quick. 1:45s on 225 NT01s. He was telling me he already has 4 trackdays and 2500 street miles on the development car with zero issues. It is awesome to this all coming together.
Yeah this car is already silly amounts of fun on track. And its still 100% street car mode with the Koni/GC setup. No other performance mods besides the swap, wheels, and tires.

Only 217 whp right now too, revving to 8000, but I did swap in a 6 speed with the 4.3. I was reviewing some footage from the long weekend and will post it soon.

Lots more development for the car, just trying to keep it a fun street/track toy that can show off what a basic weekend warrior K Miata can do. Xidas, a wing, and 30 more whp should do the trick...
KMiata is offline   Reply With Quote
Old 06-05-2014, 10:53 PM   #518
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

So how does the new 6spd combo compare to the old setup with this swap?
paNX2K&SE-R is offline   Reply With Quote
Old 06-06-2014, 01:07 PM   #519
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
So how does the new 6spd combo compare to the old setup with this swap?
It's pretty good considering the 8000rpm redline. But I think this combo is better for a k20 revving to 8500-9000. I think I'm going to put in a 4.10 and that will be perfect for most tracks.
KMiata is offline   Reply With Quote
Old 06-06-2014, 02:33 PM   #520
Newb

Join Date: Jan 2013
Posts: 22
Total Cats: 1
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
The K24's rod ratio is 1.55
Its not terrible, but I wouldnt call it good. Most of the other Honda engines in that rande (D16, B20, etc.) are typically only revved to around 8k unless its a drag car.

I started putting this together a while back but never got around to adding much more than Honda and a couple Mazdas.

- pic removed -
Just an update the B16B's redline is 8500 not 9k, C5 is 8400 and C1 is 8200.

Quote:
Originally Posted by magicdc2 View Post
It's pretty good considering the 8000rpm redline. But I think this combo is better for a k20 revving to 8500-9000. I think I'm going to put in a 4.10 and that will be perfect for most tracks.
Anyone grabbing a kit for a RHD miata yet? or maybe a direct over head shot so I can guage somethings.

Keep up the good work!
iTurn is offline   Reply With Quote
