Old 12-29-2014, 12:52 PM   #781
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Thats pretty cool. I wonder if you could squeeze some sort of cowl induction setup in over there. Maybe run forward to an enclosed filter or airbox and then run a duct around the master cylinders to a hole in the firewall.
Yup. That would work. Easey-peasey.

Once I get my full-tilt track car built, I may build a second one of these in a low-buck approach as a daily. We have lots of really good salvage cars available around here with only minor damage and cheap prices. Recently, a nice 99 went for $1K needing only a hood, radiator support, rad, fascia and bumper bar. 75K miles on the drivetrain means the car is basically free once you sell off what you don't need.
AndyHollis is offline   Reply With Quote
Old 12-29-2014, 01:18 PM   #782
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Huh, wonder if something like this:

DC Sports Ceramic Headers Acura TSX (2004-2008) AHC6016

Would be any tighter, cutting below the flange and routing it to a 3" exhaust.

Are you guys staying on the PPF side of things for these swaps?

P.S: that was a random google search, no idea of quality.
curly is offline   Reply With Quote
Old 12-29-2014, 01:25 PM   #783
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

Quote:
Originally Posted by curly View Post
Huh, wonder if something like this:

DC Sports Ceramic Headers Acura TSX (2004-2008) AHC6016

Would be any tighter, cutting below the flange and routing it to a 3" exhaust.

Are you guys staying on the PPF side of things for these swaps?

P.S: that was a random google search, no idea of quality.
Probably won't work. Looks like it would interfere with the tubular crossmember.

These swaps are doing a double-90 under the rear of the oil pan, ahead of the flywheel, to the driver's side. Hard to get 3" pipe to work down the PPF side. I may try and tackle it with oval tube at some point.
AndyHollis is offline   Reply With Quote
Old 12-30-2014, 02:11 AM   #784
Junior Member

Join Date: Jun 2014
Posts: 113
Total Cats: 2
Default

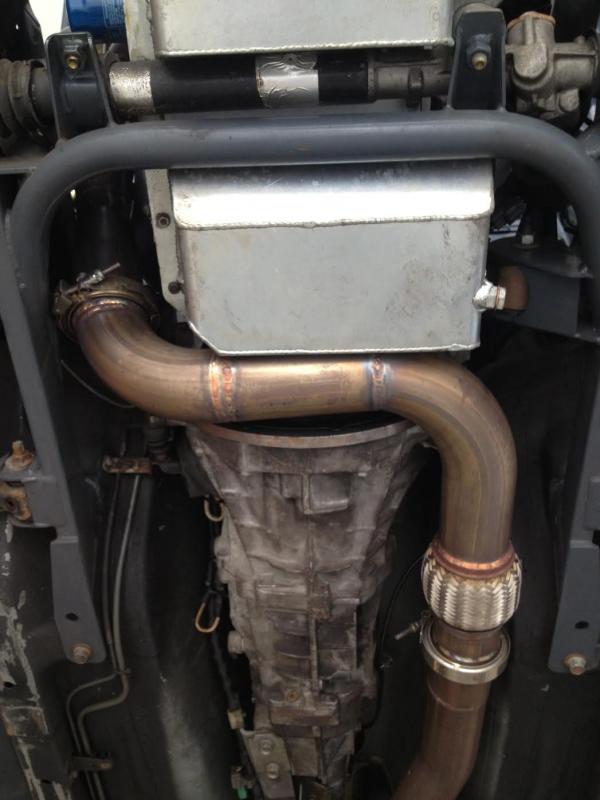

Here is a pic to give better idea on how k miata header is routed.
Attached Thumbnails
K series Miata swap-unnamed-2.jpg
kmvguy is offline   Reply With Quote
Old 12-30-2014, 12:41 PM   #785
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

Quote:
Originally Posted by kmvguy View Post
Here is a pic to give better idea on how k miata header is routed.
Where'd you find that pic, Phil?
AndyHollis is offline   Reply With Quote
Old 12-30-2014, 01:55 PM   #786
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

What if you fabbed an elbow between the intake manifold and the throttle body for the rdx intake manifold? Is that manifold any better than the TSX? It would get you a better intake tube setup.
Leafy is offline   Reply With Quote
Old 12-30-2014, 02:10 PM   #787
Junior Member

Join Date: Jun 2014
Posts: 113
Total Cats: 2
Default

Quote:
Originally Posted by AndyHollis View Post
Where'd you find that pic, Phil?
I asked for one from David some time ago, I'm still planning on getting the power steering working with this swap.
kmvguy is offline   Reply With Quote
Old 12-30-2014, 02:12 PM   #788
Junior Member

Join Date: Jun 2014
Posts: 113
Total Cats: 2
Default

Quote:
Originally Posted by Leafy View Post
What if you fabbed an elbow between the intake manifold and the throttle body for the rdx intake manifold? Is that manifold any better than the TSX? It would get you a better intake tube setup.
another way would be cutting and flipping the runners upside down.
But I don't think it's worth the effort when runners on RDX manifold are kind of crappy.
kmvguy is offline   Reply With Quote
Old 12-30-2014, 03:30 PM   #789
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

Quote:
Originally Posted by kmvguy View Post
another way would be cutting and flipping the runners upside down.
But I don't think it's worth the effort when runners on RDX manifold are kind of crappy.
This.

The RDX thing was more of a stop-gap and curiosity. The runners/ports are tiny. The RBB manifold, OTOH, could be a legit option for someone wanting to cut initial costs, with room to upgrade. Below 6500 it makes more torque than any other OE manifold. Above it, other options excel.

I still have my fingers crossed on David's latest idea.
AndyHollis is offline   Reply With Quote
Old 01-02-2015, 10:40 PM   #790
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

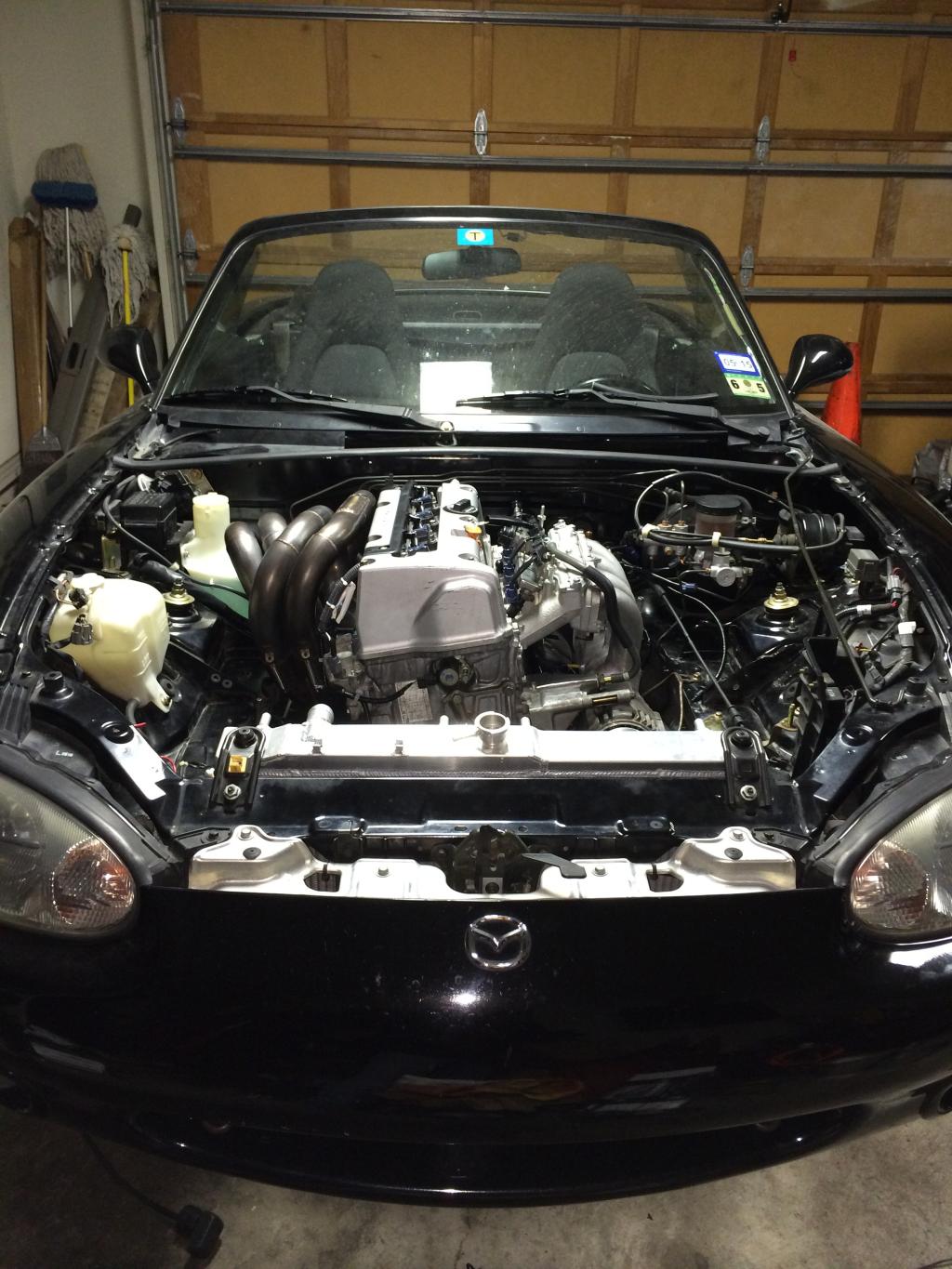

Here's 1000 words...

Name:  75EA4BCE-B0B6-4108-86DB-31D645A48062_zpsuo7j8vdu.jpg
Views: 72
Size:  180.7 KB
AndyHollis is offline   Reply With Quote
Old 01-02-2015, 11:24 PM   #791
Junior Member

Join Date: Jun 2014
Posts: 113
Total Cats: 2
Default

Andy, what are you planning on doing with upper radiator hose?
Re-welding to passenger side or gonna run hose to OEM location?
kmvguy is offline   Reply With Quote
Old 01-02-2015, 11:59 PM   #792
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

Quote:
Originally Posted by kmvguy View Post
Andy, what are you planning on doing with upper radiator hose?
Re-welding to passenger side or gonna run hose to OEM location?
OE locations.

I bought some 1.25" 16ga aluminum tube, and pieced it together with some hose 90's I have from other projects. Once I get the final intake in there, I'll get it tig'd together with mandrel 90's into one piece with some rubber on each end to allow for motor rock.

The lower hose is an off-these-shelf piece from a 90 Chrysler Imperial with a little bit of trimming.
AndyHollis is offline   Reply With Quote
Old 01-06-2015, 09:53 PM   #793
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

So this car popped up on my Facebook news feed the other day. I though i would share the madness.

Magnuson MP2300 TVS K24 Build - K20A.org .:. The K Series Source . Honda / Acura K20a k24a Engine Forum
ctdrftna is offline   Reply With Quote
Old 01-06-2015, 10:18 PM   #794
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,310
Total Cats: 1,333
Default

Quote:
Originally Posted by ctdrftna View Post
So this car popped up on my Facebook news feed the other day. I though i would share the madness.

Magnuson MP2300 TVS K24 Build - K20A.org .:. The K Series Source . Honda / Acura K20a k24a Engine Forum
Wrong blower driving the wrong wheels, with an A/W intercooler but yeah, 600whp is impressive.

300whp Miata would tear it a new one on a road course. Just sayin'
emilio700 is offline   Reply With Quote
Old 01-07-2015, 12:27 AM   #795
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by emilio700 View Post
Wrong blower driving the wrong wheels, with an A/W intercooler but yeah, 600whp is impressive.

300whp Miata would tear it a new one on a road course. Just sayin'
There is that better? Supercharger
Leafy is offline   Reply With Quote
Old 01-07-2015, 06:18 AM   #796
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

His Intake temps were 45 degrees with that after cooler. I don't see a kraftwerks making a torque curve/line like that. Merc racing is almost finished making manifolds to run air/air intercoolers with the positive displacement blowers.

I talked to David a little in the beginning about fitting a Rotrex on the K swap. It won't work because of the steering shaft is in the way. Maybe a Custom kit to spin the unit around and mount it higher would work.

Any why i was very impressed with those numbers out of a positive displacement blower on a k series. Even when its a off the shelf jackson kit wit a mere racing after cooler on a stock motor and 10psi they are getting over 300whp and 250 tq
ctdrftna is offline   Reply With Quote
Old 01-07-2015, 12:58 PM   #797
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

It is actually amazing just how far PD blowers have come in the last ~10 years. Big efficiency gains and not much packaging penalty.
Sparetire is offline   Reply With Quote
Old 01-07-2015, 01:42 PM   #798
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,067
Total Cats: 253
Default

Quote:
Originally Posted by ctdrftna View Post
So this car popped up on my Facebook news feed the other day. I though i would share the madness.

Magnuson MP2300 TVS K24 Build - K20A.org .:. The K Series Source . Honda / Acura K20a k24a Engine Forum
******* christ. ****.

viperormiata is offline   Reply With Quote
Old 01-07-2015, 01:44 PM   #799
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,310
Total Cats: 1,333
Default

Quote:
Originally Posted by ctdrftna View Post
His Intake temps were 45 degrees with that after cooler.
For one pull, sure. Not in a million years will that blower & I/C setup make anything more than 85% of it's first pull after one lap on track. BTDT.
emilio700 is offline   Reply With Quote
Old 01-07-2015, 01:53 PM   #800
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Looks fantastic Andy. Going to ceramic the headers?
