Old 02-24-2015, 01:45 PM   #861
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,050
Total Cats: 5
Default

Quote:
Originally Posted by hornetball View Post
You guys should watch the video linked to in the for sale ad... 4 wide SM finish at CMS...extra gewd stuff!
Efini~FC3S is offline   Reply With Quote
Old 02-24-2015, 01:49 PM   #862
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by Leafy View Post
but mah r/s ratio.
Just go the custom piston route
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-24-2015, 01:56 PM   #863
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Efini~FC3S View Post
You guys should watch the video linked to in the for sale ad... 4 wide SM finish at CMS...extra gewd stuff!
Damn! That was awesome. Like watching the Blue Angels.
hornetball is offline   Reply With Quote
Old 02-24-2015, 02:54 PM   #864
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Just go the custom piston route
K series pistons are already short as **** for car pistons.
Leafy is offline   Reply With Quote
Old 02-26-2015, 11:29 AM   #865
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

the piston length doesnt have to change. Just push the wrist pin up into the oil rings.
shlammed is offline   Reply With Quote
Old 02-26-2015, 01:06 PM   #866
Junior Member
iTrader: (8)

Join Date: Jul 2008
Location: Portland, OR
Posts: 397
Total Cats: 9
Default

4 piston racing makes a longer rod setup for the k24. Cost? That I don't know.
kaisersoze is offline   Reply With Quote
Old 03-02-2015, 11:17 PM   #867
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Got some awesome intake manifold testing to post up when I have time.

Long story short, we tested 4 manifolds, two headers, and managed to pull 17whp more out of the car. It's linked on the FB page right now, but I'll try to get it on MT.net shortly.
KMiata is offline   Reply With Quote
Old 03-04-2015, 02:13 PM   #868
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

Nice comparison David. I wonder how much the throttle body accounted for the differences. It would have been great if that variable remained constant. The 74mm to 90mm shows nothing is gained when going larger anyway.

Thanks for sharing!
k24madness is offline   Reply With Quote
Old 03-04-2015, 02:51 PM   #869
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,311
Total Cats: 1,335
Default

Quote:
Originally Posted by k24madness View Post
Nice comparison David. I wonder how much the throttle body accounted for the differences. It would have been great if that variable remained constant. The 74mm to 90mm shows nothing is gained when going larger anyway.

Thanks for sharing!
At this power level, I wouldn't expect the TB to be worth more than 1-2whp given that the base is already more than large enough. F/I past 300whp and I think we would see more delta.
emilio700 is offline   Reply With Quote
Old 03-04-2015, 07:30 PM   #870
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

Quote:
Originally Posted by emilio700 View Post
At this power level, I wouldn't expect the TB to be worth more than 1-2whp given that the base is already more than large enough. F/I past 300whp and I think we would see more delta.
I'll have some data on that soon enough. I swapped my 62mm for 74mm. It will be the only thing I will have changed before the re-tune. I don't think it will make more than 3hp difference but you never know.

Andrew had a 74mm that fit my manifold up for sale. It looked really cool. I could not help myself. If it makes HP I will be thrilled.

Last edited by k24madness; 03-04-2015 at 08:46 PM.
k24madness is offline   Reply With Quote
Old 03-24-2015, 01:05 PM   #871
Junior Member

Join Date: Sep 2009
Posts: 82
Total Cats: 0
Default

Quote:
Originally Posted by AndyHollis View Post
...if you are willing to forgo a heater core, the stock TSX intake ("RBB") fits in there nicely. Fabbing a CAI gets a little interesting, but it is at least a decent stop-gap alternative while saving up for a different intake...
I know this is an old post I'm replying to and you've already got your solution, but this is probably a decent solution depending on the K-series heater hose setup. Would it potentially be helpful?

From GoKart's thread on m.net

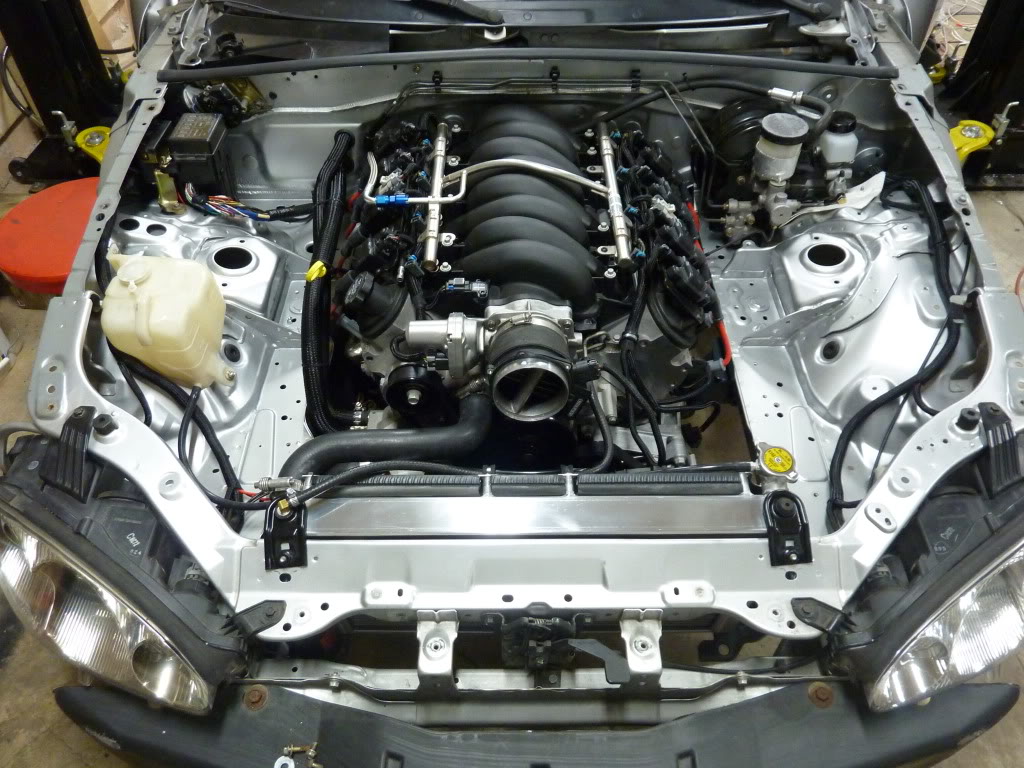

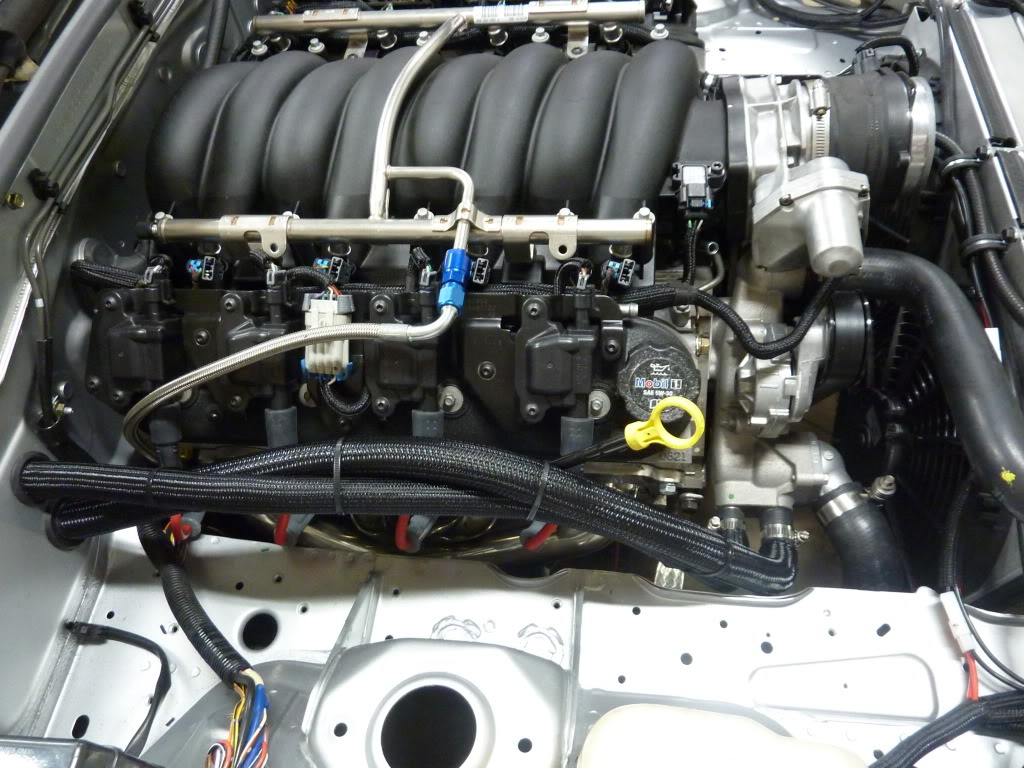

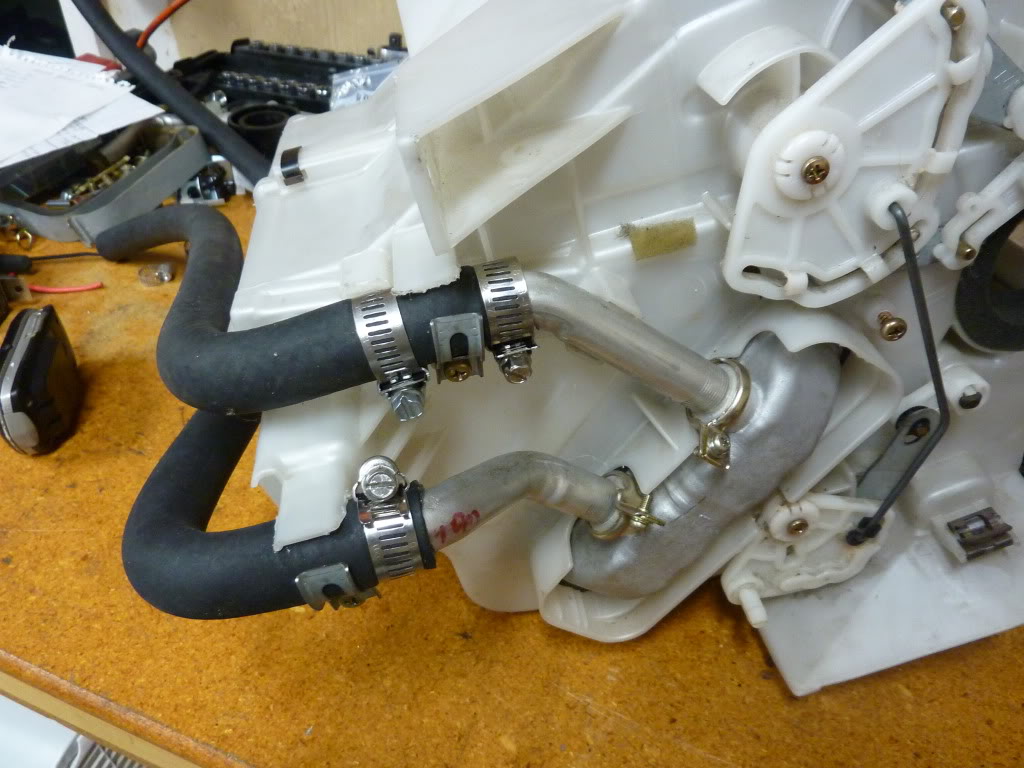

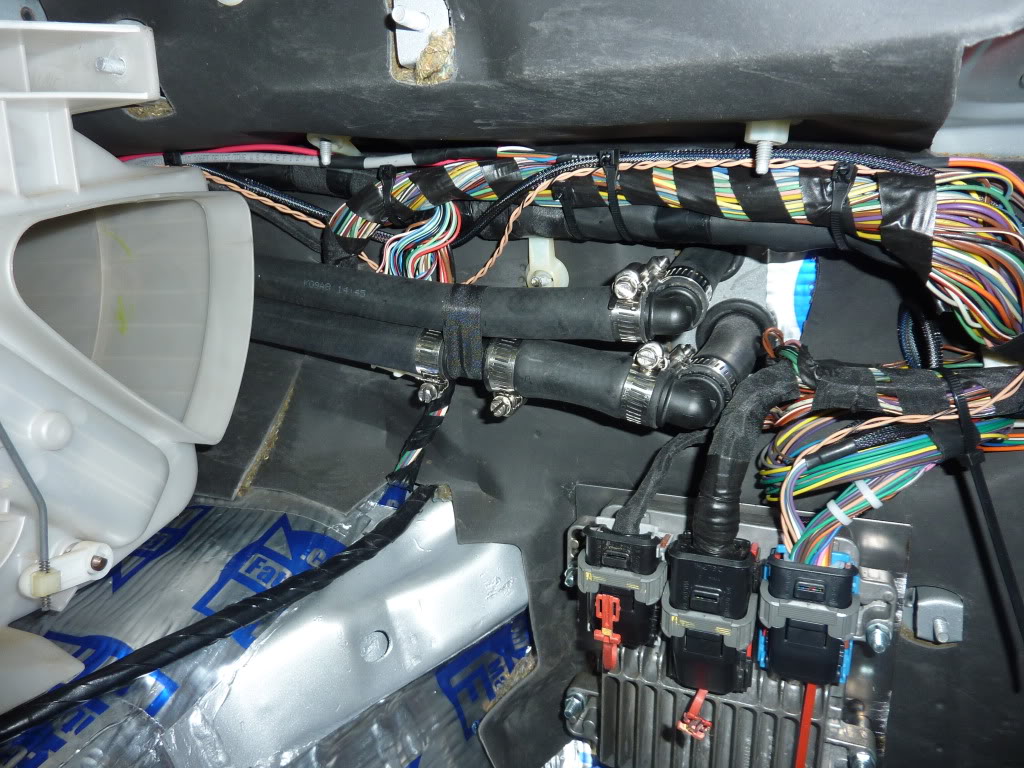

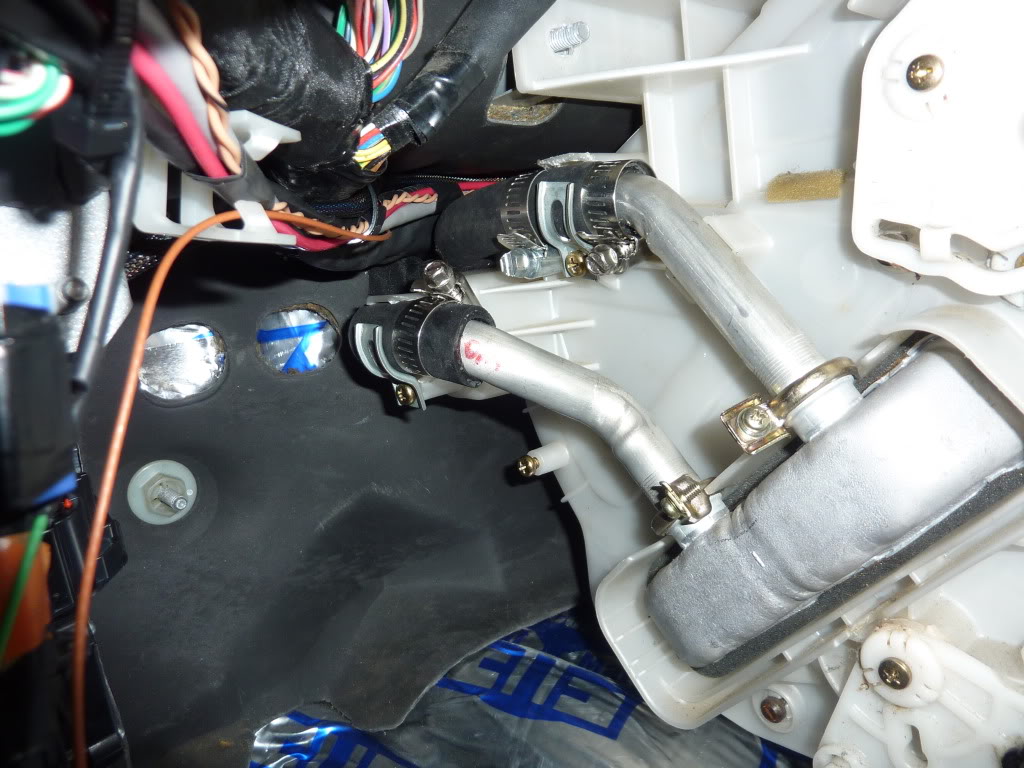

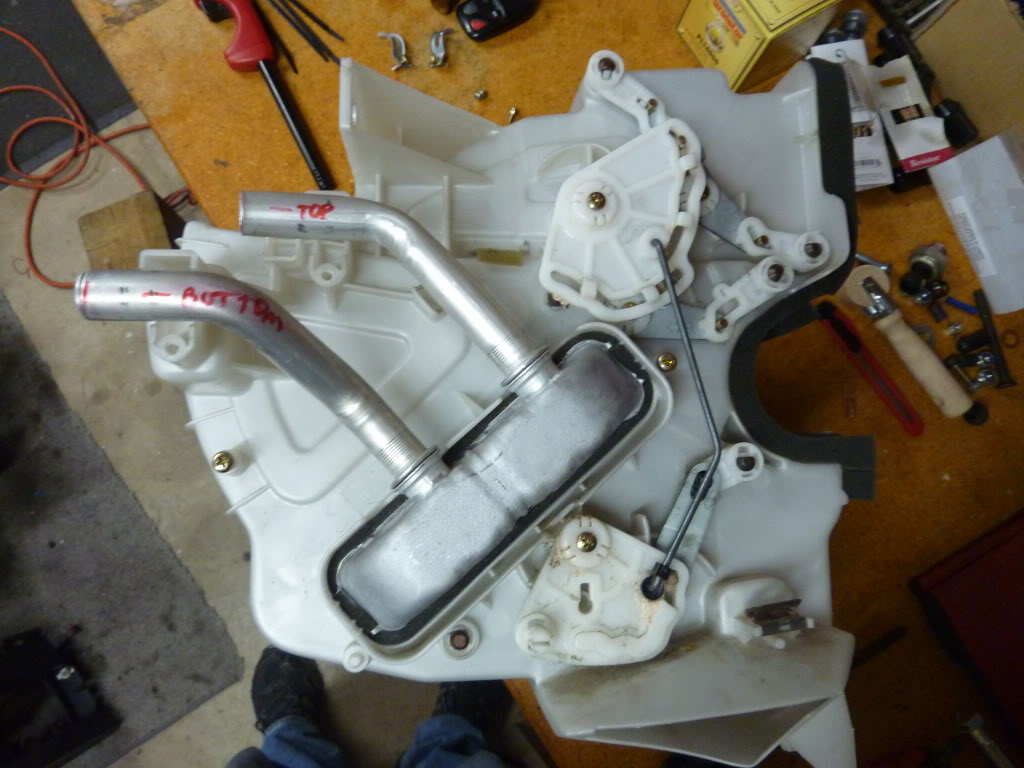

Link to pictures with heater core and hose modifications:
MX-5 Miata Forum - View Single Post - GoKart's LS2 NB Build Thread







Attached Thumbnails
K series Miata swap-p1010548.jpg   K series Miata swap-p1010547.jpg   K series Miata swap-p1010537.jpg   K series Miata swap-p1010550.jpg   K series Miata swap-p1010551.jpg

K series Miata swap-p1010552.jpg
Corey is offline   Reply With Quote
Old 07-27-2015, 06:33 PM   #872
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

<p>To all the Californians out there...&nbsp;</p><p>&nbsp;</p><p>Is it possible to get a 1991 k24 swapped miata BAR approved for legal street driving? It seems like I would have to use all of the honda sensors and emissions equipment and ECU. I'd probably have to swap the complete harness and achieve full OBD2 functionality. The electrical/wiring side will be a headache...</p><p>https://www.bar.ca.gov/Industry/Engi...uidelines.html</p><p>Do you think this swap driven legally in CA is possible?</p>
cyotani is offline   Reply With Quote
Old 07-27-2015, 08:08 PM   #873
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Not an expert on BAR regulations by any means but a couple things come to mind immediately:
-The fuel system on the NA is a return style instead of returnless. Pretty sure a BAR legal swap will require a retrofit of a returnless style fuel system. The NB is returnless so that would probably be a better choice.
-I believe you need BAR legal exhaust/intake manifold if they're not OEM correct? That will be a challenge. Andy Hollis had a setup that worked with OEM parts on both sides (in an NB) but it would be a pretty significant compromise.

I would read some of the swap stuff on K20A.org because they have a lot of experience with BAR legal swaps into older chassis.

Or just move out of California.
njn63 is offline   Reply With Quote
Old 07-27-2015, 08:59 PM   #874
Junior Member

Join Date: Dec 2014
Location: Boston, MA
Posts: 143
Total Cats: 8
Default

One thing to consider is that the engine must be newer than the vehicle. So you could (probably) get one legally into a 1990, or maybe 1991.
PatCleary is offline   Reply With Quote
Old 07-27-2015, 09:02 PM   #875
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

isn't the header usually the biggest problem?
When they say all emissions equipment, they really mean ALL OF IT. like, down to the very last detail. And it cant' be modified in any way.
18psi is offline   Reply With Quote
Old 07-27-2015, 09:36 PM   #876
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by 18psi View Post
isn't the header usually the biggest problem?
When they say all emissions equipment, they really mean ALL OF IT. like, down to the very last detail. And it cant' be modified in any way.
This. Going through the BAR process is not a joke. The best chance the Miata community has at a BAR approved swap are NBs using the LFX. You can purchase CARB approved LFX crate engines straight from GM IIRC.
Lincoln Logs is offline   Reply With Quote
Old 07-27-2015, 09:38 PM   #877
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Well kind of.
There are something's that simply will not work. In those instances, the referee can make exceptions. The best thing to do is go and talk to your referee before you begin the build. Bring him some detail on the areas you know will be a problem. See what he says. If he is a complete hard *** you'll be screwed. But most of those guys are car guys and if they see you are doing everything possible by the book, and this one thing just won't work without mods... They'll give it to you.
williams805 is offline   Reply With Quote
Old 07-27-2015, 09:42 PM   #878
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

^ this of course is for individuals doing swaps. Not for company's going for full CARB cert.
williams805 is offline   Reply With Quote
Old 07-27-2015, 09:43 PM   #879
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 30
Default

Quote:
Originally Posted by 18psi View Post
they really mean ALL OF IT. like, down to the very last detail. And it cant' be modified in any way.
Yup. ALL OF IT always means ALL THE CATS as well.
One of the major sticking points for the BAR approved 5.0 swaps here in .

I mean. California.
SchmoozerJoe is offline   Reply With Quote
Old 07-27-2015, 09:50 PM   #880
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

K swap aint going to happen with carb. exhaust would need to route through the front wheel.
Leafy is offline   Reply With Quote
