Old 01-18-2015, 06:20 PM   #841
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Wow, whats the weight balance after the swap? 48-52 or something?
triple88a is offline   Reply With Quote
Old 01-19-2015, 12:00 PM   #842
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 443
Total Cats: 145
Default

Quote:
Originally Posted by emilio700 View Post
Based on some rough numbers I came up with, weight is about the same. Not enough to be a deciding factor IMO.

Andy, what were your before/after numbers?
It's at least 50 lbs lighter. So far customers are telling me they are saving at least 100 lbs total by completing the swap since they are doing some further weight reduction in the process (mainly A/C and P/S).

Last time we weighed our car (2000 NB) it was under 2300 lb.
K24
Full interior
OEM hard top
OEM soft top
Roll bar
Spec Miata seats
No spare tire
Almost full tank

Weight distribution is exactly 50/50

Emilio your car will most likely be the best back-to-back weight test.
KMiata is offline   Reply With Quote
Old 01-19-2015, 04:41 PM   #843
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default

Quote:
Originally Posted by K Miata View Post
It's at least 50 lbs lighter. So far customers are telling me they are saving at least 100 lbs total by completing the swap since they are doing some further weight reduction in the process (mainly A/C and P/S).

Last time we weighed our car (2000 NB) it was under 2300 lb.
K24
Full interior
OEM hard top
OEM soft top
Roll bar
Spec Miata seats
No spare tire
Almost full tank

Weight distribution is exactly 50/50

Emilio your car will most likely be the best back-to-back weight test.
Yup, we're not changing anything other than the engine and swap kit. Car has no A/C, PS or emissions equipment as is.

That said, the dressed long blocks weight about the same so on paper at least, there should not be much of a difference. My guess is the alloy block being a full girdle type and the much taller head (because real ports) account for the disparity in block materials.
emilio700 is offline   Reply With Quote
Old 01-20-2015, 12:58 PM   #844
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Quote:
Originally Posted by K Miata View Post
It's at least 50 lbs lighter. So far customers are telling me they are saving at least 100 lbs total by completing the swap since they are doing some further weight reduction in the process (mainly A/C and P/S).
AC parts + power steering + emissions, the custom intake, subframe, cruise control, and header should add up to about 65lb in weight savings. If people are coming from a stock flywheel there is a big chunk of weight there as well. About 25lb difference between the two long blocks?
asmasm is offline   Reply With Quote
Old 01-20-2015, 07:26 PM   #845
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Nb ac stuff is 32 lbs by itself.
Mobius is offline   Reply With Quote
Old 02-08-2015, 04:29 PM   #846
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

Quote:
Originally Posted by hornetball View Post
Andy, you should do a dedicated build thread for your car.
Finally did this. In addition to the FB page (OneLapMiata.com), I put the whole build-up on this forum.

https://www.miataturbo.net/general-m...2/#post1204024

The FB page gets a little hard to follow after awhile, so this will serve as a reference for others doing this build.
AndyHollis is offline   Reply With Quote
Old 02-22-2015, 08:52 PM   #847
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

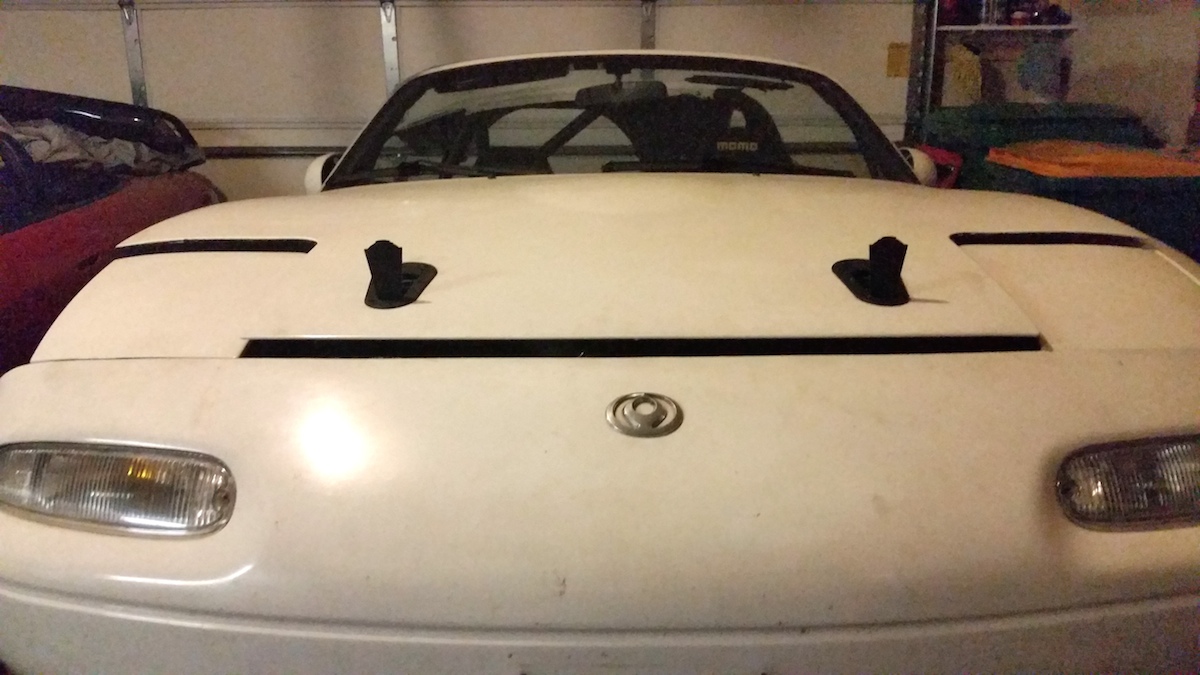

Not looking good for hood clearance on an NA with K24. This is after the bracing is cut out in the affected areas... basically hood skin on valve cover.

Suggestions?

Current plan is to pull the valve cover and see how much room there is to shorten it.
Attached Thumbnails
K series Miata swap-20150222_183458.jpg
njn63 is offline   Reply With Quote
Old 02-22-2015, 08:54 PM   #848
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by njn63 View Post
Not looking good for hood clearance on an NA with K24. This is after the bracing is cut out in the affected areas... basically hood skin on valve cover.

Suggestions?

Current plan is to pull the valve cover and see how much room there is to shorten it.
Sell me the K24a2 (a2?) for cheap and then go K20?

I have an X1/9 now that needs a K at some point in the future...
Splitime is offline   Reply With Quote
Old 02-22-2015, 08:57 PM   #849
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

13mm more stroke on the k24 but are the external dimensions different?
asmasm is offline   Reply With Quote
Old 02-22-2015, 09:05 PM   #850
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Quote:
Originally Posted by njn63 View Post
Not looking good for hood clearance on an NA with K24. This is after the bracing is cut out in the affected areas... basically hood skin on valve cover.

Suggestions?

Current plan is to pull the valve cover and see how much room there is to shorten it.
Cowl Hood. Only solution.
aidandj is offline   Reply With Quote
Old 02-22-2015, 09:12 PM   #851
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Cowl hood will require proper decal.


Attached Thumbnails
K series Miata swap-transam.jpg
Mobius is offline   Reply With Quote
Old 02-22-2015, 09:18 PM   #852
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by asmasm View Post
13mm more stroke on the k24 but are the external dimensions different?
Deck height is ~20mm different.
Quote:
Originally Posted by Splitime View Post
Sell me the K24a2 (a2?) for cheap and then go K20?

I have an X1/9 now that needs a K at some point in the future...
06 K24A2.

It's basically a track only car so I have no problem going street rod and cutting a hole in the hood for it. Just keeping that as the last option.
njn63 is offline   Reply With Quote
Old 02-22-2015, 09:34 PM   #853
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by njn63 View Post
Deck height is ~20mm different.

06 K24A2.

It's basically a track only car so I have no problem going street rod and cutting a hole in the hood for it. Just keeping that as the last option.
Damn... (that I can't get it for cheap ) I'd see if you can find an old school metal guy to massage the metal up to clear it. Could do simple hammer attack... but old school hotrod guys could likely do it cleanly and then polish (heh) or repaint that area when the paint cracks during the work.
Splitime is offline   Reply With Quote
Old 02-22-2015, 09:39 PM   #854
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 443
Total Cats: 145
Default

Quote:
Originally Posted by njn63 View Post
Deck height is ~20mm different.

06 K24A2.

It's basically a track only car so I have no problem going street rod and cutting a hole in the hood for it. Just keeping that as the last option.
Shoot me an email, we already have custom valve covers that have better clearance in the front. I'll post some pics soon. Since you're local you can come pick one up to test fit. You can make the stock hood clear.
KMiata is offline   Reply With Quote
Old 02-22-2015, 09:53 PM   #855
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

You have an email.
njn63 is offline   Reply With Quote
Old 02-24-2015, 01:07 AM   #856
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 443
Total Cats: 145
Default

Quote:
Originally Posted by njn63 View Post
You have an email.

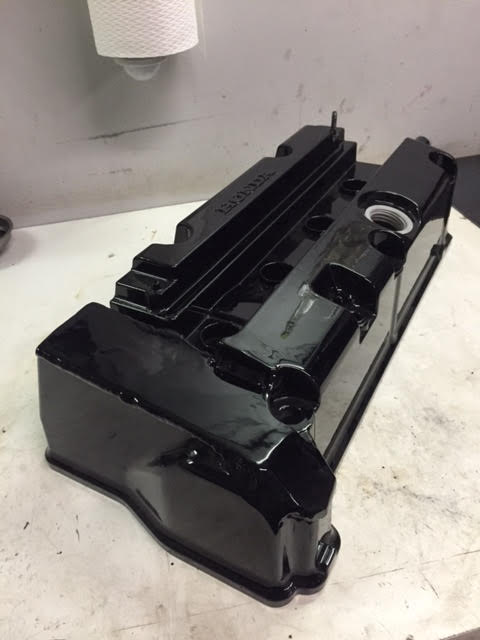

And here's a sample of the valve cover prototype.

Note that a K20 and K24 clear fine in an NB with no cutting of the hood skeleton.

K20 in NA should be fine with some trimming, and K24 in an NA requires some trimming and a modded valve cover, or a hole in the hood.

All things we are learning along the way!

edit: we have 5 of these valve covers being modded right now. We'll do a core exchange for our NA K24 customers starting in the next couple weeks. Haven't even gotten it on the website yet.
Attached Thumbnails
K series Miata swap-valve-cover.jpg
KMiata is offline   Reply With Quote
Old 02-24-2015, 11:34 AM   #857
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

Quote:
Originally Posted by Mobius View Post
Cowl hood will require proper decal.

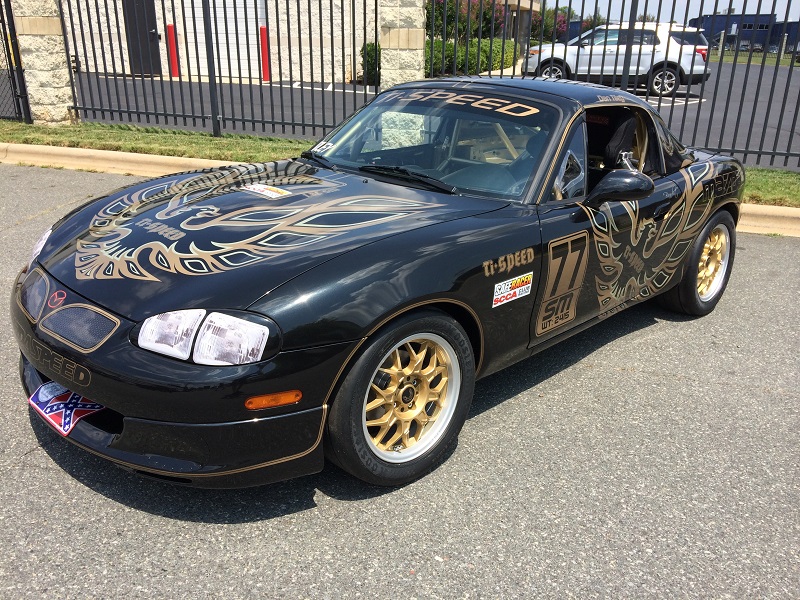

Threadjack . . . but you guys HAVE to see this car:

The Bandit Is For Sale!!!! 2001 Spec Miata Vvt - Spec Miata Classifieds - Mazda Racers
hornetball is offline   Reply With Quote
Old 02-24-2015, 11:45 AM   #858
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

SO GOOD.

Attached Thumbnails
K series Miata swap-classifieds-1262-0-24900300-1423619775.jpg
concealer404 is offline   Reply With Quote
Old 02-24-2015, 01:32 PM   #859
Junior Member

Join Date: Nov 2006
Posts: 283
Total Cats: 149
Default

Quote:
Originally Posted by K Miata View Post

Note that a K20 and K24 clear fine in an NB with no cutting of the hood skeleton.

K20 in NA should be fine with some trimming, and K24 in an NA requires some trimming and a modded valve cover, or a hole in the hood.
One more option for NA...

You can put a K24 into a K20 block. Requires either custom pistons or custom rods, but it is done frequently (especially by CRX owners).

Very stealth.
AndyHollis is offline   Reply With Quote
Old 02-24-2015, 01:38 PM   #860
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

but mah r/s ratio.
