Old 01-16-2015, 11:56 AM   #821
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by AndyHollis View Post
Ummm...you guys do know that there has been a factory turbo K-series for a long time now.. 07-12 RDX has the K23A1 rated at 240/260.
Sorry, I'm a K-series Noob. Brand new info to me.

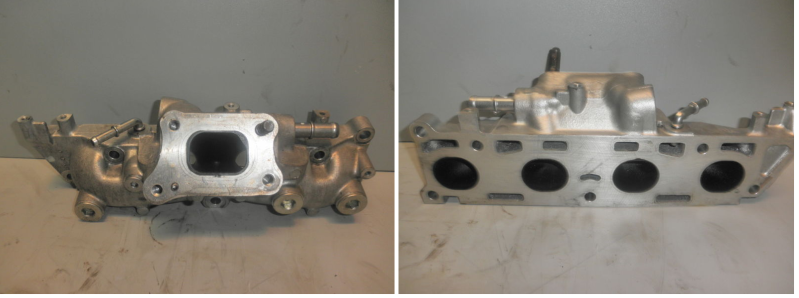

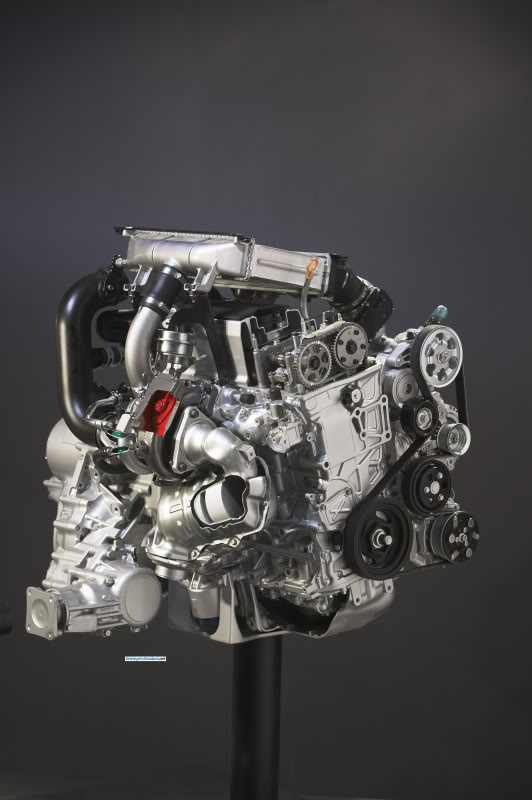

Has anyone considering trying to run that exhaust manifold and turbo with a custom DP on a k-swaped miata? It looks like intercooler routing for a front mount IC would be a pain.


Insight to the k23a1 engine - K20A.org .:. The K Series Source . Honda / Acura K20a k24a Engine Forum



Attached Thumbnails
K series Miata swap-124.png   K series Miata swap-07_acura_rdx_65.jpg
cyotani is offline   Reply With Quote
Old 01-16-2015, 12:08 PM   #822
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

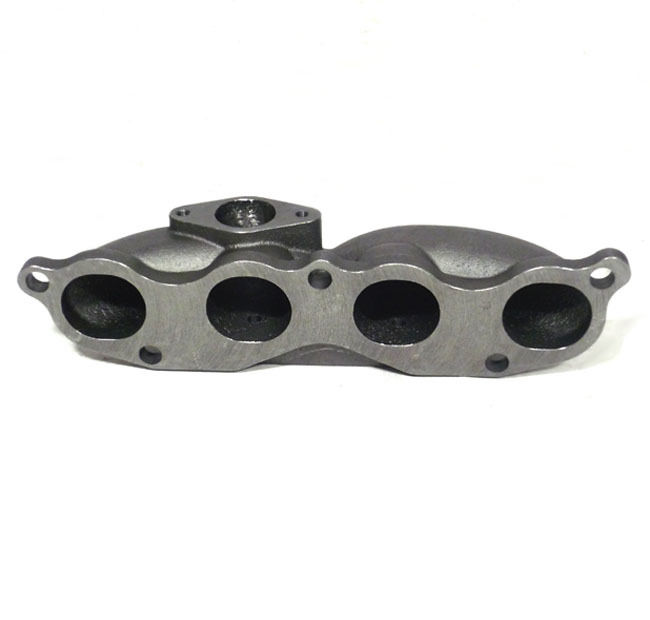

Attached Thumbnails
K series Miata swap-%24t2ec16d-%2529ue9s3wdcyubq3pm2c-sg%7E%7E60_57.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-16-2015, 12:12 PM   #823
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

touche sir... Damn that's cheap.
cyotani is offline   Reply With Quote
Old 01-16-2015, 12:23 PM   #824
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by cyotani View Post
Sorry, I'm a K-series Noob. Brand new info to me.

Has anyone considering trying to run that exhaust manifold and turbo with a custom DP on a k-swaped miata? It looks like intercooler routing for a front mount IC would be a pain.


Insight to the k23a1 engine - K20A.org .:. The K Series Source . Honda / Acura K20a k24a Engine Forum



We may or may not have a k23a1 on an engine stand right now. It could be made to work, but will need some other custom parts since it is very different than all other K series engines. Jury is still out if it will be a cost effective option.
KMiata is offline   Reply With Quote
Old 01-16-2015, 03:11 PM   #825
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

Is that manifold aluminum? Wat?
turbofan is offline   Reply With Quote
Old 01-17-2015, 11:46 AM   #826
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

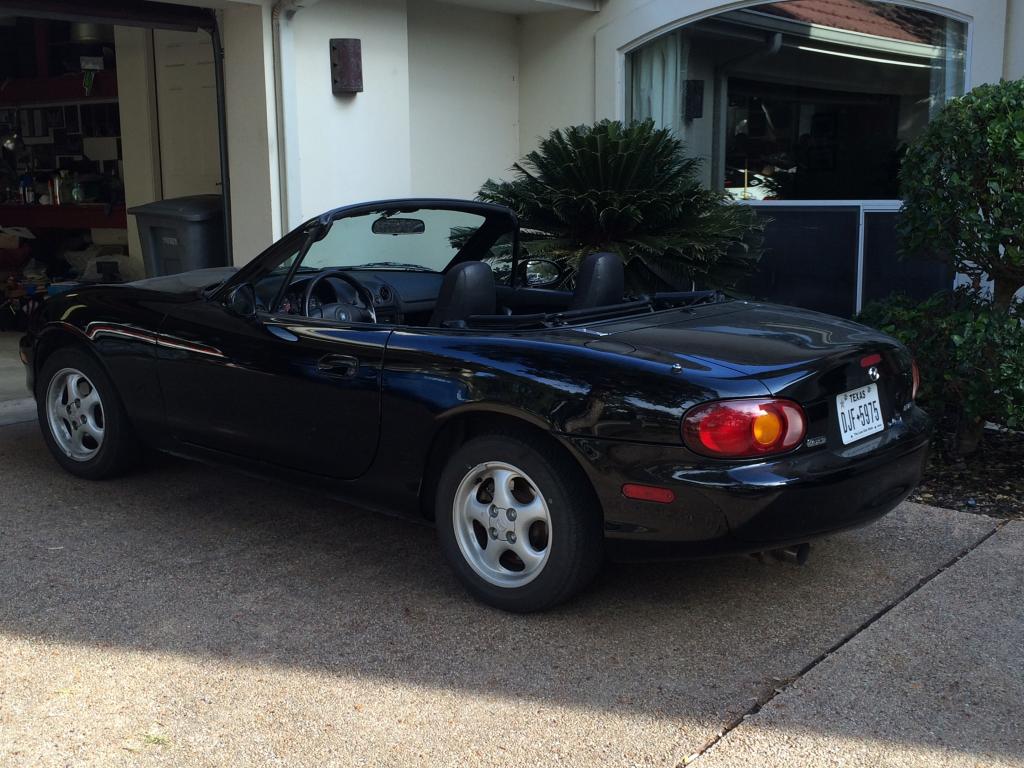

test drive = success.

Attached Thumbnails
K series Miata swap-9718ca8d-24a3-456f-93dd-ac381eeaef55_zps9jmjeckb.jpg
AndyHollis is offline   Reply With Quote
Old 01-17-2015, 12:10 PM   #827
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Quote:
Originally Posted by K Miata View Post
We may or may not have a k23a1 on an engine stand right now. It could be made to work, but will need some other custom parts since it is very different than all other K series engines. Jury is still out if it will be a cost effective option.
My understanding is the K23 is a taller motor, so swapping into a miata would probably be problematic.

That may only be if you're keeping the stock intercooler, but anyway, it's much more cost effective and easy to just turbo a K20/K24.

And yes, the RDX has an aluminum turbo manifold with integrated water ports to keep the manifold "cool".

K23 looks interesting on paper but in the real world I don't think they make a lot of sense.
Efini~FC3S is offline   Reply With Quote
Old 01-17-2015, 12:29 PM   #828
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Quote:
Originally Posted by Efini~FC3S View Post
And yes, the RDX has an aluminum turbo manifold with integrated water ports to keep the manifold "cool".
This is a very interesting feature. I am no Honda OEM engineer but why would you want to cool an exhaust manifold. Doesn't this just reduce the efficiency of the exhaust gasses by dissipating additional heat? I could see it maybe as a reliability feature I guess but other than that I am left wanting. Does anyone know the reason this is done?
Ryan_G is offline   Reply With Quote
Old 01-17-2015, 04:03 PM   #829
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Quote:
Originally Posted by Ryan_G View Post
This is a very interesting feature. I am no Honda OEM engineer but why would you want to cool an exhaust manifold. Doesn't this just reduce the efficiency of the exhaust gasses by dissipating additional heat? I could see it maybe as a reliability feature I guess but other than that I am left wanting. Does anyone know the reason this is done?
I used to be a Honda OEM engineer... :wink:

The water cooling is necessary to keep the aluminum at a temperature that won't negatively effect the material properties...like staying solid...

Most aluminum casting alloys have a melting point around 1100F.

Compare that to common EGTs seen in a turbo manifold and I think you'll see why they needed water cooling in the exhaust manifold.

I'm not sure what alloy they used for the RDX exhaust manifold but I'd be willing to bet it was one with a higher melting temperature than normal casting alloys.
Efini~FC3S is offline   Reply With Quote
Old 01-17-2015, 04:12 PM   #830
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

I think the question is really why bother using aluminum? What's the point? Lowering underhood temps and weight?
turbofan is offline   Reply With Quote
Old 01-17-2015, 07:23 PM   #831
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

I would think primarily weight.
Mobius is offline   Reply With Quote
Old 01-17-2015, 07:49 PM   #832
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

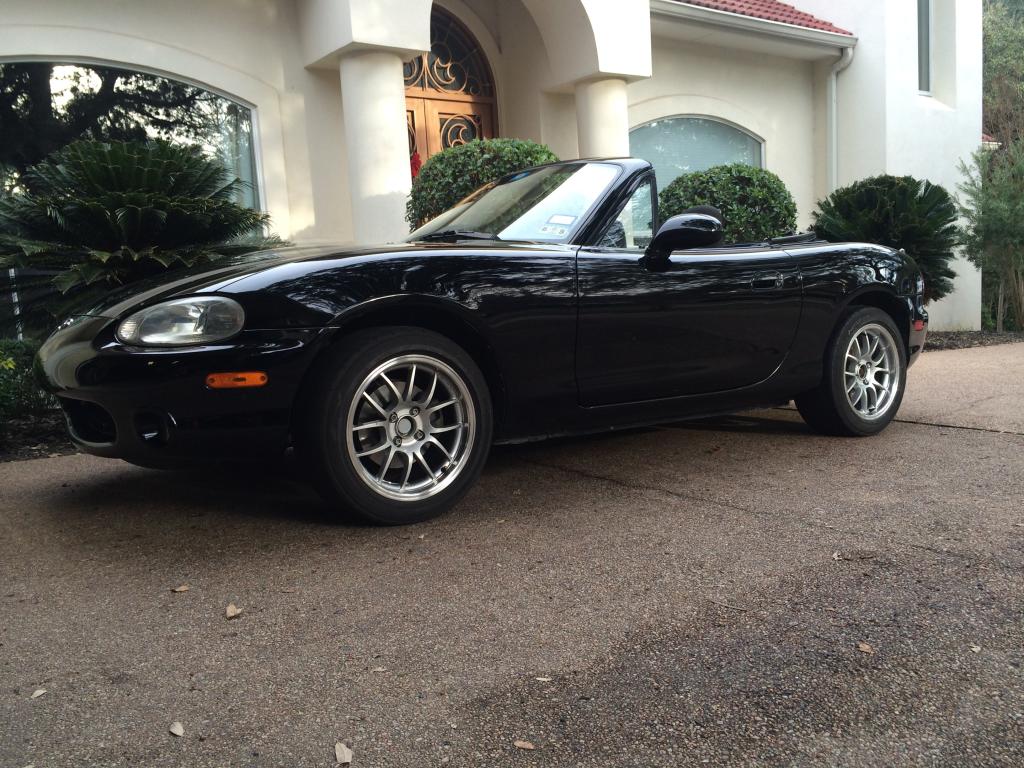

As further evidence of how light the Honda motor is, here's the final product. This is now a manual steering car with no a/c. The nose is so high that max camber is still slightly positive (.5 degree). Can't wait to get some suspension on this thing...


Yeah, three Mazdas...

Attached Thumbnails
K series Miata swap-fe2dc5e6-6193-4b09-a9ac-ffb6cf1c3f01_zpsbw9k9oxe.jpg

Last edited by AndyHollis; 01-17-2015 at 08:42 PM.
AndyHollis is offline   Reply With Quote
Old 01-17-2015, 10:50 PM   #833
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Very nice, good work.

how does she drive?
18psi is offline   Reply With Quote
Old 01-17-2015, 11:08 PM   #834
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

that header looks beast. nice work!
cyotani is offline   Reply With Quote
Old 01-17-2015, 11:19 PM   #835
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Any plan for a heat shield between the header and that washer bottle? Or a relocation of the washer bottle?

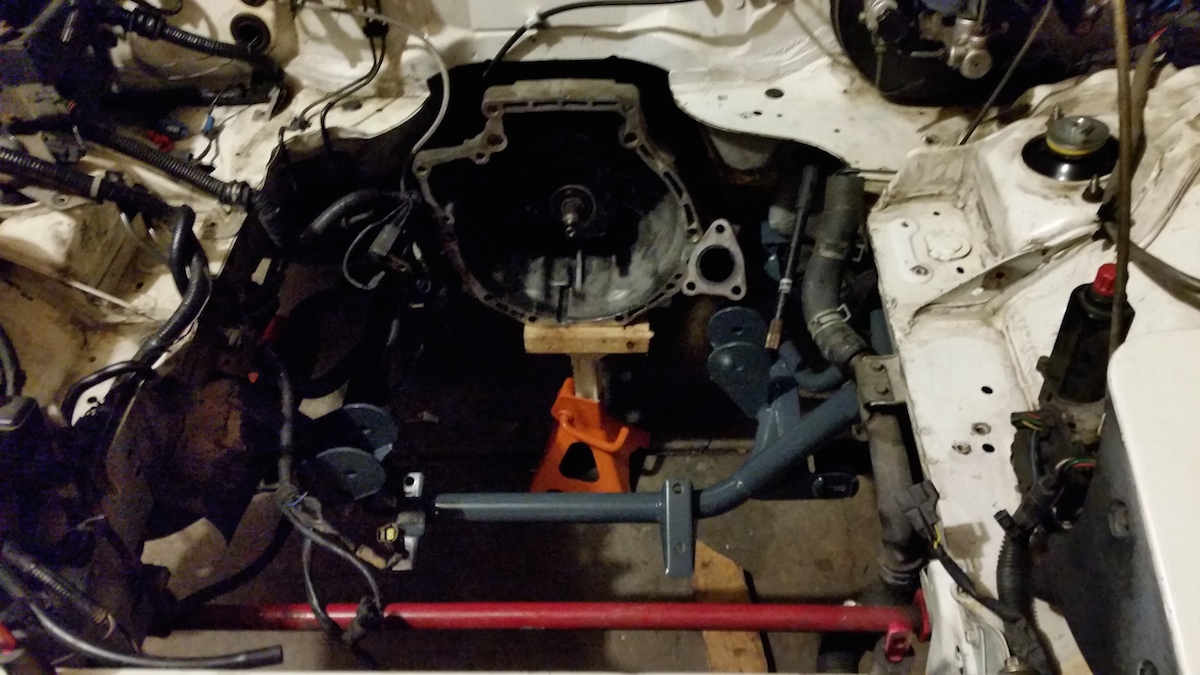

Got my subframe/mounts this week and I picked up the rest of my parts (minus flywheel) from David today. I need to do some engine bay cleanup still but things are moving.
Attached Thumbnails
K series Miata swap-20150110_230132.jpg
njn63 is offline   Reply With Quote
Old 01-17-2015, 11:23 PM   #836
Junior Member

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Quote:
Originally Posted by njn63 View Post
Any plan for a heat shield between the header and that washer bottle? Or a relocation of the washer bottle?
.
The latter, if it becomes an issue.

I'm more worried about underhood heat issues overall with that header...

Quote:
Originally Posted by 18psi View Post
how does she drive?
It feels like what a Miata should have always had for a motor. Big fat torque (for a 4-banger), but not excessive.

The stock suspension is comical, though...especially with no front camber.
AndyHollis is offline   Reply With Quote
Old 01-18-2015, 04:10 PM   #837
Junior Member

Join Date: Apr 2013
Location: toronto
Posts: 124
Total Cats: 7
Default

-anybody have exact weight savings vs stock engine?
-for the non-DIY types like me, what would this setup cost turnkey at 200whp (assuming that's stock output) and 250 ish whp ? assuming I drop off the keys to a stock NA, for example.
endura is offline   Reply With Quote
Old 01-18-2015, 04:14 PM   #838
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by endura View Post
-anybody have exact weight savings vs stock engine?
-for the non-DIY types like me, what would this setup cost turnkey at 200whp (assuming that's stock output) and 250 ish whp ? assuming I drop off the keys to a stock NA, for example.
This swap has not been out long enough to answer this question accurately. And it will depend greatly on your location and the reputability/ labor cost per hour of the shop you use. Maybe a good estimate is to take the v8 swap kit cost estimates at shops for labor and add it to the price of a k24 and the kmiata kit and all other nic nack parts.
cyotani is offline   Reply With Quote
Old 01-18-2015, 04:33 PM   #839
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,348
Default

Quote:
Originally Posted by endura View Post
-anybody have exact weight savings vs stock engine?
-for the non-DIY types like me, what would this setup cost turnkey at 200whp (assuming that's stock output) and 250 ish whp ? assuming I drop off the keys to a stock NA, for example.
Based on some rough numbers I came up with, weight is about the same. Not enough to be a deciding factor IMO.

Andy, what were your before/after numbers?

Last edited by emilio700; 01-18-2015 at 07:56 PM.
emilio700 is offline   Reply With Quote
Old 01-18-2015, 05:03 PM   #840
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

So is the elevated front end merely a factor of no PS or A/C?

Doesn't seem like that would be enough.
turbofan is offline   Reply With Quote
