Old 06-20-2014, 02:12 PM   #41
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

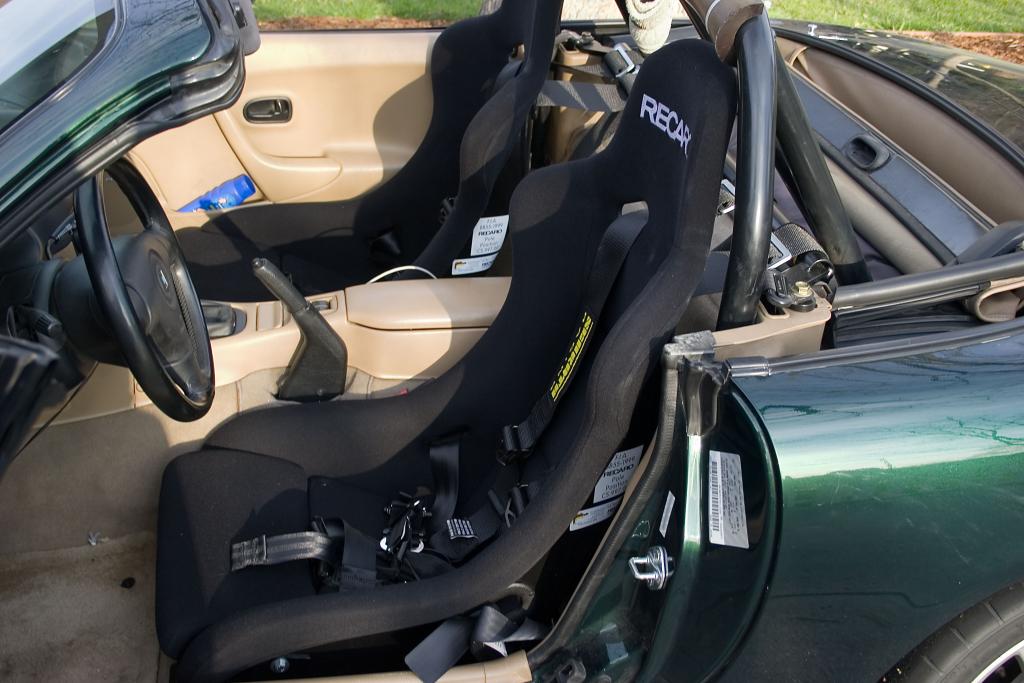

I'm very happy with the Recaro Pole Positions in my car. For the driver's seat, the rear mounts have been cut out, using a custom bracket, bolted to the floor.



I have Schroth harnesses with 3 inch shoulder belts -- would go with 2 inch next time for better HANS compatibility.

--Ian
Attached Thumbnails
Lets Discuss Seats and Harnesses.-recaro5.mid.jpg
codrus is offline   Reply With Quote
Old 06-20-2014, 02:19 PM   #42
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

I have sidemount Momo Starts and a Schroth Profi II Hans for the driver, G-Force 3" for the passenger. I don't take out passengers that often, so they can deal with the obnoxious adjusters. The lap and sub belts are a dream on the driver side, even with multiple drivers on a weekend. The Schroth also comes with the mounting hardware so you don't have to buy a dozen extra bits to mount your harnesses.

A+ would buy again.
Dunning Kruger Affect is offline   Reply With Quote
Old 06-23-2014, 11:02 AM   #43
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by ofspunk7 View Post
Is there a specific line of harness that has adjustable mid and lower belts that are easy to access. My current 6pt harness you have to spend a good amount of time under the seat and on the sides of the seat to adjust the belt length. I am not sure if they exist but I would love to have something that is easily adjustable near the center connection point, which would allow for adjustment in a min or two.

Thanks for the advice so far.
What harnesses do you currently have? The simpson formula harness that is in our car curently has only one lab belt ajuster. It does take some time to get into and out of. Hence why we are switching it out for the sparco. We have also had g force cam lock and latch n link in the car. The latch and link was the easiest to ajust as the ajusters where in the latch and link mechanism. It was a bit "pintchy" though.
OGRacing is offline   Reply With Quote
Old 06-23-2014, 11:16 AM   #44
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

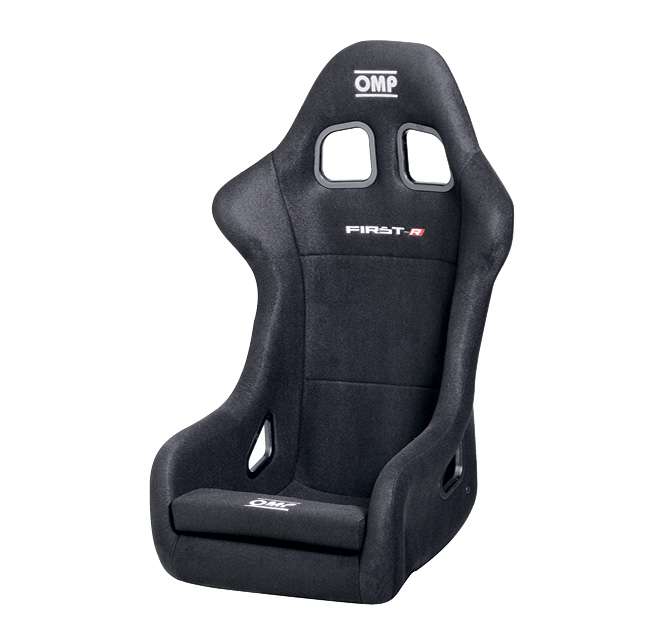

I was talking to a few miata.net members at Sebring this weekend. For those looking for a high quality, narrow, fia, seat thats under $500. Check out the OMP first-R. (Will be on OG's site shortly. Call for more information.) They fit a 6' 220lbs person and are good seat for us normal sized guys. If your 140lbs you shouldn't have much of a problem finding a seat. They have a narrow shoulder wing and should fit into a interior equipped miata.

Attached Thumbnails
Lets Discuss Seats and Harnesses.-ha790_firstr.jpg

Last edited by OGRacing; 06-25-2014 at 01:10 PM.
OGRacing is offline   Reply With Quote
Old 06-23-2014, 11:19 AM   #45
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

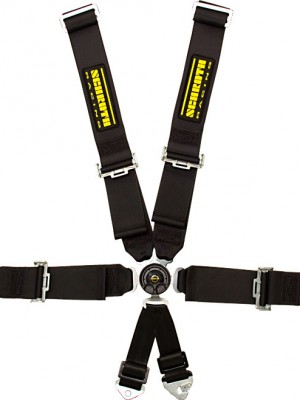

Schroth Racing 6pt Harness.

I think it is the "clubman"

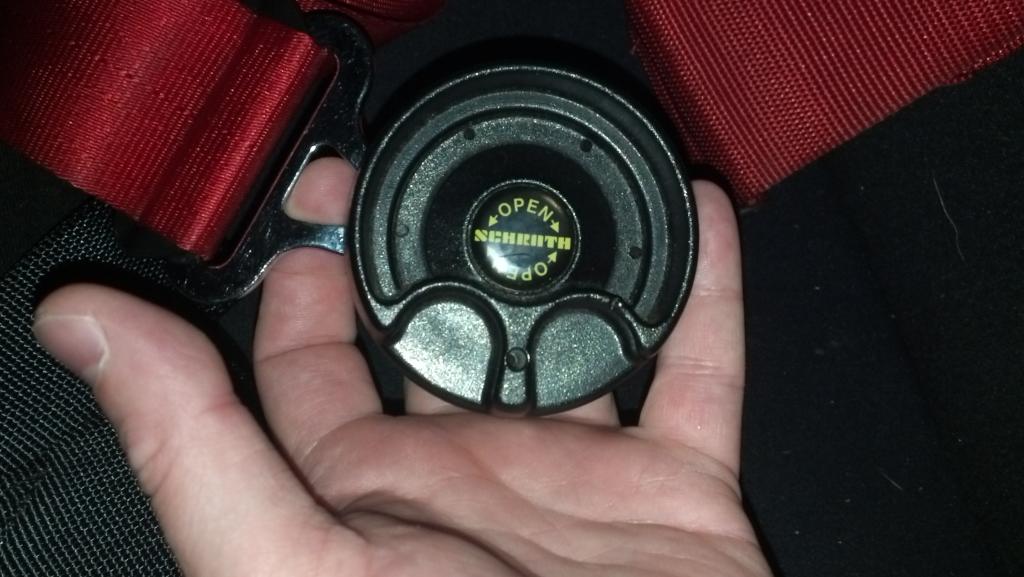

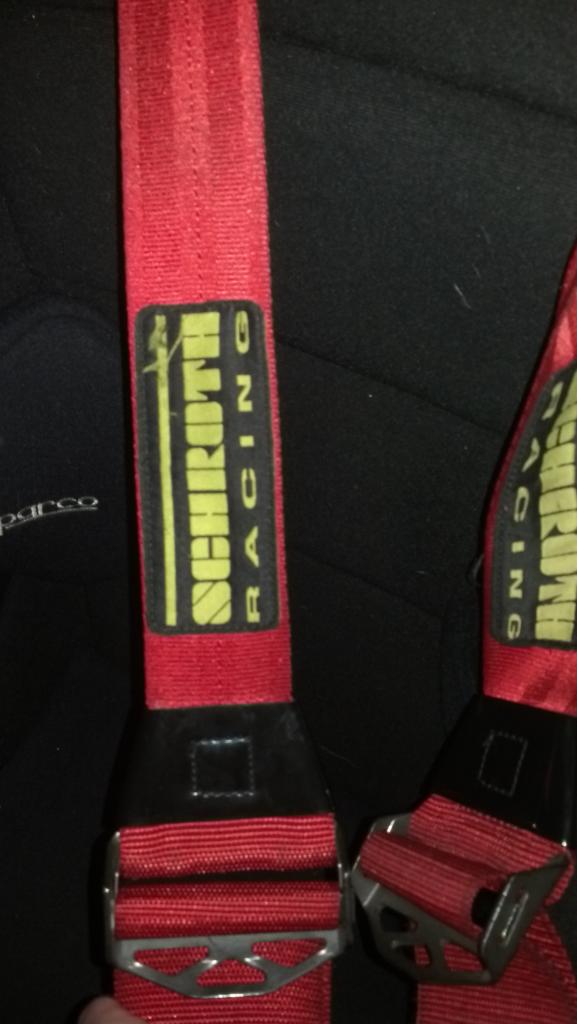

Here are some crappy cell pics...



Attached Thumbnails
Lets Discuss Seats and Harnesses.-clubman-iiiv2.jpg   Lets Discuss Seats and Harnesses.-img_20140623_090453_697_zpsyisko3he.jpg   Lets Discuss Seats and Harnesses.-img_20140623_090505_011_zps44afe8ov.jpg
ofspunk7 is offline   Reply With Quote
Old 06-23-2014, 03:24 PM   #46
Junior Member

Join Date: Oct 2009
Location: Ottawa, ON, Canada
Posts: 84
Total Cats: 5
Default

I'm running:

Driver: Momo Lesmo One with Schroth Profi II
Passenger: Sparco Sprint V with Schroth Profi II

Driver's seat needs to get lower, but otherwise, things are pretty good.
schmoo is offline   Reply With Quote
Old 06-23-2014, 03:34 PM   #47
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,663
Total Cats: 1,560
Default

OG Racing is a safety equipment sponsor for NASA and one of the guys came down for the event (it happens to be the guy from this forum). It was good meeting you.
sixshooter is online now   Reply With Quote
Old 06-23-2014, 03:57 PM   #48
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Mazduh View Post
I've had corbeau fx1 pros(comfy but didn't fit well at all), Lotus Elise 05 seats non probax(fit like a glove and looked great! Uncomfortable as ****), NA seats defoamed in my NB(Comfy, just not ideal), Kirkeys, fit my *** like a glove and didn't break the bank. My only complaint is my harness's, I need some padding on them otherwise they like to cut into my neck.


What were the fitment problems with the FX1 Pros? Like... didn't fit the car well? Or the driver?



I'm interested in how to get my A4s sitting lower while still keeping them on sliders.
concealer404 is online now   Reply With Quote
Old 06-23-2014, 04:02 PM   #49
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Filipe Dias View Post

Anyone around here have this ? Corbeau LE-X


Oh man those are nice. Do they fit well in the car? What do you have them mounted on?

And why doesn't Corbeau show those in the US, dammit?


[edit] DERP, just now realize that's not a Miata, shown. I want those damn seats, though.
concealer404 is online now   Reply With Quote
Old 06-23-2014, 06:15 PM   #50
Junior Member

Join Date: Jan 2009
Location: Sachse, TX
Posts: 103
Total Cats: 3
Default

Quote:
Originally Posted by OGRacing View Post
In a miata, avoid any pull up harnesses. They have a tendency to be too long and unable to secure you properly in our small cockpits.
I have experienced just the opposite with my down pull harnesses. I have trouble getting them tight enough between the seat and the door sill. I was gonna get up pull next. Can you explain why they are harder to tighten than down pull?
MINI-P is offline   Reply With Quote
Old 06-23-2014, 10:47 PM   #51
Junior Member

Join Date: Oct 2009
Location: Ottawa, ON, Canada
Posts: 84
Total Cats: 5
Default

I've tried my schroths in up and down pull. I find it very hard to tighten the up pull myself. Someone out side the car can do it great, but from the seat, find it tough.
schmoo is offline   Reply With Quote
Old 06-24-2014, 11:47 AM   #52
Junior Member

Join Date: Oct 2013
Location: Portugal
Posts: 109
Total Cats: 24
Default

Quote:
Originally Posted by concealer404 View Post
Oh man those are nice. Do they fit well in the car? What do you have them mounted on?

And why doesn't Corbeau show those in the US, dammit?


[edit] DERP, just now realize that's not a Miata, shown. I want those damn seats, though.
I have measured the Seats and think they fit spot on!

Just waiting to sell my Elise Seats so i can order this ones
Filipe Dias is offline   Reply With Quote
Old 06-24-2014, 08:51 PM   #53
WAM
Junior Member

Join Date: Nov 2013
Posts: 73
Total Cats: 4
Default

The Corbeau Baja SS seems very functional and inexpensive. Anyone know of any fitment issues? They're intended for offroad, but I sat in one and it was incredibly comfy and very supportive. I picked it up and it seemed suitably light. I think it would make a good race seat if it fits.
WAM is offline   Reply With Quote
Old 06-25-2014, 12:39 PM   #54
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by MINI-P View Post
I have experienced just the opposite with my down pull harnesses. I have trouble getting them tight enough between the seat and the door sill. I was gonna get up pull next. Can you explain why they are harder to tighten than down pull?
simple, there isn't much room. every harness (between manufacturers) is different. i know on the G force cam lock pull downs, we would need to tighten the lap belt before sitting in the seat. if you want pull ups take a measurement form the mounting points to the hole in the seat for the lap belt. we have all the harnesses in stock and can take a measurement for you before you order. to insure you get the correct item.

Quote:
Originally Posted by WAM View Post
The Corbeau Baja SS seems very functional and inexpensive. Anyone know of any fitment issues? They're intended for offroad, but I sat in one and it was incredibly comfy and very supportive. I picked it up and it seemed suitably light. I think it would make a good race seat if it fits.
I had the corbeau clubmans in a NA. they fit excellent into the car and the webbing worked very well. It was a very comfortable seat. i'm 6' tall and i fit into it well. my wife at 5'5" couldn't fit. her shoulders his the side bolsters, so driving down the road she had to shrug, and hold her arms in front of her. needless to say we didnt take that car on many road trips.

the Down side to those seats is the fabric doesn't like sun. the seats yellowed after 2 years. we can get carbau seat if you call, but we don't stock them as they don't have very many motorsports applications(FIA rated seat). most are for jeeps.
OGRacing is offline   Reply With Quote
Old 06-25-2014, 12:50 PM   #55
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Do you guys know who makes the harness that has the lap belt adjuster built into the cam lock clip? I saw a latch link like that with extra padding under the adjuster so it it wouldnt dig into you. Looks like a real damn easy way to adjust the lap belt.
Leafy is offline   Reply With Quote
Old 06-25-2014, 02:33 PM   #56
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by Leafy View Post
Do you guys know who makes the harness that has the lap belt adjuster built into the cam lock clip? I saw a latch link like that with extra padding under the adjuster so it it wouldnt dig into you. Looks like a real damn easy way to adjust the lap belt.

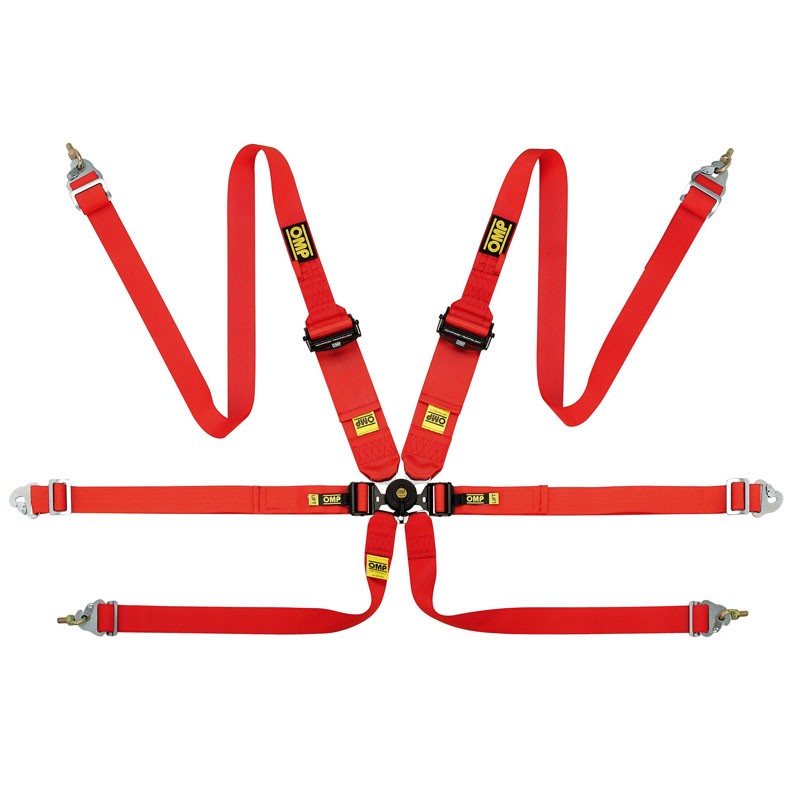

OMP has the "806" it's built for small GT cars (miata, lotus ect..)



OMP 806 HSLEF SUPER LIGHTWEIGHT PRO RACING HARNESS

this was brought to my attention this afternoon. the 805 is a little less $$ than the 806 but the adjusters are movable. You can move them around, set them as pull up or pull down, set one as pull up set the other as pull down.



http://www.ogracing.com/omp-805-hlpf...racing-harness
Attached Thumbnails
Lets Discuss Seats and Harnesses.-806hslef-red-web.jpg
OGRacing is offline   Reply With Quote
Old 06-25-2014, 02:43 PM   #57
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

^ That's a cool design

No adjusters on the sub straps though :(
ThePass is offline   Reply With Quote
Old 06-25-2014, 05:36 PM   #58
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 397
Total Cats: 23
Default

Quote:
Originally Posted by OGRacing View Post
OMP has the "806" it's built for small GT cars (miata, lotus ect..)



OMP 806 HSLEF SUPER LIGHTWEIGHT PRO RACING HARNESS

this was brought to my attention this afternoon. the 805 is a little less $$ than the 806 but the adjusters are movable. You can move them around, set them as pull up or pull down, set one as pull up set the other as pull down.



OMP 805 HLPF LIGHTWEIGHT PRO RACING HARNESS

Wow I really like that setup
ofspunk7 is offline   Reply With Quote
Old 06-25-2014, 05:41 PM   #59
Junior Member

Join Date: Aug 2010
Location: Texas
Posts: 162
Total Cats: 11
Default

I put the OMP 804 setup in my Miata last year. It's the same as the 806 but with 3" straps. It's amazingly nice. Easy to adjust. The best part is that the adjustment locks very positively; once it is set, is isn't going to move. It is wonderful to jump in the car and have it set perfectly every time.

robert
robertcope is offline   Reply With Quote
Old 06-25-2014, 05:43 PM   #60
Supporting Vendor
Thread Starter
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by ofspunk7 View Post
Wow I really like that setup
the 806, or the 805?
OGRacing is offline   Reply With Quote
