Old 03-31-2012, 01:11 AM   #1141
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

You're not adding a curve to that diffuser?

Last edited by triple88a; 03-31-2012 at 01:25 AM. Reason: diffuser... not splitter.
triple88a is offline   Reply With Quote
Old 03-31-2012, 01:17 AM   #1142
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I am confused why should I add a curve to my splitter? Unless you are referring to the diffuser and no it will be mounted at an upward angle I am not really skilled enough to make a curved diffuser that I like yet.lol
Sean is offline   Reply With Quote
Old 03-31-2012, 01:24 AM   #1143
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Err right my bad diffuser.
triple88a is offline   Reply With Quote
Old 03-31-2012, 01:26 AM   #1144
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Yea I contimplated making the diffuser curved but after figuring in what it would take to make it versus a straight one I just figure I will mount it at an angle and call it a day. Worst case I will make a new one if need be.
Sean is offline   Reply With Quote
Old 04-02-2012, 11:38 AM   #1145
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Ok so I got some work done on the car yesterday. I installed my wideband, coolant lines, charge piping, and got the car running. I got the FIC working and it seems to be working pretty good. I have to do a ttttoooonnnnn of tuning and I am not great at it but with time I am sure I will get there. Good news is I was able to drive it up and down the street and and it seemed to run pretty good. I am waiting on my fender flares to come in and need to mount my wing. I think as soon as the flares come in I can mount he wing fenders bumper and new headlights.
Sean is offline   Reply With Quote
Old 04-03-2012, 11:15 PM   #1146
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

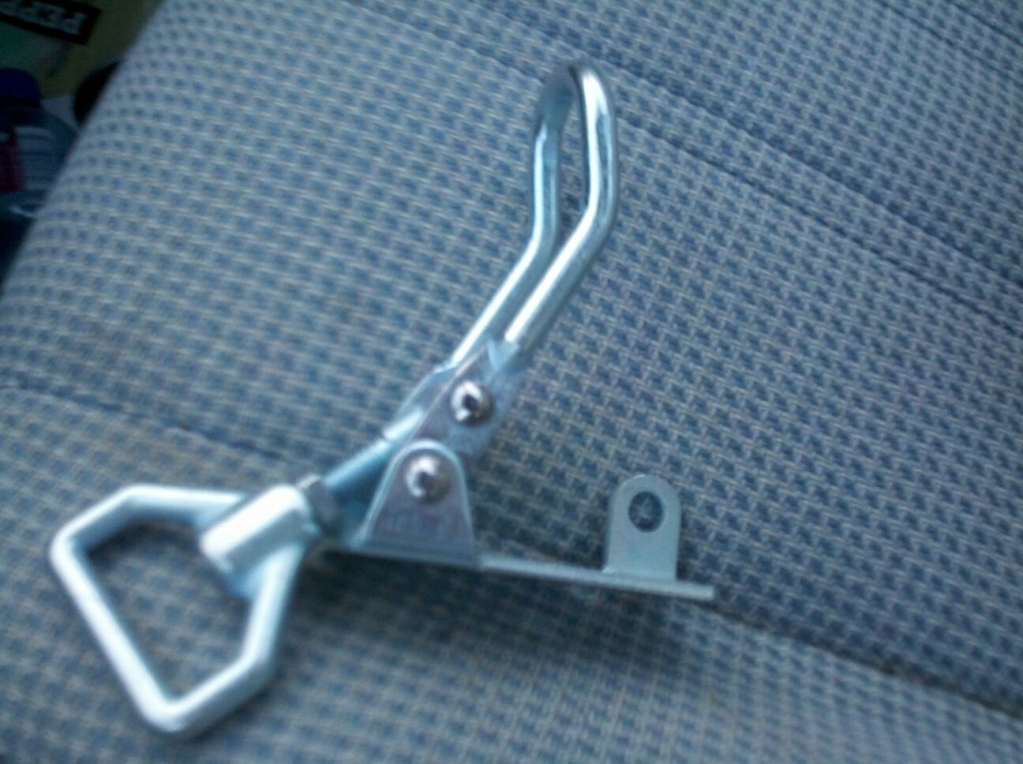

OK along with everything else I have been trying to get done I started another little project. I have an aftermarket hardtop. It is a snugtop and I have had it bolted down for as long as I have had it. My dad has a snugtop but he has latches so after a lot of searching I think I found something that will work. I started to make a set of latches for it. This is what I have so far and I will post up some part numbers tomorrow. I ordered some latches from mcmaster and then made a template for the base. My hope is to use stock striker plates because I want to use the soft top as well. Here are the latches I got and I could use locks on it if I wanted to and made some mounting plates out of 3/16 steel plate and want to weld the latches on.

Here is what I go so far.





Attached Thumbnails
2jz Miata build thread-resampled_2012-04-03_19-26-20_975.jpg   2jz Miata build thread-resampled_2012-04-03_19-21-31_259.jpg   2jz Miata build thread-resampled_2012-04-03_19-23-11_597.jpg
Sean is offline   Reply With Quote
Old 04-04-2012, 09:56 PM   #1147
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

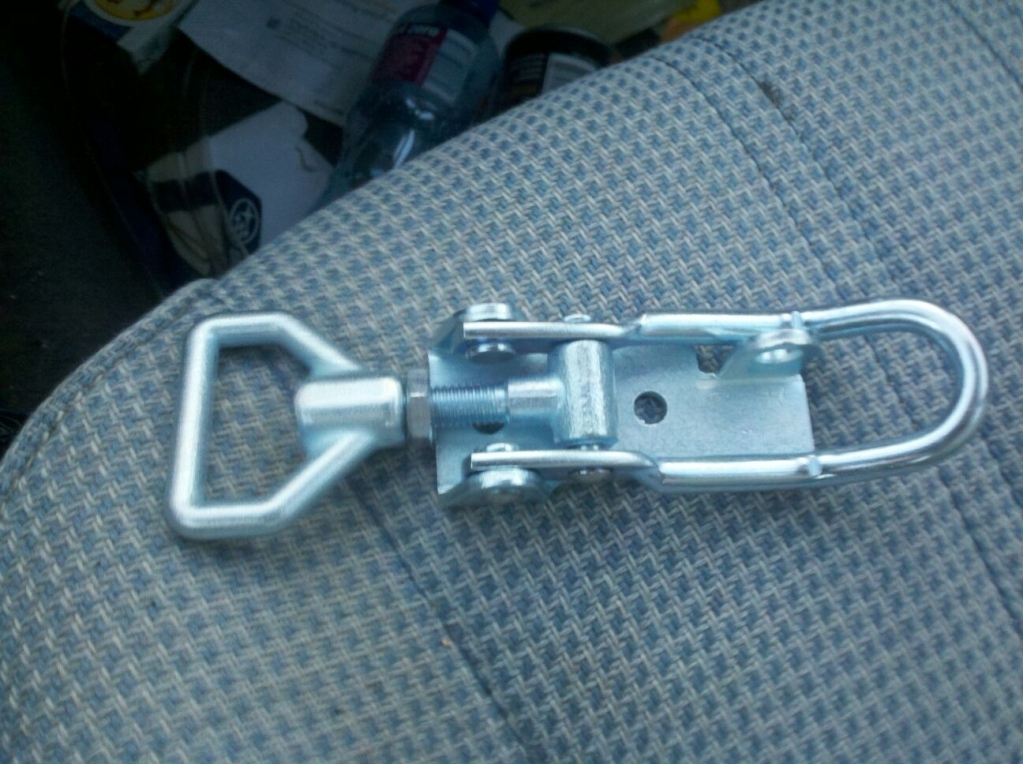

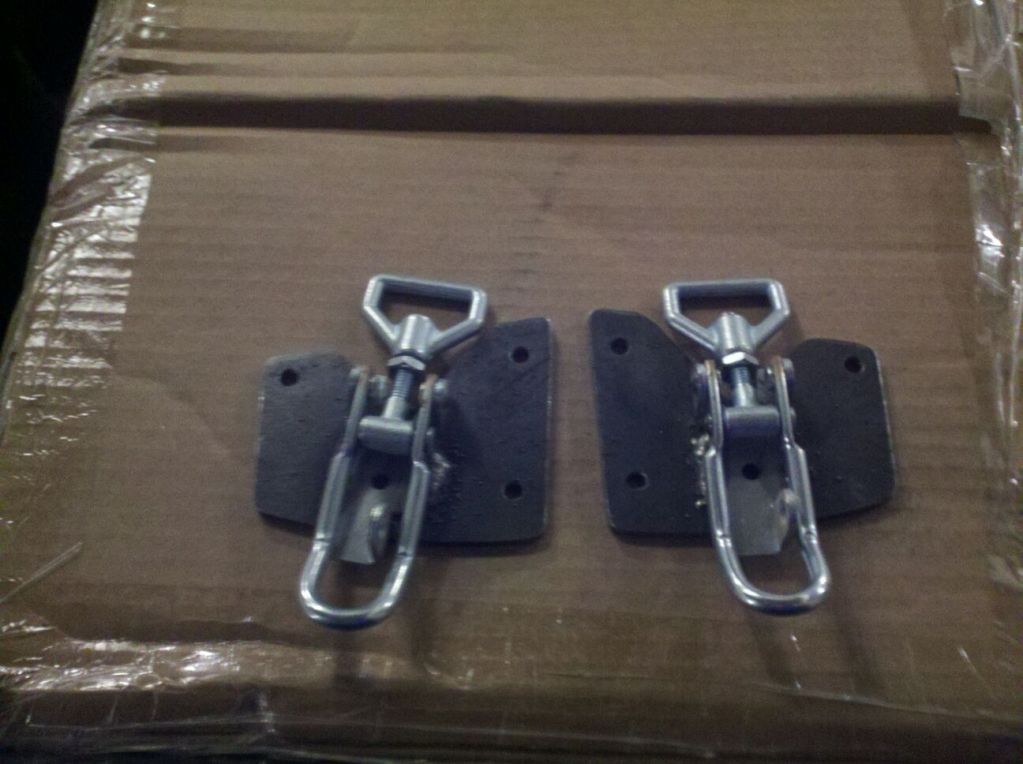

So after 6 years of owning a hardtop I finally have latches for it, and to top it off they fit with the factory catches and were only about $30 when all said and done.

I am going to make a DIY thread on them because people are forever wanting to know where they can get some latches or where to get parts to make their own and as soon as I finish my side latches I will post a thread on how to do that. I am really pleased with how they came out they match the line of the roof really well and do not look stupid. To make it better they have a place to put a lock so I can have my cake and eat it too.

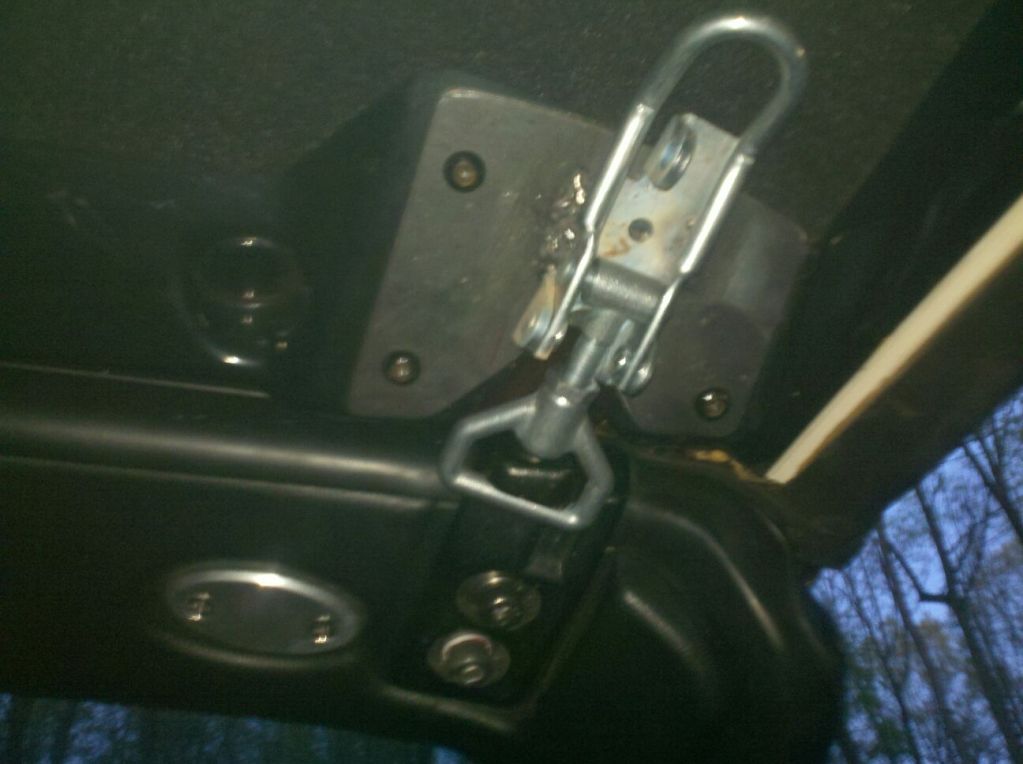

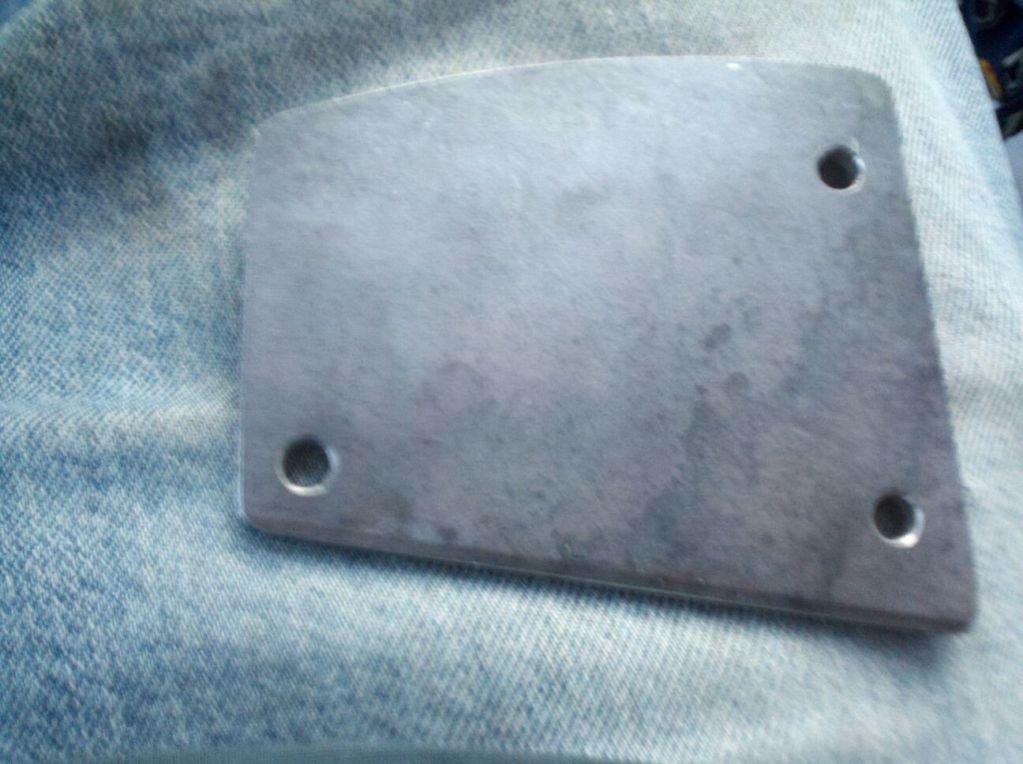

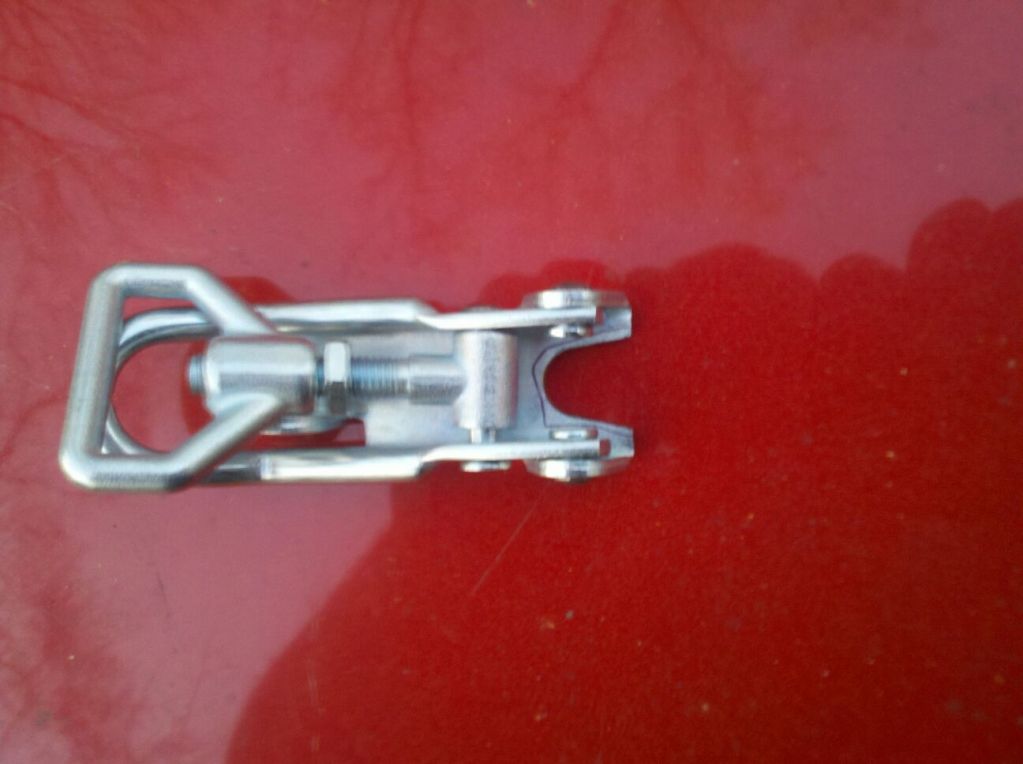

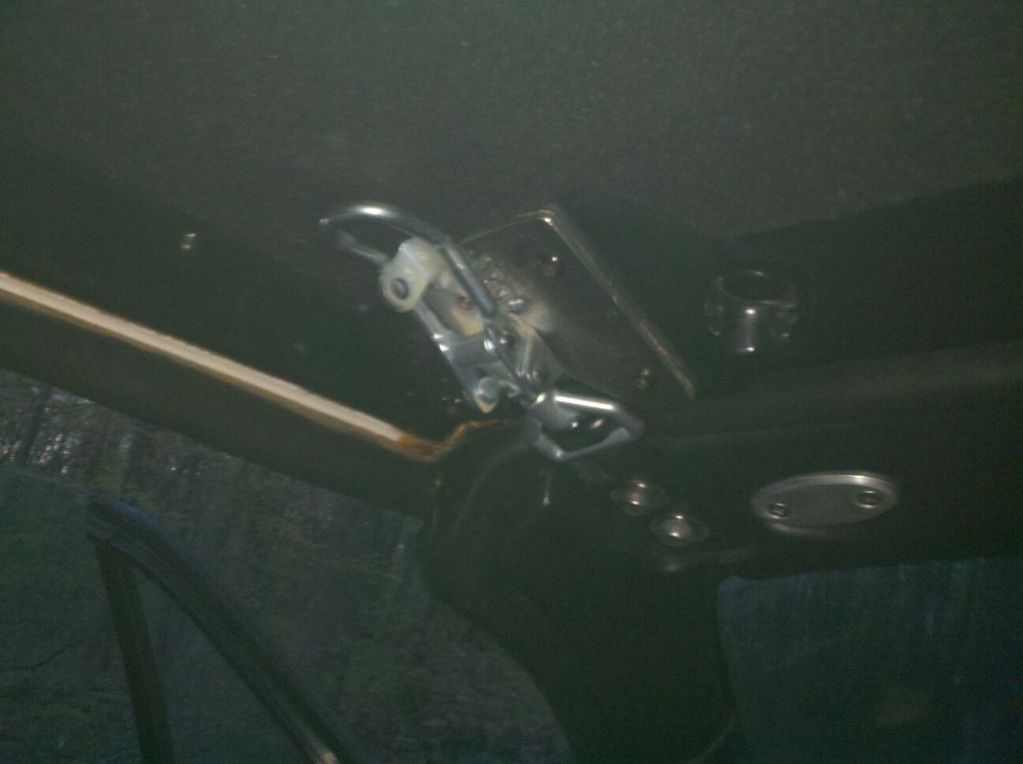

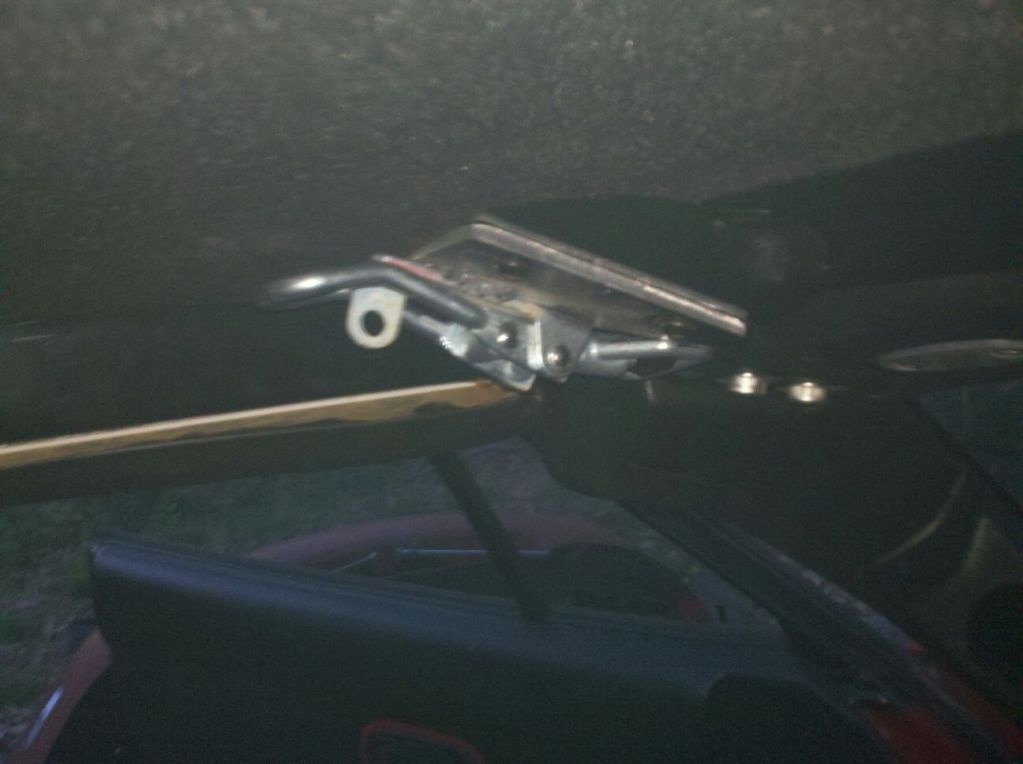

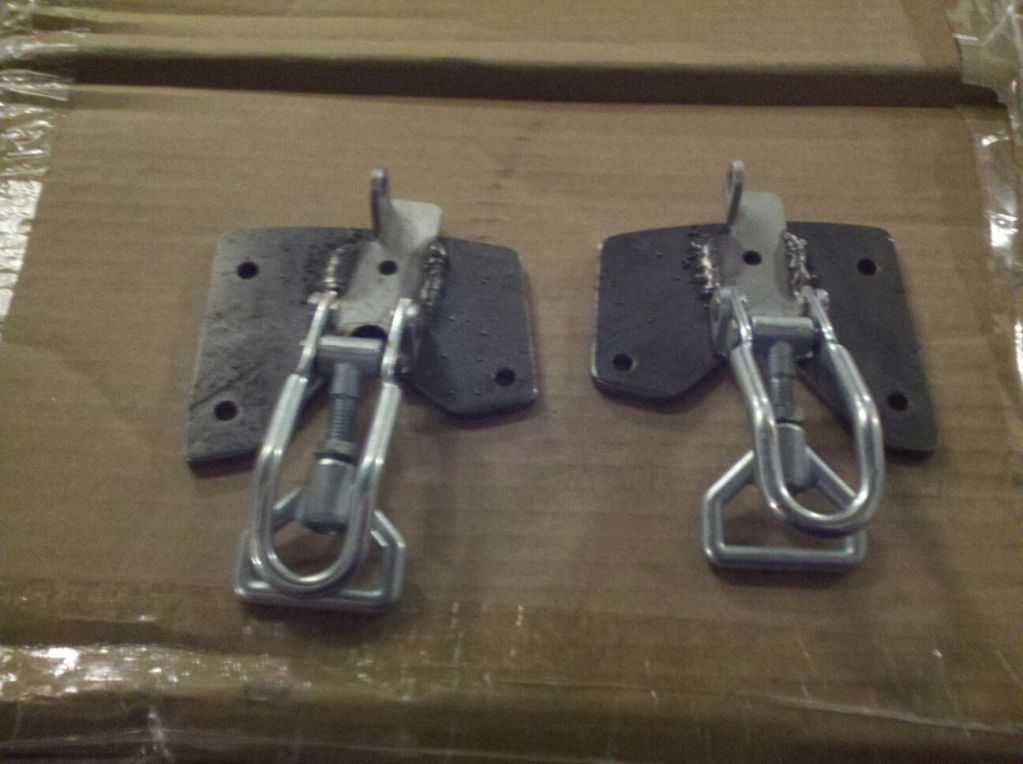

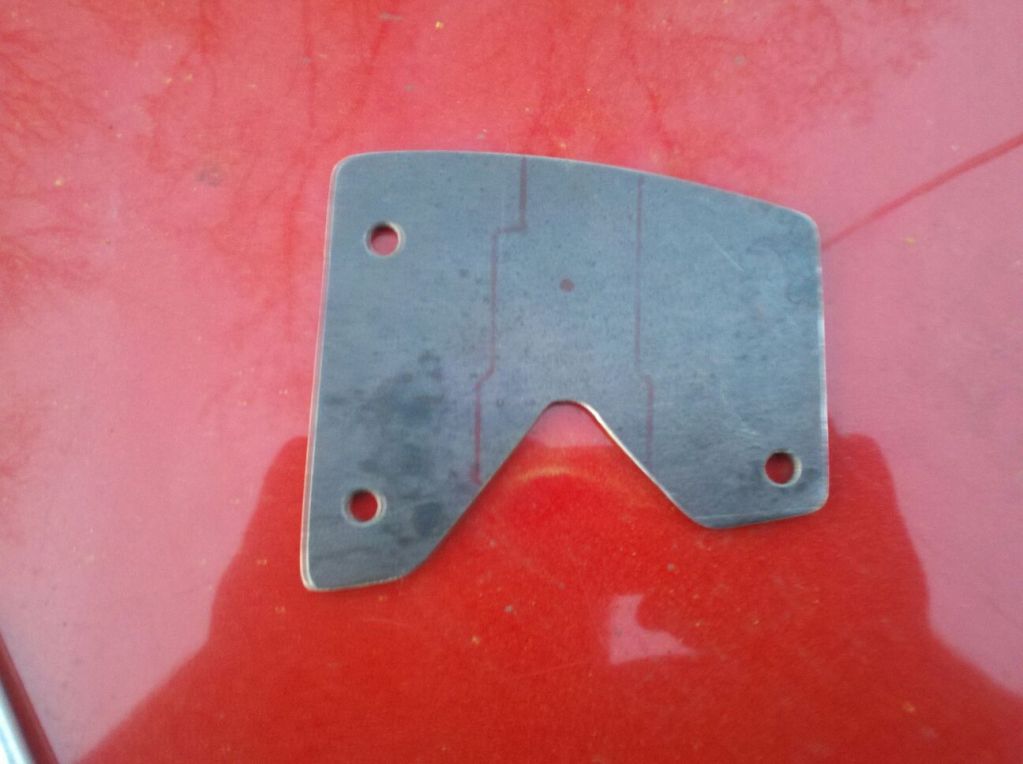

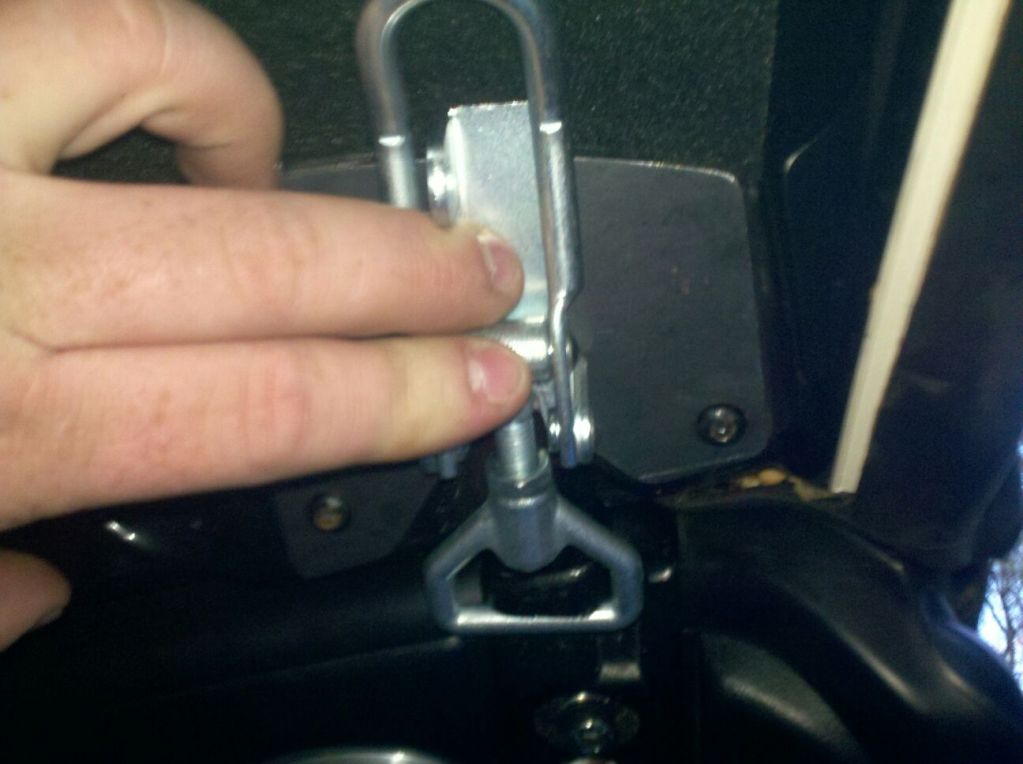

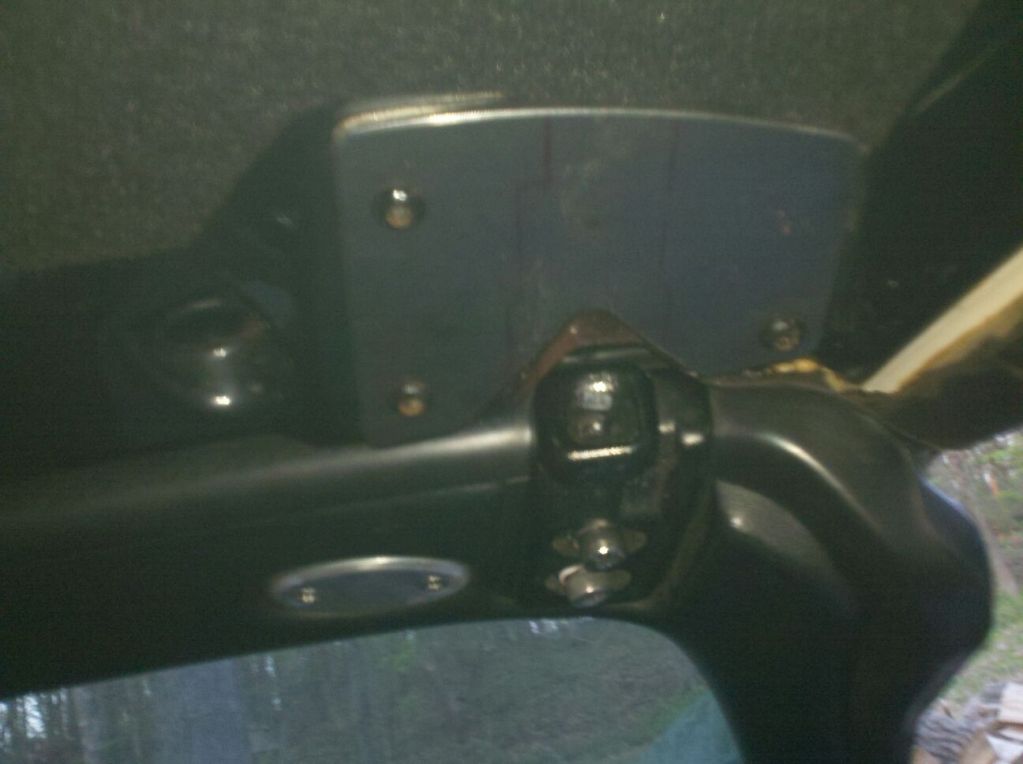

Here are the pics. I had to modify the base plates I made yesterday because they needed more clearance. These latches are super strong and hold the top down nice and tight. They are easy to adjust and I opted for the steel version just so I could weld them. They also make a similar latch in stainless. I am posting the pics in order or process as best as possible.

























A splash of black paint tomorrow and they will be good to go.
Attached Thumbnails
2jz Miata build thread-resampled_2012-04-03_19-21-31_259.jpg   2jz Miata build thread-resampled_2012-04-03_19-23-11_597.jpg   2jz Miata build thread-resampled_2012-04-03_19-26-20_975-1.jpg   2jz Miata build thread-resampled_2012-04-04_19-27-18_281.jpg   2jz Miata build thread-resampled_2012-04-04_19-27-09_71.jpg

2jz Miata build thread-resampled_2012-04-04_19-30-24_633.jpg   2jz Miata build thread-resampled_2012-04-04_19-30-44_327.jpg   2jz Miata build thread-resampled_2012-04-04_19-48-20_229.jpg   2jz Miata build thread-resampled_2012-04-04_19-48-26_138.jpg   2jz Miata build thread-resampled_2012-04-04_19-48-47_671.jpg

2jz Miata build thread-resampled_2012-04-04_20-04-48_829.jpg   2jz Miata build thread-resampled_2012-04-04_20-05-19_161.jpg
Sean is offline   Reply With Quote
Old 04-05-2012, 12:08 PM   #1148
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

You, sir, are an injinuitive ****** ******.
astroboy is offline   Reply With Quote
Old 04-16-2012, 01:12 AM   #1149
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

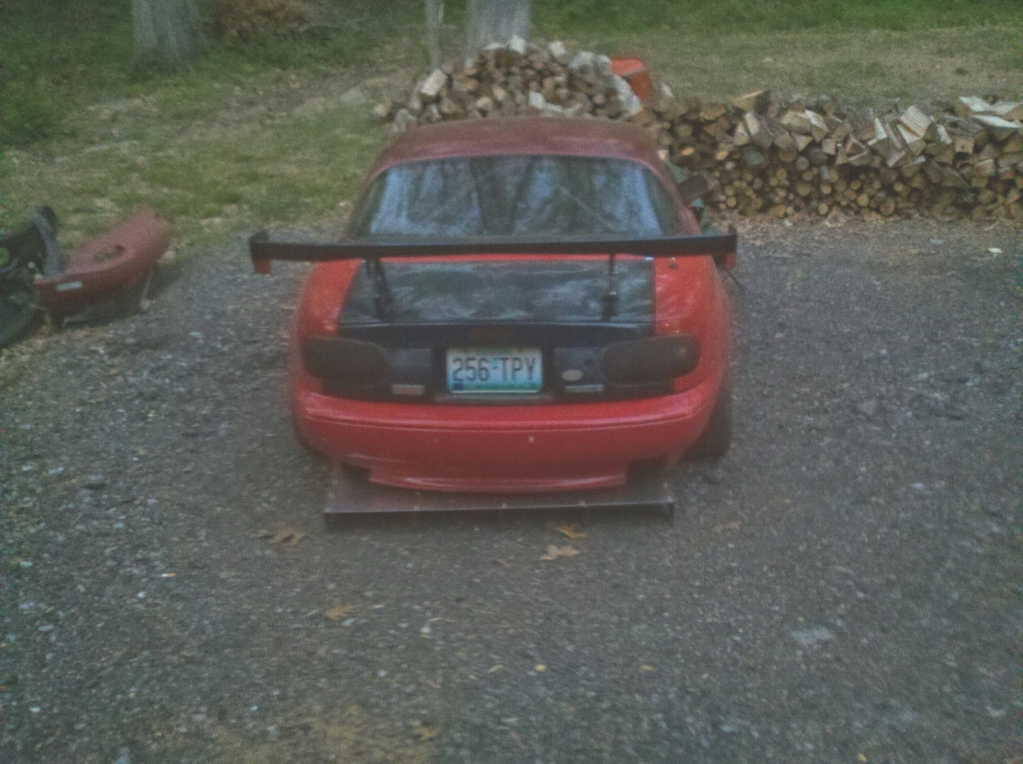

Ok got some work done on the car today. No pics yet but I will get some tomorrow when I get home. Got the wing mounted, fuse box mounted under dash out of the way, ecu mounted to the floor/firewall out of the way. Need to mount the fic and trim the glove box to fit the fuse box. I did a little more tuning today and we got the idle smoothed out at bit. Car idles around 800 rpm and at 13.7-15.0 still bouncing a bit. I am trying to keep working on it as much as time will allow.
Sean is offline   Reply With Quote
Old 04-17-2012, 11:44 AM   #1150
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

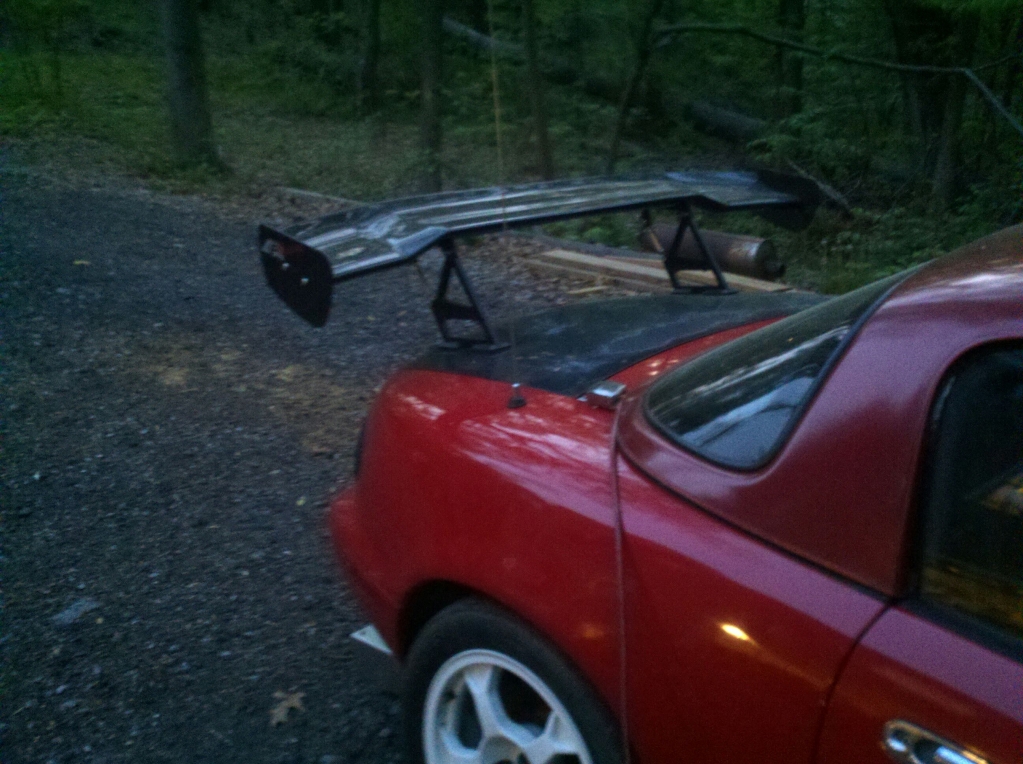

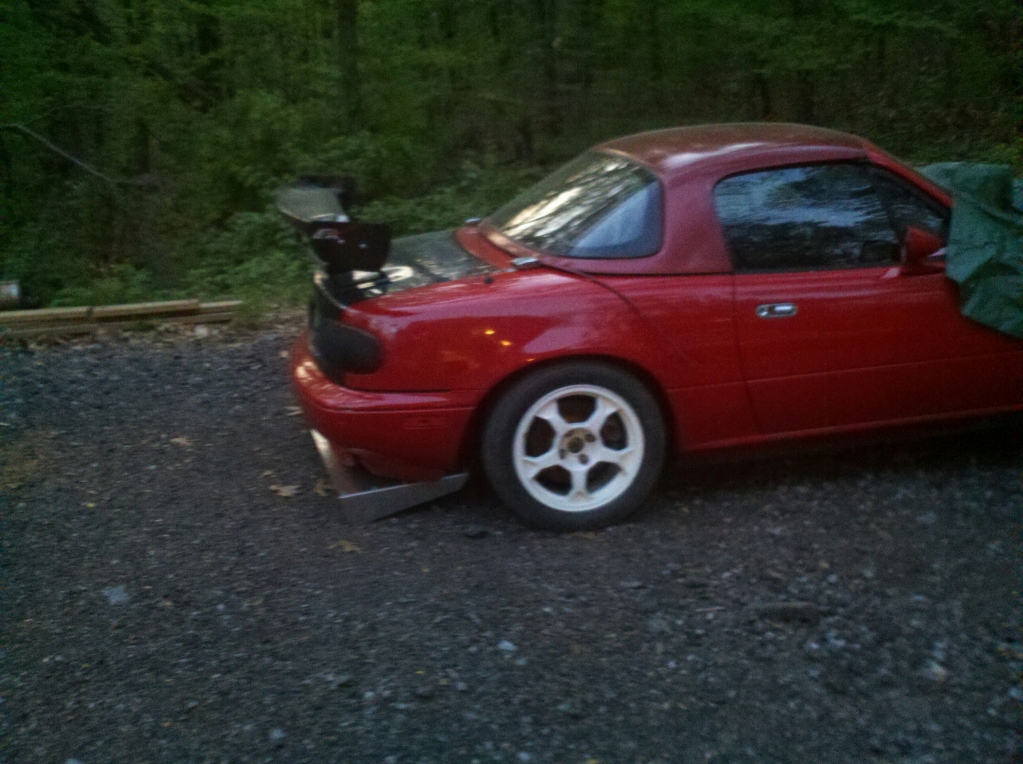

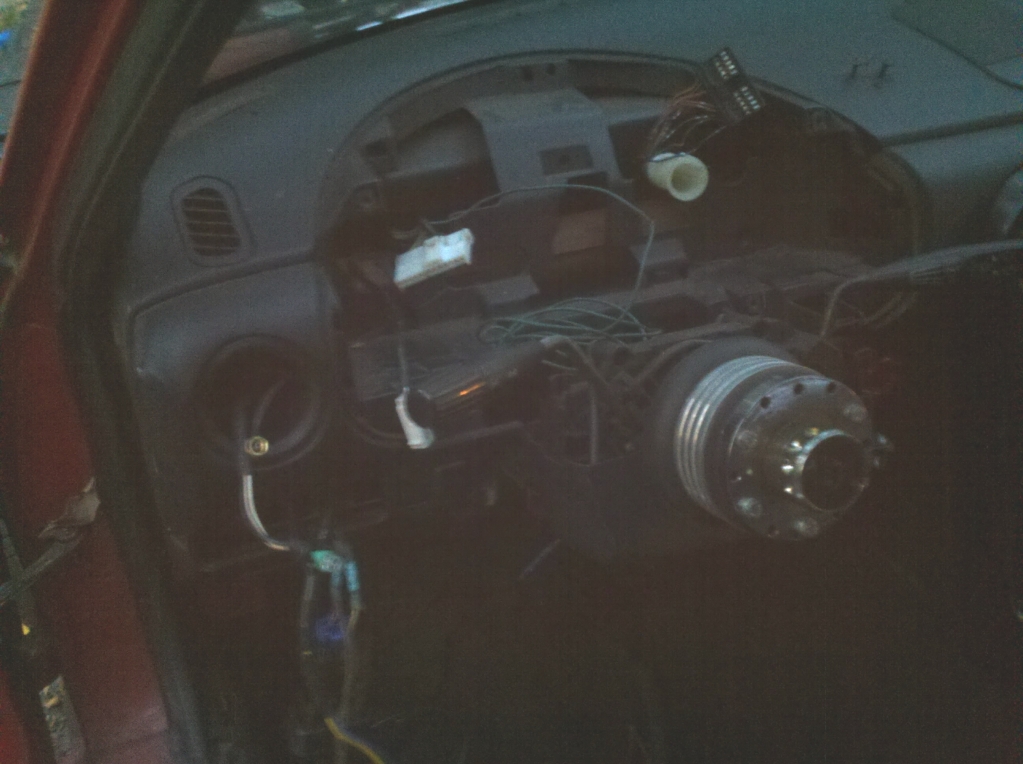

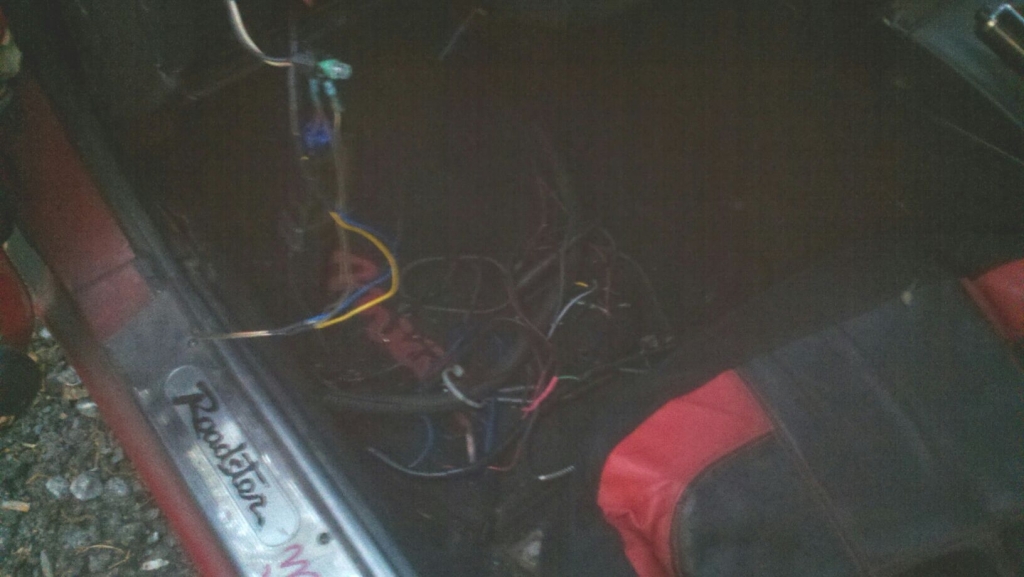

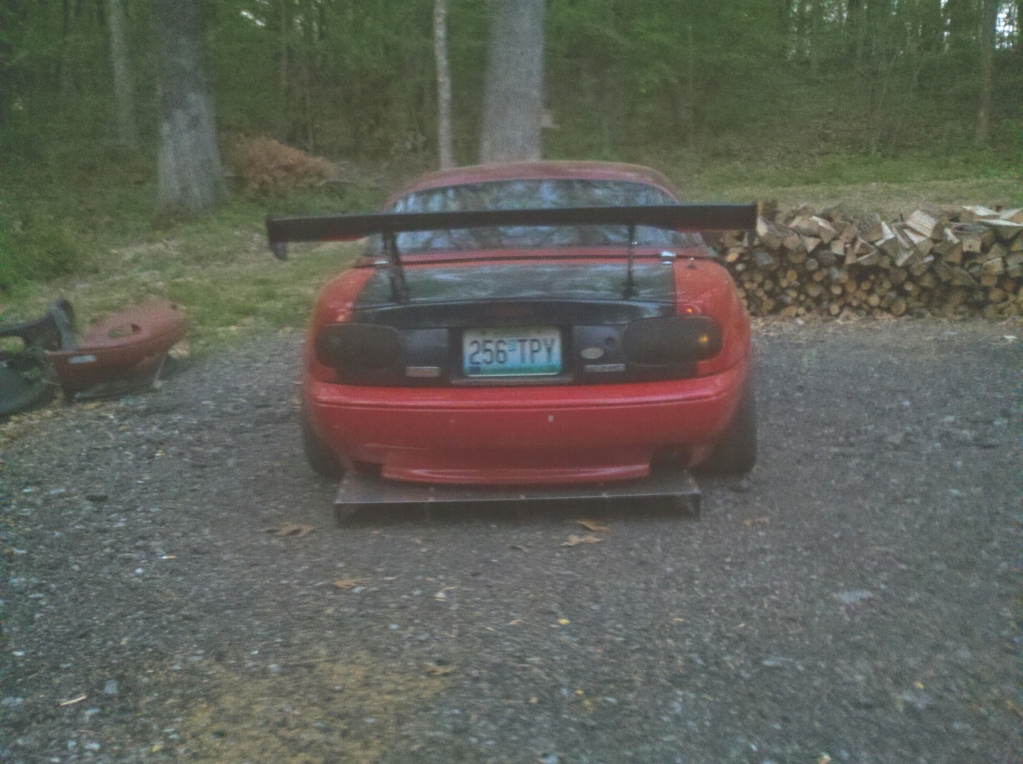

Here are some pics and I started to wire in my wideband gauge last night and realized I must have been smoking crack when I installed my other gauges so I ripped them all out and I am going to rewire everything. The farther I get on this project the more I hate half *** crap so I removed all old wiring including some stuff I did about 5 years ago and I am starting fresh. There are pics of all the wires I removed. Rear diffuser is not attached it is just sitting under the car until I can mount it.












Attached Thumbnails
2jz Miata build thread-resampled_2012-04-16_19-59-59_159.jpg   2jz Miata build thread-resampled_2012-04-16_20-00-52_13.jpg   2jz Miata build thread-resampled_041712075048.jpg   2jz Miata build thread-resampled_041712075208.jpg   2jz Miata build thread-resampled_041712075557.jpg

2jz Miata build thread-041712075436.jpg
Sean is offline   Reply With Quote
Old 04-18-2012, 09:17 PM   #1151
Newb

Join Date: Nov 2010
Location: frederick md
Posts: 42
Total Cats: 0
Default

we need more us time!
bad6as is offline   Reply With Quote
Old 04-18-2012, 09:18 PM   #1152
Newb

Join Date: Nov 2010
Location: frederick md
Posts: 42
Total Cats: 0
Default

and warm sexual fires
bad6as is offline   Reply With Quote
Old 04-18-2012, 10:40 PM   #1153
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

As long as us time involves a little working on something here and there.lol
Sean is offline   Reply With Quote
Old 04-19-2012, 08:19 PM   #1154
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

How much of the bumper are you going to cut out for the diffuser?
astroboy is offline   Reply With Quote
Old 04-19-2012, 08:50 PM   #1155
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I am going to cut 4-4.5 inches out of the bottom plus the lip will be coming off so compared to that pic about 6 inches will post some pics when i do it i want the bottom of the diffuser to be almost flush with the bottom of the bumper or higher
Sean is offline   Reply With Quote
Old 04-21-2012, 03:54 AM   #1156
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

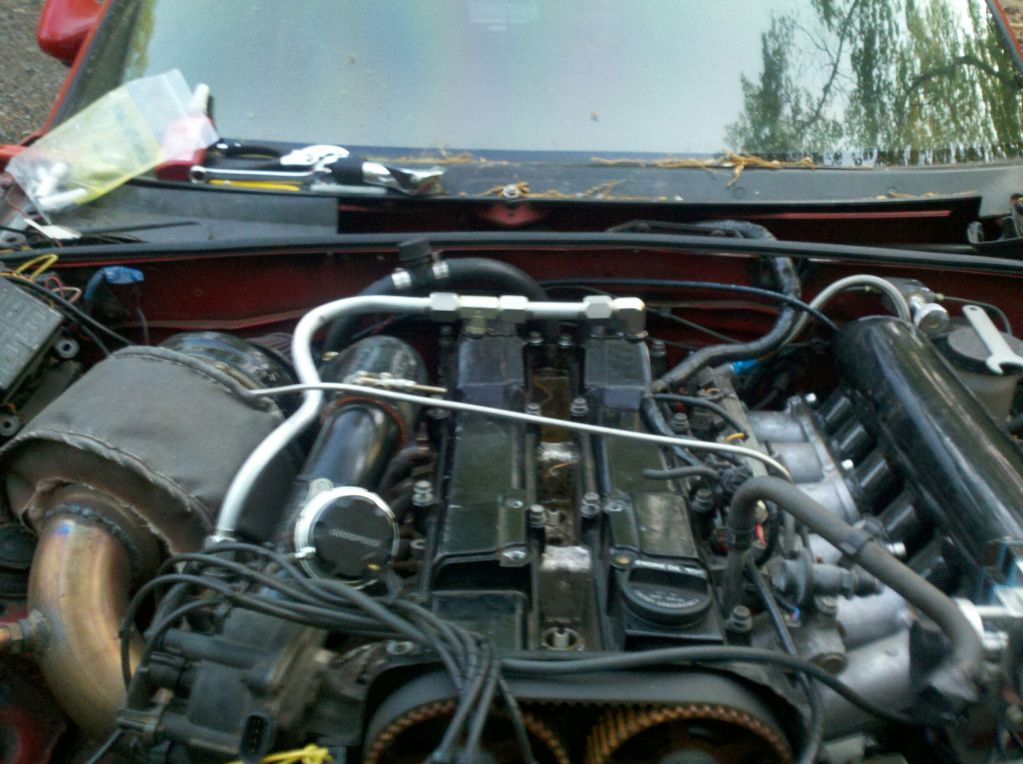

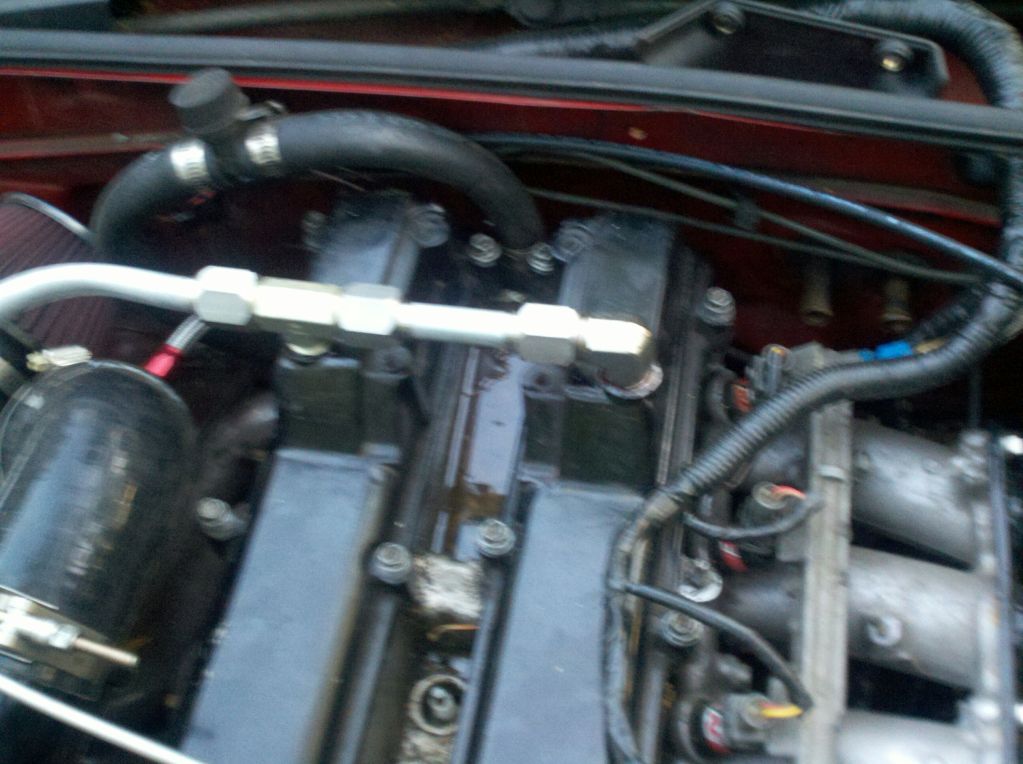

Ok got home today had to throw some brakes on my girls car but I was able to get the breather set up made for the 2jz. Here are some crude pictures but it is 5/8 aluminum hard line with flare fittings. The routing on the one picture looks kinda weird but that is how it has to run to avoid all the other stuff it has to run around, like the charge piping and oil feed. I also welded a -10an bung to my venturi check valve so it is all screwed togeather and looks legit.



Attached Thumbnails
2jz Miata build thread-resampled_2012-04-20_19-40-41_328.jpg   2jz Miata build thread-resampled_2012-04-20_19-40-26_461.jpg
Sean is offline   Reply With Quote
Old 04-23-2012, 12:23 AM   #1157
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

I'm still loling over the oil feed, but you can't argue with functionality.
mx5autoxer is offline   Reply With Quote
Old 04-23-2012, 09:04 AM   #1158
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Oil line is functional and easy to remove when needed.
Sean is offline   Reply With Quote
Old 04-28-2012, 12:47 PM   #1159
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

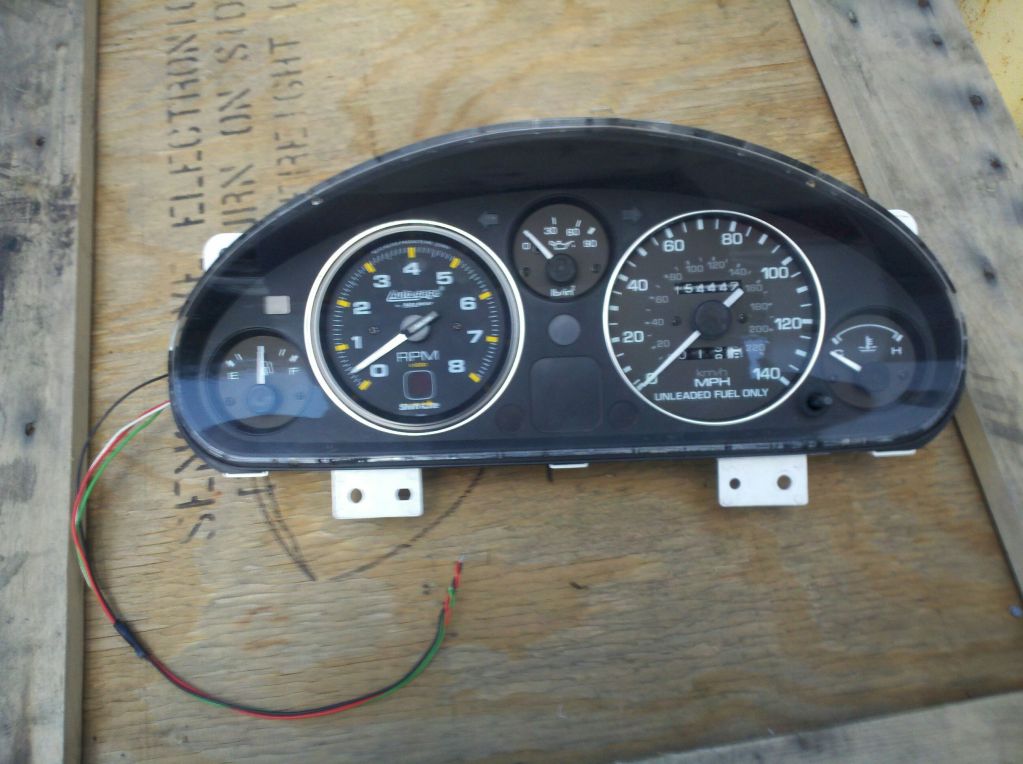

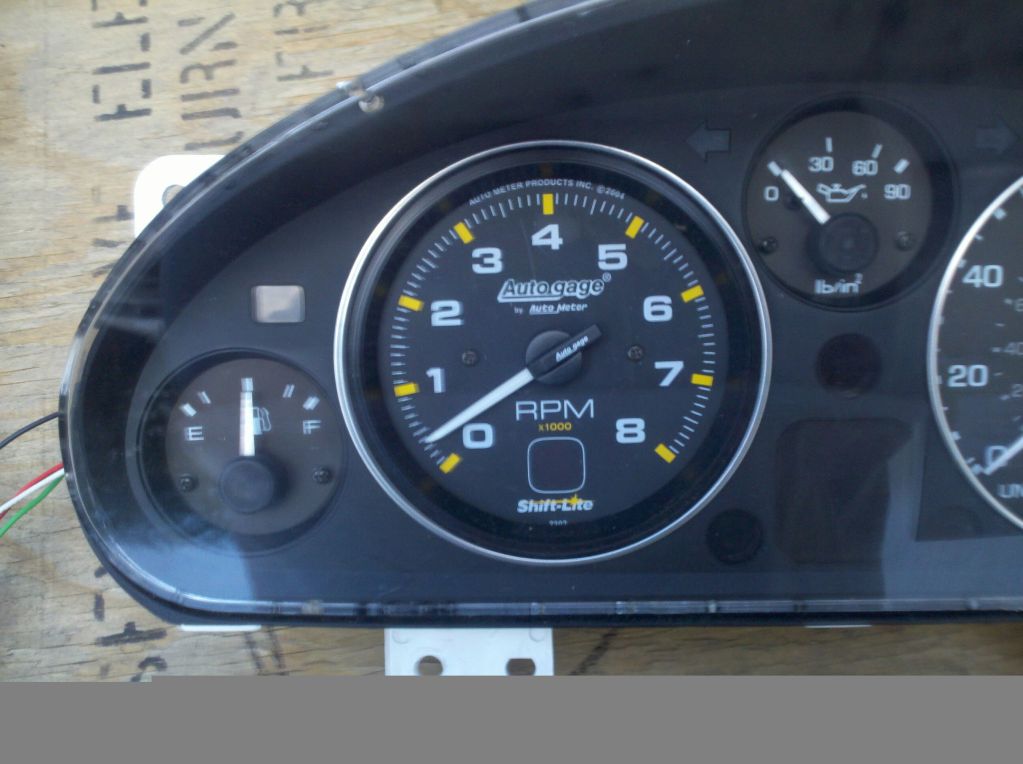

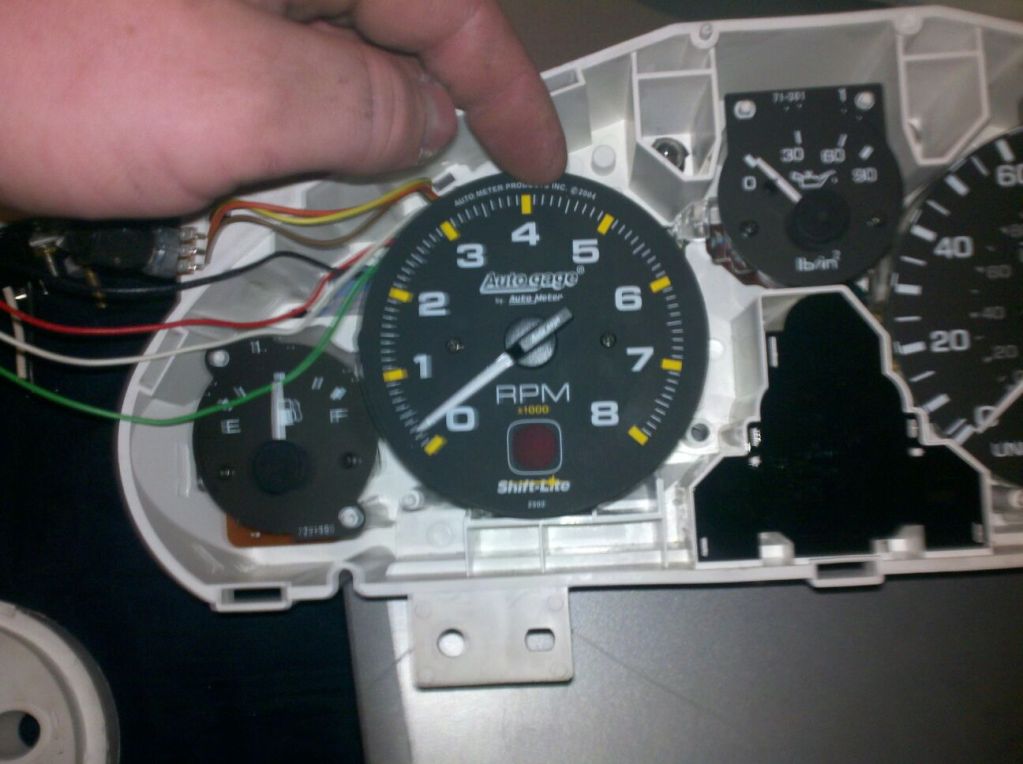

OK so I am going to do some work on the miata today. I installed an aftermarket tachometer into my stock gauge cluster. It looks really good IMO and it has an integrated shift light. I will also be installing my other gauges like the oil pressure, wideband, boost. I will post some pics when all done. Here is what the gauge cluster looks like.





Attached Thumbnails
2jz Miata build thread-resampled_2012-04-25_23-05-56_632.jpg   2jz Miata build thread-resampled_2012-04-27_13-44-18_15.jpg   2jz Miata build thread-resampled_2012-04-27_13-44-30_105.jpg
Sean is offline   Reply With Quote
Old 04-28-2012, 07:46 PM   #1160
Newb

Join Date: Dec 2011
Posts: 16
Total Cats: 0
Default

You sir have a damn nice knack for ingenuity
jh321 is offline   Reply With Quote
