Old 01-17-2012, 05:06 PM   #1081
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

No its been cold and I blew up my DD again kinda. lol So I have been putting that back together. I will be making the charge pipes and exhaust soon so hopefully I can start tuning and will get to the radiator when I have time. It will have to be in spring to early summer because I don't think the little radiator will do the trick. I will update with some more pics as soon as I get them.
Sean is offline   Reply With Quote
Old 02-03-2012, 11:21 AM   #1082
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

OK so I have been runing around like a crazy man learning to tune my honda with BRE and hoping for the best.lol At the same time I started to work on the miata again. I have the charge piping at work with me today and am hoping to get it cut and welded together. I will post pics when I get it complete. If all goes well since it is a total pita to mark the pipes then take them to work cut and weld and then check fit, I will do my exhaust next. I hope to be able to start tuning a bit in a few weeks.
Sean is offline   Reply With Quote
Old 02-05-2012, 03:28 AM   #1083
Junior Member

Join Date: Jan 2012
Location: Calgary, AB
Posts: 151
Total Cats: -11
Default

2JZ would rip this chasis apart.. leave it in the supra!
Chowcow is offline   Reply With Quote
Old 02-05-2012, 04:43 AM   #1084
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

The 2jz is awesome but I don't think it is awesome enough to kill the car. I will try very hard to find out though.lol
Sean is offline   Reply With Quote
Old 02-05-2012, 06:56 PM   #1085
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Quote:
Originally Posted by Chowcow View Post
Hi I'm new and want to get my post count up so I can get PM's so now I'll ---- on your awesome build thread
mx5autoxer is offline   Reply With Quote
Old 02-05-2012, 07:37 PM   #1086
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Quote:
Originally Posted by mx5autoxer View Post
Couldnt agree with you more.

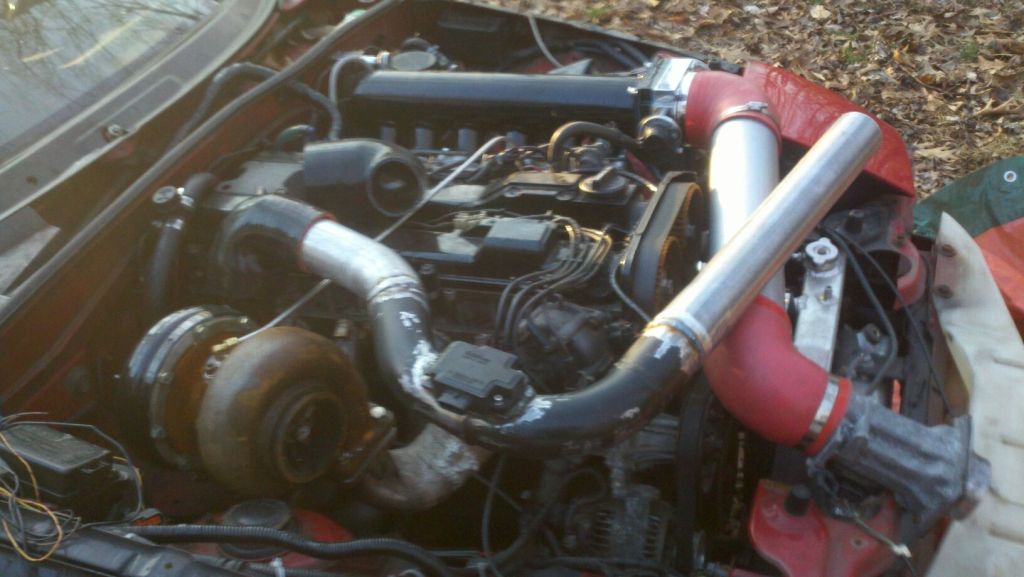

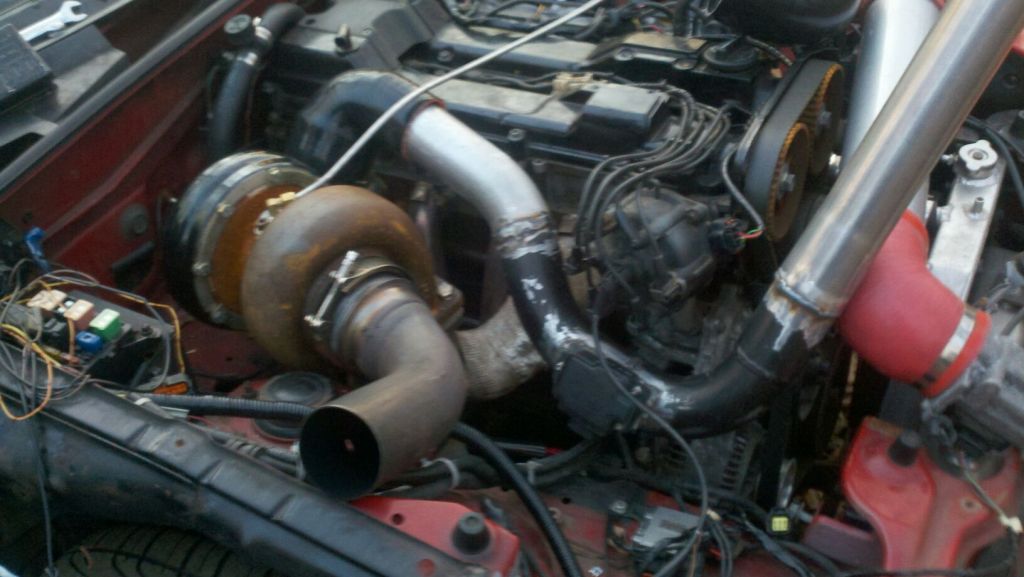

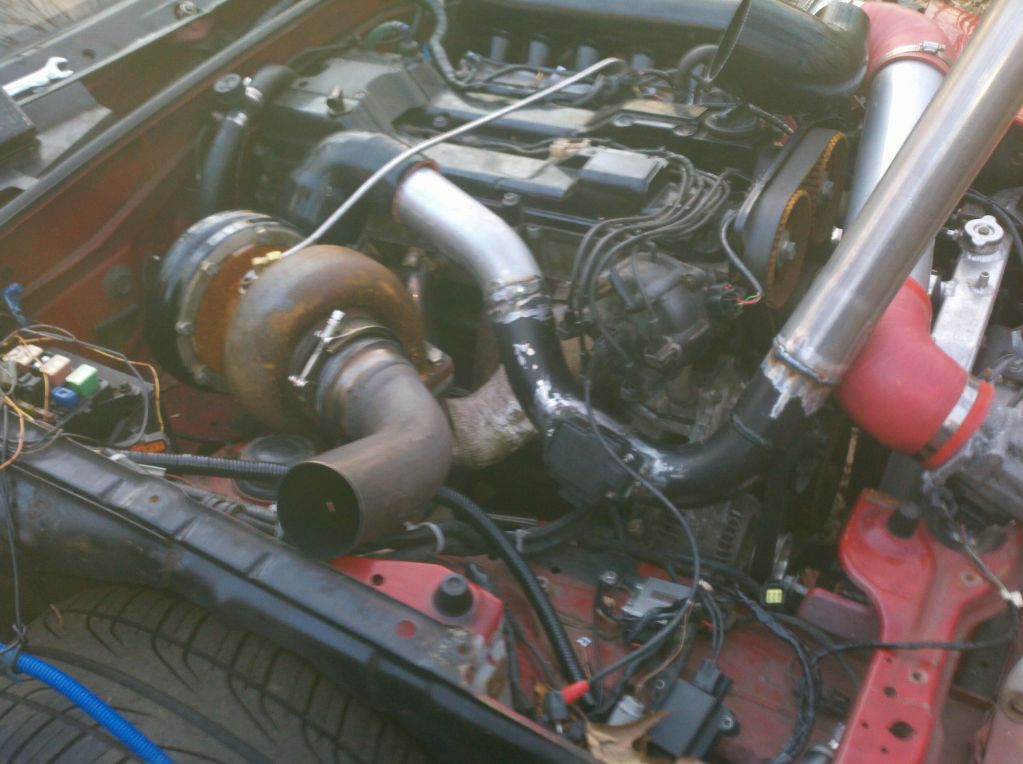

On a side note I started to work on my charge piping and I figured out that the way I wanted to do it originally is not going to work. So the first pic is fail!! Then the next two are the way I want to do it so it goes under the distributor. I will post more pics when I get it done.





Attached Thumbnails
2jz Miata build thread-resampled_2012-02-05_16-48-11_732.jpg   2jz Miata build thread-resampled_2012-02-05_17-14-36_704.jpg   2jz Miata build thread-resampled_2012-02-05_17-14-53_460.jpg
Sean is offline   Reply With Quote
Old 02-05-2012, 07:58 PM   #1087
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I think your turbo is on backwards >_>
soviet is offline   Reply With Quote
Old 02-05-2012, 11:08 PM   #1088
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

What the f**k am I looking at?

Sean, explain yourself!
viperormiata is offline   Reply With Quote
Old 02-05-2012, 11:26 PM   #1089
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

You are looking at a horrible disaster. I am making arraignments to have a welder and sawzall at the house next weekend so I can make it all new. I tried to mark it cut it and then take it to the shop weld it and bring it back to fit but one thing you cant see when you are not building it on the car is how shitty it will look. I will be making all new soon and finish the exhaust I hope and then I will show you all some pieces when done. I just wanted to document the failure so I do not forget.
Sean is offline   Reply With Quote
Old 02-07-2012, 11:01 PM   #1090
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I just wanted to let everyone know I went to Mandrel Bend Solutions in Pasadena MD today and they have an awesome scrap pile they charge $7 a bend for stainless and $5 for mild steel so I got plenty of 3" stainless to do my exhaust and some 180/45 combo bends in 2.5 mild to do my charge piping over. So stay tuned for pic this coming saturday when I finish my exhaust and charge piping!!!!!!!!!!!!!!!!!!!!! The right way.
Sean is offline   Reply With Quote
Old 02-09-2012, 02:47 PM   #1091
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Thats pretty close for not having the car there to measure. Keep up the good work. Also, I'm about to look really dumb, but why cant you flip the intake plentum and run the charge piping over the valve cover? You gotta make a cowl style hood anyway.
mx5autoxer is offline   Reply With Quote
Old 02-11-2012, 12:07 PM   #1092
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

OK so today is the crapy cold day I have dedicated to making my exhaust and charge piping. I will be hopefully making all of it by the end of the day. When I have some pics I will post them up. Stay tuned for epic new exhaust and charge piping.
Sean is offline   Reply With Quote
Old 02-12-2012, 12:24 AM   #1093
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

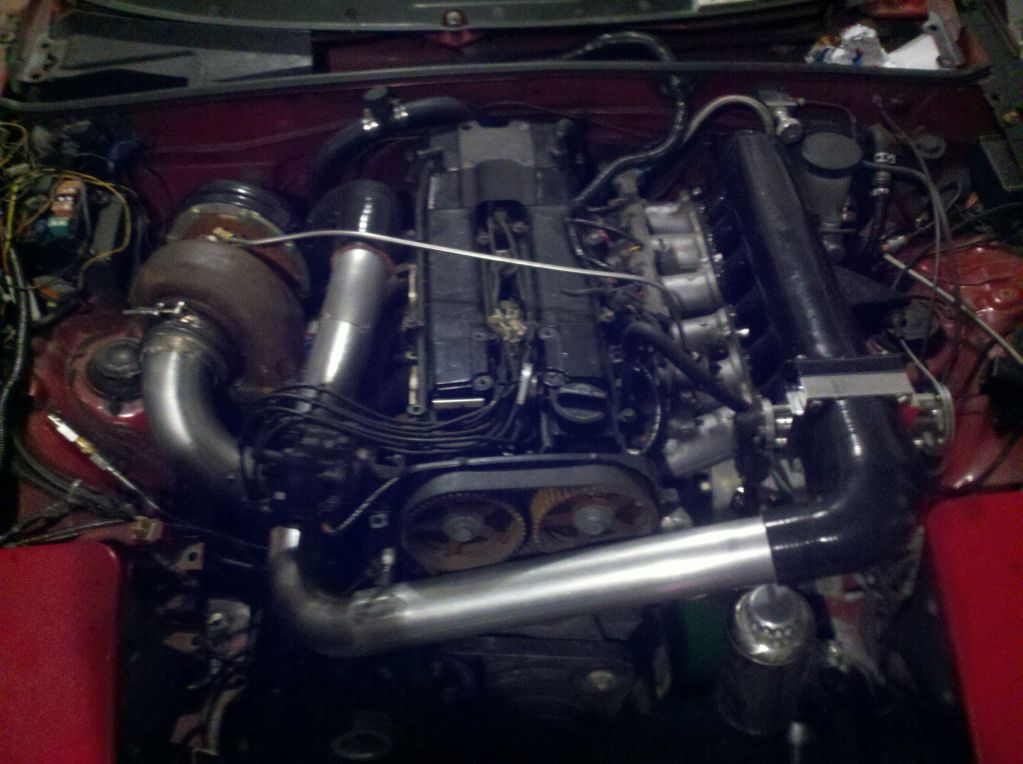

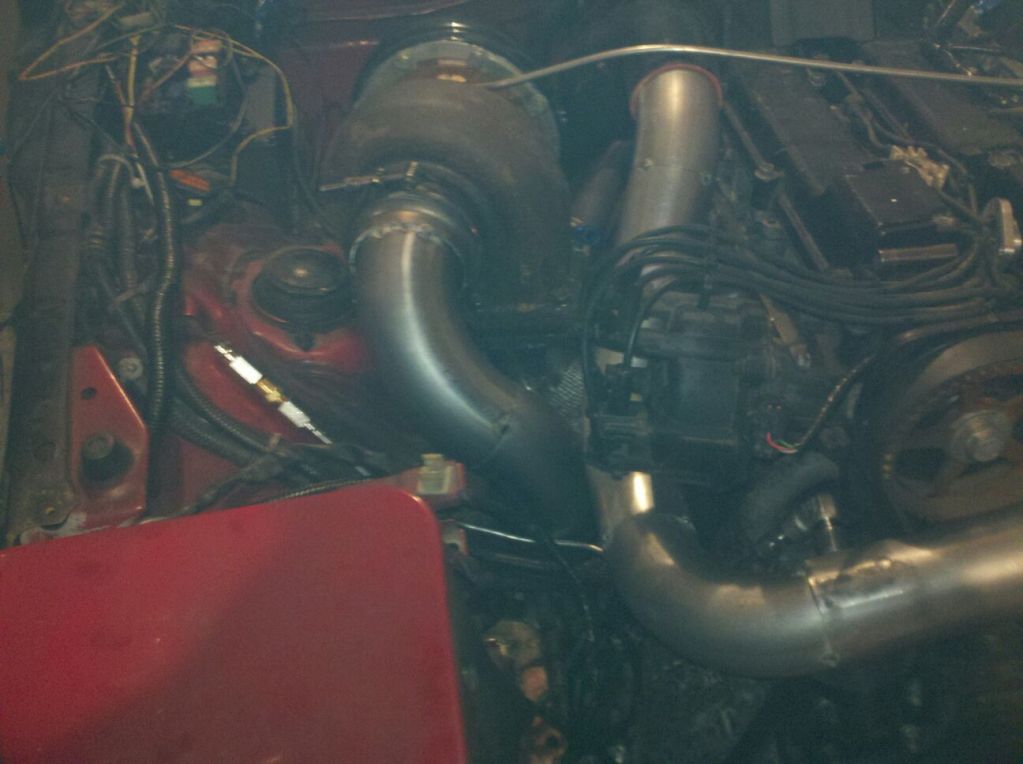

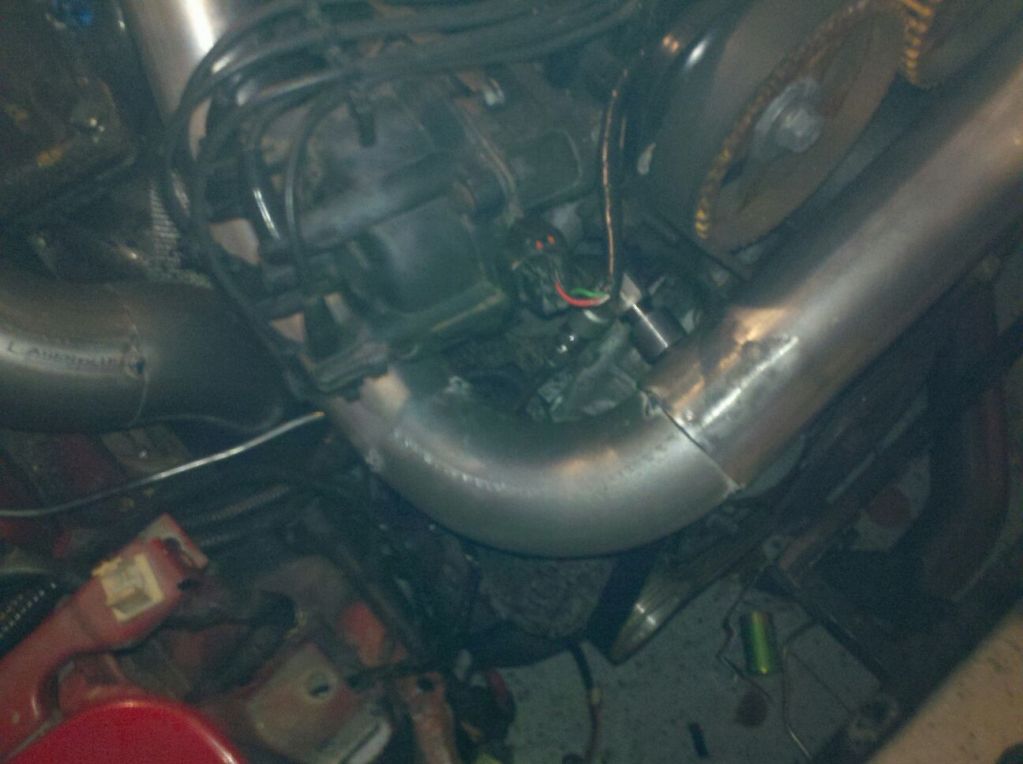

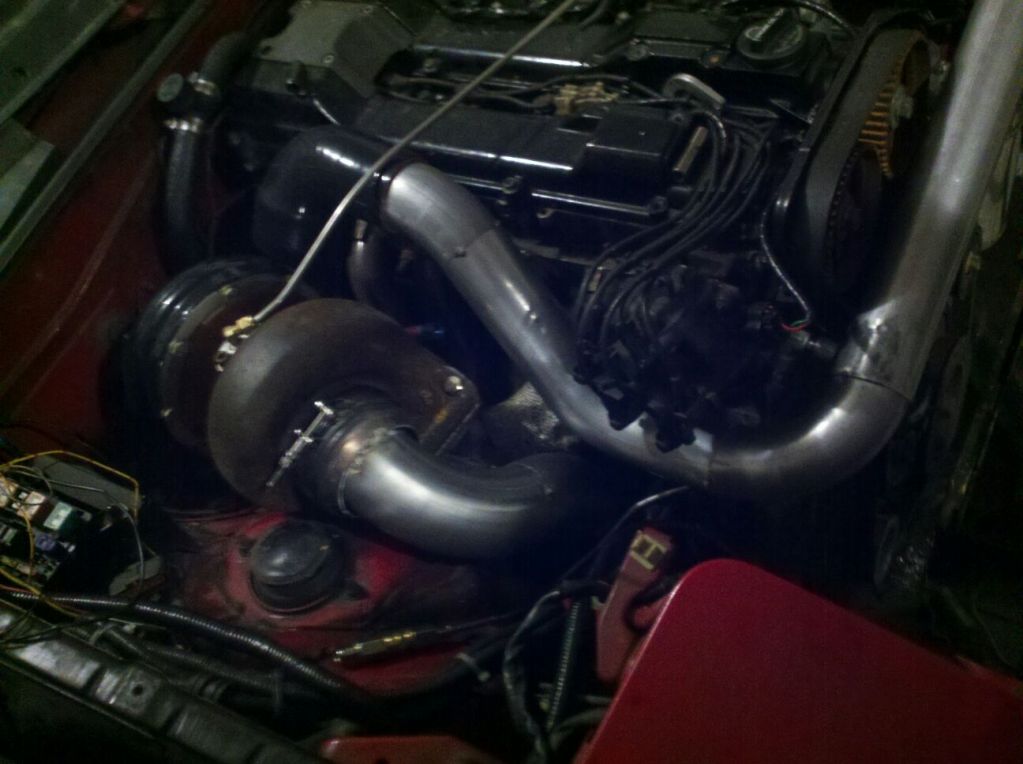

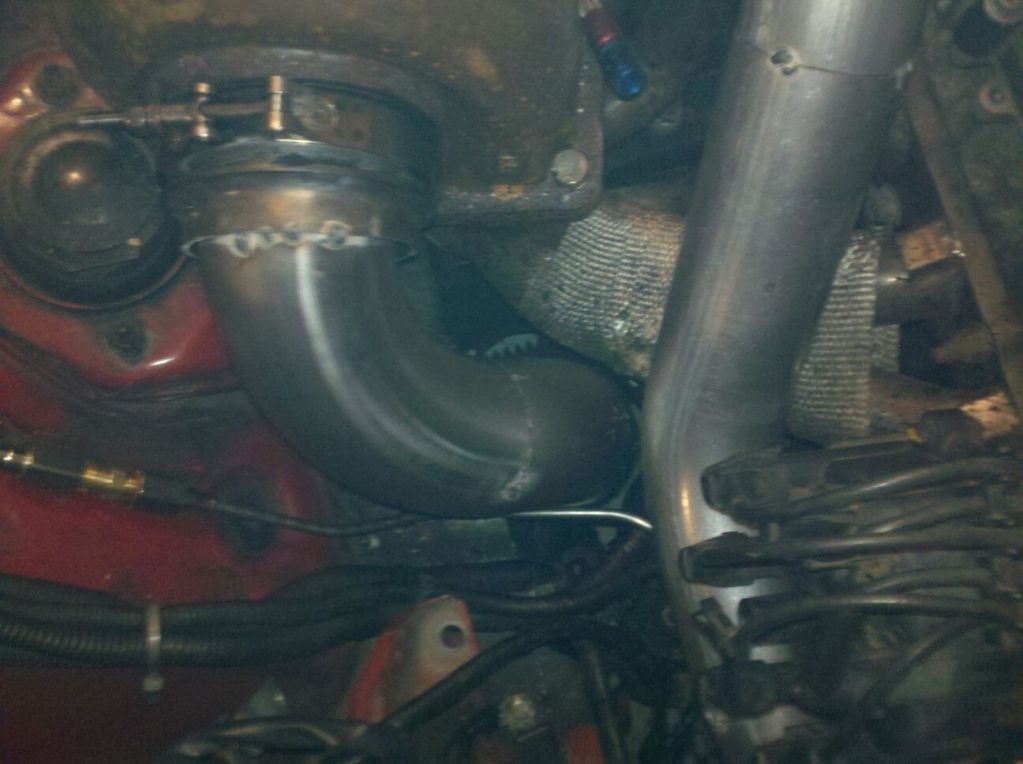

Ok so after a whole day of messing with it we have a winning solution. You will be happy to know that the piping is super legit now and you all will enjoy. In the pictures you can see where my meth nozzle will be mounted and you can also see that I will have a legitimate exhaust. I also still need to mount my maf and the bov but that should be done by the end of the week I hope. My exhaust is not done yet but it will be coming out the front bumper right in front of the passenger wheel. So let me know what you all think of the new set up. The charge piping will all be painted shinny black or wrinkle black not sure yet but I may go with wrinkle. Any input would be great. Also please ignore the meth line running against the exhaust that is not the final resting place just close it is not welded in yet.











Attached Thumbnails
2jz Miata build thread-resampled_2012-02-11_22-42-24_290.jpg   2jz Miata build thread-resampled_2012-02-11_22-42-24_290-1.jpg   2jz Miata build thread-resampled_2012-02-11_22-42-39_274.jpg   2jz Miata build thread-resampled_2012-02-11_22-42-57_876.jpg   2jz Miata build thread-resampled_2012-02-11_22-43-06_869.jpg

2jz Miata build thread-resampled_2012-02-11_22-43-21_613.jpg
Sean is offline   Reply With Quote
Old 02-12-2012, 12:47 AM   #1094
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Gawdamn ***** look good nigg
Faeflora is offline   Reply With Quote
Old 02-12-2012, 01:38 AM   #1095
Newb

Join Date: Nov 2010
Location: frederick md
Posts: 42
Total Cats: 0
Default

{~~~~~~~~~~~~~ executive decision maker
bad6as is offline   Reply With Quote
Old 02-12-2012, 03:27 AM   #1096
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

God damn this is so ghetto
RusMan is offline   Reply With Quote
Old 02-12-2012, 04:22 AM   #1097
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Quote:
Originally Posted by RusMan View Post
God damn this is so ghetto
Who gives a ----?
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-12-2012, 04:25 AM   #1098
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

I'm trying to understand the method to the madness, so please bear with me.
Maybe you already posted your reasoning for that clusterfawked routing, but can you go over it again?

I mean that looks downright moronic, but maybe there's genius to it and I'm just not seeing it.

Why would you not do a "traditional" supra turbo orientation?
18psi is offline   Reply With Quote
Old 02-12-2012, 09:40 AM   #1099
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Needs:

longer oil feed line for the turbo

wrinkle black charge pipes

heat shielding for the turbo, exhaust, and charge pipes


I don't know how I feel about the exhaust coming out of the front bumper...you will definitely scare the ---- out of people but you may also get exhaust fumes in your face when driving.
astroboy is offline   Reply With Quote
Old 02-12-2012, 10:58 AM   #1100
Newb

Join Date: Nov 2010
Location: frederick md
Posts: 42
Total Cats: 0
Default

How else would you run a pipe from the compressor to the throttle body? Yeah sean watch out for fumes in your face. Lol NOT. Due to the size of the turbo, and that manifold oh and the fact its in a phucking miata the only way for it to fit was that way. So the routing of the downpipe and charge pipes had to go that way. You all act like that's the finished product.
bad6as is offline   Reply With Quote
