Old 04-15-2014, 10:44 AM   #2161
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Braineack View Post
good thing is, it'll take you like what, 2 seconds to move the wire inside your diybob. if that's what you wanna do.
Yup I think that is the cleaner solution. Just need to get some more 4001 diodes once radioshack opens.
Jeffbucc is offline   Reply With Quote
Old 04-15-2014, 11:28 AM   #2162
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,520
Total Cats: 1,565
Default

Braineack is offline   Reply With Quote
Old 04-16-2014, 04:01 AM   #2163
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

So the good and the bad news.

Good:
My wiring wasn't the cause of my engine suddenly not turning over. After reviewing all of my wiring several times, I couldn't find the issue.

Bad:
So, seeing that there were no issues with the wiring, I started pouring over the rest of the engine bay to see if something had broke, I had knocked a connection loose, or something to indicate the problem.

So while I was looking at my alternator, I noticed that the alternator post wire seemed loose, so I went to tighten it and the hole thing snapped off the alternator. Unfortunately including the terminal/post. I was using a 1/4" socket wrench and to ensure I didn't over-torque, I was holding it by the head of the wrench. The post must have already been damaged at some point.

Hopefully I can find a shop to weld a new post on tomorrow and get the engine started after. I must have damaged it while I was removing the oil pressure sensor from the engine. My own fault, but at least I now know why the engine wouldn't turn over, which is comforting.
Jeffbucc is offline   Reply With Quote
Old 04-16-2014, 05:44 AM   #2164
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

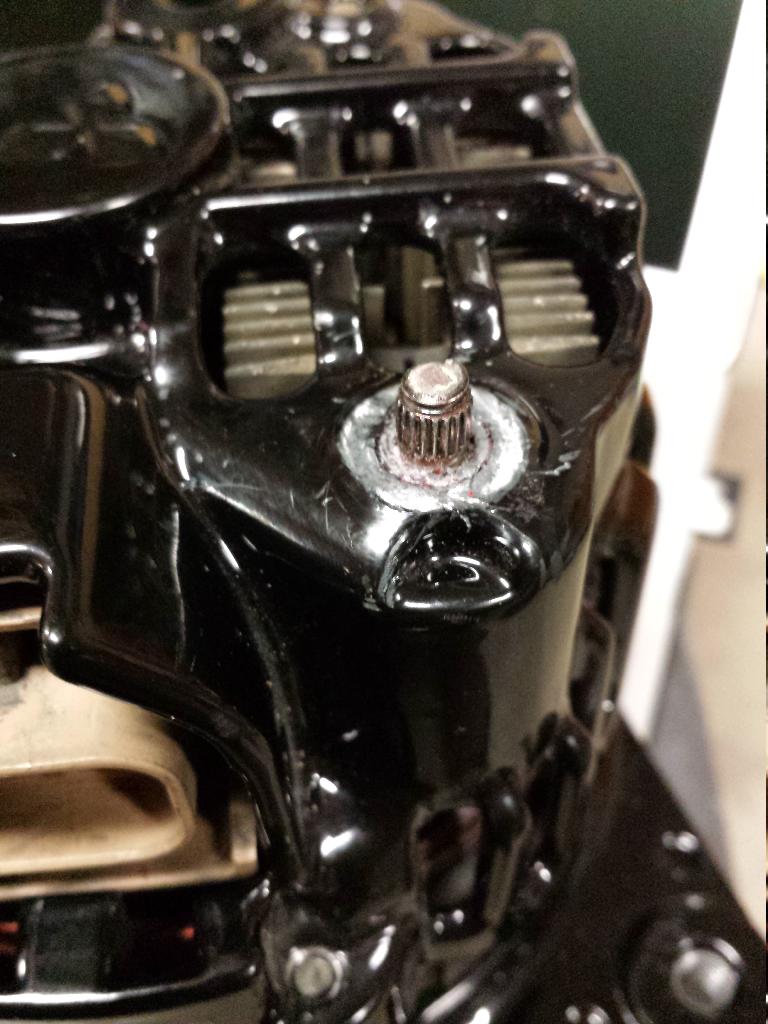

Picture of said sadness

Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140416_033944.jpg
Jeffbucc is offline   Reply With Quote
Old 04-16-2014, 08:53 AM   #2165
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,894
Total Cats: 487
Default

Make sure to take the internals out for them, they might not weld it otherwise. Or buy new. Would be sad to turn in such a pretty alternator for a core.
curly is offline   Reply With Quote
Old 04-16-2014, 09:14 AM   #2166
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by curly View Post
Make sure to take the internals out for them, they might not weld it otherwise. Or buy new. Would be sad to turn in such a pretty alternator for a core.
Yeah I already removed it. Wish I could just get a new core and keep the housing.

Shouldn't be too hard for them to weld it so I can re-thread it for M6x1.0.
Jeffbucc is offline   Reply With Quote
Old 04-16-2014, 09:52 AM   #2167
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Jeff that's going to be a tough one. There are a couple of things that might be troublesome...

1. There is a nylon isolator around that post so it doesn't ground out to the housing and that's absolutely going to melt unless it's removable.
2. In order to weld that they'll need to clamp the ground cable to something of the same polarity on that alternator and there isn't much to work with.

This sounds strange but if you're really trying to keep that alternator and that post is not a serviceable part - your best bet might be to drill and tap it. Then use a bolt and a washer to keep your lead in place. I'd use your judgement on weather or not you have enough material to do so.

Second possible solution - locally we have a place that rebuilds alternators and I'm sure they would be able to re-use the housing. Maybe you have something similar near you?
FAB is offline   Reply With Quote
Old 04-16-2014, 10:30 AM   #2168
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

This sucks considering you recently put a new expensive bearing in it...

Dibs on the new bearing if you replace the alternator though
BTMiata is offline   Reply With Quote
Old 04-16-2014, 11:55 AM   #2169
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,439
Total Cats: 470
Default

Idea:
1. buy a new alternator and pay the core charge, take it home.
2. swap the housings
3. return your old guts in the new housing and get your core charge refunded.
turbofan is offline   Reply With Quote
Old 04-16-2014, 12:06 PM   #2170
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,261
Total Cats: 870
Default

Quote:
Originally Posted by turbofan View Post
Idea:
1. buy a new alternator and pay the core charge, take it home.
2. swap the housings
3. return your old guts in the new housing and get your core charge refunded.
+1. Just don't return it as new/unused. Not that I think you would do this, but I got an alternator for my truck from a FLAPS where someone did this. I was not a happy camper.
EO2K is offline   Reply With Quote
Old 04-16-2014, 12:08 PM   #2171
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,439
Total Cats: 470
Default

Right, definitely. You're retuning old guts/new housing to get your CORE charge refunded, not the whole purchase price.
turbofan is offline   Reply With Quote
Old 04-16-2014, 12:35 PM   #2172
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,261
Total Cats: 870
Default

The fun part is where they accused ME of doing that when I tried to return it. It had a "Lifetime Warranty" so I just made them test it, listen to the crunchy bearings and give me a new one anyway.
EO2K is offline   Reply With Quote
Old 04-16-2014, 04:57 PM   #2173
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,894
Total Cats: 487
Default

His guts aren't bad, the housing is.
curly is offline   Reply With Quote
Old 04-16-2014, 05:31 PM   #2174
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by curly View Post
His guts aren't bad, the housing is.
The stud actually comes off the internals sadly.
Jeffbucc is offline   Reply With Quote
Old 04-16-2014, 05:49 PM   #2175
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 369
Total Cats: 32
Default

Any way to solder a new stud in there?
I can't quite remember how it physically connects.
leboeuf is offline   Reply With Quote
Old 04-16-2014, 07:01 PM   #2176
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by leboeuf View Post
Any way to solder a new stud in there?
I can't quite remember how it physically connects.
for something you are torquing a 10mm nut onto, it would be to weak of a connection to use solder.

I actually got really lucky on this one. There isn't an alternator rebuild shop here in town but one of the shops down here whom I'm good friends with, recommended me this guy who had just retired and had been doing it for 20+ years.

Called him up and he said he'll have a new stud on for me tomorrow and rethread it to m6x1.0 for me as well. When I brought it by he said he'd resolder all the copper joints on the internals and replace the brushes for free as well. Very nice older gentleman, pretty much had an entire alternator repair shop in his garage.

This is yet another reason why I try to make friends with people rather than meaningless financial transactions. They will go above and beyond for yah when you are nice!
Jeffbucc is offline   Reply With Quote
Old 04-16-2014, 07:09 PM   #2177
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

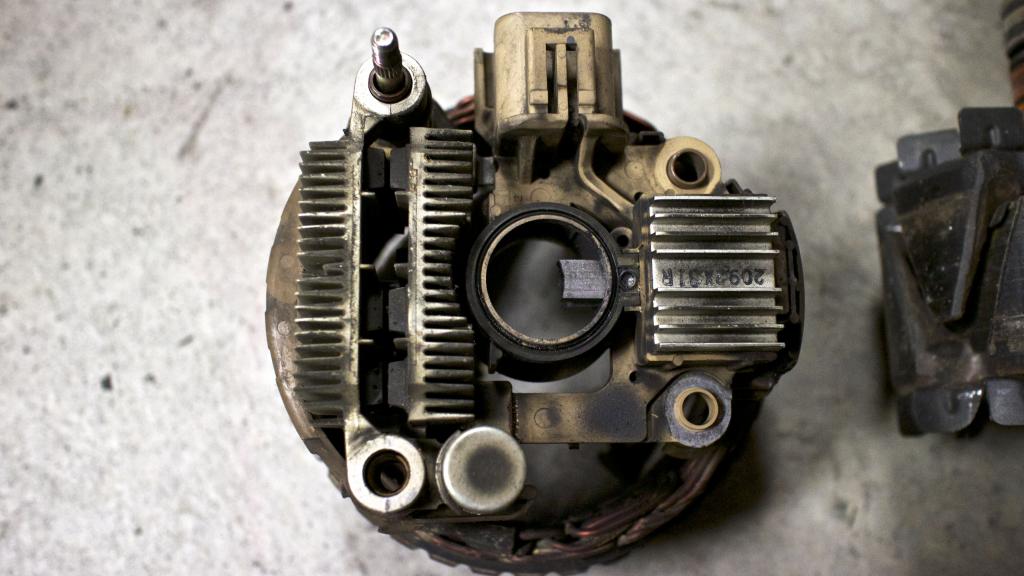

Here is the original stud for those who are trying to remember how it connects to the internals.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_1166.jpg
Jeffbucc is offline   Reply With Quote
Old 04-16-2014, 07:22 PM   #2178
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 369
Total Cats: 32
Default

Quote:
Originally Posted by Jeffbucc View Post
for something you are torquing a 10mm nut onto, it would be to weak of a connection to use solder.
Obviously... I assume the stud threads/presses/fits mechanically and electrically connects through metal junction.

Good to hear you found a simple solution
leboeuf is offline   Reply With Quote
Old 04-17-2014, 08:05 AM   #2179
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Decided to distract myself a little until my alternator gets done. I was always less than happy with the lighting inside the Miata. Seeing anything is a laugh, let alone trying to find something on the floor.

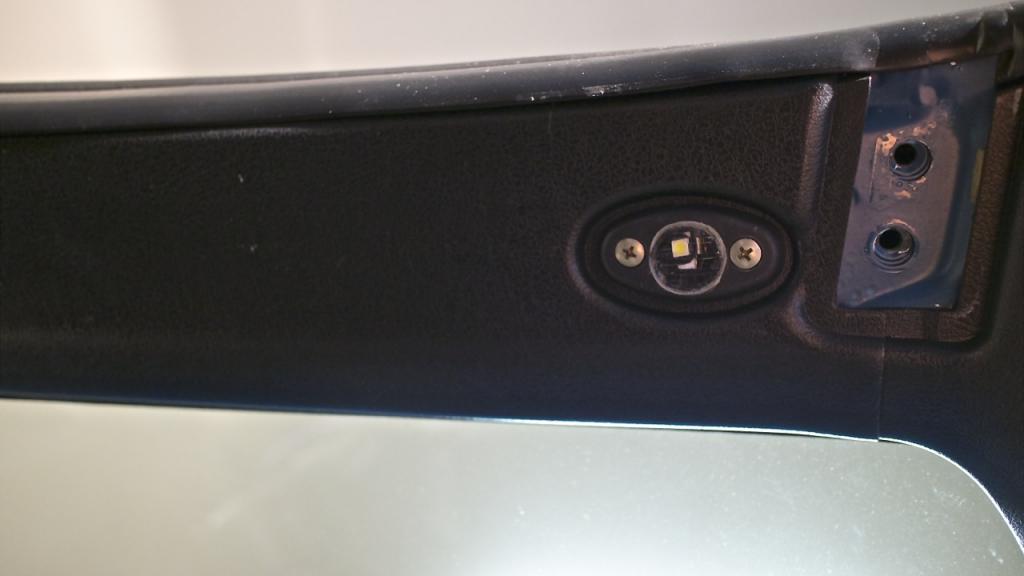

So instead of making a visor blank I decided to hack it up and install an LED. I had some spare plastic from an old side marker on my Jetta laying around, so I cut a circle out of it, and then cut a matching hole. Then spent way way way to long getting the plastic to be flush with the visor plate. A little epoxy to seal the plastic so no light bleeds through the edges and a ghetto mount for the light later, and we have brilliance! Everything is easily visible inside the car.

It isn't perfect looking even after polishing the plastic for 15-20 minutes, but it works, it's bright, and unless it was pointed out to you, you probably wouldn't notice. Far cheaper than anything aftermarket out there. $5 for the LED, scavenged light socket from the old car, $2 for an inline fuse, and soldered to the contact points on the passenger footwell lights.

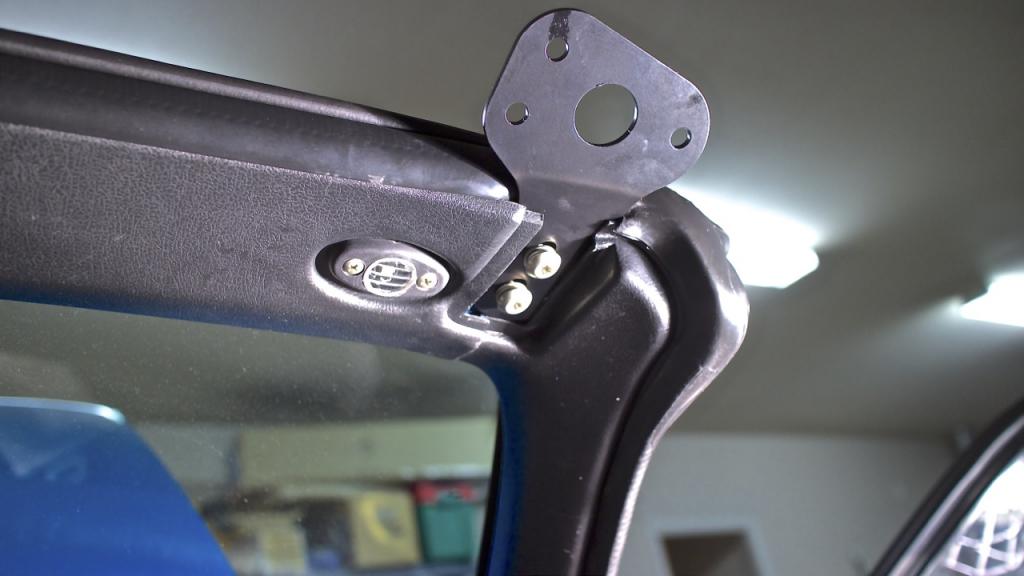

Also put the Rennenmetal hardtop bracket on in preparation of the hard top being done today. Decided to use the stock bolts rather than the ones provided with the brackets. I like the gold zinc rather than silver hex bolts. I'll probably trim the plastic around the bracket OR cut up a spare trim piece and make a cover that will velcro on for easy removal to really hide the bracket.

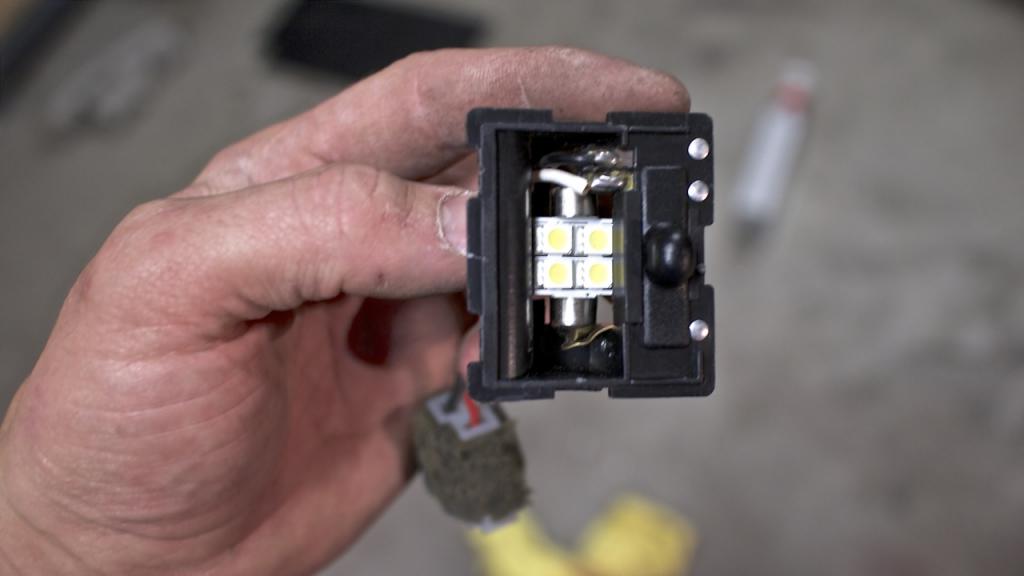

Also put a new LED inside the footwell light. Talk about a powerful LED! I may have ordered an unnecessarily strong one, but no complaints.

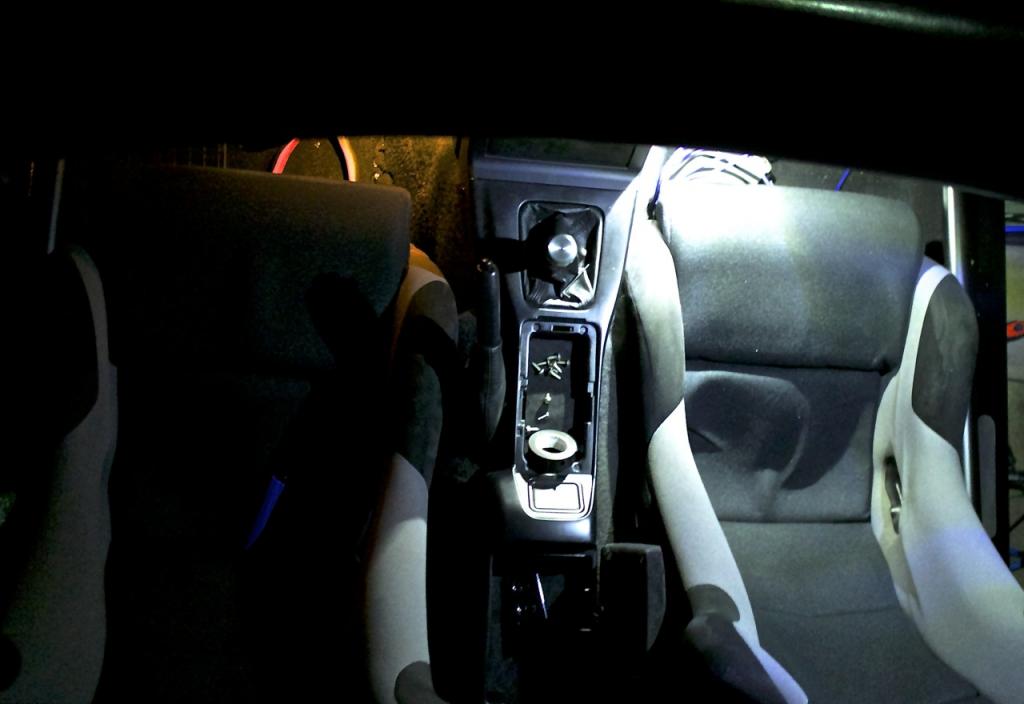

Light difference between stock and new is very apparent.

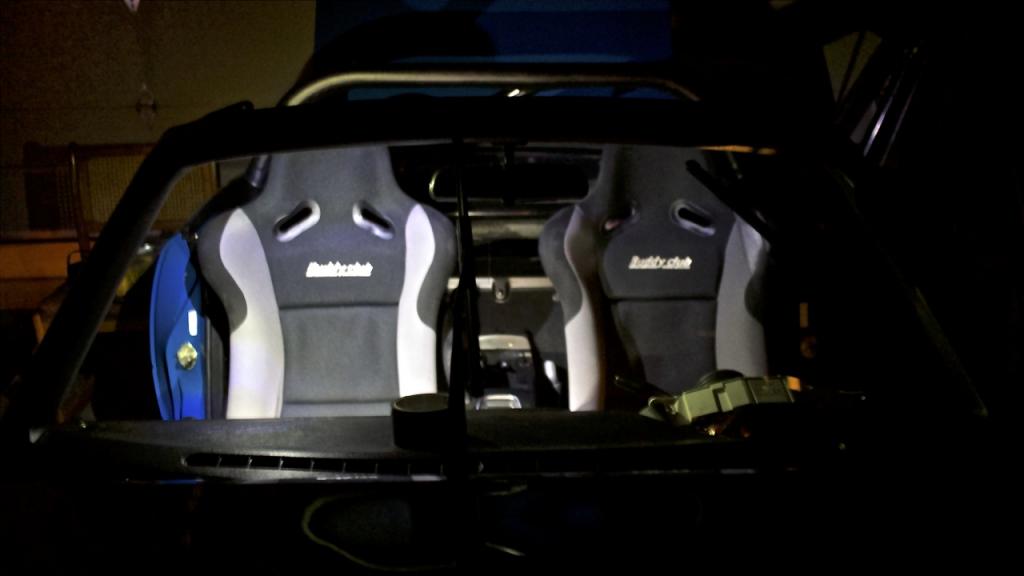

So much light it even lights up the drivers side!



That was a fun little mod, and much more useful than a blanking plate. If I did it again, I have some thoughts on making it look really clean, but for now, it ain't too shabby.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_2635.jpg   93' Miata stolen and flipped build thread-img_2642.jpg   93' Miata stolen and flipped build thread-img_2637.jpg   93' Miata stolen and flipped build thread-img_2644.jpg   93' Miata stolen and flipped build thread-img_2645.jpg


Last edited by Jeffbucc; 04-17-2014 at 08:44 AM.
Jeffbucc is offline   Reply With Quote
Old 04-17-2014, 08:54 AM   #2180
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,894
Total Cats: 487
Default

Where's my coupler?!?
