Old 09-15-2017, 04:30 PM   #10421
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

shuiend got that spare 6758 boxed up yet?
aidandj is offline   Reply With Quote
Old 09-15-2017, 04:50 PM   #10422
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,038
Total Cats: 1,225
Default

Quote:
Originally Posted by aidandj View Post
shuiend got that spare 6758 boxed up yet?
No.

I can do that on Sunday. Then ship on Monday.
shuiend is offline   Reply With Quote
Old 09-15-2017, 05:01 PM   #10423
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

aidandj is offline   Reply With Quote
Old 09-16-2017, 11:16 PM   #10424
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

Alright here is where I'm at.

Theoretically the motor is fine. I was watching oil pressure the whole time after the spin, and driving off the track. Never dropped below 10psi (never rev'd above 2500rpm either). So hopefully thats still ok.

Parts showed up today.

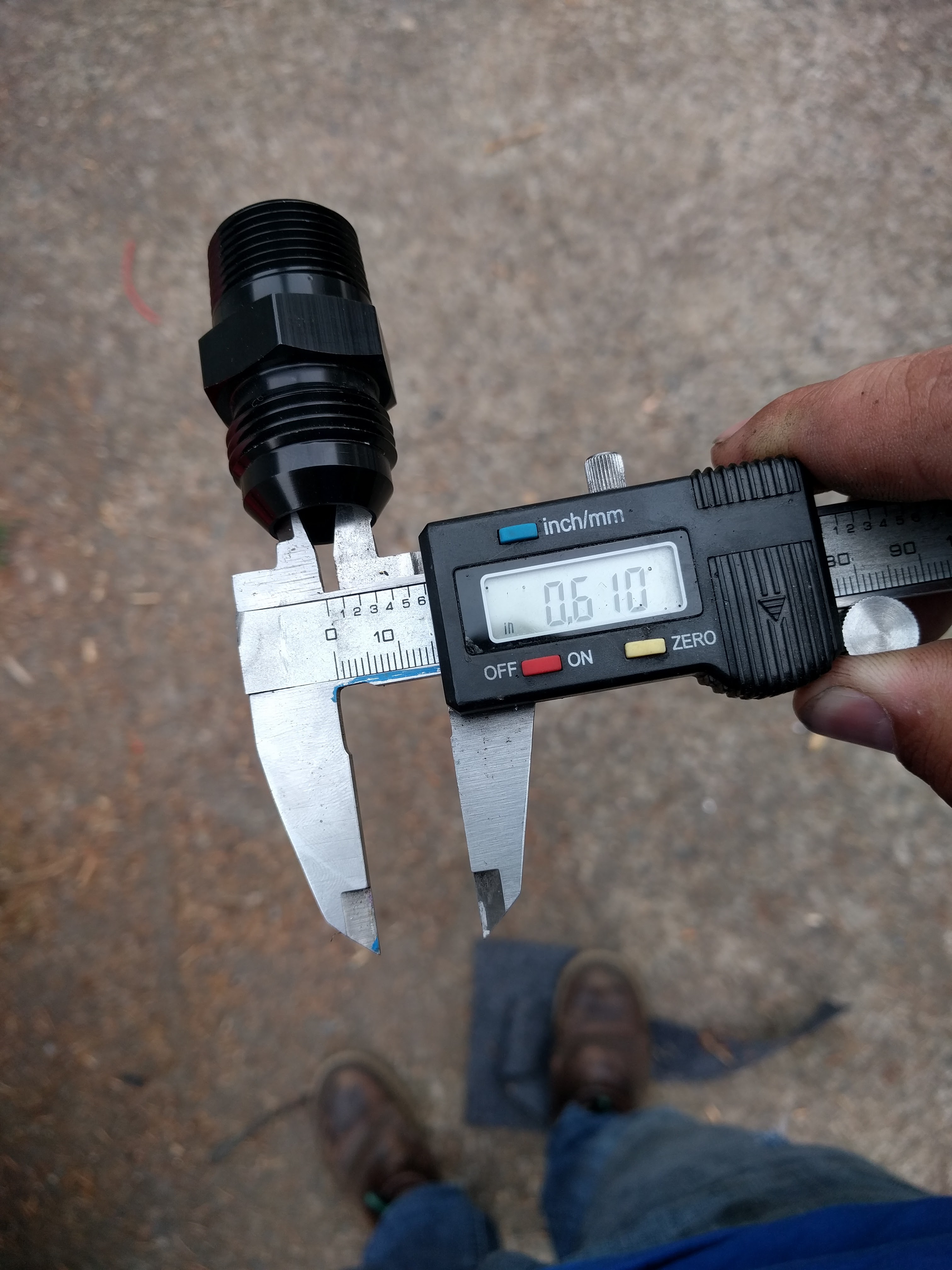

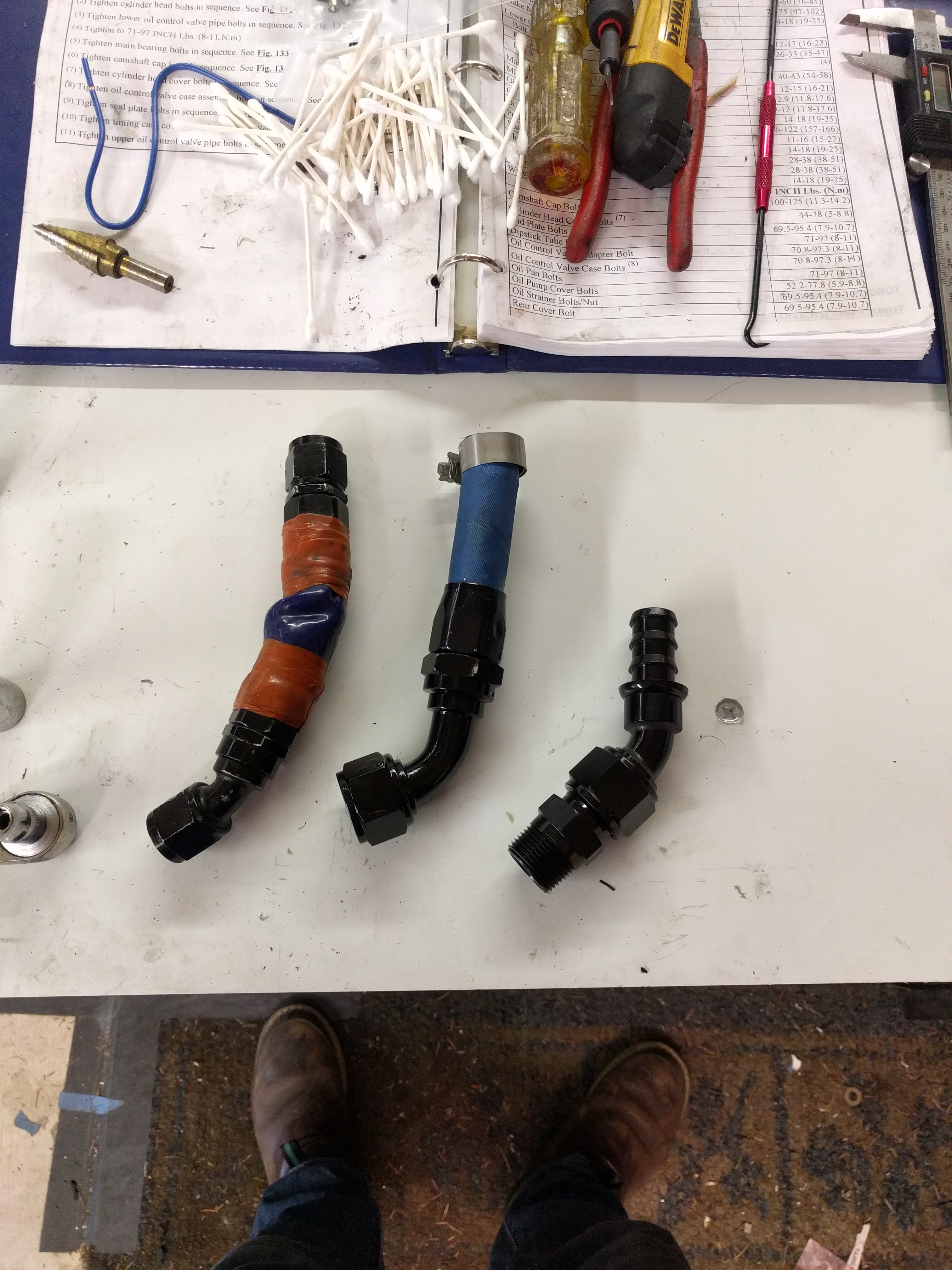

12AN-3/4NPT + 12AN 45* pushlok fitting. Here is the progression of oil lines.

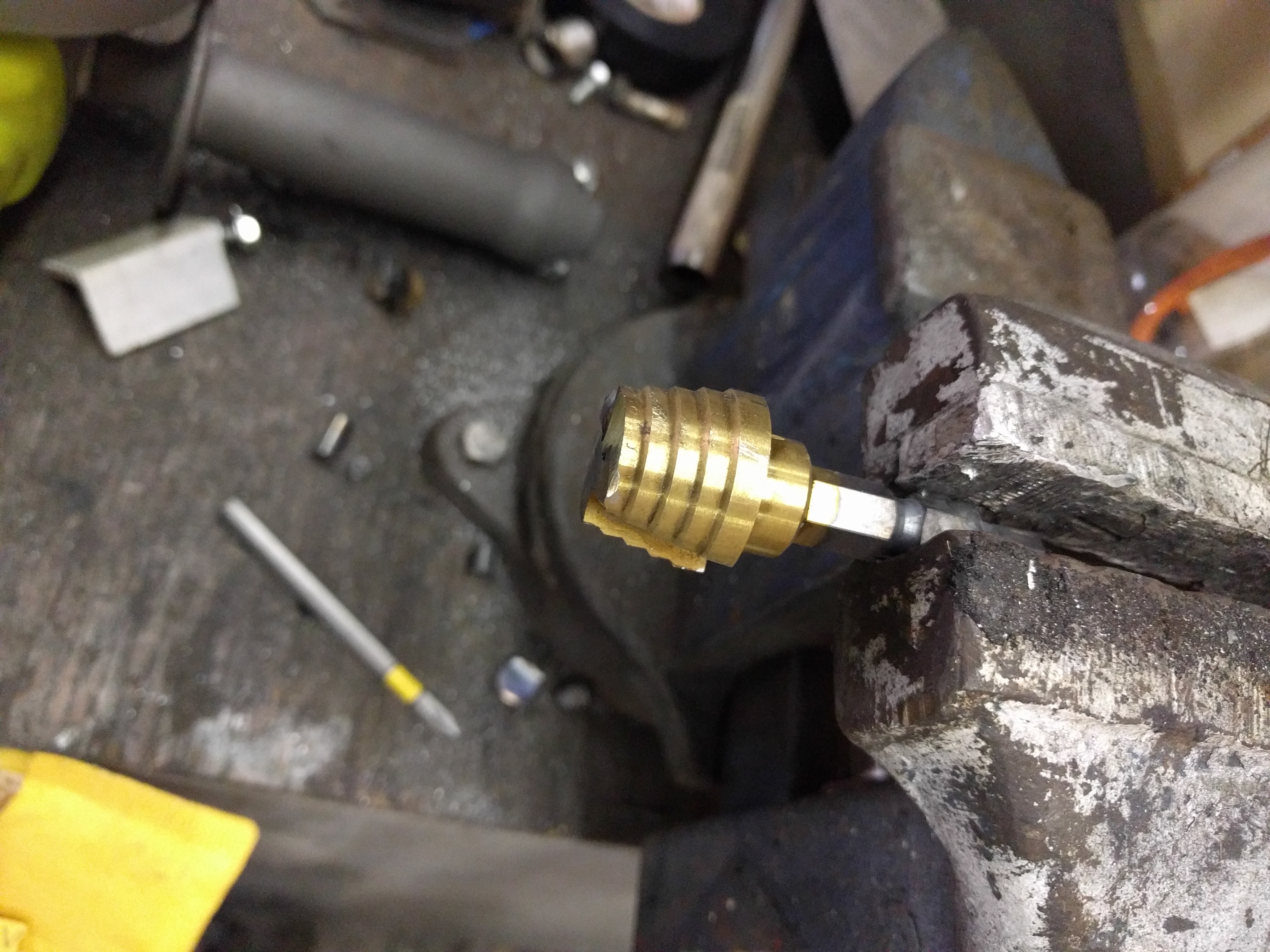

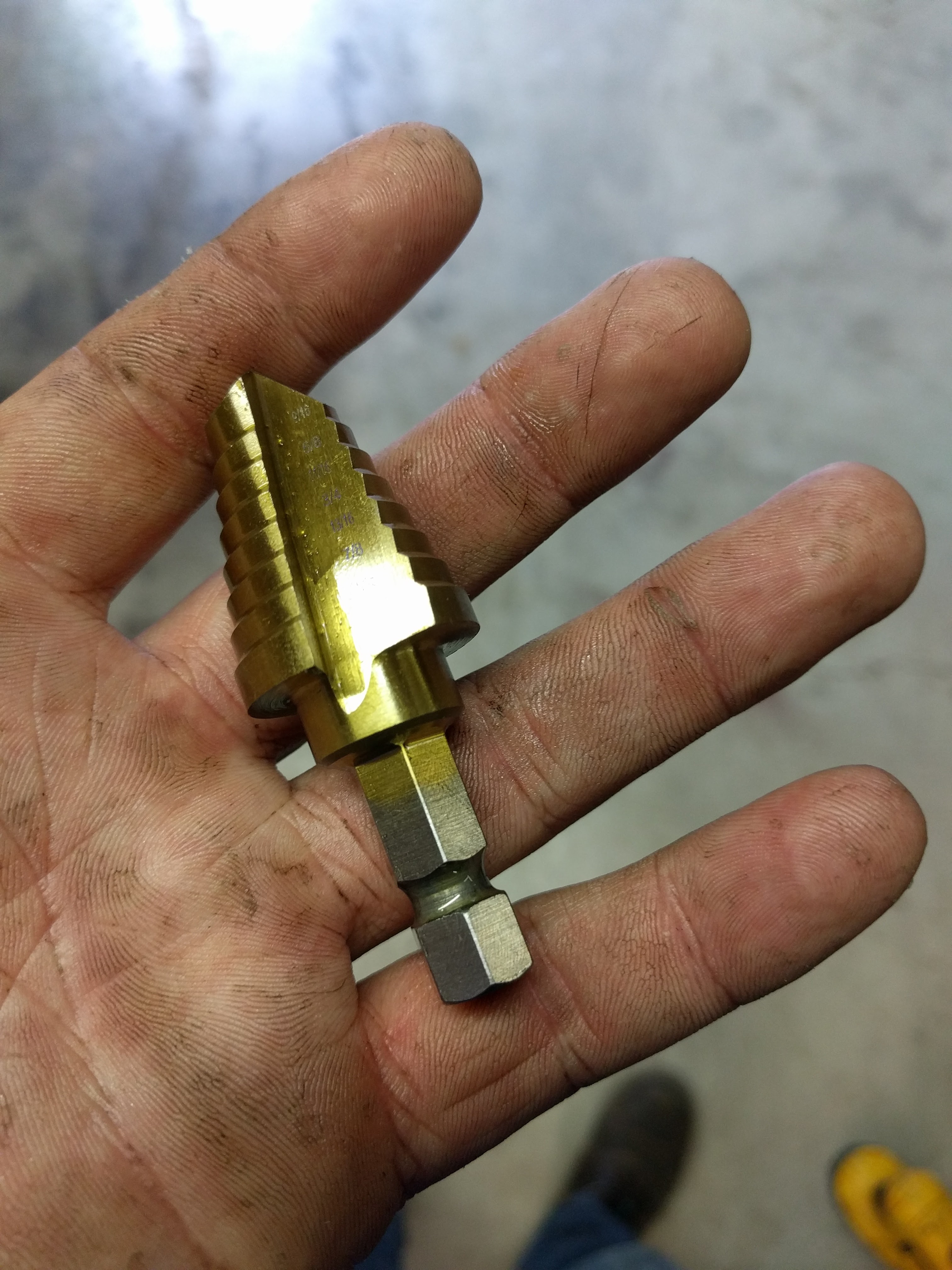

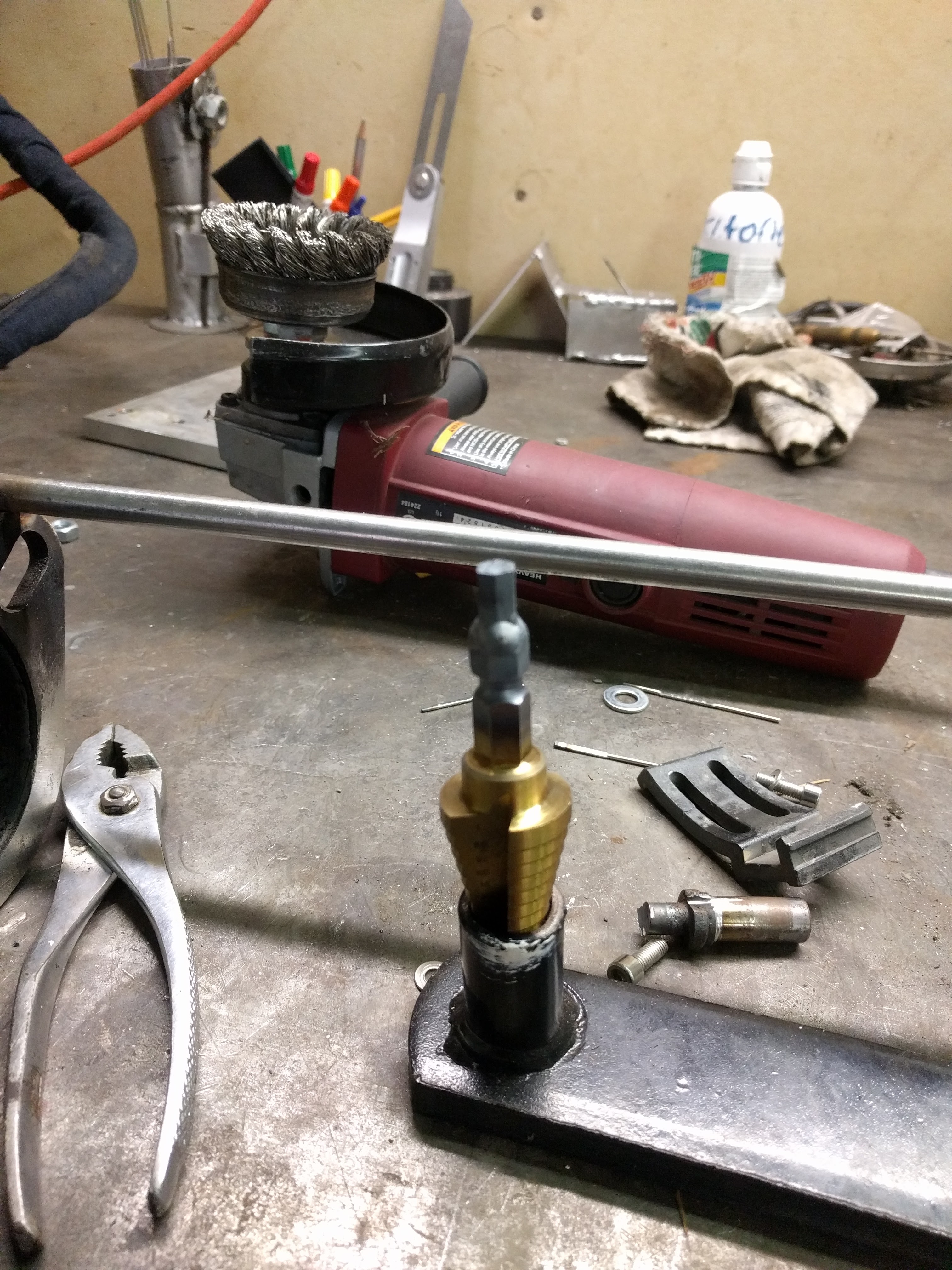

Step bit to enlarge to 15/16ths. Modified to fit my 90* drill attachment, and cut short to not hit the MBSP.

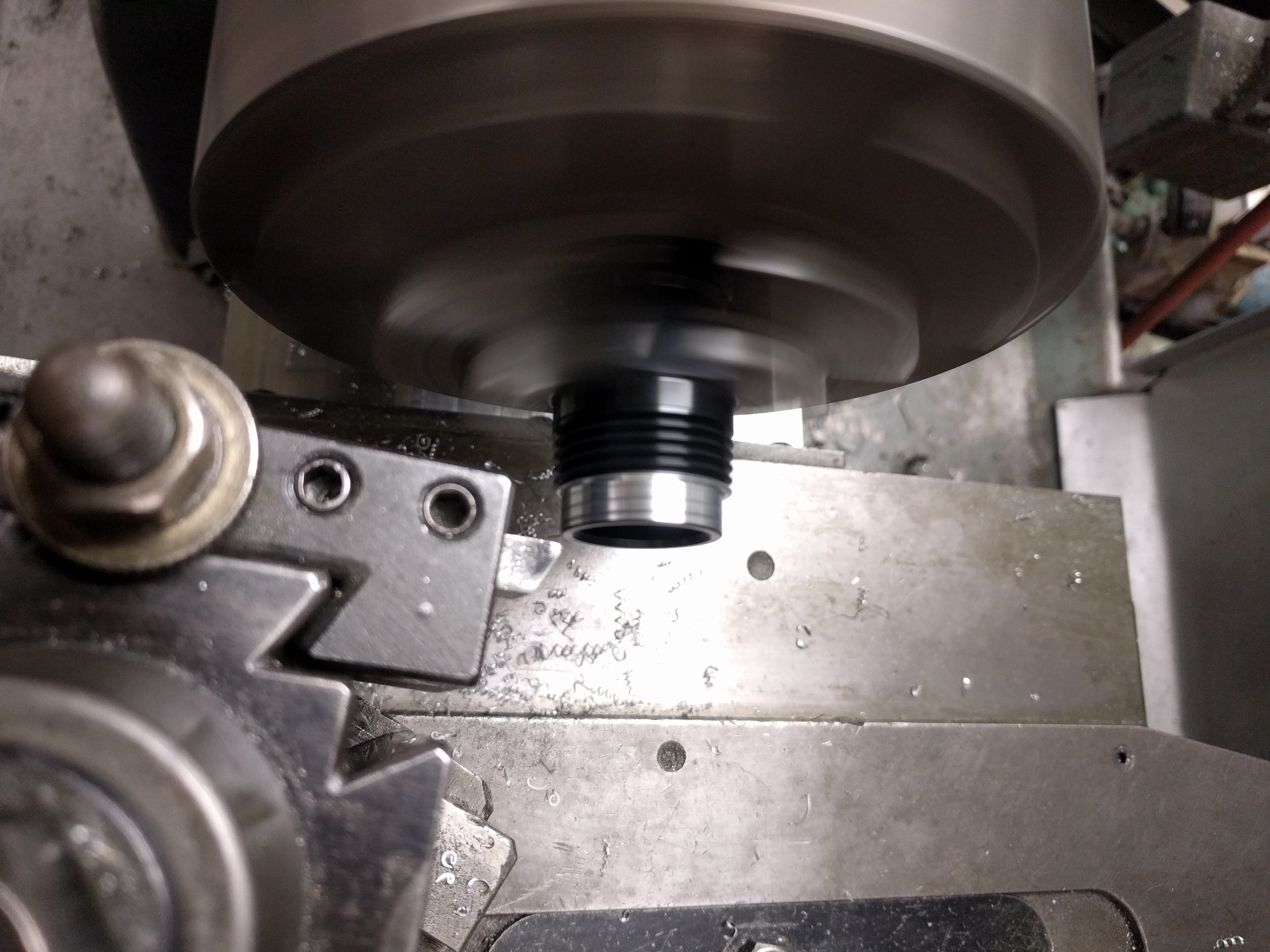

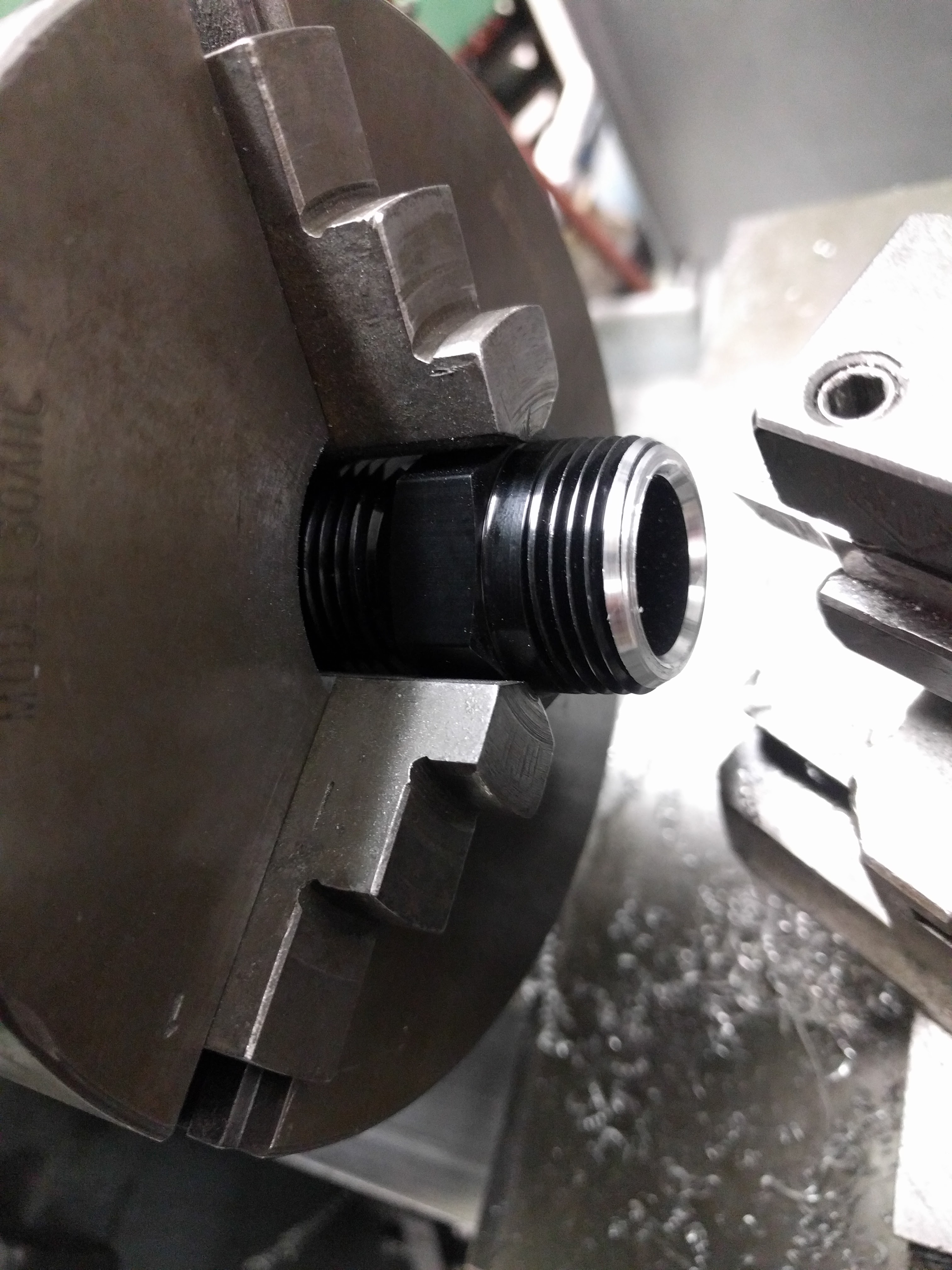

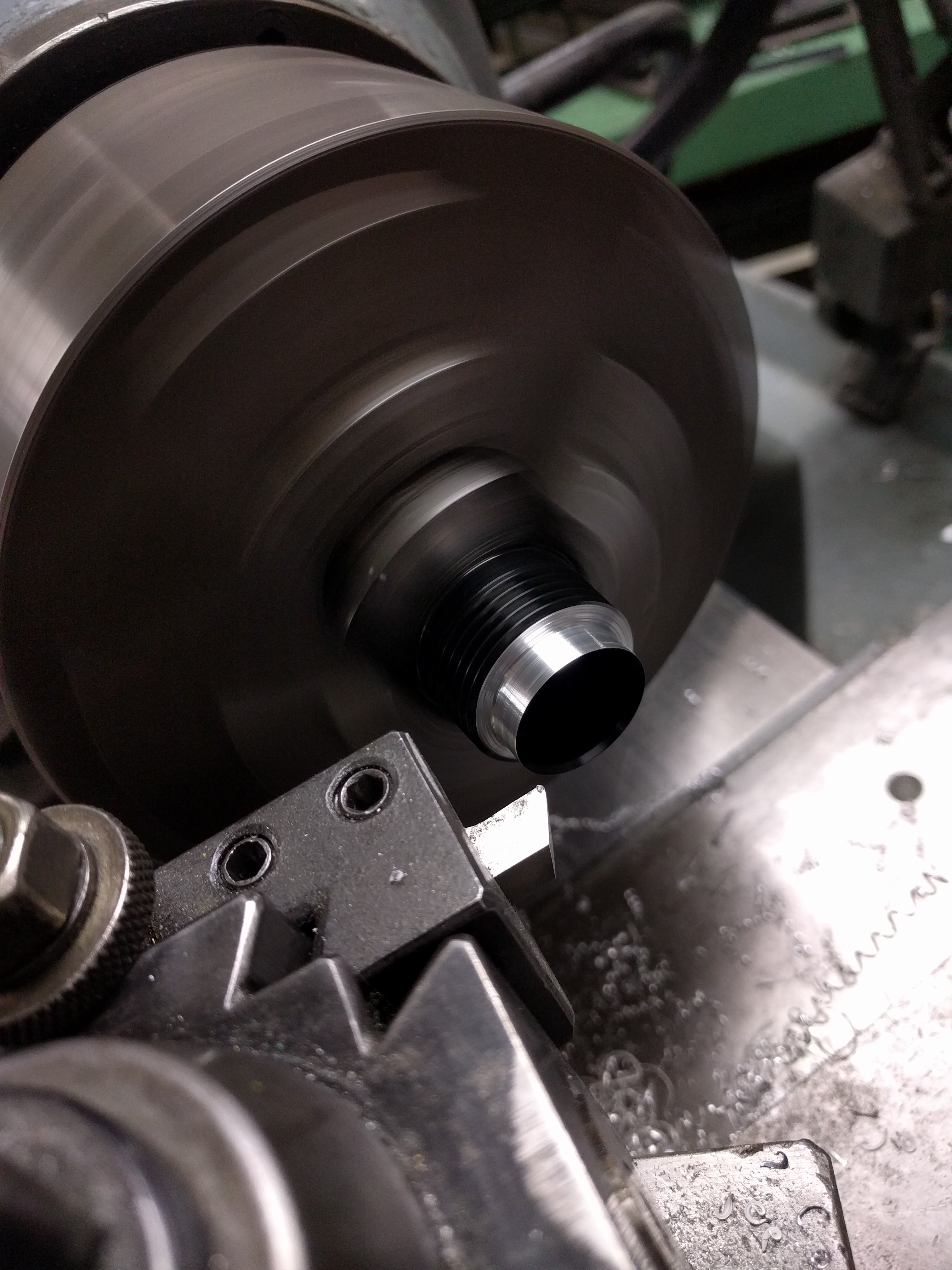

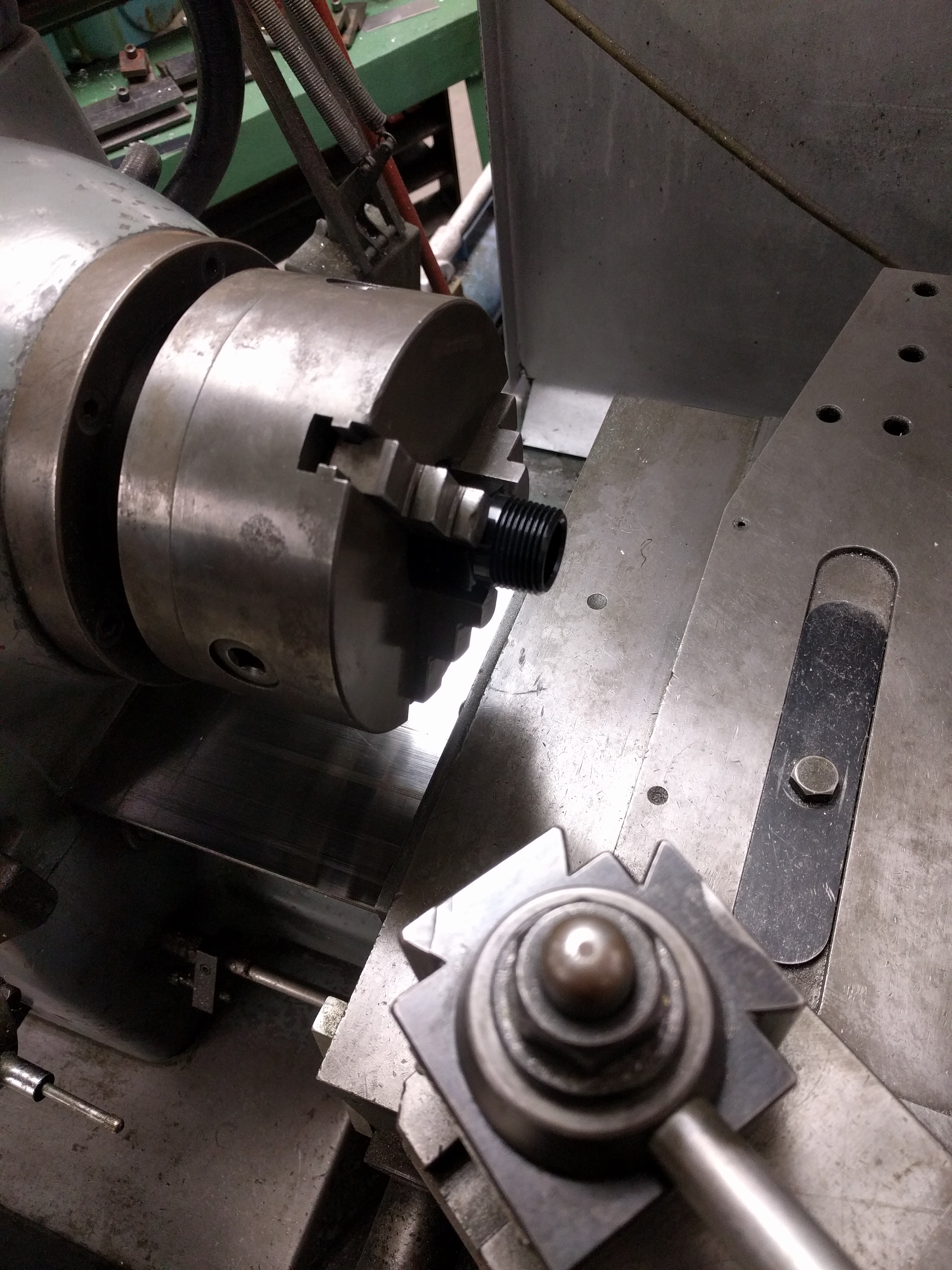

3/4NPT bung, cut down to not hit the MBSP

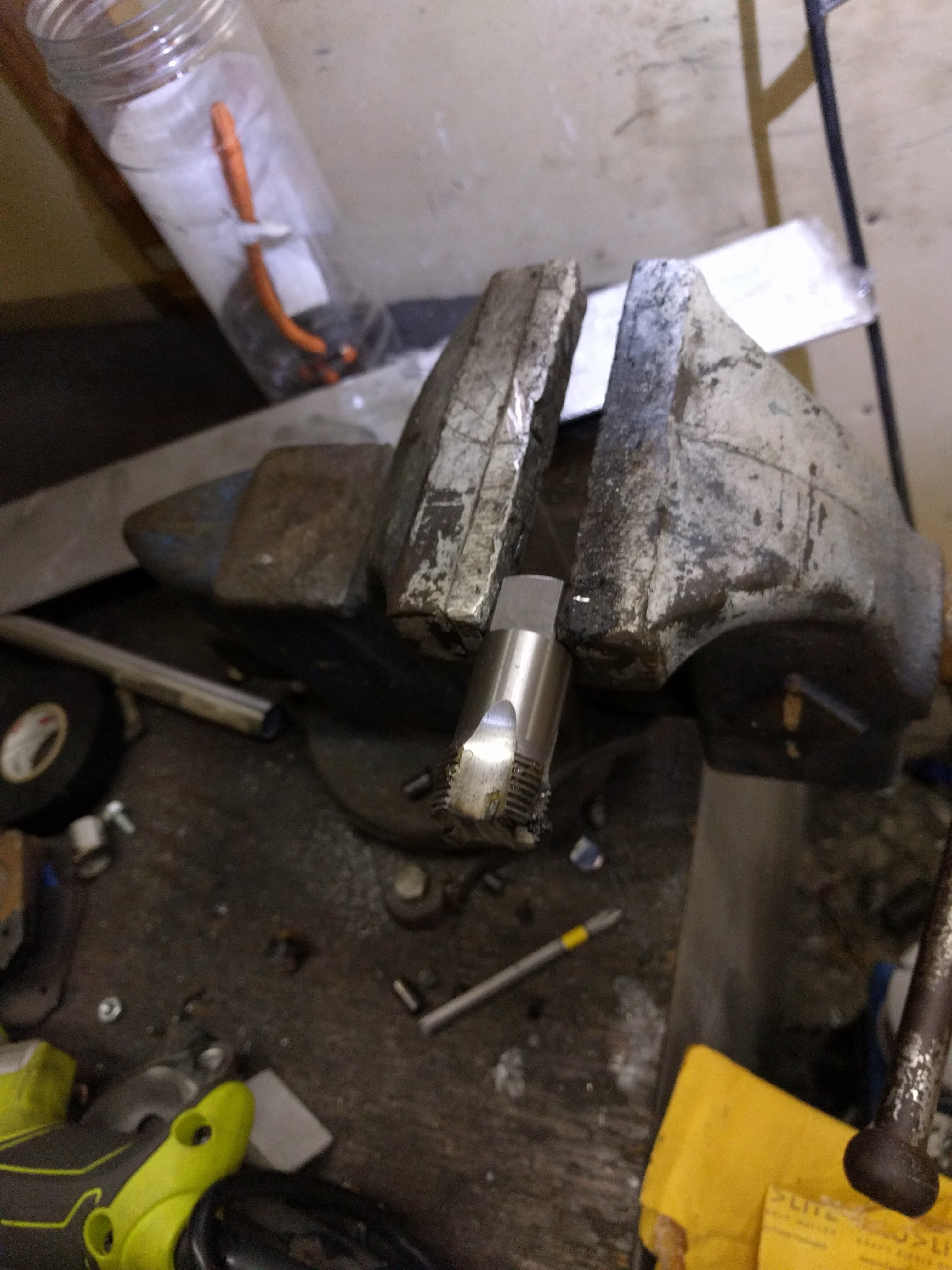

Expensive 1 time use 3/4 npt tap :(

aidandj is offline   Reply With Quote
Old 09-17-2017, 12:52 AM   #10425
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,799
Total Cats: 1,666
Default

I feel the need to point out that after all the effort to make your drain hose larger, your car still smokes, so maybe the "too small" drain hose that works on 40+ other cars isn't actually causing your problem. I would screw an unmodified -10AN fitting back in and not think twice.

Saying it now, I think it's your turbo seals and I think it's been turbo seals all along. I think it's a shame that Mike sent you down this wild goose chase. He's a nice guy and I'm sure he meant well but you and he both ignored a tremendous amount of empirical data here.
Savington is offline   Reply With Quote
Old 09-17-2017, 01:05 AM   #10426
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

I don't disagree with you at this point. But I've got all the pieces here, I might as well do AN12. It would require the same amount of work as AN10. Currently I'm just short 1 fitting. The 45* interferes with the steering rack, so I need a 60* fitting. Hopefully someone has one around here otherwise no track day on Monday.

Lots going on in the thread. But the AN10 bung was welded into the pan when it broke. So I had to drill and tap to 3/4npt anyway.

AN10 is probably not too small. But at this point I'm just trying to get the car back on the road and these are the pieces I have.
aidandj is offline   Reply With Quote
Old 09-17-2017, 01:42 AM   #10427
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,799
Total Cats: 1,666
Default

Ah, I didn't realize you welded a bung in.

I have become a fan of JB Quik applied like Loctite. With the pan off, you can drill, tap, install the fitting, and set the pan on its side, and it creates a nice, neat bead around the fitting. Even without the pan on its side, the Quik version sets up fast enough that it doesn't drip and smear all over the place. Zero leaks and you can actually remove it with a big pipe wrench should you ever need to.
Savington is offline   Reply With Quote
Old 09-17-2017, 01:47 AM   #10428
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

Yeah, the weld weakened when I drilled the bung out, and then pulled out of the pan.

Good idea. I will do something like that this time around. Currently trying to find a 60* fitting, otherwise I will use a brass hose barb from Ace racing. It only needs to last through Monday track day. Then I can order a 60* fitting and do it right.

Have you actually gotten a fitting out that has been jb welded in? I haven't tried.
aidandj is offline   Reply With Quote
Old 09-17-2017, 01:53 AM   #10429
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,799
Total Cats: 1,666
Default

I have, yeah. I had a pan with an old -8AN FM/BEGi fitting in it that I wanted to swap for my -10AN Anotuff fitting. I have at least half a dozen spare pans in my shop at this point, so I grabbed a big pipe wrench and gave it a shot. It popped loose and spun right out, which surprised me.
Savington is offline   Reply With Quote
Old 09-17-2017, 01:55 AM   #10430
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

Cool, good to know. I may use a Barb fitting that I can find tomorrow for the track day and rebuild it with an AN fitting down the road.

Thanks for the suggestions.
aidandj is offline   Reply With Quote
Old 09-17-2017, 03:27 AM   #10431
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 4,257
Total Cats: 480
Default

Yeah, the JB weld breaks loose fairly easily, just put a big socket/wrench on the fitting and it cracks.

--Ian
codrus is offline   Reply With Quote
Old 09-17-2017, 04:24 PM   #10432
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

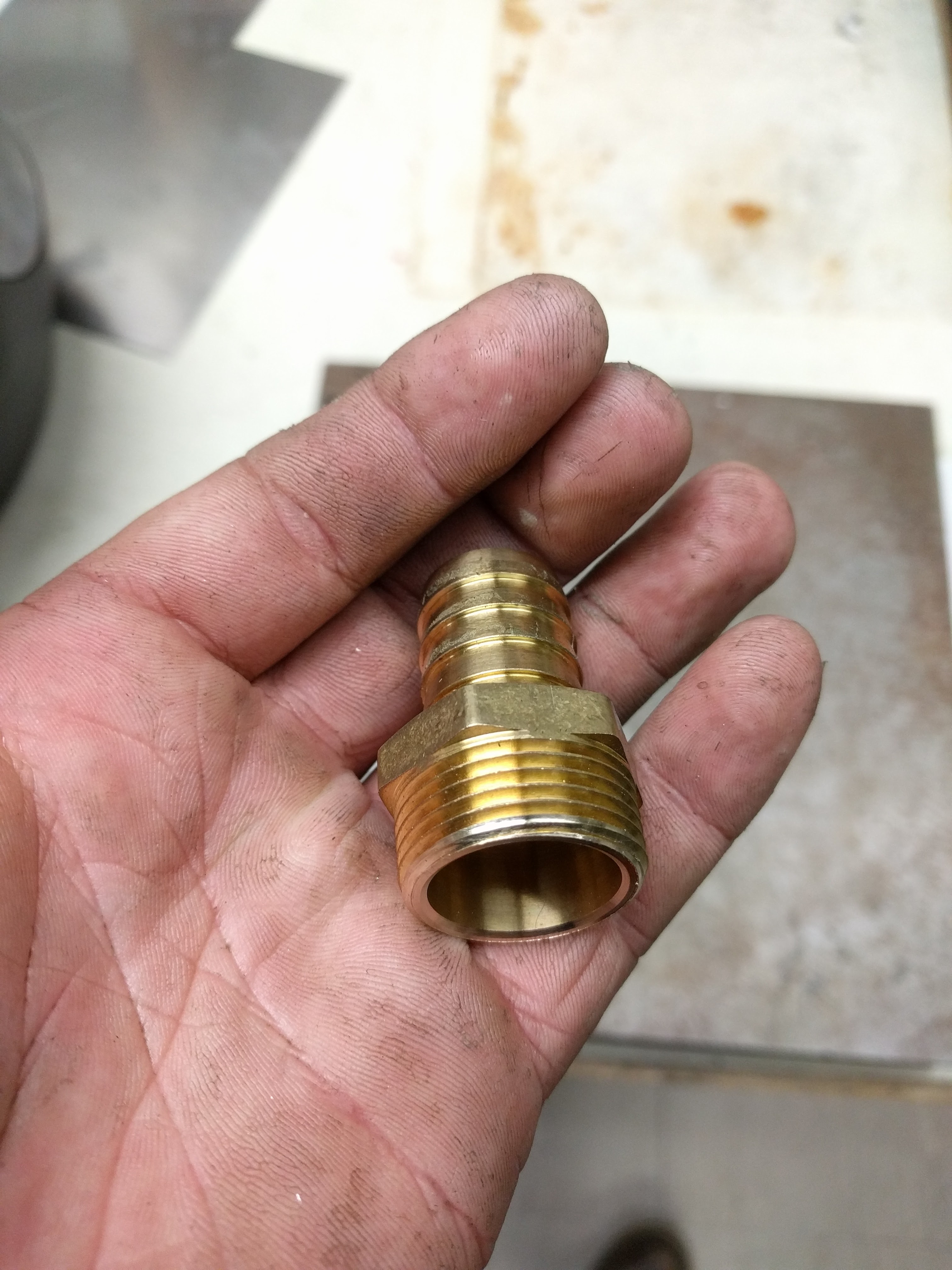

Well after all that I ended up with a hose barb.

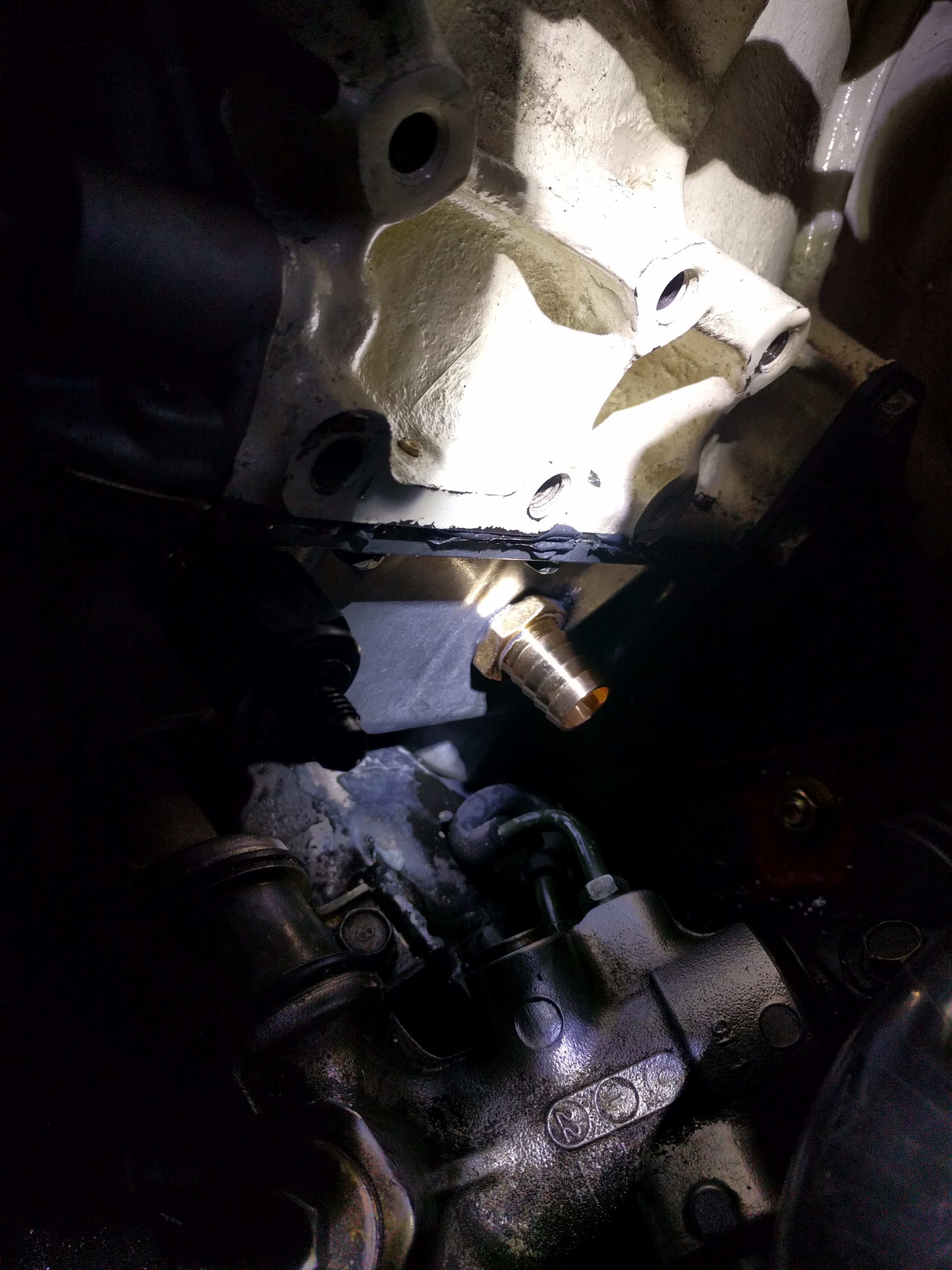

Chuck fell off the lathe that was fun. So an extra trip to the hardware store. But its jb welded in. Taking a break while the mineral spirits clear and the jb weld sets. then its new drain line, oil change with cheap oil, then a filter and Mobil1 change. Then a car was with underbody spray, then the 3 hour drive to the track.

Sounds doable right....



aidandj is offline   Reply With Quote
Old 09-17-2017, 08:23 PM   #10433
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

So far so good.

Need to finish packing and loading. Then hit the car wash. Grocery store, and then a 3 hour drive to the track. Fingers crossed.
aidandj is offline   Reply With Quote
Old 09-17-2017, 08:32 PM   #10434
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,823
Total Cats: 266
Default

I JB welded a brass fitting in my oil pan back in 2007-2008 or so, and ran it till 2012-2013. It never leaked a drop, and it looked pretty much like what you did except I was messier with the JB weld, so I think you have nothing to worry about. GL at the track!
patsmx5 is offline   Reply With Quote
Old 09-18-2017, 04:22 PM   #10435
Elite Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 1,528
Total Cats: 103
Default

Nice work aidian
MiataMan00 is offline   Reply With Quote
Old 09-18-2017, 06:31 PM   #10436
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default


Sums up my weekend pretty well.

Rain just started. 150 miles till home. Gonna be a long one.

Car has a shimmy over 100mph. Nothing obviously loose. Ideas?
aidandj is offline   Reply With Quote
Old 09-18-2017, 06:32 PM   #10437
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,799
Total Cats: 3,053
Default

go 99mph
18psi is offline   Reply With Quote
Old 09-18-2017, 06:43 PM   #10438
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,592
Total Cats: 965
Default

go 120mph and see if it goes away or gets worse
EO2K is offline   Reply With Quote
Old 09-18-2017, 06:48 PM   #10439
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

Stays the same from about 100-130. I feel like it's been around for a while I just kind of ignored it.

Just NA problems?
aidandj is offline   Reply With Quote
Old 09-18-2017, 06:53 PM   #10440
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,385
Total Cats: 1,602
Default

Also the coating of brass on my Turbo fittings around the wastegate leads me to believe I toasted another bushing.

Over 2000 street miles with no issue. 2 track days and it's gone again. Kind of bummed.

Andrew, do you have any customers that track their turbosmart wastegates (hard)? Any issues?
aidandj is offline   Reply With Quote
