Old 06-21-2012, 10:03 AM   #261
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

You guys and your 180 U bend before the muff. Aside from that, it looks to be the ideal turbo exhaust, but I suspect after a month of 400whp you'll be wishing for a 3.5 or 4" exhaust when you up the boost. Where'd your v-bands come from?
m2cupcar is offline   Reply With Quote
Old 06-21-2012, 01:21 PM   #262
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by m2cupcar View Post
You guys and your 180 U bend before the muff. Aside from that, it looks to be the ideal turbo exhaust, but I suspect after a month of 400whp you'll be wishing for a 3.5 or 4" exhaust when you up the boost. Where'd your v-bands come from?
What else was i supposed to do?! Ha! i had to come out inbetween the diff and the lower control arm mount and then get up to that massive muffler. I saw your 90s into the muffler before i started but i wasnt able to get it to work with what i had.

cheap ebay ones for the V-bands. ~20$ a pop i believe.
yank is offline   Reply With Quote
Old 06-21-2012, 01:25 PM   #263
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

I forget you went with differential overkill- less room. So your cheap ebay v-bands had proper inner diameter? I heard rumors of some choking on the diameters of chinese v-bands.
m2cupcar is offline   Reply With Quote
Old 06-21-2012, 03:09 PM   #264
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by m2cupcar View Post
So your cheap ebay v-bands had proper inner diameter? I heard rumors of some choking on the diameters of chinese v-bands.
Yes. At least the ones i bought.. I was able to slip the 3" pipe in the bands and it was a nice snug fit. I have one set left so i figure i'll make a straight pipe that dumps right before the bumper if i'm feeling obnoxious. The only thing im going to have to watch is getting them lined up perfect. They aren't like those fancy Vibrant ones that have a tongue and groove. Should be able to get them close enough though.

Forgot to mention. I'm waiting on getting my wideband back from Innovate. I kept getting the error code "error 2" which is supposed to represent an open heater circuit. i checked my plug and my wiring and it was correct so they had me send it back for inspection. I'm guessing it'll be another week and i can try to start it up again. Staying productive in the meantime.
yank is offline   Reply With Quote
Old 06-22-2012, 12:04 AM   #265
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

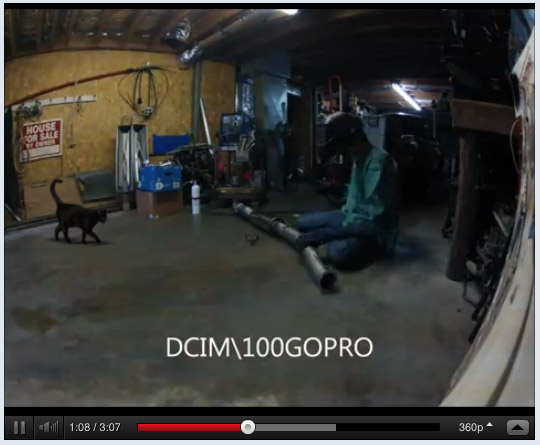

First time lapse on the new gopro. What it is.

yank is offline   Reply With Quote
Old 06-22-2012, 10:06 AM   #266
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

awesome!
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-ghostcat.jpg
m2cupcar is offline   Reply With Quote
Old 06-22-2012, 05:54 PM   #267
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

NRG goodies should be in the mail on Tuesday. Swiping that card hurt a lot worse than i had hoped. Hopefully it'll be a clean install and i'll be happy with it.
yank is offline   Reply With Quote
Old 06-26-2012, 09:22 PM   #268
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

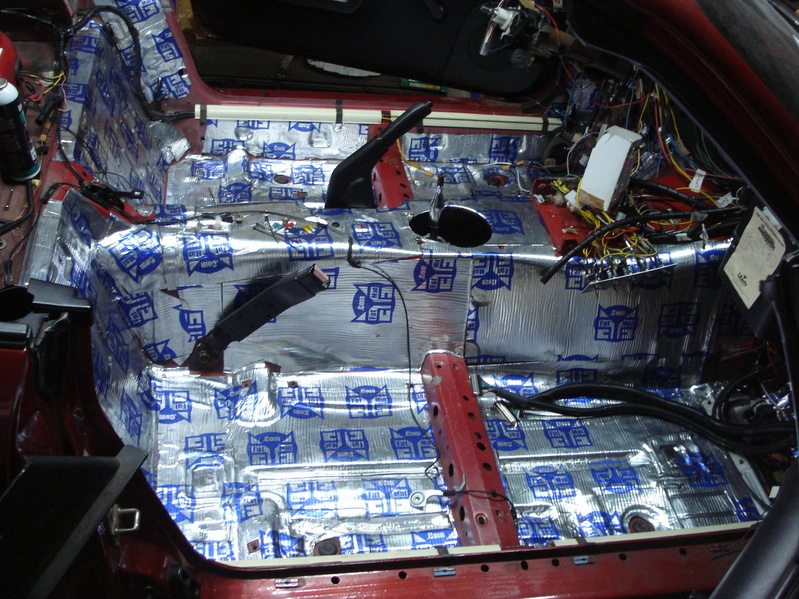

Meanwhile, staying productive. Hopefully this will help with the NVH some.

Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc03101.jpg
yank is offline   Reply With Quote
Old 06-26-2012, 09:26 PM   #269
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

It will help a bunch.
do the rear shelf and doors too.
you'll be pleasantly surprised
18psi is offline   Reply With Quote
Old 06-26-2012, 10:26 PM   #270
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Nice glad to see progress! I was wondering about this car the other day
mighty mouse is offline   Reply With Quote
Old 06-28-2012, 10:25 PM   #271
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by 18psi View Post
It will help a bunch.
do the rear shelf and doors too.
you'll be pleasantly surprised
Good to know. I ordered another 10 sq feet for the doors and the back shelf. may as well get it done now while its apart.

Thanks Mouse. No joke, you and M2 were both a huge inspiration on this build.

The fe3T idea however was planted by Clubroadsters own "PYTHON" at the Deals Gap back in 2008. At the time he was preaching that i should use SDSEFI for engine management. Havent heard of anyone using it since.. Saved up for 3 years and got started.

More good news! I found a local via Google that says he's going to show me the ropes of Tunerstudio!

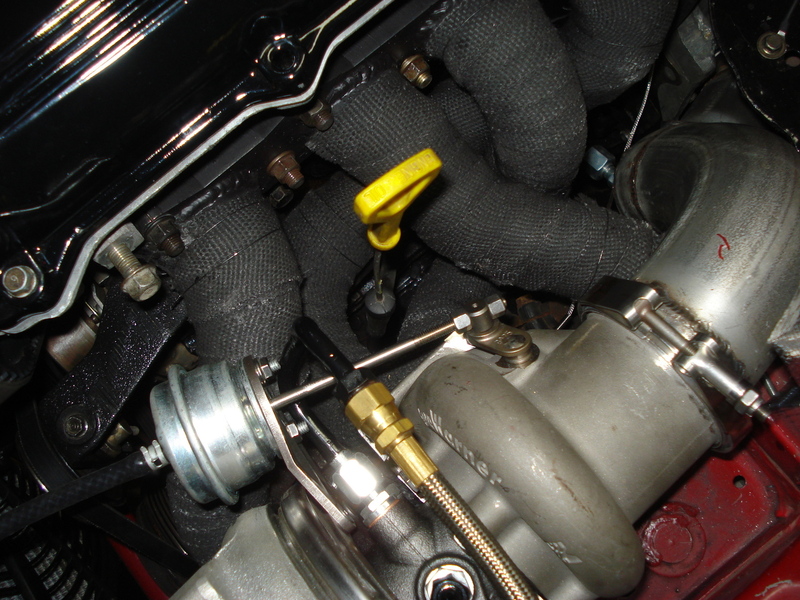

Get lucky much? OEM oil level check tube.

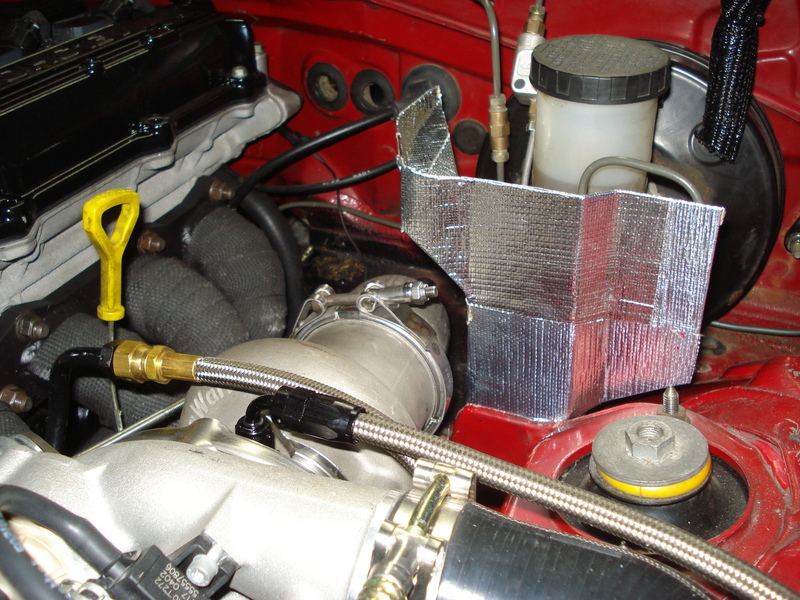

And i doubt this heat shield will hold up long but im giving it a chance to prove itself. Mightymouse. How is this stuff holding up on your car?

Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc03105.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc03106.jpg

Last edited by yank; 06-28-2012 at 10:39 PM.
yank is offline   Reply With Quote
Old 06-29-2012, 10:39 AM   #272
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Oh snap that's lookin all sorts of good. And there really isn't much to tunerstudio. Read up in the MS section here, read up on DIYAutotune and you'll already know enough to set up a decent idle, cruise map, and start tuning boosted cells. That's whats so cool about TS: its relatively easy and user friendly.

I can't wait to see boost onset of this friggen setup. If soviet and 99mx5 are spooling super fast with plain ol BPs, this thing is going to feel like a v8 when properly tuned.
18psi is offline   Reply With Quote
Old 07-02-2012, 06:10 PM   #273
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

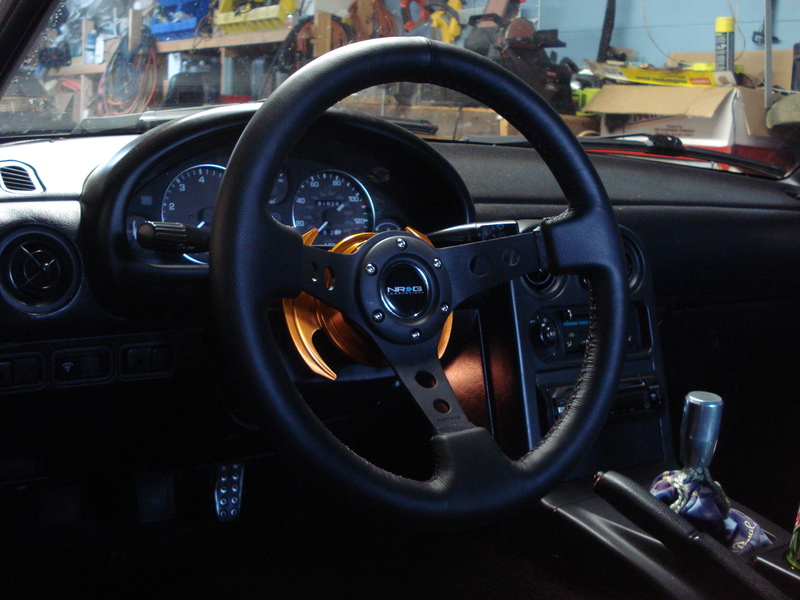

Discussion on wheel halfway down page 6
https://www.miataturbo.net/race-prep...e6/#post898370

Wheel is currently in the white car but will get installed in the FE3T as soon as its road worthy. I'm loving it so far!



Bad news from Innovate on the wideband. They still haven't looked at it yet and they aren't expecting to get to it till Thursday this week.. this puts me another week and a half before i can try to start it again. SUCKS!
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc03128.jpg
yank is offline   Reply With Quote
Old 07-03-2012, 09:11 PM   #274
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

I was surprised to receive a tracking number from Innovate today.. apparently they kicked it into high gear and got mine shipped back. Still waiting to hear if its a replacement or they fixed the issue. Should be on my doorstep Monday afternoon.

I finished Fat Matting the doors and used what was left on the rear tray. Judging by the way it sounded when i knocked on the doors, they will probably make the biggest difference.
yank is offline   Reply With Quote
Old 07-04-2012, 05:58 PM   #275
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

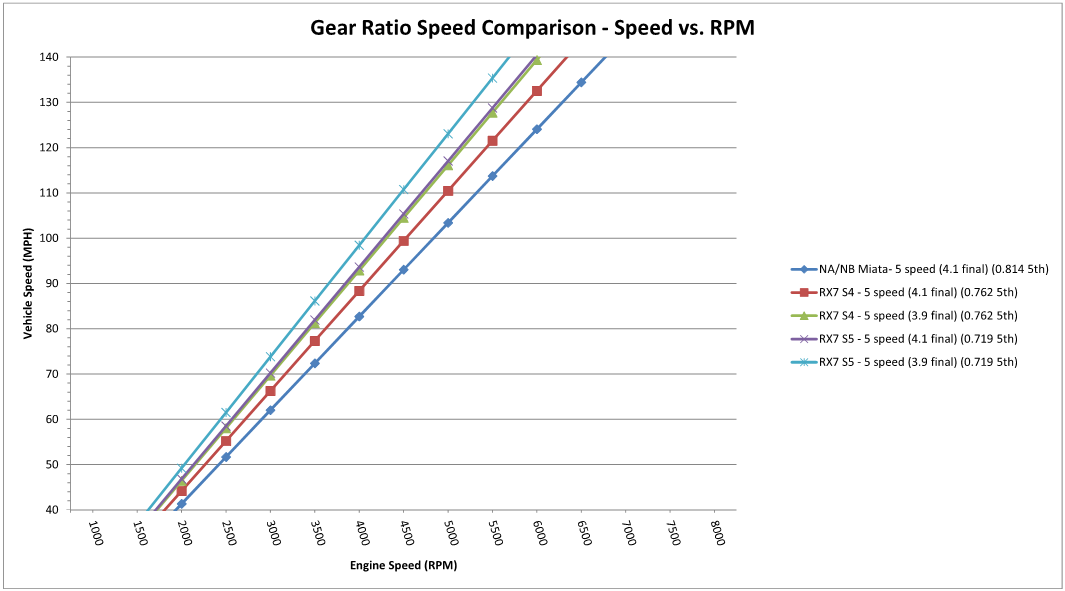

I've been looking into different final drive options and it doesn't look too promising. I'm having a hard time finding different gears for the TII rear. A 3.9 looks tempting if i can get my hands on one. I expect to be spooling the turbo at 3K or less so i'd still be safe cruising on the highway at 70+ mph.


Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-gearratiospeedcomparisonspeedvsrpm.png
yank is offline   Reply With Quote
Old 07-20-2012, 09:59 PM   #276
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

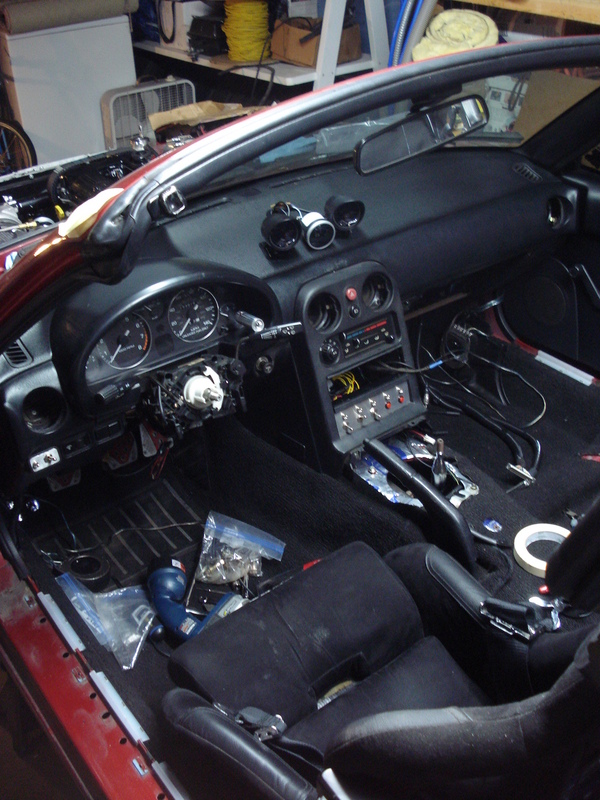

So stoked! Its been over a year since I've seen this car with its interior.



The only thing i have to finish wiring wise is the A/C relay and the signal to the ecu for A/C idle up enrichment.

The owner of Modern-Speed is supposed to be stopping by tomorrow morning to walk me through TunerStudio so hopefully we figure out what the issue is so i can get this thing on the road!

(Cant wait to grenade my EFR just so i can sit on my hands for just a "few months" )
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc03151.jpg
yank is offline   Reply With Quote
Old 07-20-2012, 11:31 PM   #277
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

lol, just go to Autocross!
soviet is offline   Reply With Quote
Old 07-20-2012, 11:33 PM   #278
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

This car is so damn awesome
viperormiata is offline   Reply With Quote
Old 07-21-2012, 10:48 AM   #279
Junior Member

Join Date: Feb 2007
Location: 11368 miles from where i would like to be
Posts: 269
Total Cats: 92
Default

Quote:
Originally Posted by m2cupcar View Post
I suspect after a month of 400whp you'll be wishing for a 3.5 or 4" exhaust when you up the boost.
:-o 3" is good for far far more than 400whp... Rob, what's happening man? :-)

I wish I'd seen this earlier, most of what I want to write is out of date now/too late.

One thing, though: Your engine mounts are very forward on the block. This means that you're bell housing is holding a LOT of load, a lot more than it normally would on a properly setup and/or OEM setup assembly where the engine is balanced naturally. They can and do break. It's not pretty. Beware.

Fred.
rb26dett is offline   Reply With Quote
Old 07-21-2012, 08:30 PM   #280
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

ITS FREAKIN RUNNING!!

Switched a few things around. Its now running in wasted spark mode but im down for this at least until i get the hang of the software.

The car is idling at about 1500 RPM. AFRs are very unstable. (gauge in the car doesn't seem to be working as it bounces between 8 and 10.2) cooling fan is kicking in as its supposed to and the electric water pump even kicked in after the car was off to cool the turbo! ITS SO AWESOME!

...BUT IT RUNS LIKE ----!
(.msl attached)

current goal is to continue to get AFRs stable and to get the idle down to the correct rpm. I'll try to post a vid before the night is over.
Attached Files
File Type: msl Running 1.msl (155.6 KB, 116 views)
yank is offline   Reply With Quote
