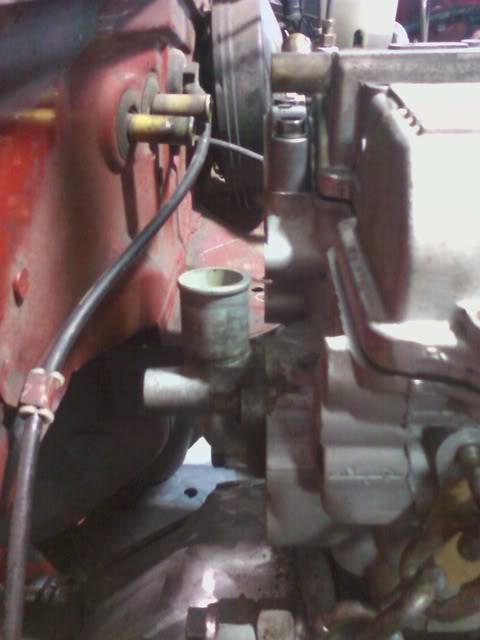

Ive put the Intake manifold on hold till i can get the motor mounts re-made. I wasn't too happy with my first set so i opted for a redesign with some heavier gauge steel and poly bushings.
This means ive go to sort out my coolant re route so i know how close i can get the motor to the firewall. So far i've discovered that the Tsat cap from the 1.6 is the same bolt pattern as the back of the FE head but im not sure if its going to hurt if the outlet is pointing straight up. I should be able to get creative and make my way back to the radiator with it as long as you guys dont think im going to have an issue with it being vertical.
Name:  Photo0175.jpg
Views: 41
Size:  32.8 KB

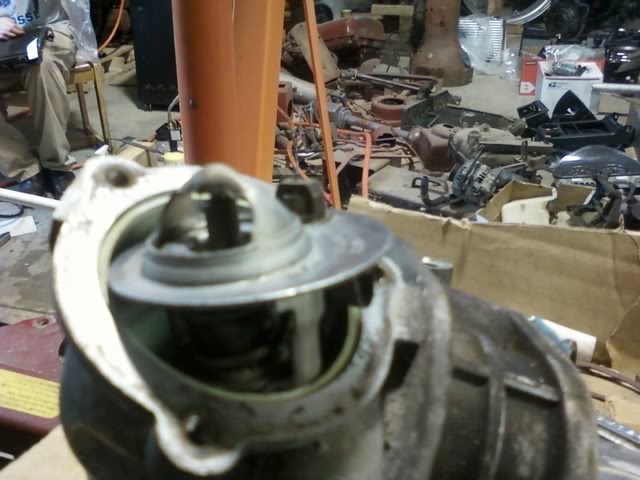

The head doesnt have the recess for the thermostat but i havent read of other guys having issues when they relocate the Tsat to the rear of the 1.6 head which also doesnt have the recess. Recess in stock miata/kia Tsat seen here
Name:  Photo0176.jpg
Views: 40
Size:  50.4 KB

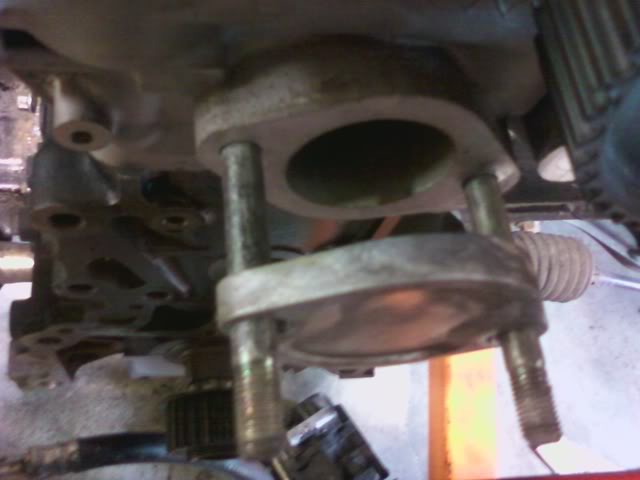

I was able to use the rear cap from the kia to cap the front of the Kia head but i had to drill to a larger size and use the dremmel a bit to make it fit. should work perfect with a different set of studs and a stock kia gasket.

Name:  Photo0177.jpg
Views: 42
Size:  27.9 KB


Threads i've been referencing for coolant re-route
https://www.miataturbo.net/general-miata-chat-9/beginning-my-spacerless-coolant-reroute-12027/
https://www.miataturbo.net/engine-performance-56/%2416-coolant-reroute-32579/

Last edited by yank; 06-28-2011 at 10:35 AM.
yank is offline   Reply With Quote
Old 07-02-2011, 01:31 PM   #42
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

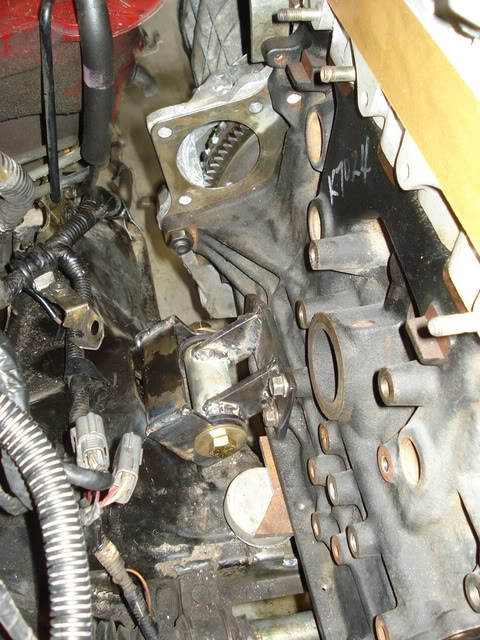

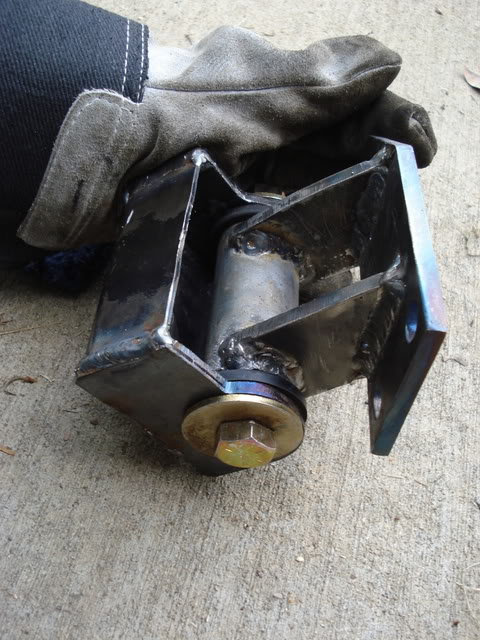

Finished my motor mounts! Moved the motor back about 2.5" and started over. I think these should be strong enough.
Name:  DSC02389.jpg
Views: 40
Size:  112.8 KB
Name:  DSC02387.jpg
Views: 42
Size:  92.9 KB

Poly bushings that match the rest of the car FTW.

Hopefully i finish the transmission mounts later today. Pics when i get done.
yank is offline   Reply With Quote
Old 07-03-2011, 05:17 AM   #43
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by yank View Post
Finished my motor mounts! Moved the motor back about 2.5" and started over. I think these should be strong enough.



Poly bushings that match the rest of the car FTW.

Hopefully i finish the transmission mounts later today. Pics when i get done.
What you doing for the oilpan? Shimming subframe? Only shitty part about having the engine so far back is having less room for the dp, I had to trim alittle off the 6 speed housing to fit my header, worth it for weight distribution though.
dc2696 is offline   Reply With Quote
Old 07-03-2011, 03:52 PM   #44
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

I notched the front subframe down about 1.25" to give me some more depth to the pan in the middle. (pics when i close the hole up prob late next week.) I have a little different idea on the deepest part of the sump than most people have done but its still going to be one of the shallowest pans i've seen. the real problem is the steering rack up front. Im sure you already know but theres the crank tray/ oil tray that gets sandwiched in between the block and the oil pan and it comes down about an inch below the block which is pretty much the bottom of the oil pan up front.. If i have to shim the subframe i will but im hoping not to have to.

Did you coat the inside of your pan with anything or did you figure that since its covered in oil its not going to rust or corrode? Ive got some 16ga stainless steel sheet scraps that i was planing to use to closing it up.
yank is offline   Reply With Quote
Old 07-03-2011, 04:49 PM   #45
Newb
iTrader: (1)

Join Date: Jun 2009
Location: State College, PA
Posts: 27
Total Cats: -2
Default

Quote:
Originally Posted by yank View Post
Ive got some 16ga stainless steel sheet scraps that i was planing to use to closing it up.
Is the stock pan stainless?
mousee is offline   Reply With Quote
Old 07-03-2011, 09:27 PM   #46
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by mousee View Post
Is the stock pan stainless?
good question . ill bring a magnet and check next time i go to the shop. ive heard good and bad things about welding stainless to carbon.. what do you think?
yank is offline   Reply With Quote
Old 07-04-2011, 01:15 AM   #47
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by mousee View Post
Is the stock pan stainless?
The FE3 pan? Stainless? hahaha thats a joke right??? (what oem pans are SS)

Its cast aluminum, and a bitch to weld to as its got 20 years of oil exposure.

Quote:
Originally Posted by yank View Post
I have a little different idea on the deepest part of the sump than most people have done but its still going to be one of the shallowest pans i've seen. the real problem is the steering rack up front. Im sure you already know but theres the crank tray/ oil tray that gets sandwiched in between the block and the oil pan and it comes down about an inch below the block which is pretty much the bottom of the oil pan up front.. If i have to shim the subframe i will but im hoping not to have to.

Did you coat the inside of your pan with anything or did you figure that since its covered in oil its not going to rust or corrode? Ive got some 16ga stainless steel sheet scraps that i was planing to use to closing it up.
My pan is as shallow as possible, I rerouted my pick-up tube around the side of the mbsp so I could have the bottom of the pan almost touching it. The rear sump hangs below the subframe about .25-.5" and it is not shimmed and my hood closes no problem.

I didnt coat my oilpan, its all alum so I'm not worried about the corrosion.
dc2696 is offline   Reply With Quote
Old 07-04-2011, 03:09 AM   #48
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

thats crazy.. i could have sworn my pan was steel when i cut it down the other day. ill check again in the morning. yeah, i didnt figure it was stainless but it was heavy enough to be steel for sure.
yank is offline   Reply With Quote
Old 07-04-2011, 04:17 AM   #49
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

My bad, Kia fe3 is steel ya, jdm Mazda FE-Dohc is alum
dc2696 is offline   Reply With Quote
Old 07-06-2011, 08:17 AM   #50
Newb
iTrader: (1)

Join Date: Jun 2009
Location: State College, PA
Posts: 27
Total Cats: -2
Default

It wasn't a joke, just a thought provoking question. Ferrous and nonferrous no happy together. you can blob it together and maybe make it look ok, but...
mousee is offline   Reply With Quote
Old 07-07-2011, 01:06 PM   #51
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

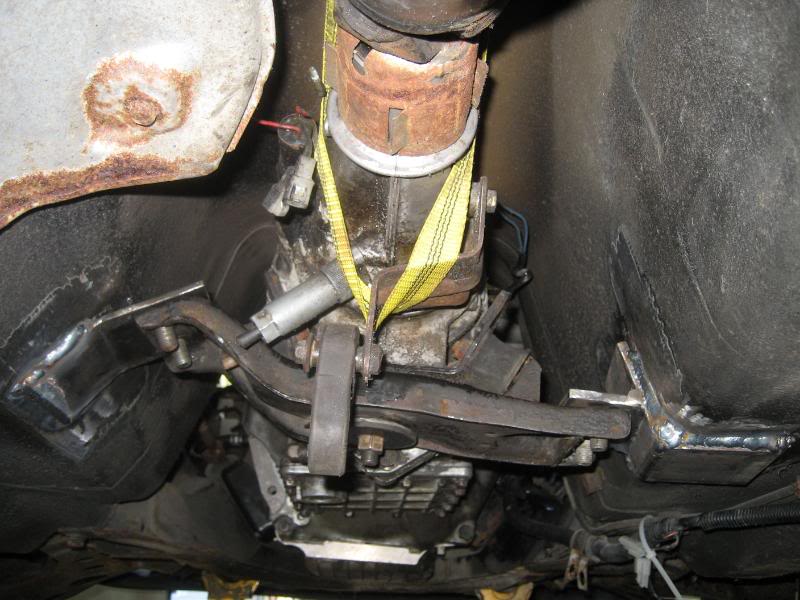

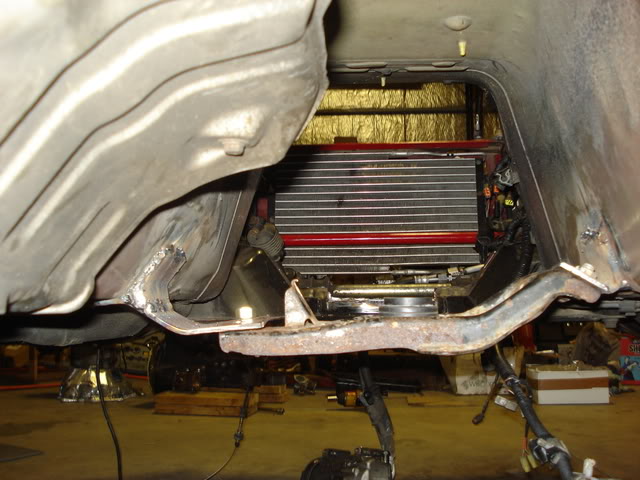

Transmission mounts finally done. Hope to get the driveshaft to the machine shop today and then ill be working on coolant reroute stuff. drilling tapping the head etc..


Name:  DSC02400.jpg
Views: 42
Size:  74.4 KB

Last edited by yank; 07-08-2011 at 12:30 AM.
yank is offline   Reply With Quote
Old 07-07-2011, 01:11 PM   #52
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

You might want to consider boxing the ends of those in.... i doubt they would handle any torque.
shlammed is offline   Reply With Quote
Old 07-08-2011, 12:27 AM   #53
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by shlammed View Post
You might want to consider boxing the ends of those in.... i doubt they would handle any torque.
Thought about adding a gusset to the one on the right but really how strong do they need to be?.. I'd feel comfortable throwing 500lbs of dead weight on each of them no problem. they're stronger than they look. I count on the motor mounts taking most of the torque and the trans mounts to hold up the trans and keep it centered where it needs to be.

Edited above post with better pic. cant really see it in the pic but they are about 5 inches wide.
yank is offline   Reply With Quote
Old 07-08-2011, 12:40 AM   #54
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

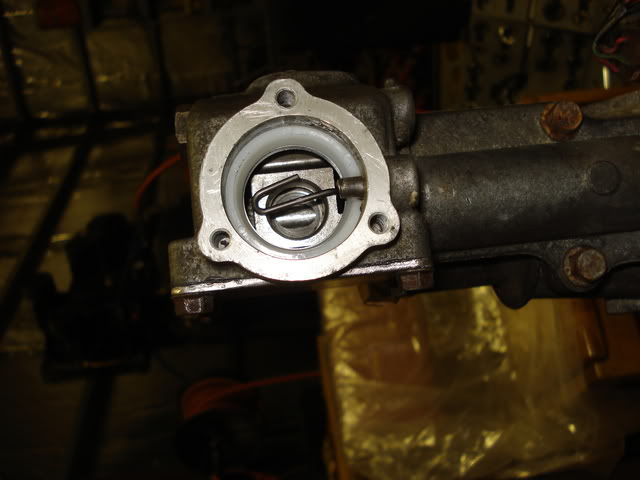

Rebuilt the shifter with new springs and retainers. Feels just like a stock miata shifter. All transmission replacement parts sourced from mazdatrix.com

Name:  DSC02401.jpg
Views: 42
Size:  49.3 KB

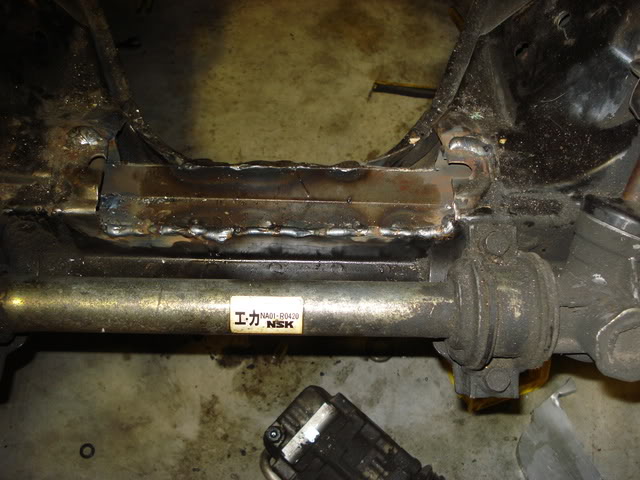

This is the front sub frame mod i mentioned earlier. Im hoping to have a little deeper pan and possibly gain some extra oil capacity. Reinforced with 12 gauge steel front and back. Ill box this in after i finish the oil pan and mount the engine in case i have to do any more grinding.
Name:  DSC02402.jpg
Views: 40
Size:  73.2 KB

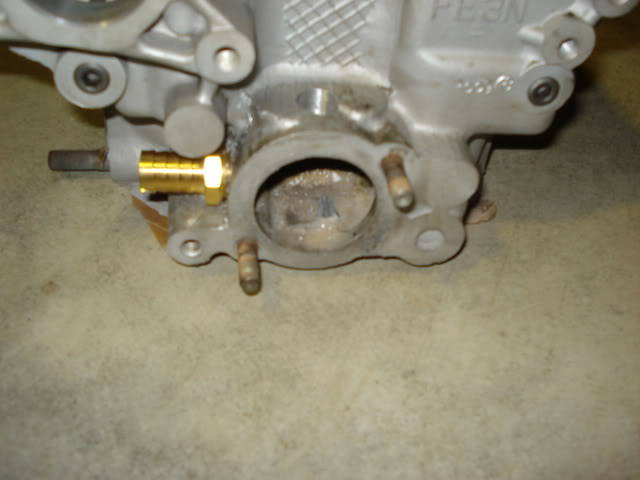

Coolant reroute in progress. I still need to drill and tap for the gauge sensor. Ill have to pick up the right size tap at the store tomorrow.
Name:  DSC02404.jpg
Views: 39
Size:  41.1 KB

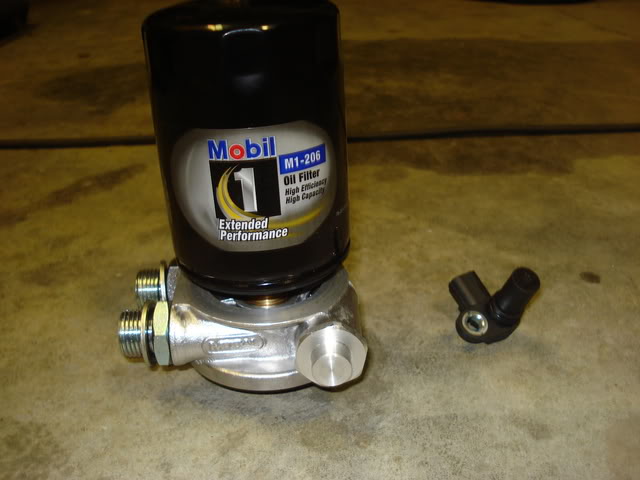

New parts! Mocal sandwich plate and VR sensor from a 2000 ford focus. the M1-206 oil filter is the largest one i could find with the right threads. Name:  DSC02405.jpg
Views: 43
Size:  51.3 KB

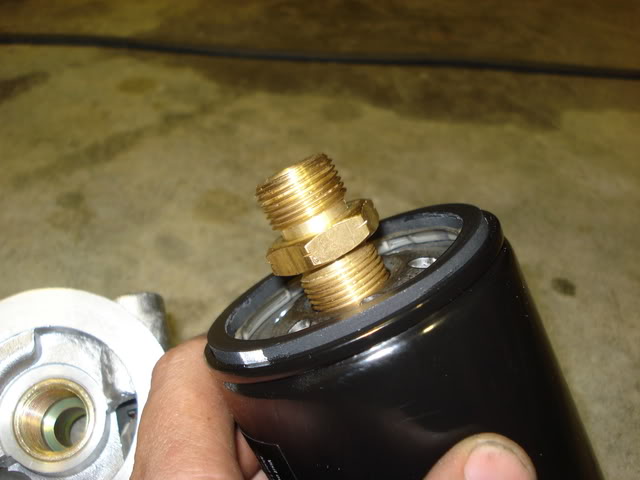

Had to pick up an extra male to male connector to thread into the fitting provided in the kit. I really need one with another .5" of thread on one side at least so im going to keep looking.
Name:  DSC02406.jpg
Views: 40
Size:  47.6 KB
yank is offline   Reply With Quote
Old 07-14-2011, 12:05 AM   #55
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

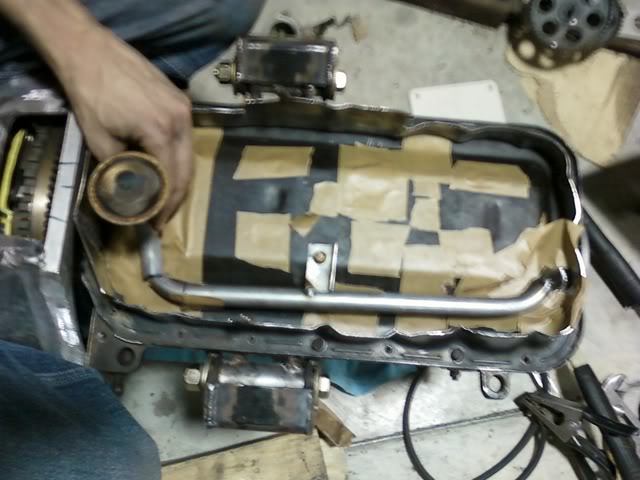

Oil pickup tube and oil pan in progress. My engine sits a bit lower than M2cupcars and DC2696s which has made the oil pickup tube a challenge. I've been battling contaminated welds and tight clearances which is making this step frustrating and time consuming. The stainless steel sheet metal seems to be welding nicely with the carbon steel of the stock oil pan. I'm learning that welding stainless steel is much different than carbon steel so hopefully I figure out the technique before i get started on the exhaust manifold.

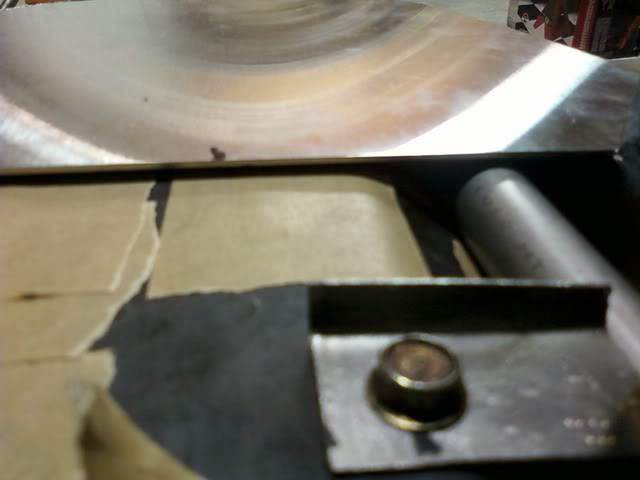

Here's some blurry cell phone pictures of the tolerances and layout I'm having to go with.

Name:  Photo0184.jpg
Views: 42
Size:  49.0 KB

Name:  Photo0183.jpg
Views: 40
Size:  23.9 KB
yank is offline   Reply With Quote
Old 07-14-2011, 12:13 AM   #56
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

My oil pan is the depth of the pickup tube, doesn't get any more shallow than that. One bolt on the pick up flange is a bitch as my tube runs right over it to get around the mbsp. I'll take some pics as the subframe and oilpan needed work after an incident with a curb 8S
dc2696 is offline   Reply With Quote
Old 07-14-2011, 12:22 AM   #57
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by dc2696 View Post
One bolt on the pick up flange is a bitch as my tube runs right over it to get around the mbsp. I'll take some pics as the subframe and oilpan needed work after an incident with a curb 8S
I know exactly what your talking about with that bolt! i can just barely got it in. Sucks about the curb bro. any pics you can take help a ton thanks.
yank is offline   Reply With Quote
Old 07-14-2011, 02:26 PM   #58
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

How thick is that plate you used for your trans mount- it looks like 1/8". I would absolutely box it in or add a gusset. It's easy to do while everything is apart.

my trans brackets are 1/4" and I put gussets on the driver's side. The pass side I didn't feel needed a gusset, because it already had more weld area
mighty mouse is offline   Reply With Quote
Old 07-14-2011, 03:06 PM   #59
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by mighty mouse View Post
How thick is that plate you used for your trans mount- it looks like 1/8". I would absolutely box it in or add a gusset. It's easy to do while everything is apart.

my trans brackets are 1/4" and I put gussets on the driver's side. The pass side I didn't feel needed a gusset, because it already had more weld area
3/16." Ill add one to the passenger side. we both did ours different. I rotated the trans mount 180 so i could route the exhaust above the driver side mount. did you go under? I don't see how your welds turned out so nice man.. that body metal is Soooo thin.
yank is offline   Reply With Quote
Old 07-14-2011, 06:07 PM   #60
Senior Member
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by yank View Post
3/16." Ill add one to the passenger side. we both did ours different. I rotated the trans mount 180 so i could route the exhaust above the driver side mount. did you go under? I don't see how your welds turned out so nice man.. that body metal is Soooo thin.

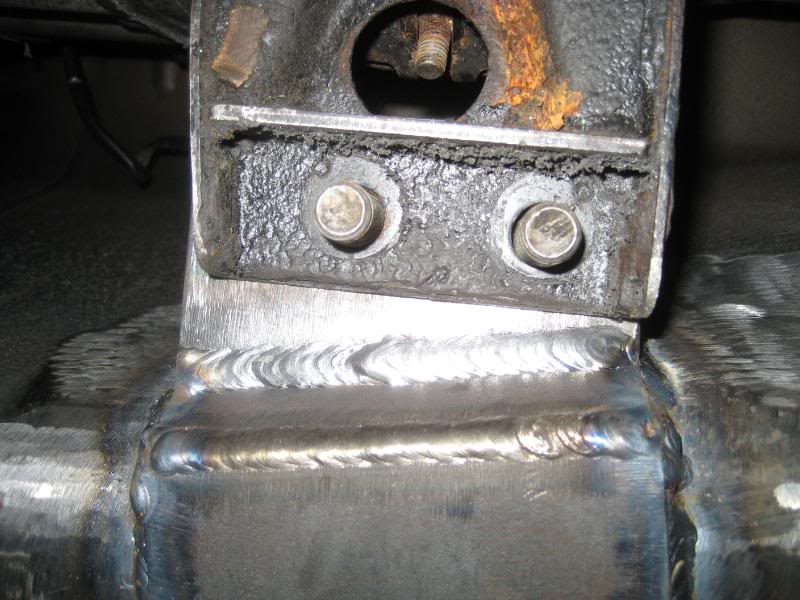

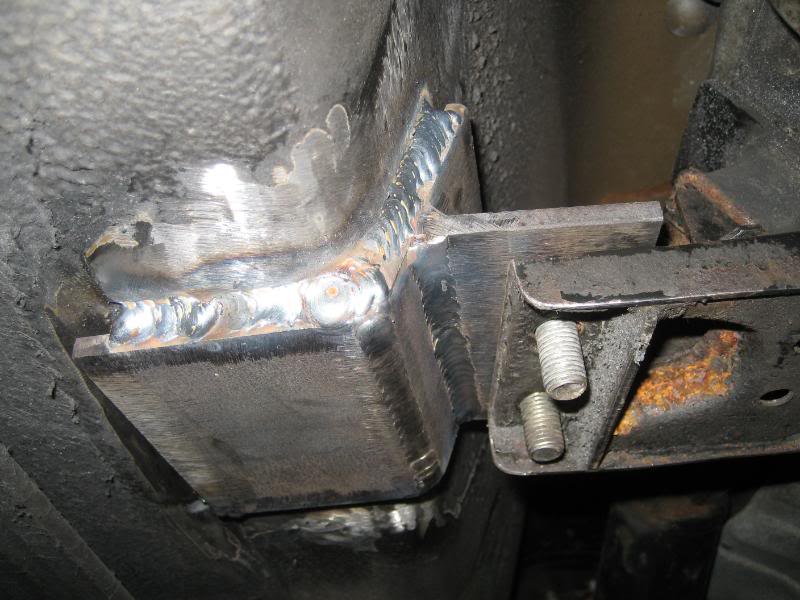

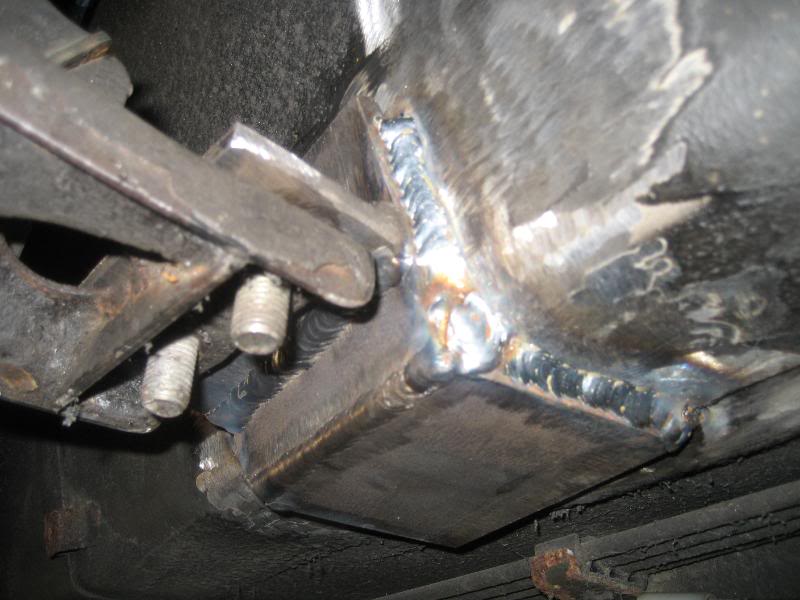

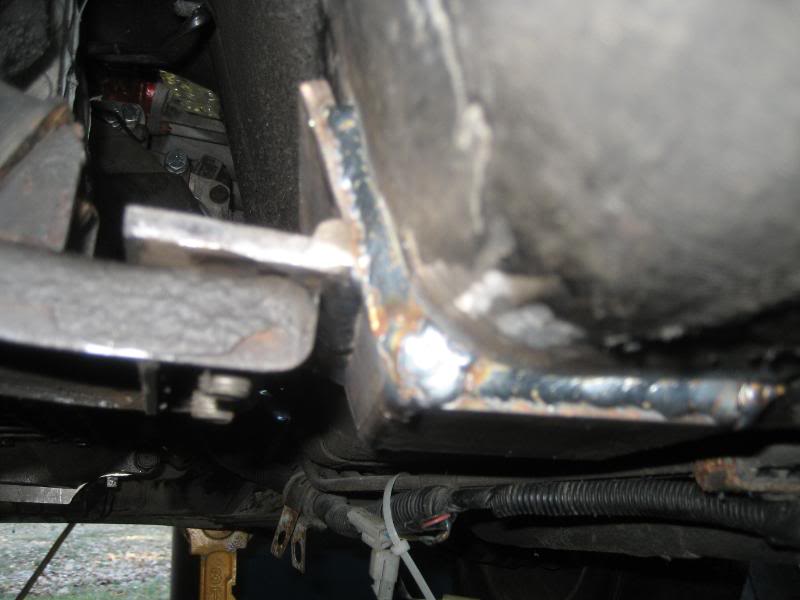

I rotated the trans mount 180 from how it was normally on the RX7, and the exhaust goes under the "hump" in the mount. The way you have it looks very similar to how I did mine. The metal on the trans tunnel is double walled, so you can put some heat into it. The floorboards however are not. Found that out the hard way...haha







Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-166.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-167.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-168.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-177.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-174.jpg

mighty mouse is offline   Reply With Quote
