Started to remove a couple of small items here and there to see if I could get a good look at the carnage for you guys.

It feels a bit like spending a year on a puzzle and the shitty feeling you get when it's time to COMPLETELY-****-IT-UP and put it back into the box.




Ooo a little piece of my oil pan eh?


Mmmm a little hole in my engine eh? (Passenger side)


Another hole in my engine... eh? (Drivers side)


And yes, I can shine a flashlight in one side of my block and it comes out the other

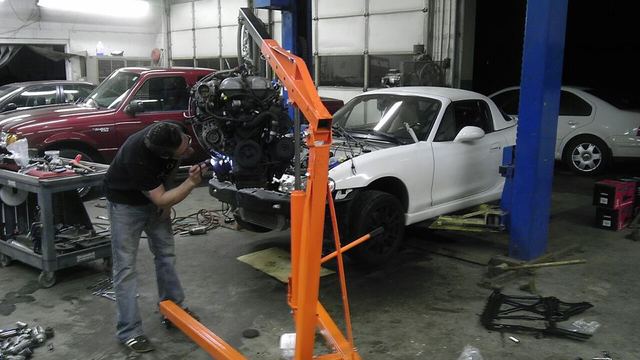

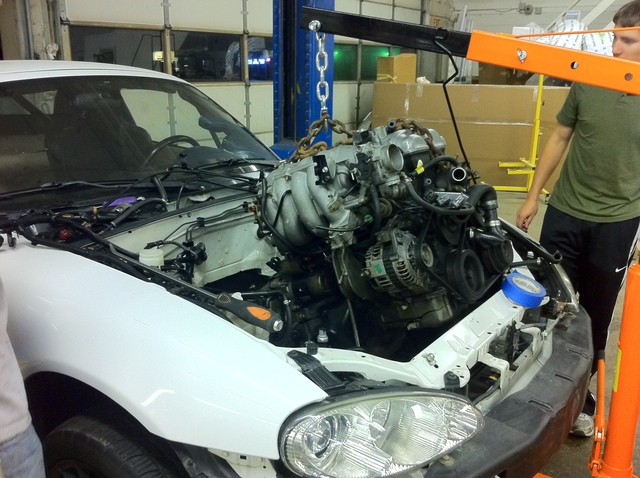

Made some time to pull the engine this past weekend.





Didn't take long to get her out. The damage is truly impressive. The pan is blown away, right side of the block has a softball sized hole and the left has a golf-ball sized hole.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-photouux.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img7623y.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img7622ev.jpg
miatauser123 is offline   Reply With Quote
Old 09-30-2011, 11:44 AM   #44
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

This car is so sexy. Looking forward to a new motor in this ****.
Bond is offline   Reply With Quote
Old 10-05-2011, 11:31 AM   #45
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

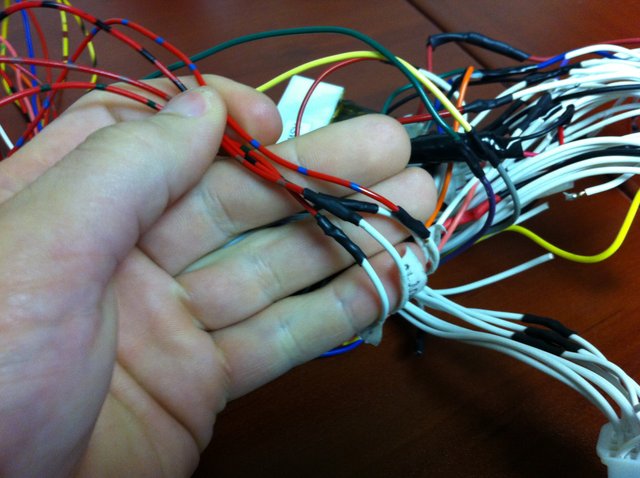

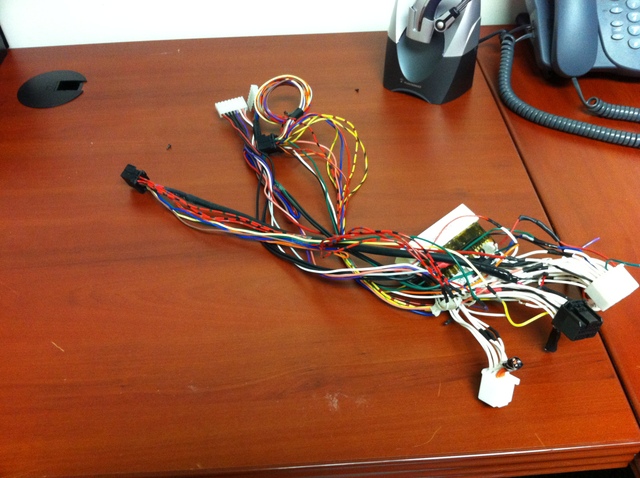

So I've purchased the Adaptronic ECU. It was second hand and came from a 99 so the harness is incomparable with my car. I used my old XEDE harness to adapt my new ECU for my car without having to splice my factory harness.

Reference Adaptronic Pinout>Cut>Strip>Solder>Heatshink... NEXT! Reference Adaptronic Pinout>Cut>Strip>Solder>Heatshink... NEXT! Reference Adaptronic Pinout>Cut>Strip>Solder>Heatshink... NEXT! Blah.

Not pretty now but wait until I finish. The Adaptronic will actually allow me to use the factory ECU to control my idle valve which is handy for me because I hate tuning idle on a stand alone system. But in order to do this it must see a MAF, O2, and IAT. So I've got to fake those signals by wiring in 1k Resistors and then grounding it.




More updates to come - I'm waiting for a couple of schottky diodes in the mail and I'll get it buttoned up.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2491o.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2492o.jpg
miatauser123 is offline   Reply With Quote
Old 10-06-2011, 02:39 AM   #46
Junior Member
iTrader: (30)

Join Date: Jul 2011
Location: Chandler, AZ
Posts: 430
Total Cats: -11
Default

fap fap fap
Silentoreo34 is offline   Reply With Quote
Old 10-06-2011, 11:43 AM   #47
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Braineack View Post
Those rods start to deform in the 250rwtq area, and that's about where he was at.
They deform at much less torque when run close to MBT on pump gas, and especially with high c/r, due to high peak cylinder pressures. Mine deformed at 205 tq.
JasonC SBB is offline   Reply With Quote
Old 11-16-2011, 02:16 PM   #48
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

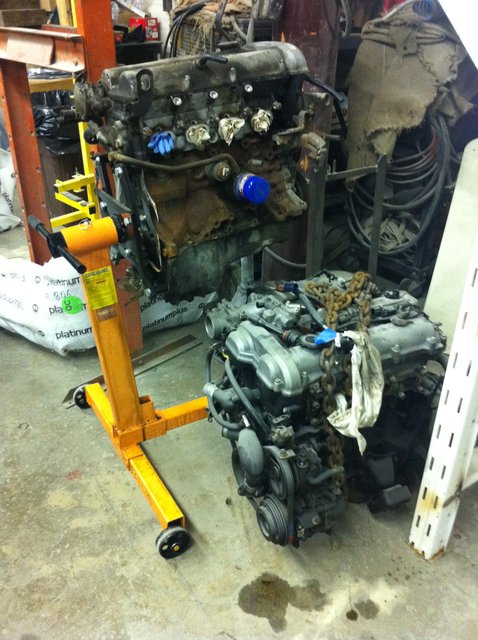

Long time no update... I've received my new..ish engine. It's a Japanese 1.8 out of an NA Miata. I wasn't looking for a Japan motor because from my understanding there are no real differences but that's what showed up.




So after some internal debate...haha get it? ...reading and pricing some things out. I've purchased my engine internals and they are as follows:

Pistons: CP Pistons .5mm Oversize: 83.5 mm Bore 9.0 Compression
Rods: Belfab H Beam Rods 600+ HP
Bearings: ACL Main, Thrust and Rod bearings
Head Gasket: OEM Mazda
Hardware: ARP

The only delay is the pistons. 2 weeks out but I'm not in a rush and I still need to dig into the new motor.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2738x.jpg
miatauser123 is offline   Reply With Quote
Old 11-17-2011, 10:56 AM   #49
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: On, Canada
Posts: 81
Total Cats: 1
Default

yup thats an oil tube you can see where it bolts to the block its a piston squirter.

nevermind browser didnt update page properly.
either way im lucky i only took a chunk out of my #3 piston then mine let go.

Kris.
uavjeep is offline   Reply With Quote
Old 11-17-2011, 11:13 PM   #50
Junior Member

Join Date: Oct 2008
Location: Harrisonburg,VA
Posts: 134
Total Cats: 1
Default

Is a metal gasket better than a OEM one? If so i'd use that, no sense in forging the engine and not upgrading everything.
Bassmachine is offline   Reply With Quote
Old 11-18-2011, 01:58 AM   #51
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Wow, the car came along very well. Very clean. It sucks your motor grenaded :(

Good luck on the rebuilt
buffon01 is offline   Reply With Quote
Old 11-28-2011, 12:13 PM   #52
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Bassmachine View Post
Is a metal gasket better than a OEM one? If so i'd use that, no sense in forging the engine and not upgrading everything.
Not positive and I've still got time to change my mind but from what I've seen the OEM is a good idea.
miatauser123 is offline   Reply With Quote
Old 11-28-2011, 12:13 PM   #53
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

New rods showed up. Still waiting on pistons unfortunately. I tore down the old block in anticipation for machine work. It doesnt look too bad. My new slugs are only .5 over so this should be perfect. Being that the Miata runs an iron block nothing should be too out of order.

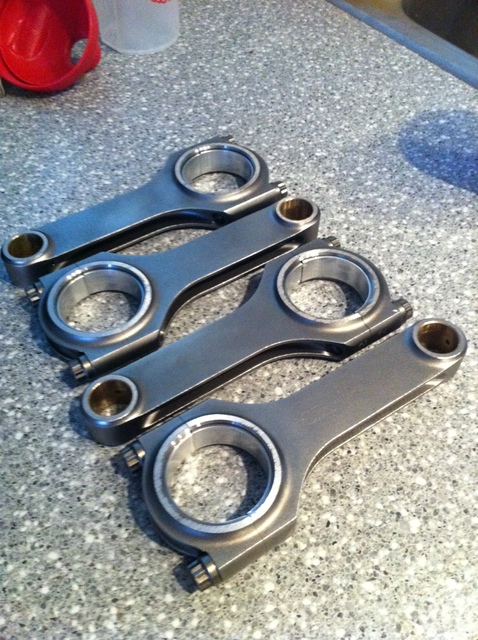

Belfab 600+HP rods:

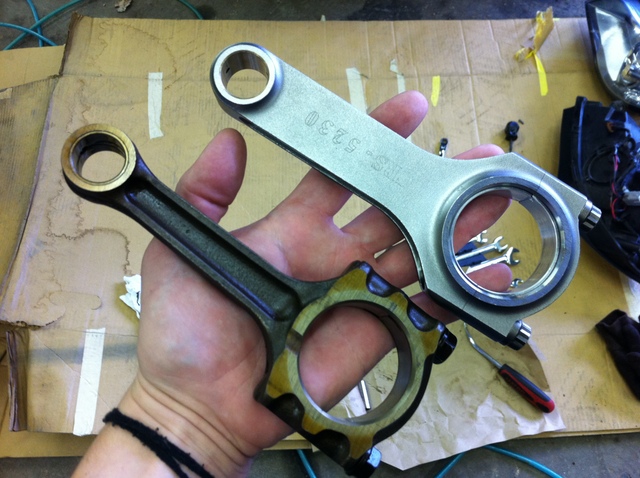

OLD vs NEW.. The stock Miata rods really are some soft ****..

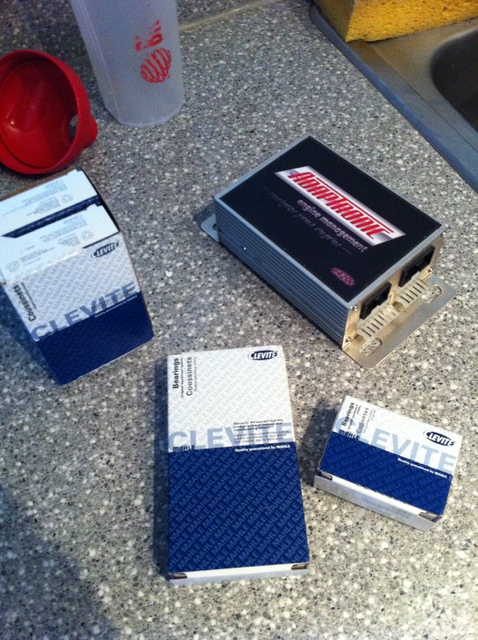

New bearings and thrust washers are here as well..


I've probably got another week until the Pistons show up so stay tuned.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2858k.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2873k.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2859ku.jpg
miatauser123 is offline   Reply With Quote
Old 11-28-2011, 02:16 PM   #54
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Hmmm. I like this thread. Though I'm surprised at only 13.5psi it let go.
Doppelgänger is offline   Reply With Quote
Old 11-28-2011, 04:52 PM   #55
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

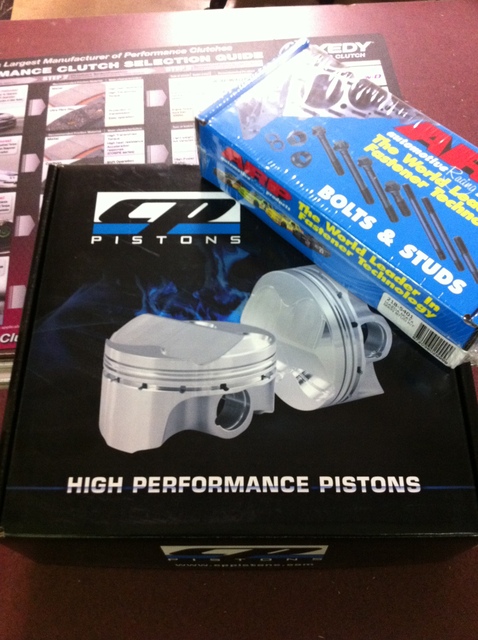

Mmm.. So look what showed up today.





I'll be dropping the engine off at the machine shop tomorrow.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2879m.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2880v.jpg
miatauser123 is offline   Reply With Quote
Old 11-28-2011, 07:31 PM   #56
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Damn I have the same rods and I forgot how frikken huge they are compared to the factory toothpicks.

MORE BIGGERER TURBOERRRE!
Faeflora is offline   Reply With Quote
Old 11-30-2011, 11:49 AM   #57
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Dropped off the pistons for dome and skirt coatings i'll have pictures in awhile.
miatauser123 is offline   Reply With Quote
Old 11-30-2011, 04:25 PM   #58
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

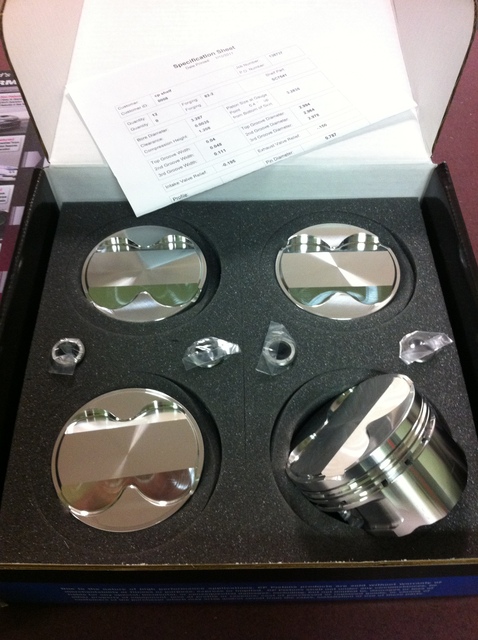

Alright kids. Things are moving along with the quickness. Picked up the pistons and dropped them off with the Block, Rods, Rings, Bearings, Mains, Crank and hardware.

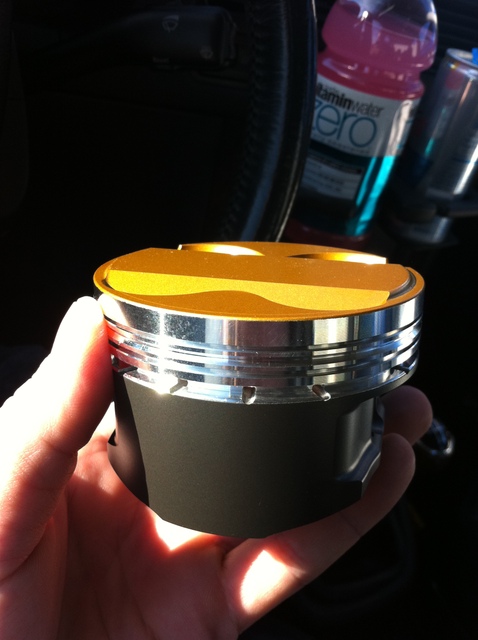

These sons of bitches are pretty:
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img2892oz.jpg
miatauser123 is offline   Reply With Quote
Old 12-01-2011, 11:41 AM   #59
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

UPDATE: Last night I went and tore the head off of the old block (because I'd like to use it on the new block) and it's all in tact! The thing looks clean! I'll bring it home and gasket match the intake and exhaust sides with a Dremel. I'll have it hot tanked and leak tested but nothing made contact with the piston so I'm a happy guy.
miatauser123 is offline   Reply With Quote
Old 12-03-2011, 04:24 PM   #60
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

This is one of my favorite builds on here, LMK if there is anything you are looking for.
Renown Performance is offline   Reply With Quote
